Kallista P50016 Assembly instructions

Homeowners Guide
Whirlpool
Français, page ″Français-1″
Español, página ″Español-1″
P50016
1034059-5-C

Important Information
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRICAL SHOCK, OR INJURY TO PERSONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of personal injury. To reduce the risk of injury, do not permit children to use this
unit unless they are closely supervised at all times.
WARNING: Risk of personal injury. To avoid injury, exercise care when entering or exiting the
whirlpool.
WARNING: Risk of electric shock. Do not permit electric appliances (such as a hair dryer, lamp,
telephone, radio, or television) within 5’ (1.5 m) of this whirlpool.
WARNING: Risk of hyperthermia. People using medications and/or having an adverse medical
history should consult a physician before using a whirlpool equipped with a heater.
Use this whirlpool only for its intended purpose as described in this manual. Do not use attachments not
recommended by the manufacturer.
Never drop or insert any object into any opening.
Do not operate this unit without the guard (cover) over the suction fitting.
The whirlpool must be connected only to a supply circuit that is protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD). Such a GFCI or RCD should be provided by
the installer and should be tested on a routine basis. To test the GFCI or RCD, press the test button. The
GFCI or RCD should interrupt power. Press the reset button. Power should be restored. If the GFCI or RCD
fails to operate in this manner, the GFCI or RCD is defective. If the GFCI or RCD interrupts power to the
bath without the test button being pressed, a ground current is flowing, indicating the possibility of an
electric shock. Do not use this whirlpool bath. Disconnect the whirlpool and have the problem corrected by a
qualified service representative before using.
WARNING: The use of alcohol, drugs, or medication can greatly increase the risk of fatal
hyperthermia. Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs
when the internal temperature of the body reaches a level several degrees above the normal body
temperature of 98.6°F (37°C). The symptoms of hyperthermia include an increase in the internal
temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia
include: (a) failure to perceive heat, (b) failure to recognize the need to exit the bath, (c)
unawareness of impending hazard, (d) fetal damage in pregnant women, (e) physical inability to
exit the bath, and (f) unconsciousness resulting in the danger of drowning.
IMPORTANT! Flush your whirlpool system twice a month or more depending upon usage, as described
in the ″Care and Cleaning″section.
Do not allow the water temperature in the whirlpool to exceed 104°F (40°C).
Keep small objects such as bath toys and bathing accessories out of the whirlpool while the unit is running.
Repeated use of personal care products containing oils can damage plastic whirlpool components. Do not use
heavy, vegetable-based shampoos or bath oils.
Whirlpool hydro-massage action can cause even a small amount of bubble bath, bath soap, shampoo, or bath
oil to foam excessively. For this reason, please don’t use these products during whirlpool operation.
1034059-5-C 2 Kallista

Table of Contents
Important Information .............................................................. 2
Thank You For Choosing Kallista ..................................................... 3
Your Kallista Whirlpool ............................................................. 3
User Keypad And Whirlpool Modes/Features ............................................ 4
Operating Your Whirlpool ........................................................... 4
Remote Control .................................................................. 5
Programming the Remote Control ..................................................... 5
FCC Compliance ................................................................. 5
Care and Cleaning ................................................................ 6
Cleaning Your User Keypad and Remote Control ....................................... 6
Flushing Your Whirlpool System .................................................... 6
Limited Five-Year Warranty ......................................................... 7
Troubleshooting Procedures ......................................................... 8
Remove the Factory Installed Jets .................................................. 8
Reinstall the Jets ............................................................... 8
Troubleshooting Guide ........................................................... 8
Service Parts ................................................................... 11
Thank You For Choosing Kallista
Thank you for choosing Kallista. Your Kallista product combines exceptional performance with timeless
classic elegance that will satisfy you for years to come. The dependability and beauty of your Kallista
product will surpass your highest expectations.
Please take a few minutes to study this Homeowners Guide. Pay special attention to the care and cleaning
and warranty information.
All information in this manual is based upon the latest product information available at the time of
publication.
Your Kallista Whirlpool
Your new whirlpool is designed to stimulate, invigorate, and energize your body with comforting
hydro-massage therapy. The whirlpool consists of the following components:
Bath - acts as a reservoir for water, and provides a location for the hydro-massage action.
User Keypad - located within easy reach, the keypad allows you to turn the whirlpool and heater
on and off and regulate the water flow through the jets.
Pump Motor - provides quiet, variable speed power to circulate the water and create the soothing
hydro-massage action.
Adjustable Jets - positioned to optimize their hydro-massage effect, the jets allow you to adjust the
air and water flow and control the flow direction as you desire.
Heater - designed to automatically help maintain the temperature of the water up to 104°F (40°C) to
enhance your hydro-massage experience. The heater turns on automatically when the whirlpool is
operating, and turns off when the pump motor is turned off. The heater may be turned off, through
the keypad, at any time while the pump is operating.
Remote Control - submersible control that allows you to control the whirlpool functions from either
inside or outside the bath.
Kallista 3 1034059-5-C

User Keypad And Whirlpool Modes/Features
Power - Turns the whirlpool pump on and off.
Up Arrow - Increases the water flow.
Down Arrow - Decreases the water flow.
Heater - The heater automatically engages when the whirlpool is turned on. You may turn the
heater off by pressing the heater button. Press the button a second time to turn the heater back on.
Indicator Bar - Shows the water flow volume.
Operating Your Whirlpool
Turn the jet trim fully counterclockwise. Position the jet nozzles so they face down toward the basin.
NOTE: The water temperature in the whirlpool should never exceed 104°F (40°C). A built-in heater
automatically maintains the water temperature when the whirlpool is running, as long as the water
temperature does not exceed 104°F (40°C). The heater will disengage at higher temperatures.
Close the drain, and fill the whirlpool to a level at least 2” (5.1 cm) above the top of the highest jet.
Use your hand to test the water temperature for comfort and safety, then carefully enter the bath.
Press Power to turn on the whirlpool. The whirlpool will start at medium volume. The heater will
also turn on and the heater icon will illuminate.
Increase or decrease the water flow by pressing the up or down arrows on the keypad. An indicator
bar in the center of the keypad shows the water flow volume.
Adjust the jets for optimum air/water mixture. Turn the jet trim clockwise to reduce the flow, and
counterclockwise to increase the flow. Position the jet nozzles to direct the water flow as desired to
maximize your hydro-massage experience.
The heater automatically engages when the whirlpool is turned on. You may turn the heater off by
pressing the heater button on the keypad. Press the button a second time to turn the heater back on.
Press Power a second time to turn off the whirlpool.
NOTE: Your whirlpool will automatically stop after approximately 20 minutes of continuous operation.
You can restart the whirlpool, if you desire, by pressing Power.
Carefully exit the bath, and open the drain to empty the whirlpool.
NOTE: If the whirlpool does not function properly, please refer to the ″Troubleshooting″section.
Heater
On/Off
Power
On/Off Decreases
Flow
Indicator Bar -
Shows water
flow volume
Increases
Flow
Heater Indicator Light
Lighted User Keypad
Turn the jet trim
clockwise to
decrease the flow.
Turn the jet trim
counterclockwise to
increase the flow.
1034059-5-C 4 Kallista

Remote Control
The remote control places the whirlpool functions at your fingertips to further enhance your bathing
experience. The functions of the remote are identical to the user keypad. You may turn the
whirlpool on and off, turn the heater on and off, and increase or decrease the water flow by the
press of a button.
The waterproof remote control is designed to be used in the bath and will float in the water.
Two AAA batteries are used in the remote control. To replace, simply unscrew the end cap and
insert the batteries, as shown above. Tighten the end cap securely, making sure the end cap makes
contact with the seal.
Programming the Remote Control
IMPORTANT! Programming the remote control is required. Your whirlpool will not respond to any
remote control until you program the remote. If you replace the remote control or replace the pump
control, it will be necessary to program the remote control.
Turn the whirlpool power on.
Turn off all modes of operation. Wait approximately one minute until the keypad darkens
completely (Sleep mode).
On the user keypad, press the UP arrow, DOWN arrow, and the ″Heater″icon simultaneously. The
bottom LED on the keypad’s indicator bar will begin flashing.
While the LED is flashing, press the ″Heater″icon on the keypad. A light sequence will illuminate
up and down the indicator bar.
While the indicator bar light sequence is active, press any button on the remote control. The keypad
will stop the light sequence, perform a download, and then darken. This user keypad will only
respond to this remote.
NOTE: If you do not press any of the buttons on the remote within two minutes the whirlpool will not
respond to the remote control.
FCC Compliance
FCC ID : N82-KOHLER001
Canada ID : 4554A-KOHLER001
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is
subject to the following two conditions:
Power
Heater
Increases Flow
Decreases
Flow
Kallista 5 1034059-5-C

FCC Compliance (cont.)
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void the
users authority to operate the equipment.
Care and Cleaning
For best results, keep the following in mind when caring for your Kallista product:
General Cleaning - Use a mild detergent such as liquid dishwashing soap and warm water for cleaning.
Rinse well to remove all detergent and gently dry. Do not use abrasive cleaners that may scratch or dull the
surface.
Read Labels - Carefully read the cleaner product label to ensure the cleaner is safe for use on the material.
Test First - Always test your cleaning solution on an inconspicuous area before applying it to the entire
surface.
Do Not Let Cleaners Soak - Do not allow cleaners to sit or soak on the product.
Wipe Clean - Wipe surfaces clean and rinse completely with water immediately after cleaner application.
Rinse and dry any overspray that lands on nearby surfaces.
Avoid Abrasive Materials - Use a soft, dampened sponge or cloth. Never use an abrasive material such as a
brush or scouring pad to clean surfaces.
For detailed cleaning information and products to consider, visit www.kallista.com/tools_and_resources.html.
For additional assistance, please contact Kallista Customer Service at 1-888-4-KALLISTA (1-888-452-5547).
Cleaning Your User Keypad and Remote Control
Use a soft cloth to wipe the keypad and remote control after each use. If the surface becomes dirty,
use a non-abrasive soap and warm water to clean.
Flushing Your Whirlpool System
Flush your whirlpool system twice a month or more, depending upon usage. Use the following sequence:
Turn the jet trim rings fully clockwise to remove air induction.
Fill the whirlpool with warm water to a level at least 2″(5.1 cm) above the highest jets, or leave
water in the whirlpool after using.
Add 2 tablespoons (30 ml) of a low-foaming dishwasher detergent and 20 ounces (590 ml) of
household bleach (5% - 6% sodium hypochlorite) to the water.
Run the whirlpool for 5 to 10 minutes. Turn off the whirlpool and drain.
If desired, rinse the bath surfaces with water.
Rinse the surfaces of the jets, faucet, handrails, drain, etc. and wipe them dry with a soft cloth.
1034059-5-C 6 Kallista

Limited Five-Year Warranty
Kallista warrants that its products conform to the relevant published specifications, and are free of defects in
workmanship or materials during normal residential use.
Kallista warrants, for a period of five years from the date of purchase from Kallista, that it will replace or
repair any product, with the exception of product within the Kallista Hampstead and Stafford Vitreous line,
which, having been installed and maintained in accordance with Kallista’s instructions and with best
technical practices, fails to function or becomes defective through a fault in Kallista’s materials or
workmanship. Any damage to a product, even if not immediately apparent, due to misuse, abuse, accidents,
improper installation or improper maintenance, voids this warranty. [Please note that products installed in
coastal areas, or that are exposed to higher than normal levels of saltwater or residue, will require more
thorough and rigorous cleaning and maintenance.]
Kallista reserves the right to replace a faulty product which is no longer manufactured with an equivalent
product.
In the unlikely event of a claim under this warranty, the customer’s only obligation is to notify Kallista in
writing, stating the problem, the product, and giving proof of purchase. Neither Kallista nor its successors or
assigns, accept liability for loss, damages, or injuries relating to the product. To obtain warranty service,
contact Kallista by calling 1-800-4KALLISTA.
NOTE: To the extent permitted by law, implied warranties including that of merchantability and fitness
for a particular purpose are hereby disclaimed. Kallista, Inc. and its successors and assigns disclaims
any liability for special, incidental or consequential damages.
Some states do not allow limitations on how long an implied warranty lasts, nor the exclusion or limitation
of special, incidental or consequential damages, so this limitation and exclusion may not apply to you. This
warranty gives the buyer specific legal rights. The buyer may also have other rights which vary from state to
state.
This is our exclusive written warranty.
Kallista 7 1034059-5-C

Troubleshooting Procedures
Remove the Factory Installed Jets
NOTE: A special tool is provided with the replacement jets that will allow you to remove the jets from the
whirlpool. This tool is also supplied with each trim kit.
Position the jet ball nozzle so it is pointing upward.
NOTE: The nozzle must remain pointed up or the tool will slip off.
Insert the removal tool, hooked end up, into the opening of the jet and hook the inside top of the
nozzle.
Grasp the tool firmly and place your thumb against the whirlpool wall. Pull steadily on the tool
until the jet assembly pulls free of the hole. Be careful not to lose the O-ring.
Reinstall the Jets
NOTE: The jet O-ring must be correctly positioned, must be lubricated, and must be in good condition to
permit easy rotation and proper operation of the jet.
Install the O-ring onto the first shoulder of the jet. Lubricate the O-ring with silicone lubricant to
prevent noisy operation of the jet.
Carefully insert the jet into the housing, and lightly push and rotate the jet until it snaps into
position. Do not force the jet.
NOTE: When installed correctly, the jet should turn smoothly both clockwise and counterclockwise.
Troubleshooting Guide
This troubleshooting guide is for general aid only. A qualified electrician should correct any electrical
problems. For warranty service, contact your dealer or wholesale distributor.
Troubleshooting the Whirlpool System
Symptoms Probable Causes Recommended Action
1. User keypad does not
illuminate when power
button is pressed or outer
ring is rotated.
A. No power to control. A. Check wiring and connect power. If
problem persists, refer to
installer/dealer.
B. GFCI or RCD tripped. B. Reset GFCI or RCD.
Remove the Jets
Insert the tool hook as shown and pull the jet out of the
housing. The jet should be facing up when this is done.
Housing
Reinstall the Jets
Insert the jet into the housing, and lightly
push and rotate until it snaps in position.
Slide the O-ring
onto the first
shoulder of the jet.
Inspect and
lubricate the O-ring.
1034059-5-C 8 Kallista

Troubleshooting Procedures (cont.)
Troubleshooting the Whirlpool System
Symptoms Probable Causes Recommended Action
C. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
C. Check wiring for proper connections
Replace wiring harness if necessary.
Refer to installer/dealer.
D. Keypad doesn’t work. D. Replace user keypad. Refer to
installer/dealer.
E. Control doesn’t work. E. Replace control. Refer to
installer/dealer.
2. Motor starts, but all jets
are not functioning. A. Jet is closed. A. Rotate jet trim ring counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring damage.
C. Jets are blocked. C. Remove blockage.
3. User keypad is
illuminated but does not
respond to buttons.
A. Control program is locked. A. Reset GFCI or RCD.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper connections.
Replace wiring harness if necessary.
Refer to installer/dealer.
C. Keypad doesn’t work. C. Replace user keypad. Refer to
installer/dealer.
D. Control doesn’t work. D. Replace control. Refer to
installer/dealer.
4. User keypad indicator bar
keeps scanning at
power-up.
A. Control program is locked. A. Reset GFCI or RCD.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper connections.
Replace wiring harness if necessary.
Refer to installer/dealer.
C. Keypad doesn’t work. C. Replace user keypad. Refer to
installer/dealer.
D. Control doesn’t work. D. Replace control. Refer to
installer/dealer.
5. User keypad is
illuminated, but pump
won’t start.
A. Power cord from pump to
control is loose,
disconnected or damaged.
A. Check wiring for proper connections. If
problem persists, refer to
installer/dealer.
B. Pump doesn’t work. B. Replace pump. Refer to
installer/dealer.
C. Control doesn’t work. C. Replace control. Refer to
installer/dealer.
6. Motor runs but pump
won’t prime (cavitates). A. Pump is shimmed too high. A. Lower pump/control to subfloor level.
B. Small air leak at pump inlet. B. Securely tighten nuts(s) on intake side
of pump.
C. Motor/pump doesn’t work. C. Replace motor/pump. Refer to
installer/dealer.
D. Control doesn’t work. D. Replace control. Refer to
installer/dealer.
7. Pump stops before 18
minutes. A. GFCI or RCD tripped. A. Identify source of fault, and correct. Reset GFCI or RCD.
B. Suction is blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at suction and/or jets. Remove blockage and allow motor
to cool.
Kallista 9 1034059-5-C

Troubleshooting Procedures (cont.)
Troubleshooting the Whirlpool System
Symptoms Probable Causes Recommended Action
8. Pump does not
automatically stop after 22
minutes.
A. 20-minute timer
inadvertently disabled. A. See service manual.
9. Pump won’t turn off when
the power button on user
keypad is pressed.
A. Keypad doesn’t work. A. Replace user keypad. Refer to
installer/dealer.
B. Control doesn’t work. B. Replace control. Refer to
installer/dealer.
10. Pump operates but
variable speed feature
does not work.
A. Motor/pump doesn’t work. A. Replace motor/pump. Refer to
installer/dealer.
B. Control doesn’t work. B. Replace control. Refer to
installer/dealer.
11. Bath water cools while
pump is operating. A. Water temperature is above 104°F (40°C). A. Allow bath water to cool.
B. Heater is turned off on user
keypad. B. Turn heater on.
C. Wiring from heater to
control is loose,
disconnected or damaged.
C. Check wiring for proper connections.
Refer to installer/dealer.
D. Heater doesn’t work. D. Replace heater. Refer to
installer/dealer.
E. Control doesn’t work. E. Replace control. Refer to
installer/dealer.
12. Noisy operation. A. Pump banding straps have
not been cut. A. Cut pump banding straps with tin snips.
B. Dry or dislodged jet O-ring
(squeal). B. Remove jet, replace and lubricate O-ring, and reinstall jet.
13. Remote control (if
equipped) does not work. A. Batteries improperly installed or dead. A. Replace batteries.
B. Antenna on wiring harness
is damaged. B. Replace wiring harness. Refer to installer/dealer.
C. Remote control not
programmed correctly. C. See remote control homeowners guide or service manual.
D. Remote control doesn’t
work. D. Replace remote control.
E. Control doesn’t work. E. Replace control. Refer to
installer/dealer.
1034059-5-C 10 Kallista

Service Parts
**Finish/color code must be specified when ordering.
Kallista 11 1034059-5-C

**Finish/color code must be specified when ordering.
96895**
77935** (Colored Finishes) (Metal Finishes)
Suction Cover
93836
93838 (1/2") (1")
93839
94853 (1-1/4") (1-1/2")
Tube (w/Couplings)
65885
67668 (Acrylic) (Cast Iron)
Gasket
65886
60050
93685
Housing
73518
Plug
96708
Flange
1003065
65054**
Screw
65226**
Suction Cover Plug
91967
Check Valve
67665
Plug
67429
Flange
34353
O-Ring
67889
Jet Housing
94469
Flange Removal Tool
(Acrylic)
(Cast Iron)
Gasket
Suction Flange
Removal Tool
P51001-00**
P51002-00** (8 ea.) (6 ea.)
P51007-00** (5 ea.)
Jet (Suction cover
included with metal
finishes.)
1034059-5-C 12 Kallista

1016953
1.5 HP Pump 1016954
Motor
To Tee Heater
1010548
Volute
1010673
Seal
1010677
Screw
1010675
O-Ring
1013755
Impeller
1010676
Cover
1018660
Control
94821
O-Ring
61845-K
Copper Grounding Wire
1019719
Connector
1005363
Nut
60320
Screw
67065
Ground Lug
1015008
Wire Harness
1018964
Bracket
1019433
Carriage Bolt
1001794
Locknut
90153
Nut
1019446-A [1-3/4" (4.4 cm)]
1019446-C [3" (7.6 cm)]
1019446-G
Stud [3-1/4" (8.3 cm)]
1019444-A [3/4" (1.9 cm)]
1019444-C [2" (5.1 cm)]
1019444-G
Spacer [2-1/4" (5.7 cm)]
1019447-B
Isolation Mount
[1/2" (1.3 cm)]
93893
Cover
60320
Screw
93892-A
Electrical Box 67065
Ground Lug
61776
Lock Washer
1033678
Screw
93003
Strain Relief
1010029
Pump Tee
1013969
O-Ring
60980
O-Ring
1034673
Connector
1005363
Nut
1022495
Pump Nut Wrench
61776
Lock Washer
1019444-B [1-3/4" (4.4 cm)] 1019446-B [2-3/4" (7 cm)]
**Finish/color code must be specified when ordering.
Kallista 13 1034059-5-C

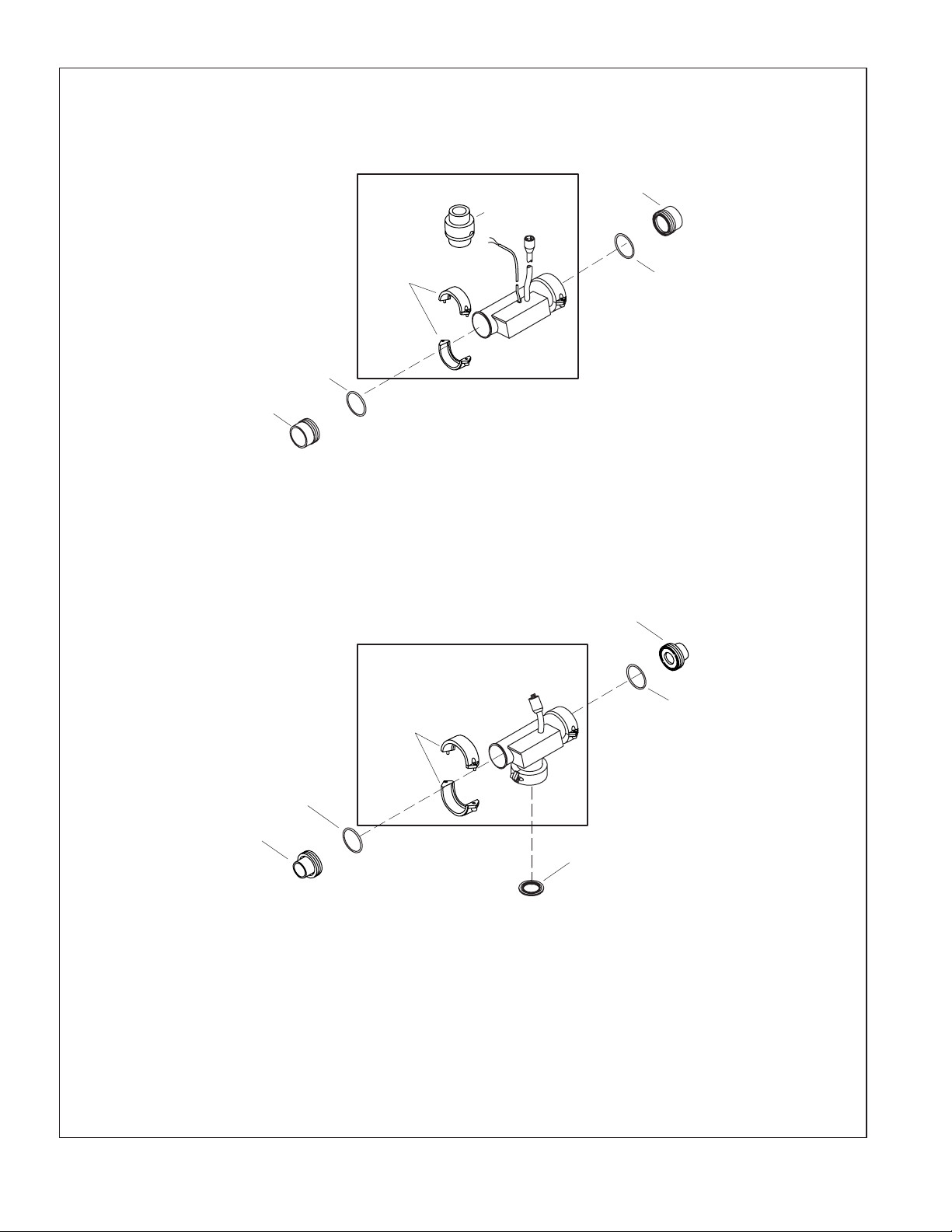

1018710
Tee Heater
94821
O-Ring
1012977
Adapter
1012916
Nut w/Screws
1011679
Gasket
1012977
Adapter
94821
O-Ring
1012653
Adapter
1012653
Adapter
1012916
Nut w/Screws
1022408
In-line Heater
94821
O-Ring
94821
O-Ring
1032545
Housing
**Finish/color code must be specified when ordering.
1034059-5-C 14 Kallista

1013460
Housing
59588
Screw
94110
O-Ring
1013459-B
Decal
1013469**
Trim Ring
1020679-B
Cover/CircuitBoard
65157
Nut
1020677
Gasket
**Finish/color code must be specified when ordering.
Kallista 15 1034059-5-C

1023091**
Cap
1013471**
Stand
1013464-C
Decal
1022253-C**
Remote
1013822-C**
Remote w/Stand
**Finish/color code must be specified when ordering.
1034059-5-C 16 Kallista

Guide du propriétaire
Baignoire à hydromassage
Renseignements Importants
CONSIGNES RELATIVES AUX RISQUES
D’INCENDIE, D’ÉLECTROCUTION OU DE
BLESSURES CORPORELLES
LIRE ET SUIVRE TOUTES LES INSTRUCTIONS
CONSERVER CES INSTRUCTIONS
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base
devraient toujours être observées, incluant ce qui suit:
DANGER : Risque de blessures corporelles. Afin de réduire les risques de blessures, ne jamais
permettre à un enfant d’utiliser cet appareil sans surveillance.
AVERTISSEMENT : Risque de blessures corporelles. Pour éviter les blessures corporelles, entrer
et sortir avec précaution de la baignoire à hydromassage.
AVERTISSEMENT : Risque d’électrocution. Ne pas raccorder d’appareils électriques (tels que
sèche-cheveux, lampe, téléphone, radio ou télévisions) dans les 5’ (1,5 m) de cette baignoire à
hydromassage.
AVERTISSEMENT : Risque d’hyperthermie. Les personnes sous médicaments ou qui sont en
observation médicale doivent consulter leur médecin avant d’utiliser des baignoires à hydromassage
équipées de chauffeau.
Utiliser cette baignoire à hydromassage uniquement pour un usage tel que décrit dans ce manuel. Ne pas
utiliser des fixations non recommandées par le fabricant.
Ne jamais faire tomber ou insérer d’objet quelconque dans les ouvertures.
Ne pas utiliser cet appareil sans ses protecteurs (couvercles) sur ses raccords d’aspiration.
La baignoire à hydromassage doit être raccordée uniquement à une prise de terre, protégée par un
disjoncteur différentiel (GFCI) ou un appareil de courant résiduel (RCD). De tels disjoncteurs GFCI ou RCD
devraient être fournis par l’installateur et vérifiés régulièrement. Appuyer sur le bouton de test pour tester
les disjoncteurs GFCI ou RCD. Le GFCI ou RCD devraient couper le courant. Appuyer sur le bouton de
ré-initialisation. L’alimentation devrait être restituée. Si les disjoncteurs GFCI or RCD ne fonctionnent pas de
cette façon, l’un ou l’autre est défectueux. Si les disjoncteurs GFCI ou RCD stoppent l’alimentation électrique
à la baignoire sans que le bouton test ne soit utilisé, il y a donc un court circuit.indiquant la possibilité de
choc électrique. Ne pas utiliser pas cette baignoire à hydromassage. Débrancher la baignoire à hydromassage
et la faire réviser par un technicien qualifié avant son utilisation.
AVERTISSEMENT : La consommation d’alcool, de drogues ou de médicaments peuvent
augmenter considérablement le risque fatal d’hyperthermie. Une immersion prolongée dans l’eau
chaude peut provoquer l’hyperthermie. L’hyperthermie a lieu lorsque la température corporelle
interne atteint plusieurs degrés au dessus de la temperature normale de 98.6° F (37°C). Les
symptômes d’hyperthermie comprennent la hausse de la température corporelle, l’étourdissement,
la léthargie, la somnolence et l’évanouissement. Les effets de l’hyperthermie comprennent: (a)
défaut de percevoir la chaleur, (b) défaut de s’apercevoir du besoin de sortir de la baignoire, (c)
incapacité de reconnaître le danger, (d) dommages au foetus dans le cas des femmes enceintes, (e)
Kallista Français-1 1034059-5-C

Renseignements Importants (cont.)
incapacité physique de sortir de la baignoire et (f) inconscience et danger conséquent de noyade.
IMPORTANT ! Rincer le système d’hydromassage deux fois par mois ou plus souvent, selon la fréquence
d’usage, tel que décrit dans la section ″Entretien et nettoyage″.
Ne pas laisser la température de la baignoire à hydromassage excéder 104° F (40°C).
Ne pas laisser de petits objets tels que des jouets ou accessoires pour le bain dans la baignoire à
hydromassage lorsqu’elle est en marche.
L’utilisation répétée de produits d’hygiène et de beauté contenant des huiles peut endommager les
revêtements en plastique des composants de la baignoire à hydromassage. Ne pas utiliser de shampoings ou
d’huiles de bains à bases végétales.
L’action de la baignoire à hydromassage peut considérablement faire mousser une quantité de produit
moussant, même très petite, de savon, de shampoing ou d’huile pour le bain. Pour cette raison, nous vous
conseillons de ne pas utiliser ces produits dans votre baignoire à hydromassage.
Sommaire
Renseignements Importants ......................................................... 1
Merci d’avoir choisi Kallista ......................................................... 2
Votre Baignoire à Hydromassage Kallista ............................................... 2
Clavier de l’utilisateur et modes/fonctions de la baignoire à hydromassage ...................... 4
Opérer votre baignoire à hydromassage ................................................ 4
Télécommande .................................................................. 6
Conformité FCC .................................................................. 6
Programmer la télécommande ....................................................... 6
Entretien et nettoyage ............................................................. 7
Nettoyer votre clavier et télécommande .............................................. 7
Purger le système de baignoire d’hydromassage ........................................ 7
Garantie limitée de cinq ans ......................................................... 8
Procédures de dépannage .......................................................... 9
Retirer les jets installés en usine ................................................... 9
Réinstaller les jets .............................................................. 9
Guide de dépannage ............................................................ 9
Pièces de rechange .............................................................. 13
Merci d’avoir choisi Kallista
Merci d’avoir choisi Kallista. Votre produit Kallista combine une performance exceptionnelle avec une
élégance classique inégalable qui vous satisferont pour les années à venir. La fiabilité et la beauté de votre
produit Kallista surpasseront vos plus grandes espérances.
Veuillez prendre s’il vous plaît quelques minutes pour consulter ce guide du propriétaire. Prêter une
attention toute particulière à l’information d’entretien et nettoyage ainsi que de la garantie.
Toute l’information dans ce manuel est basée sur la dernière disponible au moment de la publication.
Votre Baignoire à Hydromassage Kallista
Votre nouvelle baignoire à hydromassage est conçue pour relaxer, stimuler, revigorer et tonifier votre corps.
La baignoire à hydromassage consiste en les éléments suivants:
Baignoire - agit comme un réservoir d’eau, et fournit un espace pour l’action d’hydromassage.
Clavier de l’utilisateur - localisé à portée de main, le clavier permet d’arrêter ou de démarrer le
système d’hydromassage et le chauffe-eau ainsi que de régulariser le débit d’eau dans les jets.
Moteur de pompe - silencieux et à vitesse variable, pour faire circuler l’eau et créer l’action
d’hydromassage.
1034059-5-C Français-2 Kallista

Votre Baignoire à Hydromassage Kallista (cont.)
Jets réglables - positionnés de manière stratégique pour optimiser l’effet d’hydromassage, ils
permettent d’ajuster le débit d’air et d’eau, ainsi que de contrôler la direction du jet selon le désir.
Chauffe-eau - conçu pour aider à maintenir automatiquement la température de l’eau jusqu’à 104ºF
(40ºC) et pour améliorer votre expérience d’hydromassage. Le chauffe-eau s’active automatiquement
lorsque la baignoire à hydromassage est en service, et s’éteint lorsque le moteur de la pompe est
arrêté. Le chauffe-eau peut être arrêté par le clavier de commande et à tout moment quand la
pompe est en fonction.
Télécommande - commande étanche qui vous permettent de contrôler les fonctions de la baignoire
à hydromassage de l’intérieur ou de l’extérieur de la baignoire.
Kallista Français-3 1034059-5-C

Clavier de l’utilisateur et modes/fonctions de la baignoire à hydromassage
Alimentation - Met les pompes de la baignoire à hydromassage en marche et arrêt.
Flèche haut - Augmente le débit d’eau.
Flèche bas - Réduit le débit d’eau.
Chauffe-eau - Le chauffe-eau s’active automatiquement lorsque la baignoire à hydromassage est
mise en service. Vous pouvez arrêter le chauffe-eau en appuyant sur son bouton. Appuyer une
deuxième fois sur le bouton pour redémarrer le chauffe-eau.
Barre indicatrice - Indique le volume du débit d’eau.
Opérer votre baignoire à hydromassage
Tourner complètement la bague du jet vers la gauche. Orienter les jets vers le fond du bassin.
REMARQUE : La température de la baignoire à hydromassage ne doit pas excéder 104°F (40° C). Un
chauffe-eau encastré maintient automatiquement la température d’eau quand la baignoire à hydromassage
est en marche, et tant que la température d’eau ne dépasse pas 104°F (40° C). Le chauffe-eau s’arrêtera aux
températures plus hautes.
Fermer le drain, et remplir la baignoire à hydromassage à un niveau d’au moins 2″(5,1 cm)
au-dessus du jet le plus élevé. Tester la température de l’eau avec votre main, puis entrer dans la
baignoire doucement.
Appuyer sur le bouton de marche pour démarrer la baignoire à hydromassage La baignoire à
hydromassage commencera à opérer à débit moyen. Le chauffe-eau démarrera et son voyant
lumineux s’allumera.
Augmenter ou diminuer le débit de l’eau en pressant sur les flèches du clavier. Une barre
d’indication située au centre du clavier indique le volume du débit d’eau.
Ajuster les jets pour un mélange optimal de l’eau et de l’air. Tourner la bague du jet vers la droite
pour réduire le débit, ou vers la gauche l’augmenter. Orienter les jets pour diriger le débit d’eau
vers la direction désirée pour optimiser l’action d’hydromassage.
Le chauffe-eau s’active automatiquement lorsque la baignoire à hydromassage est mise en service.
Vous pouvez arrêtez le chauffe-eau en appuyant sur le bouton du clavier. Appuyer une deuxième
fois sur le bouton pour redémarrer le chauffe-eau.
Appuyer une deuxième fois pour arrêter la baignoire à hydromassage.
REMARQUE : Votre baignoire à hydromassage s’arrêtera automatiquement après environ 20 minutes de
fonctionnement. Vous pouvez redémarrer la baignoire à hydromassage, si désiré, en appuyant sur le
bouton de mise en marche.
Chauffeau
marche/arrêt
Marche/arrêt Réduit le débit
Barre d'Indication -
montrant le volume
du débit de l'eau
Augmente le débit
Voyant lumineux du
chauffeau
Clavier de l'utilisateur illuminé
Tourner la bague du jet vers la
droite pour diminuer le débit
de l'eau.
Tourner la bague du jet vers la
gauche pour augmenter le
débit de l'eau.
1034059-5-C Français-4 Kallista
