Katool KT-B700 User manual

READ these instructions before placing unit in service
KEEP these and other materials delivered with the
unit in a binder near the machine for ease of reference
by supervisors and operators.
Computer Wheel Balancer
Operation Instructions
with Maintenance Instructions

1
Table of Contents
Before You Begin
Receiving.............................................................................................................................................................4
Specifications......................................................................................................................................................4
Electrical Requirements ......................................................................................................................................4
Features ..............................................................................................................................................................4
Standard Accessories .........................................................................................................................................4
Assembly and Setup
Floor and Space Requirements ......................................................................................................................... 5
Unpacking the Unit..............................................................................................................................................5
Remove Balancer from Pallet..............................................................................................................................5
Connecting to Power...........................................................................................................................................5
Initial Testing.......................................................................................................................................................5
Control panel and display....................................................................................................................................6
Function key combination ..................................................................................................................................6
Operating the Balancer
Wheel Mounting ..................................................................................................................................................7
Entering Wheel Measurements...........................................................................................................................8
Balance the Wheel ..............................................................................................................................................9

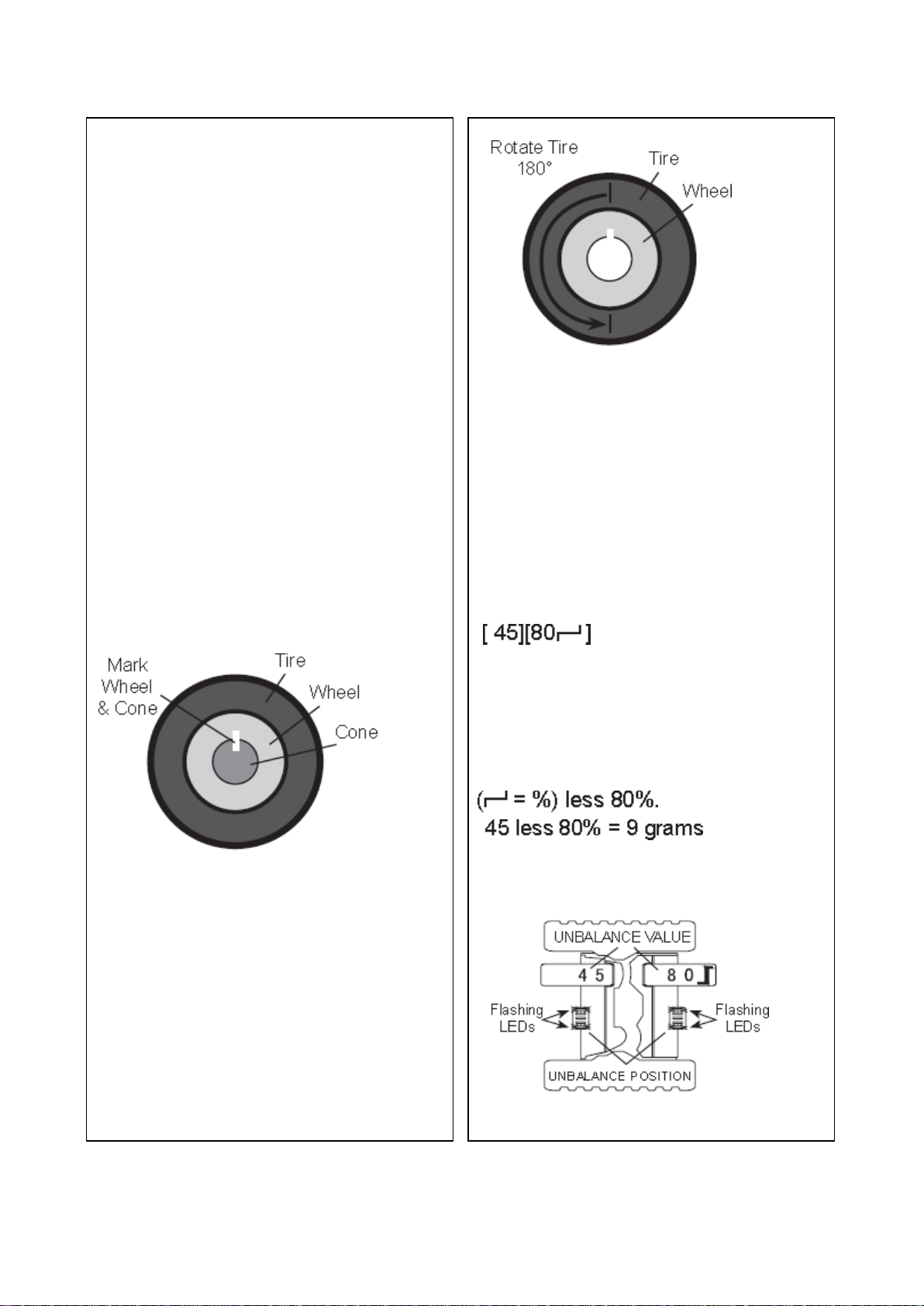

OPT Balancing ..................................................................................................................................................10
Maintenance and Service
Self-calibration...................................................................................................................................................11
Calibration Check Procedure ............................................................................................................................11
Calibration Procedure........................................................................................................................................11
Troubleshooting.............................................................................................................................................. 11
Accessories ........................................................................................................................12

2
1. Read all instructions
2. Do not operate equipment with a damaged cord or if the equipment has been dropped or damaged –until
it has been examined by a qualified serviceman.
3. Do not let cord hang over edge of table, bench, or counter, or come in contact with hot manifolds or
moving fan blades.
4. If an extension cord is necessary, a cord with a current rating equal to or more than that of the equipment
should be used. Cords rated for less current than the equipment may overheat. Care should be taken to
arrange the cord so that it will not be tripped over or pulled.
5. Always unplug equipment from electrical outlet when not in use. Never use the cord to pull the plug from
the outlet. Grasp plug and pull to disconnect.
6. To reduce the risk of fire, do not operate equipment in the vicinity of open containers or flammable liquids
(gasoline).
7. Adequate ventilation should be provided when working on internal combustion engines.
8. Keep hair, loose clothing, fingers, and all body parts away from moving parts.
9. To reduce the risk of electrical shock, do not use on wet surfaces or expose to rain.
10. Use only as described in this manual. Use only manufacturer’s recommended attachments.
11. ALWAYS WEAR SAFETY GLASSES. Everyday glasses only have impact resistant lenses, they are
NOT safety glasses.
12. Do not disable the hood safety interlock system, or in any way shortcut safety controls and operations.
13. Be sure wheels are mounted properly, the hub nut engages the arbor not less than 4 turns, and the hub
nut is firmly tightened before spinning the wheel.
14.Maintain all electrical cords in good repair. Do not operate damaged equipment until it has been
examined by a qualified service technician.
15. Be sure the balancer is properly connected to the power supply and electrically grounded.
16. Read and understand this manual before operating. Abuse and misuse will shorten functional life.
17. Keep guards and safety features in place and in working order.
18.Wear proper clothing. Safety toe, non-slip footwear and protective hair covering to contain hair are
recommended. Do not wear jewelry, loose clothing, neckties, or gloves when operating the balancer.
19. Keep work area clean and well lighted. Cluttered and/or dark areas invite accidents.
20. Disconnect balancer before servicing.
21. Repair or replace any part that is damaged or worn and that may cause unsafe balancer operation. Do
not operate damaged equipment until it has been examined by a qualified service technician.
22. Never overload or stand on the balancer.
23. Do not allow untrained persons to operate machinery.

3
Failure to follow danger, warning and caution instructions may lead to
serious personal injury to operator or bystander, or damage to property. Do not operate this
machine until you read and understand all the dangers, warnings and cautions in this manual.
For additional copies of either, or further information, contact local retailer.
Owner’s Responsibility
To maintain machine and user safety, the
responsibility of the owner is to read and follow
these instructions:
•Follow all installation instructions and make
sure installation conforms to all applicable Local,
State, and National Codes, Rules, and
Regulations.
•Carefully check the unit for correct initial
function.
•Read and follow the safety instructions. Keep
them readily available for machine operators.
•Make certain all operators are properly trained,
know how to safely and correctly operate the
unit, and are properly supervised.
•Allow unit operation only with all parts in place
and operating safely.
•Carefully inspect the unit on a regular basis and
perform all maintenance as required.
•Service and maintain the unit only with
authorized or approved replacement parts.
•Keep all instructions permanently with the unit
and all decals/labels/notices on the unit clean
and visible.
Definitions of Hazard Levels
Identify the hazard levels used in this manual
with the following definitions and signal words:
DANGER
Watch for this symbol:
It Means: Immediate hazards which will result
in severe personal injury or death.
WARNING
Watch for this symbol:
It Means: Hazards or unsafe practices which
could result in severe personal injury or death.
CAUTION
Watch for this symbol:
It Means: Hazards or unsafe practices which
could result in minor personal injury or product
or property damage.
Watch for this symbol. It means BE ALERT!
Your safety, or the safety of others, is involved.

4
Features
•Balances Most Automotive Wheels
•Vertical Wheel Mounting
•Back Cone and Front Cone Mounting
•Easy-to-Read LEDs and Displays
•Automatic Calibration
•Removable Shaft Stud(Adapter)
•Dynamic, Static, and Alloy Operating Modes

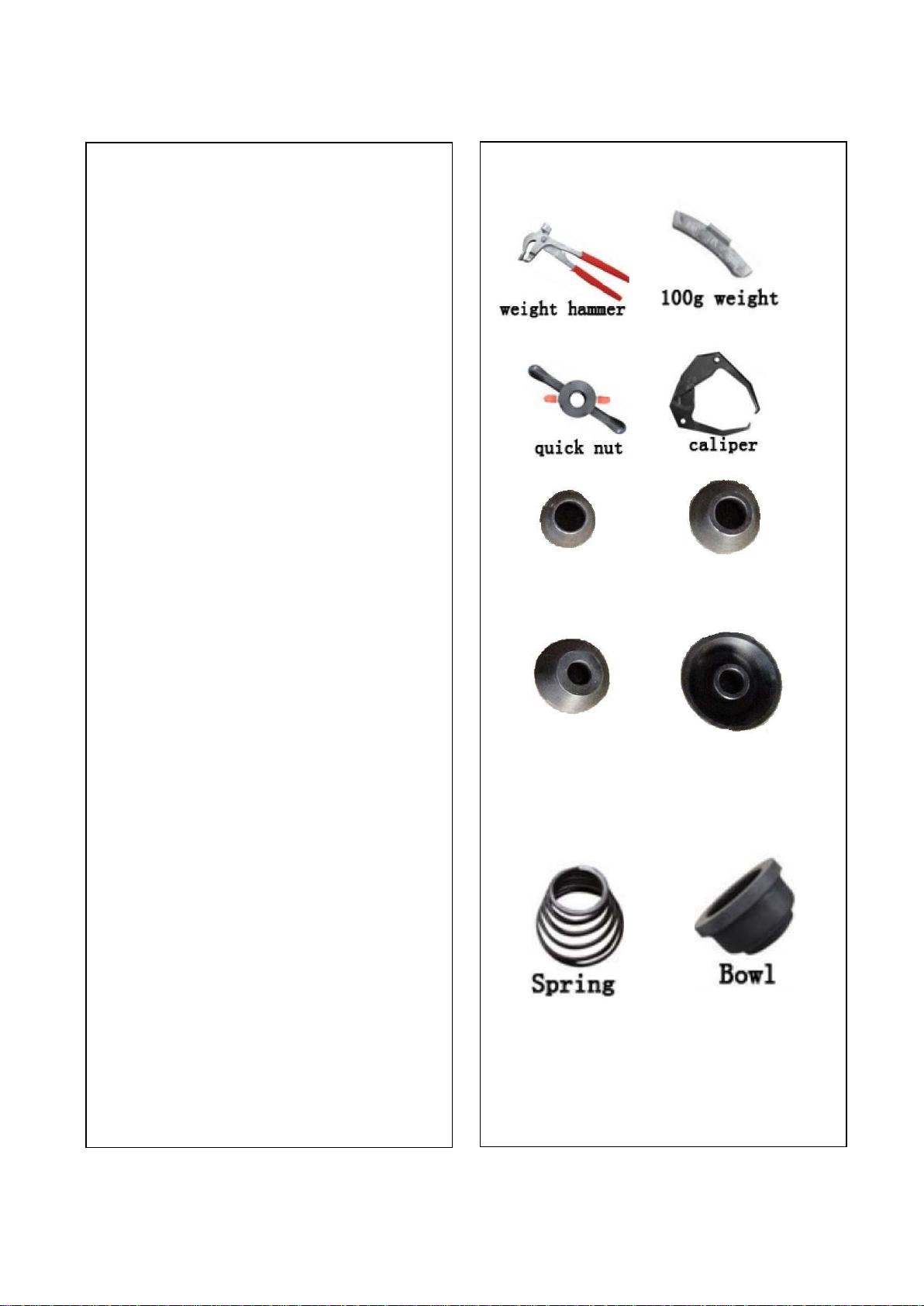

Standard Accessories
•4 Back Cones
•100g Weight
•Back Cone Spring
•Quick Nut
•Rim Width Calipers
•Wheel Weight Hammer
•Balance Bowel
Before You Begin
Receiving
The shipment should be thoroughly inspected
as soon as it is received. The signed bill of
lading is acknowledgement, by the carrier, of
receipt in good condition of the shipment
covered by our invoice.
If any of the goods called for on this bill of
lading are shorted or damaged, do not accept
them until the carrier makes a notation of the
shorted or damaged goods on the freight bill.
Do this for your own protection.
NOTIFY THE CARRIER AT ONCE if any
hidden loss or damage is discovered after
receipt and request him to make an inspection.
.
Specifications
•Cycle time 8 seconds (avg.)
•Tire/Wheel Weight 65 kgs max.
•Wheel Diameter 25.4 inches max.
Rim Diameter 12 to 24 inches
•Rim Width 1.5 to 12 inches
Power supply 100V 50/60HZ
Working noise ＜70dB
•Shipping Weight 165 kgs
Electrical Requirements
The balancer requires a 100 VAC, 50/60Hz,
single phase power supply and properly
grounded three-pin safety outlet.

5
Assembly and Setup
Floor and Space Requirements
Floor must be solid and flat concrete. The
balancer need to be bolted to the floor in normal
service. The balancer may be bolted to the floor
with anchor bolts through the three support feet,
but will require an alternate electrical connection
method. Sufficient space must be provided
above and around the balancer for mounting and
demounting wheels.
Unpacking the Unit
1. Remove the shipping carton from the pallet.
2. Remove all loose parts and accessories
packed around the unit.
Remove Balancer from Pallet
3. Remove the shipping bolts that hold the balancer
to the pallet.
Do not use the control pod,
control pod arm, faceplate, hood or stub
shaft tolift the balancer.
Use help to remove the
balancer from the pallet.
Theunit is heavy and the weight is not evenly
distributed. Dropping the unit may cause
personal injury or equipmentdamage.
4. Lift the balancer off the pallet and place it in its
operating location.
5. Install and tighten the threaded stud
(adapter)into the end of the motor shaft.
Connecting to Power
Consult a licensed electrical contractor for
proper connection that meets local electrical
codes. Power outlets must be located in a
floor raceway or overhead drop if pedestrians
or equipment traffic pose a threat of damage
to the power cord.
The balancer requires a nomina 100 VAC,
50/60 Hz, single-phase power supply with a
three-pin safety outlet.
Electrical outlets must have a solid
connection of less than 1 ohm between the
ground pin and building ground.
Operation with a
defective ground circuit will create a
shock hazard for the operator, damage the
unit electronics, and will void the warranty.
Power and ground requirements must be
verified by the installer or an inspector before
connecting the balancer. Failure to observe
this precaution may void the warranty.
If the balancer is bolted to the floor, a
licensed electrical contractor must be
consulted. Most electrical codes require
“hard” wiring when the balancer is bolted
down.
Initial Testing
1. Plug the unit into an appropriate power
outlet. If the circuit breaker for the outlet is off,
turn it on.
2. Turn the balancer on. The power switch is on
the side of the unit.

6
15
14
13
12
11
10
9
8
7
6
3
5
4
Function key combination
Remain set after the power is turned
off.
To change from grams to ounces, press
Button F, A+ and A- Button at the same
time once.

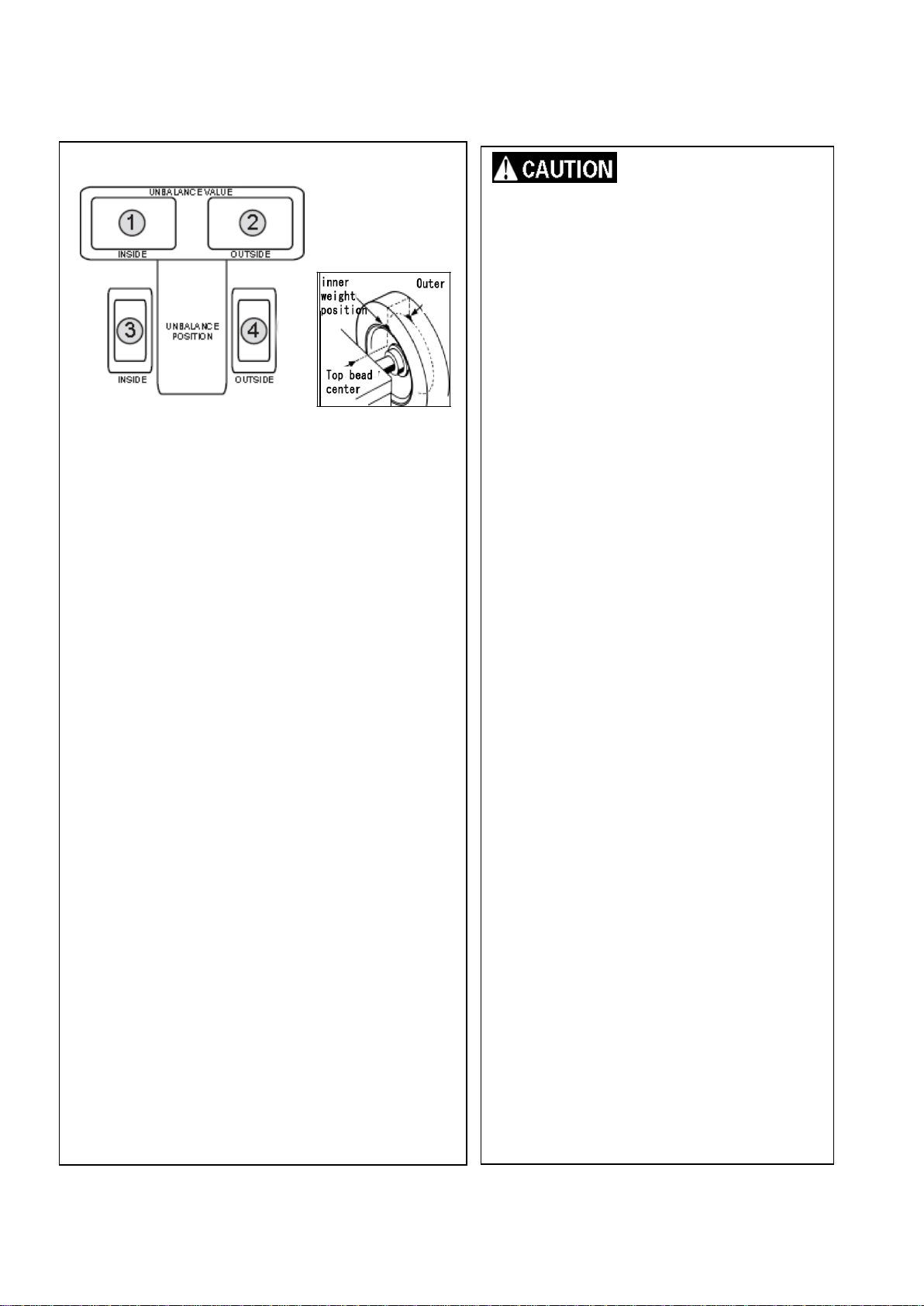

1.Inner unbalance value and
parameter of the tire display
2.Outside unbalance value and tire
parameter display
3.Inner unbalance position lamp.
4.Outside unbalance position lamp.
. 5.Balancing modes display lamp
6.A value input key
7.B value input key
8.D value input key
9.Start key
10.Dynamic/Static Balancing mode
selection key
11.Balancing mode selection key
12.Self-calibration key
13.OPT key
14.Emergency stop key
15.Residual unbalance value display
key.
(F)＋(STOP), Lower down the cover, the machine
starts automatically.
Loose set after the power is turned off.
(F)＋(b＋), MM / INCH SELECTION “b”
SETTING / WHEEL WIDTH
(F)＋(d－), MM / INCH SELECTION “d”
SETTING / WHEEL DIAMETER
Balancing mode selection key
Press (F) key to change from Dynamic
balancing to Static Balancing
Press ALU to select different balancing
mode(ALU1,ALU2,ALU3)
Control panel and display
1
2

7

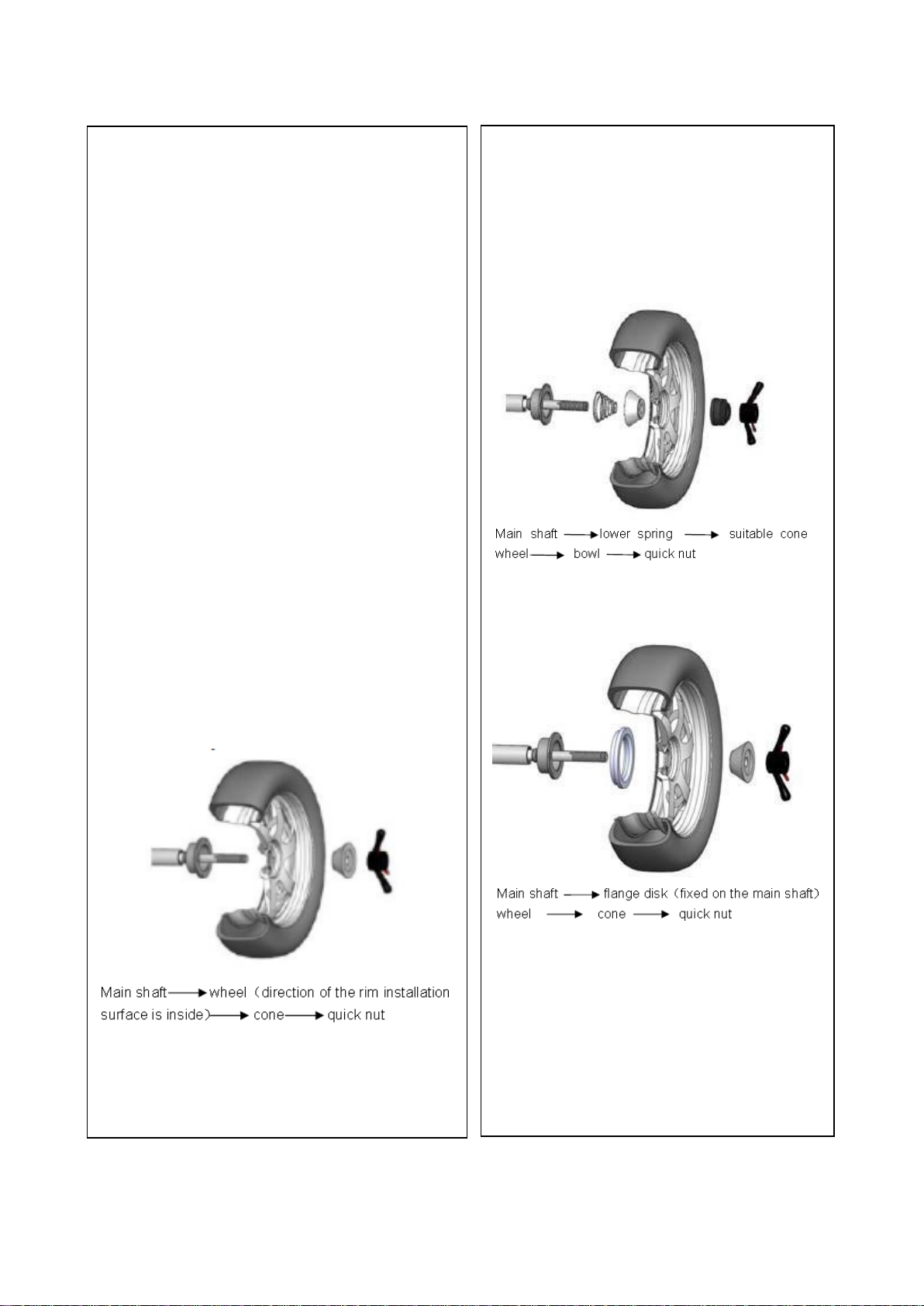

When the deformation of the outside of the
wheel, adopt this method to positioning to
grantee the accurate positioning of the steel
rim inner hole and main shaft. It is suitable to
the steel rim, especially the thick ALU
FLANGE DISK POSITIONING（OPTIONAL）
Suitable to the big tire assemble
NOTE: The choice on the cone should be
adapted to the rim center hole and pay
attention to its direction.
Or it will cause the inaccurate measurement.
Operating the Balancer
Switch onthe main switch on the left side of the
machine ， the display will display“ A-8.0 ”
Wheel Mounting
Preparation before test：Check and clean the dust
and mud and if there are foreign bodies, such as
metal and stone, clipped on the surface of the tire.
And also check the air pressure of the tire is
according with the specified value. Check if there
are deformation on the rim positioning surface and
installation hole.
Check if there are any foreign bodies in the tire.
Take off the original weight.
The installation methods of the wheel ：Positive
positioning, negative positioning & flange disk
when handling the middle and big sizes of tires.
You can select the methods according to the
different conditions.
SMALLCARWHEELPOSITIVEPOSITION
Positive positioning is the normal method. It is
featured with simple and quick operation. It is
mainly suitable to the common steel rim and
aluminum alloy rim with small deformation.

8
BALANCE MODE SELECT
This wheel balancer 'S Default model is clamp
weigh for rim it not be show on the Control
panel .please learned of the matte.
After input three value and ratate the wheel
you can Select the balance mode according to
the weight adding position and the balance
mode. Press the key” F “to select the “ST
“balance mode derict,Press the key” ALU”
to select the ALU balance mode. When you
switch on the machine, the machine will
automatic enter into the dynamic balance
mode and no need to select .
DYNAMIC—clip the weight on both sides of rim
（dynamic balance test once start）
For balancing standard steel or alloy wheels
Static-This function is used if stick-on
weights are to be mounted to the center plane
( hidden ) and not to either inner or outer edges
of the wheel.
ALU1 - to balance the light aluminum alloy rim .
This function is used if stick-on weights are to
be mounted to both inner and outer planes of
the wheel.
ALU2 - for ALU rim, hidden weight inside.
This function is used if stick-on weights are to be
mounted to the inner and center planes of the
wheel.
ALU3 - clip the weight inside and the position
to add weight outside is same to ALU2.
Entering Wheel Measurements
Input A value
Pull the scale to the inner position to add the
weight and press the key A+ or A- to input the A
value into the display.
At this moment, the display will display “A”：“XX”，
And the default system is inch.
Input Br (RIM Breadth) Value
Use the Br measurement caliper to measure the Br
of the rim, press the key B+ or B- to input the Br
value into the display. At this moment, the display
will display “B”：“XX”
Input the DiA(Diameter)Tire Diameter Value
After confirming the rim diameter, press the key D+
or D- to input the rim diameter into the display. At
this moment, the display will
display “D” ： “XX”

9
1.When power starts, push the wheel by hands
to assist starting which will extend motor’s life.
2. Make sure the wheel value is correct.
3. Make sure the rim structure is suitable for
the balancing mode
4.Make sure the quick nut is well tightened
5.As the balance is over, unload the tyre, pay
attention to handling with care , don’t strike the
main shaft.
6. Weights must be attached securely to wheel
surfaces cleaned according to weight
manufacturer’s recommendation. Failure to do
so may cause weight to come loose during a
spin, resulting in personal injury.
Balance the Wheel
1. Plug in the unit and turn on the Power Switch
2. Mount the Wheel following
3. Enter the rim data
4. Pull the Hood over the wheel and press Start on the
Control Board. The wheel will begin to spin.
5. When the cycle is finished, the wheel will stop
spinning and the Control Board will display the amount
of weight needed to attach to the wheel on the Inner
and Outer UNBALANCE VALUE displays .
6. Hand rotate the wheel, watching the Inside
UNBALANCE POSITION display. Stop rotating the
wheel when all the display leds flash. Attach the weight
to the top center of the rim inner edge .
7. Continue rotating the wheel, until all the outside
UNBALANCE POSITION display leds flash. Attach the
weight to the top center of the rim Outer edge
,8. Lower the Hood and press Start on the Control
Board. The wheel will begin to spin.
9. When the cycle is finished, the wheel will stop
spinning. If the UNBALANCE VALUE in the Inner and
Outer displays are both [00], then the wheel is
balanced. If there are other values, then repeat the
steps to re-balance the wheel until a [00] reading is
achieved.

10
4. Remove the wheel from the Balancer and
use a tire changer (sold separately) to remove
the tire from the rim, rotate it 180°, and remount it
on the rim. Fully inflate the tire and mount the
Wheel
5. on the Balancer in the same location as the
previous cycle. Press [START] to activate a spin
cycle.
6. When finished the display will read:
The left reading shows the amount of weight
originally needed to balance the wheel: 45
grams. The right reading shows the amount to
reduce the weight after rotating and remounting
the wheel:
This means that only 9 grams of weight are
needed to balance the wheel.
Optimize Balancing Function (OPT)
This function is recommended only when the
weight displayed to balance the wheel is over 30
grams (1. 06 oz). Use the following procedure to
adjust the tire and wheel so that less weight is
needed to complete the process.
To begin, the tire should be mounted with the
Hood down after completing a cycle.
1.Press the [OPT] key.
[OPT][ ] will be displayed.
2.Press [START] to activate a spin cycle.
When finished the display will read:[ I ] [180]
180 displayed means the tire and the rim need to
be rotated by 180 degrees away from each other
and remounted.
3. Before unmounting the wheel from the
balancer, mark the rim and the cone with
chalk (sold separately) so that the same
mounting position can be re-mounted for
the next operation.

11
Maintenance And Servicing
Self-calibration
Self calibration has been finished in the factory. If
you use for a period of time or change part inside or
the result of the balance is not correct,
you can self correct it again.( Choose one
medium-size tyre to install on main shaft , 13 or14
inches are perfect). Input correct data of this tyre A,
L , D.
Attention: Fail to input the correct size will lead to
the machine works wrong.
◎ Press F key, hold on and press C
key in half a second ,
“CAL”-“CAL” displayed, leds are
all flashing. Only after leds all go
out can you move your finger away.
◎ Press START key, after the tire
stops, “ADD”-“100” displayed,
please clip 100g weight onto the
outside ofthe rim on the position of
12 o’clock
◎ Press START key, after the tire
stops, “100” -“ADD” displayed,
please clip 100g weight onto the
inside of the rim on the position of
12 o’clock
◎ Press START key, after the tire
stops, “END-CAL” displayed, that
means the self correction is over.
Lamps are all onwhen 100g counterbalance is rightly under
main shaft.
◎ Don’t move away the weight from the tire. Press
START key, after the tire stops, if it shows “100”-“00”,
that means the self-calibration is successful.
7. Rotate the wheel counterclockwise, slowly
by hand, until the Control Board display flashes
as shown above. Make a mark at the top of the
tire (12 0’clock position), and label “P-tire”.
8. Rotate the wheel counterclockwise, slowly
by hand again, until the Control Board display
flashes as shown above. Make a mark at the top
of the Rim (12 O’clock position), and label
“P-rim”.
9. Remove the wheel from the Balancer and use
the tire changer to re-mount the rim with the rim
and tire markings aligned.
10. Place a 10 gram weight on the marking and
press [START] to activate the spin cycle.
11. Check to see if the wheel is balanced. Repeat
as needed.
12. When finished using the Wheel Balancer,
Turn the Power Switch OFF, and unplug the
machine.

12
N o . 4 C on e
N o . 3 C on e
No.2Cone
No.1Cone
Accessories
◎ Well–balanced tire will show “100”-“00” (±4g )
after self calibration. 100g counterbalance is rightly
under
main shaft when outside lamps are all on
( 4°error is allowed), this proves phase angle is
correct.
Two key elements to judge if self calibration is
accurate or not
1. Accurate data indication
2. Show that phase is right (namely outside lamps are
all lightning and 100g counterbalance is rightly under
shaft).
Problems that occur after self calibration:
Malfunctioning:
“Err. -8-“ showed
Cause:
A . Problems with computer board.
B . The circuit of sensor is broken.
Malfunctioning:
Data indicated has a big deviation
Cause:
A. The edge outside wheel is irregular and under bad
condition
B. Parameter data lose or error
