Owner Service Manual

11
Table Of Contents
Important Information For Users................................................................................................................................................................. 3
Introduction / About This Manual............................................................................................................................................................... 4
Preparation For Use.......................................................................................................................................................................................... 4
Unpack The Unit .......................................................................................................................................................................................... 4
Initial Inspection .......................................................................................................................................................................................... 4
Serial Number Location............................................................................................................................................................................. 4
Unit Features....................................................................................................................................................................................................... 5
Cleaning and Disinfection.............................................................................................................................................................................. 6
Infection Control.......................................................................................................................................................................................... 6
Supplies and Equipment Needed ......................................................................................................................................................... 6
General Cleaning Recommendations.................................................................................................................................................. 6
Therapy Unit.................................................................................................................................................................................................. 7
Power Supply................................................................................................................................................................................................ 7
Fabric Carrying Case................................................................................................................................................................................... 7
Service Procedures ........................................................................................................................................................................................... 8
Parts and Equipment Needed................................................................................................................................................................. 8
Inspect Unit for Damage........................................................................................................................................................................... 8
Replace Exhaust Filter................................................................................................................................................................................ 9
Data Download ............................................................................................................................................................................................ 9
Battery Check..............................................................................................................................................................................................10
Battery Change ..........................................................................................................................................................................................10
Pressure Checks .........................................................................................................................................................................................11
Charge Battery and Six Hour Unit Verification Test.......................................................................................................................15
Verify Time and Date ................................................................................................................................................................................17
Alarm Tests...................................................................................................................................................................................................17
Final Settings...............................................................................................................................................................................................20
Recharge Battery .......................................................................................................................................................................................20
Preparation for Transport and Patient Use.............................................................................................................................................21
On-Premises Use........................................................................................................................................................................................21
Off-Premises Use........................................................................................................................................................................................22
Specifications....................................................................................................................................................................................................23
Spare Parts ........................................................................................................................................................................................................24
Symbols Used ...................................................................................................................................................................................................26
Customer Contact Information ..................................................................................................................................................................27
ActiV.A.C.®Therapy System Required Service Record.........................................................................................................................28

33
DISCLAIMER OF WARRANTY AND LIMITATION OF REMEDY
KCI HEREBY DISCLAIMS ALL EXPRESS OR IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ON THE KCI PRODUCT(S) DESCRIBED IN THIS PUBLICATION
EXCEPT FOR THE WRITTEN LIMITED WARRANTY INCLUDED WITH THIS PRODUCT. UNDER NO CIRCUMSTANCES SHALL KCI BE
LIABLE FOR ANY INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES AND EXPENSES, INCLUDING DAMAGES OR INJURY TO
PERSON OR PROPERTY, DUE IN WHOLE OR IN PART TO THE USE OF THE PRODUCT OTHER THAN THOSE FOR WHICH DISCLAIMER
OF WARRANTY OR LIMITATION OF LIABILITY IS EXPRESSLY PROHIBITED BY SPECIFIC, APPLICABLE LAW. NO PERSON HAS THE
AUTHORITY TO BIND KCI TO ANY REPRESENTATION OR WARRANTY EXCEPT AS SPECIFICALLY SET FORTH IN THIS PARAGRAPH.
Descriptions or specications in KCI printed matter, including this publication, are meant solely to generally describe the
product at the time of manufacture and do not constitute any express warranties except as set forth in the written limited
warranty included with this product. Information in this publication may be subject to change at any time.
Contact KCI (see page 27) for updates.
Important Information For Users
This manual contains routine service procedures for the ActiV.A.C.® Therapy Unit sold by KCI. This manual is not intended for
repair or non-routine service procedures. Contact KCI (see page 27) for any repair or non-routine service not covered by this
manual.
Please read and understand all sections of this manual before beginning any service procedures on this equipment.
In order for KCI products to perform properly, KCI recommends the following. Failure to comply with these conditions will void
any applicable warranties.
•Assembly, operations, extensions, re-adjustments, modications, service or repairs must be performed by qualied
personnel authorized by KCI. Please contact KCI for more information.
•Access codes to engineering screens are proprietary and remain property of KCI, and may only be used for the limited
purpose as outlined in KCI copyrighted documentation.
•The electrical installation of the room must comply with the appropriate national electrical wiring standards. To avoid the
risk of electrical shock, this product must be connected to a grounded power receptacle.
•Use this product only in accordance with its user manual and applicable product labeling.
•Ensure that personnel performing the procedures detailed in this manual are properly trained and qualied to perform
service on medical devices.
•Follow all procedures as outlined in this manual, including infection control and care and cleaning.
•Document and retain as a permanent record all service procedures performed.
•Use only KCI V.A.C.® Dressings and accessories with this product.
Indications, contraindications, warnings, precautions and other safety information are contained in the V.A.C.® Therapy
System Safety Information Sheet. This information sheet is included with the ActiV.A.C.® Therapy Unit and also included
in every V.A.C.® Dressing carton. Please consult the ActiV.A.C.® Therapy Unit User Manual and Safety Information Sheet
before applying V.A.C.® Therapy. If there are questions or these documents are missing, immediately contact your local
KCI representative.

44
Introduction / About This Manual
This manual is designed to assist with routine service procedures for the ActiV.A.C.® Therapy Unit sold by KCI. Following
these procedures ensures that the ActiV.A.C.® Therapy Unit is properly cleaned, fully functional and ready for patient use.
These procedures include:
•Unpacking and initial unit inspection
•Cleaning and disinfection
•Inspection for damaged and / or missing parts
•Verifying unit function
•Ensuring battery is fully charged
•Verifying default settings are correct
All steps in these procedures must be followed in the order presented to provide proper functionality and
reliability of the ActiV.A.C.®Therapy Unit. Opening the therapy unit to gain access to the internal components
(other than the battery) may void the warranty.
Each ActiV.A.C.®Therapy Unit must be cleaned, disinfected, inspected and charged between each patient use.
For further questions about the required frequency of service procedures, contact KCI (see page 27).
It is recommended that all sections of this manual be reviewed before beginning any routine service
procedures on the ActiV.A.C.®Therapy Unit. Please follow all applicable warnings and cautions and use
standard precautions where necessary.
Preparation For Use
Preparing the ActiV.A.C.® Therapy Unit for use includes unpacking, inspection for any damaged or missing parts, and an
initial round of service procedures to ensure the battery is fully charged and the unit is ready for patient use. The following
procedures should be performed when the unit is rst received from KCI.
Unpack The Unit
1. Inspect the cardboard shipping box to ensure there are no visible signs of damage.
2. Unpack all items from the shipping box.
3. Inspect all items for damage. If damage is noted, contact the shipping company for reporting / return procedures.
4. Inventory all items in shipping box against the packing slip. Contact KCI (see page 27) if there are any items missing.
Initial Inspection
The purpose of this inspection is to ensure the unit has arrived without any internal damage and that the battery is fully
charged prior to the initial patient placement.
1. Obtain the ActiV.A.C.® Therapy System Required Service Record form and ll in the required information for the unit in the
spaces provided (see serial number location below). Form may be obtained either way as follows:
•Make photocopies of the ActiV.A.C.® Therapy System Required Service Record form in the back of this manual.
•Contact KCI (see page 27) to order a 25-pack of these forms.
2. Perform the required service procedures as listed on the form. Start with Inspect Unit For Damage on page 8 of this
manual.
3. After initial inspection and service are complete, retain the completed form for each unit as a permanent record.
Serial Number Location
The ActiV.A.C.® has a serial number label, illustrated at right, that is located
on the back of the unit. This serial number will be recorded on the
ActiV.A.C.® Therapy System Required Service Record form.
Serial Number

55

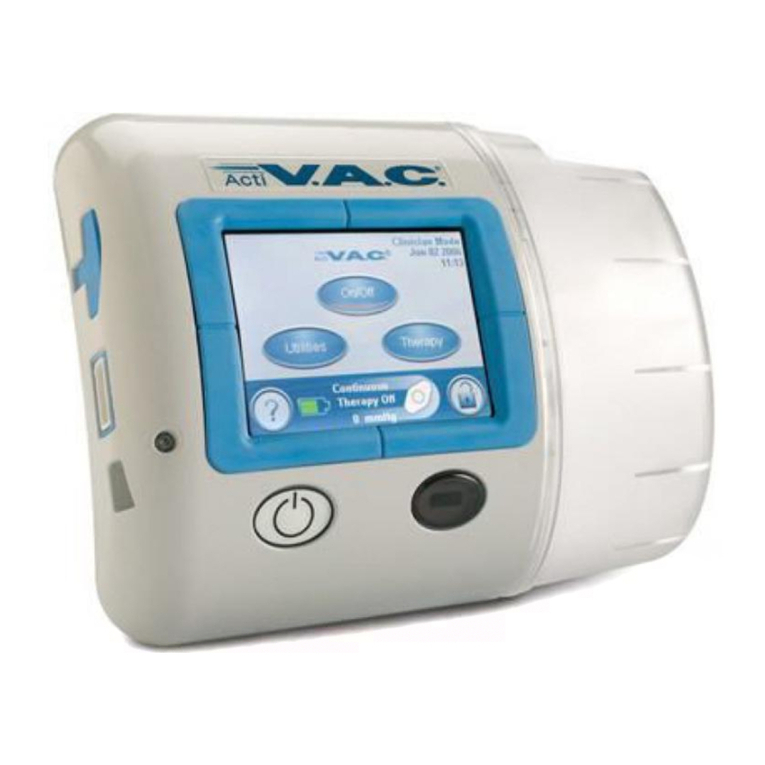

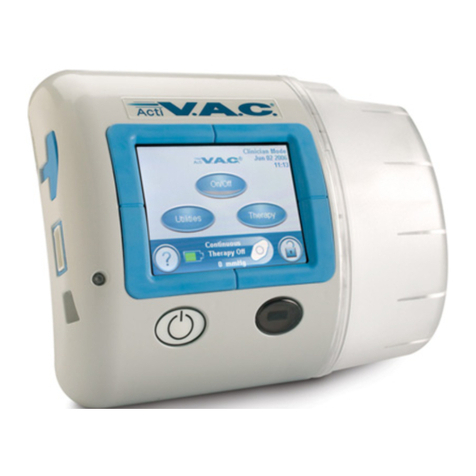

Unit Features
ActiV.A.C.® Canister
Power Button
Battery Charging Light
Power Connection
USB Data Port
(For doctor or
nurse use only)
For KCI
use only
Touch Screen
Keep all access covers closed during normal use. Open covers only for data transfer.
Canister
Seals
Canister Bumpers
Canister Latch
Guide
Canister Latch
Release
Canister Tubing Connector
Canister
Tubing
Canister Tubing Clamp
Battery History Label
Charging Cord Power Supply
Power Cord Label
Power CordCharging Cord
Connector

66
Cleaning and Disinfection
Cleaning and disinfection of the ActiV.A.C.® Therapy Unit includes wipedown of all hard surface components. The ActiV.A.C.®
Therapy Unit must be cleaned and disinfected:
•if it becomes soiled during patient use
•between each patient use
Infection Control
Institutional policies regarding infection control may vary; however, KCI recommends the following regarding infection
control when processing KCI V.A.C.® Therapy devices:
•Designate contaminated and clean areas for separating and storing equipment before and after transport, cleaning and
disinfection. Follow protocols to ensure no cross-contamination occurs between unclean and clean units.
•Use personal protective equipment (PPE) and hand hygiene protocols in accordance with the following standards:
•29 CFR 1910.1030, OSHA Bloodborne Pathogens Standard
•MMWR October 2002;51 (No. RR-16), Guidelines for Hand Hygiene in Healthcare Settings
•Clean all organic material from the therapy unit prior to disinfection.
•Use hospital-grade cleaners and disinfectants, according to the CDC 2008 Guideline for Disinfection and Sterilization in
Healthcare Facilities.
•Do not immerse or saturate the therapy unit with uids to avoid damage to the electronics in the device. Follow
institutional procedures used for the cleaning and disinfection of other hard surface durable electronic medical
equipment.
Ensure that the ActiV.A.C.® Therapy Unit and its power supply are not connected to AC power when using
cleaning fluids of any nature.
To isolate the therapy unit from supply mains, unplug the AC power from the wall outlet.
Supplies and Equipment Needed
•Hospital grade antiseptic used per label directions
•Clear plastic bags (as appropriate)
•Cotton tipped applicators
•Rubber bands
•Tweezers or similar tool
•#1 Phillips screwdriver
General Cleaning Recommendations
•Use PPE as appropriate.
•For items that are wiped down, ensure item’s entire surface is completely covered with the cleaning uid and remains wet
for a minimum of 60 seconds.

77
Therapy Unit
1. Remove the unit from the plastic and / or fabric carrying case, as
applicable.
2. Ensure therapy unit is unplugged from power supply.
3. Remove canister seals from unit.
4. Wipe / clean seals with antiseptic. Ensure the seal cavities and adjacent
surfaces are clean of any foreign material. Replace seals when nished.
5. Remove the exhaust lter. Discard the lter using local protocols.
Moisten a cotton tipped applicator with antiseptic; thoroughly wipe
the interior of the lter compartment.
The exhaust lter is single use only.
6. Wipe down the back of the unit with antiseptic.
Do not allow excess cleaning fluid into the areas surrounding the touch
screen gasket.
7. When wiping the front of the unit, do not allow cleaning uid to seep into any gaps
in the touch screen gasket.
Cleaning uids allowed to seep past the gasket may damage the touch
screen to the point of requiring replacement.
8. Wipe down the front and sides of the unit with antiseptic.
9. Once the unit is thoroughly cleaned, allow to air dry.
10. Place the clean unit in a clear plastic bag and move to the service area.
Power Supply
1. Ensure the power supply is unplugged from the therapy unit and / or any power
source.
2. Wipe the power supply and cord with antiseptic. Allow to air dry.
3. Inspect the power supply, cords and connectors for damage and cracked or exposed
wiring. Contact KCI if replacement is necessary.
4. Inspect the power supply safety labels for legibility. Replace as necessary.
5. Loosely loop the power cord and secure with a rubber band.
6. Place the clean power supply in a clear plastic bag and move it to the service area.
Fabric Carrying Case
The ActiV.A.C.® Fabric Carrying Case (KCI P/N 340122) is designed as a single use item; do
not launder or reuse.
Canister Seals
Exhaust Filter

88
Service Procedures
The following service procedures are used to verify that the ActiV.A.C.® Therapy Unit is functioning properly and that the
battery is fully charged. Once these procedures are complete, the unit will be ready for patient use. These procedures
should be performed as listed and in order:
•when the unit is rst received from KCI, as part of the initial inspection (starting at Inspect Unit for Damage)
•between each patient use
All service should occur in a clean area that is protected from contamination from unclean units or other
potential contamination sources. Use PPE as appropriate or as specified in local protocols.
Parts and Equipment Needed
•ActiV.A.C.® Canister KCI P/N M8275058, two each
•These are normal ActiV.A.C.® canisters that can be reused for up to six months as a test canister. KCI recommends
marking the canister with Test Canister-Not For Human Use and the in-use date.
•Tubing Cap, KCI P/N M6275069, one each. Note: A tubing cap is attached to the canister tubing as delivered.
•ActiV.A.C.® Therapy System Required Service Record form, KCI P/N 414211, one each
•Canister Seal, KCI P/N 340040, two each (if required)
•Exhaust Filter, KCI P/N 340037, one each
•ActiV.A.C.® Fabric Carrying Case KCI P/N 340122, one each
•ActiV.A.C.® Pressure Accuracy Accessory, KCI P/N 340145, one each
•Calibrated Digital Manometer, customer supplied, one each. Manometer accuracy to be within 2.5 mmHg.
Inspect Unit for Damage
The purpose of this procedure is to inspect the ActiV.A.C.® Therapy Unit for damage.
1. Examine the unit top, bottom and sides for:
•cracks of any size
•holes of any size that expose internal components
2. Examine the canister attachment area for:
•cracks of any size
•damage to the canister seals
•missing or damaged canister bumpers
3. Examine the battery charging / power connection and USB data port to ensure they are clear with no visible bent pins or
other obstructions.
4. Examine the touch screen area and ensure it is secure in the case.
5. Check for excessive screen scung, scratches and / or cracks that could obscure screen elements.
Deep or extensive screen scratches or cracks can be the source of intermittent erratic therapy unit operation.
6. Verify all labels are present per illustrations on page 5.
7. Inspect all labels for readability. If replacement is necessary, see spare parts list and apply new label over old.

99
Labels for the ActiV.A.C.® Therapy Unit are designed to be non-removable by patients during normal use. If a
label becomes damaged, DO NOT use a sharp object to scrape the label o. The powder coating on the unit
may be damaged beyond repair. Apply new label in the same position and orientation as the original. The label
manufacturer recommends not using any cleaning uid or other cleaning material to remove any residual label
adhesive.
8. Should the unit fail any of the above criteria, contact KCI (see page 27).
9. With the unit inspection complete, continue on to Replace Exhaust Filter.
Replace Exhaust Filter
The purpose of this procedure is to replace the exhaust filter. This procedure can be skipped if the unit is new and has not
been previously placed with a patient.
1. Insert a new exhaust lter.
2. Ensure the lter is fully seated.
3. With the exhaust lter replacement complete, continue on to Data Download.
Data Download
The purpose of this procedure is to download and archive the therapy history file from the most recent use of the
ActiV.A.C.® Therapy Unit. This procedure can be skipped if the unit is new and has not been previously placed with a
patient.
If a problem occurs with therapy and you would like assistance diagnosing the problem, please contact KCI
(see page 27).
KCI recommends the therapy history le be downloaded and saved as a permanent digital record led by unit serial number
and download date.
1. Ensure the unit is powered on and is in Clinician Mode. If the unit is
in Patient Mode, press ? button, then press Clinician Mode, then press
and hold OK button until the mode changes.
2. Press Therapy button.
3. Press Next button.
4. Press History button.
5. Press Export History button.
6. Press Export to USB button.
Always use a USB flash drive. Do not plug a USB PC cable
into the ActiV.A.C.® Therapy Unit.
7. Insert a USB ash drive into the USB data port.
8. Press Next button.
Continuous
Therapy Off
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy
USB Flash Drive

1010
9. Wait while the unit downloads the data to the ash drive.
10. When the download is complete, press OK button.
•If System Errors 2 through 6 occur, power the unit o and back on and try again.
•System Errors 7 and 8 are cleared by resetting patient defaults, see Final Settings section.
•If the error recurs, contact KCI (see page 27).
•If System Error 1 occurs, contact KCI (see page 27).
11. Press Exit button to return to the Clinician Home Screen.
12. Remove the USB ash drive from the ActiV.A.C.® Therapy Unit.
13. Connect the USB ash drive to an external computer.
The ActiV.A.C.® Therapy Unit exports a le folder that uses the unit serial number as its name. The folder contains a
Comma Separated Values (CSV) le named by date, YYYYMMDD.csv.
14. For the initial save operation, save the entire le folder to a secure computer.
15. For subsequent data exports from the same ActiV.A.C.® Therapy Unit, save the new dated CSV le to the same secure
computer into the existing folder named with the ActiV.A.C.® Therapy Unit serial number.
16. With the data download complete, continue on to Battery Check.
Battery Check
The purpose of this procedure is to determine if the battery needs changing.
1. Locate the battery history label located on the bottom of the unit.
2. Verify the battery change date on the battery history label.
3. If the battery is within the date range, skip ahead to Pressure Checks;
otherwise proceed to the Change Battery procedure.
Battery Change
The purpose of this procedure is to change the battery.
Ensure that the ActiV.A.C.® Therapy Unit is not connected to
the power supply when removing or replacing the battery.
1. Verify that the battery change due date on the battery history label is
at or exceeds the current date.
2. Remove the battery history label.
3. Using a #1 Phillips screwdriver, remove the two 4-40 Phillips head
screws.
4. Remove the battery cover.
Battery History Label
Screws

1111
5. Remove the battery from the unit until the wiring connector is accessible.
6. Disconnect the battery from the unit.
7. Remove the old battery and dispose of it properly in accordance with
local, state and federal regulations for Lithium-ion batteries.
The ActiV.A.C.® Therapy Unit battery must be replaced only
with batteries supplied by KCI. Use of any other battery may
compromise safety and / or cause erratic operation.
8. Obtain a new battery from KCI (KCI P/N 414003).
9. Obtain a new battery history label (KCI P/N 340168).
Shelf life of the battery is 12 months from battery manufacture
date. Verify that the battery manufacture date is within 12
months of the date of installation. If the manufacture date
is outside 12 months, contact KCI (see page 27) for a
replacement battery.
10. Calculate the next battery change due date as 30 months from the
installation date.
11. Record the required information on the battery history label.
12. Slide new battery about halfway into unit until connectors meet. Plug
connectors together and ensure locking tabs are fully engaged.
13. Fit the battery into the housing ensuring the wiring harness is not
in front or behind the battery and is not tangled or obstructing the
battery.
14. Press the Power On / O switch to ensure the unit powers on properly.
15. Press the Power On / O switch to turn the unit o.
16. Reinstall the battery cover, ensuring that it easily ts and does not
need to be forced into place. If force is required, the battery is not
properly installed. Double check that the wiring harness is not
preventing the battery from tting fully into the battery compartment.
17. Install the two screws tightly.
18. Install the new battery history label across the battery cover.
19. With the battery change complete, continue on to Pressure Checks.
Pressure Checks
The purpose of this procedure is to ensure the therapy unit pump responds to pressure setting adjustments.
The ActiV.A.C.® Therapy Unit must be connected to the
ActiV.A.C.® Power Supply during this procedure. The needle
valve simulates the permeability of a V.A.C.® Drape. The PVC
test xture and hygroscopic lter simulate the ActiV.A.C.®
Canister.
Set-up
1. Remove canister seals from unit.
Battery Connector
Canister Seal

1212
2. Connect the PVC test xture to the ActiV.A.C.® Therapy Unit as illustrated below.
3. Ensure the calibrated manometer is connected as illustrated and powered on.
4. Ensure the tubing with the hygroscopic lter is connected to the pump port and the plain tubing is connected to the
wound port.
Ensure the ActiV.A.C.® Power Supply is plugged into mains
power and is also plugged into the ActiV.A.C.® Therapy Unit.
5. Power the unit on by pressing the Power On / O switch for two
seconds.
6. After acknowledging the warning screen, ensure the ActiV.A.C.®
Therapy Unit is in Clinician Mode by observing the text in the upper
right hand corner of the screen, as illustrated.
7. If not in Clinician Mode, press ? button, press Clinician Mode, press
and hold OK button until the screen changes to Clinician Mode.
ActiV.A.C.® Therapy Unit
PVC Test Fixture
Customer Supplied
Calibrated Manometer
Needle Valve
Hygroscopic Filter
connected to Pump Port
Hygroscopic Filter connected to Pump Port
Plain tubing connected to Wound Port
Continuous
Therapy Off
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy

1313
25 mmHg Test
1. Press Therapy button.
2. Press Next button.
3. Press Settings.
4. Press Pressure and use the arrow keys to set the pressure to 25.
5. Press Exit two times.
6. On the Conrm screen, ensure that settings are Pressure: 25 mmHg;
Mode: Continuous; Intensity: Low. If these settings are not correct,
press Back to change the incorrect setting.
7. Press OK button.
8. Start therapy by pressing the On / O button.
9. On the Therapy Start screen adjust the needle valve so that the Leak
Rate bar graph indicator on the Therapy Start screen indicates green
and is below the dividing line on the bar graph (see illustration).
10. Observe the digital manometer and the displayed pressure on the
ActiV.A.C.® touch screen. The digital manometer should stabilize and
indicate the pressure displayed touch screen, ± 10 mmHg.
11. Press Exit button.
12. Press Therapy button.
13. Press Next button.
14. Press Settings.
125 mmHg Test
1. Press Pressure and use the arrow keys to set the pressure to 125.
2. Press Exit two times.
3. On the Conrm screen, ensure that settings are Pressure: 125 mmHg;
Mode: Continuous; Intensity: Low. If these settings are not correct,
press Back to change the incorrect setting.
4. Press OK button.
5. Press Therapy button.
6. Press Next button.
7. Press Seal Check™ button.
8. Adjust the needle valve so that the Leak Rate bar graph indicator on
the Therapy Start screen indicates green and is below the dividing line
on the bar graph (see illustration).
9. Observe the digital manometer and the displayed pressure on the
ActiV.A.C.® Touch Screen. The digital manometer should stabilize and
indicate the pressure displayed touch screen, ± 10 mmHg.
10. Press Exit button one time.
11. Press Settings.
Continuous
Therapy Off
0 mmHg
Pressure Exit
+
_
25 mmHG
Continuous
Therapy Off
0 mmHg
Confirm
OK
Back
Pressure: 25 mmHg
Mode: Continuous
Intensity: Low
Continuous
Therapy On
25 mmHg
Log
Seal Audio
Therapy Start
Low
High
Leak Rate
Exit
Continuous
Therapy Off
0 mmHg
Pressure Exit
+
_
125 mmHG
Continuous
Therapy On
125 mmHg
Seal Audio
Seal Check™
Low
High
Leak Rate
Exit

1414
200 mmHg Test
1. Press Pressure and use the arrow keys to set the pressure to 200.
2. Press Exit two times.
3. On the Conrm screen, ensure that settings are Pressure: 200 mmHg;
Mode: Continuous; Intensity: Low. If these settings are not correct,
press Back to change the incorrect setting.
4. Press OK button.
5. Press Therapy button.
6. Press Next button.
7. Press Seal Check™ button.
8. Adjust the needle valve so that the Leak Rate bar graph indicator on
the Therapy Start screen indicates green and is below the dividing line
on the bar graph (see illustration).
9. Observe the digital manometer and the displayed pressure on the
ActiV.A.C.® Touch Screen. The digital manometer should stabilize and
indicate the pressure displayed touch screen, ± 10 mmHg.
10. Press Exit button.
11. Press Settings.
125 mmHg Test
1. Press Pressure and use the arrow keys to set the pressure to 125.
2. Press Exit two times.
3. On the Conrm screen, ensure that settings are Pressure: 125 mmHg;
Mode: Continuous; Intensity: Low.
4. Press OK button.
5. Observe the digital manometer and the displayed pressure on the
ActiV.A.C.® Touch Screen. The digital manometer should stabilize and
indicate the pressure displayed touch screen, ± 10 mmHg, within 60
seconds.
6. If the ActiV.A.C.® Therapy Unit passes all four pressure change
procedures, remove the test xture tubing and reinstall the canister
seals onto the unit.
7. Should the ActiV.A.C.® Therapy Unit fail any one of these pressure
changes by not displaying the correct pressure within 60 seconds,
contact KCI (see page 27).
8. With the Pressure Check complete, continue on to Charge Battery and
Six Hour Verication Test.
Continuous
Therapy Off
0 mmHg
Pressure Exit
+
_
200 mmHG
Continuous
Therapy On
200 mmHg
Seal Audio
Seal Check™
Low
High
Leak Rate
Exit
Continuous
Therapy Off
0 mmHg
Pressure Exit
+
_
125 mmHG
Continuous
Therapy Off
0 mmHg
Confirm
OK
Back
Pressure: 125 mmHg
Mode: Continuous
Intensity: Low

1515
Charge Battery and Six Hour Unit Verification Test
The purpose of this procedure is to ensure the ActiV.A.C.® Therapy Unit is fully functional and the battery is fully charged.
This six hour test is a minimum time. The process can be extended overnight or over a weekend if necessary.
1. Set the unit in a secure place where it can be left for a minimum of six hours.
Charging can extend longer than six hours if necessary.
2. Plug the power supply cord into the ActiV.A.C.® Therapy Unit.
3. Plug the mains power cord into the external power supply.
4. Plug the mains power cord into a grounded AC mains wall socket.
5. Verify the Battery Charging Indicator LED is lit.
An amber light means the battery is charging.
A green light means the battery is fully charged.
6. Ensure the unit is powered on. If necessary, hold down the Power On/
O button for a minimum of two seconds to power the unit on.
7. Once the unit has completed its power on self test, verify the plug
icon is present on the lower left of the touch screen.
8. Unplug the power supply cord from the ActiV.A.C.® Therapy Unit.
Verify the battery icon is present on the lower left of the touch screen.
9. Plug the power supply cord into the ActiV.A.C.® Therapy Unit. Verify
the plug icon reappears and the Battery Charging Indicator LED is lit.
10. Grasp the power cord approximately 3 inches (75mm) from the end
plugged into the ActiV.A.C.® Therapy Unit and wiggle the cord.
Observe both the Battery Charging Indicator LED and the plug icon
on the touch screen. Should either of these indicators icker, repeat
the wiggle test using a dierent power supply cord.
11. Should the ActiV.A.C.® Therapy Unit fail any of the above steps,
contact KCI (see page 27).
12. Attach a regular ActiV.A.C.® 300 mL canister that has been designated
a test canister to the ActiV.A.C.® Therapy Unit.
13. Ensure that a tubing cap is attached to the canister tubing.
14. With the ActiV.A.C.® Therapy Unit still in Clinician Mode, press Therapy
button.
Continuous
Therapy Off
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy
Continuous
Therapy Off
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy
Attach test canister

1616
15. Press Next button.
16. Press Settings.
17. Press Pressure and if necessary use the arrow keys to set the pressure
to 125.
18. Press Exit two times.
19. On the Conrm screen, ensure that settings are Pressure: 125 mmHg;
Mode: Continuous; Intensity: Low. If these settings are not correct,
press Back to change the incorrect setting.
20. Press OK button.
21. Start therapy by pressing On / O; the Therapy Start screen will appear.
22. Ensure the Leak Rate indicator is green.
23. Press Exit button to return to the Clinician Mode Home screen.
24. Begin six hour verication period. KCI recommends starting a timer to
ensure the six hour time period is achieved.
25. Press On / O to stop therapy.
26. At the end of the six hour verication period, carefully check the unit
for:
•control buttons not responding
•excessively hot unit
•no alarms are displayed
27. Verify that the Battery Charging Indicator LED is lit and showing green.
28. Unplug the power supply cord from the ActiV.A.C.® Therapy Unit.
29. Verify the battery full icon appears.
30. Should the unit fail any of the above criteria, contact KCI
(see page 27).
31. With the Charge Battery and Six Hour Verication Test complete,
continue on to Verify Time and Date.
Continuous
Therapy On
125 mmHg
Log
Seal Audio
Therapy Start
Low
High
Leak Rate
Exit
Continuous
Therapy Off
0 mmHg
Confirm
OK
Back
Pressure: 125 mmHg
Mode: Continuous
Intensity: Low
Continuous
Therapy Off
0 mmHg
Pressure Exit
+
_
125 mmHG
Continuous
Therapy Off
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy

1717
Verify Time and Date
The purpose of this procedure is to verify the unit displays the correct time and date and how to set it if it is incorrect.
1. With the unit powered on and the Clinician Home Screen visible,
observe the time and date in the upper right-hand corner of the
screen. If the time and date are correct, proceed to Alarm Tests,
otherwise go to Step 2.
2. Press Utilities.
3. Press Time / Date.
4. Set the correct date and time.
5. Press Exit button two times to return to the Clinician Home Screen.
Alarm Tests
The purpose of these tests is to ensure the ActiV.A.C.® Therapy Unit correctly detects, displays and sounds alert and alarm
conditions.
Ensure that the ActiV.A.C.® Therapy Unit is NOT plugged in to the ActiV.A.C.® Power Supply during the alarm test
procedures. Ensure the tests are run without interruption as an additional battery capacity check.
Leak Alarm
1. Ensure the test canister is still securely attached to the ActiV.A.C.®
Therapy Unit. Remove the tubing cap from the canister tubing and
ensure the tubing clamp is completely open.
2. From the Clinician Home screen, press On / O.
3. From the Therapy Start screen, press Exit button to return to the
Clinician Home screen.
4. The Leak Alarm should activate in approximately two minutes or less.
5. Press Reset to return to the Clinician Home screen.
6. Continue on to Blockage Alert if the unit has correctly displayed this
Leak Alarm, otherwise contact KCI (see page 27).
Continuous
Therapy Off
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy
Exit
Set Time/Date
Year Minute
Hour(24)
Day
Month
++
+
+
+
__
_ _ _
Continuous
Therapy Off
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy
Continuous
Therapy On
0mmHg
Audio Pause
Reset
Press’?’ or ‘Seal Check™for more information
Leak Alarm
Seal
Check™

1818
Blockage Alert
1. From the Clinician Home screen, press On / O to stop therapy.
2. Fully close the tubing clamp to the maximum possible.
3. From the Clinician Home screen, press On / O.
4. From the Therapy Start screen, Press Exit button to return to the
Clinician Home screen.
5. The Blockage Alert should activate in approximately two minutes or
less.
6. Press Exit button to return to the Clinician Home screen.
7. Release the tubing clamp.
8. Replace the tubing cap on the canister tubing.
9. Continue on to Canister Not Engaged if the unit has correctly
displayed this Blockage Alert; otherwise contact KCI (see page 27).
Canister Not Engaged and Check Battery Level
1. From the Clinician Home Screen press On / O to stop therapy.
2. Release the canister from the unit by pressing the canister latch
release.
3. From the Clinician Home screen, press On / O.
4. From the Therapy Start screen, Press Exit button to return to the
Clinician Home screen.
5. While this test is running, check the status of the battery icon on the
Clinician Home Screen.
6. If the battery icon is yellow as illustrated, battery capacity is not
sucient for normal operation. Cancel this test and go to the Charge
Battery procedure and charge the battery. After charging the battery,
repeat the procedures and tests from that point.
7. If the battery icon remains green, continue with this test.
8. The Canister Not Engaged alarm should sound in approximately thirty
seconds or less.
9. Ensure that the alarm sounds with three beeps.
10. Press Reset to return to the Clinician Home Screen.
11. Continue on to Canister Full Therapy Interrupted alarm if the unit
has correctly displayed this Canister Not Engaged alarm; otherwise
contact KCI (see page 27).
Continuous
Blockage
0mmHg
Potential Blockage detected
Press’?’ or ‘Seal Check™for more information
Blockage Alert
Exit
Fully close the Tubing Clamp
Continuous
Therapy Off
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy
Continuous
Therapy On
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy
Continuous
Therapy On
0mmHg
On/Off
Clinician Mode
6 Aug 2009
15:06
Utilities
Therapy
Continuous
Therapy Off
0mmHg
Audio Pause
Reset
WARNING: Ensure canister is in place.
Press ‘?’ for more information.
Canister Not Engaged
