KEBCO COMBIVERT F5 User manual

DSF5ZEM-K002
06/2008
COMBIVERT
GB INSTRUCTION MANUAL Encoder Interface
Channel 1 variable
Channel 2 SSI

Table of Contents
GB - 
1. Safety Instructions ........................................................................................ 4
1.1 Validity ................................................................................................................4
1.2 Quali󰘰cation ........................................................................................................4
2. Product Description ....................................................................................... 5
2.1 General ...............................................................................................................5
2.2 Material number .................................................................................................5
2. Scope of delivery (option or replacement delivery) ............................................6
2.4 Mechanical installation .......................................................................................6
. Description of the Interface ........................................................................... 6
.1 Voltage supply ....................................................................................................6
.2 Channel 1 ...........................................................................................................6
. Channel 2 ...........................................................................................................7
..1 Speci󰘰cation channel 2 ......................................................................................7
..2 Description of socket XB ..................................................................................7
.. Input signals channel 2 .......................................................................................7
...1 Serial data transmission .....................................................................................7
...2 Encoder breakage recognition ...........................................................................8
..4 Connection of the encoder .................................................................................9
..5 Encoder cable ..................................................................................................10
..6 Encoder line length ...........................................................................................11
4. Start-up ....................................................................................................... 11
5. Error Messages ........................................................................................... 11

GB-4
1. Safety Instructions
Prior to performing any work on the unit the user must familiarize himself with the unit. This includes especially
the knowledge and observance of the safety and warning directions. The pictographs used in this Instruction
Manual have following meaning:
Danger Refers to danger of life by electric current.
Warning Refers to possible danger of injury or life.
Note Refers to tips and additional information.
1.1 Validity
The information contained in the technical documentation, as well as any user-speci󰘰c advice in spoken and
written and through tests, are made to best of our knowledge and information about the application. However,
they are considered for information only without responsibility. This also applies to any violation of industrial
property rights of a third-party.
Inspection of our units in view of their suitability for the intended use must be done generally by the user.
Inspections are particulary necessary, if changes are executed, which serve for the further development or
adaption of our products to the applications (hardware, software or download lists). Inspections must be re-
peated completely, even if only parts of hardware, software or download lists are modi󰘰ed.
Controlling by
the user
Application and use of our units in the target products is outside of our control and
therefore lies exclusively in the area of responsibility of the user.
Use under spe-
cial conditions
The used semiconductors and components of KEB are developed and dimensio-
ned for the use in industrial products. If the KEB COMBIVERT is used in machi-
nes, which work under exceptional conditions or if essential functions, life-sup-
porting measures or an extraordinary safety step must be ful󰘰lled, the necessary
reliability and security must be ensured by the machine builder.
1.2 Quali󰘰cation
All operations serving transport, installation and commissioning as well as maintenance are to be carried
out by skilled technical personnel (observe IEC 64 or CENELEC HD 84 or DIN VDE 0100 and national
accident prevention rules!). According to this manual quali󰘰ed sta󰘯 means those who are able to recognise
and judge the possible dangers based on their technical training and experience and those with knowledge of
the relevant standards and who are familiar with the 󰘰eld of power transmission (VDE 0100, VDE 0160 (EN
50178), VDE 011 (EN 60204) as well as the approporiate regulations for your area.
Danger by high
voltage
KEB electronics components contain dangerous voltages which can cause death or
serious injury. In operation, drive converters, depending on their degree of
protection, may have live, uninsulated, and possibly also moving and hot
surfaces.
In case of inadmissible removal of the required covers, of improper use, wrong
installation or maloperation, there is the danger of serious personal injury and
damage to property.

SSI - Encoder interface at channel 2
GB-5
2. Product Description

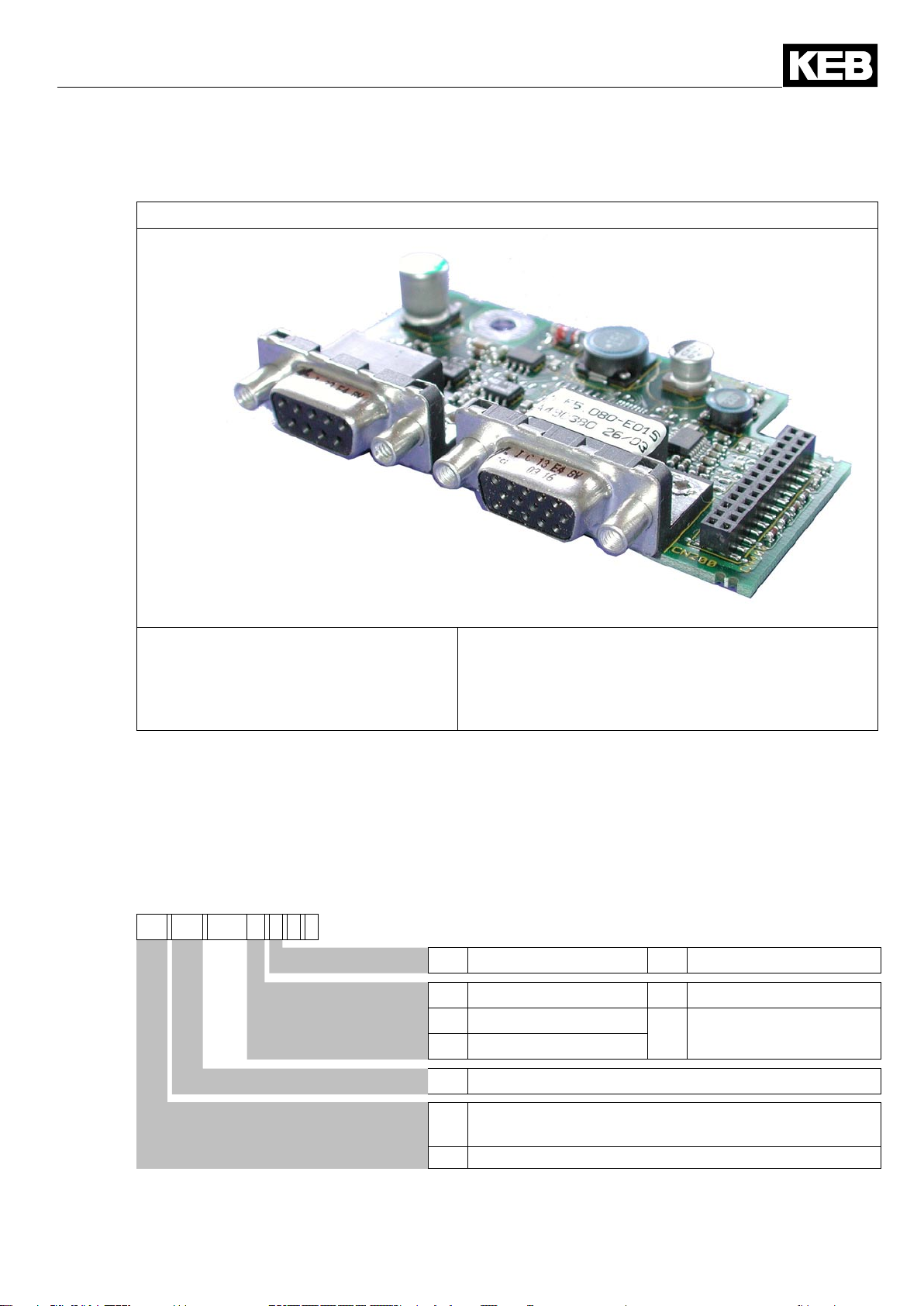

Figure 1: SSI - Encoder interface at channel 2
XB XA
Channel 2 Channel 1
SSI variable
Synchronous Serial Interface see material number
2.1 General
Each of the interface cards delivered by KEB include two interfaces. As there are numerous
di󰘯erent combinations available each interface will be described by means of separate
instructions. The instruction covers the installation of the interface card, the connection as
well as the start-up of a suitable encoder. Further information and the parameter adjust-
ments are described in the application manual for the inverter/servo.
2.2 Material number
xM F5 K8x X X X X
Term of delivery 0 installed Z Option, spare part
1 SIN/COS 5 Resolver
 EnDat LHTL input without
inverse signals
4 TTL-input
F5 Series
applicable for housing size 1M D, E (PCB 1M.F5.280-1015/ -0025/ -4017/ -
2020/ -2021)
2M G…U (PCB 2M.F5.280-1015/ -2020/ -2021)

SSI - Encoder interface at channel 2
GB-6
2. Scope of delivery (option or replacement delivery)
• Encoder Interface
• two instruction manuals
• 󰘰xing bolt
• packing material
2.4 Mechanical installation
All kind of works on the inverter may be carried out by authorized personnel in accordance
with the EMC and safety rules only.
• Switch inverter de-energized and await capacitor discharge time
• Pull o󰘯 operator
• Remove plastic cover
• Remove 󰘰xing bolt
• Fix interface board beginning from the socket connector straightly
• Screw in 󰘰xing bolt
• Attach plastic cover
. Description of the Interface
.1 Voltage supply
Figure .1 Voltage supply of control and encoder interfaces
Uint 24 VDC Internal voltage supply of COMBIVERT.
X2A
X3A
X3B
5,2V
24V
5V
24V
5V
Uint
5EXT
Iint
120 mA at Hiperface, Sin/Cos, EnDat and SSI-Sin/
Cos.
170 mA at all other encoder interfaces.
Uext Control terminal strip (X2A) of the COMBIVERT with
external voltage supply 24…0 DCV.
24 V Voltage output of encoder interfaces XA and XB for
encoder supply.
I24V
Current Iint reduces itself by draw current to the 5 V-out-
put in accordance with the following formula:
5,2 V x I5V
I24V = Iint - –––––––––
Uint
5 V Voltage output for encoder supply. 5,2 V are obtained
from the 24 V voltage.
I5V
00 mA at Hiperface, Sin/Cos, EnDat and SSI-Sin/
Cos.
500 mA at all other encoder interfaces.
1 A at external supply (dependent on voltage
source)
.2 Channel 1
The description of input XA is depending on the used encoder interface. It is described in
a separate manual.

SSI - Encoder interface at channel 2
GB-7
. Channel 2
..1 Speci󰘰cation channel 2
Socket XB SUB-D9
Interface type SSI (synchronous serial interface)
Input signals 5 V TTL according to RS485
Outputs and inputs Clock+, Clock-, Data+, Data-
Code Binary coded, Gray Code
Resolution 12 Bit Singleturn, 12 Bit Multiturn
Limiting frequency 220 kHz
Increments per revolution 1…168 inc (recommendation 2500 inc for speed upto
4500 rpm
Input resistance 150 Ω
Max. line length 50 m, the value is additionally limited by the signal fre-
quency, cable capacity and supply voltage.
..2 Description of socket XB
Figure ..1 Socket XB
5 4 3 2 1
9 8 7 6
PIN Name Description
1 CL+ Output of the clock signal
2 DAT+ Input data track
 – –
4 5 V Voltage output 5 V
5 24 V Voltage output 20…0 V
6 CL- Di󰘯erence signal to clock signal C+
7 DAT- Di󰘯erence signal to data track DAT+
8 – –
9 COM Reference potential for voltage supply
– GND Connection for shield at connector housing - is directly connected with
the inverter earth.
.. Input signals channel 2
...1 Serial data transmission
Singleturn absolute encoder divide one revolution of the shaft into a de󰘰ned number of
measuring steps. This are 4096 positions at a SSI protocol, corresponding to a resolution
of 12 Bit. Multiturn absolute encoder do not only detect angle positions within one revolution
but also the number of revolutions. With a resolution of the multiturn part of 12 Bit this cor-

SSI - Encoder interface at channel 2
GB-8
responds to 4096 revolutions. The position measuring area of 0…224-1 should not be left,
since an over󰘱ow and/or under󰘱ow is not evaluated as error. A system o󰘯set can be de󰘰ned
by writing on Ec.4 or approaching to reference point.
Figure ...1 Serial data transmission with SSI encoder
Clock signal
  


 
   



Data
Mono󰘱op
Position data
P: Parallel position data
T: Period
Tp: Clock interruption up to the next request
tm: Pulse duration of the mono󰘱op
tv: Deceleration time
Dhigh: most signi󰘰cant position bit
Dlow: least signi󰘰cant position bit
...2 Encoder breakage recognition
An error bit is evaluated for monitoring of the encoder at channel 2. The monitoring is swit-
ched on/o󰘯 with parameter Ec.42 (Ec.20 up to V2.8). The recognition of encoder breakage
triggers an „error! encoder 1“ (value 2).

SSI - Encoder interface at channel 2
GB-9
..4 Connection of the encoder
• Encoder cable double-shielded and twisted in pairs
• Connect exterior shielding at both ends to PE/GND
• Connect interior shieldings at one side to COM
• Do not connect exterior and interior shielding
Two connection examples of SSI encoders are following. The assignment of the motor en-
coder interface is di󰘯erent according to the manufacturer. The examples must be adopted
accordingly.

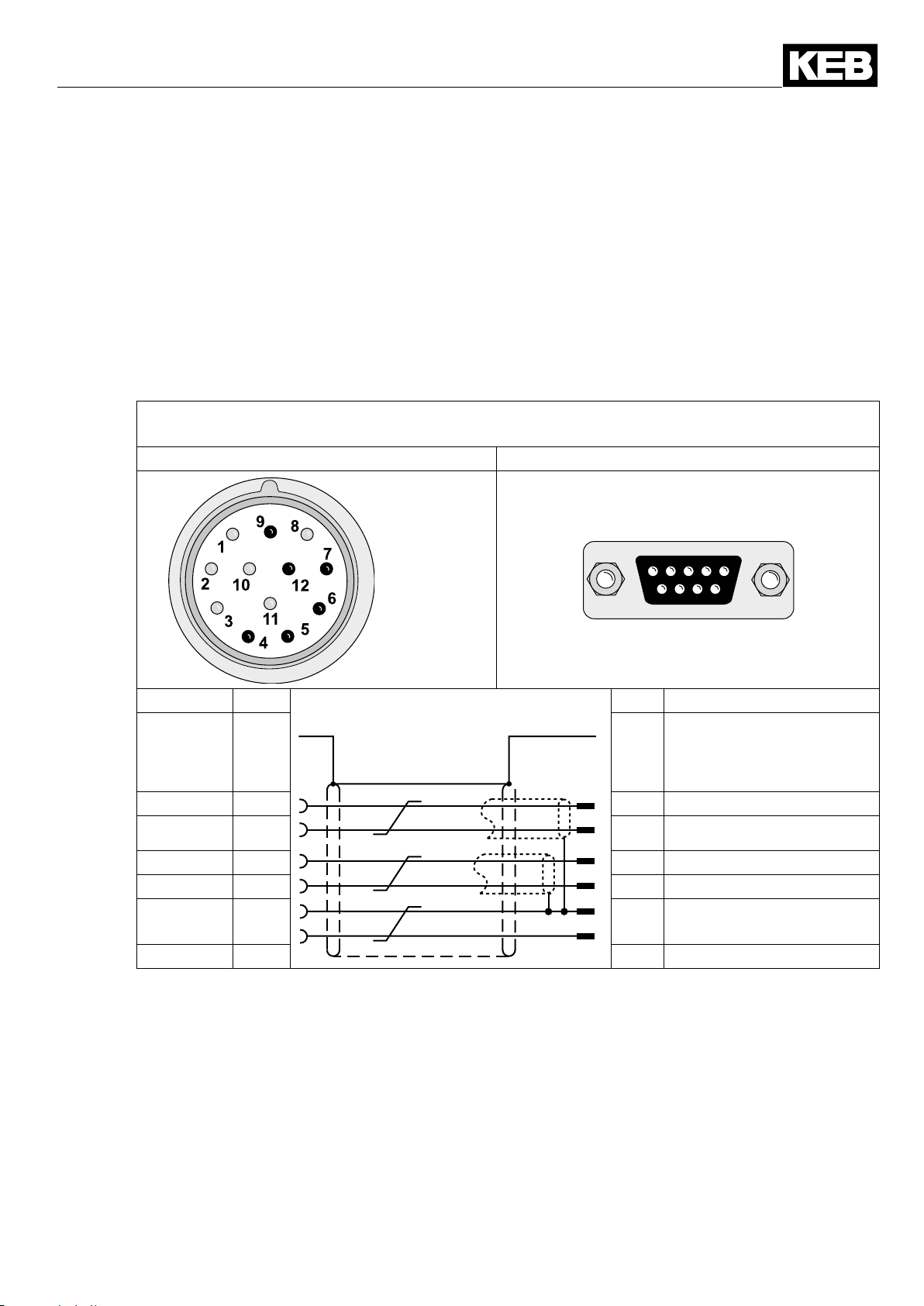

Picture ..4.a Connection example: Encoder with 18V supply
(e.g. Sick-Stegmann AG615)
Encoder plug Socket XB
5 4 3 2 1
9 8 7 6
Name PIN Material number: 00F4609-xxxx PIN Core color
GND – – exterior shielding
CL+  1 green
CL- 11 6 yellow
Data+ 2 2 blue
Data- 10 7 red
COM 1 9 white + internal shiel-
ding
24 V 8 5 brown

SSI - Encoder interface at channel 2
GB-10
Picture ..4.b Connection example: Encoder with 5V supply (e.g. Kübler 9081)
Encoder plug Socket XB
5 4 3 2 1
9 8 7 6
Name PIN Material number: 00F4909-xxxx PIN Core color
GND – – Solder external shielding
to metal housing
CL+  1 green
CL- 4 6 yellow
Data+ 5 2 blue
Data- 6 7 red
COM 1 9 white + internal shiel-
ding
5 V 2 4 brown
..5 Encoder cable
KEB delivers ready-made encoder cable in accordance with the following number code:
For Stegmann encoder:
00F4609-xPxx x,xx m z.B. 00F4609-0P60 corresponds to 0,60 m
00F4609-0xxx xxx m z.B. 00F4609-0040 corresponds to 40 m
For Kübler encoder:
00F4909-xPxx x,xx m z.B. 00F4909-0P60 corresponds to 0,60 m
00F4909-0xxx xxx m z.B. 00F4909-0040 corresponds to 40 m
KEB encoder cables are corresponding to the following speci󰘰cation:
Signal lines  x (2 x 0,14 mm²)
Supply lines 2 x 0,5 mm²
Particularities trailing capable, oil-resistant
Temperature range constant upto 80 °C
Color green RAL 6018

SSI - Encoder interface at channel 2
GB-11
..6 Encoder line length
The maximum line length for the connection line is limited by the signal frequency, cable
capacity and the line resistance.
Encoder cable length = U - Umin
––––––––––
Imax • 2 • R
max. encoder current Imax: see encoder description
Supply voltage U: Voltage output
min. supply voltage Umin: see encoder description
KEB encoder cable resistance R: 0,06 Ω/m at 0,5 mm²
4. Start-up
After the installation or exchange of an encoder interface some adjustments of the inverter/
servo software have to be done before operation:
• Switch on inverter
• Select application mode
• Select parameter Ec.10 and control whether value „6: SSI“ is entered. The
displayed value has to be con󰘰rmed by „ENTER“ in any case.
• Select parameter Ec.11 and adjust the increments per revolution to 1024.
• Select parameter Ec.17 and adjust 4-fold evaluation (1024 inc x 4 = 4096 inc)
• Select Ec.42 (Ec.20 upto V2.8) and adjust the encoder breakage recognition
dependent on the case of operation.
• Select parameter Ec.21 and adjust multiturn resolution (standard 12 Bit); ad-
just „0“ for singleturn encoders.
• Select parameter Ec.22 and adjust clock frequency for SSI encoder.
• Select parameter Ec.2 and adjust data format (standard Gray-Code).
• Ec.0 displays the read out position of the SSI encoder.
• A system o󰘯set can be de󰘰ned by writing on parameter Ec.4 or approaching
to reference point.
5. Error Messages
Error messages and their meaning are described in Chapter 9 of the application manual.

© KEB DSF5ZEM-K002 06/2008
Karl E. Brinkmann GmbH
Försterweg 36-38 • D-32683 Barntrup
fon: [phone] • fax: [phone]
net: www.keb.de • mail: [email protected]
KEB Antriebstechnik GmbH & Co. KG
Wildbacher Str. 5 • D–08289 Schneeberg
fon: [phone] • fax: [phone]
mail: [email protected]
KEB Antriebstechnik Austria GmbH
Ritzstraße 8 • A-4614 Marchtrenk
fon: [phone] • fax: [phone]
net: www.keb.at • mail: [email protected]
KEB Antriebstechnik
Herenveld 2 • B-9500 Geraadsbergen
fon: [phone] • fax: [phone]
mail: [email protected]
KEB Power Transmission Technology (Shanghai) Co.,Ltd.
No. 435 Xipu Road, Songjiang Industrial Zone,
CHN-201611 Shanghai, P.R. China
fon: [phone] • fax: [phone]
net: www.keb.cn • mail: [email protected]
KEB Antriebstechnik Austria GmbH
Organizační složka
K. Weise 1675/5 • CZ-370 04 České Budějovice
fon: [phone] • fax: [phone]
net: www.keb.cz • mail: [email protected]
KEB España
C/ Mitjer, Nave 8 - Pol. Ind. LA MASIA
E-08798 Sant Cugat Sesgarrigues (Barcelona)
fon: [phone] • fax: [phone]
mail: [email protected]
Société Française KEB
Z.I. de la Croix St. Nicolas • 14, rue Gustave Eiffel
F-94510 LA QUEUE EN BRIE
fon: [phone] • fax: [phone]
net: www.keb.fr • mail: [email protected]
KEB (UK) Ltd.
6 Chieftain Buisiness Park, Morris Close
Park Farm, Wellingborough GB-Northants, NN8 6 XF
fon: [phone] • fax: [phone]
net: www.keb-uk.co.uk • mail: [email protected]
KEB Italia S.r.l.
Via Newton, 2 • I-20019 Settimo Milanese (Milano)
fon: [phone] • fax: [phone]
net: www.keb.it • mail: [email protected]
KEB Japan Ltd.
15–16, 2–Chome, Takanawa Minato-ku
J–Tokyo 108-0074
fon: [phone] • fax: [phone]
mail: [email protected]
KEB Korea Seoul
Room 1709, 415 Missy 2000
725 Su Seo Dong, Gang Nam Gu
ROK-135-757 Seoul/South Korea
fon: [phone] • fax: [phone]
mail: [email protected]
KEB RUS Ltd.
Krasnokazarmeny proezd 1,
Metrostation „Aviamotornay“
RUS-111050 Moscow / Russia
fon: +007 445 695 3912 • fax: [phone]
mail: [email protected]
KEB Sverige
Box 265 (Bergavägen 19)
S-43093 Hälsö
fon: [phone] • fax: [phone]
mail: [email protected]
KEB America, Inc.
5100 Valley Industrial Blvd. South
USA-Shakopee, MN 55379
fon: [phone] • fax: [phone]
net: www.kebamerica.com • mail: [email protected]
