Kennedy PROFESSIONAL WIG010 User manual

MODEL
WIG010
ORDER CODE:
KEN-503-1880K
QUALITY GUARANTEE & WARRANTY
KENNEDY TOOLS carry a one year manufacturer’s warranty.
KENNEDY TOOLS are designed & manufactured
to the highest standards & specifications.
Assuring the quality and performance required by all sectors of industry.
KENNEDY TOOLS are fully guaranteed against
faulty materials & workmanship.
hould they be found to be defective, they will either be repaired or replaced
free of charge (fair wear and tear and/or misuse excepted).
Please retain supplier invoice as proof of purchase.
© The Kennedy Group Ltd. 03/18
WAX INJECTOR GUN
Kennedy Tools continually strives to improve its products, specifications may change without prior notice.
For the injection of wax
underseal into areas that are
difficult to get access to such
as door cavities, inside box
section chassis and around
wheel arches
OPERATOR’S MANUAL
Please retain this information for future reference.
WARNING:
THE SAFETY INFORMATION GIVEN INSIDE M ST BE
READ AND NDERSTOOD BY ANY PERSON SING, INSTALLING,
REPAIRING OR MAINTAINING THIS PROD CT.
THE ENVIRONMENT
Always dispose of unwanted tools, accessories and packaging materials in an environmentally
friendly manner.
KENNEDY TOOLS
Wigston, Leicester, England, LE18 2FS.
www.kennedy-tools.co.uk
Kennedy is a registered trade mark of The Kennedy Group Ltd.

Important Precautions
1. Disconnect the gun from the air supply
before changing accessories, servicing or
performing any maintenance.
2. Always clean out the gun thoroughly after use
as a blocked/partially blocked gun may result in a build
up of pressure that may cause the bottle to burst.
3. Keep children and unauthorised persons away from
the working area.
4. When not in use, make sure the air supply is turned off
and the gun is disconnected.
5. Make sure you follow the underseal makers instructions.
6. Do not place attachments next to your face, (especially your
ears and eyes) and do not point at other people or animals.
7. Do not carry by the air hose, or forcibly pull the hose or gun
from the air supply.
8. Do not use the gun for any other purpose than that for which
it is designed. Do not fill with any other fluid or liquid.
9. Do not operate the gun if damaged.
10. Do not direct the air from the hose at yourself or others.
11. When not in use, disconnect from the air supply and store in a dry safe place.
Note:
Dispose of all waste fluids in accordance with the relevant environmental health
& safety guidelines.
Technical Specifications
Model Number WIG100
Order Code KEN-503-1880K
Air upply 90-145psi (6-10bar)
Air Consumption 380Ltr/min.
Vacuum (maximum) 550mm HG
Reservoir Capacity 1.0Ltr
Air Inlet ize 1/
4”NTP
Weight 470g
SAFETY GUIDELINES
This tool is easy and safe to use following the
guidelines opposite.
lAlways wear safety goggles to protect your eyes
from splashes of fluids.
lAlways wear protective gloves when working with
any type of lubricant or fluid.
lAlways wear ear protection as prolonged exposure
may result in damage to hearing.
lAlways clean out reservoir between uses - do not
allow different fluid types to mix.
2 3
KENNEDY thoroughly recommends reading these instructions before using this
equipment, even if you have used one before. Reading these instructions carefully
and understanding them fully will enable you to perform tasks correctly and will
prevent injury to yourself or someone else.
Designed specifically for injection of Wax Underseal into areas that are hard to get to, the inside of vehicle
door cavities, inside box section chassis, around wheel arches etc.
INTRODUCTION
OPERATING INSTRUCTIONS

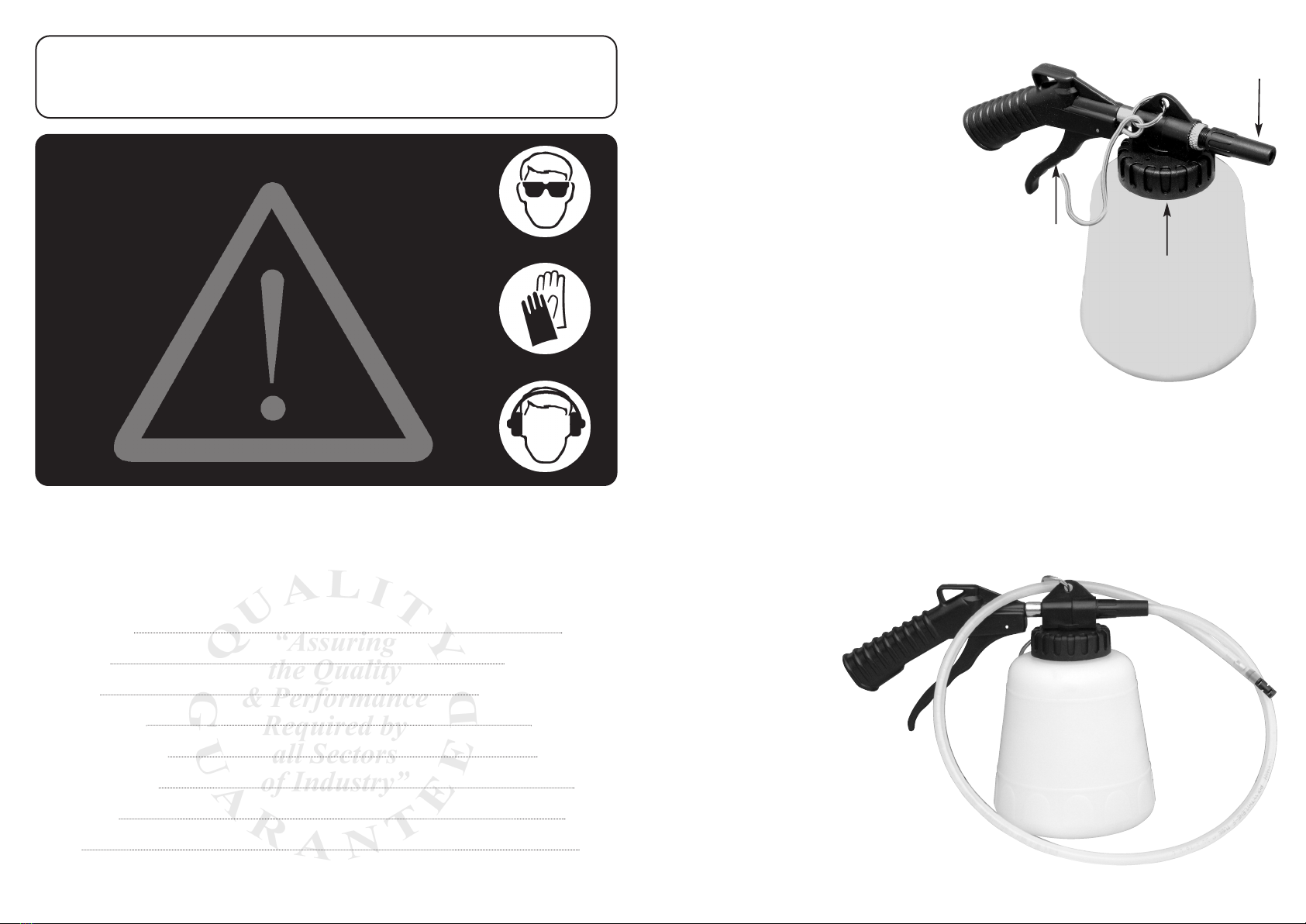

Reservoir Cap
Air Control
Trigger
Adjustable
Nozzle
Operating Instructions
1. Take the container of rust preventative
fluid and read the instructions carefully.
hake the container before use.
2. Pour some of the liquid into
the bottle and screw the
lid back on firmly.
3. Aim the gun in a safe area
and gently pull the trigger in
order to set the flow and spread of
the liquid required, according to its
viscosity.
4. The extension probe shown attached
opposite is for getting into any hard to
reach areas such as inside sills, chassis
members and doors.
5. When finished, wash out immediately to avoid
blockage of the equipment when using particularly
viscose products.
