Kenwood DNX7120 - Navigation System With DVD player User manual

GPS NAVIGATION SYSTEM
DNX7120
MONITOR WITH DVD RECEIVER
DDX712
DDX7032
INSTRUCTION MANUAL
Kenwood Corporation
DX2
VI DEO
_. Designed for
_.
Windows
'" Media'"
DC IDOLBVr ~ db
DIG I TAL 2.0+0igital Out
~
':"A~I~~
READY
10 Madefor
@J iPod
H3'Radio·
-!JREADY
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best
performance from your new
GPS Navigation Systeml DVD Receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the
warranty
card, and in the space provided below. Refer to the model and serial numbers
whenever you call upon your Kenwood dealer for information or service on the product.
Model DNX7120/DDX712/DDX7032
Serial number _
US Residence Only
©864-4103-00/00 (KW/RW)

""",' .
( Basic Operations
4
6
10
How to read this manual
Before
Use
Basic Operations

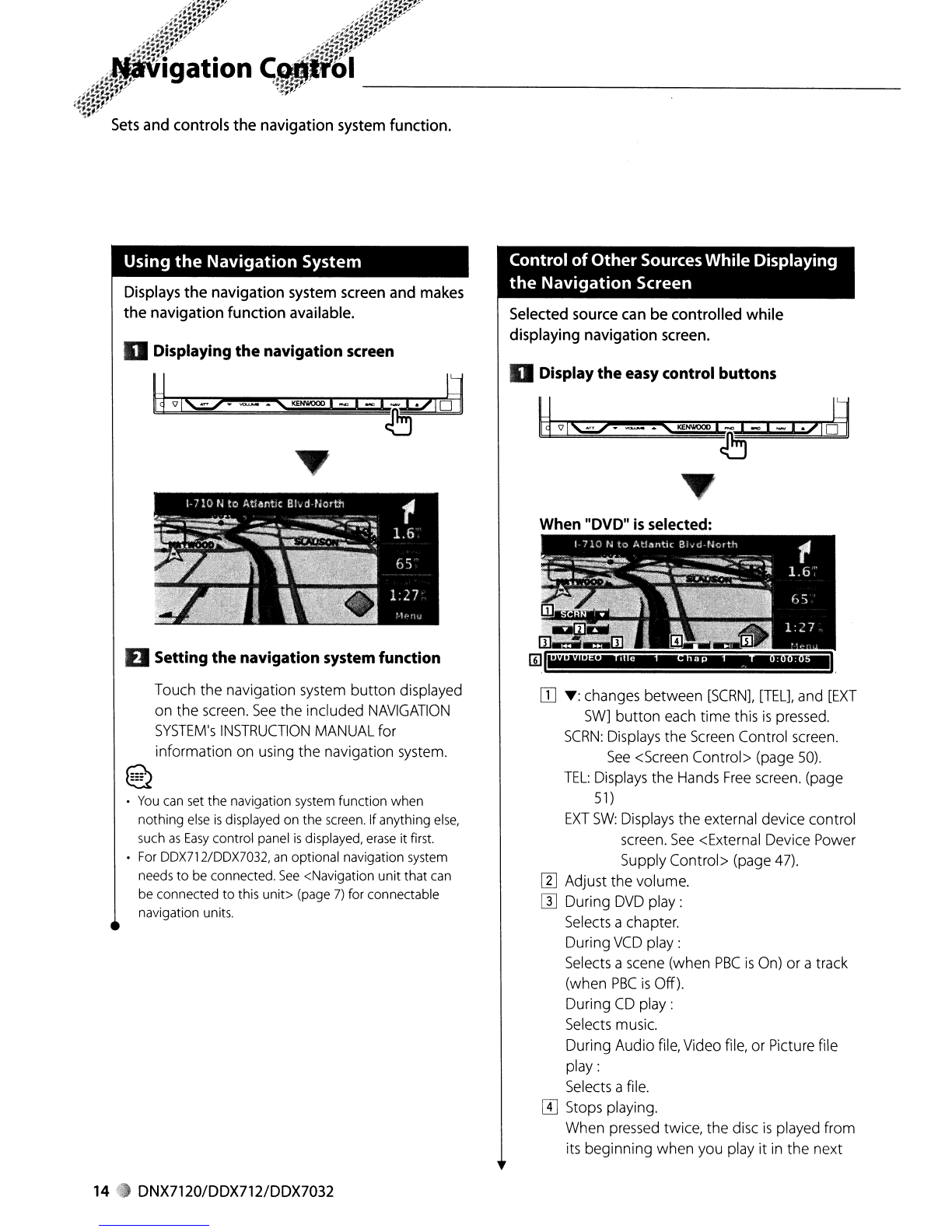

Navigation Control
14
Using the Navigation System 14
Control of Other Sources While Displaying the
Navigation
Screen 14
16
Functions During the Playback Screen 16
Functions When Displaying the Easy Control
Panel 17
Functions While Displaying the Control
Screen
DVD Disc Menu
VCD Zoom Control
Music Disc It Audio File Listening
Functions While Displaying the Control
Screen
Set Disc Name
Folder Select (Function
of Audio File)
Video File/PictureWatching
Function During Playback Screen 24
Functions When Displaying the Easy Control
~n~ 24
Functions While Displaying the Control
Screen
Picture Control
Folder Select
Radio Listening
Functions While Displaying the Control
Screen 27
Seek Mode 28
Auto Memory 28
Manual Memory 29
Preset Select 29
Radio Text 30
Set Station Name 30
Traffic Information 31
Search for Program Type 31
iPod Control 32
Connecting an iPod 32
Functions when Displaying the Easy Control
Panel 32
Functions while Displaying the Control
Screen
iPod List
USB Device Control 36
Functions while displaying the Control
Screen
USB List
Folder Select
46
2 • DNX7120/DDX712/DDX7032

Muting Audio Volume upon Reception
of Phone call
48
Hands Free Unit Control 51
Control Screen Function 51
When Received a Call 52
Calling by Entering aPhone Number 52
Quick Dialing 53
Controlling tone-based services 53
Calling by Phonebook 54
Making a Call Using Outgoing/Incoming Call
Records 55
Calling by Voice Recognition 56
Setting Up the Hands Free Phone 57
Voice Registration 58
Key Word Voice Registration 59
Phone Number Preset 60
SMS (Short Message Service) 61
,,, ...
DVD Language Codes 96
Help? Troubleshooting 97
Help? Error
98
Specifications 100
,HCc"
.. ""
/'(
Audio Control
86
Audio Control Menu
86
Audio Control
86
Equalizer Control
87
Tone Setup
88
Zone Control
88
., ....
Remote Controller 90
Battery installation 90
Remote Controller mode switch 90
Common operations
(AUD mode) 91
DVDNCD/CD/Audio files (DVD mode) 92
Radio (AUD mode) 93
NAVI (NAVI mode) 94
TV (TV mode) 95
':," .
", .. "
62
62
62
63
63
64
65
66
67
68
70
70
71
71
72
72
73
74
76
76
77
77
78
79
80
80
81
82
82
83
83
84
85
Setup Menu
Setup Menu
Audio Setup
Crossover Network Setup
DVD Setup
Language Setup
Parental
Level Setup
System Setup
AV Interface Setup
User Interface
Direct Source Button Setup
Entering Background
Background Delete
Background Select
Touch
Panel Adjustment
Clock Setup
Monitor Setup
Security Code Setup
Deactivating Security Code
iPod Setup
Sirius Setup
Sirius Parental Code Setup
Sirius Parental Lock Setup
Sirius Parental Lock Channel Select
Bluetooth Setup
Registering Bluetooth Unit
Registering Bluetooth Unit
PIN Code
Registering Special Bluetooth Unit
Bluetooth Unit Connection
Deleting Bluetooth Unit
DivX Setup
Setup Memory
EXT SW Setup
English ~I 3

Seek Mode
The displays and panels shown in this manual
are examples used to provide clear explanations
of the operations.
For this reason, they may be different from the
actual displays or panels used, or some display
patterns may be different.
4 • DNX7120/DDX712/DDX7032
Sets astation selection.
e ••••••••••••••••
Th,' r'n(fk: is svvitchcd ir; IOnOwin':j (Jrdcr !:'iY .. h
lil!lc: you t(j\.I'.!; the' button.
••......................•.......•
: Display.. .: Setting}) ".
: "AU TO I" -'l-:n"';('I-il':'; -,; ,'-.t,-lt-iO-n -W-iti-; ...;t]r-Jl'-j-r0--cr .... c:P'-tiv'-··r-, _.....-
: aut,jll1,l1idiy.
. -----'-----------,
: "AUT02" iune, in ~tations in memory 'Jne after another
: ~\:lt,~lr ••••• iv'tSljjJ('!~~~ljYl ~e~iiii' Il)r~1j;J~Vi' ••
Manual Memory
••
••••••••••••••••••••••••••••••
oStore in memory
The above operation example with the mark
differs from the actual operation.
• ••• II
•••••
•••••

.... ~ ,
, ... ~
I ••• ~
English '. 5

To prevent injury or fire, take the following
precautions:
• To prevent ashort circuit, never put or leave any
metallic objects (such
as coins or metal tools) inside
the unit.
•Do not watch or fix your
eyes on the unit's display
when you
are driving for any extended period.
How to reset your unit
If the unit or the connected unit (disc auto
changer, etc.) fails
to operate properly, press the
Reset button.The unit returns to factory settings
when the
Reset button is pressed.
•Remove the
USB device before pressing the Reset
button. Pressing the Reset button with the USB
device installed can damage the data contained in
the USB device. For how to remove the USB device,
refer
to <Playing a USB device> (page 10).
\/1 ~ ~ VOLUME ~ '" KENWOOD n FNC R
Reset button
Cleaning the Unit
Ifthe faceplate of this unit is stained, wipe it with a
dry soft cloth such
as asilicon cloth.
If the faceplate
is stained badly, wipe the stain off
with acloth moistened with neutral cleaner, then
wipe it again with aclean soft dry cloth.
~
•Applying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate with ahard cloth
or using avolatile liquid such as thinner or alcohol may
scratch the surface or erases characters.
Lens Fogging
When you turn on the car heater in cold weather,
dew or condensation may form on the lens in the
disc player
of the unit. Called lens fogging, this
condensation on the lens may
not allow discs to play.
In such asituation, remove the disc and wait for the
condensation
to evaporate. Ifthe unit still does not
operate normally after awhile, consult your Kenwood
dealer.
6lit DNX7120/DDX712/DDX7032
Handling discs
•Do not touch the recording surface of the disc.
•Do
not stick tape etc. on the disc, or use adisc with
tape stuck on it.
•Do
not use disc type accessories.
•Clean from the center
of the disc and move
outward.
•When removing discs from this unit, pull them
out
horizontally.
•Ifthe disc center hole or outside rim
has burrs,
use the disc only after removing the burrs with a
ballpoint pen etc.
Discs that cannot be used
• Discs that are not round cannot be used.
•
Discs with coloring on the recording surface or
discs that
are dirty cannot be used.
•This
unit can only play the CDs with E __ .
This unit may not correctly play discs which do not
have the mark.
•
You cannot playa CD-R or CD-RW that has not
been finalized. (For the finalization process refer to
your CD-RlCD-RW writing software, and your CD-
R/CD-RW recorder instruction manual.)
•Ifyou try
to load a3-inch-disc with its adapter into
the unit, the adapter
might separate from the disc
and damage the unit.
Other notes
•Ifyou experience problems during installation,
consult your Kenwood dealer.
•When you purchase optional accessories, check
with your Kenwood dealer to make sure that they
work with your model and in your
area.
•The characters conforming to ISO 8859-1 character
set
can be displayed.
•The
RDS or RBDS feature won't work where the
service
is not supported by any broadcasting
station.

/ #li1t!71.!r
/ ·'~I!;!M_!/
~<Y~!1!"'J!~
/,"'f!;!MI!~
/ .. t~7!1'i~~
y.#.j .. ,1i'~'/
N.s
//·;tr!!1l!/
/ /':'Z-1t-,!/
,;;~~Z11~!/
~~~1i!//
Navigation units that can be connected to
this unit (DDX712/DDX7032 only)
• KNA-GS10* • KNA-DV4100
• KNA-DV3100 • KNA-DV2100
*Update the navigation software to the latest
version.
For how to update the software, refer to the
instruction manual
of the navigation unit.
iPod that can be connected to this unit
You can control an iPod from this unit by connecting
an iPod (commercial product) with Dock connector
using
an optional accessory iPod connection cable
(KCA-iP300V).
The following iPods can be controlled from this unit.
•
iPod nano
•
iPod nano (Second Generation)
•
iPod nano (3rd Generation)
•Fifth Generation
iPod (iPod with video)
•
iPod classic
• iPod touch
Update
iPod software to the latest version.
Supports audio only
on iPod Touch.
By connecting your iPod to this unit with an optional
accessory iPod connection cable (KCA-iP300V), you
can supply power to your iPod as well as charge it
while playing
music. However, the power of this unit
must
be on.
Bluetooth unit that can be connected to
this unit
• KCA-BT200
About Satellite Radio tuner
This unit supports Satellite Radio tuners which are
released by SIRIUS and XM.
Optional accessories below are necessary for
connection.
SIRIUS tuner: Conversion cable CA-SR20
XM tuner: XM interface Box KCA-XM100
Refer to the instruction manual of Satellite Radio
tuner.
About HD Radio
When you connect an HD Radio, Tuner features of
the unit are disabled and changed to HD Radio tuner
features.
With the HD Radio tuner, you can use the similar
functions ofTuner
features. Refer toTuner features for
how to
use the functions.
List of playable discs
Disc'!!
Standard
SUPpOrt
.':':'~';
. Remark··
In§
t:
DVD
DVDVideo
0
DVD Audio
x
DVD-R 0
MP3/WMA/ AAC/ JPEGI
DVD-RW 0
MPEG Playback
Multi-border/Multisessionl
DVD+R
0
(Playback depends on
authoring conditions)
Compatible with 8-cm (3
DVD+RW
0
inch) discs
DVD-R DL (Dual layer)
0
Only video format
DVD+R DL (Double layer) 0
DVD-RAM
x
CD Music CD
0
CD-TEXT/8-cm (3 inch)
discs supported.
CD-ROM
0
MP3/WMA/ AAC/ JPEG
CD-R 0
playback
CD-RW 0
Multisession supported
Packet write not supported.
DTS-CD 0
Video CD (VCD) 0
Super video CD
x
Photo CD
x
CD-EXTRA
/:).
Only music CD session can
be played.
HDCD
/:).
Sound quality of normal
CD music
CCCD x
Others Dualdisc x
Super audio CD
/:).
Only CD layer can be
played.
o : Playback is possible.
/:). : Playback is partly possible.
x :
Playback is impossible.
Use of IDualDisc"
When playing a "DuaIDisc" on this unit, the surface
of the disc that is not played may be scratched
while the disc
is inserted or ejected. Since the music
CD surface does not conform to the CD standard,
playback may
be impossible.
(A "DuaIDisc" is a disc with one surface containing
DVD standard signals and the other surface
containing music
CD signals.)
English 7

Notes
About Audio files
• Playable Audio file
AAC-LC (.m4a), MP3 (.mp3), WMA (.wma)
~
~
· If music of normal CD and other playback systems are
recorded in the same disc, only the playback system
recorded at the first setout is played.
• Playable disc media
CD-RiRW/ROM, DVD±RlRW
Playable disc file format
ISO 9660 Level 1/2, Joliet, Romeo, Long file name.
• Playable USB device
USB mass storage class, iPod with KCA-iP30QV
• Playable USB device file system
FAT 1 6, FAT32
Although the audio files are complied with the standards
listed above, the play maybe impossible depending on
the types or conditions of media or device.
• Playing order ofthe Audio file
In the example offolder/file tree shown below, the
files are played in the order from CD to @.
o CD (OJ) D: Folder
J>CD J> : Audio file
Q]
L-
W
f-J>0
Q] LJ>@
eJ>0
(1]tJ>®
1®
An online manual about audio files is put on the
site, www.kenwood.com/audiofilel. On this online
manual, detailed information and notes which are
not written in this manual are provided. Make sure
to read through the online manual as well.
~
~
· In this manual, the word "USB device" is used for flash
memories and digital audio players which have USB
terminals.
· The word "iPod" appearing in this manual indicates the
iPod connected with the KCA-iP300V (optional accessory).
About Video files
• Acceptable video files
MPEG 1, MPEG2
• Extensions
mpg, mpeg, mlv, m2v
• Acceptable media
CD-R/RW/ROM, DVD±R/RW, VCD,
a • DNX7120/DDX712/DDX7032
iPod with KCA-iP300V
Acceptable discs, disc formats, file and folder names
and playing order are the same as those for audio
files. Refer to <About Audio files>.
About Picture files
• Acceptable picture files
JPEG
• Extensions
jpg, jpeg
• Acceptable media
CD-RiRW/ROM, DVD±RlRW
Acceptable discs, disc formats, file and folder names
and playing order are the same as those for audio
files. Refer to <About Audio files>.
About USB device
•Ifyou start playback after connecting the iPod, the
music that has been played by the iPod is played
fi rst.
In this case, "RESUMING" is displayed without
displaying afolder
name, etc. Changing the browse
item will display acorrect title,
etc.
• When the iPod is connected to this unit,
"KENWOOD" or "./" is displayed on the iPod to
indicate that you cannot operate the
iPod.
• When the USB device is connected to this unit,
it can be charged up provided that this unit is
powered.
•Install the
USB device in the place where it will not
prevent you from driving your vehicle properly.
•
You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups ofthe audio files used with this unit.
The files can be erased depending on the operating
conditions ofthe
USB device.
We shall have no compensation for any damage
arising out
of erasure ofthe stored data.
• No USB device comes with this unit. You need to
purchase acommercially available USB device.
•
When connecting the USB device, usage ofthe CA-
Ul EX (option) is recommended.
Normal playback is not guaranteed when acable
other than the
USB compatible cable is used.
Connecting acable whose total length is longer
than 5m
can result in abnormal playback.

Region codes in the world
The DVD players are given aregion code according to the country or area it is marketed, as shown in the
following
map.
(]f).
'.'''''.'
vl.~
'".,,>
_ .0
.'
DVD disc marks
Prohibition Mark
Discs with limited period of use
Do not leave discs with alimited period of use in this
unit. Ifyou load an already expired disc, you may not
be able to remove it from this unit.
Operation regulatory marks
With this DVD, some functions of this unit such as the
play function may
be restricted depending on the
location where the DVD is playing. In this case, the
following marks will appear on the screen. For more
information,
refer to the disc manual.
Indicates the number of subtitled languages recorded.
Up to 32 languages can be recorded.
If a DVD disc has scenes shot from multiple angles, you
can select a favorite angle.
Indicates a region number. The discs with this mark can
be played with any DVD player.
Indicates the number of audio languages recorded. Up
to 8 languages can be recorded in a movie. You can
select a favorite language.
Symbol t ;...J>e ..... sai_. :.."pt .... io_f1-.:..._--...:..._ ........ --...:... .................. ---l
0))
@
ffil
Indicates the type of screen for the image. The left mark
1
16
-91 LB 1 indicates that a wide image picture (16:9) is displayed
• on a standard TV set screen (4:3) with a black band at
both the top and bonom of the screen (Iener box).
English '. 9

~
Turns power ON/OFF
Press the button to turn on the power.
When
the button is pressed and held down for
1second or more,
the power is turned off.
~ ..
Switches to the Navigation system
Press the button to switch the display to the
navigation system screen.
~ ..... _:_d_jU_s_t_s_t_h_e_v_o_lu_m_e -..,--..,---,-_--,-~)
Attenuates the volume
Press it to attenuate the volume.
Press it again to cancel muting.
..
Playing a USB device
When connecting a USB device, playback starts automatically.
You must update the database if you are using a USB device that is differentfrom the one you used
before or
if you have replaced the audio files in the USB device. For information on how to update the
database, refer
to <Function while displaying the Control Screen> in USB Device Control (page 36).
~ ~he USB '0"''' "'elected wheo , USB device "oot mooected, 'No Device' "
~
~ displayed.
•When the playback is stopped and then restarted, the playback will start from
U; /.' the point where it was stopped at the last time. Even if the USB is removed and
connected again, the playback will start from the last stopped point unless the
contents in the USB device is changed.
• Make sure that the USB device is connected firmly.
Removing the USB device
Press" on the USB control screen to enter the USB suspend mode, and then remove the USB
device. Refer to <USB Device Control> (page 36).
~
•Removing the USB device before entering the USB suspend mode may result in damaging the data in the USB device.
10 DNX7120/DDX712/DDX7032

Selecting asource
Press it to display the source select screen. Touch the source button to select the source.
Full Source Select screen
Favorite Source Select screen
Playing adisc
OJ Scrolls the source display.
~
~
•The displayed source depends on the type of device
connected.
In addition, you cannot press the button of
currently unavailable source.
The following buttons are always displayed on the
source select screen and source control screen.
[1] Clock display
WDisplays the Source Select screen.
The display switches between Favorite Source Select
screen and Full Source Select screen by
touching the
button.
rn Displays Source Control screen.
[[] Displays the Audio Control Menu screen. (page 86)
WDisplays the SETUP Menu screen. (page 62)
[l] Displays the external device control screen. See
<External Device Power Supply Control> (page 47).
[]] Changes the screen skin each time it is pressed.
[]] Displays the Hands Free screen. (page 51)
[1Q] Adjust the volume.
[IT] Press for at least 2seconds to erase the buttons.Touch
the screen to redisplay the buttons.
~
~
•IfaBluetooth Unit is not connected, [TEL] will not appear.
[g] Displays the full source screen.
~
~
For how to register the frequently used source buttons to
Favorite Source Select screen, see <Direct Source Button
Setup> (page
70).
When you load a disc into disc loading slot, the disc starts playing.
If a menu appears, when playing a video disc, select the desired item.
~
~
• See <List of playable discs> (page 7) for alist of supported discs and formats.
Removing adisc
Press U7 (Eject) button.
English. "

Basic Operations
KENWOOD
•Functions of the [NAVj button can be changed to
Display Offfunction. See <System Setup> (page 66)
for the function setting of the [NAV] button.
Switches to the rear view
Press it for more than 1second to switch to
rear view.
Press it again for more than 1second to
resume the normal display.
@2
Switches to the Hands Free control
Press it for more than 1second to the Hands
Free control screen.
Press it again for more than 1second to
resume the normal display.
(with the optional accessory Bluetooth
unit
connected only)
Sets the loudness
Press it for more than 1second to turn the
Loudness function on or off.
Ifturned on, high and
low tones are enhanced
during
low volume.
12. ONX7120/00X712/00X7032

Switching the function screen
The function control screen switches in the following order each time you press the button.
Navigation screen
... [FNC] button ..
Easy Control buttons
appear.
Easy Control button
~
~
Picture or Video playback
screen
... [FNC] button ..
Easy Control buttons
appear.
Picture or Video playback screen
•
• For the functions of Easy Control buttons, see <Control of other sources while displaying the navigation screen> (page
14).
English. 13

DDisplay the easy control buttons
I.
leap .5
• ;;; KEtMlOD I~ _I
~.
IT] 'Y: changes between [SCRN], [TEL], and [EXT
SWj button each time this is pressed.
SCRN: Displays the Screen Control screen.
See <Screen Control> (page 50).
TEL: Displays the Hands Free screen. (page
51)
EXT SW: Displays the external device control
screen. See <External Device Power
Supply Control> (page 47).
[I] Adjust the volume.
[l] During DVD play:
Selects achapter.
During
VCD play:
Selects a scene (when PBC is On) or atrack
(when
PBC is Off).
During
CD play:
Selects music.
During Audio file, Video file, or Picture file
play:
Selects a file.
m Stops playing.
When pressed twice, the disc is played from
its beginning when you play it in the next
When "DVO" is selected:
Selected source can be controlled while
displaying navigation screen.
Control of Other Sources While Displaying
the Navigation Screen
• You can set the navigation system function when
nothing else is displayed on the screen. Ifanything else,
such as Easy control panel is displayed, erase it first.
For DDX712/DDX7032, an optional navigation system
needs to be connected. See <Navigation unit that can
be connected to this unit> (page 7) for connectable
navigation units.
DSetting the navigation system function
Touch the navigation system button displayed
on the screen. See the included NAVIGATION
SYSTEM's INSTRUCTION MANUAL for
information
on using the navigation system.
~
Using the Navigation System
DDisplaying the navigation screen
~ \71~' ~.;;; KEtMlODl ~ I ~ I -L7109
~
Displays the navigation system screen and makes
the navigation function available.
14 •DNX7120/DDX712/DDX7032

time. (DVD play only)
rn Plays or pauses.
[§] When touched this area, the source control
screen appears.
When "USB" or "iPod" is selected:
~':,";;=;:;~;(zl ' .... \.I...".OO!r_W.
rn I!le "''''n II
II] During iPod play:
Searches Music or Video.
During
USB play:
Selects afile.
00 Plays or pauses.
WWhen touched this area, the source control
screen appears.
When "TUNER" is selected:
GQl;::=:;;:.(igf~ .-wJ~.;,j;.i.IUI~=
1W1I'"f13i In' }"I':I; I
[IQI Tunes in astation.
[TI] Switches the band (to AM or FM 1/2/3).
I1Z] When touched this area, the source control
screen appears.
When "SIRIUS" or "XM" is selected:
ffiJ.;;;:;rrr:ffiI::" lHI~~~~mJ~.&:::.
1m lliNn ""-121,
Ull Tunes in astation.
!HJ Switches the band.
Sirius:
SRll SR21 SR31 SR4
XM : XM 11 XM21 XM31 XM4
[ffi] Switches the Seek mode.
SEEK 1:Tunes channels one after the other.
SEEK 2: Selects channels in memory one
after the other.
[!§] When touched this area, the source control
screen appears.
[Z] Selects achannel.
Use the <Seek Mode> (page 40) to change
the channel
tuning sequence.
!lID Switches to TVl or TV2.
[ill Switches the Seek mode.
@] When touched this area, the source control
screen appears.
[gIJ Selects afile.
~ Plays.
~ Pauses.
~ When touched this area, the source control
screen appears.
~
~
•The Easy Control buttons are hidden when you touch the
central part
of the screen.
English 1S

• For the basic method of how to watch DVDNCD, refer to <Basic Operations> (page 10).
• Set the remote controller mode switch to "DVD" mode before starting operation, refer to <Remote Controller mode switch>
(page
90).
Functions During the Playback Screen
Basic functions are available even when the
playback screen is displayed.
DDisplay the playback screen
or
,--------------------------"
I I
~loocl~I-I·/1
I ~ I
, I
, I
I I
,_. ... , J
\~ "
\"
DVD playback screen
OJ Title Number Display
I1J Chapter Number Display
Q] Play Time Display
W Forward Chapter Search Area
Selects the next chapter.
rn Backward Chapter Search Area
Selects the previous chapter.
16 DNX7120/DDX712/DDX7032
W DVD Disc Menu Control Buttons Area
Displays the Disc Menu Control buttons
(page 18).
The Highlight Control screen appears
when pressed while the DVD Top menu is
displayed.
mInformation Display Button Area
VCD playback screen
rn ScenelTrack Number Display
[]] Play time Display
I}Q] Forward ScenelTrack Search Area
Selects the next scene (when PBC is On) or
track (when
PBC is Off).
ITIJ Backward ScenelTrack Search Area
Selects the previous scene (when PBC is On)
or track (when PBC is Off).
[11J Zoom Control Button Area
Displays the Zoom Control buttons (page
20).
[J] Information Display Button Area
Q
~
•The information display is cleared automatically after
approximately 5seconds.
Also, the information can be
displayed automatically when it
is updated.

Functions When Displaying the Easy
Control Panel
Displays the basic operation buttons on the
screen.
o While the source is playing, press the [FNC]
button
Y Q!;::U. ~ - C;;;; KENIO<XXlI_ I -! -I ./log
~
IT] Chapter Search (during DVD play)
Searches for achapter.
ScenefTrack Search (during
VCD play)
Selects ascene (when
PBC is On) or atrack
(when
PBC is Off).
[I] Stops playing.
When pressed twice,
the disc is played from
its beginning
when you play it in the next
time.
[II Plays or pauses.
[II Switches to the playback screen.
~
~
•When the navigation screen is displayed, press the [NAVj
button to switch to the source playback screen.
•The
Easy Control Panel is hidden when you touch a
central part
of the monitor.
Functions While Displaying the Control
Screen
Switches to the source control screen to use
various playback functions.
D While the source is playing, press the [FNC]
button
~ QI;::U - ~ -" KEN'WOO! -I -I 1.
/
109
~
When playing aVCD
ilJl"'l'r-:-
,;-' r,.' ":' r ~ [®E:XTSW ." .. ~
(Y ~ HH' .. ~ 1-1;> ~ ~ ,
,
IT] Switches to the playback screen.
[I] Title Number Display (during DVD play)
[II ChapterlScenefTrack Number Display
[II Play Mode Display
[[] Play Time Display
Nextpage~
English" 17

Watching DVDIVCD
[§] Volume Label Display
When = is appeared, the text display is
scrolled by pressing it.
rn Fast Forwards or Fast Backwards.
[]] Stops playing.
When pressed twice, the disc is played from
its beginning when you play it in the next
time.
[[] Selects a chapter, a scene or a track.
When the DVD-VIDEONCD is paused, touch
this button to start single-frame stepping.
[1Q] Plays or pauses.
[TI] Ejects the disc from the built-in disc player.
[g] Slow Forwards or Backwards. (during DVD
play)
[Jl] Switches the button display.
[H] Switches the Repeat Play operations in the
following
sequence.
DVD: Title Repeat, Chapter Repeat, Repeat
Off
VCD: Track Repeat, Repeat Off (Available
when the
PBC is off)
[ffi] Displays the Hands Free screen. (page 51)
[ffi] Switches the play time display in the
following
sequence.
DVD: Chapter, Title, remaining titles
VCD: Track, disc, remaining discs (Effective
only when the PBC function is off)
[j] Function Indicator
I1ill Appears when a disc is inserted.
[J]] Sound indicator
~ Turns the PBC function ofVCD On or Off.
(only when VCD Ver 2.0 is in use)
In] Appears when PBC is On.
~ VCD version indicator
~ Displays the external device control
screen. See <External Device Power Supply
Control>
(page 47).
18 ~I) DNX7120/DDX712/DDX7032
DVD Disc Menu
Selects an option from the DVD Disc Menu.
oDisplay the Disc Menu Control screen
IT] Calls the Menu.
rn Returns to the Disc Menu screen.
[l] Selects amenu option.
II] Enters your menu selection.
W Returns to the previous menu screen.
[§] Displays the Top Menu.
rn Highlight Control.
[]] Clears the Disc Menu Control.

Highlight Control
You can select achapter and title for the DVD
Menu screen. When you touch the screen, you
can select the
DVD menu.
b\.
~
• To cancel Highlight Control, press [FNC] button .
•The operation ends automatically
if you do not operate
within
10 seconds.
oSelect Disc Menu options
Disc Menu
[]] Calls the Menu Control.
[Q] Switches the picture angle.
(during program playback only)
[II] Switches the subtitle language.
(during program playback only)
~ Switches the voice language.
(during program playback only)
[J] Displays the Zoom Control screen.
IBJ Clears the Disc Menu Control.
Zoom Control
[j]] Changes the zoom ratio at 4levels (2 times,
3times, 4times, or off) each time you
touch.
[1§] Scrolls the screen in the direction you
touch.
[Z] Returns to the Disc Menu screen.
[J]J Clears the Disc Menu Control.
English. 19

Watching DVDIVCD
VCD Zoom Control
Displays an enlarged veD screen.
DDisplay the Zoom Control screen
OJ Changes the zoom ratio at 2levels (2 times
or off) each time you touch.
[1] Scrolls the screen in the direction you
touch.
W Clears the Zoom Control button.
20 •DNX71201DDX712/DDX7032
