Kenwood PR18-1.2 User manual

REGURATEDDC POWER SUPPLY
PR18-1.2 PR36-1.2
PR18-3PR36-3
PR18-5 PR70-1
INSTRUCTION MANUAL
KENWOOD CORPORATION
©PRINTED INJArANB63-0018-0891/12111098765432190/121110* 6 7 6 5 4
KENWOOD

CONTENTS
1.OUTLINE • • •••3
2. FEATURES 3
3. SPECIFICATIONS 4
4. PRECAUTIONS FORUSE•••••••6
5. EXPLANATION OF PANELS•• 7
5-1.FRONT PANEL ••7
5-2.REARPANEL •••••9
6. OPERATIONPROCEDURES • 10
6- 1 .STAND - ALONEOPERATION ••••10
6-• 2.0PERATION IN SERIES •••••10
6- 3.0PERATION IN PARALLEL 11
7. MAINTENANCE • • ••••14
7- 1 .REMOVING. THE CASE- ••••14
7- 2. CHANGING THE SOURCE 14
VOLTAGE
7-3. FUSEREPLACEMENT •••14
8. TROUBLESHOOTING------ • - 15
2

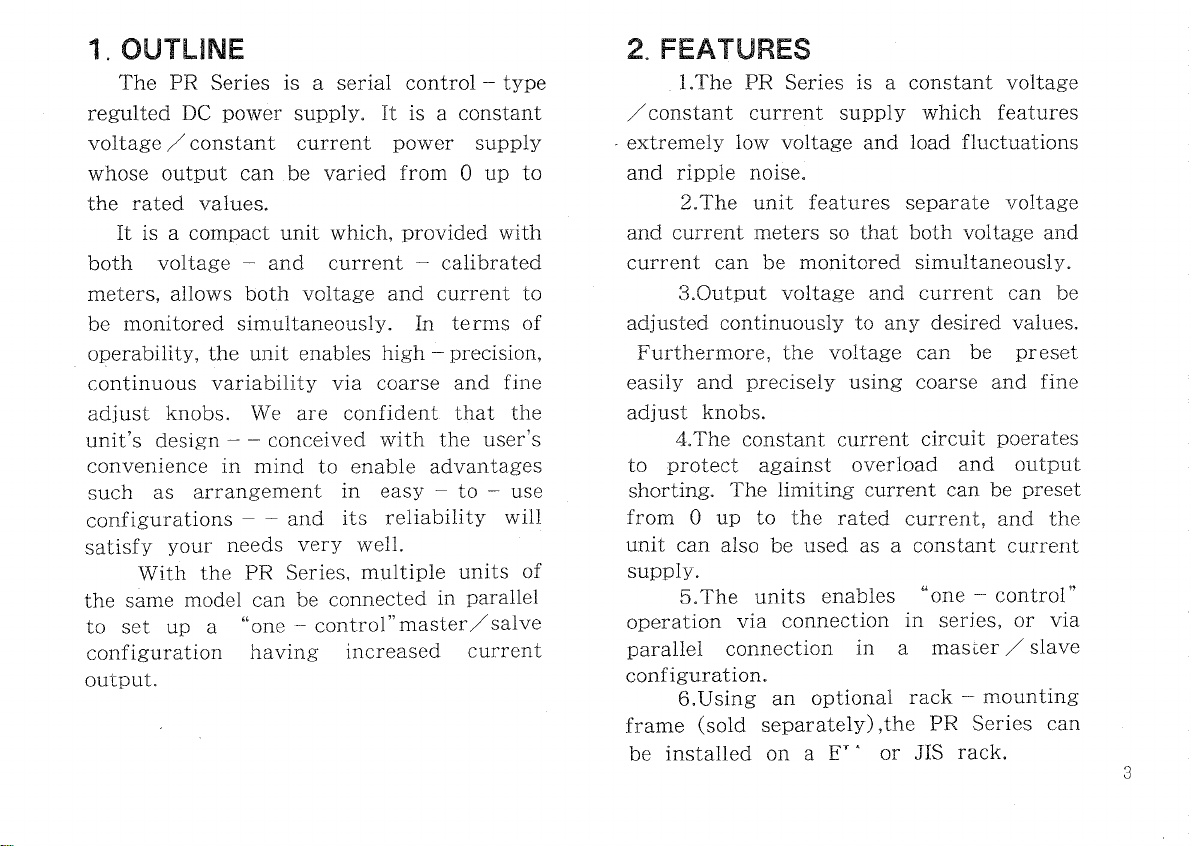

1. OUTLINE
The PRSeriesisa serial control- type
regultedDCpowersupply.Itisa constant
voltage/'constantcurrentpowersupply
whose output can.bevariedfrom0 upto
theratedvalues.
, Itisa compactunit which, provided with
bothvoltage— andcurrent- calibrated
meters,allowsbothvoltageandcurrentto
bemonitoredsimultaneously.Intermsof
operability, theunitenableshigh- precision,
continuous variability viacoarseandfine
adjustknobs.Weareconfident that the
unit'sdesignconceived with theuser's
convenienceinmindtoenableadvantages
such asarrangementineasy- to- use
configurationsandits reliability will
satisfy your needs very well.
With thePRSeries,multipleunitsof
thesamemodelcanbeconnectedinparallel
tosetupa "one- control"master/salve
configurationhavingincreasedcurrent
output.
2.FEATURES
. 1 .The PRSeriesisa constantvoltage
/constantcurrentsupply which features
extremely lowvoltageandloadfluctuations
andripplenoise.
2.The unitfeatures separate voltage
andcurrentmetersso that bothvoltageand
currentcanbemonitoredsimultaneously.
3.Outputvoltageandcurrentcanbe
adjustedcontinuouslytoanydesiredvalues.
Furthermore,thevoltagecan-.bepreset
easily andpreciselyusingcoarseandfine
adjustknobs.
4.The constantcurrent circuit poerates
toprotectagainstoverloadand output
shorting.The limiting current.canbe.preset
from 0 uptotheratedcurrent,andthe
unit canalsobeusedasa Constantcurrent
supply.
5.The unitsenables .."one - control"
operationviaconnectioninseries,orvia
parallel connectionina master/ slave
configuration.
6. Using anoptionalrack- '.mounting
frame (sold separately),thePRSeriescan
beinstalledona ETA orJISrack.
3

4.PRECAUTI0NS FORUSE
1. Confirming the supply voltage
* Usethisunit within thespecifiedrange.
The unit'sratedvoltageissingle- phase
100/120/220/240 V AC+ /-10%(max,
250 V)at50/60Hz.
* Theratedvoltageisindicatedonthe
specification andnameplatelocatedbeside
theinputconnectorontherearpanel.
* SeetheMaintenancesection(7- 2.
Changing thesupplyvoltage) for
information onhowtochangtherated
voltage.
2. Precautions for connection of output
terminals
This unitisa floatingtypepower
supply. Forordinaryuse,besure that the
MASTER/SLAVE switch ontherearpanel
is setto MASTER, and that eitherthe(
+) output terminalorthe(-) output
terminal isconnectedtotheGNDterminal
(case GND)viatheshortingbar.
3. Set- up environment
* Besuretousethisunit within the
specified ambienttemperaturerangeof0
to40degC.
* Becausetheunitiscooledbynatural
convection, donotplaceobjectsontop,
placetheunitonornearany heat - emitting
device, orusemultipleunitsinanystacked
configuration. Also, usetheunitinan
environment that isas well cross- ventilated
aspossible.
6

5.EXPLANATION OF PANELS
7
Fig,l
PR18-5
PR.
Fig.2
PR 18-1.2 PR36-1 .2
,8-3PR70-1
5 - 1.FrontPanel.

(1) POWER ON /OFF a
The power switch. Thepowersupply
should beonandoperatingwhenthis switch
is depressed.
(2) POWER LED
A redLED that indicatestheunitisin
operation.
(3) Voltmeter
A DCvoltmeter that indicatesthe output
voltage.
(4) Ammeter
A DCammeter that indecatesthe output
current.
(5)VOLTAGECOARSE
Coarse adjustknobforthe output
voltage.
(6)VOLTAGEFINE
Fine adjustknobforthe output voltage.
(7)CURRENT
Knob forsettingthecurrentvaluein
theconstantcurrentmode.Itcanbeused
tosetthe limiting valueforthe output
current.
(8) Outputterminal( + )
Terminal fortappingof(+) output
voltages.
(9) Outputterminal(-)
Terminal fortappingof(-) output
voltages.
(10) GNDterminal
The groundterminal,itisconnectedto
themainchassis.Normally,thisterminalis
connectedtoeitherthe( + ) or( - )
terminal.
8

(11) MASTER/SLAVE switch
Used during"one- control"parallel
operationinthemaster/slaveconfiguration/
During normaloperation,theswitchshould
besetto MASTER (Fordetails,seesection
6 - 3 ; "Parallel Operation.")
(12)IN/OUT terminalsforparallel
operation
Control terminalsforuseinthe"one-
control"paralleloperationmode.
(13) Powercable
A'pprox; 2 meter- longpowercable,
equipped with standard wall plug.
(14) Heatsink
A heat dissipatorforthetransistors,
becarefulasthisareacan become quite
hotduringoperation.
Fig. 3
5-2.Rearpanel;

6. OPERATION PROCEDURES
6 - 1.Stand - alone operation
* Whenusingthepowersupplyinstand-
alone, simply operate bymanipulationofthe
panelswitchesasneeded.However,besure
that the MASTER/SLAVE switch issetto
MASTER.
6-2. Serial connection'. - • ' . •
* Twoormoreunitsofthepowersupply,
can behooked:up:inseriesto.achievein
increasein output, voltage...The .final' output-
will bethesumofthe outputs ofthe
individual units..Inthissituation,however,
caremustbetaken that.. thevoltage . of
nietheroftheterminals with respecttothe
chassis GNDexceedsthegroundproof
voltage.
* Inthecaseof serial operationoftwounits
(bothsamemodel);
a. Forconnectionasin Fig.4, the output
voltage,but output current will be limited
to within thevaluespecifiedfora single
unit.
b. ForconnectionasinFig.5,wherean
intermediatepointishookeduptoground,
theconfigurationcanbeusedasa plus/
minuspowersupply.
FigAConneetlon ofGND
For positiveground
(dotted line)
For negativeground
(solid, line)
E0 = E1 + E2
Fig.5.
:
Intermediatepointishooked
uptoground.
Load
Load
iLoadj
10

6 ~ 3-.Paralleloperation
: (masterslavecontrol).
* Twoormoreunitsofthesame;machine
can behookedupinparalleltogivean
increasein output currentcapacity/The
total output currentcapacity will bethe
sum ofthe output currentsofthe individual
machines, '
In paralleloperation,onemachine will act
asthemassterandallothers will actas
slaves. The output voltagesand output
currentsareallsetfromthemaster
machine.
* Whenhookingthemachinesupin parallel,
besurethat : allthe: power ON/OFF
switches areOFF.
HOOK - UP PROCEDURE;
1) Turn thepowerswitchesofthemaster
unit andslaveunit(s)allto"OFF"
2) Turn the MASTER / SLAVE switch
(located onthebackpanel)onalltheslave
unitsfrom "MASTER"; to. "SLAVE". \
3) Hookuptheparalleloperation-usete-
rminals (IN/OUT, locateci therearpa-
nel) ofthemasterandslave(s)asshown
in Figure6.
4) For connectingthe output terminalsof
each ofthemachinestotheload,useall
cordsofthesamelength.
5) For ( + ) and(-)groundingtotheGND
terminal, hookupthemasterandslave
machinesviatheterminalson.the'.panels.
Figure 7 showsthe output connection
schemefor(-).grounding.
8) Setthe:voltageand.currentknobsof
all theslaveunit(s)tothemaximum
setting.
7) Turn thepowerswitchesofthemaster
unit andslaveunit(s)allto"ON".
Control the output voltageandcurrentas
desired viathevoltageandcurrentknobs
on themasterunit,
* Whenthe output goes to0 amperesin
theparalleloperationmode, output voltage
can nolongerbe.controlledbythe.master
machine. Besuretokeepa current flowing
thatisseveral% c heratedcurrent.
11

Hook ™ upofrearpanelterminalsintheparalleloperation mode
Figure 6.
Hook - upoffrontpanelterminalsintheparalleloperationmode.
NOTE ; I = Ii'+ l2' + 13 •
The voltagepresetsonalltheslave
machinesaresettomaximum,Themaster
operates inconstantvolrtage- mode andthe
slaves opeate inconstantcurrentmode.
12
For instructionsonhowtoachieve
parallel operationof,multiplemachinesof
different models,p..se: consult with your
MASTER
Slave 1
Slave 2
Slave 1
Slave 2
Load
placeofpurchaseora seviceoutlet.
Figure 7.

* Connection of Terralnal on RearPanel
Whilepressingontheslitportionofthe terminal"-' wl
anordinary('-)screwdriver,Inserttheconnectingcableinto
theroundjuck.Wheninsertioniscomplete,removethe
screwdriver.The:cablewillremainlockedintotheterminal
evenafterthescrewdriverisremoved,'
NOTE: Whenusingstranded(twisted)cable,theconnector,should
beattachedbysoldering.
Push
4 0.4-1.0 (AWG26-18)
O.3~0,75«m(AWG22-20)
13

14
7. MAINTENANCE
7- 1 .Removing the case
The casecanberemovedbytakingout
thescrewsonthetopandsidepanelsand
pulling thecaseupwards.
• Screws
7 - 2„Changing the rated source .-.voltage
To changetheACsourcevoltageofthe
machine, changetheinternalpower
transformerandfusespecificationsasshown
in thefigurebelow.
Supply voltageonversionandfuse
replacement
7 - S.Fuse replacement
When a fuseblows,replaceitafter
investigating thecauseoftheblow~ out.
Furthermore,sincealterationsof'the
supply volrtageisaccompaniedbya change
in fusetype/selecta fuse that hasthe
appropriateratingaccordingtothechart
below.
NOTE ; Whenchangingthesupplyvoltage
orreplacinga fuse,removethepowercord
from theACoutlet,
Model name
PRI8-I.2
PRI8-3
PR!8-5
PR36-I.2
PR36-3
PR70-I
ioo/120v
1.5A 3 A
5 A 2..5 A
5A 3A
220/240v
0.8A 2A
3 A
1.5A 3A 2
A
Supply voltageconversion
andfusereplacement
AC LINE
•POWER
switch

8.TROUBLESHOOTING
Problem IndicatorsorAreastocheck Cause
Powersupply will
notgoon.
PowerON lamp does notlight
up.
* Poorconnectionofpowercord,orbroken
wire
* Badpower switch
* Fusemeltdown
No output voltage. Voltmeter
does notmove.
*Circuit malfunction
No output current. Ammeter
does notmove.
*Circuit malfunction
Excessively large
output.
Outputvoltmeterand ammeter
readingsdonotdecrease.
* Badpowertrasistororcontrolmechanism
*Circuit malfunction
Unstable output.
Inputvoltageiswrong.
Machineisvibrating.
Strongmagneticorelectrical
field nearby.
* Operating outside theratedvoltage range
* Oscillationsduetospecialloadtype
* Removefromsourceofoscillations.
15

A product of
KENWOODCORPORATION
17-5, 2-chome, Shibuya,Shibuya-ku, Tokyo 150,Jar^n
