Kett PR-930 User manual
Wheat and Rice Flour Moisture Tester PR-930
Operating Manual
Table of contents
Contents of Package............................................................................. 3
Part Names............................................................................................... 4
Description of Display ......................................................................... 5
How to Place Batteries......................................................................... 7
Before Measurement............................................................................ 8
Measurement.......................................................................................... 9
Average Value.......................................................................................17
Storage....................................................................................................18
Specications........................................................................................19
Thank you for purchasing our Wheat and Rice Flour Mois-
ture Tester, PR-930. This tester can measure the moisture of
our by simple operation, but proper operation is necessary
for accurate moisture measurement.
Please read this operating manual carefully before use.
Contents of Package
Battery holder
Carrying Case
Operating Manual
Battery (AA size x4pcs and
under battery holder)
Cleaning brush (2 types)
Spoon with tweezers
Sampling tray
(2 pcs. for grains)
Sampling tray
(2 pcs. for ours)
Main unit
Metal plate (3 pieces)
3
4
Part Names
“POWER” button
“SELECT” button
Display Handle stop mark
“MEA.” button (Measure)
“AVE.” button (Average)
Testing Chamber
Handle
5
This tester adopts the auto power off
function. The power of the tester is
automatically turned o in approx.
5 minutes after turning on the power if
no operation is performed.
Use of backlight in the display section
allows users to see the display clearly
even in the dark.
Description of display
Battery Indicator
Moisture ContentNumber of measurement
Selection Indicator
6
Meanings of special marks The display may show marks as follows:
Battery mark
Normal Battery status is normal.
(displayed immediately after pressing the power switch)
Caution Battery is weak.
(displayed immediately after pressing the power switch)
Caution Battery is dead. Replace the batteries with new ones.
(displayed immediately after pressing the power switch and while using)
Over mark Caution Displayed when the measured result exceeded the upper limit of the
measurement range
Under mark Caution
Displayed when the measured result fell below the lower limit of the
measurement range, or the contact between the test sample tray and
the measuring unit of the main body was poor.
Description of display
•When measurement is performed with the sampling tray empty or the measuring unit is
poorly insulated due to condensation, high humidity, contamination, etc., the over mark,
under mark, or other meaningless numbers may be displayed. In such a case, clean the
measuring unit and dry it well in a natural way.
7
123
Take out the main unit
from the carrying case.
Take out the batteries
from under the battery
holder.
Open the battery box
on the back side of the
main unit, and place 4
batteries appropriately.
How to Place Batteries
8
Battery replacement
When the battery is running out, the
battery mark lights up at the left side of
the display. Replace all 4 batteries (AA)
with new ones.
Those batteries are gradually discharging
even when the tester is not used.
It is recommended to always use new
batteries.
Place batteries in
the correct polarity
Let the tester temperature be the
temperature of the test sample.
PR-930 is equipped with a temperature
compensation circuit. However the
test unit and samples are required
to be thermally stabilized before
measurement.
How to Place Batteries Before Measurement
9
All display immediately after pressing
the "POWER" button
“Wheat Flour” measuring state
Press the "POWER" button. All of the backlight, all characters on the display section,
and marks light up for 2 seconds.
The backlight goes out, and the tester becomes a standby state for measuring.
1
Measurement
10
2Put wheat our on the sampling tray
and shake the tray slightly to atten
the our.
Scoop wheat flour with the spoon
with tweezers and use the grip of the
cleaning brush to level off the rice
our.
3
Measurement
11
Press the "SELECT" button and repeat
until the Selection Indicator and the
abbreviation for name of the product
you wish to test appears.
The selected item is memorized even
after turning o the power.
Put the metal plate on the wheat
flour and press it gently with your
finger. Perform measurement with
the metal disc put on.
4 5
Measurement
12
6When measurement is performed for
whole wheat, long or short milled
rice, or paddy use the spoon with
tweezers to scoop the sample on
sampling tray atwise.
Evenly in one layer in the sampling
Too ManyInsucient Evenly Placed
in one layer
Measurement
13
Rotate the handle counterclockwise
to let the sampling tray enter the
testing chamber.
Place the sample
evenly in the sampling tray, and insert
it into the testing chamber until the
guide line is hid.
Note: Failure to observe this may cause the
tip of the handle to damage the plastic
portion of sampling tray. Be sure to
fully insert the tray.
Proper placement Incorrect placement
Designated position
7
Measurement
Guide line
14

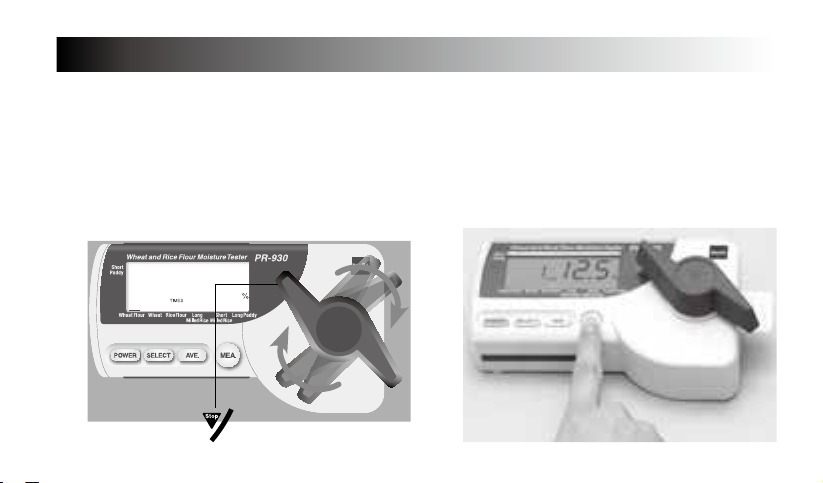

Slowly rotate the handle clockwise.
When the tip of the handle reaches
the sample, fully rotate the handle to
the “handle stop mark” holding the
handle rmly.
Press the "MEA." button, and the
decimal point blinks, the backlight
lights up, and the moisture content
and measuring number are displayed
thereafter.
8 9
Measurement
Handle stop mark
15
For continuous measurement,
perform the next measurement
while the last measured value is
displayed.
Replace the test sample, fully rotate
the handle, and press the "MEA."
button.
The last measured value disappears
and the new measured value is
displayed. The measuring count also
changes at the same time.
10
Measurement
The backlight goes out after 4
seconds, but the moisture content
remains being displayed. After a
lapse of 5 minutes, the power is
automatically turns off and all the
displayed items are cleared.
Pressing the "POWER" button while
the display is in the on state allows
users to turn o the power manually.
16
Clean testing chamber inside, sampling tray, and metal plate after every
measurement. (Pictures 1, 2, and 3) If the last test sample remains, proper
measurement cannot be performed.
For continuous measurement, disconnect the handle and remove the attached
sample and contamination from the tip of the handle and contact section
sometimes. (Pictures 4 and 5)
11
1 2 3 4 5
Measurement
17
Pressing the "AVE." button after several
measurements can obtain the average
value of the measured moisture
contents. The average value calculated
from the measured values of the
measuring count 2 to 9 is displayed with
the average characters and number of
measurement times.
Note1: To obtain the average value of
moisture contents, press the "AVE."
button within 5 minutes after
measurement. After the last measured
value disappears, the average
calculation function does not work.
The initial state is restored in the
following states:
• When the power is turned o
• When the "SELECT" button is pressed
• When the "AVE." button is pressed
• When the continuous measurement
count exceeds 9
Note 2: AVE characters are displayed while an
average value is displayed.
Average Value
18
Observe the following instructions to
keep moisture tester for a long period
of time:
•Be sure to remove the batteries.
•Clean every portion of the main body
in a careful manner. Especially for the
measuring unit, disconnect the handle
and clean the inner contact section
suciently.
•Be sure to put the tester together with
accessories in the carrying case and
keep them in a cool place avoiding direct
sunlight.
Thorough cleaning inside
Storage
19
Specications
Applications /
Measurement range
Wheat our.................11-18%
Wheat ............................. 9-30%
Rice our........................ 8-18%
Long milled rice ........10-20%
Short milled rice........10-20%
Long paddy ................10-35%
Short paddy................10-30%
Measurement
precision
Flours : standard error of 0.25%(1σ) at 130C 5g 2hrs method (Entire range)
Grains: standard error of 0.5%(1σ) at 130C 5g crushed 2hrs method (Under 20% range)
* If the measurement is made at a different temperature than 20C, measurement
precision may be larger than stated.
Display format Digital (LCD, minimum display digit 0.1%, backlight equipped)
Operating
temperature range
5 – 40 °C
Temperature
compensation
Automatic temperature correction using thermistor
Power supply 1.5 V (AA battery) x 4 pieces (auto power o function after 5 minutes)
Power consumption : Max. 0.3 W
Dimensions and weight
164 (W) x 94 (D) x 64.5 (H) mm, Approx. 0.44 kg
Accessories Sampling tray 4 pieces (2pcs per each of rice our and milled rice), Metal Plate
(3 pcs), Cleaning brush (2types), Spoon with tweezers, Battery (AA size x4pcs),
Battery holder, Carrying case, Operating Manual
