Keysight N5192A UXG X-Series Owner's manual

Security Features
and Document of
Volatility
Keysight
N5192A/94A UXG X-Series
Agile Vector Adapter

2
Notices
Copyright Notice
© Keysight Technologies 2017-2020
No part of this manual may be
reproduced in any form or by any
means (including electronic storage
and retrieval or translation into a
foreign language) without prior
agreement and written consent from
Keysight Technologies, Inc. as
governed by United States and
international copyright laws.
Manual Part Number
N5191-90018
Edition
Edition: 1, January 2020
Supersedes: December 2019
Published by:
Keysight Technologies Inc.
1400 Fountaingrove Parkway
Santa Rosa, CA 95403
Technology Licenses
The hardware and/or software
described in this document are
furnished under a license and may be
used or copied only in accordance
with the terms of such license.
U.S Government Rights
The Software is “commercial
computer software,” as defined by
Federal Acquisition Regulation (“FAR”)
2.101. Pursuant to FAR 12.212 and
27.405-3 and Department of Defense
FAR Supplement (“DFARS”) 227.7202,
the U.S. government acquires
commercial computer software under
the same terms by which the software
is customarily provided to the public.
Accordingly, Keysight provides the
Software to U.S. government
customers under its standard
commercial license, which is
embodied in its End User License
Agreement (EULA), a copy of which
can be found at
http://www.keysight.com/find/sweula
The license set forth in the EULA
represents the exclusive authority by
which the U.S. government may use,
modify, distribute, or disclose the
Software. The EULA and the license
set forth therein, does not require or
permit, among other things, that
Keysight: (1) Furnish technical
information related to commercial
computer software or commercial
computer software documentation
that is not customarily provided to the
public; or (2) Relinquish to, or
otherwise provide, the government
rights in excess of these rights
customarily provided to the public to
use, modify, reproduce, release,
perform, display, or disclose
commercial computer software or
commercial computer software
documentation. No additional
government requirements beyond
those set forth in the EULA shall apply,
except to the extent that those terms,
rights, or licenses are explicitly
required from all providers of
commercial computer software
pursuant to the FAR and the DFARS
and are set forth specifically in writing
elsewhere in the EULA. Keysight shall
be under no obligation to update,
revise or otherwise modify the
Software. With respect to any
technical data as defined by FAR
2.101, pursuant to FAR 12.211 and
27.404.2 and DFARS 227.7102, the
U.S. government acquires no greater
than Limited Rights as defined in FAR
27.401 or DFAR 227.7103-5 (c), as
applicable in any technical data.
Warranty
THE MATERIAL CONTAINED IN THIS
DOCUMENT IS PROVIDED “AS IS,” AND IS
SUBJECT TO BEING CHANGED, WITHOUT
NOTICE, IN FUTURE EDITIONS. FURTHER, TO
THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, KEYSIGHT DISCLAIMS ALL
WARRANTIES, EITHER EXPRESS OR IMPLIED,
WITH REGARD TO THIS MANUAL AND ANY
INFORMATION CONTAINED HEREIN,
INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR APARTICULAR PURPOSE.
KEYSIGHT SHALL NOT BE LIABLE FOR
ERRORS OR FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES IN CONNECTION
WITH THE FURNISHING, USE, OR
PERFORMANCE OF THIS DOCUMENT OR OF
ANY INFORMATION CONTAINED HEREIN.
SHOULD KEYSIGHT AND THE USER HAVE A
SEPARATE WRITTEN AGREEMENT WITH
WARRANTY TERMS COVERING THE MATERIAL
IN THIS DOCUMENT THAT CONFLICT WITH
THESE TERMS, THE WARRANTY TERMS IN
THE SEPARATE AGREEMENT SHALL CONTROL.
Safety Information
A CAUTION notice denotes a hazard. It
calls attention to an operating
procedure, practice, or the like that, if
not correctly performed or adhered to,
could result in damage to the product
or loss of important data. Do not
proceed beyond a CAUTION notice
until the indicated conditions are fully
understood and met.
A WARNING notice denotes a hazard.
It calls attention to an operating
procedure, practice, or the like that, if
not correctly performed or adhered to,
could result in personal injury or
death. Do not proceed beyond a
WARNING notice until the indicated
conditions are fully understood and
met.

3
Where to Find the Latest Information
Documentation is updated periodically.
For the latest information about these products, contact your local Keysight office, as
detailed in “Contacting Keysight Sales and Service Offices” on page 5.
To receive the latest updates by email, subscribe to Keysight Email Updates:
http://www.keysight.com/find/emailupdates
Information on preventing instrument damage can be found at:
http://www.keysight.com/find/PreventingInstrumentRepair
Is your product software up-to-date?
Periodically, Keysight releases software updates to fix known defects and incorporate
product enhancements. To search for software updates for your product, go to the
Keysight Technical Support website at:
http://www.keysight.com/find/techsupport

Security Features and Document of Volatility
Contents
4
Table of Contents
1 Contacting Keysight Sales and Service Offices 5
2 Products Covered by this Document 6
Document Purpose 6
3 Security Terms and Definitions 7
4 Instrument Memory & Volatility 8
5 Memory Clearing, Sanitization and Removal Procedures 11
Erase SSD 11
Clear Persistent State Information 12
Clear Most Mode States and Persistent State Information 12
Multi-box Sync Setup 13
LO Control Setup 13
LAN Setup 14
Removal or Replacement of Solid-State Disk Drive (SSD) 14
6 SSD Removal & Installation Procedures 16
Removing the SSD 17
Installing the SSD 18
7 Secure Display & Restricted Display 19
Secure Display 19
Restricted Display 20
8 Procedure for Declassifying a Faulty Instrument 21
Appendix A References 22

Security Features and Document of Volatility
Contacting Keysight Sales and Service Offices
5
1 Contacting Keysight Sales and Service Offices
Assistance with test and measurement needs, and information to help you find
a local Keysight office, is available via the internet at,
http://www.keysight.com/find/assist. If you do not have internet access,
please contact your designated Keysight representative.
NOTE In any correspondence or telephone conversation, refer to the instrument by
its model number and full serial number. With this information, the Keysight
representative can determine whether your unit is still within its warranty
period.

Security Features and Document of Volatility
Products Covered by this Document
6
2 Products Covered by this Document
Document Purpose
This document describes instrument memory types and security features. It
provides a statement regarding the volatility of all memory types, and specifies
the steps required to declassify an instrument through memory clearing,
sanitization, or removal.
For additional information, go to:
http://www.keysight.com/find/security
IMPORTANT Be sure that all information stored by the user in the instrument that needs to
be saved is properly backed up before attempting to clear any of the
instrument memory. Keysight Technologies cannot be held responsible for
any lost files or data resulting from the clearing of memory.
Be sure to read this document entirely before proceeding with any file
deletion or memory clearing.
Product Family Name Product Name Model Number Firmware Revision
UXG X-Series Vector Adapter UXG Agile Vector Adapter N5192A
N5194A
All

Security Features and Document of Volatility
Security Terms and Definitions
7
3 Security Terms and Definitions
Term Definition
Clearing As defined in Section 8-301a of DoD 5220.22-M, “National Industrial Security Program Operating
Manual (NISPOM)”, clearing is the process of eradicating the data on media before reusing the
media in an environment that provides an acceptable level of protection for the data that was on the
media before clearing. Hence, clearing is typically used when the instrument is to remain in an
environment with an acceptable level of protection.
Instrument
Declassification
A term that refers to procedures that must be undertaken before an instrument can be removed
from a secure environment, such as is the case when the instrument is returned for calibration.
Declassification procedures include memory sanitization or memory removal, or both. Keysight
declassification procedures are designed to meet the requirements specified in DoD 5220.22-M,
“National Industrial Security Program Operating Manual (NISPOM)”, Chapter 8.
Sanitization As defined in Section 8-301b of DoD 5220.22-M, “National Industrial Security Program Operating
Manual (NISPOM)”, sanitization is the process of removing the data from media before reusing the
media in an environment that does not provide an acceptable level of protection for the data that
was in the media before sanitizing. Hence, instrument sanitization is typically required when an
instrument is moved from a secure to a non-secure environment, such as when it is returned to the
factory for calibration.
Keysight memory sanitization procedures are designed for customers who need to meet the
requirements specified by the US Defense Security Service (DSS). These requirements are specified
in the “Clearing and Sanitization Matrix” in Section 5.2.5.5.5 of the ISFO Process Manual for the
Certification and Accreditation of Classified Systems under the NISPOM.
Secure Erase Secure Erase is a term that is used to refer to either the clearing or sanitization features of Keysight
instruments.

Security Features and Document of Volatility
Instrument Memory & Volatility
8
4 Instrument Memory & Volatility
This chapter contains information on the memory components in your
instrument.
The table provides details of the size of each memory component, its type, how
it is used, its location, volatility, and the sanitization procedure.
Table 4-1 Base Instrument
Memory
Component, Type
and Size
Writable During Normal Operation? Data Retained When Powered Off?
Purpose/Contents Data Input
Method
Location in
Instrument
and Remarks
Sanitization
Procedure
1. Main Memory
(DRAM)
1 GByte
Yes No Firmware operating
memory.
User data
Operating
system
CPU board,
not battery
backed.
Volatile
memory
Turn off
instrument
power.
2. Main Memory
(Flash)
512 MByte,
partitioned as
follows:
200 MByte: Boot
(Main firmware
image, Operating
system)
50 MByte: System
(Calibration/
Configuration)
1MByte:Secure
Storage
180 MByte:
Reserved
Yes Yes Factory calibration and
configuration data plus
LAN IP Address
Configuration
None CPU board None required
(no user data)

Security Features & Document of Volatility 9
Instrument Memory & Volatility
3. Front Panel
Memory
(Flash)
24 KByte
No Yes Front panel keyboard
controller firmware
Operating
system
Front Panel
board
None required
(no user data)
4. Front Panel
Memory
(SRAM)
2KByte
Yes No Front panel operating
memory
Front panel
firmware
Front Panel
board
Volatile
memory
Turn off
instrument
power.
5. Front Panel
Memory
(EEPROM)
256 Byte
No Yes Unused None Front Panel
board
None required
(no user data)
6. DAC Board
Memory
(SRAM)
18 MByte
Yes No Stores Loaded list points,
etc.
Operating
system
DAC Board
Volatile
memory
Turn off
instrument
power.
7. DAC Board
Memory
(EEPROM)
16 MByte
No Yes Factory calibration data None DAC Board None required
(no user data)
8. Microdeck Board
Memory
(EEPROM)
6MByte
No Yes Factory calibration data None Microdeck
Board
None required
(no user data)
9. Infrastructure
Board Memory
(EEPROM)
16 MByte
No Yes Factory calibration data None Infrastructure
Board
None required
(no user data)
Table 4-1 Base Instrument
Memory
Component, Type
and Size
Writable During Normal Operation? Data Retained When Powered Off?
Purpose/Contents Data Input
Method
Location in
Instrument
and Remarks
Sanitization
Procedure

Security Features & Document of Volatility 10
Instrument Memory & Volatility
10. SSD
(Flash)
480 GByte,
partitioned as
follows:
1MByte:Reserved1
1MByte:Reserved2
479.998 GByte: User
Yes Yes User file system, which
includes user flatness
calibration*, instrument
states, and sweep lists
(* This is not the
instrument calibration
data, which is stored in
the instrument’s main
memory. See item 2
above.)
User-saved data Instrument
Rear Panel
Remove SSD
Assembly from
instrument and
store securely.
For details of
procedure, see
“Removal or
Replacement of
Solid-StateDisk
Drive (SSD)” on
page 14.
11. 10 GByte
Ethernet Interface
Board Memory
(EEPROM)
16 MByte
No Yes Factory Calibration Data None Rear Panel
Board
None required
(no user data)
Table 4-1 Base Instrument
Memory
Component, Type
and Size
Writable During Normal Operation? Data Retained When Powered Off?
Purpose/Contents Data Input
Method
Location in
Instrument
and Remarks
Sanitization
Procedure

Security Features and Document of Volatility
Memory Clearing, Sanitization and Removal Procedures
11
5 Memory Clearing, Sanitization and Removal Procedures
This chapter describes several security functions you can use to remove
sensitive data stored in the instrument before moving it from a secure
development environment. The functions described are:
—“Erase SSD” on page 11
—“Clear Persistent State Information” on page 12
—“Clear Most Mode States and Persistent State Information” on page 12
—“Multi-box Sync Setup” on page 13
—“LO Control Setup” on page 13
—“LAN Setup” on page 14
—“Removal or Replacement of Solid-State Disk Drive (SSD)” on page 14
CAUTION These functions do not erase or sanitize external media connected to the
instrument’s USB ports.
Erase SSD
This function erases all user files, such as PDW files and user correction files,
from the instrument’s SSD, using the ATA command SECURITY ERASE UNIT,
with the "Erase Mode" parameter set to "Normal". (For more details of this
command, see AT Attachment 8 - ATA/ATAPI Command Set (ATA8-ACS))
The instrument state settings are all set to defaults except for LAN settings.
Only user information is present on the SSD; no internal calibration or other
internal files are stored on the SSD.
Key Sequence: System > File > More > Security > Erase SSD > Confirm Erase
SCPI Command: :SYSTem:SECurity:ERASe

Security Features & Document of Volatility 12
Memory Clearing, Sanitization and Removal Procedures
Clear Persistent State Information
Clear Persistent State Information
The persistent state settings contain instrument setup information that can be
specified within predefined limits, such as display intensity, contrast and the
GPIB address.
The following key sequence or SCPI command can be used to set most
operating states that are not affected by an instrument power-on, preset, or
*RST command to their factory default.
NOTE This command does not reset the state of the current mode; see Clear Most
Mode States and Persistent State Information below. It also does not affect
the Multi-box Sync Setup and the LO Control Setup settings.
Clear Most Mode States and Persistent State Information
This command sets most states of the instrument back to their factory default
settings, including all mode states, and states that are not normally affected by
instrument power–on, preset, or *RST. This also includes the current mode,
which will be set to Normal.
The following key sequence or SCPI command can be used to set operating
states that are not affected by an instrument power-on, preset, or *RST
command to their factory default:
NOTE Multi-box Sync Setup and the LO Control Setupsettings are not adjusted by
the key sequence nor the command stated in this section.
Key Sequence: System > More > Power On/Preset > Restore System Settings to
Default Values > Persistent System Settings > Confirm
Restoring Persistent System Settings
SCPI Command: :SYSTem:PRESet:PERSistent
Key Sequence: System > More > Power On/Preset > Restore System Settings to
Default Values > All Settings > Confirm Restoring All System
Settings
SCPI Command: :SYSTem:PRESet:ALL

Security Features & Document of Volatility 13
Memory Clearing, Sanitization and Removal Procedures
Multi-box Sync Setup
Multi-box Sync Setup
NOTE With the exception of Erase SSD, no other feature defaults these values
including the actions of Persistent System Settings
(:SYSTem:PRESet:PERSistent) and All Settings (:SYSTem:PRESet:ALL).
This key sequence or command sets the Multi-box Sync settings to their
factory default settings.
The following table shows the key sequence or SCPI command that can be
used to set their values to their factory default:
LO Control Setup
NOTE With the exception of Erase SSD, no other feature defaults these values
including the actions of Persistent System Settings
(:SYSTem:PRESet:PERSistent) and All Settings (:SYSTem:PRESet:ALL).
This key sequence or command sets the LO Control settings to their factory
default settings.
The following table shows the key sequence or SCPI command that can be
used to set their values to their factory default:
Key Sequence: System > More > Power On/Preset > Restore System Settings to
Default Values > Multi-box Sync Settings > Confirm Preset All
Multi-box Sync Settings
SCPI Command: :SYSTem:PRESet:MBSync
Key Sequence: System > More > Power On/Preset > Restore System Settings to
Default Values > LO Settings > Confirm Restoring LO Settings
SCPI Command: :SYSTem:PRESet:ELO

Security Features & Document of Volatility 14
Memory Clearing, Sanitization and Removal Procedures
LAN Setup
LAN Setup
You can reset the LAN setup either via the front panel or by sending a SCPI
command.
Removal or Replacement of Solid-State Disk Drive (SSD)
The Erase SSD procedure described above may be considered sufficient to
sanitize the instrument. However, the instrument may also be sanitized by
physical removal of the Solid-State Disk Drive Assembly (SSD). The instrument
still operates without the SSD, but it is unable to store user data. Calibration
data is still available.
Optionally an unclassified replacement SSD may be installed without
compromising the instrument sanitized state.
This section describes how to sanitize an instrument by physical removal and
optional replacement of the SSD.
Refer to the flowchart in Figure 5-1 below for details of how to perform this
procedure.
For the procedure on how to remove the SSD Assembly (flow chart Step 5), see
“SSD Removal & Installation Procedures” on page 16.
CAUTION Before removing the SSD Assembly, ensure that the instrument’s power is
turned off.
Key Sequence: System > I/O Config > LAN Setup > Advanced Settings >
Restore LAN Settings to Default Values >Confirm Restore LAN
Settings to Default Values
SCPI Command: :SYSTem:COMMunicate:LAN:DEFaults

Security Features & Document of Volatility 15
Memory Clearing, Sanitization and Removal Procedures
Removal or Replacement of Solid-State Disk Drive (SSD)

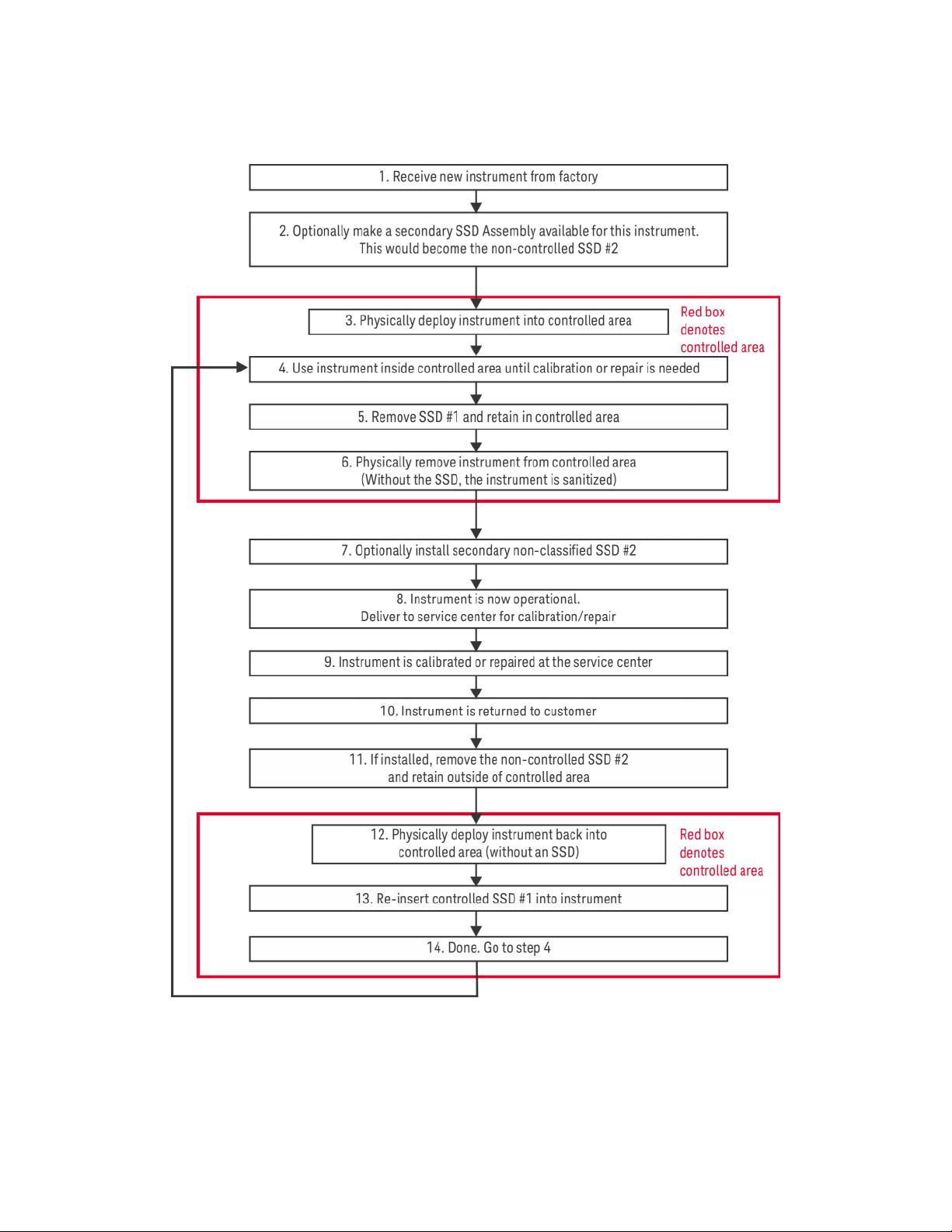

Figure 5-1 Flowchart for Instrument Sanitization Process by SSD Removal

Security Features and Document of Volatility
SSD Removal & Installation Procedures
16
6 SSD Removal & Installation Procedures
This chapter describes the procedures for physical removal and installation of
the instrument’s Solid-State Disk Drive assembly (SSD). Removal of the SSD is
an alternate method for instrument sanitization, in addition to the function
“Erase SSD” on page 11 (which does not require removal of the SSD and may
be considered sufficient to sanitize the instrument).
When the instrument is returned to the secure location, use the installation
procedure to re-install the SSD
To remove or install the SSD, use the following procedures. The numbered
items in the figures correspond to the step numbers in the procedure.
CAUTION Before removing or installing the SSD Assembly, ensure that the instrument’s
power is turned off.
—“Removing the SSD” on page 17
—“Installing the SSD” on page 18

Security Features & Document of Volatility 17
SSD Removal & Installation Procedures
Removing the SSD
Removing the SSD
1. Ensure that the instrument power is turned off.
2. Locate the SSD Assembly on the instrument’s rear panel, as shown in
Figure 6-1.

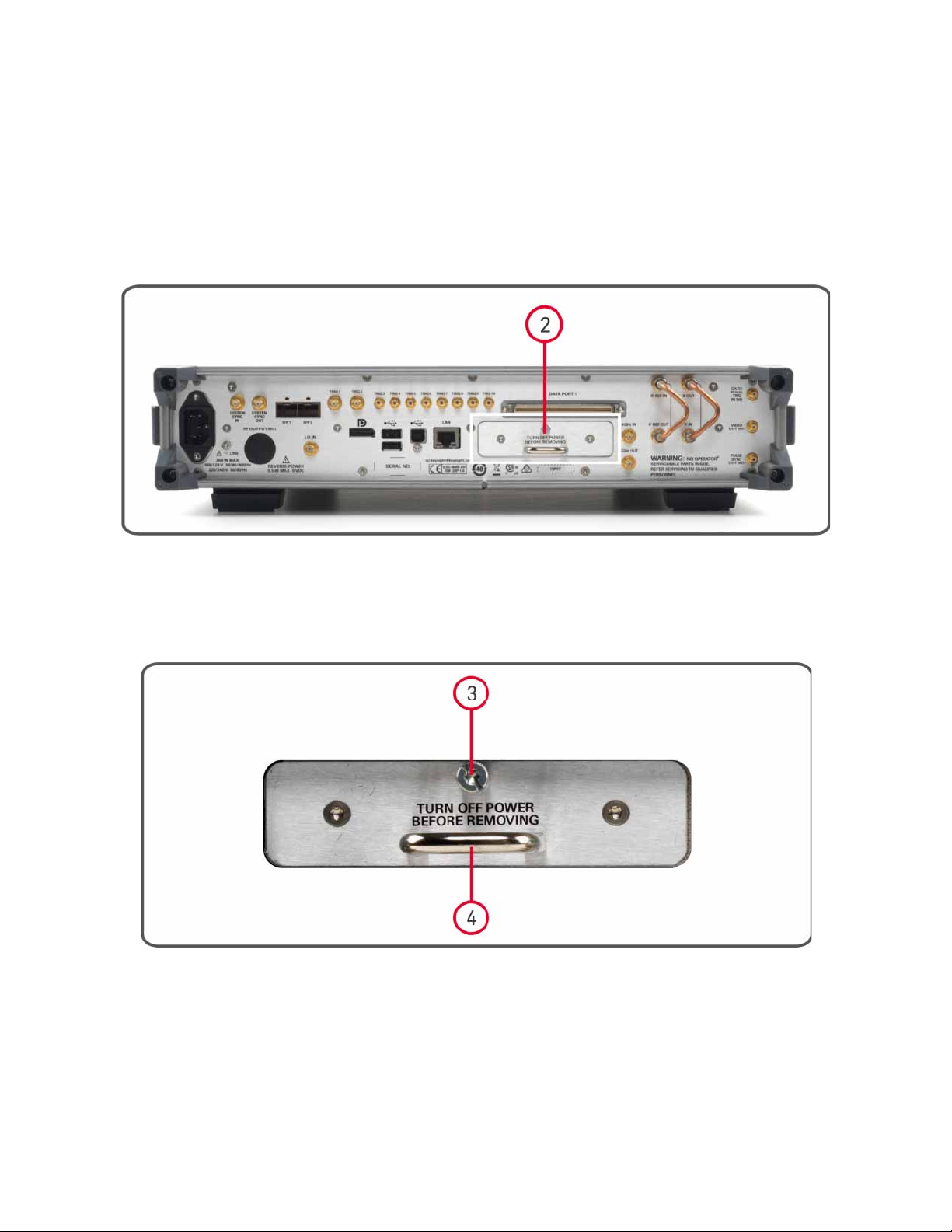

Figure 6-1 Instrument Rear Panel & SSD Assembly Location
3. Turn the thumbscrew on the SSD panel, as shown in Figure 6-2 below, to
release the SSD Assembly from the rear panel. If the thumbscrew is too
tight to turn by hand, use a TORX T15 screwdriver to loosen it.
Figure 6-2 Removable SSD Assembly details
4. Pull the U-shaped handle attached to the SSD Assembly, to remove the
drive from the instrument, as shown in Figure 6-2 above.

Security Features & Document of Volatility 18
SSD Removal & Installation Procedures
Installing the SSD
Installing the SSD
1. Ensure that the instrument power is turned off.
2. Locate the SSD Assembly placement location on the instrument’s rear
panel, as shown in Figure 6-3.

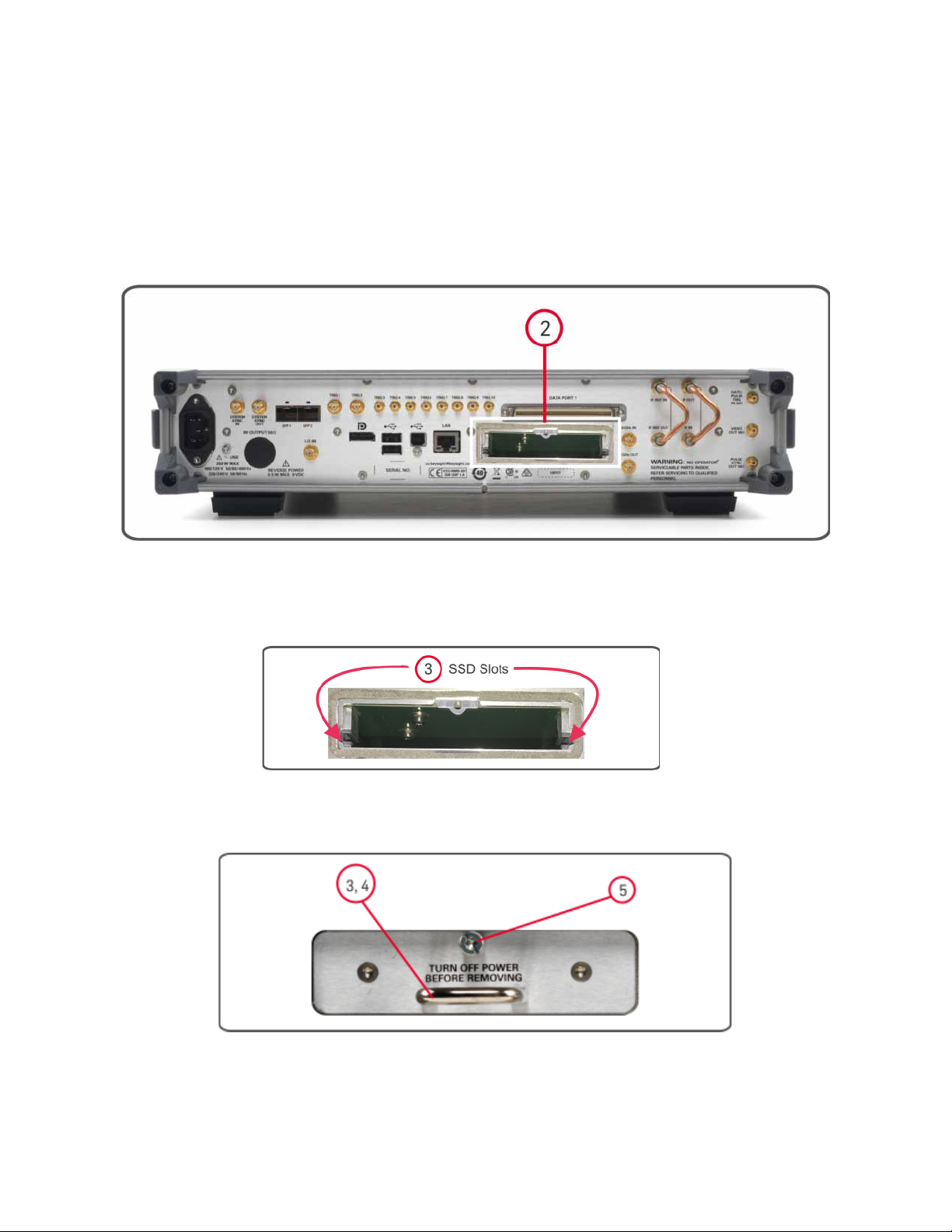

Figure 6-3 Instrument Rear Panel & SSD Assembly Location
3. Use the U-shaped handle (see Figure 6-5) that is attached to the SSD
Assembly to align the instrument SSD slots (see Figure 6-4) with the SSD.
Figure 6-4 Align with Instrument SSD Slots
4. Push the U-shaped handle to place the SSD into the instrument.
Figure 6-5 SSD Assembly details—U-Shaped Handle & Thumbscrew
5. Turn the thumbscrew on the SSD panel, as shown in Figure 6-5 above to
secure the SSD Assembly to the rear panel. If the thumbscrew is difficult
by hand, use a TORX T15 screwdriver to tighten it.

Security Features and Document of Volatility
Secure Display & Restricted Display
19
7 Secure Display & Restricted Display
—“Secure Display” on page 19
—“Restricted Display” on page 20
Secure Display
This function prevents unauthorized personnel from reading the instrument
display or tampering with the current configuration via the front panel.
—On This selection turns the instrument display on, showing the current
settings. Cycling the instrument power also restores the display. Note that
the current instrument state may be the last state before rebooting.
—Off This selection blanks the instrument’s display, hiding the settings and
disabling the front panel keys.
When Secure Display is active, all front panel keys are disabled, and the
display is blank, except for the advisory message:
*** SECURE DISPLAY ACTIVATED ***
Once Secure Display has been activated, the power must be cycled to
re-enable the display and front panel keys.
Key Sequence: System > More > Display > More > Activate Secure Display >
Confirm Secure Display
SCPI Command: :SYSTem:SECurity:DISPlay ON|OFF|1|0
Default ON

Security Features & Document of Volatility 20
Secure Display & Restricted Display
Restricted Display
Restricted Display
This command enables or disables the secure restricted display mode.
—On This selection turns on the secure restricted display, blanking the
frequency. The keys that access Frequency, and User Amplitude, Phase and
Time Corrections, are disabled.
—Off This selection turns off the secure restricted display mode, allowing the
instrument’s display to show the current frequency.
Key Sequence: System > More > Display > More > Activate Restricted Display
> Confirm Restricted Display
SCPI Command: :SYSTem:SECurity:DISPlay:RESTricted ON|OFF|1|0
Default OFF
