KFI OPEN TRAIL 105000 User manual

Instruction Manual
ATV Plow
Tube System
Rev-L 10/15//2021

Page 2
Manual Conventions
This manual uses the following symbols to help
differentiate between different kinds of information.
The safety symbol is used with a key word to alert
you to potential hazards in operating and owning
a plow.
Follow all safety messages to avoid or reduce the
risk of serious injury or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION
CAUTION used without the safety alert
symbol indicates a potentially hazardous
situation which, if not avoided, may result in
property damage.
NOTE
If you have questions regarding your plow,
we can help. Please call our help line at
1-800-999-3388.
To help you make informed decisions regarding safety, we have included instructions and
information on labels. This information is provided with the intent to help avoid potential
hazards that may harm you or others. It is, in no way, possible for us to inform you of every
hazard you may come across with this product.

Page 3
WARNING
• Read this manual thoroughly before
operating your plow. Failure to follow
instructions could result in serious injury
or death.
• Do not exceed 5 mph, even with blade
raised.
• Make sure that all nuts and bolts are
tightened per installation instructions.
• Never operate this Open Trail product with
missing or damaged parts.
• Drive slowly over bumpy and rough
terrain, driving fast could cause damage
to winch (if applicable) or plow.
• Never raise the plow above point of
contact as it could cause damage to
machine or winch (if applicable).
• Always perform regular inspections and
maintenance on plow tubes and hardware
before use.
• Operate with extreme caution on slopes,
steep grades, and rough terrain.
• Be aware of any possible hidden objects
under the snow.
• Do not ram the blade into the pile.
Safety Rules
CAUTION
• Take care when installing PLOW SPRINGS
as they will be under tension.
• Use care when lifting components into
place.
DANGER
Never stand or ride on the plow.

Page 4

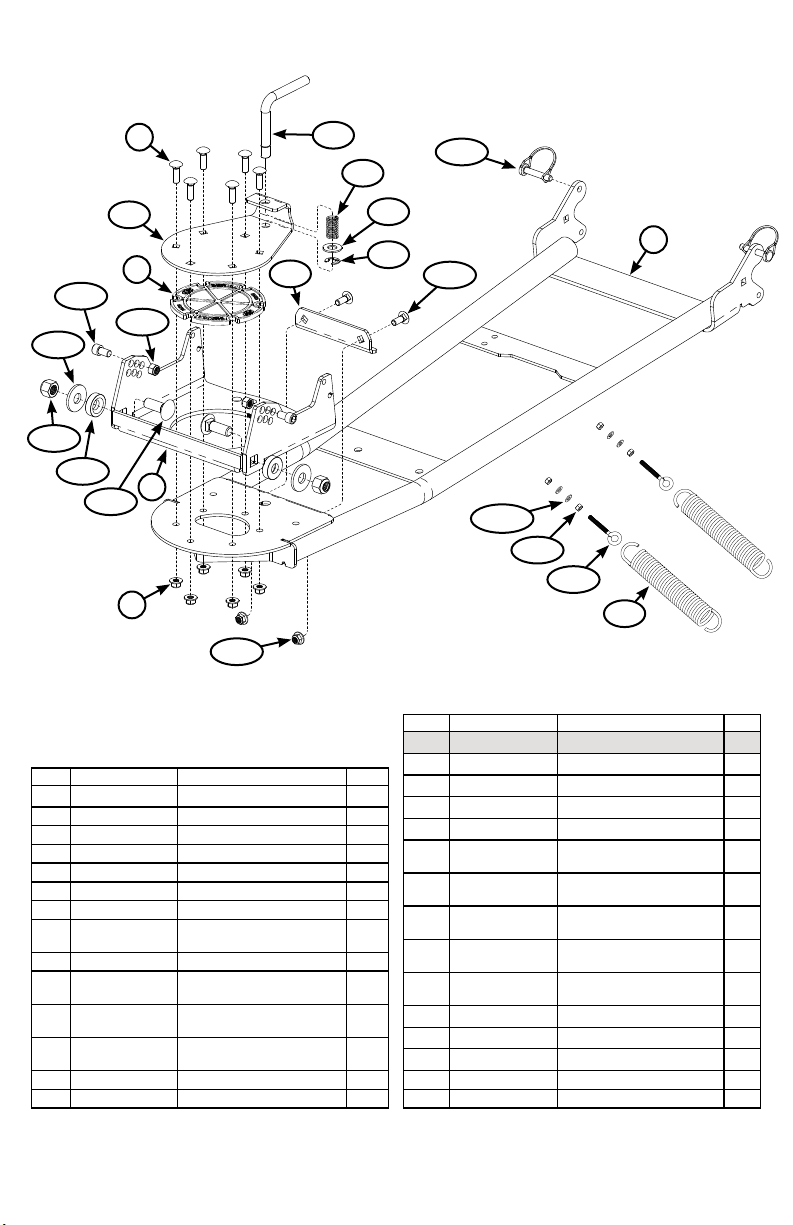

Installation Instructions
1. To secure the blade to the tube system,
place the pitch bushing (Item 7.4.1)
into the blade gusset hole. Secure the
tube system and the blade together with
carriage bolt (7.3.4), washer (7.3.3) and
lock nut (7.3.2), as shown in Figure 1.
Repeat on other side.
2. Insert the plow springs (Item 7.2) into the
top smaller rear holes in the ATV cradle,
as shown in Figure 2. Place the eyebolts
(Item 7.3.8) onto the end of the plow
springs and secure the eyebolts onto the
plow blade gusset, as shown in Figure 2
using Items 7.3.9 and 7.3.10. Leave spring
tension loose as you will decide tension
in Step 5.
3. Assemble on machine and decide desired
pitch of blade. (Blade pitch controls the
angle of which the blade contacts the
ground.) Each hole is 5 degrees of blade
pitch adjustment.

Note: Figure 3 shows the default position.
Recommened for proper blade level.
4. With springs installed pitch blade under
tension and install socket head cap screw
(7.3.5) and lock nut (7.3.1) into desired
pitch position hole.
5. Tighten nuts down on eye bolt until
desired spring tension is reached.
Note: For each 1/4” that the nut is
tightened it will add 12 lbs of spring
tension.

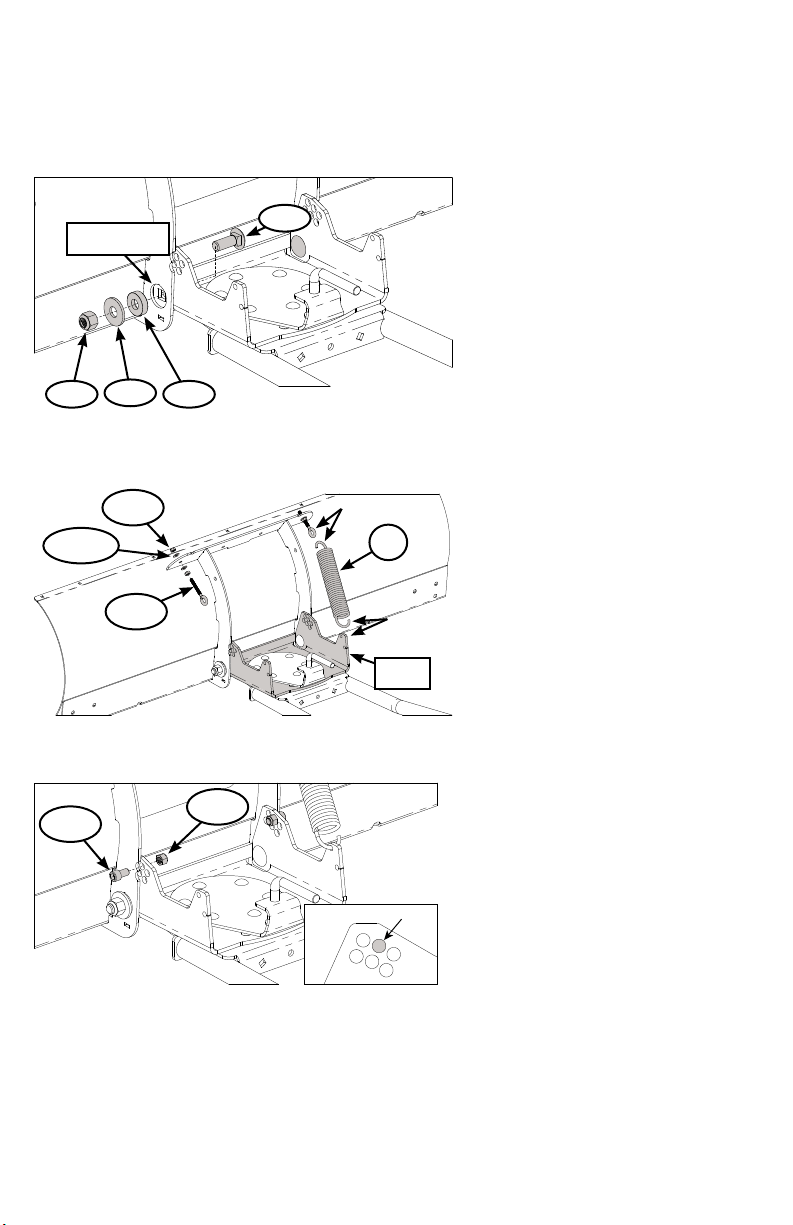

“Figure 1” Pivot Bolt Assembly
BLADE GUSSET
HOLE
7.3.4
7.4.1
7.3.3
7.3.2
“Figure 3” Pitch Adjustment Bolt
(Spring not shown for clarity.)
DEFAULT LOCATION
7.3.1
7.3.5
“Figure 2” Spring Assembly
ATV
CRADLE
7.2
7.3.8
7.3.9
7.3.10

Page 5
4.5
POSITION 2
POSITION 1
POSITION 3
“Figure 4” Lift Hook Attachment Positions
“Figure 5” Blade Rotation Angle
25°
12.5°
“Figure 6” Tube System Attachment
7.4.2
6. Intsall lift hook bracket. The tube system
has 3 positions for the lift hook bracket.
Choose best postion for desired lift
height and cable/rope angle.
Position 1 is the default position
allowing more clearance between
winch and bracket
Position 2 uses the same bolt holes,
but in this case the bracket is flipped
over.
Position 3 is used for machines
where the cable is at a severe angle,
such as upper mounted winches. This
position will require longer bolts to
be installed.
7. The tube system has five positions of
rotation for your blade (Figure 5). Each
adjustment is at 12.5 degree increments.
In order to make each adjustment you
will need to pull on the Pull Pin (Figure
4, Item 4.5) and rotate your blade left or
right until you reach the desired angle.
8. To attach the tube system to any KFI
mounts, position the tube system with
blade installed under your ATV. Raise
tube attach points to the mount and line
up the holes on mount plate with the
holes in the tube system. Insert Safety
Pin (Item 7.4.2) through holes and
secure on other side with clips as shown
in Figure 6.
