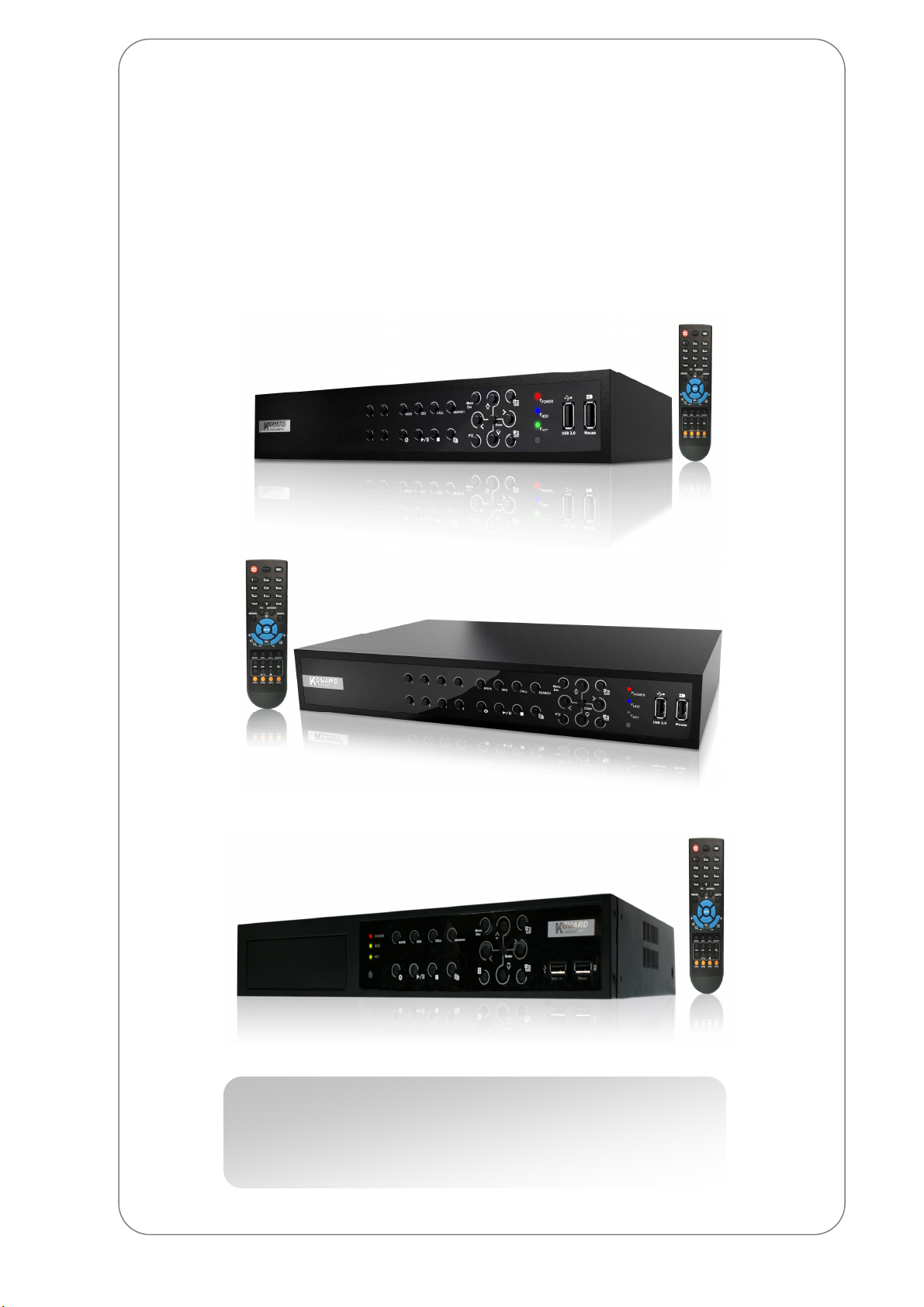

Kguard KG-SH122E.V2 User manual

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
1 www.kguardsecurity.com
All rights reserved
KGUARD Standalone DVR
KG-SH122E.V2/222E.V2/522E.V2
User Manual
【
【【
【SOFTWARE】
】】
】
Default Account & Password for KG-SH-122E.V2/222E.V2/522E.V2
-USE Account: 【aa】
-Password: 【11】

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
2 www.kguardsecurity.com
All rights reserved
TABLE OF CONTENTS
CHAPTER 1.OSD SETUP................................................................................................... 5
S TRUCTURE OF THE OSD MENU ........................................................................................... 5
M AIN M ENU .................................................................................................................. 5
OSD DISPLAY MENU(MAIN PAGE).................................................................................. 6
1. Log in / Log out .................................................................................................... 7
2. Status .................................................................................................................. 9
3.Volume ............................................................................................................... 10
4.Video Adjustment................................................................................................ 11
5.VGA DIS LAY ....................................................................................................... 13
6.Backup device ..................................................................................................... 14
7.Setup(Administrator)........................................................................................... 16
A. Pre-c mer .................................................................................................... 18
B. C mer .......................................................................................................... 20
B1.Video loss ................................................................................................. 22
B2.Motion detection ...................................................................................... 24
C. Al rm............................................................................................................. 27
D.SEQ Displ y(Switching ch nnel)....................................................................... 30
E. Scheduled Record........................................................................................... 32
F. H.D.D(HARD DISC)........................................................................................... 36
F1.H.D.D form t/Cle r.................................................................................... 39
F2.Adv nced HDD setup................................................................................. 42
G. P ssword....................................................................................................... 44
G1. ADV-User Setup ....................................................................................... 47
H. System setup(Time zone) ............................................................................... 50
I. RS232/422/485 ................................................................................................. 53
J. Network ......................................................................................................... 55
I.1.E-m il setup.............................................................................................. 63
I.2. FTP Setup................................................................................................. 66
I.3. Adv nced Network Setup ......................................................................... 68
k. F ctory Def ults ............................................................................................. 71
L. ESC................................................................................................................. 71
8. Software Upgrade (Administrator)...................................................................... 72
9.System Shutdown (Administrator)........................................................................ 73
Digital Zoom .......................................................................................................... 74
CHAPTER 2.PTZ CONTROL............................................................................................... 75
CHAPTER 3.SEARCH/PLAYBACK/ARCHIVE........................................................................ 77

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
3 www.kguardsecurity.com
All rights reserved
3.1.S EARCH B Y T IME ...................................................................................................... 78
3.2. S EARCH B Y E VENT / L OG D ISPLAY ................................................................................ 84
3.3.S MART S EARCH ........................................................................................................ 87
3.4. S EARCH A RCHIVED F ILES ............................................................................................ 91
3.5. POS S EARCH .......................................................................................................... 93
CHAPTER 4.REMOTE ACCESS........................................................................................... 94
4.1. PC R EMOTE A CCESS ................................................................................................. 94
4.1.1. System Requirements of Remote C .............................................................. 94
4.1.2. Before Logging On........................................................................................ 95
4.1.3. Firefox.......................................................................................................... 96
4.1.5. Remote Display and Operations .................................................................... 99
4.1.6. Control panel of Main Screen ...................................................................... 102
4.1.7. Search & layback ...................................................................................... 104
A. Se rch By Time ............................................................................................ 104
B. Se rch By Event............................................................................................ 105
C. PTZ Control .................................................................................................. 106
D. Device Configur tion.................................................................................... 107
E. Add New Server ........................................................................................... 107
F. Modify Server............................................................................................... 108
G. Remove Server ............................................................................................ 108
H. Configure Server Property............................................................................ 109
H1.Pre-c mer ............................................................................................. 109
H2. C mer .................................................................................................. 110
H3. Motion .................................................................................................. 111
H4. Video Loss ............................................................................................. 112
H5. Al rm .................................................................................................... 113
H6. SEQ Displ y............................................................................................ 114
H7. Schedule................................................................................................ 115
H8. HDD....................................................................................................... 116
H9. P ssword ............................................................................................... 117
H10. System................................................................................................. 118
H11. RS232/422/485 ...................................................................................... 119
H12. Network .............................................................................................. 120
H13. Em il ................................................................................................... 121
H14. FTP ...................................................................................................... 122
H15.POS Se rch ........................................................................................... 123
H16.POS Configur tion................................................................................. 124
H.17.RS232/422/485 Setting vi Remote......................................................... 125

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
4 www.kguardsecurity.com
All rights reserved
H18. Displ y Model...................................................................................... 127
CHAPTER 5.PDA/MOBILE PHONE REMOTE ACCESS ...................................................... 128
A PPENDIX .................................................................................................................. 130
A PPENDIX A – A PPLYING F REE DDNS F ROM K GUARD ........................................................... 130
A PPENDIX B- A PPLYING FREE DDNS FROM INTERNET ............................................................ 133
A PPENDIX C – T IME Z ONE T ABLE ...................................................................................... 139
A PPENDIX D – R ECORDING T ABLE .................................................................................... 141
A PPENDIX E- CMS3000................................................................................................ 143
A PPENDIX F-S PLIT W INDOW S CREEN ................................................................................ 145
A PPENDIX G – K EYBOARD C ONTROL P ROTOCOL .................................................................. 146
A PPENDIX H – K EYBOARD C ONTROL S IMULATOR ................................................................. 148
A PPENDIX I – M4V/H.264 TO AVI C ONVERSION U TILITY ...................................................... 149

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
5 www.kguardsecurity.com
All rights reserved
Ch pter 1.OSD SETUP
Structure of the OSD menu
M in Menu
Pre-c mer C mer Al rm SEQ Displ y
Schedule record HDD P ssword System
RS-232-422-485 Network F ctory Def ults ESC
Login/Logout
St tus Volume Video Adjustment Displ y
B ckup Device Setup Softw re Upgr de
Shutdown
Video Loss
Motion
HDD Form t/Cle r
Adv nced network
FTP
Em il
Priv cy M sk

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
6 www.kguardsecurity.com
All rights reserved
OSD DISPLAY MENU(MAIN PAGE)
OSD DISPLAY MENU(MAIN PAGE)
OSD Displ y menu(m in p ge)
NO. N me Functions
1 Login & Logout For entering system
2 St tus For displaying the status of Alarm, camera,
motion as well as the version of software.
3 Volume For displaying the volume of system.
4 Video djustment For adjusting the setting of screen.
5 VGA Displ y For adjusting the resolution of VGA.

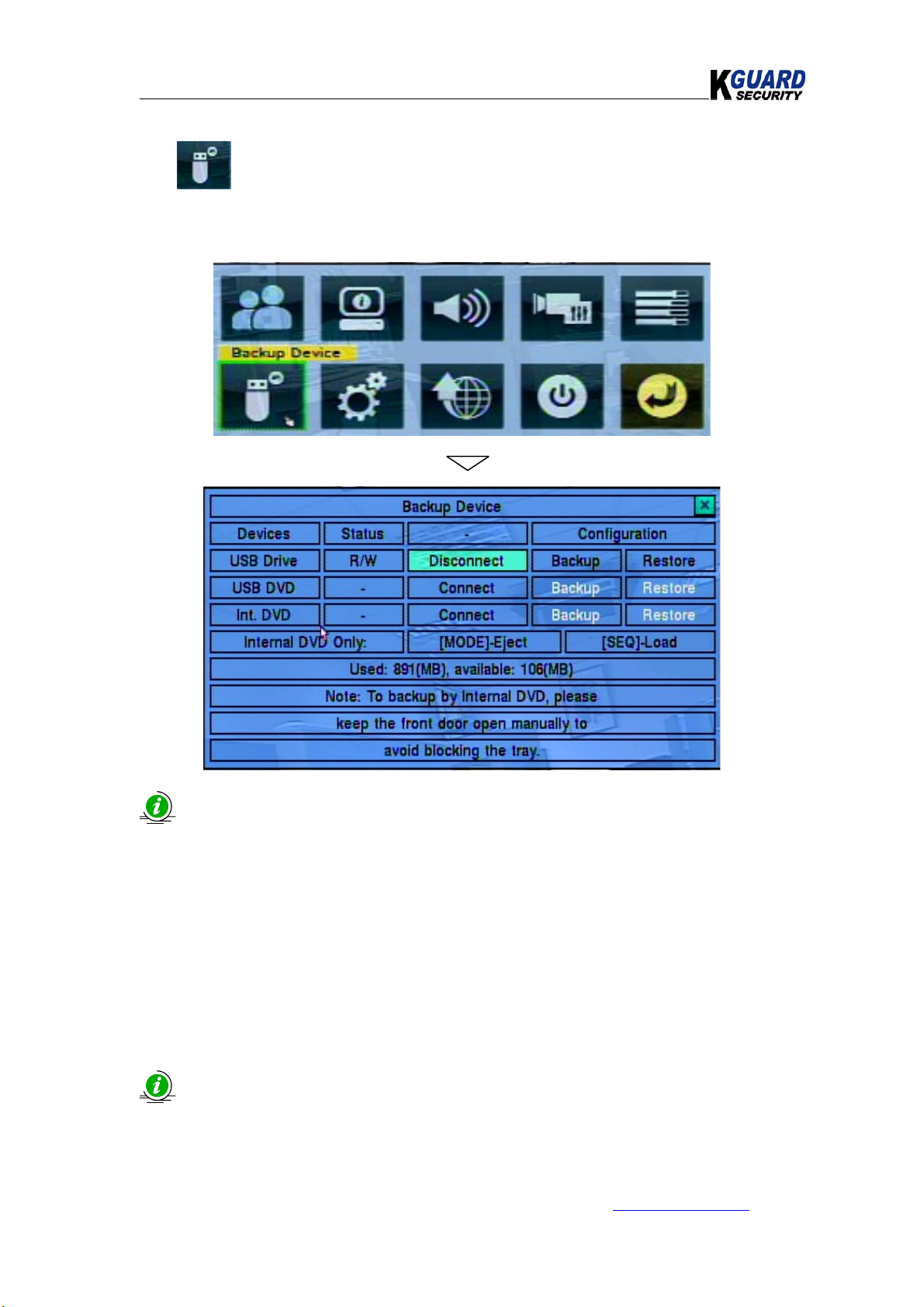

6 BACKUP Device For testing the backup devices.
7 Setup For setting the system
8 Softw re upgr de For Software upgrade
9 Shutdown button Shutdown the system
10 ESC EXIT or back to previous page
For video djustment options, there will displ y the b sic oper tion menu in
the bottom of screen , s shown:
.
For more information, please refer to Video Adjustment.

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
7 www.kguardsecurity.com
All rights reserved

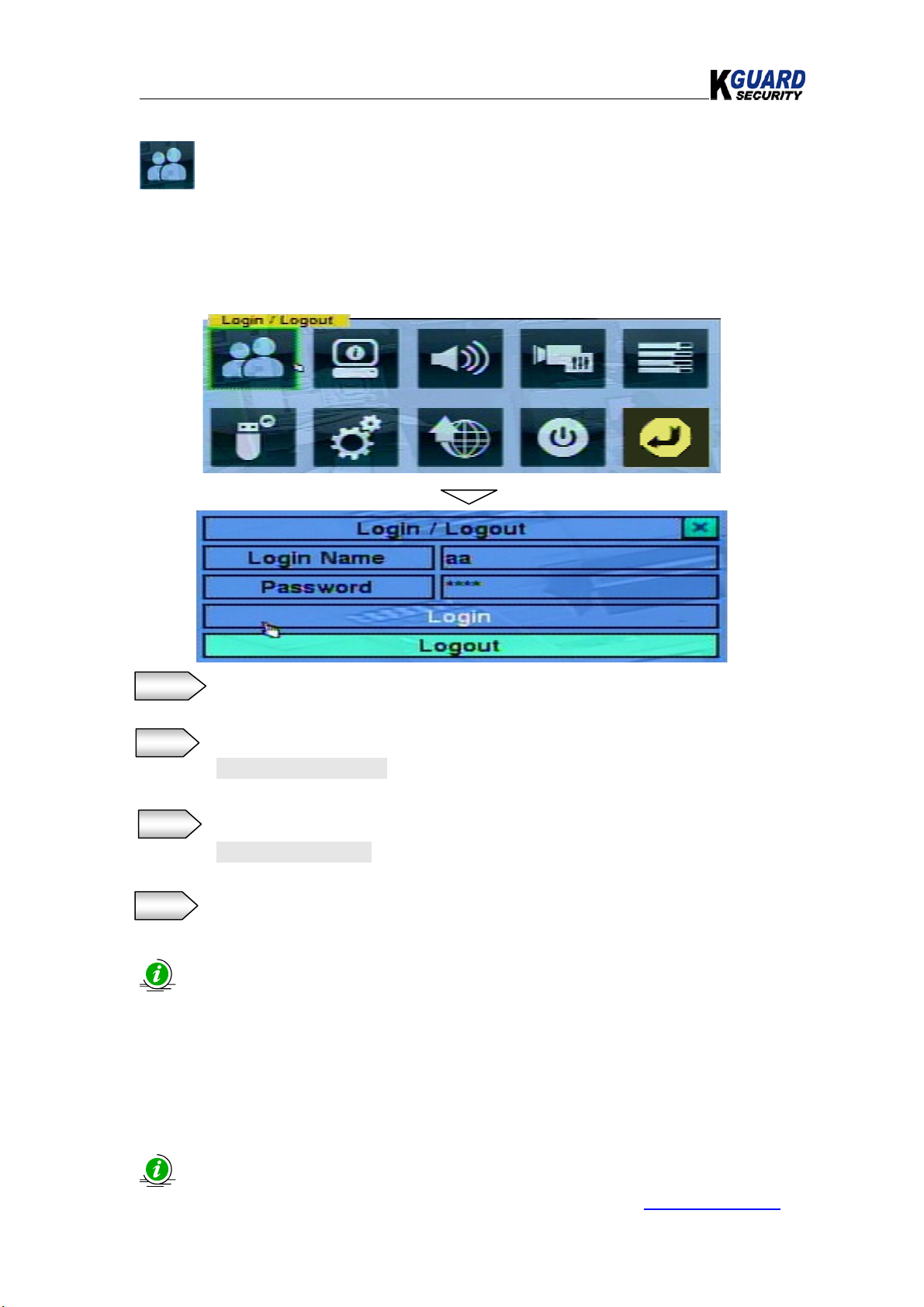

1. Log in / Log out
Description:
There are three password levels in the system, including Administrator (highest),
Supervisor, and Operator (lowest).
If the user does not login the system, he/she will be treated as “Guest” and can
only view live video display.
Step 1. Click on “LOGIN & LOGOUT” icon.
*Button/ emote Control: Press “Menu” button.
Step 2. Key-in Login name
*Default login name: aa
*Button/ emote control: Press “Enter” button to display the Login/logout options.
Step 3. Key-in password
*Default password:11
*Button/ emote control: Press▲▼ button to change the highlighted option.
Step 4. Click on ”Login” option and enter the system.
*Button/ emote control: Press “Enter” button to Log in system.
Text input for remote control
1. Press “Enter” button in the high lighted options, the abc or ABC will display, then you can key in and
change the login name.
2. Press “Next or ►”button to key-in second text.
3. Press “Enter” button to save the change.
*Repe t the steps bove, for p ssword key-in.
The user c n use it to login the system for the initi l setup.

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
8 www.kguardsecurity.com
All rights reserved
If the user does not login the system, he/she will be tre ted s “Guest” nd
c n only view live video displ y.
The system llows up to 18 user ccounts.
The dministr tor c n set up the login n me nd p ssword for e ch user.
If the user h ve forgotten ll the dministr tor-level p sswords, ple se
cont ct the loc l de ler or inst ller to recover from it.
Text Input as below:
In the “ bc” button, there’s 3 types of functions:
bc = No capital letters
ABC = All capital letters
Code
For remote control:
Press m rk to bring up a list of
punctuation marks and special
characters.
The highlighted character in the
list shows the selected one.
Press ▲▼◄► button to change
the selection.
If you make a mistake, press BS to remove the character to the left of the cursor, or press DEL to
delete the character at the current cursor position.
In text editing mode press ENTER to exit and save changes, press ESC to exit without making changes.
Text keybo rd
Editing p nel
B cksp ce/Tr sh c n
Number & Symbol key
For ch nging text c se
(C pit l letter)

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
9 www.kguardsecurity.com
All rights reserved

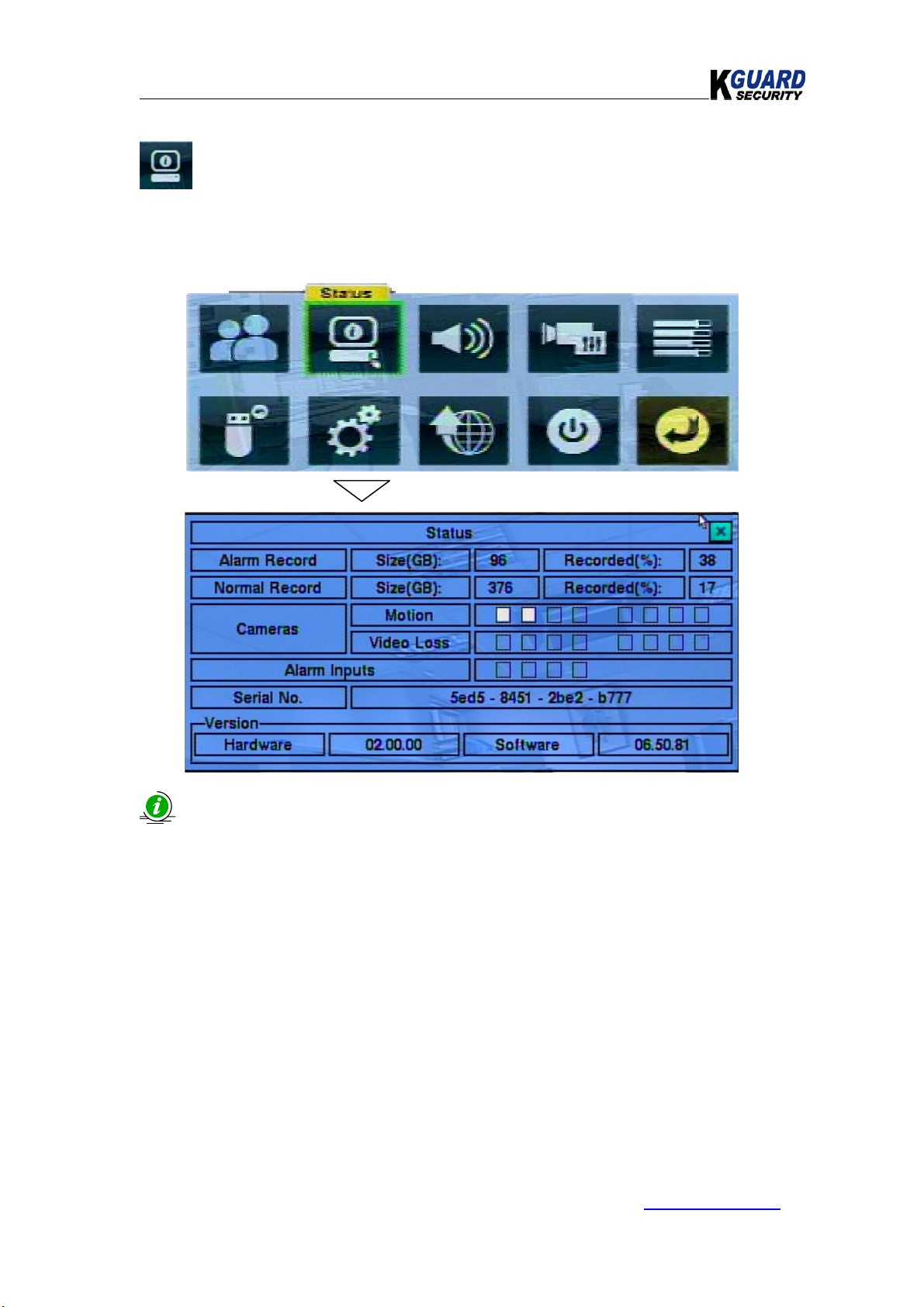

2. St tus
Description:
This function will display the status of system, including:
Alarm ecording Status, Normal ecording Status, Camera Status,
Alarm Input Status, Product Serial Number as well as Product Version Number.
Mouse : Left click
ight click for escape
Button/Remote control:
1. Press ”MENU/ESC” button to display main menu.
2. Press ”Enter” button to enter the options.
3. Press ”MENU/ESC” button to escape.

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
10
www.kguardsecurity.com
All rights reserved
3.Volume
Description:
In this function, you can check the live recording volume and playback volume.
Mouse : Left click
ight click for escape
Button/Remote control:
1. Press ”MENU/ESC” button to display main menu.
2. Press ”Enter” button to enter the options.
3. Press ”MENU/ESC” button to escape.
Other Functions
Functions Description Button/Remote control
Mute To mute the selected audio channel. Press ”ENTER” button or”+/-“ to
check/uncheck this item.
The default setting is “-”, unchecked.
Volume The Status menu will be displayed. Press”+/- “buttons to change the
value (1-10).

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
11
www.kguardsecurity.com
All rights reserved
4.Video Adjustment
Description:
You can adjust the Brightness, Contrast ,Hue and Saturation in this option.
When you enter this option, the basic operation menu will be displayed in the bottom(3),
as below:
Mouse : Left click
ight click for escape
Button/Remote control:
1. Press ”MENU/ESC” button to display main menu.
2. Press ”Enter” button to enter the options.
3. Press ”MENU/ESC” button to escape.

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
12
www.kguardsecurity.com
All rights reserved
B sic oper tion menu
The Pop-out menu will display, below:
No. Functions Description
1 Menu
Press it can return back to OSD Display menu.
2 SEARCH For displaying searching menu,
The searching result is memorized
automatically.(Administrator/Supervisor)
3 Numeric For selecting camera (Channels).
4
ESC
EXIT
5
F ctory reset ll
eset all values back to factory setting.
6
F ctory reset this
eset all values back to factory setting.
7
Restore
eset all values back to factory setting.
8
Record
Press it for recording video.
Al rm Reset
eset all functions of alarm

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
13
www.kguardsecurity.com
All rights reserved

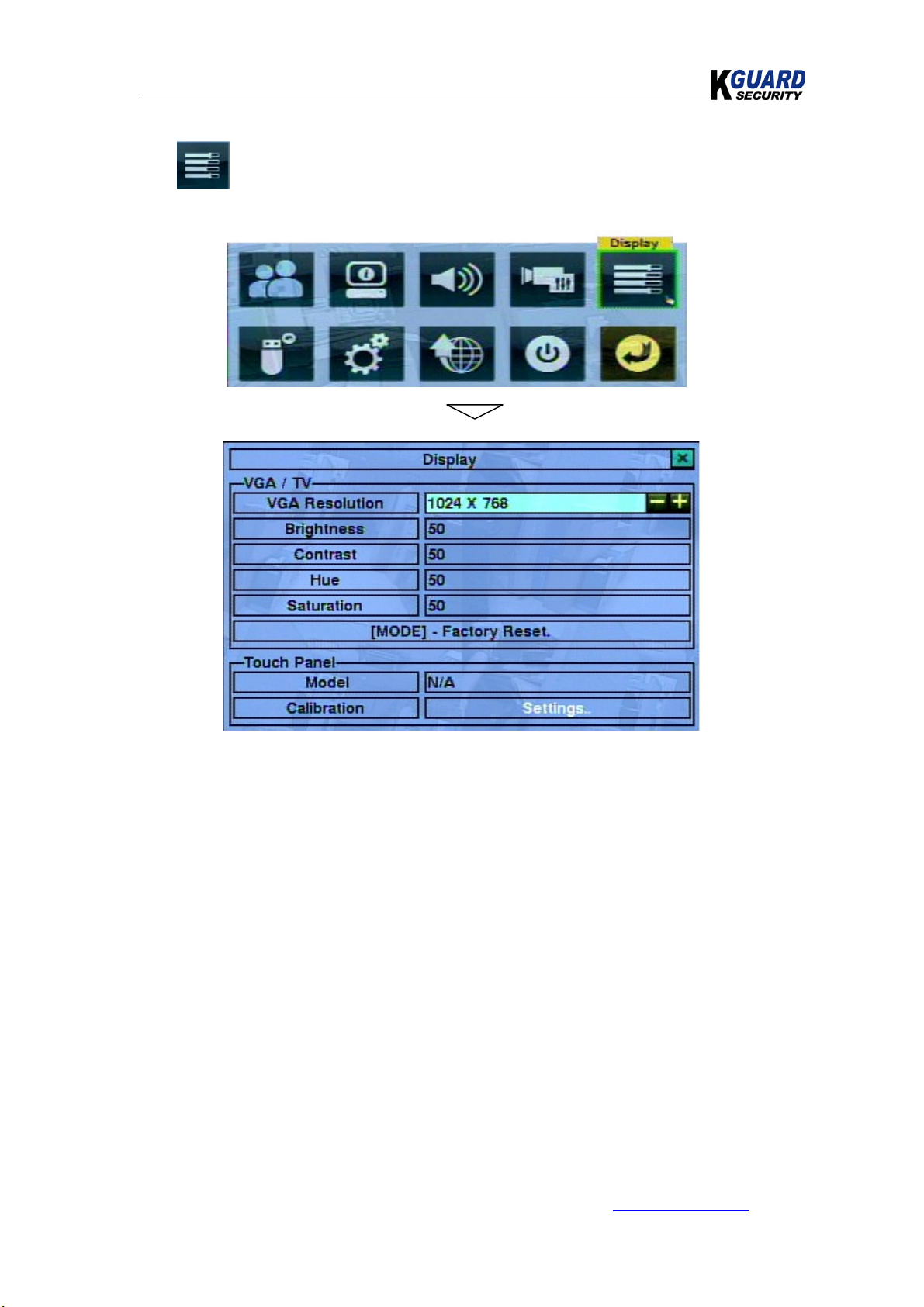

5.VGA DISPLAY
Description:
The system will adjust the VGA resolution ,automatically.

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
14
www.kguardsecurity.com
All rights reserved
6.B ckup device
Description:
The system supports a variety of USB 2.0 storage devices.
And also, it has 2 functions:(1)backup(2) estore.
Mouse : Left click
ight click for escape
Button/Remote control:
1.Press ”MENU/ESC” button to display main menu.
2. Press”▲▼◄►” button to change the highlighted option and Press Enter.
3.Press ”MENU/ESC” button to escape.
Connect/Disconnect – If the backup device is disconnected (as shown in
Current Status), please plug the device in the USB port and/or insert a DVD for DVD
device, and then press”ENTER”(Mouse: Left click) button to command the system to

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
15
www.kguardsecurity.com
All rights reserved
connect with it. If the device is already connected (EX. /W - ead/write, as shown
in Current Status), please press”ENTER”(Mouse: Left click) button to command the
system software to disconnect with the device, and then unplug the device from the
backup port.
Before using USB device, please format it to FAT32 file system by
Microsoft-Windows.
The backup device has to be connected by the system software (OSD) before it
can be used to read/write. It will display the information:
If it failed to connect, please unplug the device, and then plug the device in the USB
port again.
Some backup devices may have compatibility problems. Please contact your
local dealer or installer for the supported devices.
B ckup:
Press “ENTER” (Mouse: Left click) Button when this item is selected to
backup the configurations of this unit to the corresponding USB device.
The user m y enter the directory to b ckup the configur tions.
Restore:
Press ENTER (Mouse: Left click) Button when this item is selected to restore
the configuration files in the corresponding backup device to this unit.
The user m y enter the directory to restore the configur tions.
For the compatible device of U.S.B, please refer to “APPENDIX G”.

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
16
www.kguardsecurity.com
All rights reserved
7.Setup(Administr tor)
M in p ge of setup options.
Pre-c mer C mer Al rm SEQ Displ y
Schedule record HDD P ssword System
RS-232-422-485 Network F ctory Def ults ESC
Video Loss
Motion
HDD Form t/Cle r
Adv nced network
FTP
Em il
Priv cy M sk

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
17
www.kguardsecurity.com
All rights reserved
Functions
Pre-c mer This option allows the administrator to define some
fundamental attributes for all the installed cameras.
C mer This option allows the administrator to define the attributes
for each camera.
Al rm This option allows the administrator to define the attributes
for each alarm input, and the actions if it’s triggered.
SEQ Displ y This option allows the administrator to define the display
pages in SEQ Display for main monitor.
Scheduled Record This option allows the administrator to define the way of
recording for the system.
H.D.D This option allows the administrator to format/clear each
HDD, set Alarm ecord size and Normal ecord size of each
HDD, and define the behaviors for Alarm ecord and
Normal ecord if it reaches the end of the last HDD in the
system.
P ssword This option allows the administrator to add new users,
delete existing ones, and/or modify the user’s name,
password or level.
System This option allows the administrator to set the system time,
time zone, time synchronization, language, etc.
RS232/422/485 This option allows the administrator to setup S-485
control port.
Network This option allows the administrator to setup all Ethernet
network related parameters.
F ctory Def ult eturn to factory setting
Esc EXIT

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
18
www.kguardsecurity.com
All rights reserved
A. Pre-c mer
Description:
There are up to 4 cameras which can be connected to the system.
The Pre-Camera Setup allows the administrator to define some fundamental
attributes for all the installed cameras as well as the recording resolution.
Mouse : Left click
ight click for escape
Button/Remote control:
1.Press ”MENU/ESC” button to display main menu.
2. Press”◄►” button to change the highlighted option and Press Enter.
3. Press +/- to adjust the selected item.
4.Press ”MENU/ESC” button to escape.

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
19
www.kguardsecurity.com
All rights reserved
All Functions
Functions Description Button/Remote control
REC
Resolution
For selecting recording resolution.
1. Press” +/- “button to
select the recording
resolution. (Mouse: Left
click+/-)
For NTSC, it can be 720x480, 720x240, or 360x240;
For PAL, 720x576, 720x288, or 360x288.
Compression
Compression ratio of Normal or High.
Press +/- buttons to change
the setting.
High compression ratio will result in smaller storage size, and with longer
recording time; but the Normal Record IPS will always be the same as Event Record
IPS in Camera Setup, and Dual Streaming will always be used for network video.
W term rk For selecting to record with digital
watermark or not.
Press”ENTER”or”+/-
“button (Mouse: Left click)
Inst lled For checking the camera to see if it is
installed or not.
Press”ENTER” or +/-
button (Mouse: Left click)
to check/uncheck this
item.
PTZ ID For checking the PTZ ID. Press +/- button to change
the value (N/A or 0-255)

KGUARD Standalone DVR KG-SH122E.V2/SH222E.V2/SH522E.V2 User Manual(Software)
20
www.kguardsecurity.com
All rights reserved
B. C mer
Description:
The Camera Setup allows the administrator to define the attributes for each
camera.
The functions of Motion/Mask which allows you to setup the motion detection
area & privacy masking area.
Mouse : Left click
ight click for exit
All Functions
No. Functions Description Remote control
1 Title The title (Max. 8 characters)
of this camera.
1. Press “Enter” button in
the high lighted options, the
abc or ABC will display, then
you can key in and change
the name of camera
2. Press “Next or ►”button
to key-in second text.
3. Press “Enter” button to
