Ki Mobility Catalyst 5Vx Installation and operation manual

1
Thank you for purchasing a Catalyst 5VX wheelchair!
Please do not use this wheelchair without first reading this entire manual. BEFORE
riding, you should be trained in the safe use of this chair by an Assistive Technology
Practitioner (ATP) or clinical professional.
If you have any questions or concerns about any aspect of this wheelchair, this manual,
or the service provided by us or your retail supplier, please do not hesitate to contact
us by telephone at:
715-254-0991
In writing at:
Ki Mobility
5201 Woodward Drive
Stevens Point, WI 54481
U.S.A
Via email at:
[email protected]om
Or via our Authorized EU Representative:
James Leckey Design
19C Ballinderry Road
Lisburn
BT28 2SA
Phone: [phone] (UK) or 1800 626020 (ROI)
www.leckey.com
I. INTRODUCTION

2
I. INTRODUCTION
II. TABLE OF CONTENTS
III. NOTICE - READ BEFORE USE
A. Your Safety and Stability ..................................................................... 4
IV. WARNINGS
A. Signal Words....................................................................................... 4
B. General Warnings................................................................................ 5
C. Positioning Belts ................................................................................. 6
D. Riding Your Wheelchair ....................................................................... 6
E. Power Drives....................................................................................... 7
F. Ascending Stairs ................................................................................. 7
G. Descending Stairs ............................................................................... 8
H. Transfers............................................................................................. 8
I. Your Wheelchair and the Environment................................................. 8
J. Modifying your Wheelchair .................................................................. 9
K. Wheelchair Stability ............................................................................. 9
L. Aftermarket Seating ............................................................................ 10
V. SET UP & USE OF YOUR WHEELCHAIR

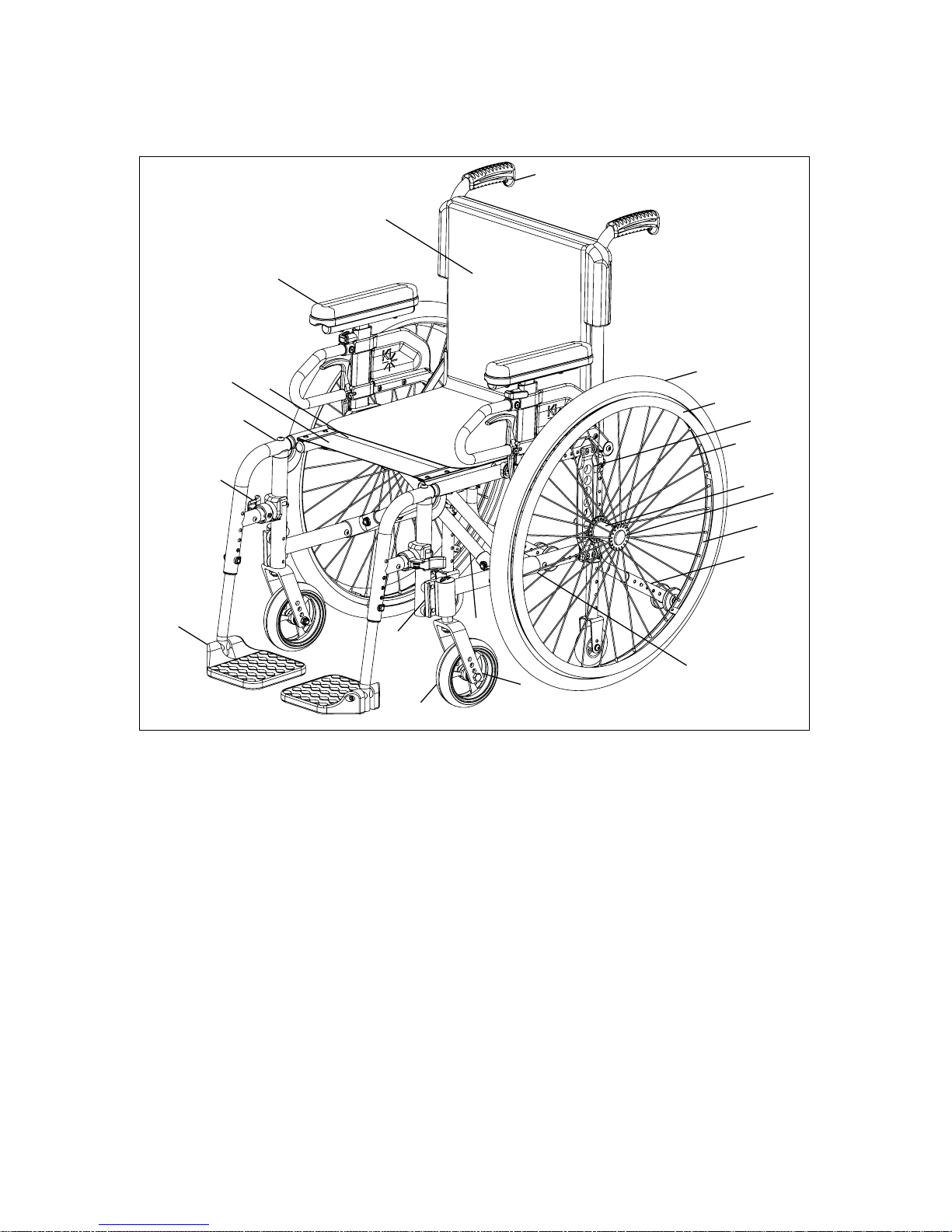

A. Your Catalyst 5VX & It’s Parts ............................................................. 11

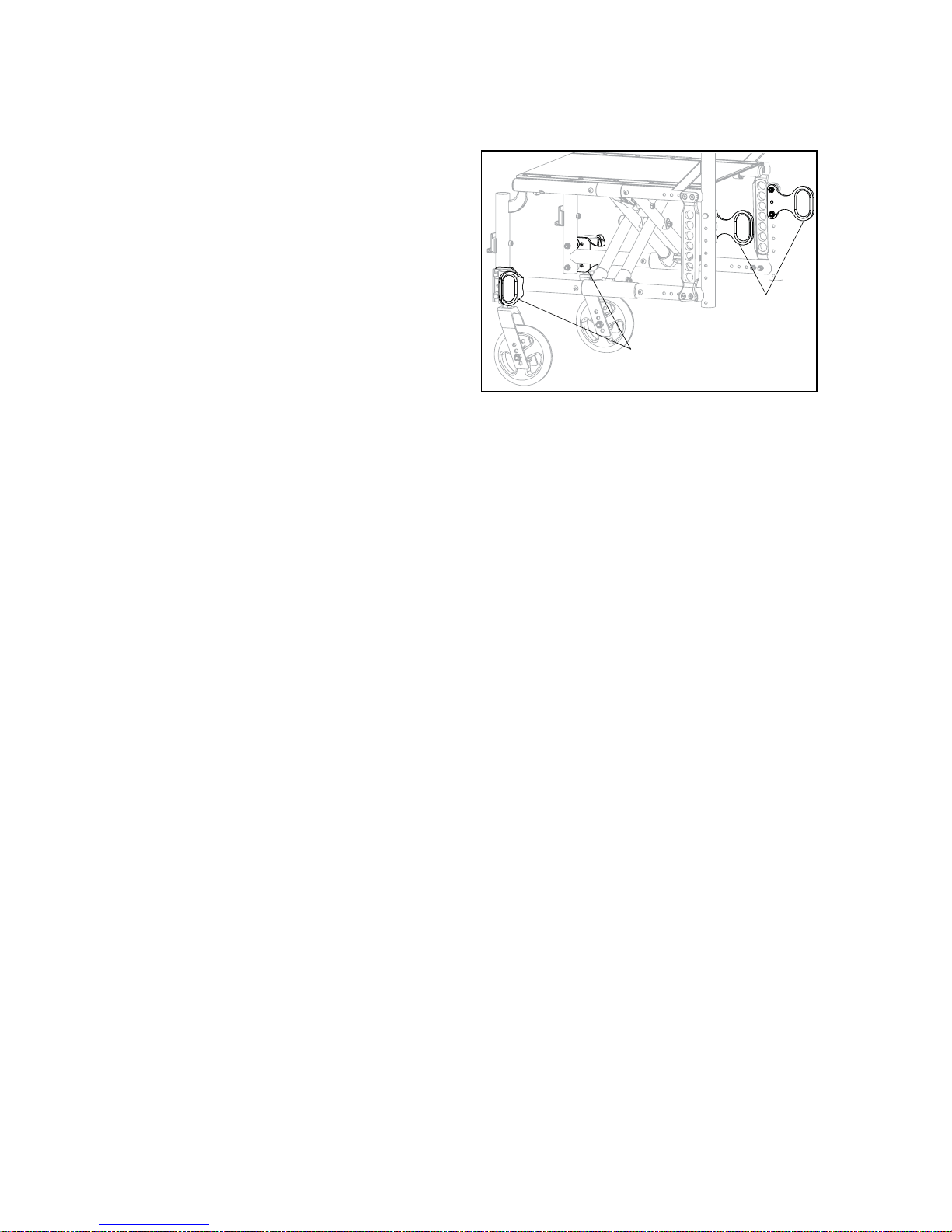

B. Transit Use.......................................................................................... 13
C. Height Adjustable T-Arms ................................................................... 16
D. Swing Away Armrests ......................................................................... 17

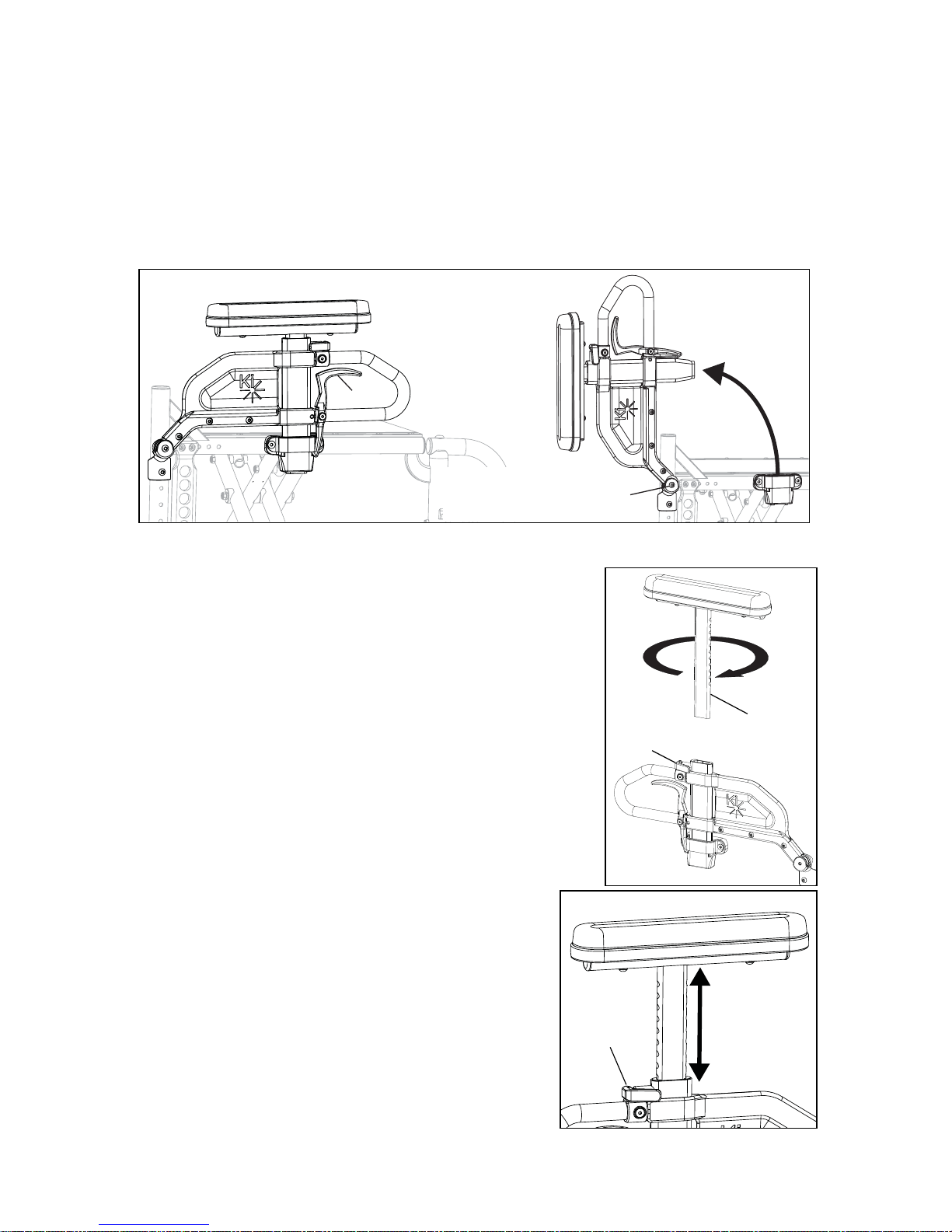

E. Flip Back Height Adjustable T-Arm...................................................... 18
F. Swing Away Hangers .......................................................................... 19
G. Swing Away Hangers with 4-Way Latch.............................................. 20
H. Extension Tubes ................................................................................. 21
I. Elevating Leg Rest .............................................................................. 22
J. Pro Elevating Leg Rest ........................................................................ 23
K. Adjustable Height Backrest ................................................................. 24
L. Catalyst Half-Folding Backrest ............................................................ 24
M. Rear Wheels........................................................................................ 25
N. Upholstery Fabric ................................................................................ 25
O. Wheel Locks ....................................................................................... 26
P. Anti-Tips ............................................................................................. 27
Q. Swing-In Anti-Tips............................................................................... 29
R. Seat Sling............................................................................................ 30
S. Cushion Installation ............................................................................. 30
T. Oxygen Tank Holder (Optional)............................................................ 30
U. Step Tube (Optional) ........................................................................... 31
V. Transit Wheels (Optional)..................................................................... 32
II. TABLE OF CONTENTS
La Versión en Español comienza en la página 38

3
VI. MAINTENANCE
A. Inspecting Your Wheelchair................................................................. 33
B. Routine Maintenance .......................................................................... 34
C. Cleaning.............................................................................................. 35
D. Storage ............................................................................................... 35
VII. WARRANTY ................................................................................................. 36
II. TABLE OF CONTENTS

4
III. NOTICE - READ BEFORE USE
A. Your Safety and Stability
Ki Mobility manufactures many different wheelchairs that might meet your needs. You should consult
an Assistive Technology Professional when selecting which model would best meet your particular
requirements and how the wheelchair should be set up and adjusted. Final selection of the type of
wheelchair, options and adjustments rests solely with you and your medical professional. The
options you choose and the set-up and adjustment of the wheelchair have a direct impact on its
stability. Factors to consider that affect your safety and stability are:
a. Your personal abilities and capabilities including strength, balance and coordination.
b. The types of hazards and obstacles you might encounter during your day.
c. The specific dimensions, options and set up. In particular, the seat height, seat depth, seat
angle, back angle, size and position of the rear wheels and size and position of the front
casters. Any change to any of these items will change the stability of your wheelchair. You
should only make changes after consulting with a qualified professional.
IV. WARNINGS
A. Signal Words
Within this manual you will find what are referred to as “Signal” words. These words are used to
identify and convey the severity of varying hazards. Before using this chair you, and each person
who may assist you, should read this entire manual. Please note the Signal word and consider any
warnings or cautions. Make sure to follow all instructions and use your chair safely. The Signal word
refers to a hazard or unsafe practice that may cause severe injury or death to you or to other
persons. The “Warnings” are in two main categories, as follows:
WARNING – Warning indicates a potentially hazardous situation which, if not avoided, could result
in serious injury or death.
CAUTION – Caution indicates a potentially hazardous situation which, if not avoided, could result in
injury or damage to your wheelchair.
These signal words will be placed throughout the manual, where appropriate,to highlight the
hazardous situation. Refer to the following list for hazardous situations that will apply to the general
use of this wheelchair.
WARNING: Failure to comply with all of the instructions in this manual or using the wheelchair in
a manner not stated in this manual could result in serious injury or death.

5
IV. WARNINGS
B. General Warnings
WARNING: Do not exceed weight limit of chair:
Limits refer to combined weight in pounds of user and all items carried. Exceeding weight limit may
damage your chair or may increase your risk of falling or tipping over. A tip-over or fall could result in
serious injury or death.
•Do not use chair for weight training. The movement of the additional weight alters the chair’s
center of gravity increasing your risk of tipping over. A tip-over could result in damage to your
chair or in serious injury or death.
•Keep tires inflated to correct tire pressure. Using a chair without properly inflated tires may
affect its stability, increasing your risk of tipping over. A tip-over could result in damage to your
chair or in serious injury or death to you or others. Correct tire pressure is indicated on the
side wall of the tire. Your wheelchair provider can determine if your tires are inflatable if you
are unsure.
•Underinflated tires may cause your wheel locks to not function properly. Failure of the
wheel locks to hold your chair may result in a loss of control or fall. This can result in serious
injury or death.
•Avoid ramps or slopes inclined more than 9 degrees. Steep slopes increase your risk of
falling or tipping over. A tip-over or fall could result in damage to your chair or in serious injury
or death to you or others. Do not use chair on ramps or slopes tilted more than 9 degrees
(about 2 inches rise/drop per linear-foot): neither up/down nor across.
•Avoid inclined surfaces slick or coated with ice, oil or water. Slippery inclines could result in
falling or tipping over. A tip-over or fall could result in damage to your chair or in serious injury
or death.
•Avoid leaning over the side or back of your wheelchair to extend your reach. Leaning over
chair could change its center of gravity and cause an unstable situation resulting in a fall or
tip-over. A tip-over or fall could result in damage to your chair or in serious injury or death.
•Do not lift wheelchair by its removable parts while occupied. Lifting a wheelchair by
removable parts - e.g. armrests or footrests - while occupied could cause user to fall or lose
control. A fall or loss of control could result in damage to your chair or in serious injury or
death.
CAUTION: Avoid overtightening bolts and hardware that attach components to the frame. Over-
tightening could cause damage to the chair; affecting its durability and performance.
NOTE: If you are unsure how to properly tighten bolts or hardware, consult your authorized
supplier.
Standard
Catalyst 5VX 300 lbs

6
IV. WARNINGS
C. Positioning Belts
WARNING: Never leave a user who cannot maintain their own seated posture unattended when
using positioning belts or harnesses. The user may slide down and become entangled in the belt
or harness which may result in severe injury or death.
Positioning belts are designed to assist with proper positioning within the wheelchair. They are
not designed as seat belts. Use positioning belts ONLY to help support the user’s posture. Misuse
of positioning belts may result in severe injury or death.
• Ensure the user does not slide underneath the positioning belt in the wheelchair seat. If this
occurs, the user’s breathing may be hampered causing death or serious injury.
• The positioning belt should have a snug fit; tight enough to hold position, but not so tight as
to restrict breathing. You should be able to slide your hand between the positioning belt and
the user.
• NEVER Use Positioning Belts:
a. As a restraint. A restraint requires a doctor’s order.
b. On a user who is unconscious.
c. As an occupant restraint in a motor vehicle. A positioning belt is not designed to replace a
seat belt that is attached to the frame of a vehicle, which would be required of an effective
seat belt. During a sudden stop, with the force of the stop, the user would be thrown for-
ward. Wheelchair seat belts will not prevent this, and further injury may result from the belts
or straps. See Transit Use (V. Set Up & Use of Your Wheelchair - Section B).
D. Riding Your Wheelchair
Your chair is designed for use on solid, flat surfaces such as concrete, asphalt and flooring. Use
caution if you push your wheelchair on a wet or slick surface.
WARNING: Avoid pushing or using your chair in sand, loose soil or over rough terrain. Use over
such surfaces could cause a loss of stability and result in a fall or loss of control. A fall or loss of
control could result in damage to your chair or in serious injury or death.
•Avoid using your wheelchair on a public road. Use of a wheelchair on a public road could
result in serious injury or death. Wheelchairs are not legal for use on public roads in most
states. If you find you must use a chair on a public road, be alert to the danger of motor
vehicles.
•Avoid obstacles and road hazards. Obstacles and hazards - e.g. potholes, broken
pavement - could cause a fall, tip-over or loss of control. A fall, tip-over, or loss of control
could result in damage to your chair or in serious injury or death.
•Do not ride your wheelchair on an escalator. Use of a wheelchair on an escalator could
cause a fall, tip-over or loss of control. A fall, tip-over or loss of control could result in damage
to your chair or in severe injury or death.

7
IV. WARNINGS
D. Riding Your Wheelchair (Continued)
To minimize these risks:
1. Keep a lookout for danger-scan the area well ahead of your chair as you ride.
2. Make sure the floor areas where you live and work are level and free of obstacles.
3. Remove or cover threshold strips between rooms.
4. Install a ramp at entry or exit doors. Make sure there is not a drop off at the bottom of the
ramp.
5. To Help Adjust Your Center of Balance:
a. Lean your upper body FORWARD slightly as you go UP over an obstacle.
b. Press your upper body BACKWARD as you go DOWN from a higher to a lower
level.
6. If your chair has anti-tip tubes, lock them in place before you go UP over an obstacle.
7. Keep both of your hands on the handrims as you go over an obstacle.
8. Never push or pull on an object (such as furniture or a doorjamb) to propel your chair.
9. Do not operate your wheelchair on roads, streets or highways other than marked cross
walks.
10. Do not attempt to push over obstacles without assistance.
E. Power Drives
WARNING: Do not attach unapproved external power drive systems to your chair. Use of an
unapproved external power drive system could result in mechanical failure of the chair or cause a
fall, tip-over or loss of control. A fall, tip-over or loss of control could result in damage to your chair or
in severe injury or death.
Ki Mobility does not recommend the installation of power drive systems on any Catalyst 5VX
wheelchair.
Catalyst 5VX wheelchairs have not been designed or tested as power wheelchairs. If you add a
power drive system to a Catalyst 5VX wheelchair, be sure the manufacturer of the power drive
system has validated and approved the combination of the power drive system and Catalyst 5VX
wheelchair as safe and effective.
F. Ascending Stairs
NOTE: Have at least two people, who have sufficient strength and skill to handle the weight of
the user and wheelchair, assist when trying to go up a set of stairs in this wheelchair.
• Move the wheelchair and user backwards up the stairs.
• Position one person behind the user, one person in front. The person in front must hold onto
a non-removable part of the wheelchair.
• The rear attendant tilts the chair back and they both lift together. Take one step at a time.
• This may require the anti-tips be flipped up or removed. Make sure the anti-tips are
reattached or flipped back down before using the wheelchair.

8
IV. WARNINGS
G. Descending Stairs
NOTE: When descending a set of stairs the user should be facing forward.
• A person behind the user, who has sufficient strength and skill to handle the weight of the
user and the wheelchair, should tilt the chair backward and let the chair down the stairs one
step at a time on the rear wheels.
• This may require the anti-tips be flipped up or removed. Make sure the anti-tips are
reattached or flipped back down before using the wheelchair.
H. Transfers
WARNING: Be trained and assured that you can transfer on your own or have a person assist
you. It is dangerous to transfer on your own. It requires good balance and agility. Be aware there is a
point during every transfer when the wheelchair seat is not below you. Failure to perform a transfer
properly can result in a fall that could result in severe injury or death.
A transfer requires good balance and stability. You should receive training from your therapist before
attempting to do a transfer on your own.
NOTE: Before transferring out of your wheelchair every caution should be taken to reduce the
gap between the two surfaces.
• Engage the wheel locks to lock the rear wheels.
• Rotate the casters forward to increase the wheelbase of the wheelchair.
• Remove or swing away the footrests.
• Have someone assist you unless you are well experienced in transfers.
I. Your Wheelchair and the Environment
CAUTION: Exposure to water or excessive moisture may cause the metal in the wheelchair to
rust or corrode and the fabric to tear. Dry your chair as soon as possible if exposed to water.
•DO NOT USE YOUR WHEELCHAIR IN A SHOWER, POOL OR BODY OF WATER. This will
cause your wheelchair to rust or corrode and eventually fail.
• Do not operate your wheelchair in sand. Sand can get into the wheel bearings and moving
parts. This will cause damage and eventually will cause the wheelchair to fail.
• Make sure any ramp, slope or curb cut you may attempt to ride on is compliant with ADA
guidelines. Riding across, up or down any slope that is too great may cause a loss of stability.
ADA Guidelines and more information about accessible design are available at:
http://www.ada.gov/

9
IV. WARNINGS
J. Modifying your Wheelchair
CAUTION: Your wheelchair was engineered and manufactured under strict design controls. An
integral part of this process is ensuring the various components work together correctly; they
have been tested to various standards to ensure quality and are approved to work together.
NO ONE SHOULD MODIFY THIS WHEELCHAIR EXCEPT BY ADJUSTING IT ACCORDING TO
THIS MANUAL OR BY ADDING KI MOBILITY APPROVED OPTIONS. THERE ARE NO
APPROVED OPTIONS THAT INVOLVE DRILLING OR CUTTING THE FRAME BY ANYONE
OTHER THAN A TRAINED KI MOBILITY ASSOCIATE. Contact Ki Mobility or an authorized Ki
Mobility supplier before adding any accessories or components not provided by Ki Mobility.
K. Wheelchair Stability
NOTE: Wheelchair set up should be done only by a qualified technician.
• During set up, include any accessories you use daily.
• Chair should be readjusted with changes in your weight or how you sit.
• Use anti-tips while you acclimate to changes in your chair set up.
To ensure proper stability of your wheelchair, you must make sure the center of gravity and the
wheelchair’s base of support is correct for your balance and abilities. Many factors can affect these
two elements:
Generally, the most important factor is the position of the rear wheels for rearward stability. There are
other actions than can have an adverse effect on your stability. You should consult with your
wheelchair provider and clinicians familiar with your needs and capabilities in determining how this
affects your use.
WARNING: Take care when shifting your weight in your chair, adding weight to your chair or
making changes to your chair. Changes to your Center of Gravity could change and affect the
stability of your chair, which could result in a tip-over or a fall. A tip-over or fall could result in damage
to your chair or in serious injury or death to you or to others. Changes to your Center of Gravity
during your daily activities - such as dressing, carrying or reaching for objects, pushing up an incline
- may occur many times a day. You should be aware of these activities and take precautions to
minimize the risk of a fall, such as the use of anti-tips.
• Seat height • Size and position of rear wheels
• Size and position of front casters
• Any seating system components
•Seatdepth
• Back angle

10
IV. WARNINGS
K. Wheelchair Stability (Continued)
WARNING: Attempting a wheelie to get over a curb or obstacle is a hazardous maneuver. Do not
attempt a wheelie unless you have been trained. This maneuever could lead to a fall. A fall could result in
serious injury or death.
Some strategies to minimize your risk of falling
• Ensure anti-tips are in place and lean forward.
• Have an attendant behind you to provide assistance.
L. Aftermarket Seating
WARNING: The installation of a cushion on a wheelchair could affect the center of gravity of the
wheelchair. Changes in your center of gravity may affect your stability in your wheelchair, resulting in
tipping over or falling from your wheelchair which may result in serious injury. Always review the
instructions for use of your wheelchair to see if changes to the wheelchair may be needed to provide
sufficient stability after adding a cushion.
•The integrity of your skin can be affected by many aspects of your daily life and medical
condition, including the use of this product. Be sure to follow any skin care regimens
established by your clinician. Consumers of this product should make sure their skin is
inspected routinely for changes as directed by their clinician. Failure to do so could result in
serious injury or death.
Selecting the Proper Seating Product
WARNING: Ki Mobility recommends that you consult with a licensed clinician (i.e. Physician or
therapist) trained in wheelchair seating and positioning before selecting any seating and positioning
product. This will help ensure you receive the right product for your specific needs.

11
V. SET UP & USE OF YOUR WHEELCHAIR

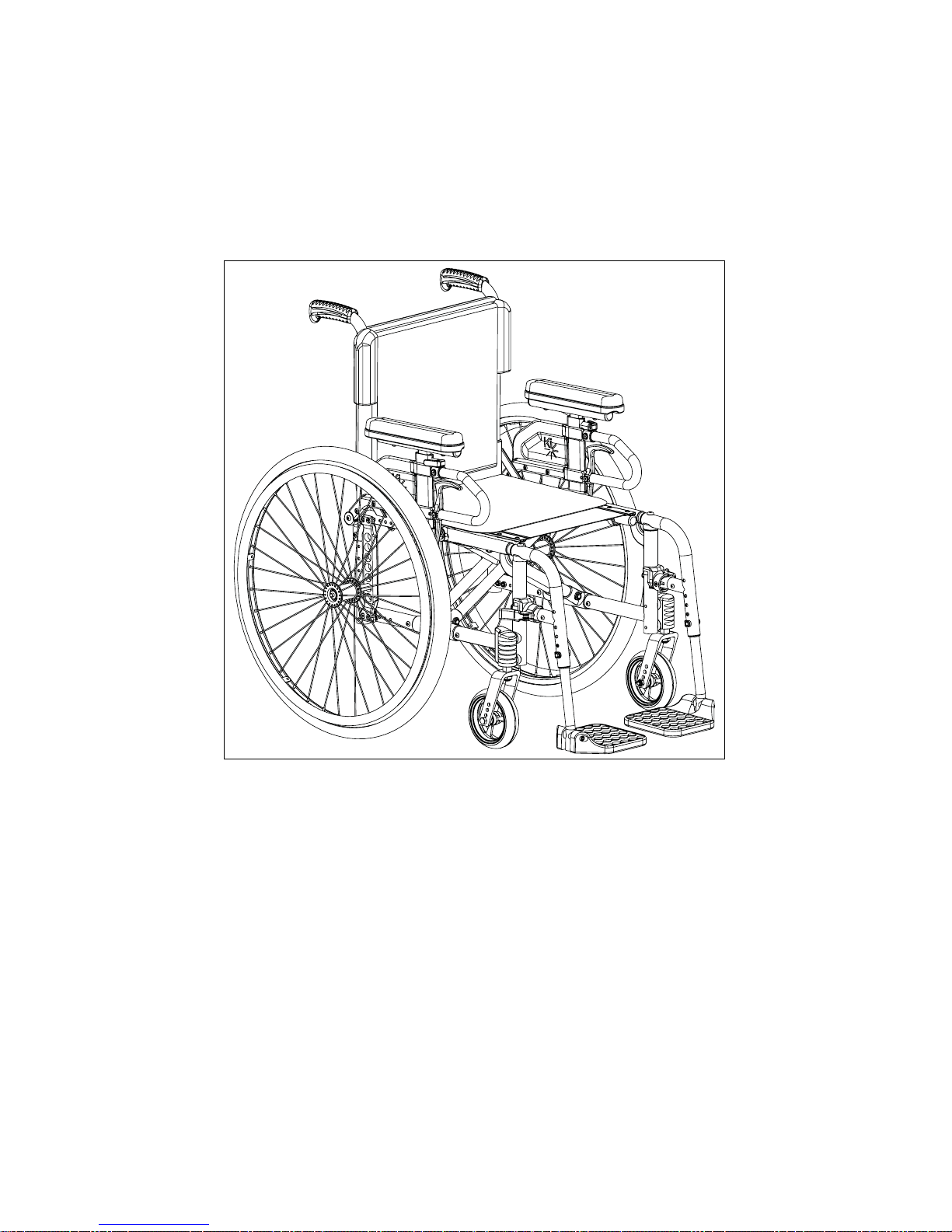

A. Your Catalyst 5VX & It’s Parts
1. Inspect and maintain this chair. See Maintenance on page 33.
2. If you detect a problem, contact your authorized supplier immediately.
3. Have a complete inspection, safety check and service of your chair performed by an
authorized supplier annually.

12
V. SET UP & USE OF YOUR WHEELCHAIR
A. Your Catalyst 5VX & It’s Parts (Continued)
1. Push Handle Backrest Tube
2. Pneumatic Tire
3. Aluminum Handrim
4. Axle Plate
5. Spokes
6. Rear Wheel Hub
7. Quick-Release Axle
8. Aluminum Wheel Rim
9. Anti-Tip
10. Rear Frame Component
11. Cross Brace
12. Caster Fork
13. Caster Wheel
14. Caster Housing
15. Flip-Up Composite Footrest
16. Swing-Away Latch Release
17. Swing-Away Footrest / Footrest
18. Seat Sling
19. Lifting Strap
20. Flip Back Height Adjustable Armrest
21. Backrest
1
2
34
5
7
9
10
11
12
13
14
15
16
17
18 19
20
21
6
8

13
V. SET UP & USE OF YOUR WHEELCHAIR
B. Transit Use
WARNING: Never use this wheelchair as a seat in a motor vehicle unless it has been equipped
with the Transit Option. It is always safest to transfer out of your wheelchair onto a seat in a motor
vehicle with appropriate seat and shoulder belts. Using this wheelchair as a seat in a motor vehicle,
if not equipped with the transit option, could result in serious injury or death.
The Catalyst 5VX Series wheelchair equipped with the Transit Option has been tested to and passed
the RESNA WC-4:2012, Section 19: Wheelchairs used as seats in motor vehicles and ISO 7176-
19:2008 Wheelchairs -- Part 19: Wheeled mobility devices for use as seats in motor vehicles.
RESNA and ISO standards are designed to test the structural integrity of the wheelchair as a seat for
use in a motor vehicle. These standards are also designed to create compatibility with Wheelchair
Tie-down and Occupant Restraint Systems (WTORS).
Not all configurations of the Catalyst 5VX Series wheelchairs are compatible with the Transit Option.
Ki Mobility manages the configuration and does not offer the Catalyst 5VX Series wheelchair except
in compatible configurations. If you make changes to your Catalyst 5VX Series wheelchair after
your receive it, you should contact your wheelchair provider or Ki Mobility to make sure it is
appropriate to continue to use your wheelchair as a seat in a motor vehicle.
Aftermarket seating may have replaced the original equipment seat and back support designed and
tested as part of the Transit Option. Your wheelchair provider should tell you if the seating they
provided is original equipment or replacement aftermarket seating. A complete system of wheelchair
frame, seating, Wheelchair Tie-down and Occupant Restraint Systems and a properly equipped
motor vehicle, that have all complied with the standards mentioned in this section, should be in
place before using a Catalyst 5VX Series wheelchair equipped with the Transit Option as a seat in a
motor vehicle.
When using your wheelchair as a seat in a motor vehicle you should always observe the following
instructions:
• The rider must be in a forward-facing position.
• The rider and all items carried must not weigh more than 300 lbs for Catalyst 5VX Series.
• Backpacks and pouches should be removed and secured separately in the motor vehicle. In
the event of an accident these items can become dangerous projectiles, which may injure or
kill you or other occupants of the motor vehicle.
• The rider must use a Wheelchair Tie-down and Occupant Restraint System that complies
with RESNA WC-4:2012, Section 18: Wheelchair tie-down and occupant restraint
systems for use in motor vehicles or ISO 10542-1:2012 Technical systems and aids for
disabled or handicapped persons -- Wheelchair tie-down and occupant-restraint systems
-- Part 1: Requirements and test methods for all systems.

14
V. SET UP & USE OF YOUR WHEELCHAIR
B. Transit Use (Continued)
• Attach wheelchair tie-downs to the four
securement points (two front, two rear) on
the Catalyst 5VX wheelchair with the Transit
Option (Fig. 1) in accordance with the
wheelchair tie-down manufacturer’s
instructions and RESNA WC-4:2012,
Section 18 or ISO 10542-1:2012 - Part 1.
• Attach occupant restraints in accordance
with the occupant restraint manufacturer’s
instructions and RESNA WC-4:2012,
Section 18 or ISO 10542-1:2012, Part 1.
• Use of lap belts, chest straps, shoulder harnesses, any other positioning strap system or
positioning accessory should not be used, or relied on as an occupant restraint, unless it is
marked as such by the manufacturer in accordance with RESNA WC-4:2012, Section 18 or
ISO 10542-1:2012, Part 1.
• Use of headrests, lateral supports or other positioning accessories should not be used, or
relied on as an occupant restraint, unless it is marked as such by the manufacturer in
accordance with RESNA WC-4:2012, Section 18 or ISO 10542-1:2012, Part 1 or RESNA
WC-4:2012, Section 20: Wheelchair seating systems for use in motor vehicles or ISO
16840-4:2009 Wheelchair seating -- Part 4: Seating systems for use in motor vehicles.
• After being fitted and adjusted, the top of the original equipment back upholstery should be
within 4 inches of the top of your shoulder.
• Any aftermarket seating should be tested to comply with RESNA WC-4:2012, Section 20 or
ISO 16840-4:2009 - Part 4.
• Attach the seating to the wheelchair frame in accordance with the seating manufacturer’s
instructions and RESNA WC-4:2012, Section 20 or ISO 16840-4:2009 - Part 4.
• Use of lap belts, chest straps, shoulder harnesses, any other positioning strap system or
positioning accessory should not be used, or relied on as an occupant restraint, unless it is
marked as such by the seating manufacturer in accordance with RESNA WC-4:2012,
Section 20 or ISO 16840-4:2009 - Part 4.
• Aftermarket accessories such as trays, oxygen tank holders, oxygen tanks, IV poles, back
packs, pouches and items not manufactured by Ki Mobility should be removed and secured
separately in the motor vehicle. In the event of an accident, these items can become
dangerous projectiles which may injure or kill you or other occupants of the motor vehicle.
• If the wheelchair has been involved in an accident, you should not continue to use it, as it
may have suffered fatigue that may not be visible.
Securement
Points
Securement
Points
Fig. 1

15
V. SET UP & USE OF YOUR WHEELCHAIR
B. Transit Use (Continued)
WARNING: Remove and secure any items temporarily attached to the chair while in a motor
vehicle. Leaving items attached to the vent tray, battery tray or oxygen tank holder and not securing
them properly and separately in a motor vehicle could result in these items becoming dangerous
projectiles in the event of an accident. Additionally, oxygen tanks contain a highly pressurized gas
that vigorously accelerates combustion.
• When using this wheelchair as a seat in a motor vehicle, you must remove any items
attached to the vent tray, battery tray or oxygen tank holder and properly secure item
separately.
• If the chair is equipped with an oxygen tank holder never use the wheelchair as a seat in a
motor vehicle.
NOTE: To obtain copies of RESNA or ISO standards please contact the standards organizations
below:
RESNA
1560 Wilson Blvd.
Arlington, VA 22209
Phone: [phone]
Fax: [phone]
Email: technicalst[email protected]
ANSI/RESNA Standards:
RESNA WC-4:2012, Section 18:
Wheelchair tie-down and occupant restraint systems for use in motor vehicles.
RESNA WC-4:2012, Section 19:
Wheelchairs used as seats in motor vehicles.
RESNA WC-4:2012, Section 20:
Wheelchair seating systems for use in motor vehicles.
International Organization for Standardization (ISO)
ISO Central Secretariat
BIBC II
Chemin de Blandonnet 8
CP 401
1214 Vernier, Geneva
Switzerland
Phone: [phone]
Fax: [phone]
Email: [email protected]
ISO Standards:
ISO 10542-1:2012 Technical systems and aids for disabled or handicapped person --
Wheelchair tie-down and occupant-restraint systems -- Part 1:
Requirements and test methods for all systems.
ISO 16840-4:2009 Wheelchair seating -- Part 4:
Seating systems for use in motor vehicles.
ISO 7176-19:2008 Wheelchairs -- Part 19:
Wheeled mobility devices for use as seats in motor vehicles.

16
V. SET UP & USE OF YOUR WHEELCHAIR

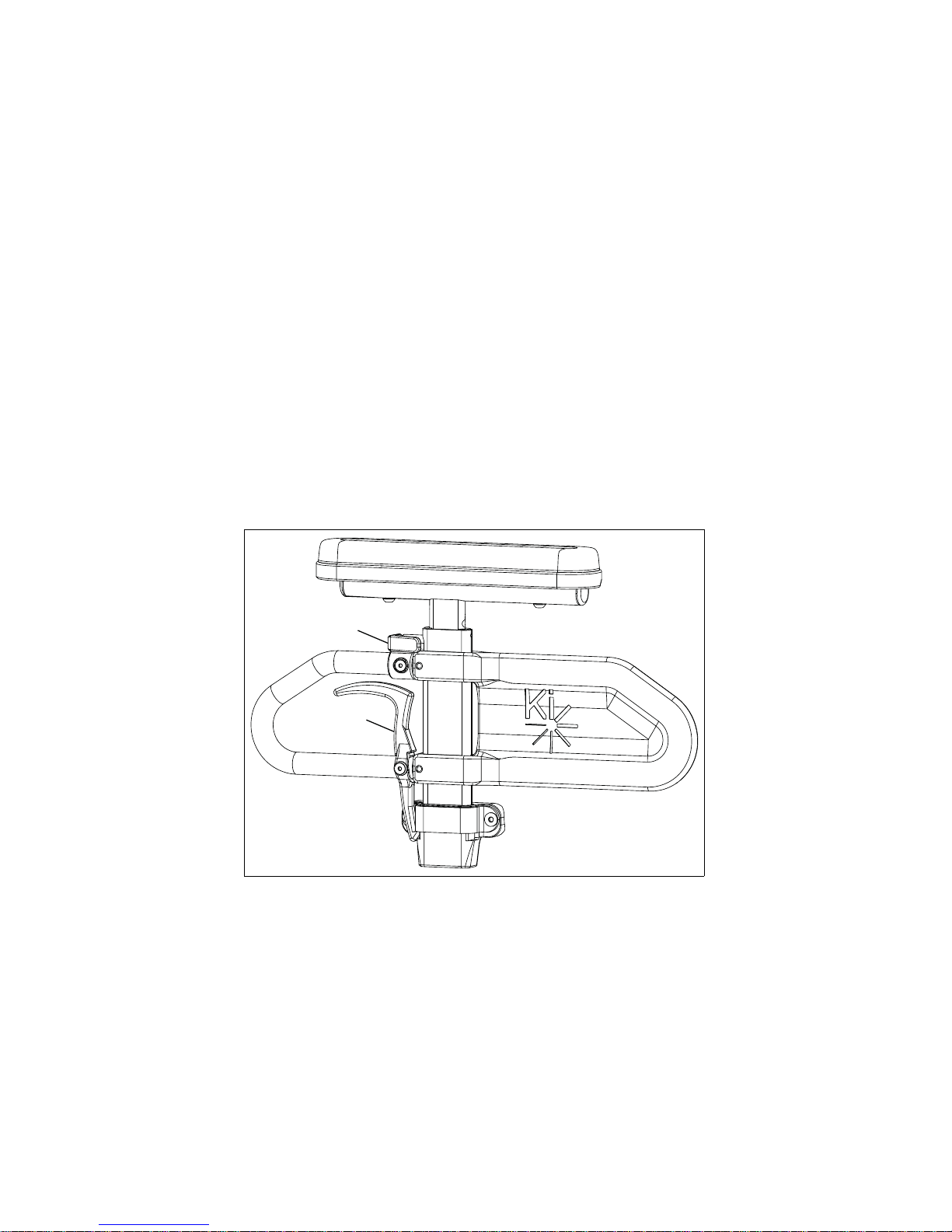

C. Height Adjustable T-Arms
1. Installation
a. Slide the outer armpost into the receiver mounted to the wheelchair frame.
b. The armrest will automatically lock into place. Check to make sure the locking lever is as
shown (Fig. 2:B).
2. Height Adjustment
a. Rotate release lever (Fig. 2:A).
b. Slide armrest pad up or down to desired height.
c. Return lever to locked position against arm post.
d. Push arm pad until upper arm post locks firmly into place. Check to make sure the locking
lever is as shown (Fig. 2:A).
3. Removing Armrest
a. Squeeze release lever (Fig. 2:B) and remove the armrest.
4. Replacing Armrest
a. Slide armrest back into receiver.
b. The armrest should lock back into place.
A
B
Fig. 2

17
V. SET UP & USE OF YOUR WHEELCHAIR
D. Swing Away Armrests
WARNING: Ensure hangers are locked in place before using or riding wheelchair. Unlocked
hangers while using or operating the chair could result in a fall or loss of control.
1. Installation (Fig. 3)
a. Slide armrest into the tube of the receiver that is mounted on rear side of frame.
2. Swinging Away
a. Lift armrest slightly so it is free of the receiver bolt. Rotate away from the chair.
3. Removing Armrest
a. Lift armrest straight out of receiver.
NOTE: These arms offer only a lock against rotation and are designed to bear a downward force
only. They will remove completely if pulled up on and cannot be used to lift or otherwise handle the
chair. Failure to comply with the instructions above may result in the armrest accidentally
disconnecting from the wheelchair and result in a fall or loss of control and may cause serious injury
or death.
Fig. 3

18
V. SET UP & USE OF YOUR WHEELCHAIR
E. Flip Back Height Adjustable T-Arm
Use
1. To flip back the armrest, pull the release lever (Fig. 4:A) up and lift the armrest assembly up and
back.
2. To return the armrest down, lower the armrest assembly until the release lever locks back into
place.
To Increase/Decrease the Front End Length of Armrest
1. Pull the height adjustment lever (Fig. 5:A) and remove the upper
T-Arm assembly (Fig. 5:B).
2. Rotate the upper T-Arm assembly and reinstall into the armrest.
3. Close the height adjustment lever (Fig. 5:A) to secure.
NOTE: The armrest pad is not centered on the tube, widthwise
or lengthwise. This offers two different length options - longer or
shorter on the front end of the chair. This also offers two options
with the armrest pad. When the long end of the armrest is on the
front end of chair, the amrest pad hangs more to the outside of
the chair. The armrest pad hangs more to the inside of the chair
when the short end of pad is on the front end of chair. The
armrests can also be switched to the opposite sides to allow
more options regarding the amount of front end pad length and
side pad length.
To Increase/Decrease the Height of the Armrest
1. Pull the height adjustment lever (Fig. 6:A) and slide the
upper T-Arm assembly to desired height.
NOTE: Each hole on the upper T-Arm assembly bar
represents a height setting that can be used in ½”
increments.
2. Close the height adjustment lever (Fig. 6:A) to secure.
A
Loosen or tighten thisscrew to
decrease or increase tension
when flipping armrest assembly.
Fig. 4
A
B
Fig. 5
A
Fig. 6

19
V. SET UP & USE OF YOUR WHEELCHAIR

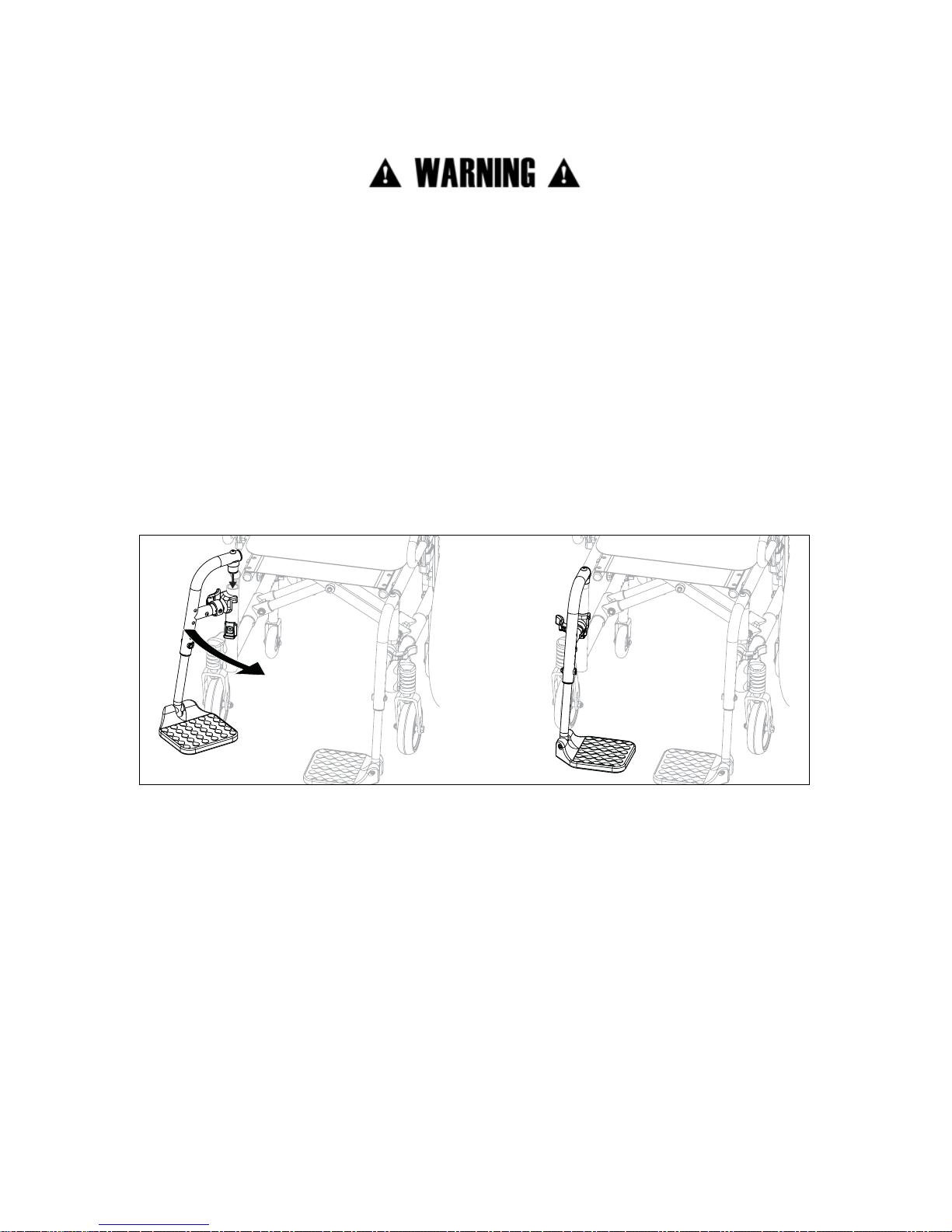

F. Swing Away Hangers
WARNING: Ensure hangers are locked in place before using or riding wheelchair. Unlocked
hangers while using or operating the chair could result in a fall or loss of control.
1. Installation
a. Place swing-away pivot saddle into the receiver on front frame tube with the footrest facing
either inward or outward from the frame (Fig. 7:A).
b. Rotate the footrest so that it aligns with the frame until it locks into place in the latch block (Fig.
7:B).
2. Swinging the footrest away
a. Push release latch toward the frame.
b. Rotate footrest outward or inward as desired.
3. Removal
a. To remove the footrest, push release latch toward the frame.
b. Lift the footrest straight upward to remove. You may also swing the footrest inward or outward
before lifting it off.
AB
Fig. 7
