Kichler Lighting 300457 User manual

52" LEEDS LED FAN
INSTRUCTION MANUAL
Product images may vary slightly from actual product.
IN
S
P

TABLE OF CONTENTS
SAFETY RULES.......................................................................... 4
5
5
6
7
10
11
13
14
14
TOOLS REQUIRED....................................................................
PACKAGE CONTENTS.............................................................
MOUNTING OPTIONS.............................................................
HANGING THE FAN..................................................................
INSTALLATION OF SAFETY SUPPORT..........................
ELECTRICAL CONNECTIONS.............................................
FINISHING THE INSTALLATION........................................
ATTACHING THE FAN BLADES..........................................
INSTALLING THE LIGHT PLATE........................................
INSTALLING THE LED LIGHT KIT
AND GLASS SHADE................................................................15
16
16
17
18
19
INSTALLING THE BATTERIES.............................................
OPERATING INSTRUCTIONS.............................................
INSTALLING THE WALL CONTROL
SYSTEM WALL PLATE............................................................
OPERATION INSTRUCTIONS.............................................
TROUBLESHOOTING.............................................................
52" LEEDS LED FAN | 3

4 | KICHLER.COM
SAFETY RULES
1. To reduce the risk of electric shock, insure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code
and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: Not suitable for use with solid-state speed controls.
4. WARNING: To reduce the risk of fire, electric shock, or personal
injury, mount to outlet box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support
of light fixtures are not acceptable for fan support and may need
to be replaced. Due to the complexity of the installation of this fan,
a qualified licensed electrician is strongly recommended.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only CUL Listed outlet boxes marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum of 7 feet clearance
from the trailing edge of the blades to the floor.
7. To operate the reverse function on this fan, press the reverse
button while the fan is running.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
11. After marking electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet
box.
12. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO
NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION. DO
NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

TOOLS REQUIRED
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters

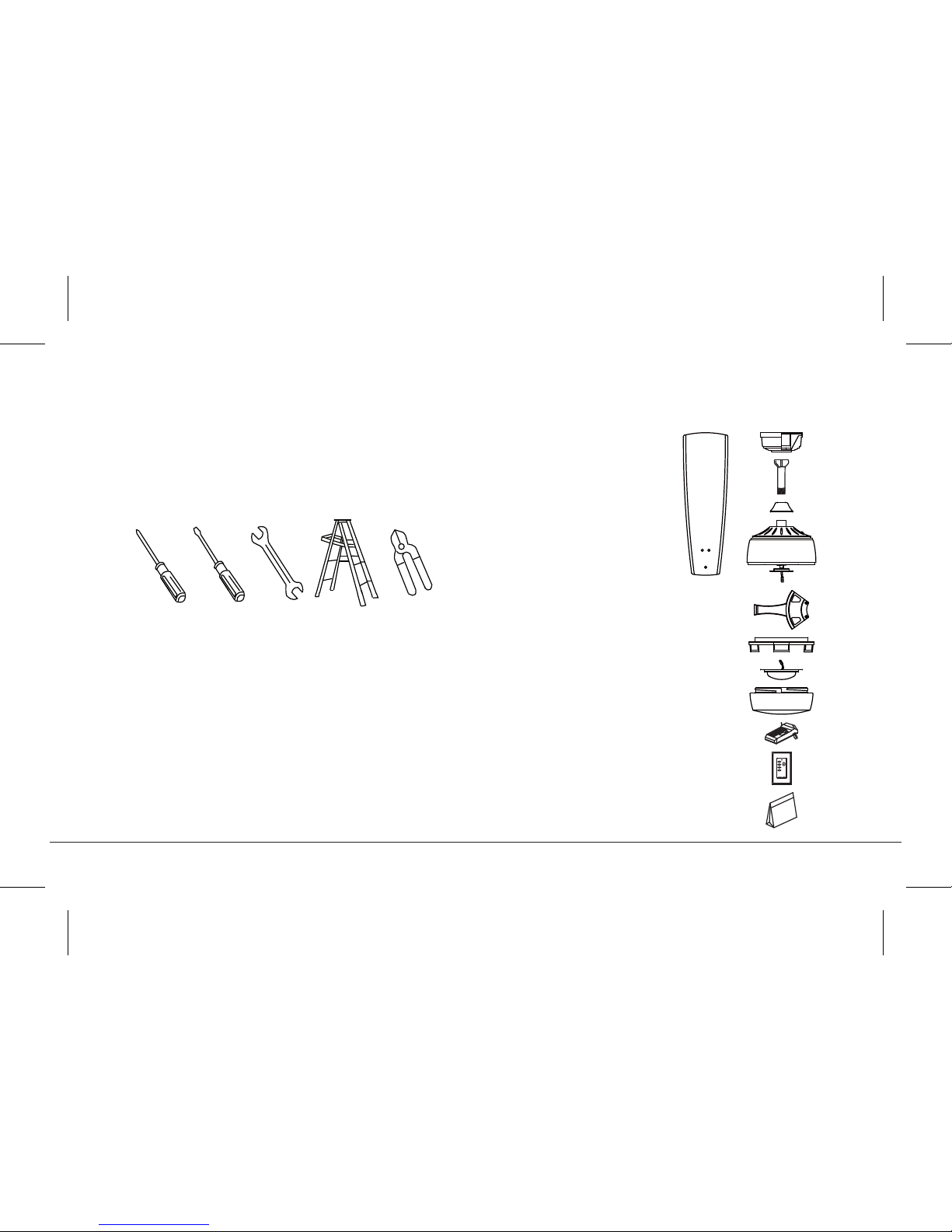

PACKAGE CONTENTS
g
h
j
k
i
l
e
f
a
b
c
d
52" LEEDS LED FAN | 5
Unpack your fan and check the
contents. You should have the
following items:
a. Fan blades (5)
b. Canopy & Ceiling mounting
bracket
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Set of 5 blade brackets and
Pre-Installed mounting screws
g. Light plate
h. 16W LED light kit
i. Glass shade
j. Receiver
k. Wall Transmitter
l. Part bag contents
1) Mounting hardware:
wood screws (2), flat washers (2),
star washers (2), wire nuts (3),
screws (2)
2) Blade attachment hardware:
screws (17), fiber washers (17)
3) Blade bracket attachment
hardware:
screws (2)
4) Safety cable hardware:
wood screw, spring washer,
flat washer
5) Balance Kit

6 | KICHLER.COM
If there isn't an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.

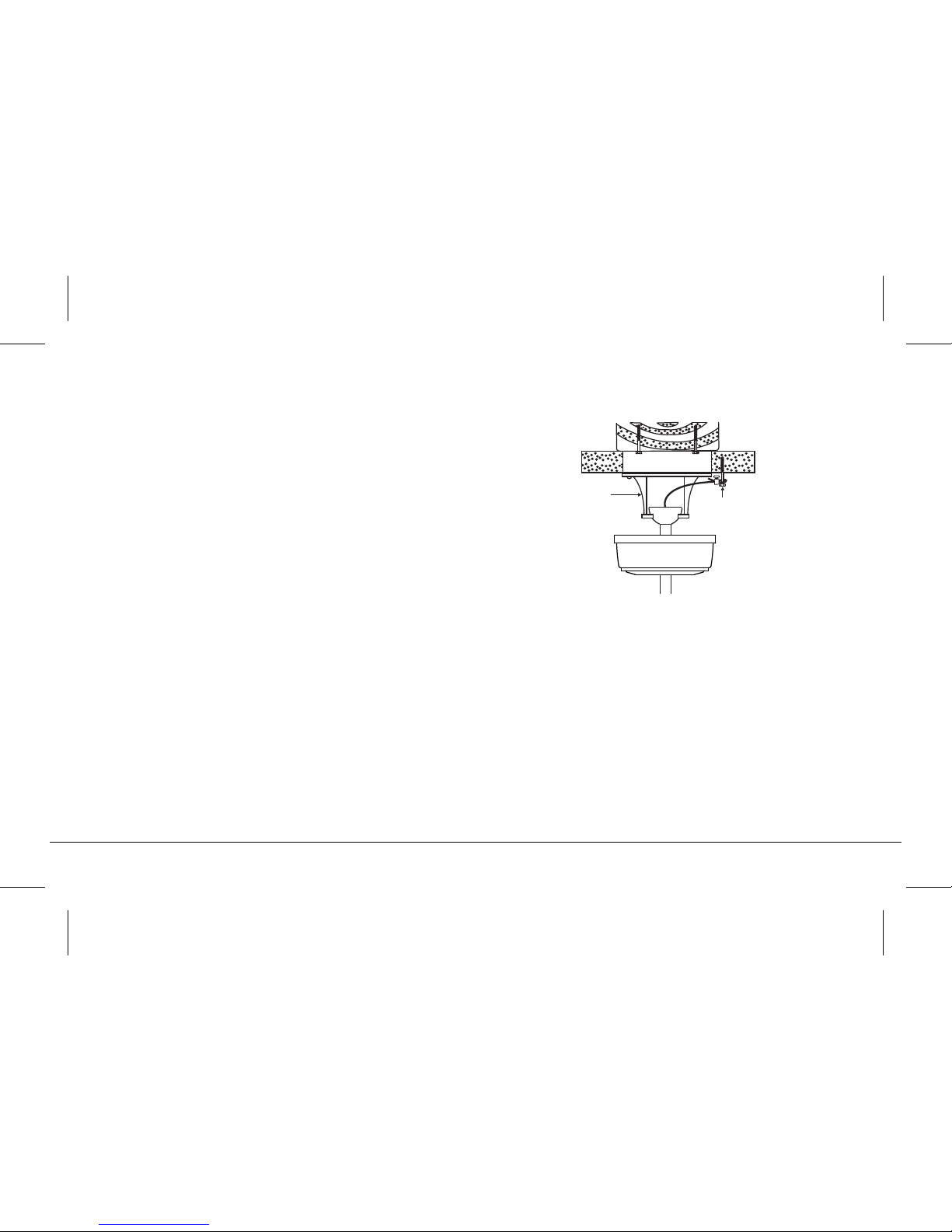

Figures 1, 2 and 3 are examples of dierent ways to mount the outlet
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
MOUNTING OPTIONS
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Fig. 3
ANGLED CEILING
MAXIMUM 20° ANGLE
Outlet box
Fig. 4

HANGING THE FAN
REMEMBER to turn o the power before you begin.
To properly install your ceiling fan, follow the steps below.
Step 1. Remove the decorative canopy bottom cover from the canopy
by turning the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by
removing (and save one of the two screws. Loosen the remaining screw
by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box through
the center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the
screws and washers included with the outlet box. (Fig.6)
Fig. 5
Fig. 6
Hanger bracket
Ceiling
canopy
Canopy
cover
Ceiling
hanger
bracket
Mounting screws (supplied
with electrical box)
UL Listed
electrial
box
120V Wires
Washers
52" LEEDS LED FAN | 7

8 | KICHLER.COM
Step 5. Remove the hanger ball from the downrod assembly by
loosening the set screw, unscrewing and removing removing the cross
pin and unscrewing the ball o the rod. (Fig. 7)
Step 6. Loosen the two set screws and remove the hitch pin and
retaining clip from the coupling on top of the motor assembly. (Fig. 8)
Step 7. Carefully feed the electrical lead wires from the fan up through
the downrod. Thread the downrod into the coupling until the Hitch pin
holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws.
(Fig. 8)
HANGING THE FAN(continued)
Fig. 7
Fig. 8
Downrod
Cross pin
Hanger
ball Set screw
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws

Fig. 9
Fig. 10
HANGING THE FAN(continued)

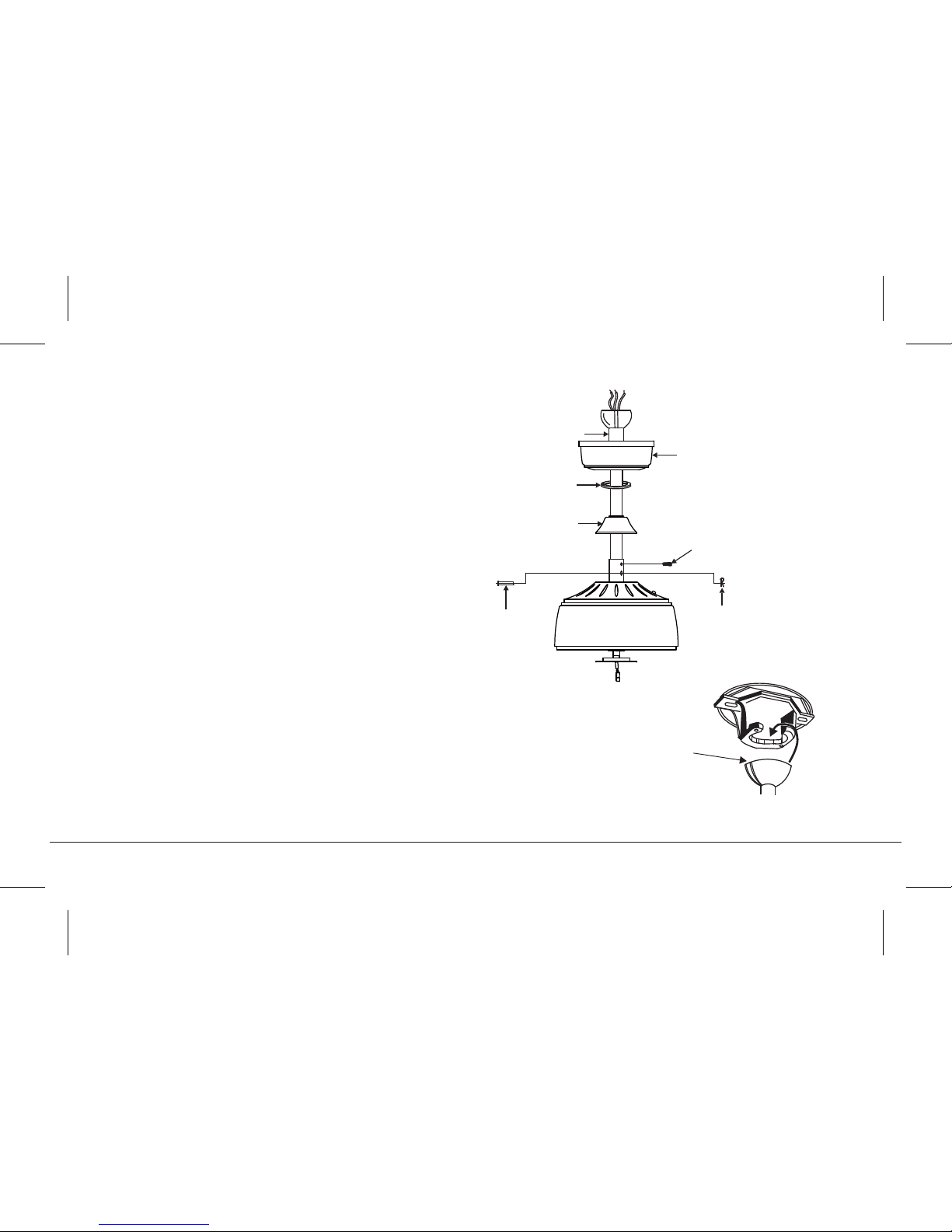

Step 8. Slip the coupling cover , canopy cover and canopy onto the
downrod. (Fig. 9)
Thread the hanger ball onto the downrod, insert the cross pin through
the downrod and tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position and place the hanger ball
into the ceiling mounting bracket.
Rotate the entire assembly until the "Check Tab" has dropped into the
"Registration Slot" and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when seated
properly.
WARNING: Failure to reattach the cross pin and seat the "Check Tab"
can cause the fan to fall from the ceiling during operation. Take special
care to make sure this pin is reattached.
Registration slot
Downrod
Canopy
Canopy cover
Set screws
Hitch pin Retaining clip
Coupling cover
52" LEEDS LED FAN | 9

10 | KICHLER.COM

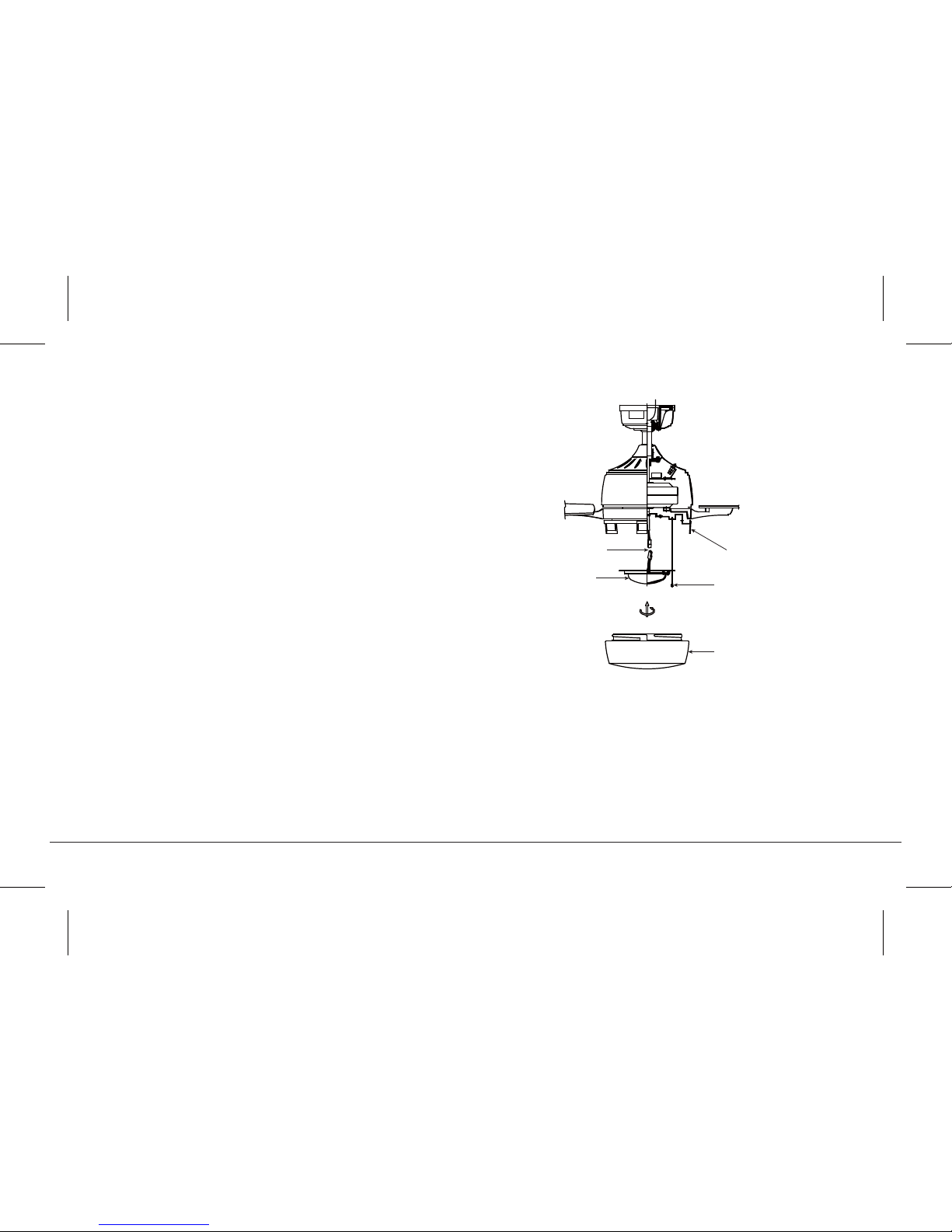

A safety support cable is provided to help prevent the ceiling fan from
falling.
Step 1. Attach the provided wood screw and washers to the ceiling joist
next to the mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the cable
clamp, forming a loop at the end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian
installations only. It's a good idea to make the attachment with any
installation.
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
Fig. 11
Ceiling mounting
bracket Attach
safety cable
to ceiling joist
with screw and
washer

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned
o the power at the main circuit panel.
Follow the steps below to connect the fan to your household wiring.
Use the wire connecting nuts suppled with your fan. Secure the
connectors with electrical tape. Make sure there are no loose wire
strands or connections.

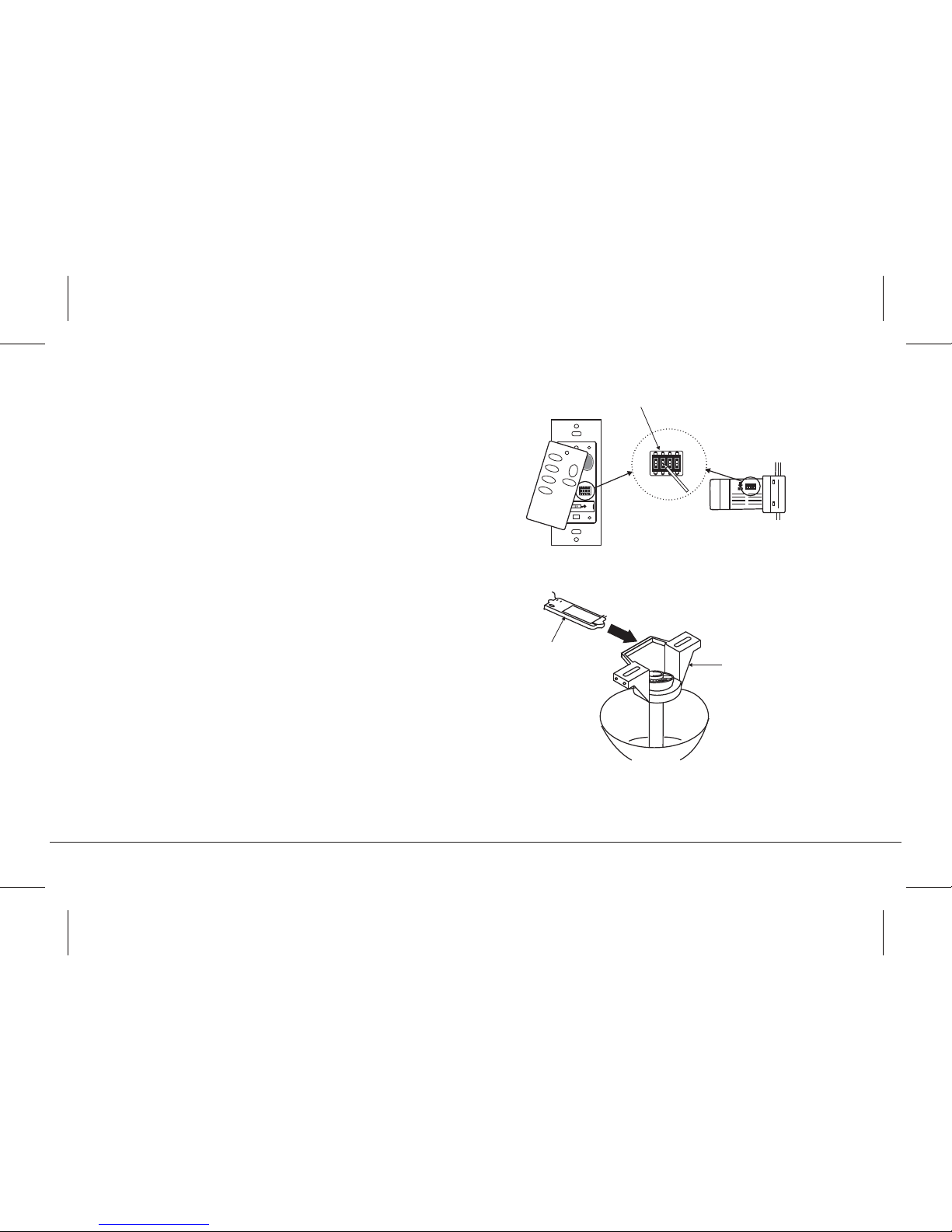

NOTE: The CoolTouch™ Control System is equipped with 16 possible
frequency combinations to prevent interference from or with other
remote control units. The frequency switches on your receiver and
transmitter have been preset at the factory. Please recheck to make
sure the switches on transmitter and receiver are set to the same
position, any combination of settings will operate the fan as long as the
transmitter and receiver are set to the same position. (Fig. 12)
Step 1. Insert the receiver into the ceiling mounting bracket with the
flat side of the receiver facing the ceiling. (Fig. 13) For best
performance, make sure the Black Antenna, on the end of the
receiver, remains extended and not tangled with any of the electrical
wires.
Receiver
Hanger
bracket
Code switch
HI
MED
LOW
FAN OFF
LIGHT
ON ECE
1234
ON ECE
1234
ON
Fig. 12
Fig. 13
52" LEEDS LED FAN | 11

12 | KICHLER.COM
ELECTRICAL CONNECTIONS
(continued)
Step 2. Motor to Receiver Electrical Connections: (Fig. 14) Connect the
black wire from the fan to the black wire marked "TO MOTOR L" on
the receiver. Connect the white wire from the fan to the white wire
marked "TO MOTOR N" on the receiver. Connect the blue wire from
the fan to the blue wire marked "FOR LIGHT" on the receiver. Secure
all the wire connections with the plastic wire nuts provided.
Step 3. (Fig. 14) Receiver to House Supply Wires Electrical
Connections: Connect the black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver. Connect the white(neutral)
wire from the ceiling to the white wire marked "AC in N" from the
Receiver. Secure the wire connections with the plastic wire nuts
provided.
Step 4. (Fig. 14) If your outlet box has a ground wire (green or bare
copper) connect it to the fan ground wires; otherwise connect the
hanging bracket ground wire to the mounting bracket. Secure the wire
connection with a plastic nut provided. After connecting the wires,
spread them apart so that the green and white wires are on one side
of the outlet box and black and blue wires are on the other side.
Carefully tuck the wire connections up into the outlet box.
Note: Fan must be installed at a maximum distance of 30 feet from the
CoolTouch™Remote Transmitter for optimal signal transmission
between the transmitter and the fan's receiving unit.
Fig. 14
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Outlet box
Black (hot)
Black ("AC IN L")
Receiver
White (neutral)
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Black ("to motor L")
Blue (for light)
Blue (for light)
Black (motor)

Fig. 15
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one of
the key hole slots over the mounting screw on the mounting bracket.
Rotate the canopy until the screw head locks in place at the narrow
section of the key hole. See figure 15.
Step 3. Align the remaining circular hole on the canopy with the
remaining hole on the Ceiling Mounting Bracket. Insert and tighten the
mounting screw you removed earlier and the mounting screw from
Step 2 above. Now, attach the canopy cover to the mounting screw
heads by inserting the screw heads into the bottom side of the canopy
cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary until the canopy and
canopy cover are snug. (Fig. 15)
WARNING: Make sure the "Check Tab" at the bottom of the hanger
bracket is properly seated in the "Registration Slot" on the side of the
hanger ball before attaching the canopy to the bracket. Failure to
properly seat the "Check Tab" could damage the electrical wires when
to ceiling fan blade direction is changed while the fan is running.
FINISHING THE INSTALLATION
52" LEEDS LED FAN | 13

14 | KICHLER.COM
Fig. 16
INSTALLING THE LIGHT PLATE
Step 1. Loosen the two screws on the mounting ring attached to the
motor shaft and "remove" and save the third screw. (Fig. 17)
Step 2. Place the key hole slots on the light plate over the two
screws previously loosened on the mounting ring.
Turn the light plate until is locks in place at the narrow section of the
key hole slots.
Tighten both key hole screws and replace the third screw previously
removed and tighten securely.
ATTACHING THE FAN BLADES
Step 1. Attach a blade to a blade bracket using the screws and fiber
washers provided. (Fig. 16)
Make sure the blade is straight when set on the blade bracket.
Tighten each mounting screw and then repeat this procedure for
each blade.
Step 2. Attach each blade assembly to the motor using the
"Pre-Installed" mounting screws in the blade bracket. (Fig 16)
Fig. 17
Screws
Blades
Blade brackets
Screws
Fiber washers
Light plate Mounting ring
Screws

Fig. 18
INSTALLING THE LED LIGHT KIT
AND GLASS SHADE
NOTE: Before starting installation, disconnect the power by turning
o the circuit breaker or removing the fuse at fuse box.
Step 1. Loosen the three mounting screws on the inside of the LED
light kit. (Fig.18)
Step 2. While holding the LED light kit under the fan motor, make the
wire connections: (Fig. 18)
- Red to white
- Black to black
Step 3. Tuck the connections neatly into the light plate. Place the
key holes on the LED light kit over the 2 screws previously loosened
from the light plate, turn the LED light kit until it locks in place at the
narrow section of the key holes. Secure by tightening all three
screws. (Fig.18)
Step 4. Raise the glass shade against the light kit and turn clockwise
until snug, DO NOT OVERTIGHTEN. (Fig. 18)
Screws
Wire connectors
LED light kit
Light plate
Glass shade
52" LEEDS LED FAN | 15

16 | KICHLER.COM
Fig. 19
Fig. 20
Remove the face plate of the Wall Switch by lifting at the top and
then insert the supplied 12V battery. Duracell MN21/Eveready
A23/GP 23A all 12V.
Replace the switch face plate.
To prevent possible damage to the transmitter, remove these
batteries if not used for long periods of time (months).
HI Button = High Speed
MED Button = Medium Speed
LOW Button = Low Speed
FAN OFF Button = Motor O
Light Button = the "LIGHT" button turns the light ON or OFF
and also controls the brightness setting. (Fig. 20)
Press and hold either button to set the desired brightness level. The
next time you turn the light on, the system will remember this
setting.
Press and release either button to turn the light ON or OFF.
This control system is NOT designed to "Reverse" the rotation of
the blades. To set the fan blades in reverse, the reverse slide switch
is located on the top of the motor housing.

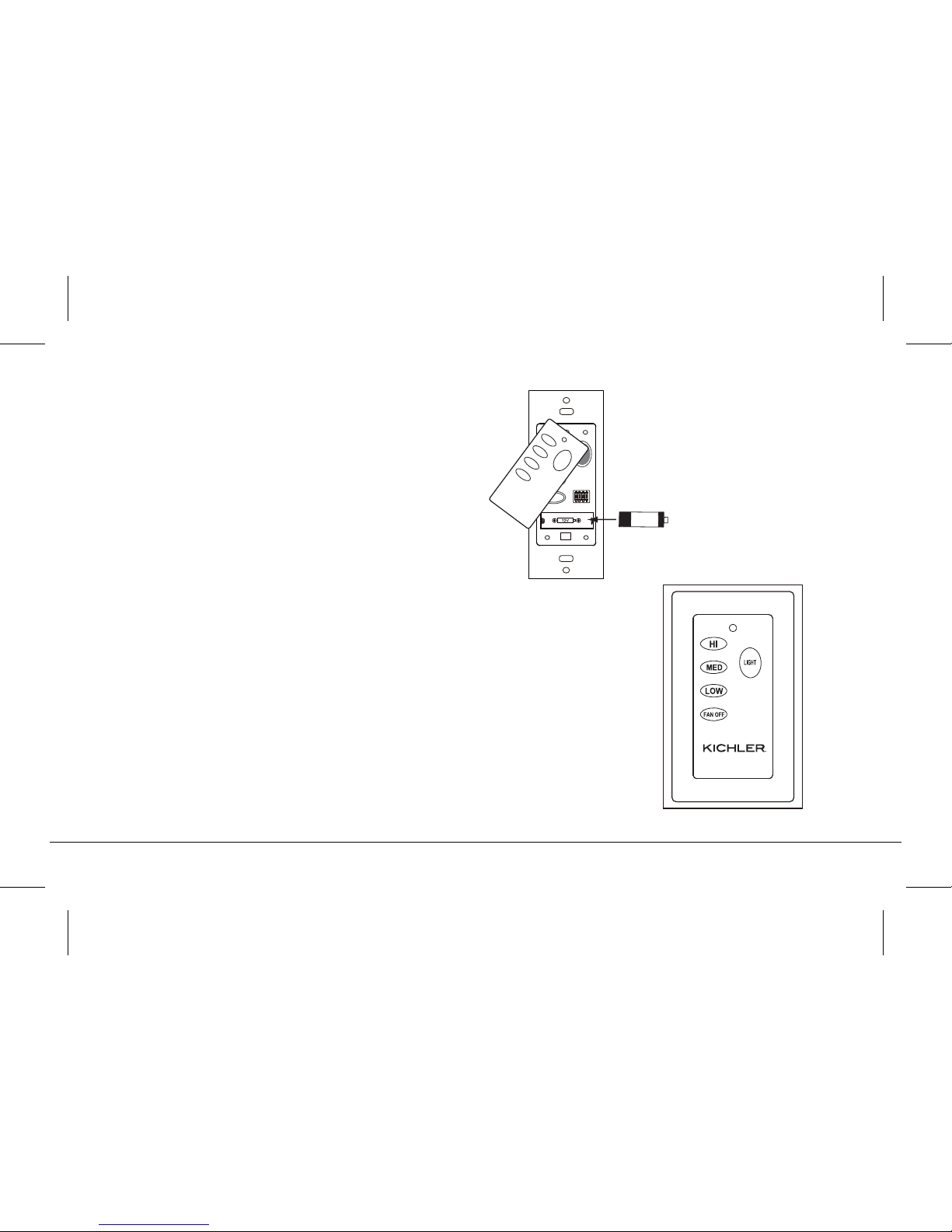

INSTALLING THE BATTERIES
HI
MED
LOW
FAN OFF
ON ECE
1234
LIGHT
U/L
D/L
23AE 12V
OPERATING INSTRUCTIONS

Fig. 21
Fig. 22
INSTALLING THE BASIC FUNCTION
WALL CONTROL SYSTEM WALL
PLATE
Select a location to install the Basic Function Wall Control System
Transmitter and Wall Plate.
Install the wall plate using an existing wall switch outlet box. Make
sure the electrical power is TURNED OFF at the main panel before
continuing.
Step 1. Remove the existing wall plate and the old switch from the
wall outlet box. Wire nut the BLACK leads (hot) together and push
back inside the outlet box. (Fig. 21)
Step 2. Install the wall plate on the existing wall outlet box using the
screws provided. (Fig. 22)
After installing the wall anchors, attached the wall plate with the
mounting screws to finish the installation.
Wall plate
Switch
Outlet box
Screws
Outlet box
Screws
Wall plate
Switch
52" LEEDS LED FAN | 17

18 | KICHLER.COM
Fig. 23
Fig. 24
NOTE: This control system is NOT designed to "Reverse" the
rotation of the blades. To set the fan blades in reverse, the reverse
slide switch is located on the top of the motor housing.
Warm weather - Forward (counter clockwise) A downward airflow
creates a cooling eect as shown in Fig. 23. This allows you to set
your air conditioner on a warmer setting without aecting your
comfort.
Cool weather - Reverse (clockwise) An upward airflow moves warm
air o the ceiling area as shown in Fig. 24. This allows you to set your
heating unit on a cooler setting without aecting your comfort.
OPERATING INSTRUCTIONS

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact.
CAUTION: Make sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. CAUTION:
Make sure main power is o.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are not compatible with ceiling fan motors or
remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling
above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for measurement.
Repeat for each blade. The distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a
basic On/O wall switch, if desired.
TROUBLESHOOTING
52" LEEDS LED FAN | 19

www.kichler.com
KICHLER® LIGHTING
7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010
CLEVELAND, OHIO 44131-8010
CUSTOMER SERVICE 866.558.5706
8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY
