Kichler Lighting Tranquil User manual

Product images may vary slightly from actual product.
INSTRUCTION MANUAL
Model# 310080, 310130READ AND SAVE THESE INSTRUCTIONS
56” Tranquil / 56" Tranquil Weather+

2 | KICHLER.COM
TABLE OF CONTENTS
SAFETY RULES ..............................................................3
TOOLS REQUIRED ........................................................5
PACKAGE CONTENTS .................................................5
MOUNTING OPTIONS .................................................6
HANGING THE MOTOR ASSEMBLY .........................7
INSTALLATION OF SAFETY SUPPORT...................10
ELECTRICAL CONNECTIONS ...................................11
COMPLETING THE MOTOR INSTALLATION ........12

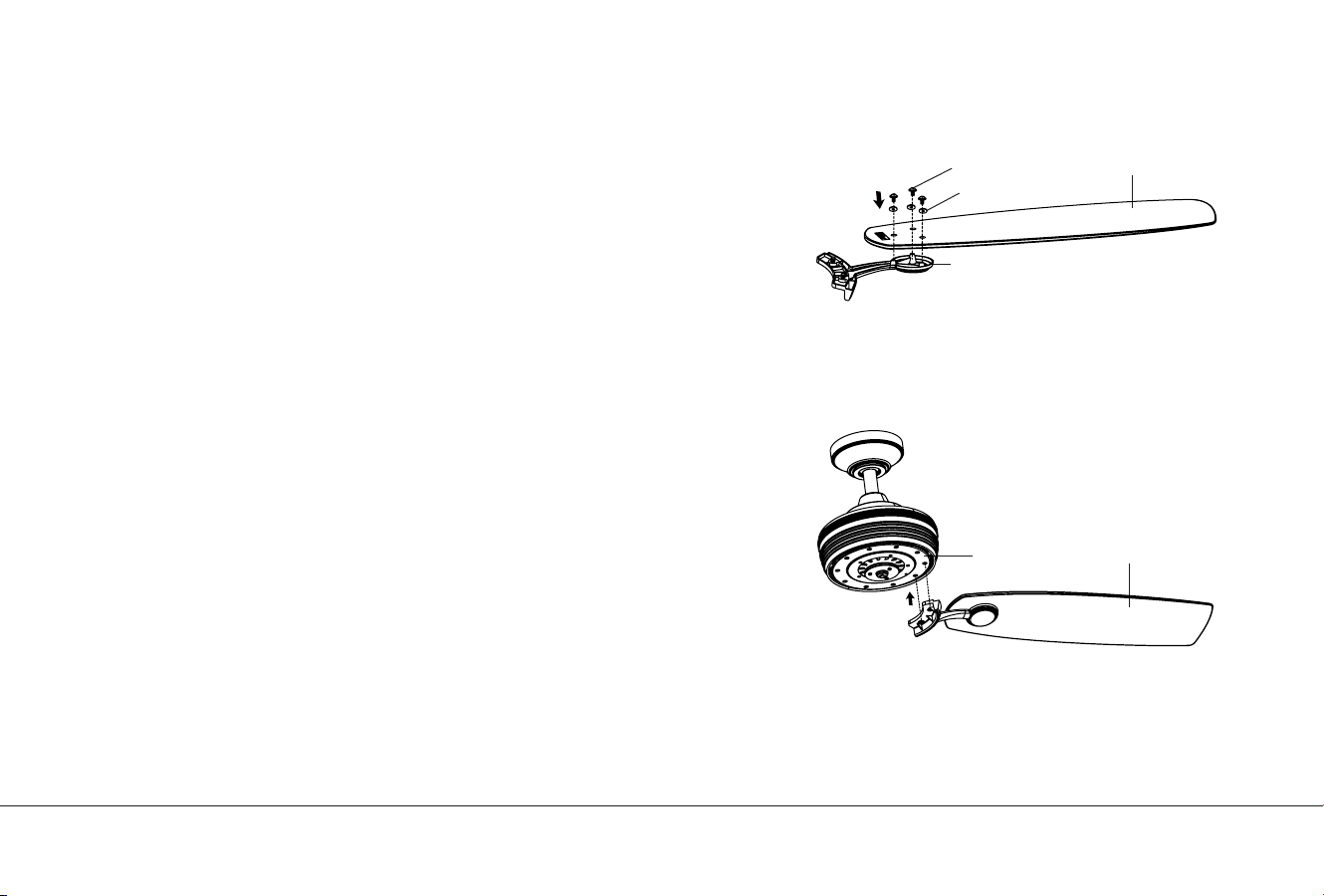

ATTACHING THE FAN BLADES ................................13

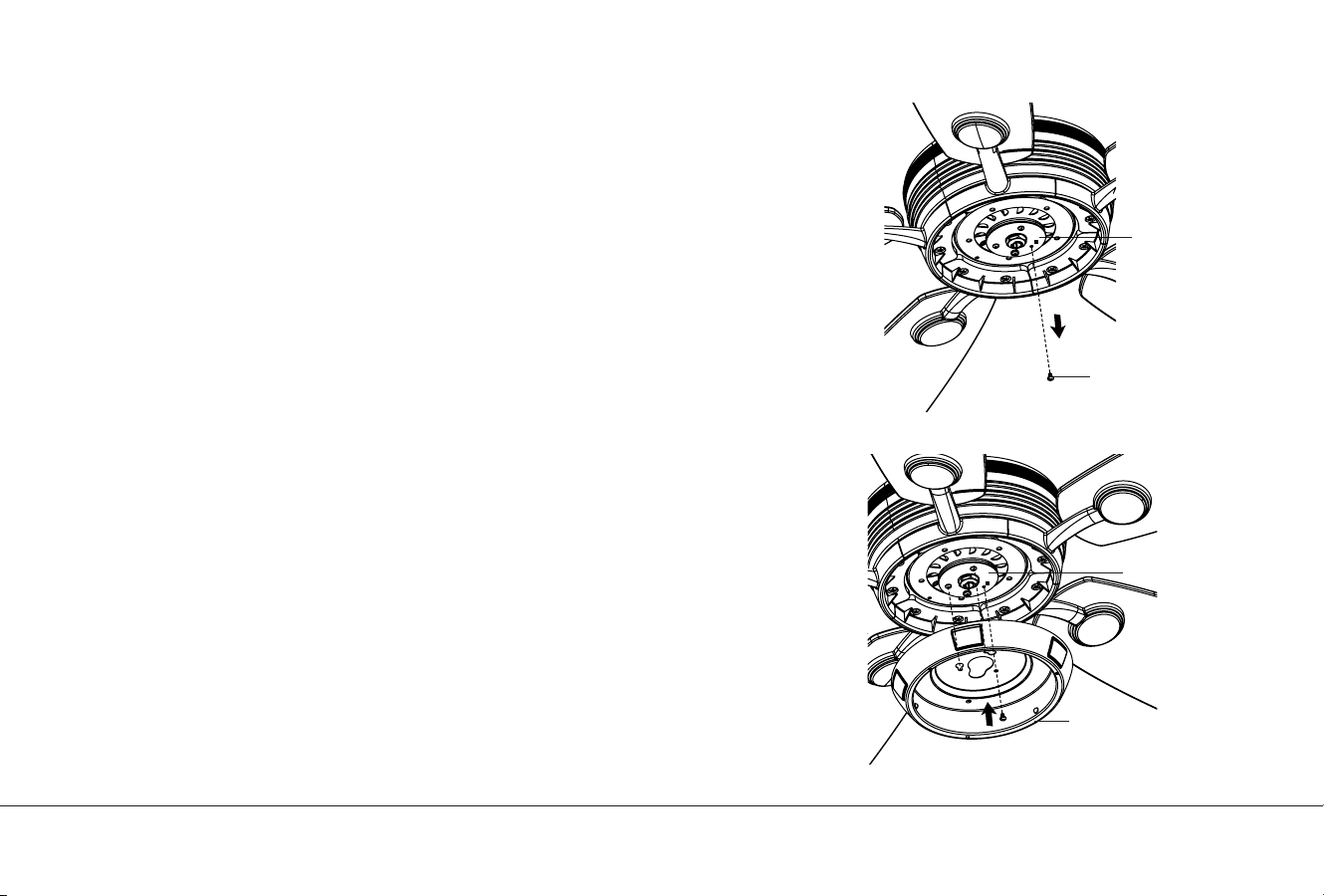

INSTALLING THE LIGHT PLATE ..........................………............14

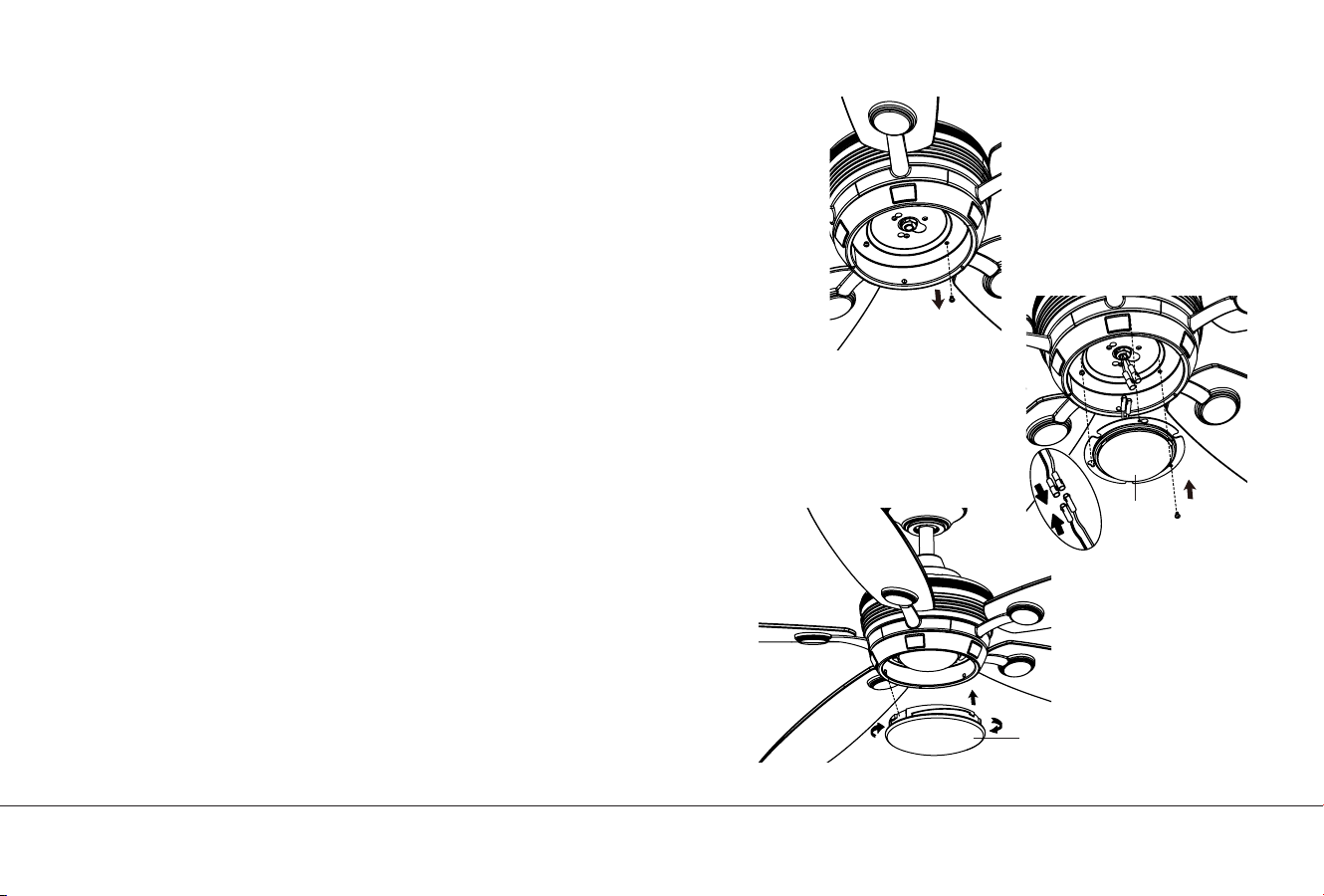

INSTALLING THE LIGHT KIT AND GLASS SHADE ...............15
INSTALLING THE “COOLTOUCH” CONTROL SYSTEM
WALL PLATE .................................................................................16

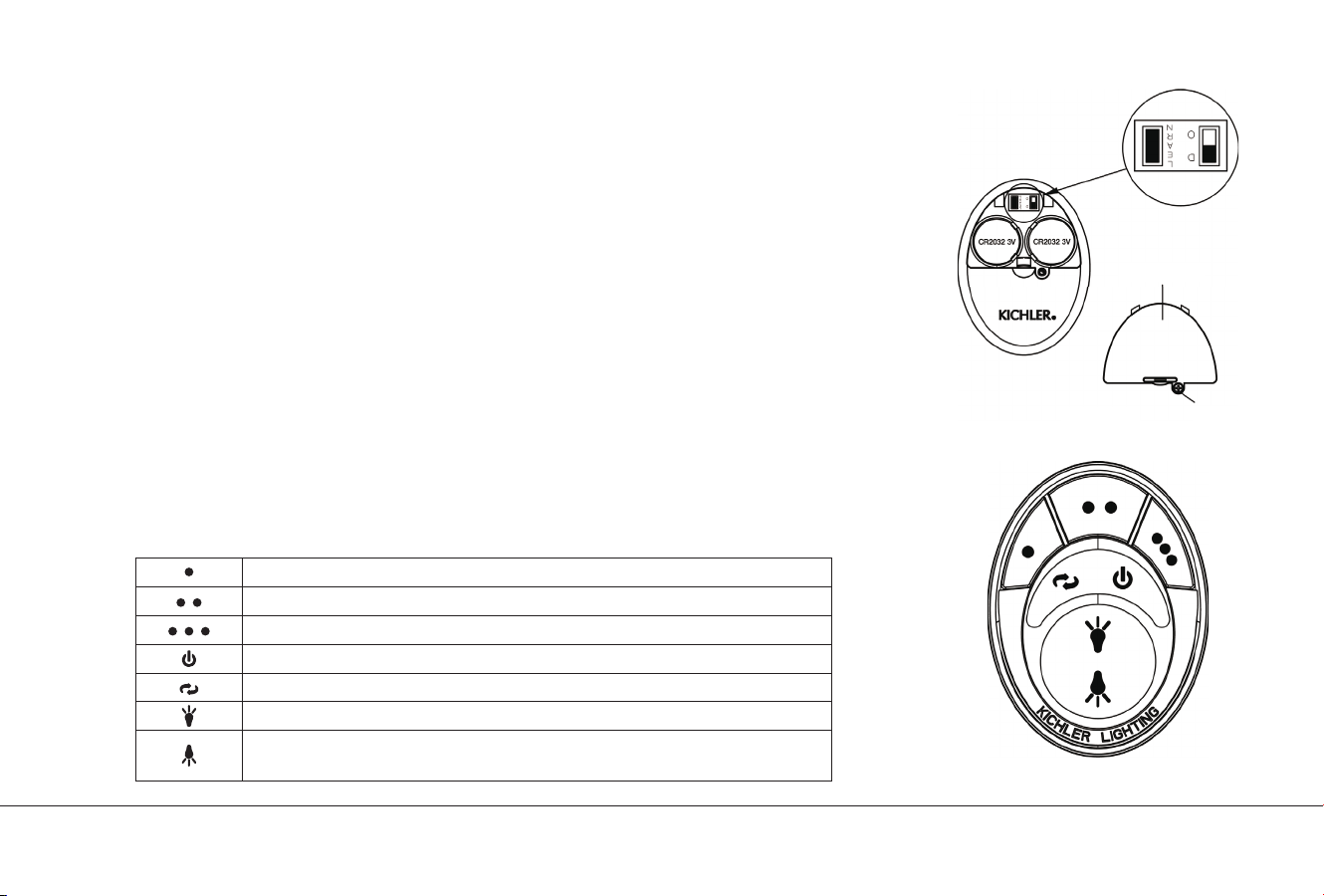

INSTALLING AND REMOVING THE HANDHELD
TRANSMITTER ............................................…...............................17
OPERATING INSTRUCTIONS ....................................................17
REVERSE FUNCTION .................................................................19
FCC INFORMATION .....................................................................19
TROUBLESHOOTING ................................................................20

56" Tranquil / 56" Tranquil Weather+ | 3
1. CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel
or main fusebox before starting and during the
installation.
2. WARNING: This fixture is intended for installation in
accordance with the National Electrical Code (NEC)
and all local code specifications. If you are not familiar
with code requirements, installation by a certified
electrician is recommended.
3. WARNING: To reduce the risk of fire or electric shock,
use only the control provided with the fan.
4. WARNING: To reduce the risk of fire, electric shock,
or Personal Injury mount to an outlet box marked
“Acceptable For Fan Support of up to 15.9 kg (35 lbs)”.
For outlet box mounting, use mounting screws (and
lock washers) provided with the outlet box. Most
outlet boxes commonly used for the support of light
fixtures are not acceptable for fan support and may
need to be replaced. Due to the complexity of the
installation of this fan, a qualified licensed electrician
is strongly recommended.
5. WARNING: Chemical Burn Hazard. Keep batteries
away from children.; and
This product contains a lithium button/coin cell
battery. If a new or used lithium button/coin cell
battery is swallowed or enters the body, it can cause
severe internal burns and can lead to death in as little
as 2 hours. Always completely secure the battery
compartment. If the battery compartment does not
close securely, stop using the product, remove the
batteries, and keep it away from children. If you think
batteries might have been swallowed or placed inside
any part of the body, seek immediate medical attention.
a) The cells shall be disposed of properly, including
keeping them away from children; and
b) Even used cells may cause injury.
6. All wiring must be in accordance with the National
Electrical Code ANSI/NFPA 70 and local electrical
codes. Electrical installation should be performed by a
qualified licensed electrician.
READ AND SAVE THESE INSTRUCTIONS
SAFETY RULES
WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.
DON’T SECURE THIS FAN TO AN OUTLET BOX.

4 | KICHLER.COM
15. After making the electrical connections, spliced
conductors should be turned upward and pushed
carefully up into outlet box. The wires should be spread
apart with the grounded conductor and the equipment-
grounding conductor on one side of the outlet box and
the ungrounded conductor on the other side of the
outlet box.
16. Electrical diagrams are for reference only. Light kits
that are not packed with the fan must be ETL Listed
and marked suitable for use with the model fan you are
installing. Switches must be ETL General Use Switches.
Refer to the Instructions packaged with the light kits
and switches for proper assembly.
17. All set screws must be checked, and retightened where
necessary, before installation.
18. The subject fan 310080 and 310130 weight information is
as below:
7. The outlet box and support structure must be
securely mounted and capable of reliably supporting
a minimum of 15.9 kg (35 pounds). Use only cULus
Listed outlet boxes marked “FOR FAN SUPPORT”.
8. WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED “ACCEPTABLE FOR
FAN SUPPORT”.
9. Avoid placing objects in the path of the blades.
10. To avoid personal injury or damage to the fan and
other items, be cautious when working around or
cleaning the fan.
11. To operate the reverse function on this fan, press the
reverse button while the fan is running.
12. Make sure the installation site you choose allows a
minimum clearance of 2.1 m (7 feet) from the blades
to the floor and at least 30 inches from the ends of the
blades to any obstruction.
13. WARNING: make sure the power is disconnected
before cleaning your fan.
14. Do not use water or detergents when cleaning the fan
or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
SAFETY RULES
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE BRACKETS DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.
Net Weight : 10.3 kgs / 22.66 lbs;
Gross Weight: 11.35 kgs / 24.97 lbs.

56" Tranquil / 56" Tranquil Weather+ | 5
TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
• Phillips Screwdriver
• Blade Screwdriver
• 11 mm Wrench
• Step Ladder
• Wire Cutters
Unpack your fan and check the contents . You should have the following items:
A. Mounting Bracket
B. Ball / Downrod Assembly
C. Canopy
D. Canopy Hole Cover
E. Coupling Cover
F. Motor Assembly
G. Blade Bracket (5)
H. Fan Blade (5)
I. Light Plate
J. Light Kit
K. Glass Shade
L. Wall control Kit:
Receiver (1), Control (1), Metal Plate (1),
Wire connector (6), Wood Screw (2),
Battery (2), Long Screw (2),
Short Screw (2), Expansion Anchor (2),
Plastic Nut (2)
M. Package hardware
1.) Mounting hardware :
Wire Connector (3)
2.) Blade attachment hardware :
Screws (15) , Washers (15)
3.) Safety cable hardware :
Wood screw (1) ,
Spring washer (1),
Flat washer (1)
A
F
I
H
G
J
K
B
C
D
E
L
M
X1
X15
X15
X3

6 | KICHLER.COM
MOUNTING OPTIONS
If there is not an existing UL (cUL for Canadian Installation)
listed mounting box, then read the following instructions.
Disconnect the power by removing fuses or turning o circuit
breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box
and its support must be able to fully support the full weight
of the fan (up to 15.9kg (35 pounds)). Do not use plastic outlet
boxes.
Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for optimal operation.
NOTE: You must use 12" or longer downrod for 22° slope
(max angle 22°). (Fig. 3)
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a joist
hanger for the support of the outlet box. Make sure the joist
hanger you purchase has been designed for use with ceiling
fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Fig. 3
Fig. 4
Outlet box
Recessed
outlet box ceiling
mounting
plane
Provide strong
support
ANGLED CEILING
MAXIMUM 22° ANGLE

56" Tranquil / 56" Tranquil Weather+ | 7
Fig. 5
Fig. 6
Fig. 7
Outlet Box
Ceiling Mounting
Bracket
Flat Washer
Screw
Set Screw
Set Screw
Hanger Ball
Cross Pin
Clevis Pin
Downrod
Hairpin
HANGING THE MOTOR ASSEMBLY
REMEMBER to turn o the power before you begin installation. This is necessary for
your safety and also the proper programming of the control system.
To properly install your ceiling fan, follow the steps below.

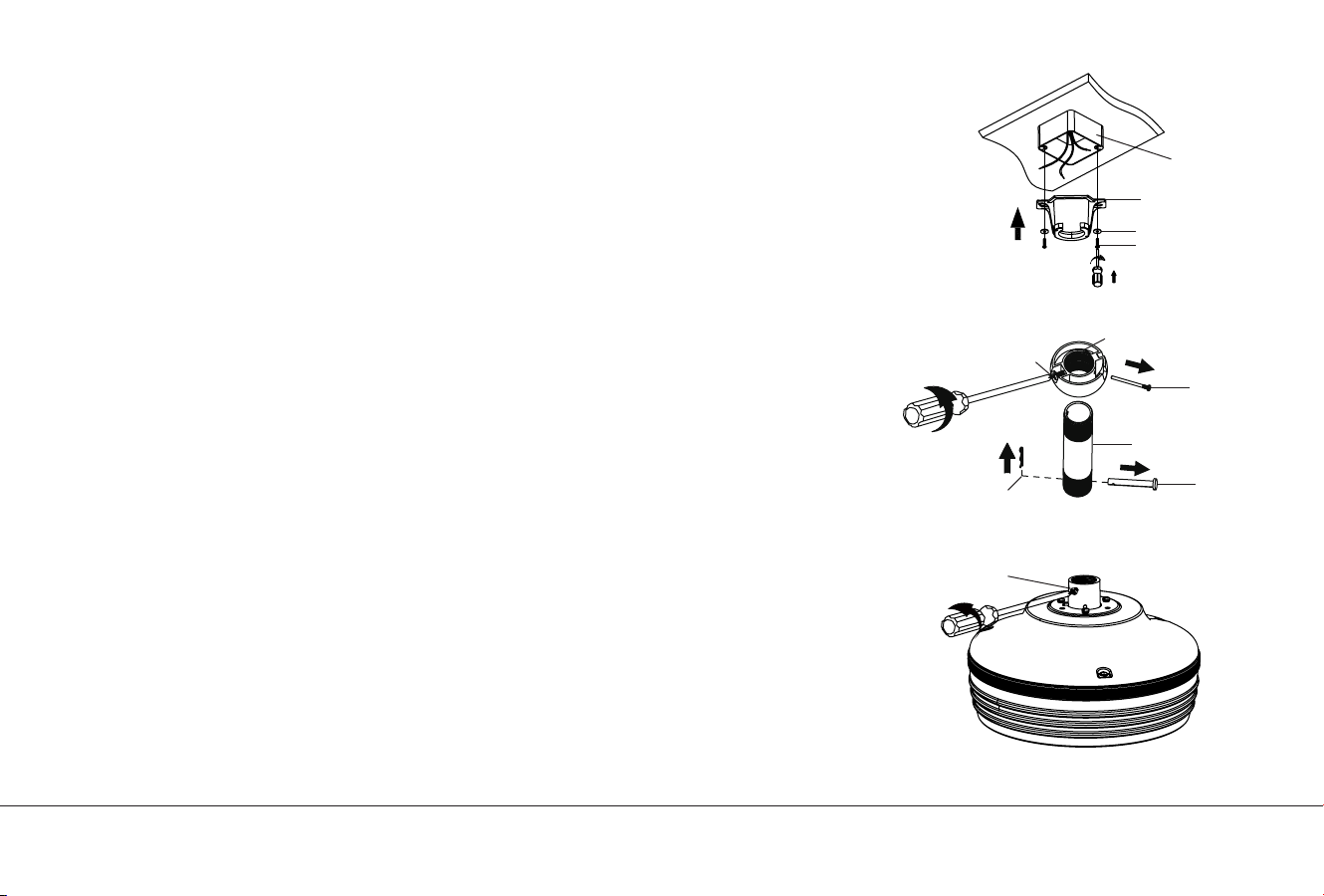

Step 1. Before attaching fan to outlet box (not included), ensure the outlet box is securely
fastened to at least two points to a structural ceiling member (a loose box will cause the
fan to wobble). Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. Install mounting bracket to outlet box in ceiling
using the screws and washers included with the outlet box. (Fig. 5)
Step 2. Remove the hairpin and clevis pin from the downrod assembly, retain for later
use. Remove the hanger ball from the downrod assembly by loosening set screw,
removing the cross pin, and sliding ball of the rod. (Fig. 6)
NOTE: Make sure to keep loosened hardware separate to avoid confusion during
installation.
Step 3. Loosen the two set screws on the motor coupling. (Fig. 7)

8 | KICHLER.COM

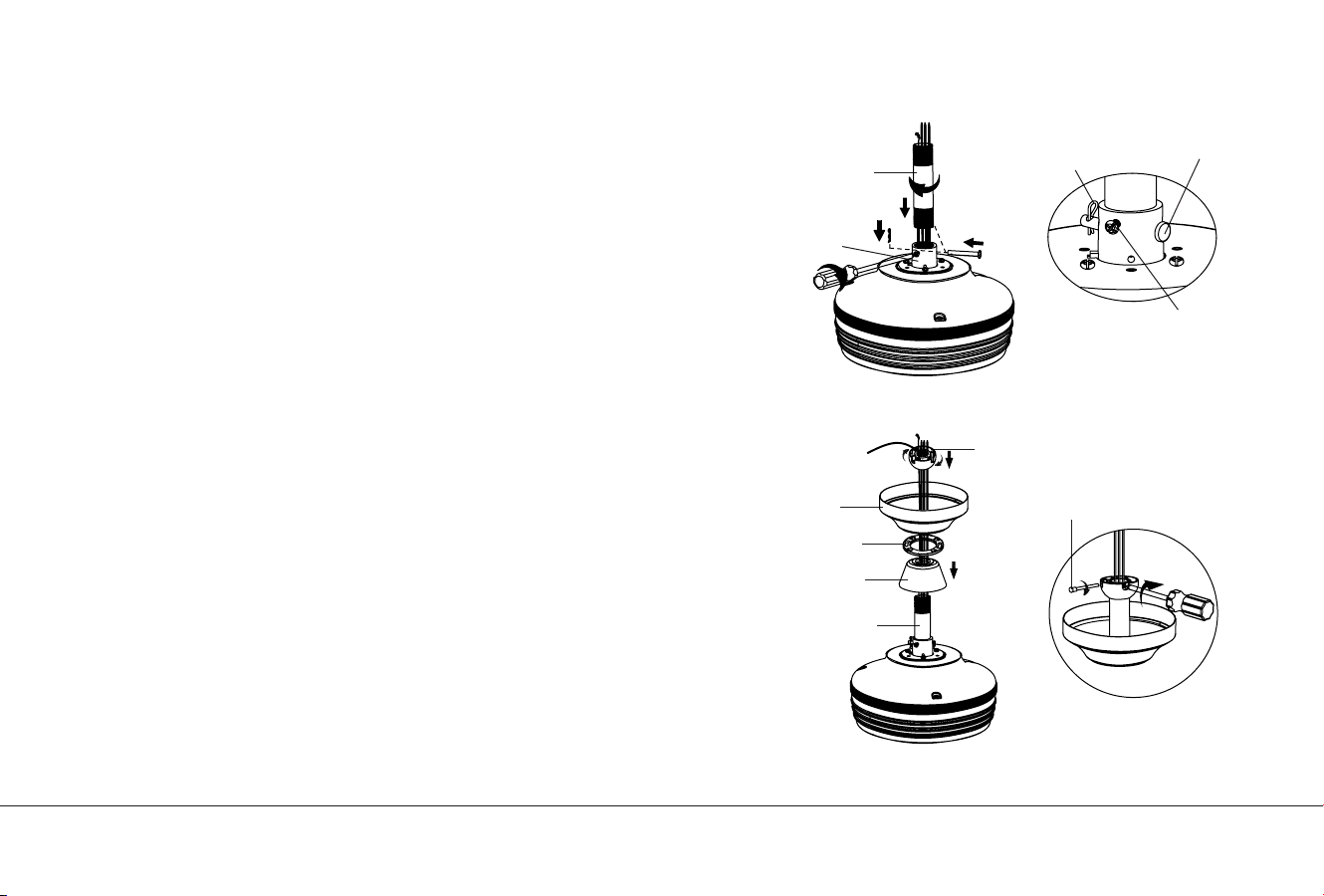

Step 4. Carefully feed fan wires and safety cable up through the downrod.
Thread the downrod onto the motor coupling until the clevis pin holes
are aligned. Next, replace the clevis pin and hairpin, then tighten both set
screws. (Fig. 8)
Step 5. Slip the coupling cover, canopy hole cover and canopy onto the
downrod. Carefully reinstall the hanger ball onto the downrod. Make sure
the cross pin is in the correct position and the set screw is tight and the
wires are not twisted . ( Fig. 9)
CAUTION: Ensure all screws are tight before moving to the next step.
HANGING THE MOTOR ASSEMBLY (continued)
Motor
Coupling
Canopy
Downrod
Hanger Ball
Cross Pin
Canopy Hole Cover
Coupling Cover
Downrod
Hairpin Clevis Pin
Set Screw
Fig. 8
Fig. 9

56" Tranquil / 56" Tranquil Weather+ | 9
Step 6. Now lift the motor assembly into position and place the hanger ball
into the mounting bracket. Rotate until the check tab has dropped into the
registration slot and seats firmly. ( Fig. 10) The entire motor body should
not rotate if this is done correctly.
WARNING: Failure to properly seat the check tab can damage the
ceiling fan during operation.
HANGING THE MOTOR ASSEMBLY (continued)
Fig. 10
Check Tab
Registration
Slot

10 | KICHLER.COM
Flat Washer
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from faIling, please
install it as follows.

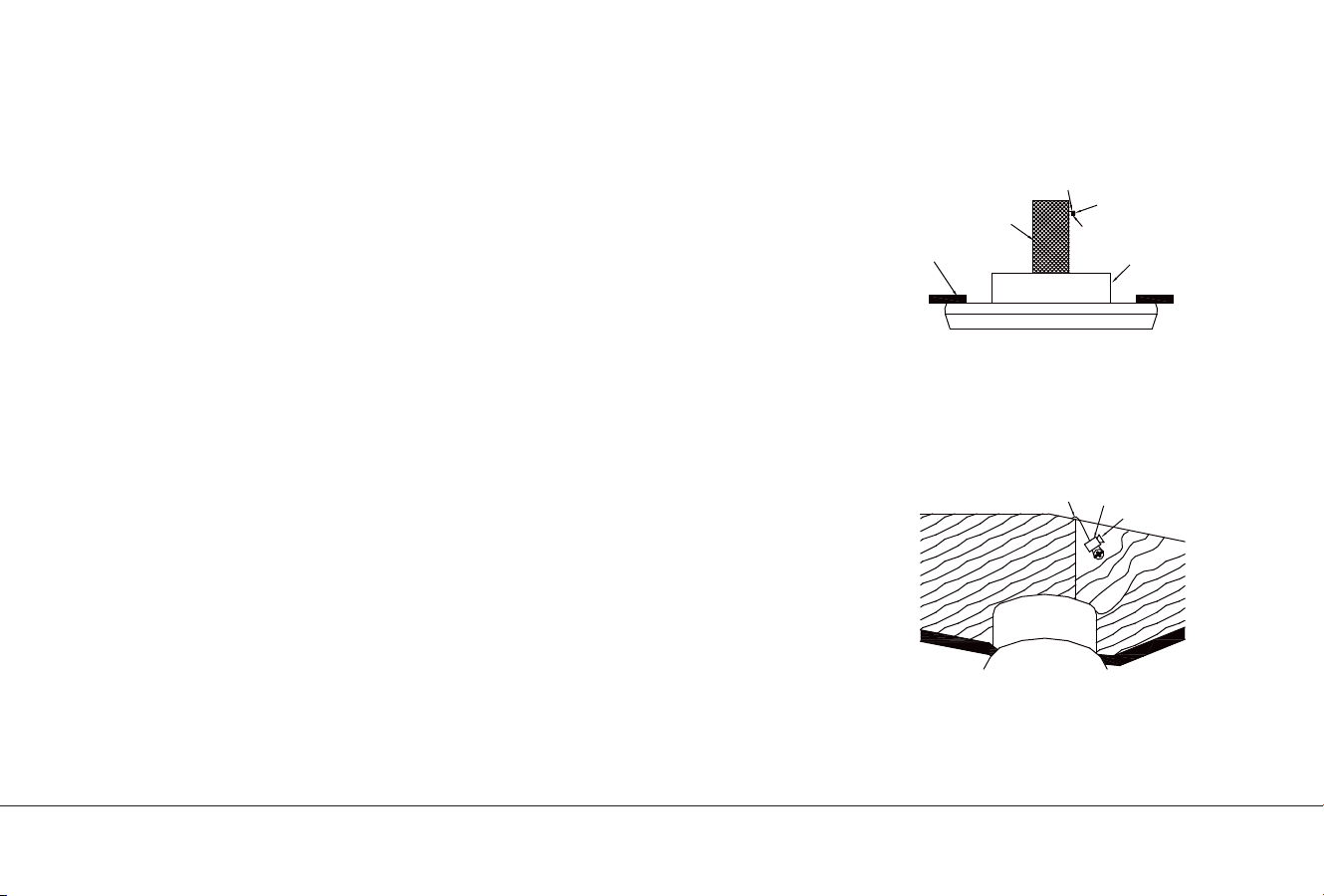

Step 1. Drive a wood screw and washers into the side of the brace that holds the outlet
box. Leave 3mm (1/8") of space between the support brace and the washer. (Fig. 11)
Step 2. Insert the safety cable through the mounting bracket and one of the holes in
the outlet box into the ceiling. Adjust the length of the safety cable to reach the screw
and washers by pulling the extra cable through the cable clamp until the overall length is
correct, put the end of the cable back through the cable clamp, forming a loop at the end
of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the safety
cable over the wood screw and under the washer. Tighten the wood screw securely.
(Fig. 12)
NOTE: Although the safety support cable is required for Canadian installations only,
it’s a good idea to make the attachment with any installation.
Wood Screw
Spring Washer
Outlet Box
Ceiling
Support Brace
Safety Cable Bolt
Wood Screw
Fig. 12
Fig. 11

56" Tranquil / 56" Tranquil Weather+ | 11
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power
at the main circuit panel before wiring.
Follow the steps below to connect the fan to your household wiring. Use the wire
connectors supplied with your fan. Secure the connectors with electrical tape. Make
sure there are no loose wire stands or connections.
WARNING: If your house wires are dierent colors than referenced in this manual,
stop immediately. A professional electrician is recommended to determine proper
wiring.
Step 1. Insert the receiver into the mounting bracket, and keep flat in opposition of
ceiling. (Fig. 13)
Step 2. Motor to Receiver Electrical Connections: Connect the BLACK wire from the fan
to BLACK wire marked “TO MOTOR L” from the receiver. Connect the WHITE wire from
the fan to the WHITE wire marked “TO MOTOR N” from the receiver. Connect the BLUE
wire from the fan to the BLUE wire marked “FOR LIGHT “ from the receiver. Secure all
the wire connections with the plastic wire connectors provided. ( Fig. 14)
Step 3. Remote Receiver to Outlet Box Electrical Connections: Connect the BLACK (hot)
wire from the ceiling to the BLACK wire marked “AC IN L” from the receiver. Connect
the WHITE (Neutral ) wire from the ceiling to the WHITE wire marked “ AC IN N” from
the receiver. Secure all the wire connections with the plastic wire connectors provided.
( Fig. 14)
Fig. 14
Fig. 13
Mounting Bracket
Receiver
Green or bare copper (ground)
AC IN N (White)
White (“TO MOTOR N”)
Ground wire
White (Neutral)
AC IN L (Black)
Receiver
Black (“TO MOTOR L”)
Black (motor)
Blue (FOR LIGHT)
Blue (for light)
Black (“AC IN L”) White (“AC IN N”)
Ground wire

12 | KICHLER.COM
ELECTRICAL CONNECTIONS
Step 4. If your outlet box has a ground wire (green or bare copper) connect
it to the fan ground wires. Otherwise, connect the fan ground wire to the
mounting bracket. Secure the wire connection with a plastic nut provided.
After connecting the wires, spread them apart so that the green and white
wires are on one side of the outlet box and black and blue wires are on the
other side. (Fig. 14)
NOTE: Carefully tuck the wire connections up into the outlet box.
NOTE: Fan must be installed at a maximum distance of 30 feet from the
transmitting unit for proper signal transmission between the transmitting
unit and the fan’s receiving unit.
COMPLETING THE MOTOR INSTALLATION
Step 1. Remove one of the two shoulder screws in the mounting bracket.
Loosen the second shoulder screw without fully removing it. (Fig. 15)
Step 2. Assemble canopy by rotating key slot in canopy over shoulder
screw in mounting bracket. Reinstall the shoulder screw that was previously
removed, then retighten two shoulder screws securely. (Fig. 16)
Step 3. Securely attach and tighten the canopy hole cover over the shoulder
screws in the mounting bracket utilizing the keyslot twist-lock feature.(Fig.17)
Mounting
Bracket
Shoulder
Screw
Shoulder
Screw
Shoulder
Screw
Canopy
Hole Cover
Canopy
Fig. 16
Fig. 15
Fig. 17

56" Tranquil / 56" Tranquil Weather+ | 13
ATTACHING THE FAN BLADES
CAUTION: To Reduce The Risk Of Electric Shock, Disconnect The Electrical
Supply Circuit To The Fan Before Installing Fan Blades.
Step 1. Attach blade to blade bracket using three blade screws and three
washers found in the hardware pack as shown. Do not tighten blade screws until
each screw has been started. Then, tighten each screw starting with the center
screw. (Fig. 18)
Repeat for remaining blades.
Step 2. Fasten blade assembly to the holes located on the bottom of the motor
assembly. Tighten the two pre-installed motor screws in the blade bracket.
(Fig.19)
Repeat steps for the remaining blade assemblies.
Fig. 18
Fig. 19
Blade Screw
Blade Washer
Blade
Blade Bracket
Motor Assembly Blade Assembly

14 | KICHLER.COM
INSTALLING THE LIGHT PLATE
Step 1. Remove the screw marked with a brown dot label on the mounting
plate and keep for later use. Loosen the other two (do not remove).(Fig.20)
Step 2. Place the two slot holes on the light plate over the 2 screws previously
loosened from the mounting plate. Rotate the light plate until it locks in
place at the narrow end of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed. (Fig. 21)
Screw
Mounting Plate
Mounting Plate
Light Plate
Fig. 20
Fig. 21

56" Tranquil / 56" Tranquil Weather+ | 15
INSTALLING THE LIGHT KIT AND GLASS SHADE
CAUTION: To Reduce The Risk Of Electric Shock, Disconnect The Electrical
Supply Circuit To The Fan Before Installing Light Kit.
Step 1. Remove one of the three screws on the light plate, loosen the other
two (but do not remove). (Fig. 22)
Step 2. Connect the 2 single pin connectors from the light kit to the 2 single pin
connectors from the motor assembly. Connect the black wire to black wire,
and the white wire to white wire. Place the two slot holes on the light kit over
the 2 screws previously loosened from the light plate. Rotate the light kit until it
locks in place at the narrow end of the key holes. Securely tighten the 2 screws
previously loosened and the one previously removed. (Fig. 23)
Step 3. Secure the glass shade to light plate by turning in a clockwise direction.
Twist the glass shade gradually until it snaps on to the light plate. DO NOT
OVER-TIGHTEN. (Fig. 24)
Fig. 22
Fig. 24
Fig. 23
Light Kit
Glass Shade

16 | KICHLER.COM
CAUTION: MAKE SURE THE ELECTRICITY IS TURNED OFF AT THE MAIN JUNCTION
BOX OR THE CORRECT FUSE HAS BEEN PULLED OFF AT THE MAIN JUNCTION BOX
BEFORE CONTINUING.
WARNING: All wiring must be in accordance with the National Electrical Code local
electrical codes. Electrical installation should be performed by a qualified licensed
electrician.
Select a location to install your “CoolTouch” Control System Transmitter. You can replace
an existing wall switch, or install the transmitter on ANY flat surface.
WARNING: SWITCH INSTALLATION MUST COMPLY WITH ALL LOCAL AND
NATIONAL ELECTRIC CODES.
Option 1. Install the control system using an existing wall switch outlet box.
Make sure the electrical power is TURNED OFF at the main panel before wiring.
Step 1. Remove the existing wall plate and the old switch from the wall outlet box. Wire the
BLACK leads (hot) together with connector and push back inside the outlet box. (Fig. 25)
Step 2. Install the metal plate and “CoolTouch” wall plate to the existing wall outlet box
with 4 screws provided. Then place the two plastic plugs into the wall plate. (Fig. 26)
Option 2: Install the control system on ANY flat surface:
Select the desired location and use the “CoolTouch” wall plate to make the location for the
mounting holes. Plastic wall anchors and screws are provided for this type of installation.
After installing the wall anchors, attach the “CoolTouch” wall plate with the mounting
screws and then insert the plastic plugs to finish installation.
INSTALLING THE COOLTOUCH™CONTROL SYSTEM WALL PLATE
Fig. 25
Fig. 26
Outlet Box
Switch
Wall Plate
Outlet Box
Metal Plate
Screw
“CoolTouch” Wall Plate
Screw
Plastic Plug

56" Tranquil / 56" Tranquil Weather+ | 17
INSTALLING AND REMOVING THE HANDHELD TRANSMITTER
Step 1. To place the transmitter in the wall plate, put the bottom end in first and
then press the top into the wall plate. The transmitter is now held in the wall plate
and will function from here. (Fig.27)
Step 2. To remove the transmitter from the wall plate, push the release button
and the transmitter will fall into your hand.
Fig. 27
OPERATING INSTRUCTIONS
WARNING: Chemical Burn Hazard. Keep batteries away from children.
Step 1. Using a screwdriver, remove the battery cover from the handset and save
the screw for later use. (Fig. 28)
Step 2. To make fan operational, install two 3V CR2032 batteries (included). The
batteries should be installed with the positive (+) side up. Replace with CR2032
batteries when necessary. (Fig. 29)
NOTE: If not used for long periods of time, remove batteries to prevent damage
to the handset control. Store the control away from excessive heat or humidity.
Fig. 28
Fig. 29
Batteries
Batteries

18 | KICHLER.COM
OPERATING INSTRUCTIONS
NOTE: Each handset control carries a unique ID code to facilitate communication between paired
devices. The ID code is set by factory and is not user changeable. However, you will be required to
perform an ID code learning process manually under these circumstances:
• If you have multiple fans installed within a close proximity and want to control all fans using a
same handset control.
NOTE: Each fan requires its own receiver.
• When your remote control is not responding (make sure battery is not dead).
• After you have replaced a faulty transmitter or receiver with a new one.
Otherwise the remote control will not work. To perform this process manually, follow steps below:
After installing and wiring the unit, restore power to your fan, press and hold the “LEARN” key
for 1-3 seconds, and the fan will turn on at medium speed and light (if installed) will turn on. This
confirms that the learning process has been completed. This operation must be completed within
30 seconds after restoring power to the fan. (Fig. 30)
NOTE: Ensure slide switch in battery compartment marked “D O” is set to “D” position. (Fig. 30)
Step 4. Replace the battery cover and tighten with screwdriver. (Fig. 30)
Step 5. The buttons control the fan speed and light as follows: (Fig. 31)
Fig. 30
Fig. 29
Battery Cover
Screw
Fig. 30
Fig. 31
Battery Cover
Screw
Low speed
Medium speed
High speed
Fan OFF
Airflow (Forward or Reverse)
No function (Do not use this button)
a.) Light ON/OFF.
b.) Press and hold to dim or brighten light to desired level.

56" Tranquil / 56" Tranquil Weather+ | 19
Fig. 32 Fig. 33
REVERSE FUNCTION
To operate the reverse function on this fan, press the “Reverse”
button while fan is running. Speed setting for warm or cool weather
depends on factors such as the room size, ceiling height, number of
fans and so on.
Warm Weather Operation:Warm Weather Operation: Forward (counter clockwise).A downward
airflow creates a cooling eect (Fig. 32). This allows you to set your
air conditioner on a warmer setting without aecting your general
comfort.
Cool Weather Operation:Cool Weather Operation: Reverse (clockwise). An upward airflow
moves warm air off of the ceiling (Fig. 33). This allows you to set
your heating unit on a cooler setting without aecting your general
comfort.
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.)This device may not cause harmful interference, and
2.)This device must accept any interference received, including interference that may cause undesired operation.
Note:Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician or help.

20 | KICHLER.COM
TROUBLESHOOTING
ProblemProblem
Fan will not start.Fan will not start.
Fan sounds noisy.Fan sounds noisy.
Fan wobble.Fan wobble.
Remote controlRemote control
malfunction.malfunction.
SolutionSolution
1. Check circuit fuses or breakers.1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact.2. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main power is OFF when checkingCAUTION: Make sure the main power is OFF when checking
any electrical connection.any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
4. Ensure the batteries have a good charge.4. Ensure the batteries have a good charge.
1. Make sure all motor housing screws are snug.1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.CAUTION: Make sure main power is o.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappears during this time.4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappears during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.touching any other component.
6. Do not connect this fan to a wall mounted variable speed control(s). They are not compatible with ceiling fan motors or6. Do not connect this fan to a wall mounted variable speed control(s). They are not compatible with ceiling fan motors or
remote controls.remote controls.
7. Make sure the upper canopy has a short distance from the ceiling. It should not touch the ceiling.7. Make sure the upper canopy has a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling
above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for measurement.above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for measurement.
Repeat for each blade. The distance deviation should be equal within 1/8".Repeat for each blade. The distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.possibly result in smoother operation.
1.Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a1.Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a
basic On/o wall switch, if desired.basic On/o wall switch, if desired.
