Kichler Lighting 300026 User manual

52" CANFIELD SELECT LED FAN
INSTRUCTION MANUAL
Product images may vary slightly from actual product.
I
N
S
T
R
U
C
T
I
O
P
r
odu
c
t i
m
a
g
es
m
ay v
a

TABLE OF CONTENTS
SAFETY RULES.......................................................................... 4
5
5
6
7
10
11
TOOLS REQUIRED....................................................................
PACKAGE CONTENTS.............................................................
MOUNTING OPTIONS.............................................................
HANGING THE FAN..................................................................
INSTALLATION OF SAFETY SUPPORT..........................
ELECTRICAL CONNECTIONS.............................................
FINISHING THE INSTALLATION........................................
ATTACHING THE FAN BLADES..........................................
INSTALLING THE MOUNTING PLATE.............................
INSTALLING THE LED LIGHT KIT ASSEMBLY
AND GLASS SHADE................................................................
12
13
13
14
15
16
17
OPERATING INSTRUCTIONS.............................................
NSTALLING THE LED LIGHT KIT.......................................
TROUBLESHOOTING.............................................................
52" CANFIELD SELECT LED FAN | 3

4 | KICHLER.COM
SAFETY RULES
1. To reduce the risk of electric shock, insure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code
and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: Not suitable for use with solid-state speed controls.
4. WARNING: To reduce the risk of fire, electric shock, or personal
injury, mount to outlet box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support
of light fixtures are not acceptable for fan support and may need
to be replaced. Due to the complexity of the installation of this fan,
a qualified licensed electrician is strongly recommended.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only CUL Listed outlet boxes marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum of 7 feet clearance
from the trailing edge of the blades to the floor.
7. To operate the reverse function on this fan, press the reverse
button while the fan is running.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
11. After marking electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet
box.
12. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO
NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION. DO
NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

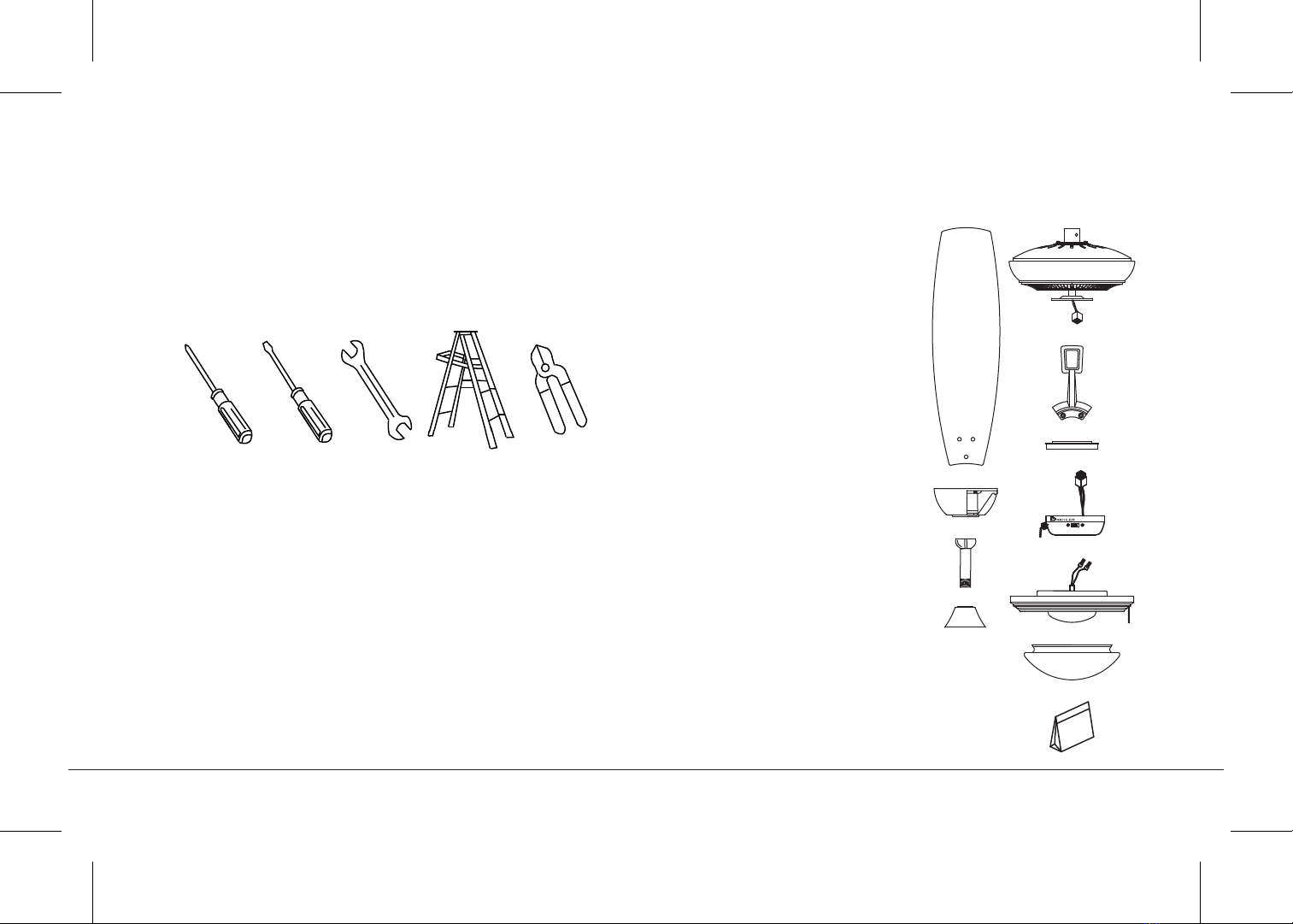

TOOLS REQUIRED
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
PACKAGE CONTENTS
f
g
k
j
i
h
a
b
c
d
e
Unpack your fan and check the
contents. You should have the
following items:
a. Fan blades (5)
b. Canopy & Ceiling mounting
bracket
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Set of blade brackets (5)
g. Mounting plate
h. Switch housing
i. 16W LED Light kit
j. Glass shade
k. Part bag contents
1) Mounting hardware:
wood screws (2), flat washers (2),
star washers (2), wire nuts (3),
screws (2)
2) Blade attachment hardware:
screws (17), fiber washers (17)
3) Safety cable hardware:
wood screw, spring washer,
flat washer
4) Pull chains and fobs (2)
5) Balance Kit
52" CANFIELD SELECT LED FAN | 5

6 | KICHLER.COM
If there isn't an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.

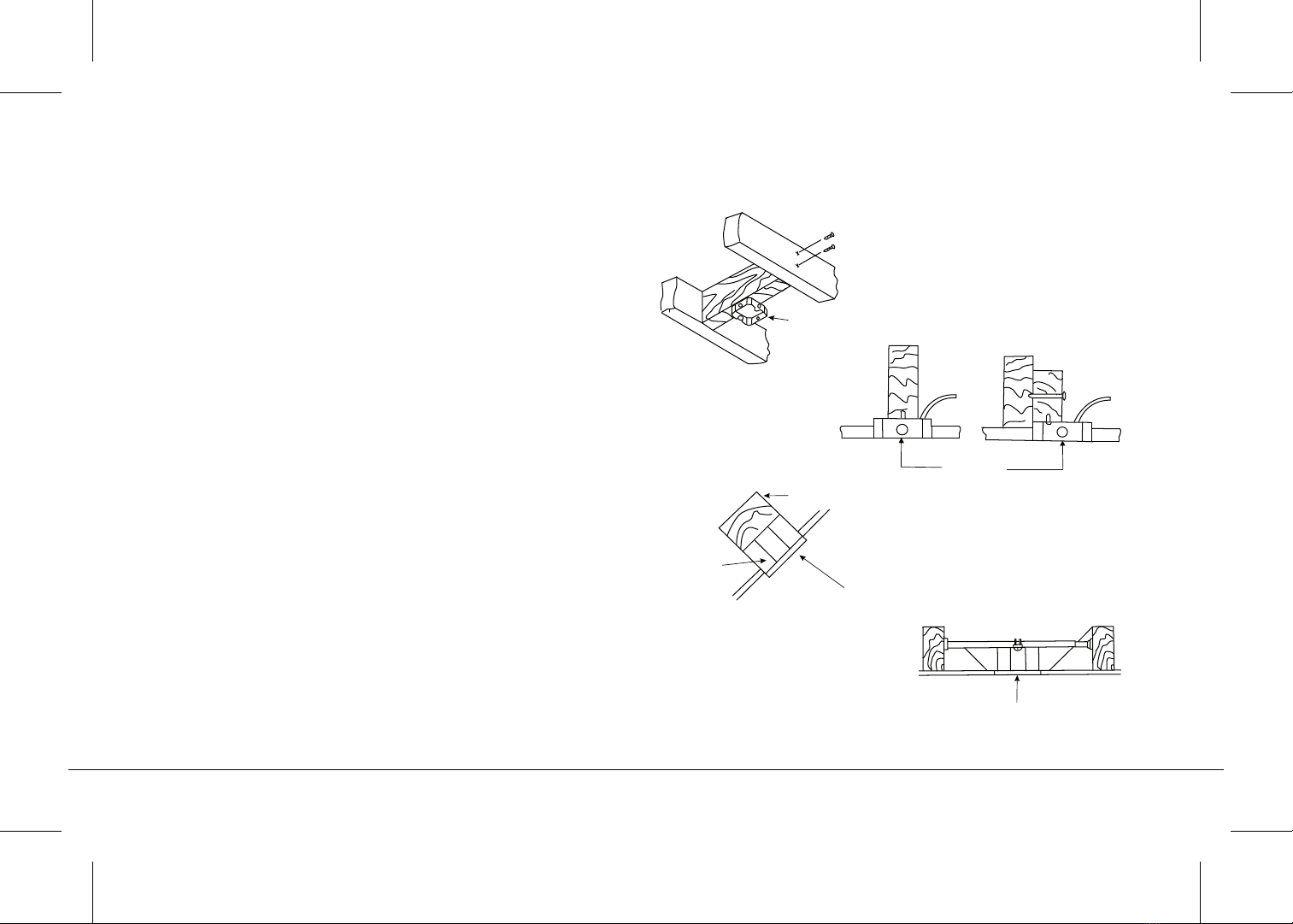

Figures 1, 2 and 3 are examples of dierent ways to mount the outlet
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
MOUNTING OPTIONS
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Fig. 3
ANGLED CEILING
MAXIMUM 20° ANGLE
Outlet box
Fig. 4

Fig. 5
Fig. 7
Fig. 6
Hanger bracket
Ceiling
canopy
Canopy
cover
HANGING THE FAN
REMEMBER to turn o the power before you begin.
To properly install your ceiling fan, follow the steps below.
Step 1. Remove the decorative canopy bottom cover from the
canopy by turning the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by
removing (and save one of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box
through the center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using
the screws and washers included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the downrod assembly by
loosening the set screw, unscrewing and removing removing the
cross pin and unscrewing the ball o the rod. (Fig. 7)
Ceiling
hanger
bracket
Mounting screws (supplied
with electrical box)
UL Listed
electrial
box
120V Wires
Washers
Downrod
Cross pin
Hanger
ball Set screw
52" CANFIELD SELECT LED FAN | 7

8 | KICHLER.COM
Step 6. Loosen the two set screws and remove the hitch pin and
retaining clip from the coupling on top of the motor assembly. (Fig.
8)
Step 7. Carefully feed the electrical lead wires from the fan up
through the downrod. Thread the downrod into the coupling until
the Hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set
screws. (Fig. 8)
HANGING THE FAN(continued)
Fig. 8
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws

Fig. 9
Fig. 10
HANGING THE FAN (continued)
Step 8. Slip the top motor cover, coupling cover, canopy cover and
canopy onto the downrod. (Fig. 9)
Secure the top motor cover to the motor by using the three top
motor cover set screws provided, but do not tighten at this time.
Thread the hanger ball onto the downrod, insert the cross pin
through the downrod and tighten. Now tighten the set screw.
Step 9. Lift the motor assembly into position and place the hanger
ball into the ceiling mounting bracket.
Rotate the entire assembly until the "Check Tab" has dropped into
the "Registration Slot" and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when
seated properly.
WARNING: Failure to reattach the cross pin and seat the "Check
Tab" can cause the fan to fall from the ceiling during operation. Take
special care to make sure this pin is reattached.
Registration slot
Downrod
Canopy
Canopy cover
Set screws
Hitch pin Retaining clip
Coupling cover
52" CANFIELD SELECT LED FAN | 9

10 | KICHLER.COM
A safety support cable is provided to help prevent the ceiling fan
from falling.
Step 1. Attach the provided wood screw and washers to the ceiling
joist next to the mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the
cable clamp, forming a loop at the end of the cable. Tighten the
cable clamp securely. Now, put the loop in the end of the safety
cable over the wood screw and under the washer. Tighten the wood
screw securely.
NOTE: Although the safety support cable is required for Canadian
installations only. It's a good idea to make the attachment with any
installation.
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
Fig. 11
Ceiling mounting
bracket
Attach
safety cable
to ceiling joist
with screw and
washer

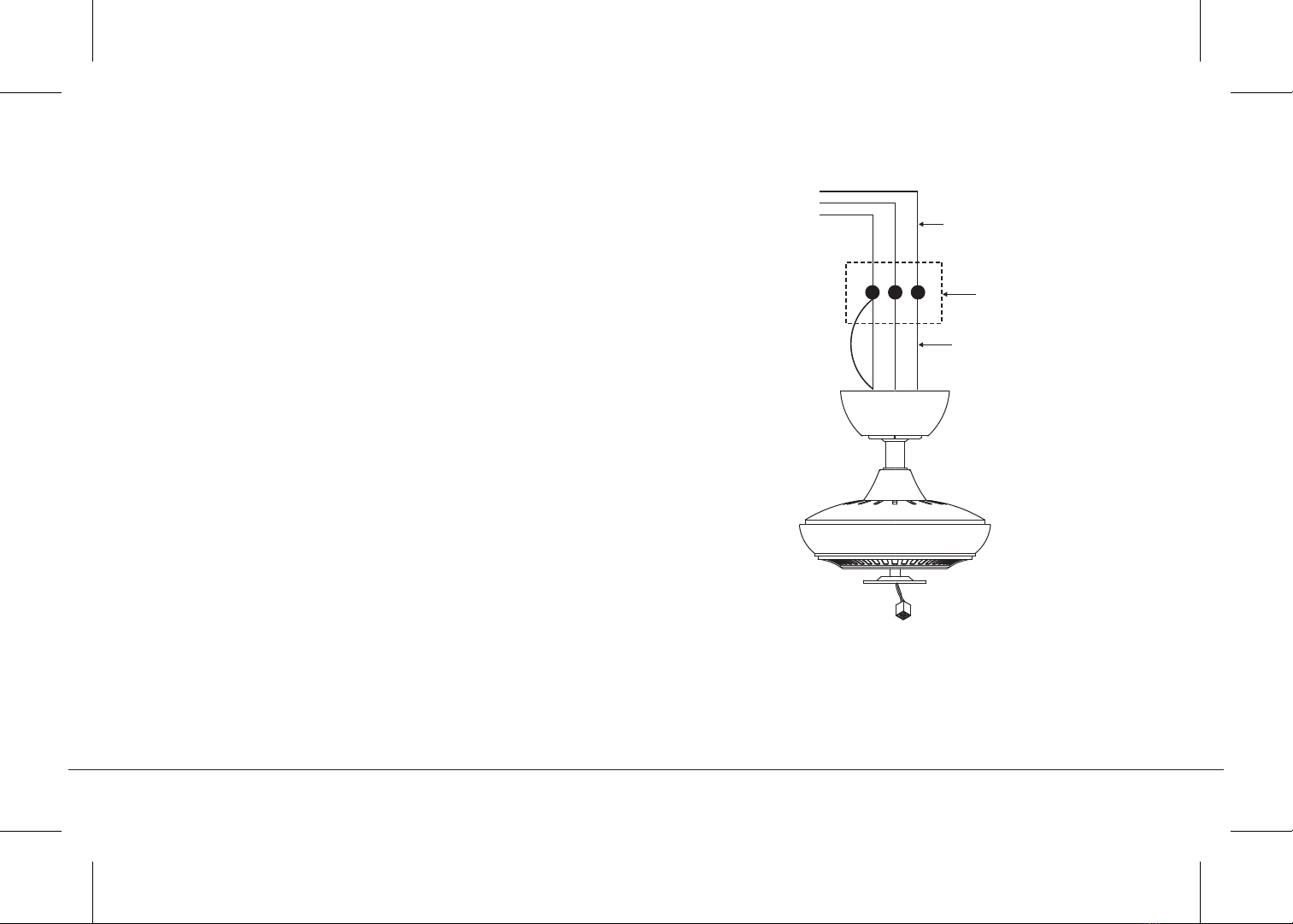

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned
o the power at the main circuit panel. Follow the steps below to
connect the fan to your household wiring. Use the wire connecting
nuts suppled with your fan. Secure the connectors with electrical tape.
Make sure there are no loose wire strands or connections.
Step 1. Connect the fan supply (black) wire and light supply (blue) wire
to the black household supply wire as shown in Figure 12.
Step 2. Connect the neutral fan (white) wire to the neutral household
(white) wire.
Step 3. Connect the fan ground wire (green) to the household ground
wire.
Step 4. After connecting the wires, spread them apart so that the
green and white wires are on one side of the outlet box and the black
and blue wires are on the other side.
Step 5. Turn the connecting nuts upward and push the wiring into the
outlet box.
Fig. 12
52" CANFIELD SELECT LED FAN | 11
BLK
BLUE
BLK
WH
WH
GRN
Wiring
box
Ground to
mounting
bracket
or downrod
Power lines 120V
Green ground

12 | KICHLER.COM
Fig. 13
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws

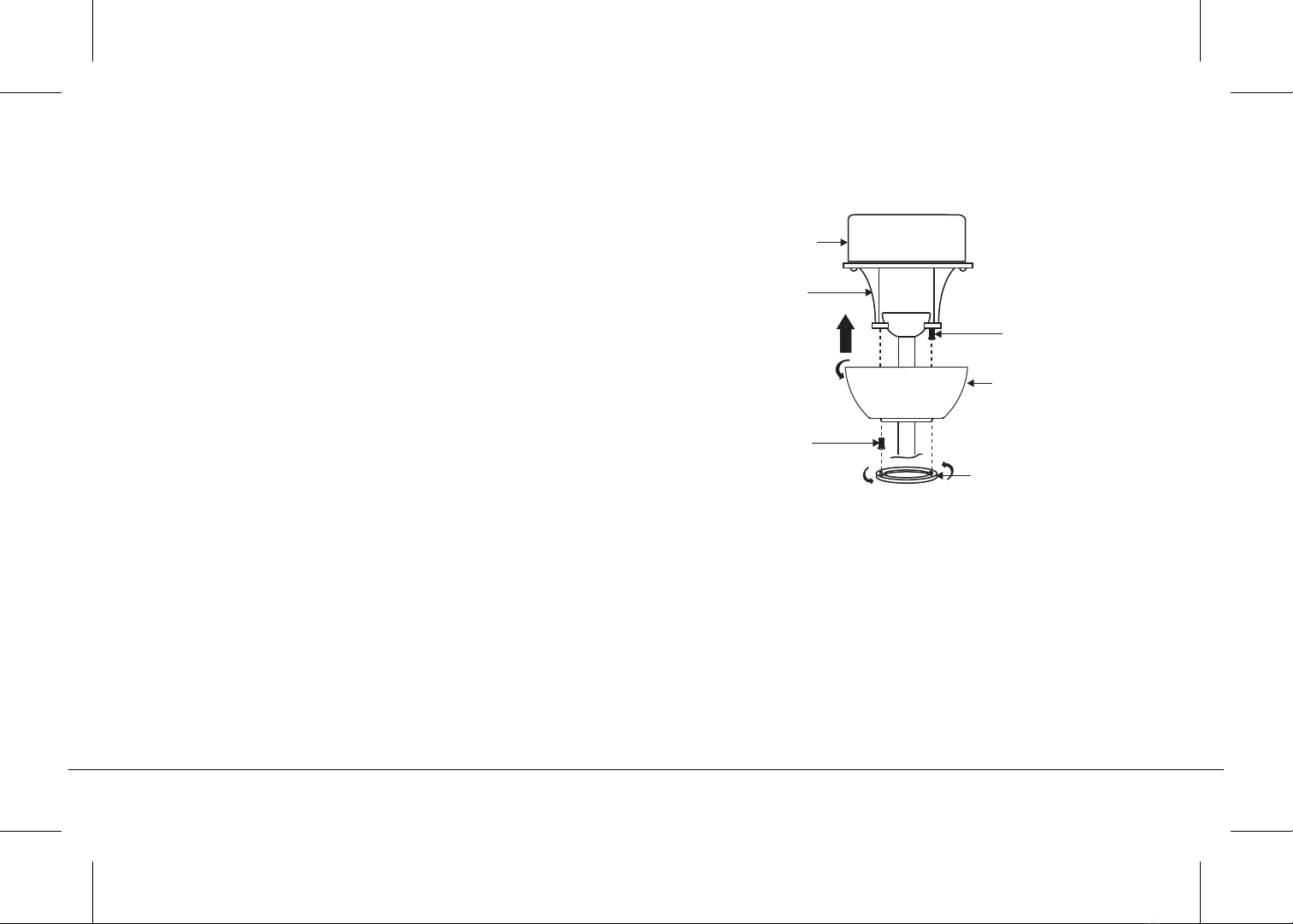

Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one
of the key hole slots over the mounting screw on the mounting
bracket. Rotate the canopy until the screw head locks in place at
the narrow section of the key hole. See figure 13.
Step 3. Align the remaining circular hole on the canopy with the
remaining hole on the Ceiling Mounting Bracket. Insert and tighten
the mounting screw you removed earlier and the mounting screw
from Step 2 above. Now, attach the canopy cover to the mounting
screw heads by inserting the screw heads into the bottom side of
the canopy cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary until the canopy
and canopy cover are snug. (Fig. 13)
WARNING: Make sure the "Check Tab" at the bottom of the hanger
bracket is properly seated in the "Registration Slot" on the side of
the hanger ball before attaching the canopy to the bracket. Failure
to properly seat the "Check Tab" could damage the electrical wires
when to ceiling fan blade direction is changed while the fan is
running.
FINISHING THE INSTALLATION

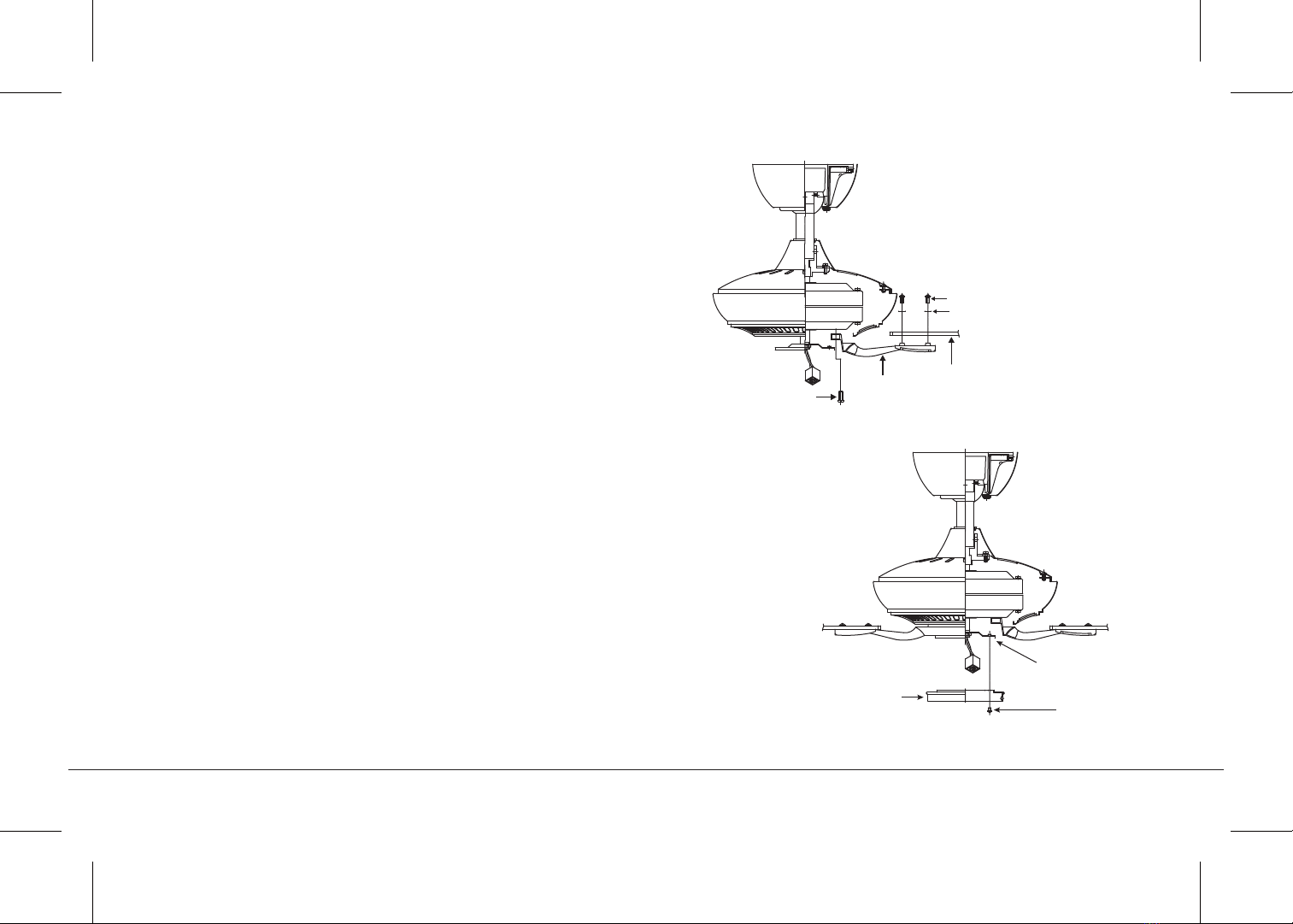

Fig. 14
Fig. 15
52" CANFIELD SELECT LED FAN | 13
ATTACHING THE FAN BLADES
CAUTION: Remove the five rubber shipping blocks attached to the
face of the motor. These blocks keep the motor from shifting during
shipping and MUST be removed during installation.
Step 1. Attach a blade to a blade bracket using the screws and fiber
washers provided. (Fig. 14)
Make sure the blade is straight when set on the blade bracket.
Tighten each mounting screw and then repeat this procedure for
each blade.
Step 2. Attach each blade assembly to the motor using the
"Pre-Installed" mounting screws in the blade bracket. (Fig. 14)
INSTALLING THE MOUNTING
PLATE
Step 1. Loosen the two screws on the mounting ring attached to the
motor shaft and "remove" and save the third screw. (Fig. 15)
Step 2. Place the key holes on the mounting plate over the 2 screws
previously loosened from the mounting ring, turn mounting plate
until it locks in place at the narrow section of the key holes. Secure
by tightening the 2 screws previously loosened and the one
previously removed. (Fig. 15)
Blades
Blade
brackets
Screws
Screws
Fiber
Washers
Mounting
plate
Mounting ring
Screws

14 | KICHLER.COM

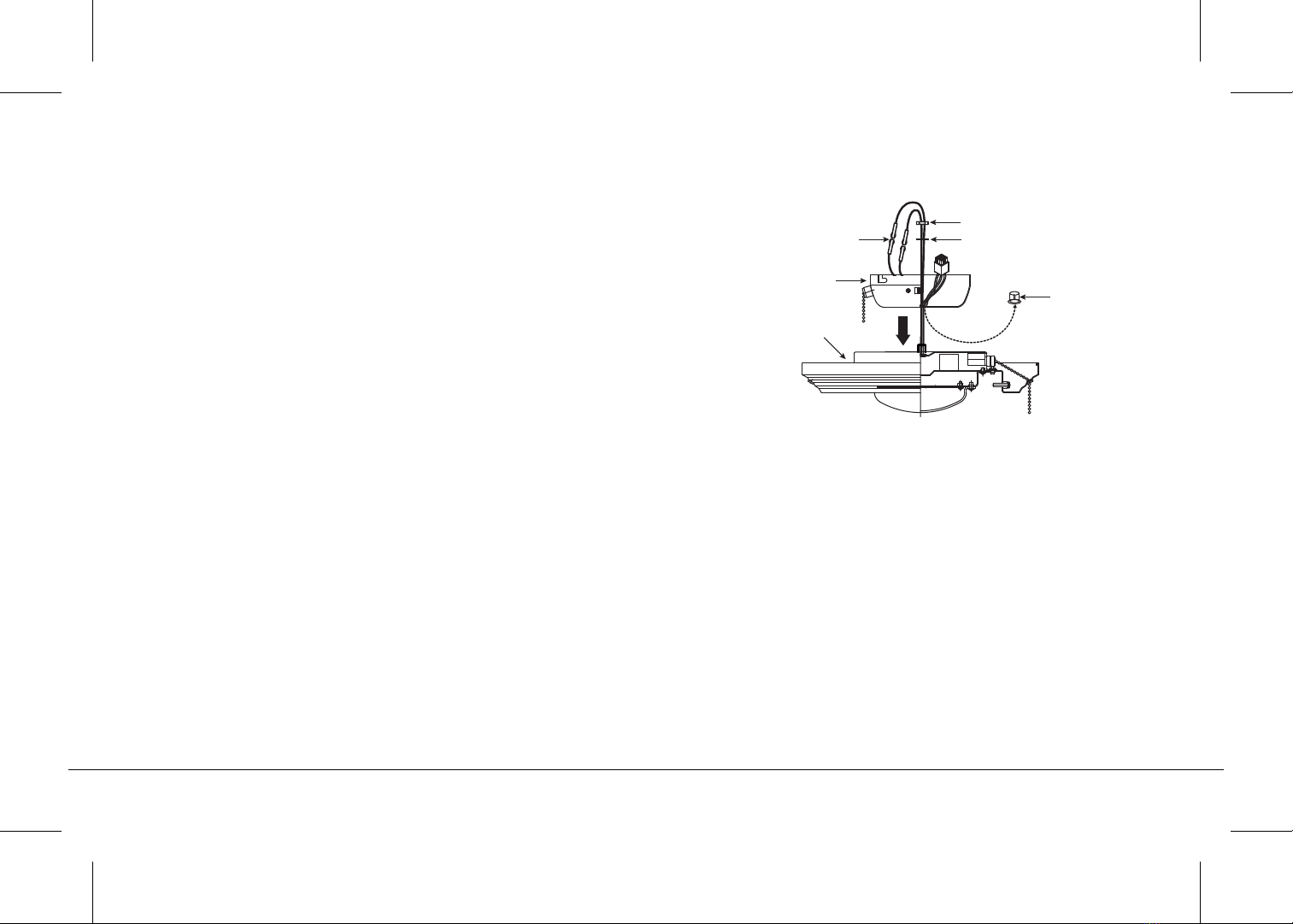

Fig. 16
INSTALLING THE LED LIGHT KIT
Step 1. Remove the plastic plug from the center of the switch
housing. Attach the light fixture to the switch housing by feeding the
light fixture wires (black & white) through the hole in the center of
the switch housing, then screw the light fixture stem into the center
hole. On the inside of the switch housing, place a lock washer and a
nut on the light fixture stem and tighten. (Fig. 16)
Step 2. Locate the white and blue wires inside the switch housing
labeled FOR LIGHT.
Attach the wires from the light fixture to the wires inside the switch
housing by pushing the polarized connections together. (Fig. 16)
- White wire to White wire
- Black wire to Blue wire
Wire connectors
Light kit
Plug
Switch housing
Nut
Lock washer

52" CANFIELD SELECT LED FAN | 15
Fig. 17
INSTALLING THE LED LIGHT KIT
ASSEMBLY AND GLASS SHADE
NOTE: Before starting installation, disconnect the power by turning
o the circuit breaker or removing the fuse at fuse box.
Step 1. While holding the led light kit assembly under your ceiling fan,
push the square wire connectors together. One from the fan and
one from the light fixture.
NOTE: These connectors are color coded and will ONLY engage
when the colored strips are matched (aligned).
Step 2. Carefully push all the wires into the switch housing on the
light kit assembly.
Attach the light kit assembly to the mounting plate with the three
screws provided. Make use each screw is tight. (Fig. 17)
Step 3. Loosen each of the four glass shade retaining screws inside
the top edge of the light fixture.
Raise the glass shade up into the light fixture. While holding the
glass shade, tighten each of the four retaining screws. DO NOT
overtighten. (Fig. 17)
Step 4. Feed each beaded pull chain (one from the switch housing
and one from the light fixture) through the chain guide holes at
opposite sides of the light fixture.
Attach a pull chain fob to each pull chain.
Glass shade
Screws
Wire connectors
LED light kit
assembly
Mounting plate
Glass
retaining
screws

16 | KICHLER.COM
OPERATING INSTRUCTIONS
Turn the power on and check the operation of your ceiling fan.
The pull chain controls the 3 speeds of your ceiling fan.
1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns
the motor o.
The another side pull chain turns the light fixture On and O.
The Black Slide Switch on the side of the switch housing controls the
direction of the blades "Forward and Reverse"

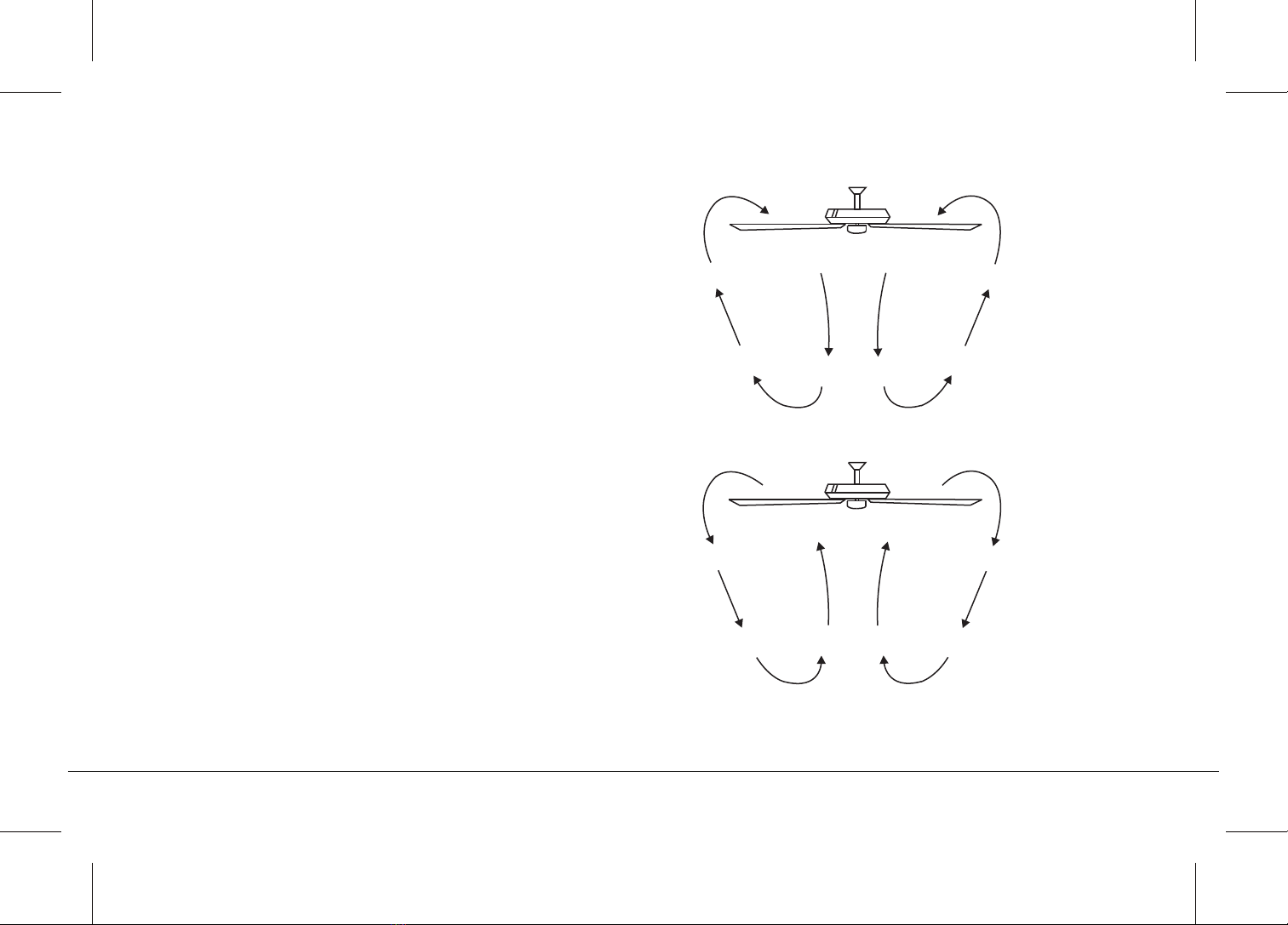

Warm weather - Forward (counter clockwise) A downward airflow
creates a cooling eect as shown in Fig. 18. This allows you to set
your air conditioner on a warmer setting without aecting your
comfort.
Cool weather - Reverse (clockwise) An upward airflow moves warm
air o the ceiling area as shown in Fig. 19. This allows you to set your
heating unit on a cooler setting without aecting your comfort.
Fig. 18
Fig. 19

52" CANFIELD SELECT LED FAN | 17
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact.
CAUTION: Make sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are not compatible with ceiling fan motors
or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for
measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight
and possibly result in smoother operation.
TROUBLESHOOTING

www.kichler.com
KICHLER® LIGHTING
7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010
CLEVELAND, OHIO 44131-8010
CUSTOMER SERVICE 866.558.5706
8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY
