INSTRUCTION MANUAL
Model# 310452READ AND SAVE THESE INSTRUCTIONS

2 | KICHLER.COM
TABLE OF CONTENTS
INSTALLING THE FAN BLADES..............................................14
INSTALLING THE DECORATIVE COVER...............................14
INSTALLING THE COOLTOUCH™ WALL PLATE.................15
INSTALLING THE TRANSMITTER..........................................15
OPERATING INSTRUCTIONS..................................................16
TROUBLESHOOTING................................................................19
FCC INFORMATION ...................................................................21
SAFETY RULES............................................................................ 3
TOOLS AND MATERIALS REQUIRED..................................... 5
PACKAGE CONTENTS................................................................ 5
MOUNTING OPTIONS................................................................ 6
HANGING THE FAN .....................................................................7
INSTALLATION OF SAFETY CABLE...................................... 10
ELECTRICAL CONNECTIONS................................................ 10
FINISHING THE MOTOR INSTALLATION .............................13

52" True | 3
fan support and may need to be replaced. Due to the
complexity of the installation of this fan, a qualified
licensed electrician is strongly recommended.
6. The outlet box and support structure must be
securely mounted and capable of reliably supporting
a minimum of 15.9 kg (35 pounds). Use only cULus
Listed outlet boxes marked “Acceptable for Fan
Support of 15.9 kg (35 lbs) or less”.
7. The fan must be mounted with a minimum of 2.1 m
(7 feet) clearance from the trailing edge of the blades
to the floor.
8. To operate the reverse function on this fan, press
the “Reverse” Button on the transmitter while fan is
running.
9. Avoid placing objects in the path of the blades.
10. WARNING: make sure the power is disconnected
before cleaning your fan.
READ AND SAVE THESE INSTRUCTIONS
SAFETY RULES
WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.
DON’T SECURE THIS FAN TO AN OUTLET BOX.
1. CAUTION – RISK OF SHOCK: Disconnect Power at
the main circuit breaker panel or main fusebox before
starting and during the installation.
2. WARNING: All wiring must be in accordance with the
National Electrical Code “ANSI/NFPA 70” and local
electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electric shock, this
fan must be installed with a general-use, isolating wall
control/switch.
4. WARNING: Not suitable for use with solid-state speed
controls.
5. WARNING: To reduce the risk of fire, electric shock,
or personal injury, mount to outlet box marked
“acceptable for fan support of 15.9 kg (35 lbs.) or
less” and use mounting screws provided with the
outlet box. Most outlet boxes commonly used for
the support of light fixtures are not acceptable for

4 | KICHLER.COM
16. N.W. 7.82 KGS (17.24 LBS) / G.W. 8.75 KGS (19.29 LBS)11. To avoid personal injury or damage to the fan and
other items, be cautious when working around or
cleaning the fan.
12. Do not use water or detergents when cleaning the fan
or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
13. After making electrical connections, spliced
conductors should be turned upward and pushed
carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the
outlet box and the ungrounded conductor on the
other side of the outlet box.
14. Electrical diagrams are reference only. Light kits that
are not packed with the fan must be cULus Listed
and marked suitable for use with the model fan you
are installing. Switches must be cULus General Use
Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
15. All set screws must be checked, and retightened
where necessary, before installation.
SAFETY RULES (continued)
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.

52" True | 5
TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
• Phillips Screwdriver
• Blade Screwdriver
• 11 mm Wrench
• Step Ladder
• Wire Cutters
Unpack your fan and check the contents . You should have the following items:
A. Fan Blades (3)
B. Canopy & Ceiling
Mounting Bracket
C. Ball/Downrod Assembly
D. Coupling Cover
E. Fan Motor Assembly
F. Decorative Cover
G. Receiver
H. Transmitter (371075) and Wall Plate
A
B
G
H
C
D
E
I
F
I. Part Bag Contents
1) Mounting Hardware:
Flat Washers (2), Wood Screws (2)
Star Washers (2), Wire Nuts (3)
Screws (2)
2) Blade Attachment Hardware:
Blade Screws (11), Fiber Washers (11)
3) Safety Cable Hardware:
Wood Screw (1), Flat Washer (1)
4) Balance Kit

6 | KICHLER.COM
Fig. 1
Outlet box
Outlet box
Fig. 2
Fig. 3
Recessed
outlet box ceiling Ceiling
Mounting
plane
Provide strong
support
ANGLED CEILING
MAXIMUM 18° ANGLE
Fig. 4
Outlet box
MOUNTING OPTIONS
If there is not an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect
the power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and
its support must be able to fully support the full weight of the fan
(up to 15.9kg (35 pounds)). Do not use plastic outlet boxes.

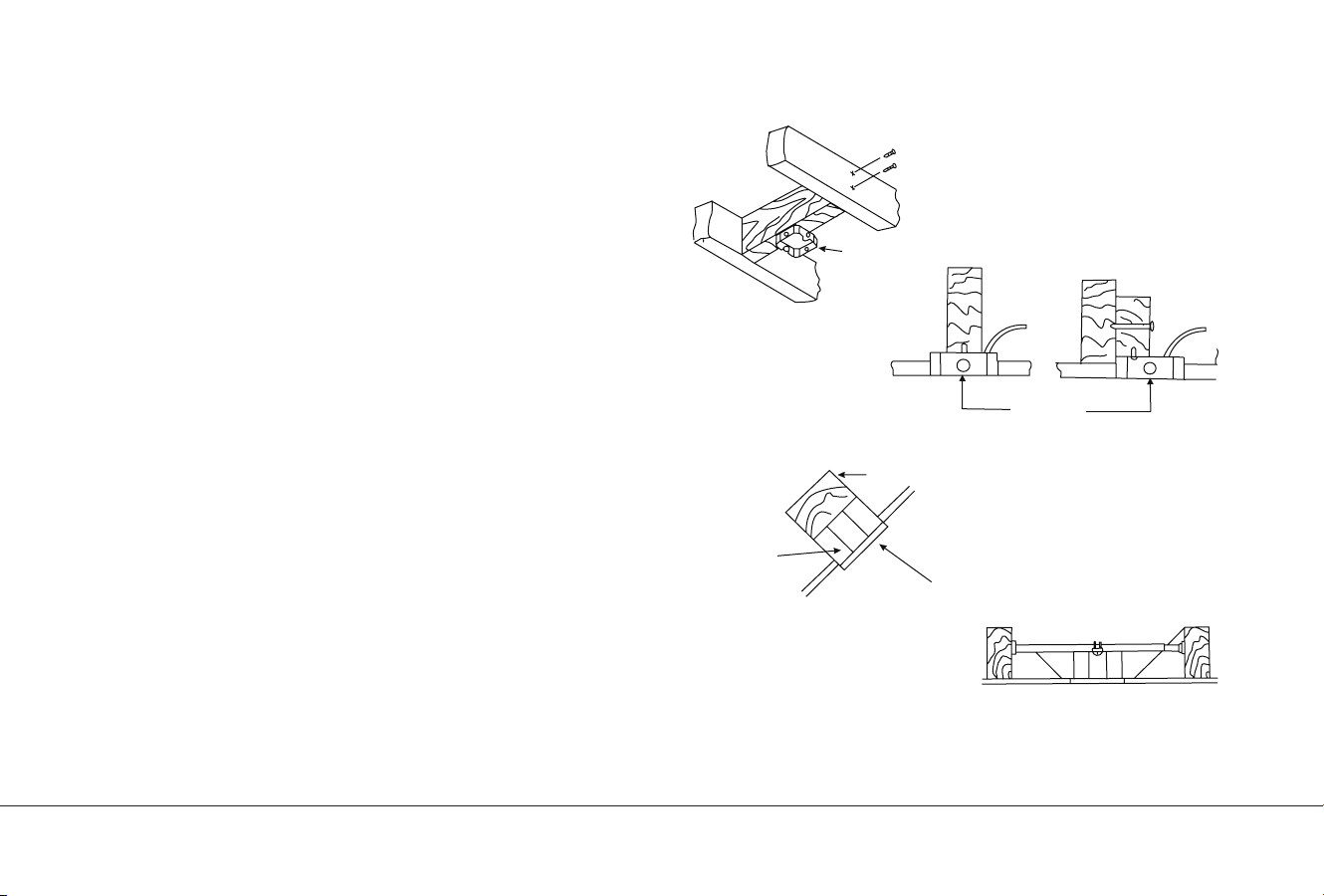

Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist
Hanger” for the support of the outlet box. Make sure the joist
hanger you purchase has been designed for use with ceiling
fans. (Fig. 4)

52" True | 7
Ceiling Mounting Bracket
HANGING THE FAN
CAUTION: To avoid possible electrical shock, be sure you have
turned o the power at the main circuit panel.
REMEMBER to turn o the power before you begin installation.
This is necessary for your safety.
WARNING: All set screws must be checked, and retightened where
necessary, before installation.
To properly install your ceiling fan, follow the steps below.

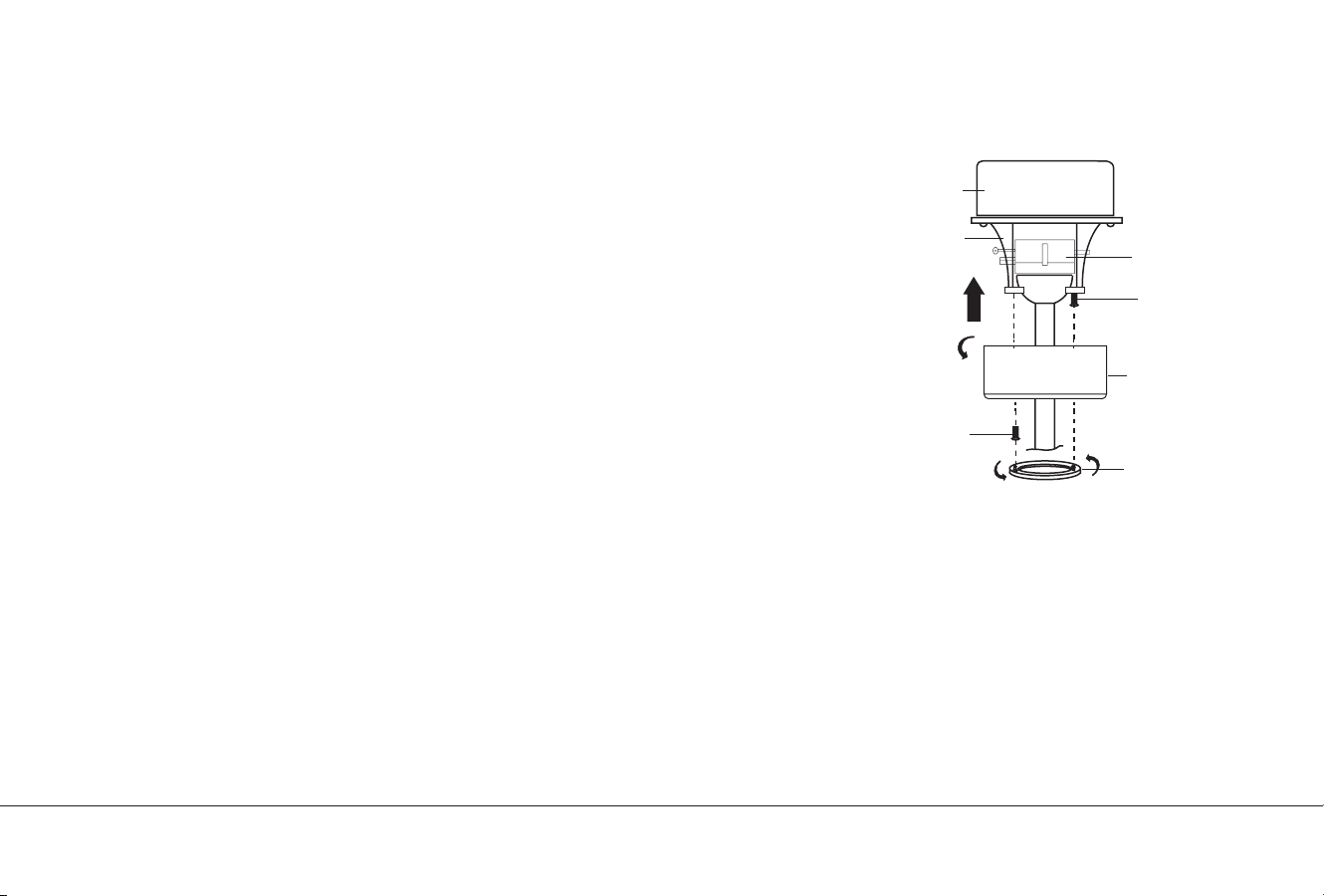

Step 1. Remove the canopy trim ring from the canopy by turning the canopy
trim ring counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by removing
and saving one of the two screws. Loosen the remaining screw by a half turn.
(Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the
screws and washers included with the outlet box. (Fig. 6)
Fig. 6
Fig. 5
Canopy
Washer
(Supplied with Electrical Box)
Canopy Trim Ring
Mounting Screw
(Supplied with
Electrical Box)
120V Wires
Washer
(Supplied with Electrical Box)
Mounting Screw
(Supplied with
Electrical Box)
Ceiling Mounting
Bracket
cULus
Electrical
Box

8 | KICHLER.COM
WARNING: All set screws must be checked, and retightened where
necessary, before installation.

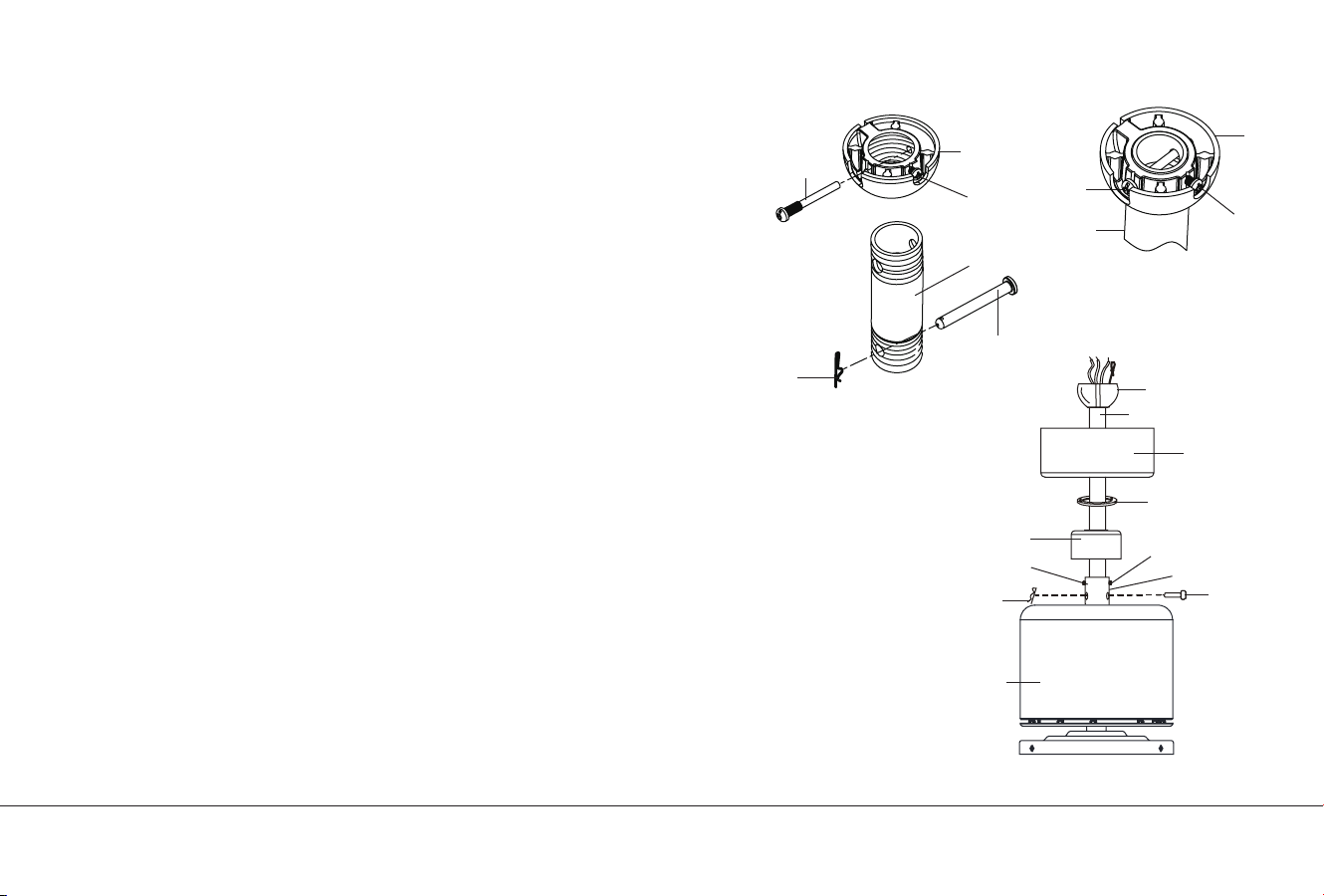

Step 5. Remove the retaining clip and the hitch pin from the ball/downrod
assembly. Remove the ball from the ball/downrod assembly by loosening the set
screw (do not remove) on the ball, unscrewing and removing the cross pin, and
unscrewing the ball from the downrod. (Fig. 7)
Step 6. Loosen the two set screws (do not remove) in the coupling on top of the
motor. (Fig. 8)
Step 7. Carefully feed the wires from the coupling on top of the motor assembly
up through the downrod. (Fig. 8)
Step 8. Thread the downrod into the coupling on top of the motor assembly until
the hitch pin holes in the downrod and the hitch pin holes in the coupling are
aligned. Carefully insert the hitch pin through the holes in the coupling and the
downrod. (Fig. 8)
NOTE: Be careful not to jam the hitch pin against the wiring inside of the
downrod.
Insert the retaining clip through the hole near the end of the hitch pin until it snaps
into its locked position. (Fig. 8)
Step 9. Tighten the two set screws in the coupling on top of the motor assembly
firmly. (Fig. 8)
Step 10. Carefully slip the coupling cover, canopy trim ring (smooth finished side
facing motor body), and canopy onto the downrod. (Fig. 8)
Carefully thread the ball onto the downrod. Insert the cross pin through the ball
and downrod and tighten. (Fig. 9)
NOTE: Be careful not to jam the cross pin against the wiring inside of the
downrod.
Tighten the set screw on the ball. Make sure that the wires are not twisted. (Fig. 9)
HANGING THE FAN (continued)
Fig. 7
Cross Pin
Hitch Pin
Ball
Canopy
Set Screw
Downrod
Coupling
Set Screw
Coupling Cover
Hitch Pin
Retaining Clip
Retaining
Clip
Canopy Trim Ring
Motor
Assembly
Fig. 9
Fig. 8
Downrod
Set Screw
Cross
Pin
Set Screw
Ball
Ball
Downrod

52" True | 9

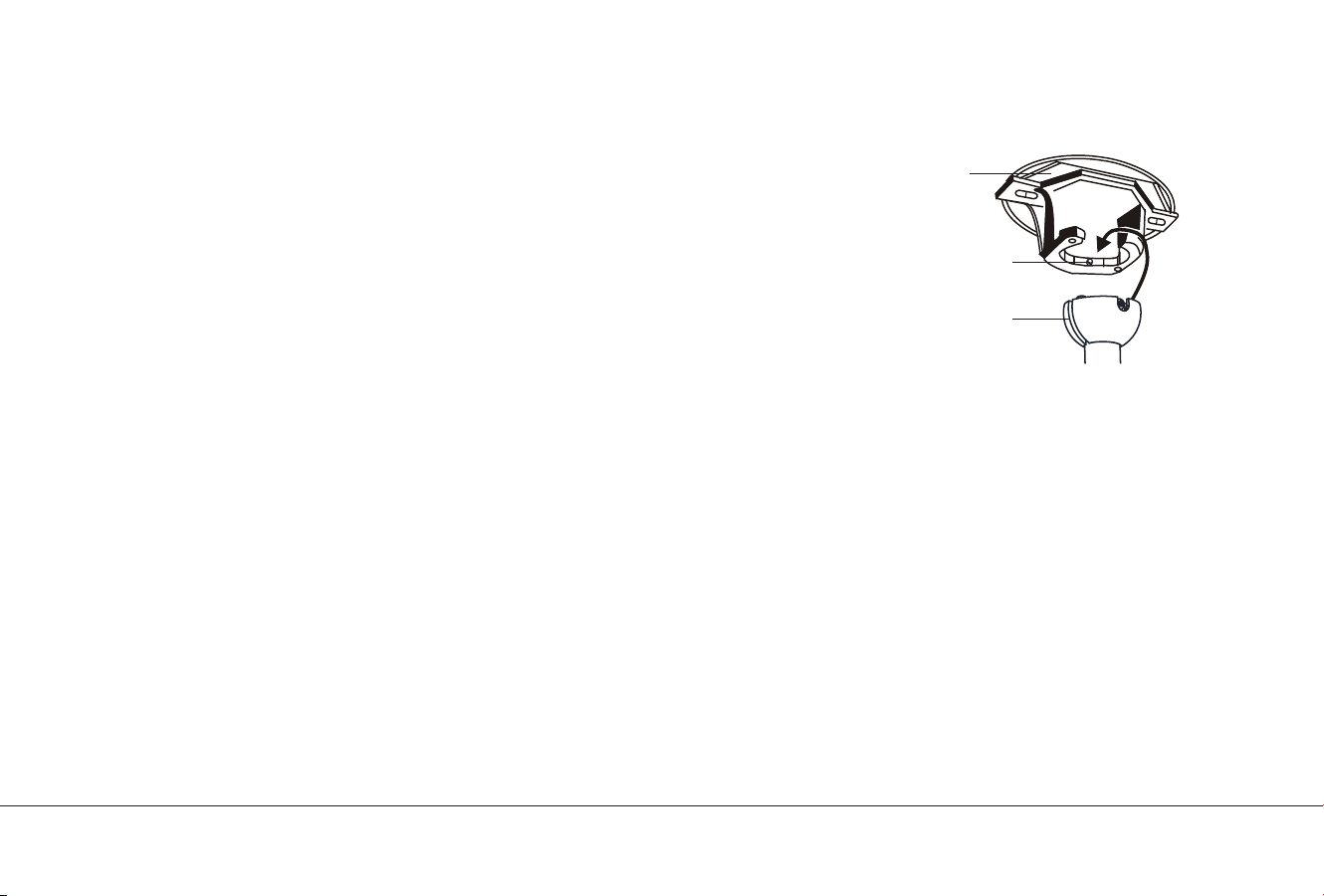

Step 11. Lift the motor assembly into position and place the hanger ball into the
ceiling mounting bracket. Rotate the entire assembly until the “Check Tab” has
dropped into the “Registration Slot” and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when seated properly.
WARNING: Failure to reattach the cross pin and seat the “Check
Tab” can cause the fan to fall from the ceiling during operation. Take
special care to make sure this pin is reattached.
HANGING THE FAN (continued)
Registration Slot
Check Tab
Ceiling Mounting
Bracket
Fig. 10

10 | KICHLER.COM
INSTALLATION OF SAFETY Cable
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from falling, please
install it as follows.
Step 1. Attach the wood screw and washer to the ceiling joist next to the ceiling
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and washer by pulling
the extra cable through the cable clamp until the overall length is correct, put the end of
the cable back through the cable clamp, forming a loop at the end of the cable. Tighten
the cable clamp securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian installations only, it’s a
good idea to make the attachment with any installation.
ELECTRICAL CONNECTIONS
CAUTION: To avoid possible electrical shock, be sure you have turned o the
power at the main circuit panel.
Step 1. Insert the receiver into the ceiling mounting bracket with the flat side of the
receiver facing the ceiling. (Fig. 12) For best performance, make sure the black antenna
wire (on the end of the receiver) remains extended, and does not become tangled with
the electrical wires. Fig. 12
Ceiling Mounting
Bracket
Fig. 11
Ceiling Mounting
Bracket
Receiver
Attach safety cable
to ceiling joist with
wood screw and washer

52" True | 11
ELECTRICAL CONNECTIONS (continued)
WARNING: Carefully read and retain this Instruction Manual for
future reference.
WARNING: To avoid possible electrical shock, be sure the
electricity is turned o at the main panel by removing the fuse
or opening the circuit breaker.
WARNING: This control is designed for use with “DC Motor
Ceiling Fans” ONLY. DO NOT use with any other type of
electrical appliance.
WARNING: All wiring must conform to national and local
electrical codes. If you feel you do not have enough electrical
knowledge, have a licensed electrician install the control.
WARNING: The amperage for your fan should not exceed 1A.
The total wattage for the lights 40W.
Make each of the wire connections illustrated in Fig. 13. Secure each with
the wire nuts provided.
Use the wire connectors supplied with your fan. Secure the
connectors with electrical tape. Make sure there are no loose
wire strands or connections.
WARNING: Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire connections.
After making all wire connections, turn the wire connecting nuts upward,
and push the wiring into the outlet box. Separate the white (neutral) and
green (ground) wire connections to the one side of the outlet box, and the
black (hot) wire connections to the other side of the outlet box.

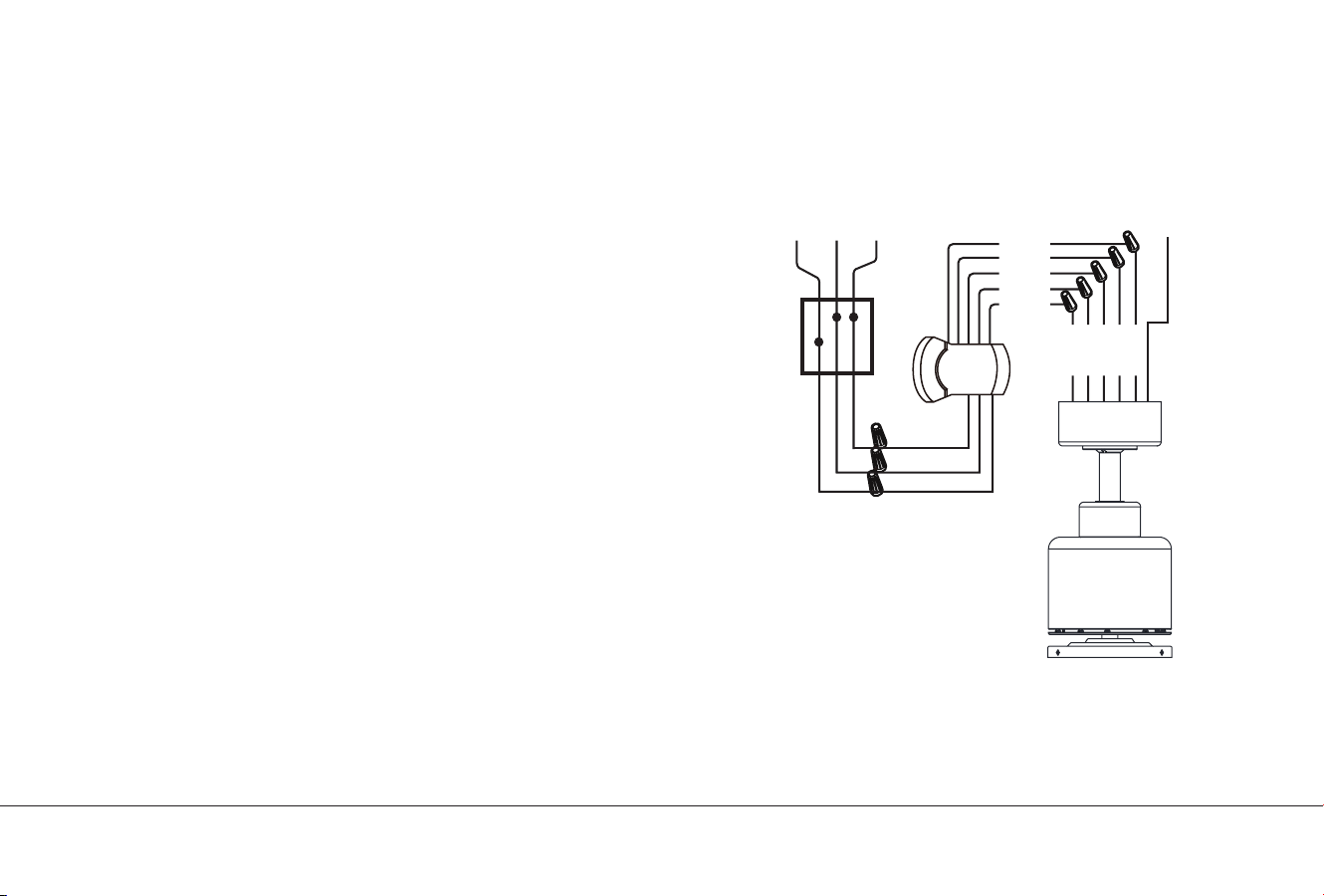

Fig. 13
BLACK WHITE GROUND
CONDUCTOR
Outlet
Box
Receiver
YELLOW/GREEN
GROUND
WHITE
BLACK
YELLOW
GRAY
RED
WHITE
BLUE
BLUE
WHITE
RED
GRAY
YELLOW
GREEN
To Household
(Connect the ground wire
on ceiling mounting bracket
to a household ground)

12 | KICHLER.COM
ELECTRICAL CONNECTIONS (continued)
A. CEILING FAN TO RECEIVER WIRE CONNECTION
Step 1. Connect the Blue wire from the fan (motor) to the Blue wire from
the receiver. White wire from the fan (motor) to the White wire from the
receiver. Red wire from the fan (motor) to the Red wire from the receiver.
Gray wire from the fan (motor) to the Gray wire from the receiver. Yellow
wire from the fan (motor) to the Yellow wire from the receiver. (Fig. 13)
NOTE: If you DO NOT plan to use the light kit with your fan at this time,
please DO NOT connect the Blue wires or White wires. Instead, cap each
individual Blue wire and White wire with wire nuts.
B. RECEIVER TO HOUSEHOLD WIRE CONNECTION
WARNING: If your house wires are in dierent colors than referenced in
this manual, stop immediately. A professional electrician is recommended.
Step 1. The black wire of the receiver (AC IN L) connects to the black wire
(HOT) of the ceiling outlet box (Fig.13).
Step 2. The white wire (AC IN N) of the receiver connects to the white wire
(NEUTRAL) of the ceiling outlet box (Fig.13).
Step 3. The ground wire (yellow/green) of the receiver connects to the
ground conductor of the ceiling outlet box (Fig.13).Fig. 13
BLACK WHITE GROUND
CONDUCTOR
Outlet
Box
Receiver
YELLOW/GREEN
GROUND
WHITE
BLACK
YELLOW
GRAY
RED
WHITE
BLUE
BLUE
WHITE
RED
GRAY
YELLOW
GREEN
To Household
(Connect the ground wire
on ceiling mounting bracket
to a household ground)

52" True | 13
FINISHING THE MOTOR INSTALLATION
CAUTION: To avoid possible electrical shock, be sure you have turned
o the power at the main circuit panel.
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Carefully raise the canopy up to the ceiling mounting bracket and place
one of the key hole slots in the canopy over the screw on the ceiling mounting
bracket. Rotate the canopy until the screw head locks in place at the narrow
section of the key hole. (Fig. 14)
Step 3. Align the remaining circular hole in the canopy with the remaining
hole in the ceiling mounting bracket. Reinstall the screw you removed earlier
(HANGING THE FAN, Step 2/Fig. 5) into the aligned holes. Tighten both
screws to secure. Attach the canopy trim ring to the screw heads by inserting
the screw heads into the canopy trim ring and rotating the canopy trim ring
(clockwise).
NOTE: Adjust the screws as necessary until the canopy and canopy trim ring
are snug. (Fig. 14)
WARNING: Make sure the “Check Tab” at the bottom of the ceiling
mounting bracket is properly seated in the “Registration Slot”
on the side of the hanger ball before attaching the canopy to the
ceiling mounting bracket. Failure to properly seat the “Check Tab”
could damage the electrical wires when ceiling fan blade direction is
changed while the fan is running.
Fig. 14
Outlet Box
Ceiling
Mounting
Bracket
Screw
Canopy
Canopy Trim Ring
Screw
Receiver

14 | KICHLER.COM
INSTALLING THE FAN BLADES
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing fan
blades.
Step 1. Align the holes in the fan blade with the holes in the motor
assembly, and secure the fan blade to the motor assembly with the
fiber washers and blade screws provided. Tighten the blade screws to
secure the fan blades to the motor assembly. (Fig. 15)
NOTE: Install the fiber washers and blade screws through the open
slot in the mounting plate.
Step 2. Repeat this process to attach the other two blades.
INSTALLING THE DECORATIVE COVER
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
decorative cover.
Step 1. Remove the three preinstalled mounting screws from the
outside edge of the decorative cover. Retain mounting screws. (Fig.16)
Step 2. Place the decorative cover over the mounting plate, aligning
the holes in the decorative cover with the holes in the mounting
plate. Thread the three mounting screws that were removed into the
decorative cover and mounting plate, and tighten to secure. (Fig. 16)
Fig. 15
Fig. 16
Motor
Assembly
Mounting
Plate
Blade
Screws Fiber Washers
Fan Blade
Blade
Screws
Hole
Mounting Plate
Mounting Screws
Decorative Cover

52" True | 15
INSTALLING THE COOL TOUCH™ WALL PLATE
CAUTION: To avoid possible electrical shock, be sure you have turned o the power
at the main circuit panel.
WARNING: All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a qualified
licensed electrician.
Select a location to install your CoolTouch™wall plate. You can replace an existing wall switch, or
install the wall plate on ANY flat surface.
Option 1: Install the wall plate using an existing wall switch outlet box.
CAUTION: Switch installation must comply with all local and national electric
code. Make sure the electrical power is TURNED OFF at the main panel before
continuing.
Step 1. Remove the existing wall plate and the old switch from the wall outlet box. Wire nut the
BLACK leads (hot) together and push back inside the outlet box. (Fig. 17)
Step 2. Install the metal plate and CoolTouch™wall plate to the existing wall outlet box with 4
screws provided. Insert the two plastic plugs into the wall plate. (Fig. 18)
Option 2: Install the wall plate on ANY flat surface.
Step 1. Select the desired location and use the CoolTouch™wall plate to mark the location for the
mounting holes.
Step 2. Use the drywall anchors and screws provided to finish the installation.
INSTALLING THE TRANSMITTER
Step 1. Insert the transmitter into the wall plate by inserting the bottom of the transmitter
first and then pressing the top of the transmitter into the pocket. The transmitter will fully
function from this location or you can remove the transmitter and use it as a hand held device.
(Fig. 19)
Step 2. To remove the transmitter from the wall plate, push the release button and the
transmitter will fall into your hand.

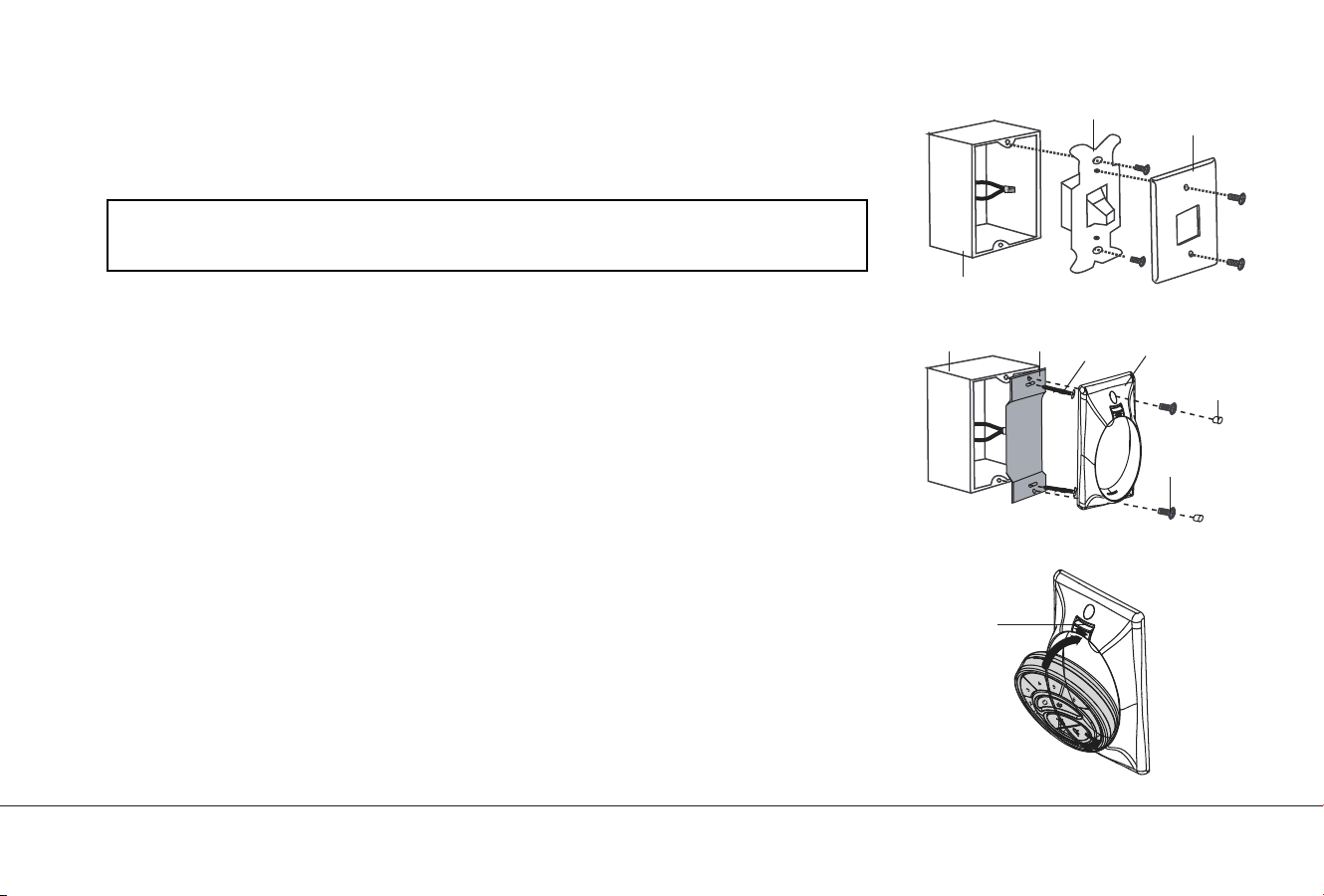

Fig. 17
Fig. 18
Fig. 19
Switch Wall Plate
Outlet Box
Outlet Box Metal Plate Screws CoolTouch™
Wall Plate
Screws
Plastic
Plugs
Release
Button

16 | KICHLER.COM
OPERATING INSTRUCTIONS
INSTALLING THE TRANSMITTER BATTERIES (Fig. 20)
Step 1. Remove the back cover of the transmitter and safety screw. (Fig. 20)
Install two CR2032 3V batteries (included) with the+ side facing up.
NOTE: To prevent damage to the transmitter, remove the batteries if not in use
for long periods of time (several months).
Step 2. Replace back cover of transmitter and safety screw.
WARNING: Chemical Burn Hazard. Keep batteries away from
children. This product contains a lithium button/coin cell battery.
If a new or used lithium button/coin cell battery is swallowed or
enters the body, it can cause severe internal burns and can lead
to death in as little as 2 hours. Always completely secure the
battery compartment. If the battery & compartment does not
close securely, stop using the product, remove the batteries, and
keep it away from children. If you think batteries might have been
swallowed or placed inside any part of the body, seek immediate
medical attention.
a) The cells shall be disposed of properly, including keeping them
away from children; and
b) Even used cells may cause injury.

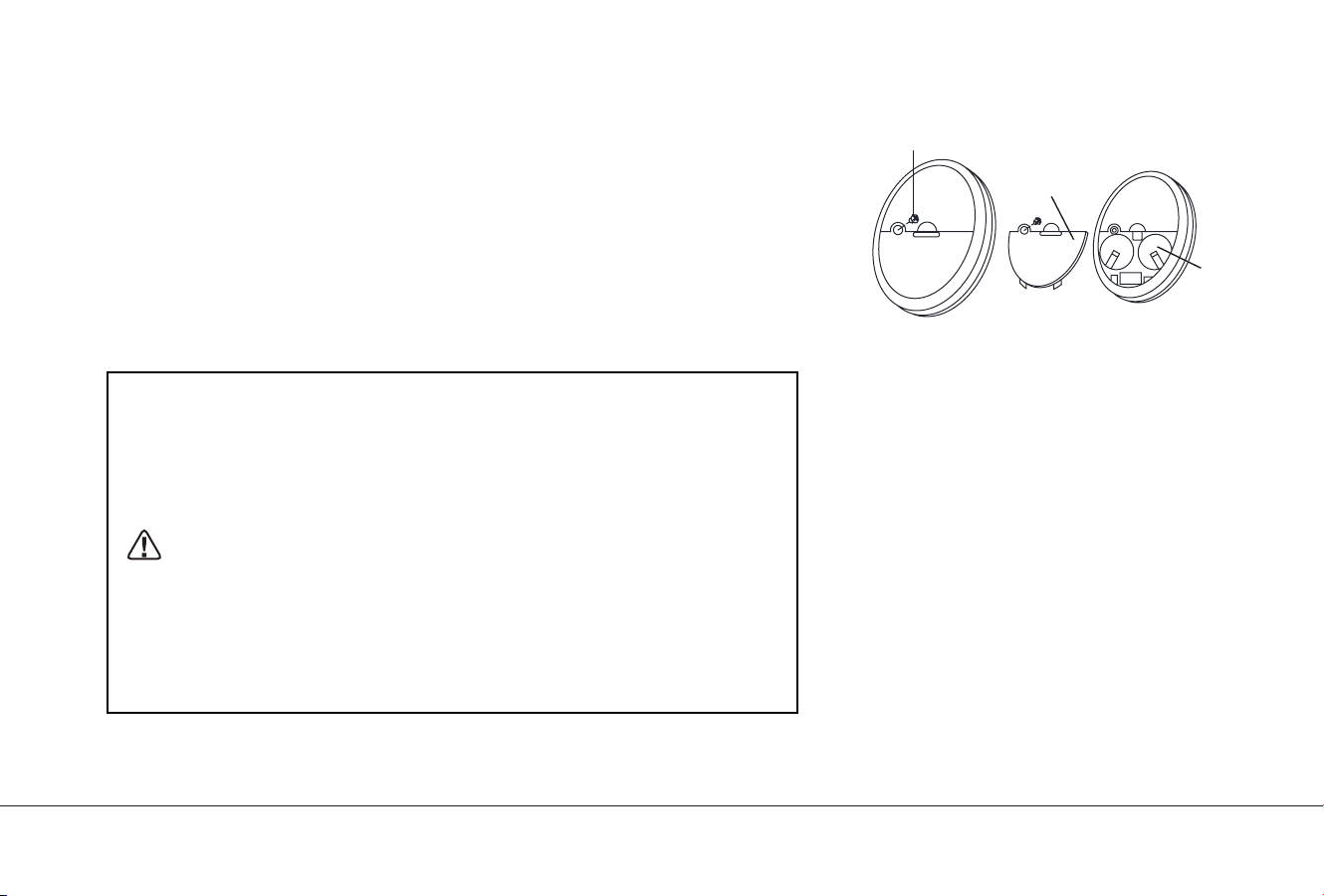

Safety Screw
Back Cover
Batteries
Fig. 20

52" True | 17
OPERATING INSTRUCTIONS (continued)
LIGHT FUNCTION SELECTION SWITCH (Fig. 21)
D=”Dimming”
O=”Only on/o, no dimming”
NOTE: The switch has been factory set to “D”.
NOTE: If a dimmable LED light kit is installed to this fan, the switch should always be set to “D”.
NOTE: The on/o only setting is intended for use with non-dimmable LED light
kits/lamps, and light kits that have fluorescent lamps.
WARNING: If the “D/O” switch is not set correctly, the lighting control system will
operate erratically and could damage your ceiling fan.
PAIRING THE TRANSMITTER TO THE FAN (Fig. 21)
NOTE: Your transmitter has been paired to your fan’s receiver at the factory.
No frequency change is necessary. If the fan is non-functional or if you would
like to install an additional fan with a separate frequency code, follow Step 2
to pair a transmitter to a receiver.
WARNING: Make sure the power is completely disconnected before you begin
this process.
IMPORTANT: Fan motor and fan blades MUST be installed before pairing
process can begin.
Step 1. Remove the safety screw and battery cover from the back of the transmitter.
Retain safety screw.
Step 2. Restore power to the ceiling fan branch circuit at the circuit breaker or fuse
box. Within 30 seconds of restoring power, press and hold the LEARN button on the
back of the transmitter (Fig. 21) for 3 seconds. The fan will turn on at medium speed.
This confirms that the pairing process is complete. The transmitter will now be paired
to your fan and ready for use.
Step 3. Try dierent speed settings on the transmitter to make sure the fan is fully functional. If
programming is unsuccessful, completely disconnect power again, then retry Step 2 again.
Step 4. Reinstall the battery cover and safety screw to the back of the transmitter.
NOTE: Please keep this page in case future reprogramming is needed, or
an additional remote control is added.

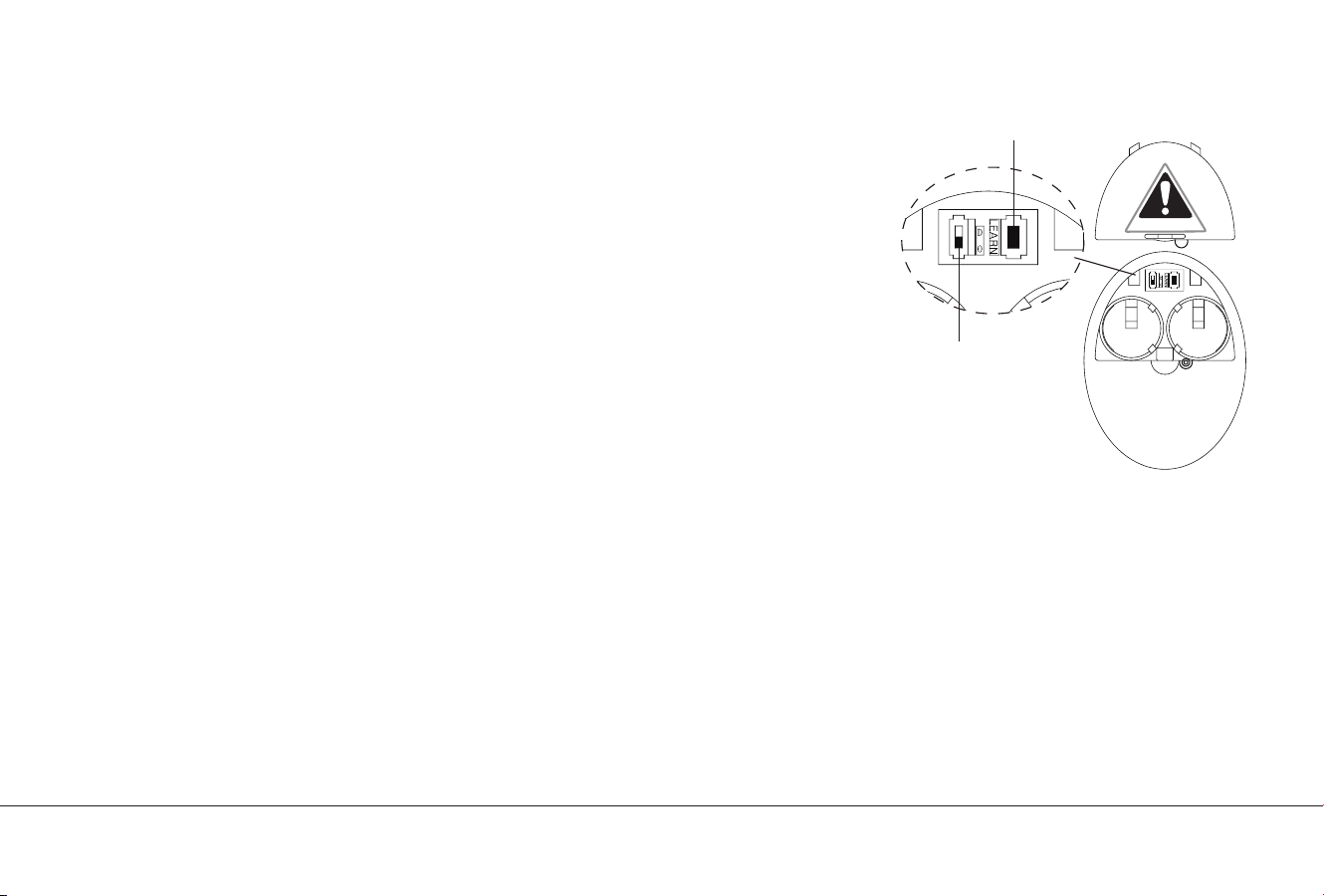

Learn Button
Fig. 21
Light Function
Selection Switch

18 | KICHLER.COM
OPERATING INSTRUCTIONS (continued)
TRANSMITTER OPERATION (Fig. 22)
OFF Button
Press once to stop the fan.
Fan speed control buttons
1 is the lowest speed and 6 is the highest speed.
Press one of the buttons to start the fan at the corresponding speed, or to
change speeds.
Light Buttons
Press to control lights on the fan if a light kit is installed.
NOTE: A light kit is not included with this fan.
Press once to turn the light on or o.
DIMMING: Press and hold to dim or brighten the light to
desired level, then release.
Reverse Button
While the fan is running, press the reverse button once, and the fan will
reverse direction.
REVERSE FUNCTION
To operate the reverse function on this fan, press the “Reverse” button on
transmitter while fan is running.
Warm weather - Forward (fan rotates counterclockwise) A downward airflow
creates a cooling eect as shown in (Fig. 23). This allows you to set your air
conditioner on a warmer setting without aecting your comfort.
Cool weather - Reverse (fan rotates clockwise) An upward airflow moves warm air
o the ceiling area as shown in (Fig. 24). This allows you to set your heating unit
on a cooler setting without aecting your comfort.
Fig. 22
Fig. 23
Fig. 24

52" True | 19
TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
SolutionSolution
1. Check circuit fuses or breakers.
2. Ensure that the batteries in the transmitter are installed properly with the +side facing up, and that they still have
power. NOTE: When a button is pressed on the transmitter, the backlight in the transmitter will light up if the batteries
still have power.
3. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main power is OFF when
checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan will disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). They are not compatible with ceiling fan motors or
remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.

20 | KICHLER.COM
TROUBLESHOOTING (continued)
Problem
Fan wobble.
Remote control
malfunction.
SolutionSolution
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for
measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT
a basic On/O wall switch if desired.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO ENSURE THE PROPER OPERATION
OF YOUR CEILING FAN, NEVER ATTACH THE BLADE ASSEMBLIES UNTIL THE CEILING FAN HAS
BEEN MOUNTED ON THE CEILING. DO NOT BEND THE BLADES WHILE INSTALLING, BALANCING OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
