INSTRUCTION MANUAL
Model#: 339629
Product images may vary slightly from actual product.
52" Arkwet™Weather+™
READ AND SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS
SAFETY RULES..................................................................3
TOOLS REQUIRED............................................................4
PACKAGE CONTENTS ....................................................4
MOUNTING OPTIONS.....................................................5
HANGING THE FAN......................................................... 6
INSTALLATION OF SAFETY CABLE ......................... 9
ELECTRICAL CONNECTIONS ................................. 10
FINISHING THE INSTALLATION................................ 11
ATTACHING THE FAN BLADES.................................12
INSTALLING THE MOUNTING PLATE....................12
INSTALLING THE SWITCH HOUSING.....................13
OPERATING INSTRUCTIONS.....................................14
TROUBLESHOOTING....................................................15
2 | KICHLER.COM

SAFETY RULES
1. CAUTION – RISK OF SHOCK – Disconnect Power at the main
circuit breaker panel or main fusebox before starting and during
the installation.
2. WARNING: All wiring must be in accordance with the National
Electrical Code “ANSI/NFPA 70” and local electrical codes.
Electrical installation should be performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electric shock, this fan must be
installed with a general-use, isolating wall control/switch.
4. WARNING: Not suitable for use with solid-state speed controls.
5. WARNING: To reduce the risk of fire, electric shock, or personal
injury, mount to outlet box marked “acceptable for fan support of
15.9 kg (35 lbs.) or less” and use mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support
of light fixtures are not acceptable for fan support and may need
to be replaced. Due to the complexity of the installation of this
fan, a qualified licensed electrician is strongly recommended.
6. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 15.9 kg (35
pounds). Use only cULus Listed outlet boxes marked “Acceptable
for Fan Support of 15.9 kg (35 lbs) or less”.
7. The fan must be mounted with a minimum of 2.1 m (7 feet)
clearance from the trailing edge of the blades to the floor.
8. WARNING: Do not operate reversing switch while fan
blades are in motion. Fan must be turned o and blades
stopped before reversing blade direction.
9. Avoid placing objects in the path of the blades.
10. WARNING: make sure the power is disconnected before
cleaning your fan.
11. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the
fan.
12. Do not use water or detergents when cleaning the fan or
fan blades. A dry dust cloth or lightly dampened cloth will
be suitable for most cleaning.
13. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the
ungrounded conductor on the other side of the outlet box.
14. Electrical diagrams are reference only. Light kits that are
not packed with the fan must be cULus Listed and marked
suitable for use with the model fan you are installing.
Switches must be cULus General Use Switches. Refer to
the Instructions packaged with the light kits and switches
for proper assembly.
15. All set screws must be checked, and retightened where
necessary, before installation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO
NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.
N.W. 7.5 KGS (16.5 LBS) / G.W. 8.5 KGS (18.7 LBS)
52" Arkwet™Weather+™| 3

TOOLS REQUIRED
PACKAGE CONTENTS
Unpack your fan and check the contents . You should have the following items:
A. Fan Blades (3)
B. Canopy & Ceiling
Mounting Bracket
C. Ball/Downrod Assembly
D. Coupling Cover
E. Fan Motor Assembly
F. Mounting Plate
G. Switch Housing
H. Plastic Plug
I. Part Bag Contents
1) Mounting Hardware: Wire Nuts (3)
2) Blade Attachment Hardware:
Screws (8), Rubber Washers (8)
3) Pull Chains and Fobs
• Phillips Screwdriver
• Blade Screwdriver
• 11 mm Wrench
• Step Ladder
• Wire Cutters A
B
C
D
E
F
G
H
I
4 | KICHLER.COM

MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect
the power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box
and its support must be able to fully support the full weight
of the fan (up to 15.9 kg (35 pounds)). Do not use plastic outlet
boxes.
Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist
Hanger” for the support of the outlet box. Make sure the joist
hanger you purchase has been designed for use with ceiling
fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Fig. 3
Fig. 4
Outlet box
Recessed
outlet box ceiling
Ceiling
mounting
plane
Provide strong
support
ANGLED CEILING
MAXIMUM 30° ANGLE
52" Arkwet™Weather+™| 5

HANGING THE FAN
WARNING: All set screws must be checked, and retightened where
necessary, before installation.
REMEMBER to turn o the power before you begin.
To properly install your ceiling fan, follow the steps below.
Step 1. Remove the decorative canopy bottom cover from the canopy by
turning the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by removing
and saving one of the two screws. Loosen the remaining screw by a half turn.
(Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the
screws and washers included with the outlet box. (Fig.6)
Hanger Bracket
Fig. 5
Fig. 6
Ceiling
Canopy
Canopy
Cover
cULus Listed
Electrical
Box
Ceiling
Mounting
Bracket
120V Wires
Washers
Mounting Screws
(Supplied with Electrical Box)
6 | KICHLER.COM

HANGING THE FAN
(continued)
WARNING: All set screws must be checked, and retightened where
necessary, before installation.
Step 5. Remove the hanger ball from the downrod assembly by loosening the
set screw, unscrewing and removing the cross pin and unscrewing the ball o
the rod. (Fig. 7)
Step 6. Loosen the two set screws and remove the hitch pin and retaining clip
from the coupling on top of the motor assembly. (Fig. 8)
Step 7. Carefully feed the electrical lead wires and safety cable from the fan
up through the downrod. Thread the downrod into the coupling until the
Hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 8)
Fig. 7
Fig. 8
Cross Pin
Hanger
Ball Set Screw
Download
Supply Wires
Downrod
Set Screws
Set Screws
Hitch Pin
Retaining Clip
52" Arkwet™Weather+™| 7

HANGING THE FAN
(continued)
Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod.
(Fig. 9)
Thread the hanger ball onto the downrod, insert the cross pin through the
downrod and tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position and place the hanger ball into
the ceiling mounting bracket.
Rotate the entire assembly until the “Check Tab” has dropped into the
“Registration Slot” and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when seated
properly.
WARNING: Failure to reattach the cross pin and seat the “Check Tab” can
cause the fan to fall from the ceiling during operation. Take special care to
make sure this pin is reattached.
Fig. 9
Fig. 10
Canopy
Coupling Cover
Downrod
Canopy Cover
Set Screws
Hitch Pin Retaining
Clip
Registration
Slot
8 | KICHLER.COM

INSTALLATION OF SAFETY CABLE
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from falling,
please install it as follows.
Step 1. Attach the wood screw and washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and washers by
pulling the extra cable through the cable clamp until the overall length is correct,
put the end of the cable back through the cable clamp, forming a loop at the end
of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the
safety cable over the wood screw and under the washer. Tighten the wood screw
securely.
NOTE: Although the safety support cable is required for Canadian installations
only. It’s a good idea to make the attachment with any installation. Fig. 11
Attach safety cable
to ceiling joist with
screw and washer
Ceiling mounting
bracket
52" Arkwet™Weather+™| 9

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o
the power at the main circuit panel.
Follow the steps below to connect the fan to your household wiring. Use
the wire connecting nuts suppled with your fan. Secure the connectors with
electrical tape. Make sure there are no loose wire strands or connections.
Step 1. Connect the fan supply (black) wire and light supply (blue) wire to the
black household supply wire as shown in Figure 12.
Step 2. Connect the neutral fan (white) wire to the neutral household
(white) wire.
Step 3. Connect the fan ground wire (green) to the household ground wire.
Step 4. After connecting the wires, spread them apart so that the green and
white wires are on one side of the outlet box and the black wires are on the
other side.
Step 5. Turn the connecting nuts upward and push the wiring into the
outlet box.

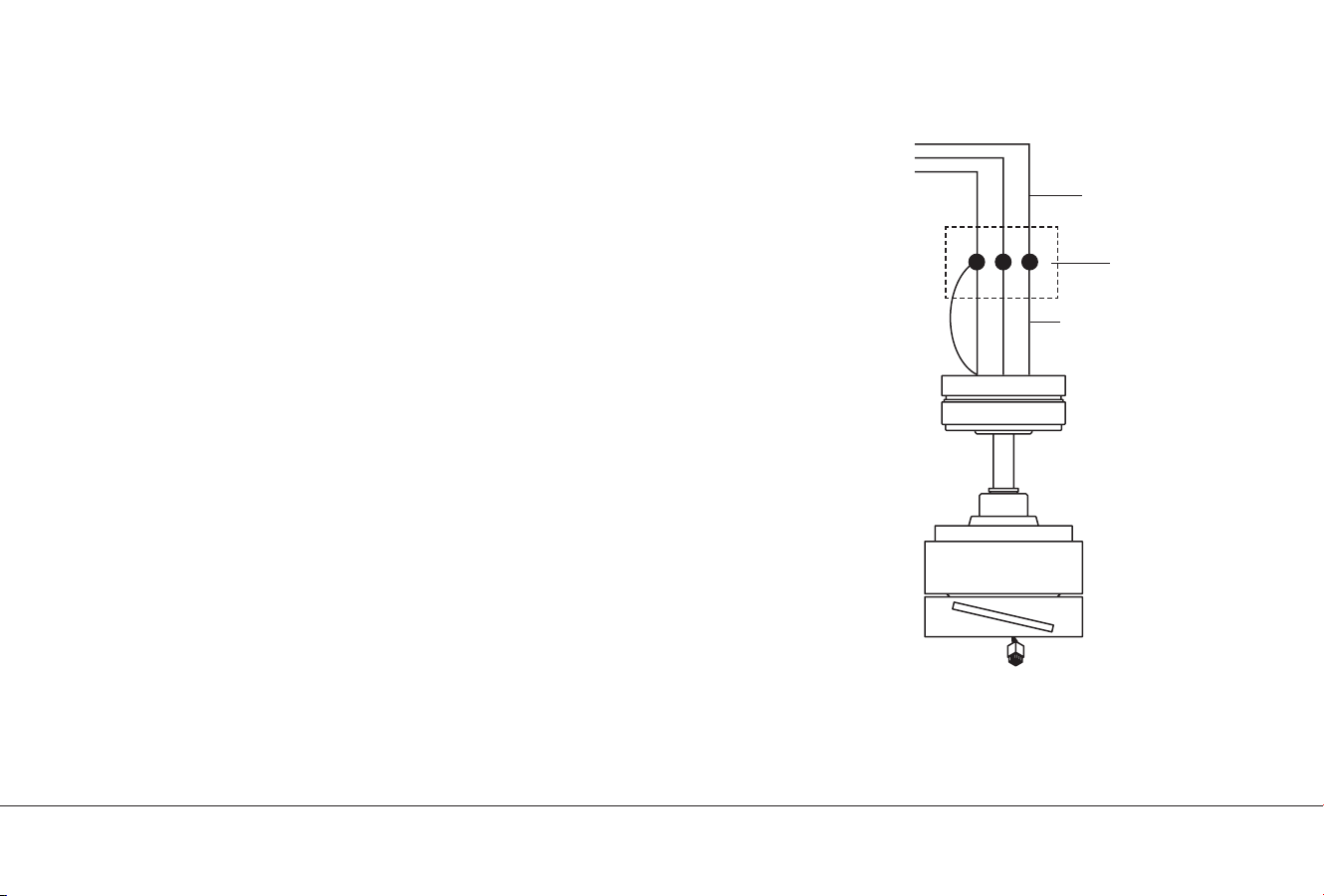

Fig. 12
Power Lines
120V
BLK
Green Ground
Wiring Box
Ground to Mounting Bracket
or Downrod
WHT
BLK
WHT
GRN
BLUE
10 | KICHLER.COM
