Instruction Manual
LyndonTM
A Kichler
®
Decor
™
ceiling fan
Includes our new
CoolTouch Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending
300120
3066708
TM

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only ETL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this
fan, press the reverse button while the fan
is running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the ground wire and white
(common) wire to one side with the black
(load) wire to the other side of the outlet
box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be ETL Listed and marked suitable
for use with the model fan you are
installing. Switches must be ETL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can
not be removed.
Installing Lamps in excess of 190 total
watts will disable the unit's light fixture. If
this should happen, you will need to reset
the lighting fixture by turning the power off
to the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents .
You should have the following items:
a. Mounting bracket
b. Ball / downrod assembly (1)
c. Canopy
d. Canopy Hole Cover
e. Coupling cover
f. Motor Body
g. Mounting Plate
h. Light Kit
i. Fan Blades (5)
j. Set of 5 blades arm and pre-installed
mounting screws
k. Fan Lamp (3)
l. Glass Shade
n. Package hardware
m. Cool Touch TM Control System
1) Mounting hardware:
wood screws (2), flat washers (2),
screws (2) , Spring washers (2),
wire nuts (3)
2) Blade attachment hardware:
screws (17),
fiber washers (17)
3) Blade arm hardware :
Screw (2)
4) Safety cable hardware :
Wood screw (1) , spring washer (1),
flat washer (1)
Slip resistant sleeve (3)
5) Balance kit
6) Slip resistant sleeve hardware:
Screw (3)
7) Screw hardware:
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
LyndonTM
n
a
b
c
d
e
k
f
g
h
l
i
j
m

4. MOUNTING OPTIONS
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 30°ANGLE
3
If there isn't an existing ETL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling.
A minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)

4
5. HANGING THE FAN
REMEMBER to turn off the power before you
begin installation. This is necessary for your
safety and also the proper programming of the
control system.
To properly install your ceiling fan, follow the
steps below.
Step 1. Before attaching fan to outlet box
(not included), ensure the outlet box is securely
fastened to at least two points to a structural
ceiling member (a loose box will cause the fan
to wobble). Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. Install mounting
bracket to outlet box in ceiling using the screws
and washers included with the outlet box or
screws and washers in the hardware bag.
(Fig. 5)
Step 4. Slip the coupling cover, canopy hole cover
and canopy onto the downrod. Carefully reinstall
the hanger ball onto the downrod . Make sure the
cross pin is in the correct position and the set
screws are tight and the wires are not twisted .
( Fig. 8)
Step 2. Remove the hanger ball from downrod
assembly by loosening set screws , removing
the cross pin, and sliding ball off the rod. ( Fig. 6)
Step 3. Loosen the two set screws and remove
the clip and cross pin from the top coupling of
the motor body.
Carefully feed the fan wires up through the
downrod. Thread the downrod onto the motor
coupling until the cross pin holes are aligned.
Next, replace the cross pin and clip, and tighten
both set screws. (Fig. 7)
LyndonTM
Flat Washer
Screw
Fig. 5
Ceiling Mounting Bracket
ETL Listed Outlet Box
Screw
Downrod
Flat Washer
Fig. 6
Set Screw
Hanger Ball
Cross Pin
Clip
Set Screw
Fig. 7
Motor Body
Cross Pin
Clip
Set Screw
Fig. 8
Canopy
Canopy Hole Cover
Coupling Cover
Motor Body
Set Screw

5

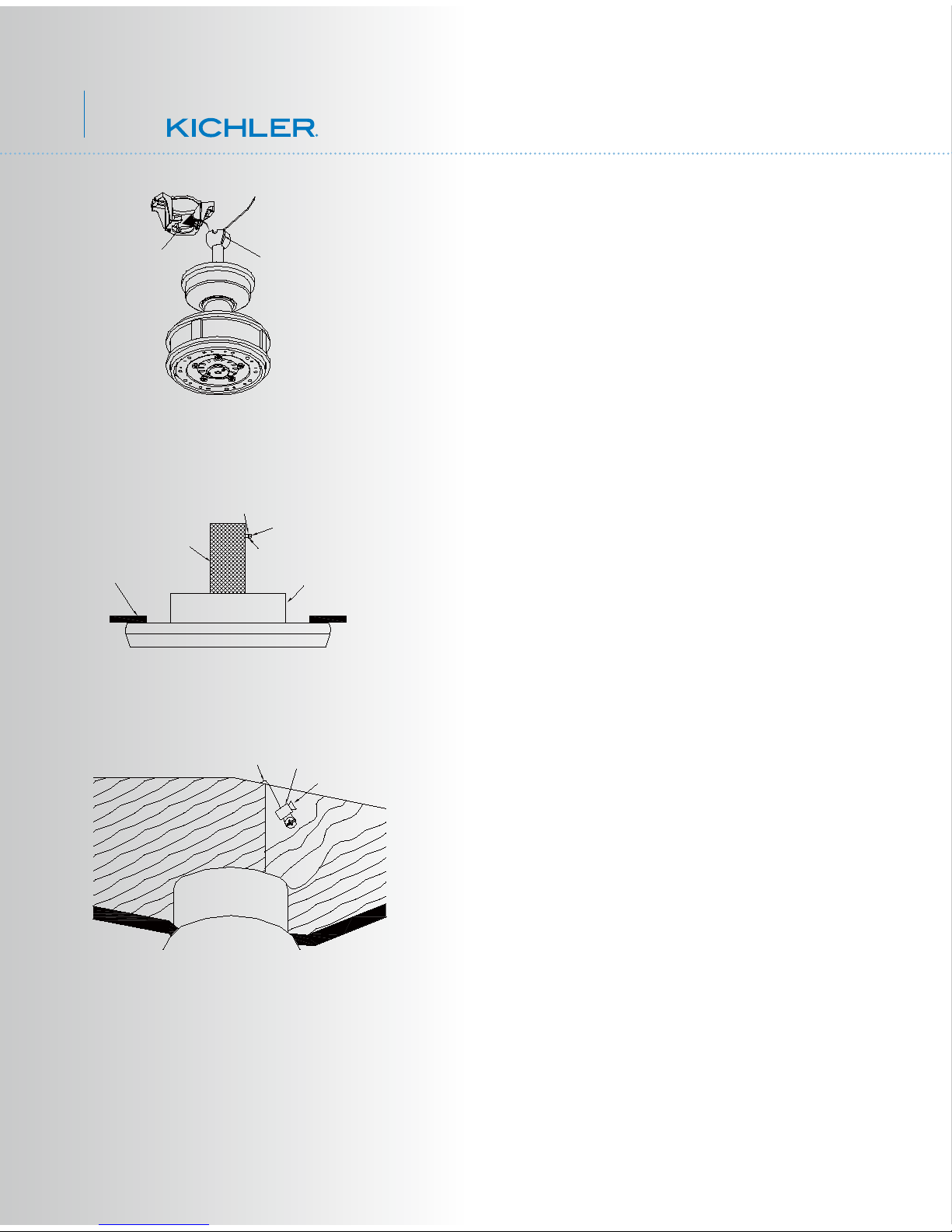

Step 5. Now lift the motor body into position
and place the hanger ball into the hanger bracket.
Rotate until the "Check Tab" has dropped into
the "Registration Slot " and seats firmly. ( Fig. 9)
The entire motor body should not rotate is this is
done correctly.
6 . INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
WARNING: Failure to properly seat the "Check
Tab" can damage the ceiling fan during operation.
A safety support cable is provided to help prevent
the ceiling fan from failing, please install it as
follows.
Step 1. Drive a wood screw and washers into the
side of the brace that holds the outlet box. Leave
3mm (1/8") of space between the support brace
and the washer. (Fig. 10)
NOTE: Although the safety support cable is
required for Canadian installations only. It’s a good
idea to make the attachment with any installation.
Step 2. Insert the safety cable through the
mounting bracket and one of the holes in the
outlet box into the ceiling. Adjust the length of the
safety cable to reach the screw and washers by
pulling the extra cable through the cable clamp
until the overall lenght is correct, put the end of the
cable back through the cabel clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end of the
safety cabel over the wood screw and under the
washer. Tighten the wood screw securely. (Fig. 11)
Check Tab Registration Slot
Fig. 9
Safety CableBolt
Wood Screw
Fig. 11
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling
Fig. 10

6

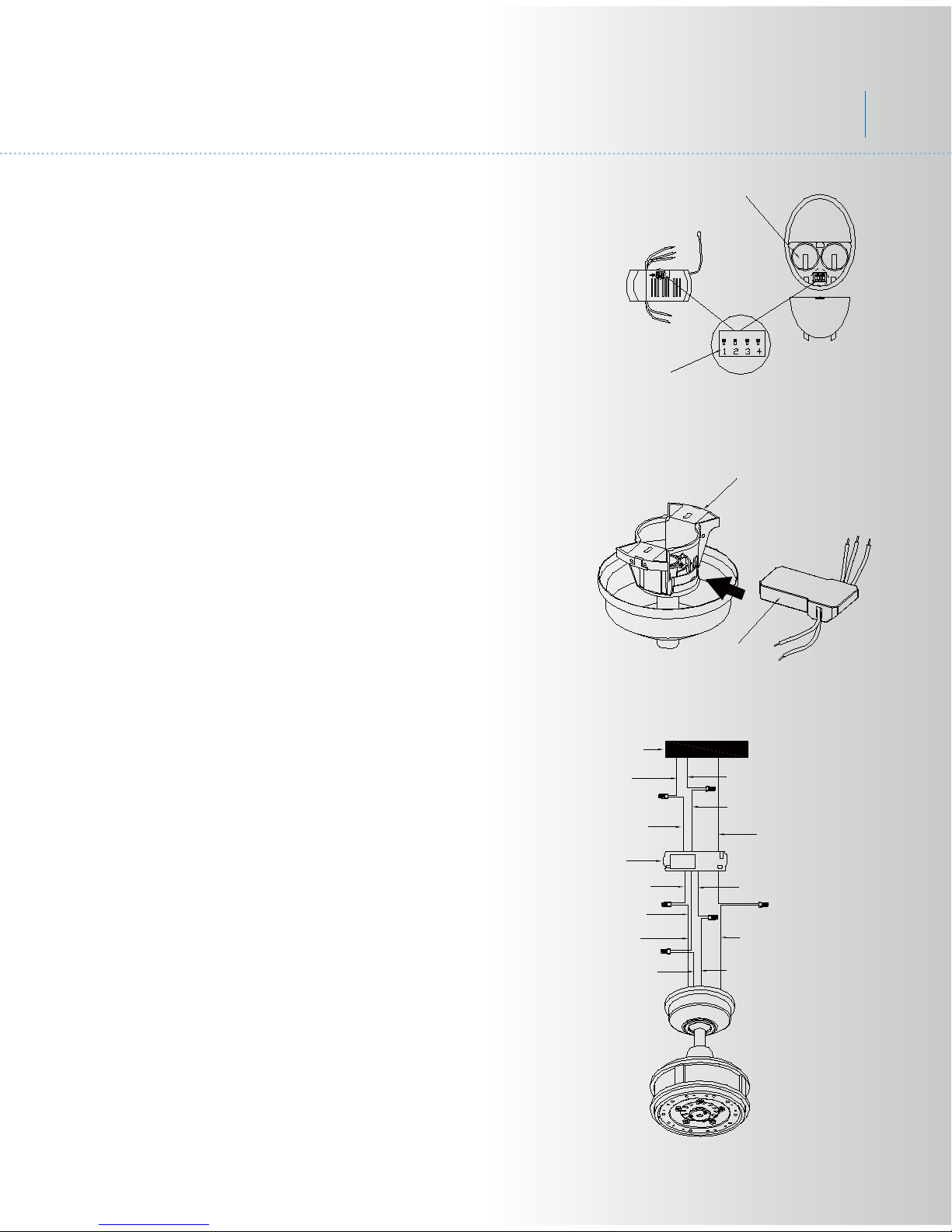

7. MAKE THE ELCTRIC CONNECTIONS
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel before wiring.
WARNING: If your house wires are different
colors than referenced in this manual, stop
immediately. A professional electrician is
recommended to determine proper wiring.
Step 1. Insert the receiver into the mounting
bracket, and keep flat in opposition of ceiling.
(Fig. 13)
Step 2. Motor to Receiver Electrical Connections:
Connect the BLACK wire from the fan to BLACK
wire marked "TO MOTOT L" from the receiver.
Connect the WHITE wire from the fan to the
WHITE wire marked "TO MOTOR N" from the
receiver. Connect the BLUE wire from the fan to
the BLUE wire marked "FOR LIGHT " from the
receiver. Secure all the wire connections with the
plastic wire nuts provided. ( Fig. 14)
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts supplied with your fan. Secure
the connector with electrical tape. Make sure
there are no loose wire stands or connections.
LyndonTM
Fig. 12
ON ECE
Battery Compartment
Code Switch
Fig. 13
Mounting Bracket
Receiver
White (Neutral)
Blue(FOR LIGHT) Ground wire
White("AC IN N")
White("TO MOTOR N")
Green or bare copper (ground)
Black (motor)
Blue(for light)
Black ("TO MOTOR L")
Receiver
Black("AC" IN L")
Black (hot)
Outlex box
White (Neutral)
Fig. 14
NOTE: The CoolTouch Control System is
equipped with 16 code combinations to prevent
possible interference from or to other remote
units. The frequency switches on your receiver
and transmitter have been preset at the factory.
Please recheck to make sure the switches on
the transmitter and receiver are set to the same
position, any combination of settings will
operate the fan as long as the transmitter and
receiver are set to the same opposition.
( Fig. 12) Chainging the orfer of switches on
each switch block, changes the operational
frequency.
TM

7
Step 3. Remote Receiver to Outlet Box Electrical
Connections: Connect the BLACK (hot) wire from
the ceiling to the BLACK wire marked “AC in L”
from the receiver . Connect the WHITE ( neutral )
wire from the ceiling to the WHITE wire marked
“ AC in N” from the Receiver . Secure the wire
connections with the plastic wire nuts provided .
( Fig. 14)
Step 4. If your outlet box has a ground wire
( green or bare copper ) connect it to the fan
ground wires : otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires, spread them
apart so that the green and white wires are on one
side of the outlet box and black and blue wires
are on the other side. ( Fig. 14)
NOTE: Carefully tuck the wire connections up
into the outlet box
NOTE: Fan must be installed at a maximum
distance of 30 feet from the transmitting unit for
proper signal transmission between the
transmitting unit and the fan’s receiving unit.

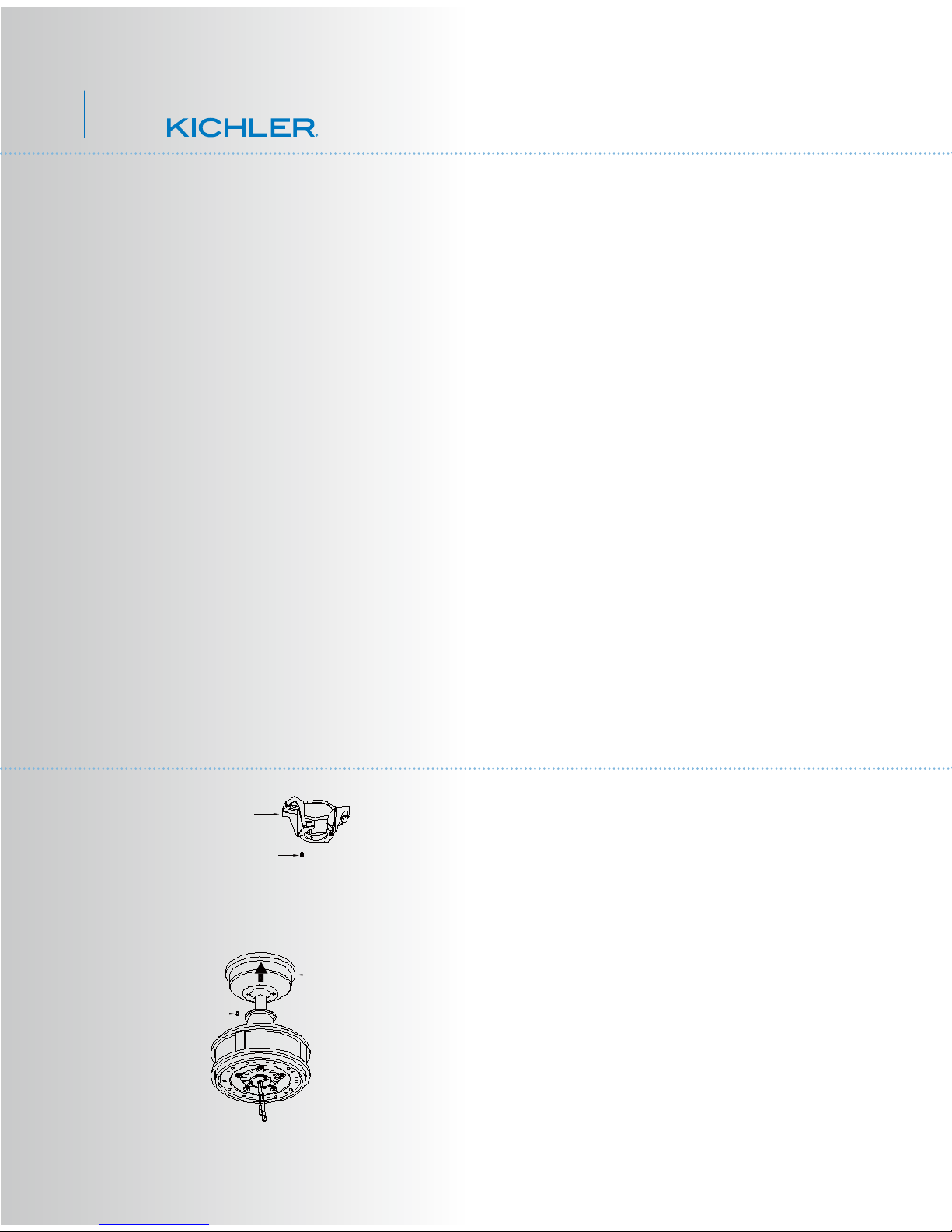

Step 1. Remove one of the two shoulder screws
in the mounting bracket. Loosen the second
shoulder screw without fully removing it.
(Fig. 15)
Step 2. Assemble canopy by rotating key slot in
canopy over shoulder screw in mounting bracket.
Tighten shoulder screw. Fully assemble and
tighten second shoulder screw that was
previously removed. (Fig. 16)
8 . FINISHING THE INSTALLATION
Shoulder Screw
Mounting Bracket
Fig. 15
Canopy
Fig. 16
Shoulder Screw

8
LyndonTM
9. ATTACHING THE FAN BLADES
Step 3. Securely attach and tighten the canopy
hole cover over the shoulder screws in the
mounting bracket utilizing the keyslot twist-lock
feature. (Fig. 17)
NOTE: Before continuing , make sure the power
is disconnected by turning off the circuit breaker
of removing the fuse at the circuit box.
Step 1. Position the blade over the blade arm
with threaded posts showing. Make sure the
bottom edge of the blade is fully seated against
the blade arm. With a Philips screwdrivr, start a
screw into the blade arm (do not tighten) and
repeat for the 2 remaining blade screws and fiber
washers. Tighten each screw securely starting
with the center screw. Make sure the blade is
straight. Repeat steps for the remaining blades.
(Fig. 18)
Step 2. Fasten blade assembly to the holes
located on the bottom of the flywheel. Tighten the
two "pre- installed" motor screws in the blade
arm. Repeat steps for the remaining blades
assemblies. (Fig. 19)
Canopy Hole Cover
Fig. 17
Shoulder Screw
Blade
Blade Screw
Fiber Washer
Blade Arm
Fig. 18
Flywheel
Blade Arm
Motor Screw
Motor Body
Fig. 19

10. INSTALLING THE MOUNTING PLATE
9
Step 1. You will find one red label on the mounting
ring. Remove this screw (near the red dot label)
preinstalled on mounting ring and loosen the other
two (do not remove). Align the red dot labels on
the mounting ring and mounting plate. Attach the
mounting plate to the mounting ring with the 2
screws drop into the two slot holes on the mounting
plate. Please adjust the mounting plate if necessary,
to line up the rim both on the motor body and
mounting plate. Securely by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 20)
11. INSTALLING THE LIGHT KIT
NOTE: Before continuing installation, confirm that
the power is still turned off at the main circuit
breaker or by removing the correct fuse. Turning
the power off using a wall switch is not sufficient to
prevent electrical stock.
Step1. Remove 1 of the 3 screws from the
mounting plate and loosen the other 2 screws
(do not remove). (Fig. 21)
Step 2. Hold the light kit close to the mounting
plate and connect the WHITE wires from the
mounting plate and fan by pushing the connectors
together. Follow the same procedure with the
BLACK wires. (Fig. 21)
Step 3. Tuck the connections neatly into the light
kit. Align the key holes on the light kit with the 2
screws on the mounting plate. Turn the ligh kit until
it locks in place at the narrow end of the key holes.
Securely by tighten all three screws. (Fig. 21)
Mounting Ring
Mounting Plate
Screw
Fig. 20
Mounting Plate
Light Kit
Screw
Wiring Connector
Fig. 21
12. INSTALLING THE LAMP AND GLASS
SHAD

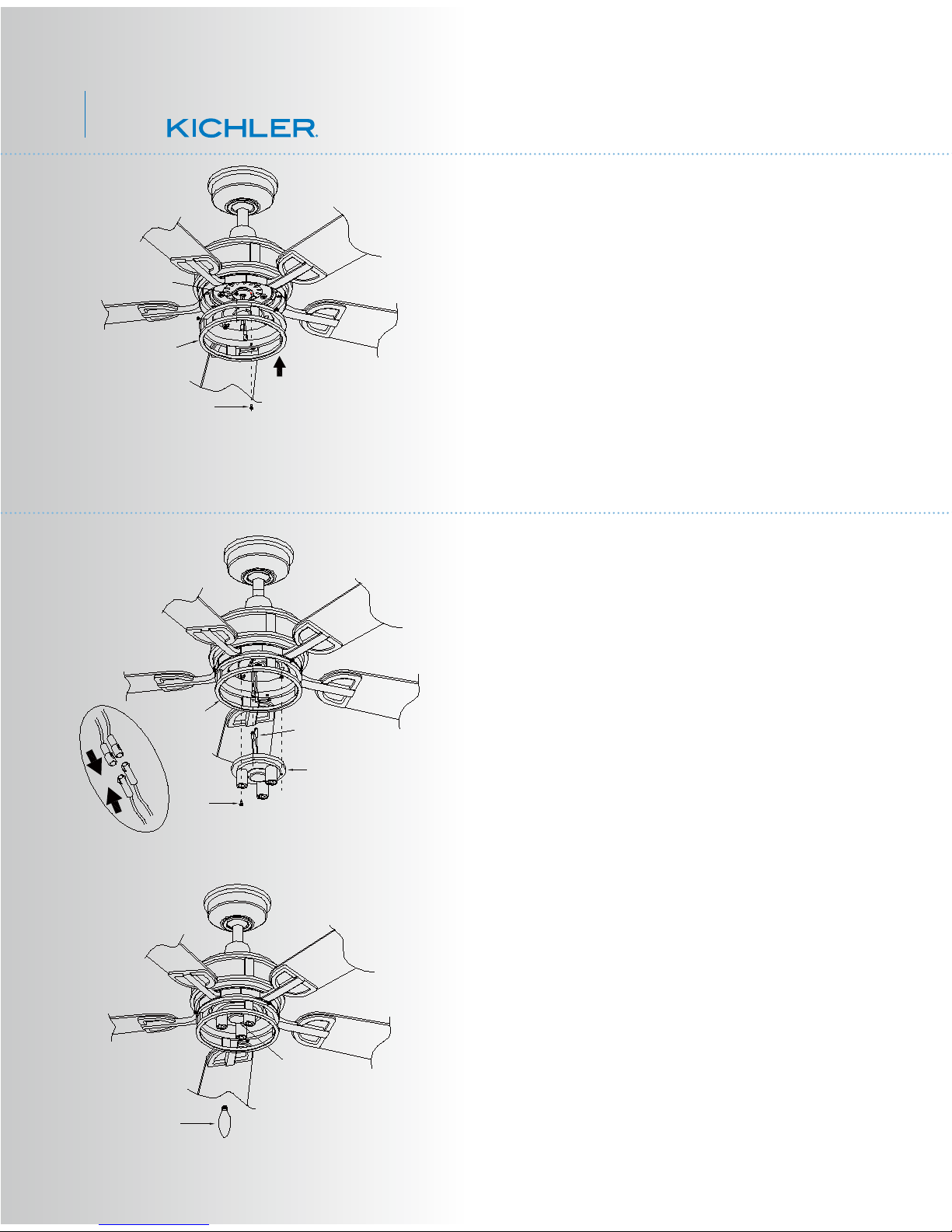

Step 1. Install the 3, 40 Watt/B10 incandescent
lamps (provided). (Fig. 22)
Light Kit
Light Kit
Fig. 22

10
LyndonTM
13. INSTALLING THE COOLTOUCH TM
CONTROL SYSTEM WALL PLATE
Option 1: Install the control system using an
existing wall switch outlet box. Make sure the
electircal power is TURNED OFF at the main
panel before continuing.
Option 1: Install the control system on ANY
flat surface.
Step 1. Remove the existing wall plate and
the old switch from the wall outlet box. Wire
nut the BLACK leads (hot) together and push
back inside the outlet box. (Fig. 24)
Step 2. Install the metal plate and CoolTouch
TM wall plate to the existing wall outlet box
with 4 screws provided. Then place the two
plastic plugs into the wall plate. (Fig. 25)
Step 2. Place the slip resistant sleeve on the
end of the thumb screw with knurled head. Lift
the glass shade allowing it against the mounting
plate and securely tighten with the 3 thumb
screws. Do not overtighten the screws.
Glass Shade Thumb Screw
Slip Resistant Sleeve
Mounting Plate
Fig. 23
Outlet Box
Switch
Wall Plate
Fig. 24
Fig. 25
Outlet Box
CoolTouch Wall Plate
Screw
Metal Plate
TM
Screw
Plastic Plug
Select a location to install your CoolTouch
Control System Transmitter. You can replace an
existing wall switch, or install the transmitter
on ANY flat surface.
TM
Select the desired location and use the
CoolTouch wall plate to make the location
for the mounting holes. Plastic wall anchors and
screws are provided to this type of installation.
After installing the wall anchors, attach the
CoolTouch wall plate with the mounting
screws and then insert the plastic plugs to finish
the installation.
TM
TM

11
14. INSTALLING THE TRANSMITTER
15. CONTROL SYSTEM SET-UP

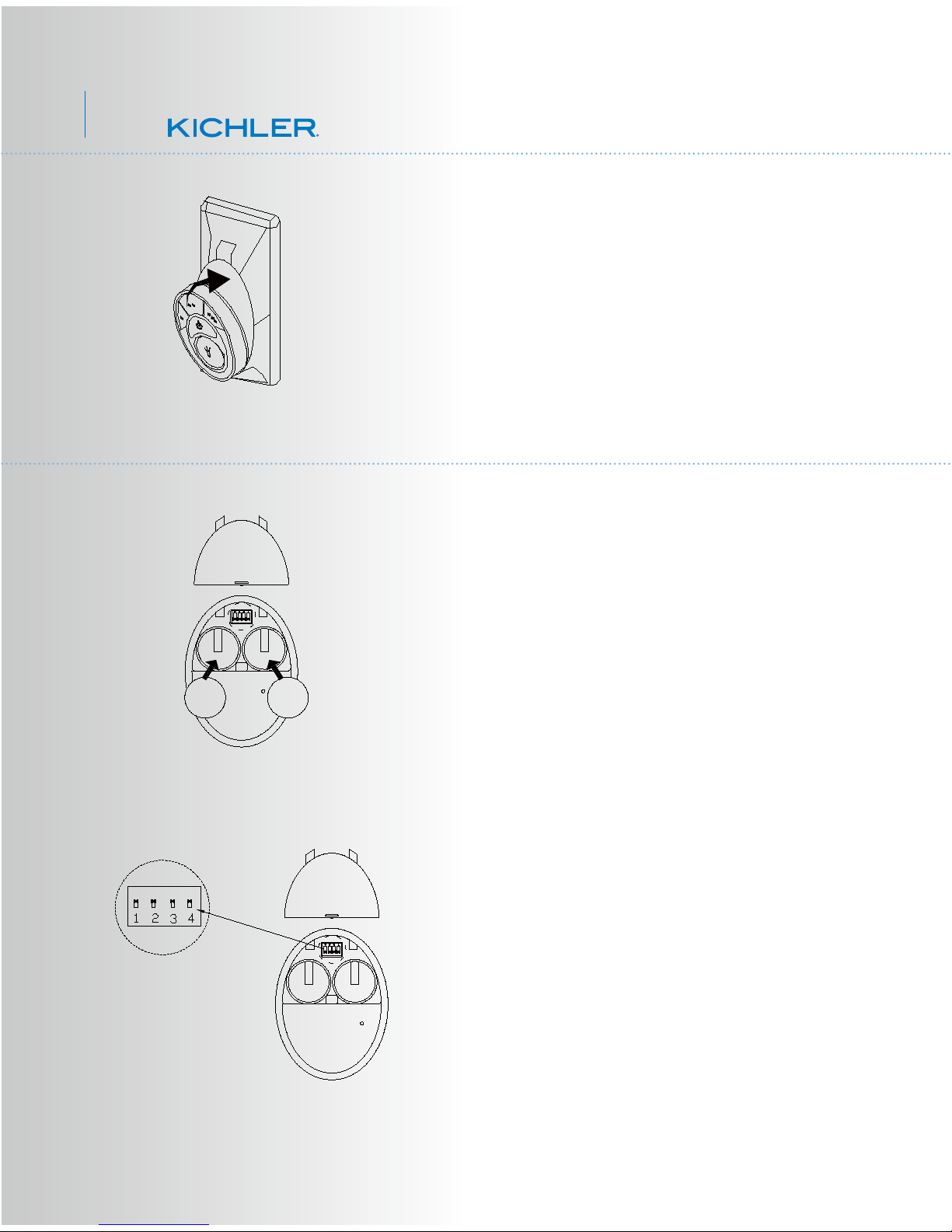

Step 1. To place the transmitter in the wall plate ,
put the bottom end in first and then press the
top into the wall plate. The transmitter is now
held in the wall plate and will function from here .
( Fig. 26)
Step 2. Test the transmitter by pushing and
releasing ANY button. A Blue Light should
illuminate, if not, check to make sure the
batteries are inserted and seated correctly.
(Fig. 27)
Step 3. You can leave the frequency
switches at the factory setting or move
them to any combination of up or down.
Use a small flat bladed screwdriver to
move the switches. (Fig. 28)
Step 2. To remove the transmitter from the
wall plate. Push the release button and the
transmitter will fall into your hand.
NOTE: Make sure the power is completely
disconnected before you begin this procedure.
NOTE: To prevent damage to transmitter ,
remove the batteries if not used for long
periods of time ( months ).
Read all of these steps before preceeding.
Each step must be followed exactly to properly
program the control system.
Fig. 26
Fig. 27
ON
ECE
2032
+
2032
+
CHLER
CEILING
FANS
THE AIR OF DISTINCTION
R
TM
Fig. 28
ON ECE
ON
ECE
Dip Switch
KICHLER
CEILING
FANS
THE AIR OF DISTINCTION
R
TM
Step 1. Install 2,3 volt # 2032 battery included
with the CoolTouch Control system and
make sure they are seated correctly in each
recess with the Positive + Sign facing up.
Replace the battery cover. . (Fig. 27)
TM

12
LyndonTM
16. OPERATING INSTRUCTIONS:
Restore power to ceiling fan and test for
proper operation.
Speed setting for warm or cool weather depend
on factor such as th room size. Ceiling height,
number of fans and so on.
Warm Weather Operation: Forward
(counterclockwise) A downward airflow creates a
cooling effect . This allows you set your air
conditioner on a warmer setting without affecting
your general comfort. (Fig. 31)
Cool Weather Operation: Reverse (clockwise)
An upward airflow creates a warm air off the
ceiling areas. This allows you set your air
conditioner on a cooler setting without affecting
your general comfort. (Fig. 31)

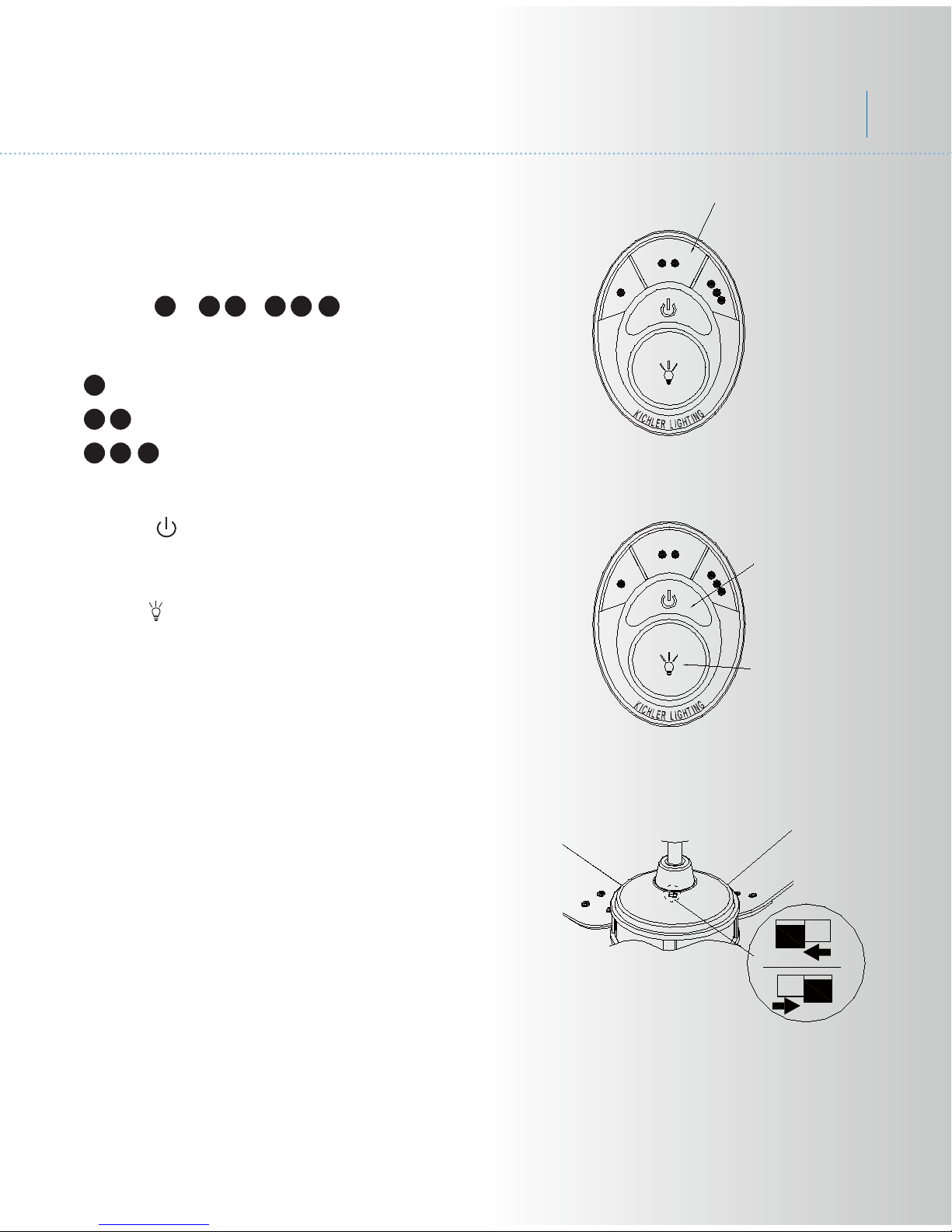

Figure 29
Buttons , , :
These three buttons are used to set the fan
speed as follows:
= Low Speed
= High Speed
= Medium Speed
Figure 30
1. The " " buttons:
This button turns the fan motor off and is also
used in the program procedure.
2. The " " button:
This button turn the light ON or OFF and also
controls the brightness setting.
Fig. 29
Speed Buttons
Fig. 30
Motor Off Button
Light Control Buttons
Fig. 31

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to a wall mounted variable speed control(s). They are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
17. TROUBLESHOOTING
18. SPECIFICATIONS
These are approximate measures . They do not include data for any lamps or fixtures attached
to the ceiling fan.
10.3
kgs
N.W.
12.0
kgs
G.W.
2.23'
C.F.RPM
166
115
52
CFM
5296.4
3423.23
1780
CFM/W
74.3
95.9
189.0
Fan Size
52"
120High
120
120Low
Volts
0.60
0.48
0.22
Amps
71.26
35.68
9.40
WattsSpeed
Medium
13
