Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Instruction Manual
Kittery PointTM
A Kichler®Décor™ceiling fan
Designed to coordinate with a popular Kichler Lighting collection.
Includes our new
CoolTouchTM Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the ground wire and white (common) wire
to one side with the black (load) wire to the
other side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET
BOX MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can not
be removed.
Installing Lamps in excess of 190 total watts
will disable the unit's light fixture. If this
should happen, you will need to reset the
lighting fixture by turning the power off to
the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2

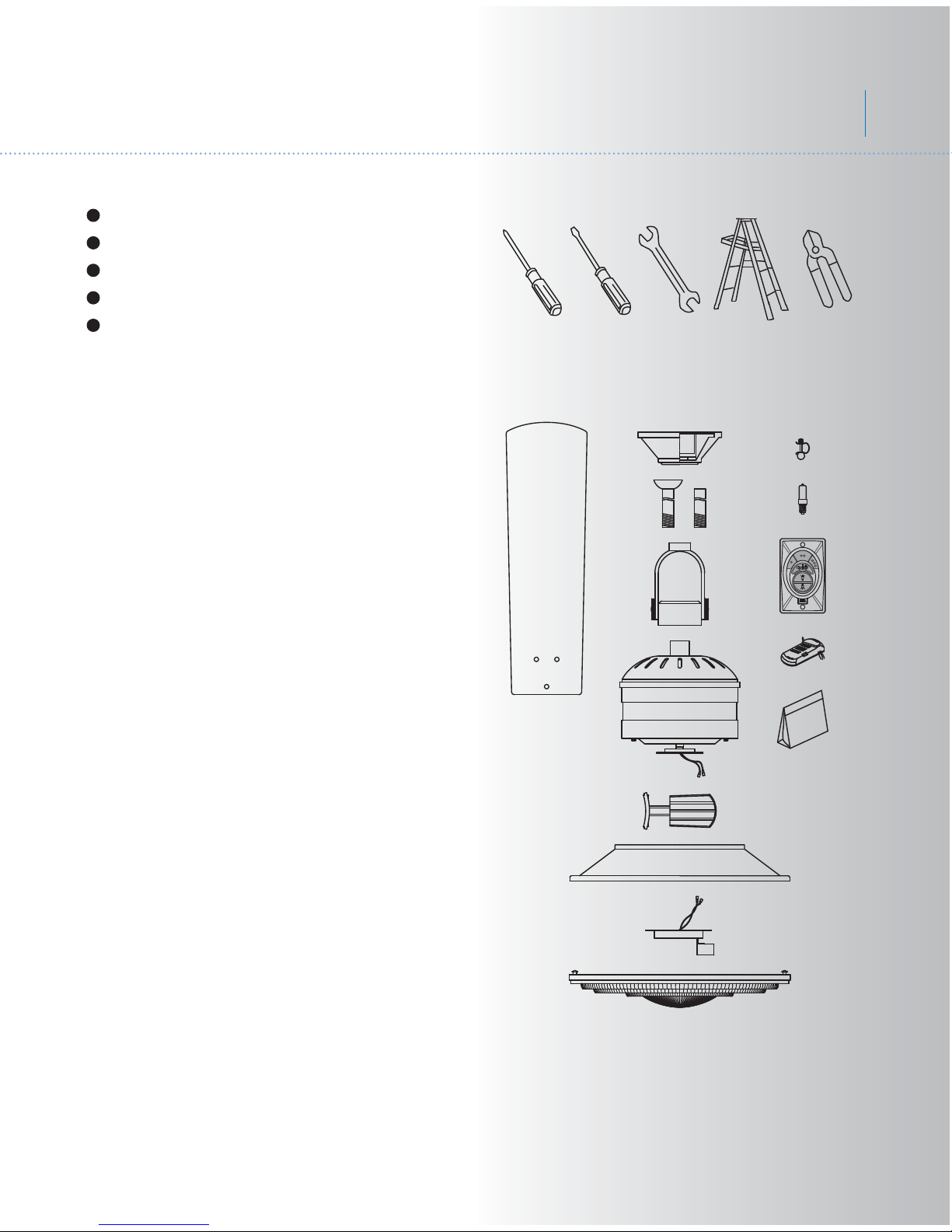

3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Canopy & Ceiling mounting bracket
c. Ball/downrod assembly (1)
& extra downrod (1)
d. Coupling cover
e. Fan motor assembly
f. Set of blade brackets (5)
g. Mounting plate
h. Light kit
i. Glass shade
j. Light kit clip
k. 40W T3 halogen bulbs (4)
l. CoolTouch™Control System
m. Receiver
n. Part bag contents
1) Mounting hardware:
wood screw, flat washer, spring washer,
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (2)
2) Blade attachment hardware:
screws (17), washers (17),
fiber washers (17)
3) Safety cable hardware:
wood screw, lock washer, flat washer
4) Balance kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
a
b
c
d
e
g
h
i
j
f
k
l
m
n
Kittery PointTM

3
4. MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 20°ANGLE

4
Fig. 7
Fig. 8
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
UL Listed
outlet box
120V Wires
Washers
Downrod
Cross pin
Hanger
ball Set screw
Fig. 6
Fig. 5
5. HANGING THE FAN
Supply wires
Downrod
Set screws
Coupling
Set screws
Hitch pin Retaining pin
Kittery PointTM
Ceiling mounting
bracket
Canopy
Canopy
cover
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.
Step 1. Remove the decorative canopy bottom
cover from the canopy by turning the cover
counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the
bottom of the hanging bracket. Turn the
canopy counterclockwise and remove. (Fig. 5)
Step 3. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the
downrod assembly by loosening the set screw,
removing the cross pin and sliding the ball off
the rod. (Fig. 7)
Step 6. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 8)
Step 7. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 8)

5
Fig. 9
Fig. 10
Registration slot
Check tab
Step 8. Slip the coupling cover, canopy cover
and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats firmly. (Fig. 10)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to properly seat the
"Check Tab" can damage the ceiling fan
during operation.
Downrod
Canopy
Canopy cover
Set screws
Screws
Coupling cover
Hanger ball
Hitch pin Retaining pin

6

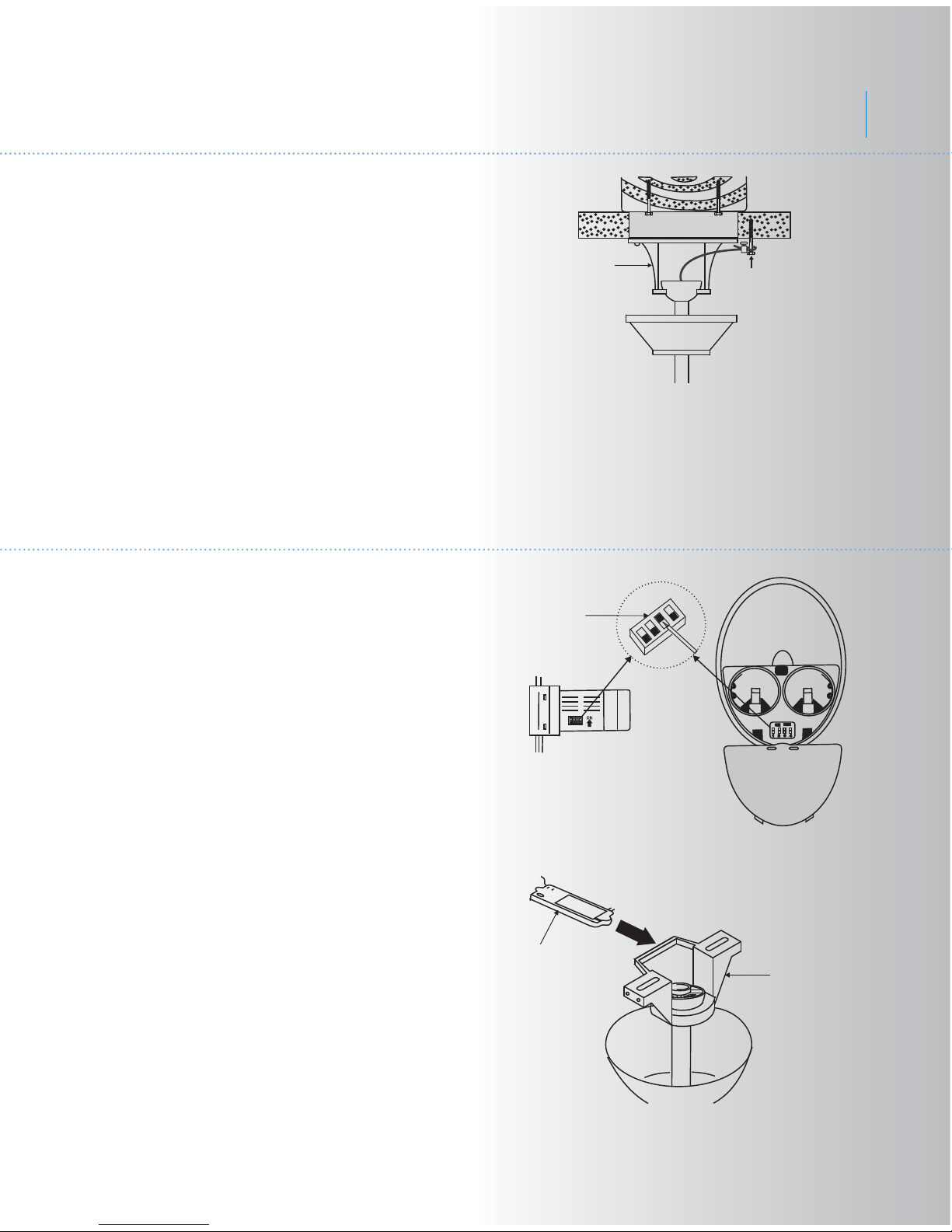

Fig. 11
7. ELECTRICAL CONNECTIONS
6. INSTALLATION OF SAFETY SUPPORT
(for Canadian Installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling, please install
it as follows.
Step 1. Attach the provided wood screw and
washer to the ceiling joist next to the mounting
bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to
reach the screw and washer by pulling the extra
cable through the cable clamp until the overall
length is correct. Put the end of the cable back
through the cable clamp, forming a loop at the
end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the
safety cable over the wood screw and under the
washer. Tighten the wood screw securely.
Ceiling mounting
bracket Attach
safety cable
to ceiling joist
with screw and
washer
Fig. 12
Fig. 13
Code switch
Receiver
Ceiling mounting
bracket
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.
Follow the steps below to connect the fan to
your household wiring. Use the wire connecting
nuts suppled with your fan. Secure the
connectors with electrical tape. Make sure there
are no loose wire strands or connections.
NOTE: The CoolTouch™ Control System is
equipped with 16 possible frequency
combinations to prevent interference from or
with other remote control units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitter and receiver are set to
the same position. (Fig. 12)
Step 1. Insert the receiver into the ceiling
mounting bracket with the flat side of the
receiver facing the ceiling. (Fig. 13)
For best performance, make sure the Black
Antenna, on the end of the receiver, remains
extended and not tangled with any of the
electrical wires.
Kittery PointTM

7
Fig. 15
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
Fig. 14
Step 1. Tuck all the connections neatly into
the ceiling outlet box.
MAKE SURE the Black Antenna wire on the
receiver remains free from all other wires.
Step 2. Slide the canopy up to ceiling and over
the two screws on hanger bracket. Rotate
canopy clockwise, next, while holding the
canopy with one hand, slide the canopy cover
over the screws and rotate clockwise until
tight. NOTE: Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig.15)
Step 2. Motor to Receiver Electrical Connections:
(Fig. 14)
Connect the black wire from the fan to the black
wire marked "TO MOTOR L" on the receiver.
Connect the white wire from the fan to the white
wire marked "TO MOTOR N" on the receiver.
Connect the blue wire from the fan to the blue
wire marked "FOR LIGHT" on the receiver.
Secure each set of wire connections with the
plastic wire nuts provided in the parts bag.
Step 3. Receiver to Supply Wires Electrical
Connections: (Fig. 14)
Connect the black (load) wire from the ceiling
outlet box to the black wire marked "AC in L" on
the receiver.
Connect the white (neutral) wire from the ceiling
outlet box to the white wire marked "AC in N" on
the receiver.
Secure each set of electrical connections with
with the plastic wire nuts provided in the parts
bag.
Step 4. Connect the ground wire (green or bare
copper) from the outlet box to the ground wire on
the ceiling mounting bracket and the ground wire
from the ceiling fan.
After making all connections, separate the white
and green wire connections to one side and the
black wire connections to the other side of the
outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the CoolTouch™Remote
Transmitter for optimal signal transmission
between the transmitter and the fan's receiving
unit.
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green) (Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)
8. FINISHING THE INSTALLATION

8
9. ATTACHING THE FAN BLADES
Fig. 16
Fig. 17
10. INSTALLING THE LIGHT FIXTURE
CAUTION: Remove the five rubber shipping
blocks attached to the face of the motor.
These blocks keep the motor from shifting
during shipping and MUST be removed during
installation.
Step 1. Place a blade on the blade bracket.
Attach the blade to the bracket using the
screws, metal washers and fiber washers
provided. (Fig. 16)
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw and then repeat this procedure for each
blade.
Step 2. Attach each blade assembly to the
motor using "Pre-Installed" mounting screws
on each blade bracket. (Fig 16)
NOTE: Make sure these mounting screws are
securely tightened.
1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws
(do not remove). (Fig. 17)
2. Place the key holes on the mounting plate
over the 2 screws previously loosened from
the mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 17)
Screws
Washers
Fiber
washers
Screws
Blade
bracket
Blade
Mounting plate Mounting ring
Screws
Kittery PointTM

9
Fig. 18
Fig. 19
Step 1. Install 4, 40W T3 halogen bulbs
(provided). (Fig. 19)
Step 2. Loosen the 4 screws on the glass lens
(do not remove). Raise the glass lens against
the light fixture and align the key holes of the
light fixture with the screws of the glass lens,
turn the glass lens clockwise until it locks in
place at the narrow section of the key hole
slots.
Secure the glass lens to the light fixture by
tightening the 4 screws. (Fig. 19)
12. INSTALL THE LIGHT BULBS
Step 1. Loosen the three mounting screws on
the inside of the light fixture.
Hold the light plate close to the light fixture and
connect the white wires from the light plate
and the fan. Follow the same procedure with
the black wire connectors. (Fig. 18)
Tuck the connections neatly into the light
fixture.
NOTE: Be careful not to pinch the light plate
wires between the light plate and the light
fixture.
Place the light plate key holes over the three
mounting screws inside the light fixture and
turn the light plate until it locks in place at the
narrow section of the key hole slots. Secure by
tightening all three screws. (Fig. 18)
11. INSTALLING THE LIGHT KIT
Light plate
Wire connectors
Light fixture
Mounting screws
Glass lens
Light fixture
Light plate
Bulbs
Screws

10
Kittery PointTM
Fig. 20
Fig. 21

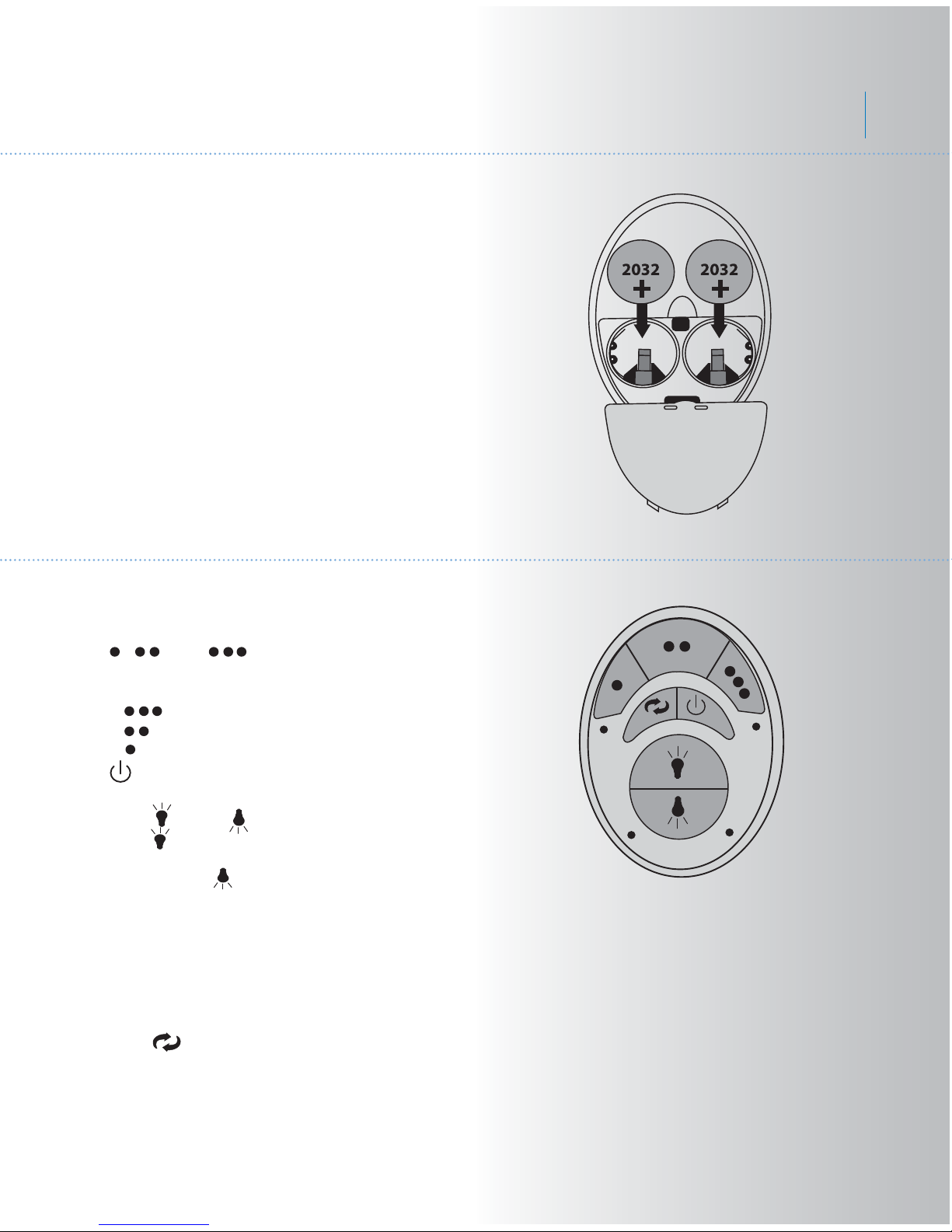

14. OPERATING INSTRUCTIONS
Remove the battery compartment cover on the
back of the CoolTouch™ Transmitter and
insert both batteries provided. Make sure the +
sign is facing up.
Take care during this procedure NOT TO
move the frequency dip switches inside this
compartment. The settings MUST remain the
same as the settings on the receiver for proper
communication with the control system.
It's a good idea to remove these batteries if
your fan is not used for extend periods of time,
(months).
Restore power to ceiling fan and test for
proper operation.
A. , , and buttons:
These three buttons are used to set the
fan speed as follows:
= low speed
= medium speed
= high speed
B. button:
This button turns the fan off.
C. The " " and " " button:
The " " button turns the upper light ON or
OFF and also controls the brightness
setting. The " " button turns the bottom
light ON or OFF and also controls the
brightness setting.
Press and hold either button to set the desired
brightness level. The next time you turn the
light on, the system will remember this setting.
Press and release either button to turn the
light ON or OFF.
D. The " " button is used to set the fan in
forward or reverse operation. Each time you
press this button the fan blades will reverse
direction. This button functions ONLY when
the fan blades are in operation.
13. INSTALLING THE BATTERY

11
Fig. 22
Fig. 23
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
Warm Weather Operation: Forward (counter
clockwise) A downward airflow creates a
cooling effect as shown in Fig. 22. This allows
you to set your air conditioner on a warmer
setting without affecting your general comfort.
Cool Weather Operation: Reverse (clockwise).
An upward airflow moves warm air off the
ceiling areas as shown in Fig. 23. This allows
you to set your heating unit on a cooler setting
without affecting your general comfort.

12
Fig. 24
Fig. 25

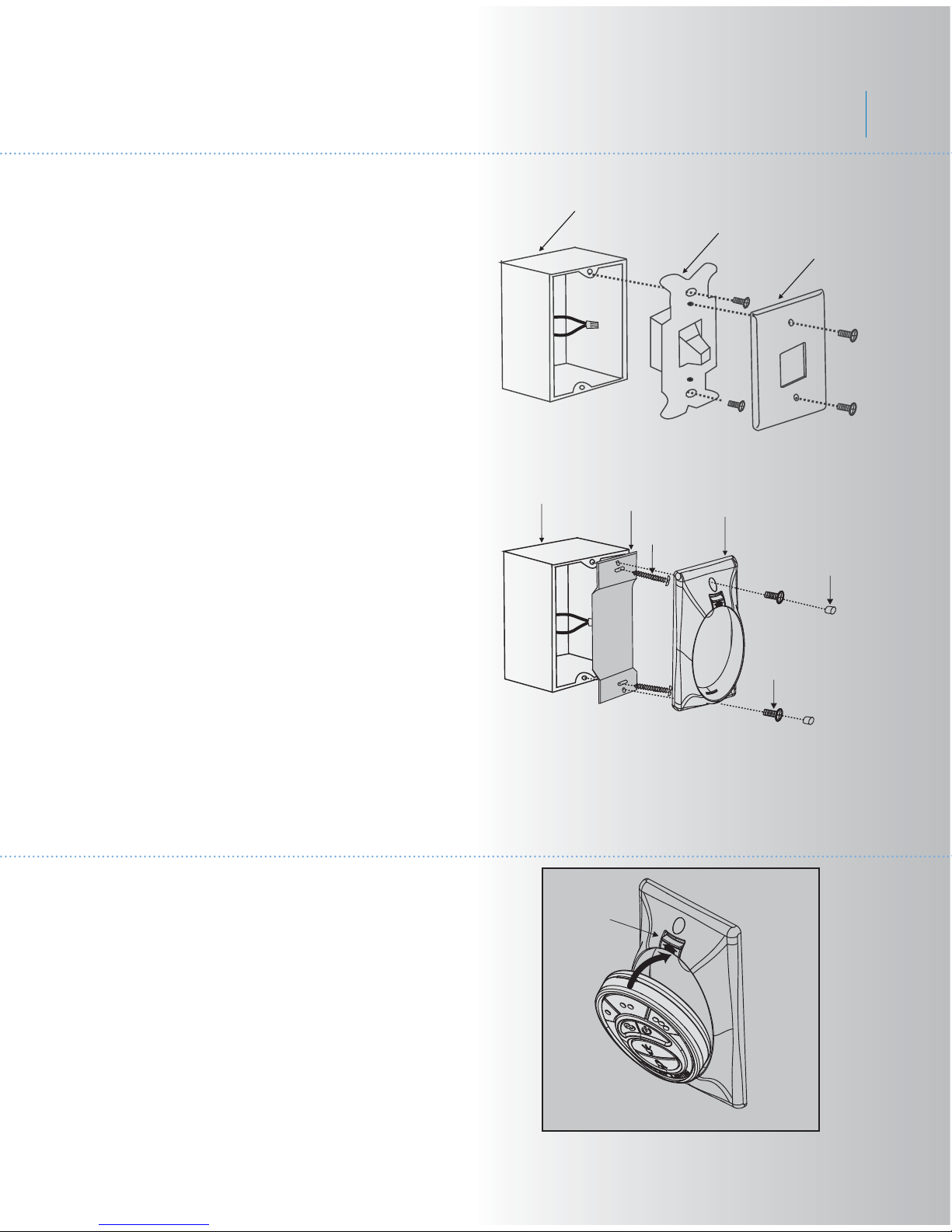

15. INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE
16. INSTALLING THE TRANSMITTER
1. Insert the transmitter into the wall plate by
inserting the bottom of the transmitter first and
then press the top of the transmitter into the
pocket. The transmitter will fully function from
this location or you can remove the transmitter
and use as a "Hand Held" device. (Fig. 26)
2. To remove the transmitter from the wall
plate, push the release button and the
transmitter will fall into your hand.
Release
button
Fig. 26
Wall plate
Switch
Outlet box
Select a location to install your CoolTouch™
Control System Transmitter. You can replace an
existing wall switch or, install the transmitter on
ANY flat surface.
Option 1: Install the control system using an
existing wall switch outlet box.
Make sure the electrical power is TURNED OFF
at the main panel before continuing.
Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut the
BLACK leads (hot) together and push back
inside the outlet box. (Fig. 24)
Step 2. Install the metal plate and CoolTouch™
wall plate to the existing wall outlet box with 4
screws provided. Then place the two plastic
plugs into the wall plate. (Fig. 25)
Option 2: Install the control system on ANY flat
surface.
Select the desired location and use the
CootTouch™ wall plate to mark the location for
the mounting holes.
Plastic wall anchors and screws are provided for
this type of installation.
After installing the wall anchors, attached the
CoolTouch™ wall plate with the mounting
screws and then insert the plastic plugs to finish
the installation.
Screws
Screws
Plastic plugs
CoolTouch™wall plate
Outlet box Metal plate
Kittery PointTM

18. SPECIFICATIONS
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the batteries are installed properly. Positive (+) side facing out.
4. Check to make sure the batteries are installed properly. (Positive + side
facing out)
5. Check to make sure the batteries are not dead.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Make sure the light bulbs are not touching any other component.
6. Do not connect the fan with wall mounted variable speed control(s).
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall
switch, if desired.
2. Make sure the frequency dip switches in the transmitter and receiver have
identical settings.
3. Make sure the Black Antenna on the receiver is NOT tangled with any other
electrical wires and is extended around the inside of the ceiling canopy.
17. TROUBLESHOOTING
13
3.40'
33.00
kgs 35.20 kgs
0.49
0.44
0.30
59.0
34.0
12.0
166
122
65
5053.55
3837.65
2130.57
85.65
112.87
177.55
RPM CFM CFM/W N.W. G.W. C.F.
120
120
120
Fan Size
52"
Speed Volts
Amps Watts
Low
Medium
High
