INSTRUCTION MANUAL
Model#310254
Product images may vary slightly from actual product.
54" Fit
READ AND SAVE THESEINSTRUCTIONS

2| KICHLER.COM

TABLE OF CONTENTS
SAFETY RULES ....................................................................4
TOOLS REQUIRED .............................................................6
PACKAGE CONTENTS .....................................................6
MOUNTING OPTIONS ......................................................7
HANGING THE FAN ..........................................................8
INSTALLATION OF SAFETY SUPPORT ...................10
ELECTRICAL CONNECTIONS ......................................11
FINISHING THE MOTOR INSTALLATION ...............13

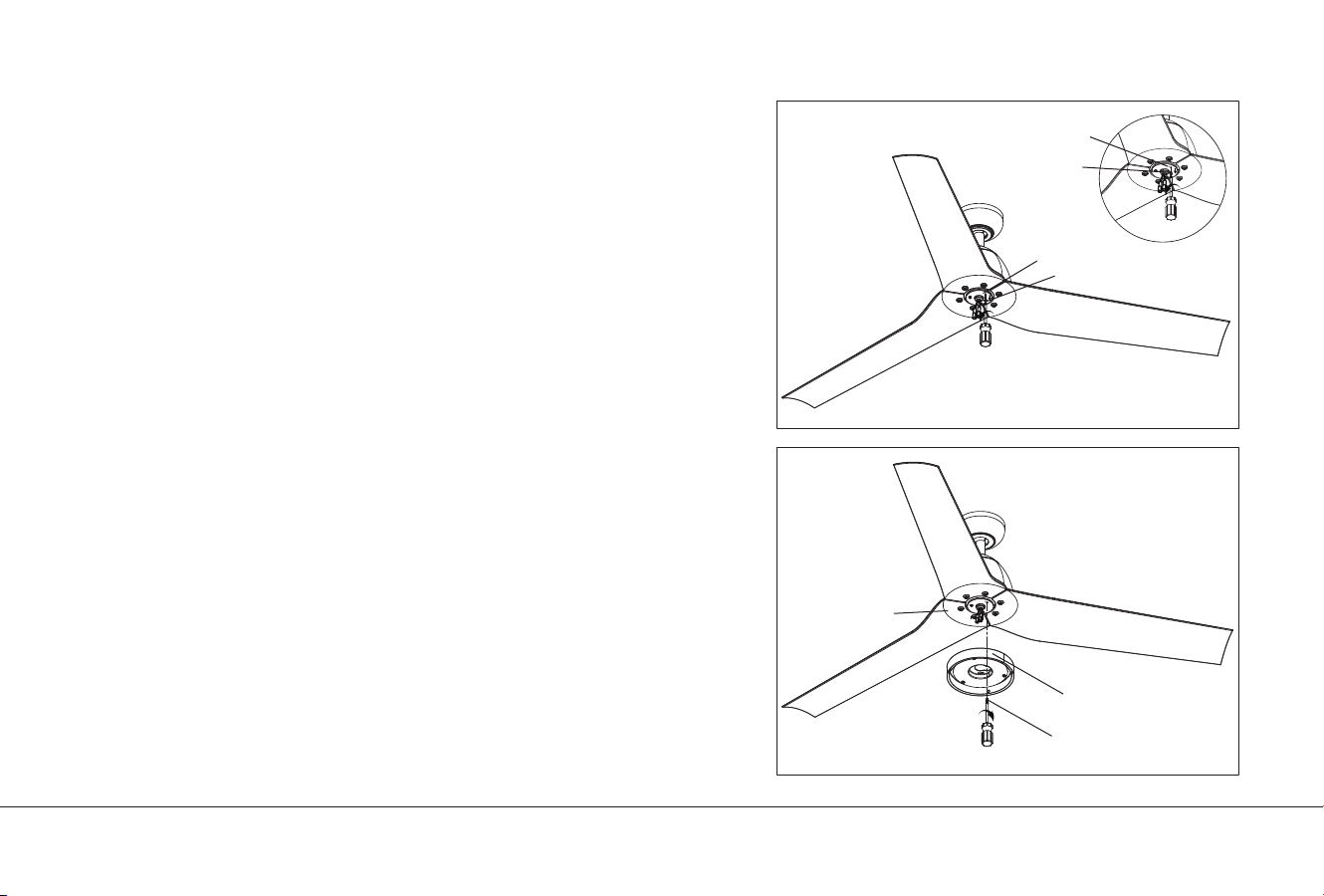

ATTACHING THE FAN BLADES ..................................14
INSTALLING THE DECORATIVE CAP.......................15
INSTALLING THE LIGHT KIT ........................................16
INSTALLING THE LIGHT KIT SHADE.........................18
OPERATING INSTRUCTIONS ......................................19
TROUBLESHOOTING ....................................................23
FCC INFORMATION .......................................................
.. 25
54" Fit | 3

4 |KICHLER.COM
SAFETY RULES
1. CAUTION - RISK OF SHOCK: Disconnect Power at
the main circuit breaker panel or main fusebox before
starting and during the installation.
2. WARNING: All wiring must be in accordance with the
National Electrical Code “ANSI / NFPA70”and local
electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electric shock, this
fan must be installed with a general-use, isolating
wall control / switch.
4. WARNING: Not suitable for use with solid-state speed
controls.
5. WARNING: To reduce the risk of fire, electric shock,
or personal injury, mount to outlet box marked
“acceptable for fan support of 15.9 kg (35 lbs.) or
less” and use mounting screws provided with the
outlet box. Most outlet boxes commonly used for
the support of light fixtures are not acceptable for
fan support and may need to be replaced. Due to the
complexity of the installation of this fan, a qualified
licensed electrician is strongly recommended.
6. The outlet box and support structure must be
securely mounted and capable of reliably supporting
a minimum of 15.9 kg (35 pounds). Use only cULus
Listed outlet boxes marked “Acceptable for Fan
Support of 15.9 kg (35 lbs) or less”.
7. The fan must be mounted with a minimum of 2.1m (7
feet) clearance from the trailing edge of the blades to
the floor.
8. To operate the reverse function on this fan, press the
“Reverse" button on the transmitter while fan is
running.
9. Avoid placing objects in the path of the blades.
10. WARNING: make sure the power is disconnected
before cleaning your fan.
WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.
DON'T SECURE THIS FAN TO AN OUTLET BOX.

54" Fit | 5
SAFETY RULES
11. To avoid personal injury or damage to the fan and
other items, be cautious when working around or
cleaning the fan.
12. Do not use water or detergents when cleaning the fan
or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
13. After making electrical connections, spliced
conductors should be turned upward and pushed
carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the
outlet box and the ungrounded conductor on the
other side of the outlet box.
14. Electrical diagrams are reference only. Light kits that
are not packed with the fan must be cULus Listed
and marked suitable for use with the model fan you
are installing. Switches must be cULus General Use
Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
15. All set screws must be checked, and retightened
where necessary, before installation.
16. N.W.6.3KGS(13.89 LBS) / G.W.7.4 KGS(16.31 LBS)
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADES DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

A
B
C
G
H
I
J
M
K
N
L
D
E
F
x3
x9
x1
x1
x1
x7
TOOLS AND MATERIALS REQUIRED
• Phillips Screwdriver
• Blade Screwdriver
• 11 mm Wrench
• Step Ladder
• Wire Cutters
PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:
A. Mounting Bracket
B. Ball / Downrod Assembly
C. Canopy
D. Canopy Trim Ring
E. Coupling Cover
F. Motor Body
G. Fan Blades (3)
H. Light Kit Housing
I. Light Kit
J. Light Kit Shade
K. Wire Cover
L. Decorative Cap
M. Transmitter
Transmitter (TRD250K3M) (1)
Receiver (1)
Batteries (2)
Wire Connectors (9)
N. Package Hardware
1)Mounting Hardware:
Wire Connectors (3)
2)Blade Attachment Hardware：
Fan Blade Mounting Screws
(and washers) (7)
3)Safety Cable Hardware:
Wood Screw (1), Spring Washer (1),
Flat Washer (1)
6| KICHLER.COM
x2 x2 x2
CR2032 3V

54" Fit | 7
Outlet box
Outlet box
Outlet box
Recessed
outlet box ceiling
mounting
plane
Provide strong
support
ANGLED CEILING
MAXIMUM 15° ANGLE
MOUNTING OPTIONS
lf there isn't an existing UL(cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect
the power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure.
Use appropriate fasteners and building materials. The outlet box
and its support must be able to fully support the full weight of
the fan (up to 15.9 kg (35 pounds)). Do not use plastic outlet boxes.

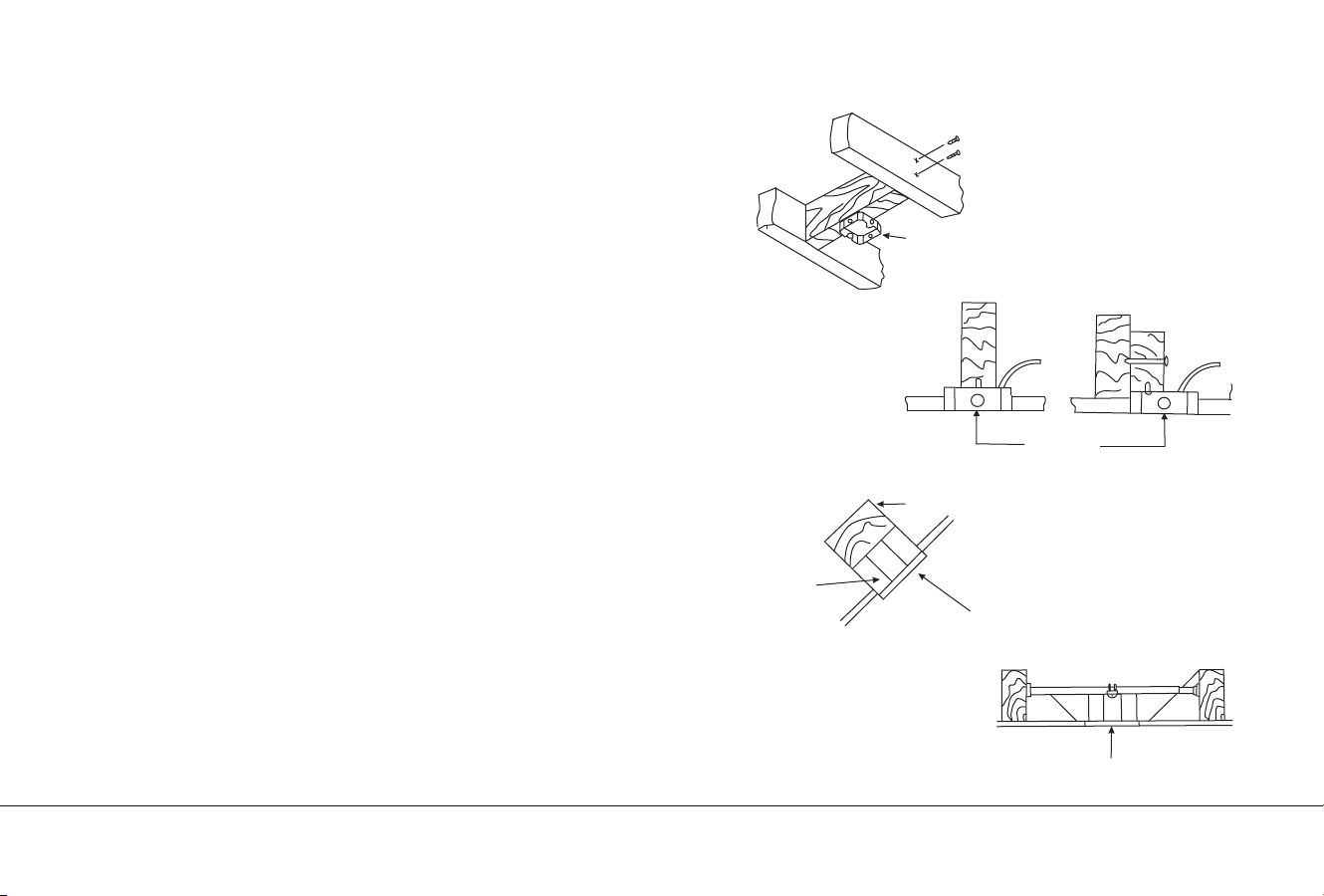

Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist
Hanger” for the support of the outlet box. Make sure the joist
hanger you purchase has been designed for use with ceiling
fans. (Fig. 4)
Fig. 1
Fig. 2
Fig. 3
Fig. 4

8| KICHLER.COM
Fig. 5
Screw (included
with outlet box)
Flat Washer(included
with outlet box)
Outlet Box
Mounting Bracket
Fig. 7
Set Screw
Motor Coupling
CAUTION: To avoid possible electrical shock, be sure you have turned
o the power at the main circuit panel.
REMEMBER to turn o the power before you begin installation. This is
necessary for your safety and also the proper programming of the
control system. To properly install your ceiling fan, follow the steps below.
Step 1. Before attaching the fan to outlet box (not included), ensure the
outlet box is securely fastened to at least two points to a structural ceiling
member (a loose box will cause the fan to wobble). Pass the 120 volt
supply wires from the ceiling outlet box through the center of the ceiling
mounting bracket. Install mounting bracket to outlet box in ceiling using
the screws and washers included with the outlet box. (Fig. 5)
Step 2. Remove the retaining clip and hitch pin from the downrod assembly.
Remove the hanger ball from the downrod assembly by loosening the set
screw on the hanger ball (do not remove), unscrewing and removing the
cross pin, and unscrewing the hanger ball (counterclockwise) from the
downrod. (Fig. 6)
Step 3. Loosen the two set screws (do not remove) on the motor coupling.
(Fig. 7)
HANGING THE FAN
Retaining Clip
Cross Pin
Hitch Pin
Downrod
Assembly
Set Screw
Downrod
Hanger Ball
Fig. 6

54" Fit | 9
Step 4. Carefully feed fan wires and safety cable up through the downrod.
Thread the downrod into the motor coupling until the hitch pin holes are
aligned. Next, replace the hitch pin and retaining clip.
NOTE: Be careful not to jam the hitch pin against the wiring inside of
the downrod. Tighten both set screws. (Fig. 8)
Step 5. Slip the coupling cover, canopy trim ring (smooth finished side
facing motor body), and canopy onto the downrod. Carefully reinstall
the hanger ball onto the downrod. Carefully reinstall the cross pin
through the hanger ball and downrod.
NOTE: Be careful not to jam the cross pin against the wiring inside
of the downrod. Make sure the cross pin is in the correct position.
Tighten the cross pin. Tighten the set screw on the hanger ball.
Make sure the wires are not twisted. (Fig. 9)
Step 6. Lift the motor body into position and place the hanger ball into
the mounting bracket. Rotate the entire assembly until the “Check Tab”
has dropped into the “Registration Slot” and seats firmly. (Fig.10) The
entire motor body should not rotate if this is done correctly.
WARNING: Failure to reattach the cross pin and seat the “Check Tab” can
cause the fan to fall from the ceiling during operation. Take special care to
make sure this pin is reattached.
HANGING THE FAN (continued)
Retaining Clip
Set Screw
Motor Coupling
Downrod
Hitch Pin
Set Screw
Hitch Pin Retaining Clip
Fig. 8
Fig. 9
Motor Body
Hanger Ball
Canopy
Canopy
Trim Ring
Coupling Cover Hanger Ball
Set Screw
Cross Pin
CheckTab
MountingBracket
Registration Slot
Hanger Ball
Fig. 10

10 | KICHLER.COM

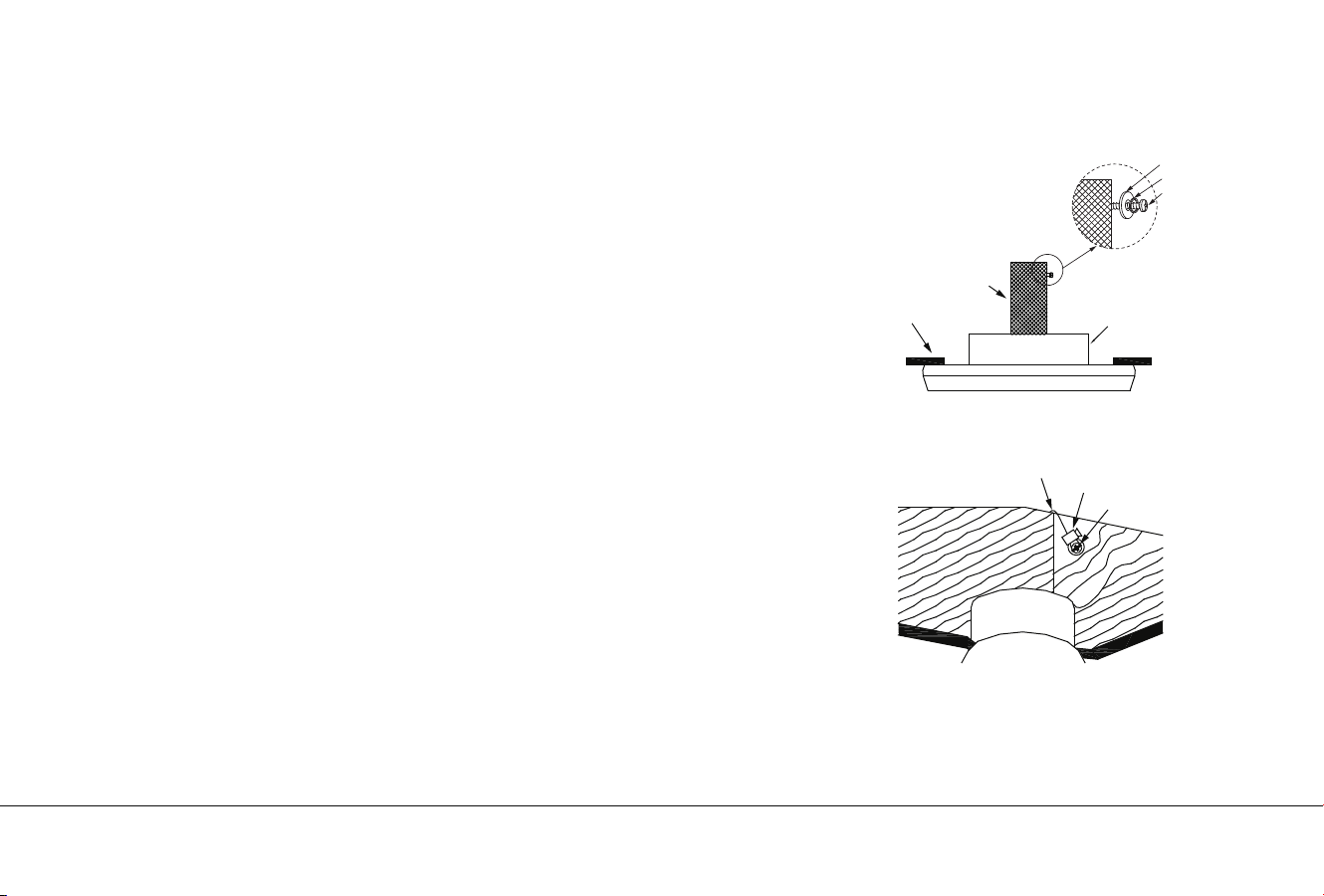

A safety support cable is provided to help prevent the ceiling fan from
falling, please install it as follows.
Step 1 . Slip the spring washer, then the flat washer onto the wood screw,
then drive the wood screw into the side of the brace that holds the outlet box.
Leave 3mm (1/8") of space between the support brace and the flat washer.
(Fig.11)
Step 2 . lnsert the safety cable through the mounting bracket and one of the
holes in the outlet box into the ceiling. Adjust the length of the safety cable to
reach the wood screw and flat washer by pulling the extra cable through the cable
clamp until the overall length is correct, put the end of the cable back through
the cable clamp, forming a loop at the end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the safety cable over the wood screw
and under the flat washer. Tighten the wood screw securely. (Fig.12)
NOTE: Although the safety support cable is required for Canadian
installations only, it is a good idea to make the attachment with any
installation.
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
Fig. 11
Fig. 12
Safety Cable Cable Clamp
Wood Screw
Flat Washer
Spring Washer
Wood Screw
Support Brace
Ceiling Outlet Box

54"Fit| 11

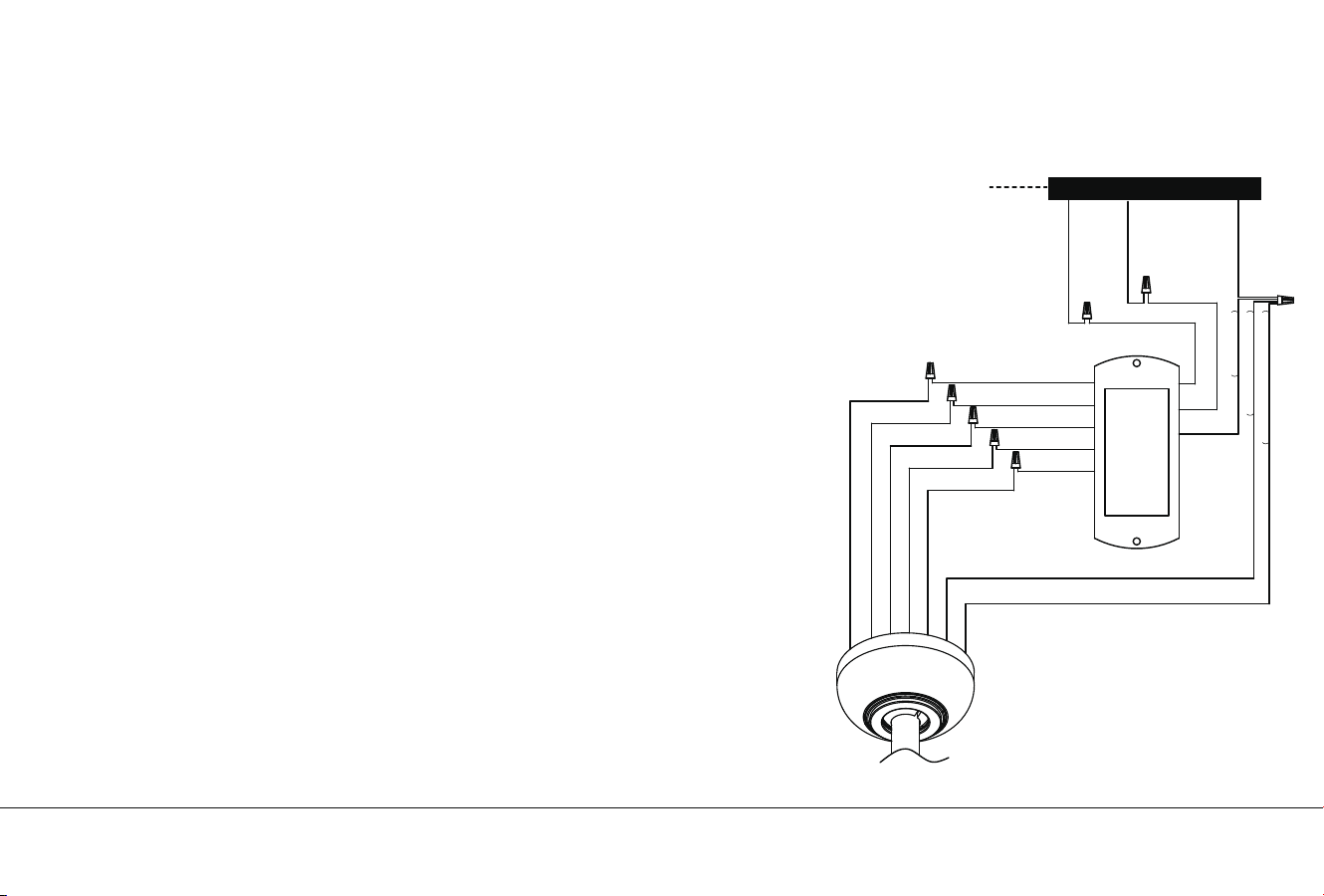

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o
the power at the main circuit panel before wiring. Follow the steps below
to connect the fan to your household wiring. Use the wire connectors
supplied with your fan. Secure the connectors with electrical tape.
Make sure there are no loose wire strands or connections
WARNING: This control is designed for use with "DC Motor Ceiling Fans"
ONLY. DO NOT use with any other type of electrical appliance.
WARNING: All wiring must conform to national and local electrical codes.
lf you feel you do not have enough electrical knowledge, have a licensed
electrician install the control.
WARNING: lf your house wires are dierent colors other than referenced
in this manual, stop immediately. A professional electrician is recommended
to determine proper wiring.
Make each of the wire connections illustrated in Fig. 13. Secure each with the
wire nuts provided.
WARNING: Check to see that all connections are tight, including ground, and
that no bare wire is visible at the wire connections.
Fig. 13
CAUTION: To avoid possible electrical shock, be sure you have turned o
the power at the main circuit panel.

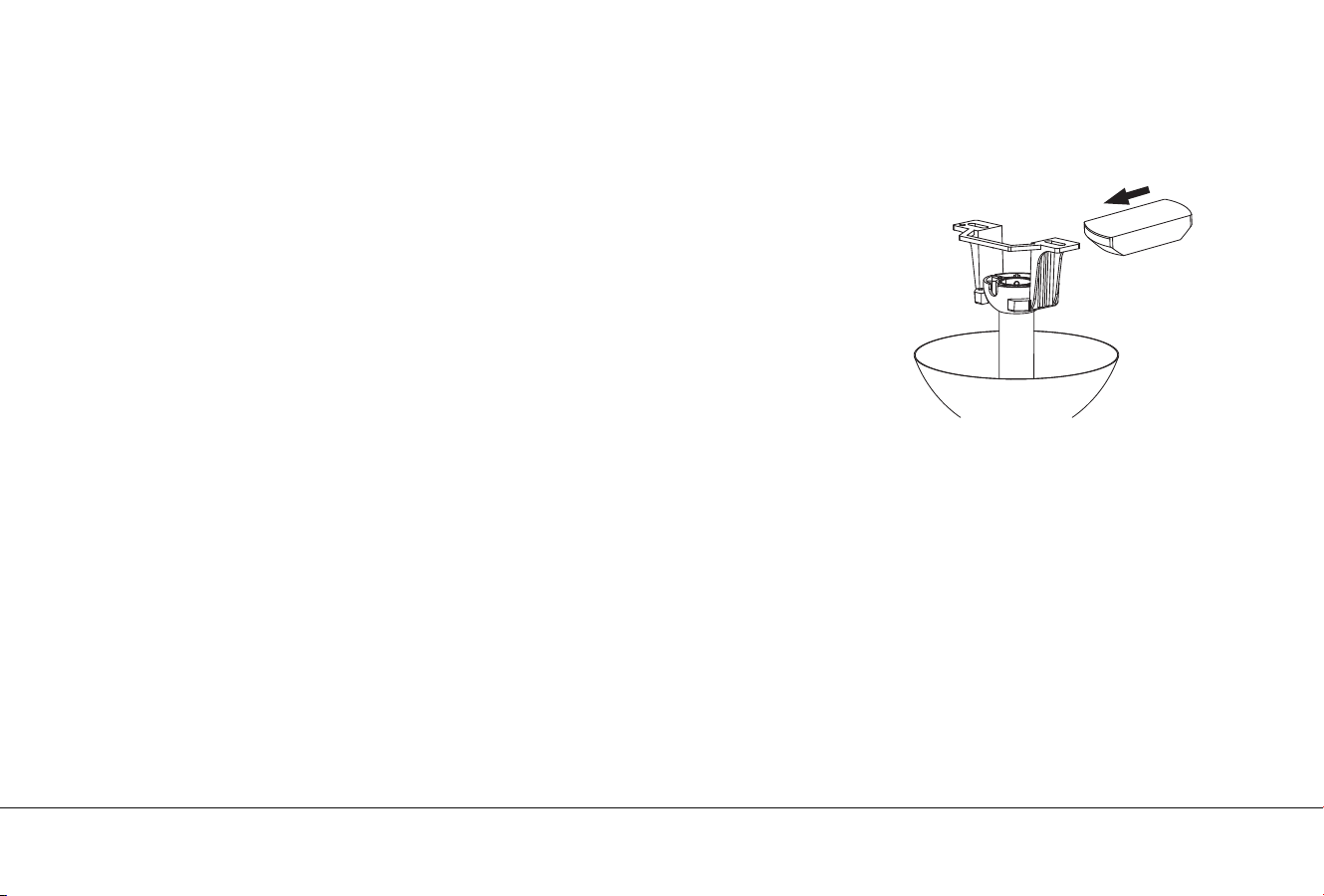

Step 1 . Insert the receiver into the ceilling mounting bracket with the
flat side of the receiver facing the ceiling (Fig.13) for best performance,
make sure the black antenna wire (on the end of the receiver) remains
extended, and does not become tangled with the electrical wires.

12 | KICHLER.COM
ELECTRICAL CONNECTIONS (continued)
Step 1. Connect the BLUE (FOR LIGHT) wire from the fan to BLUE wire
marked “FOR LIGHT L” from the receiver. (Fig.14)
Step2. Connect the WHITE (FOR LIGHT) wire from the fan to WHITE
wire marked “FOR LIGHT N” from the receiver. (Fig.14)
NOTE: If you DO NOT plan to use the light kit with your fan at this time,
please DO NOT connect the Blue (FOR LIGHT) wires or White
(FOR LIGHT) wires. Instead, cap each individual Blue wire and
White wire with wire nuts.
Step3. Connect the YELLOW (TO MOTOR U) wire from the fan to
YELLOW wire marked “TO MOTOR” from the receiver. (Fig.14)
Step4. Connect the GRAY (TO MOTOR V) wire from the fan to
GRAY wire marked “TO MOTOR” from the receiver. (Fig.14)
Step5. Connect the RED (TO MOTOR W) wire from the fan to RED
wire marked “TO MOTOR” from the receiver. (Fig.14)
Step 6. Connect the BLACK (L) supply wire from outlet box to wire
marked BLACK "AC IN L" from the receiver. (Fig. 14)
Step 7. Connect the WHITE (N) neutral wire from outlet box to WHITE
wire marked "AC IN N" from the receiver. (Fig. 14)
Step 8. Connect GROUND (GREEN) wires from mounting bracket,
hanger ball, and receiver to household GROUND (GREEN) or
BARE (COPPER). (Fig.14)
NOTE: After making all wire connections, turn the wire connecting nuts
upward, and push the wiring into the outlet box. Separate the white
(neutral) and green (ground) wire connections to the one side of
the outlet box, and the black (hot) wire connections to the other
side of the outlet box.
Fig. 14
Receiver
Outlet box
GRAY (TO MOTOR V)
GRAY (TO MOTOR)
YELLOW (TO MOTOR)
YELLOW (TO MOTOR U)
RED (TO MOTOR)
RED (TO MOTOR W)
W HITE (FOR LIGHT N)
WHITE (FOR LIGHT)
BLUE (FOR LIGHT)
BLUE
(FOR LIGHT L)
BLACK(L)
BLACK (AC IN L)
W
HITE
(N)
W HITE (AC IN N)
GROUND
FROM RECEIVER
GROUND
GROUND
FROM MOUNTING BRACKET
GROUND
FROM BALL / DOWNROD ASSEMBLY

54" Fit | 13
FINISHING THE MOTOR INSTALLATION
CAUTION: Before continuing installation, confirm that the
power is still turned o at the main circuit breaker or by
removing the circuit fuse. Turning the power o using a wall
switch is not sucient to prevent electrical shock.
Step 1. Loosen the two shoulder screws at the bottom of the mounting
bracket (do not remove). (Fig. 15)
Step 2. Raise the canopy to the mounting bracket. Place the key hole slots
in the canopy over the shoulder screws in the mounting bracket. Rotate the
canopy (clockwise) until the canopy locks in place against the shoulder
screws (at the narrow ends of the key hole slots). Tighten the two shoulder
screws to secure the canopy in place. (Fig. 16)
WARNING: Make sure the "Check Tab" at the bottom of the ceiling
mounting bracket is properly seated in the "Registration Slot" on the
side of the hanger ball before attaching the canopy to the ceiling
mounting bracket.
Step 3. Raise the canopy trim ring to the canopy. Place the key hole slots in the
canopy trim ring over the heads of the shoulder screws. Rotate the canopy
trim ring (clockwise) until it locks in place against the shoulder screws
(at the narrow ends of the key hole slots). (Fig. 17)
NOTE: Adjust the shoulder screws as necessary until the canopy and canopy
trim ring are snug. (Fig. 17)
Fig. 17
Fig. 15 Mounting Bracket
Shoulder Screw
Shoulder
Screw
Shoulder Screw
Shoulder Screw
Canopy
Fig. 16
Shoulder
Screw
Canopy
Trim Ring

14 | KICHLER.COM
ATTACHING THE FAN BLADES
Fig. 18
Blade Screw and Washer
Motor Flywheel
Motor Body
Fan Blade
CAUTION: Before continuing installation, confirm that the power
is still turned o at the main circuit breaker or by removing the
circuit fuse. Turning the power o using a wall switch is not
sucient to prevent electrical shock.
Step 1. Line up the holes in the fan blades with the holes in the motor
flywheel. Attach fan blades to the flywheel with blade screws and
washers provided. Tighten to secure. (Fig. 18)

54"Fit| 15
INSTALLING THE DECORATIVE CAP
(IF NOT INSTALLING THE LIGHT KIT)
Fig. 19
Mounting
Plate Screws
Mounting
Plate Screws
Mounting
Plate
Mounting
Plate
Wire Cover
Wire Cover
Mounting
Plate Screws
Mounting
Plate Screws
Decorative Cap
Fig. 20
Fig. 21
CAUTION: Before continuing installation, confirm that the
power is still turned o at the main circuit breaker or by
removing the circuit fuse. Turning the power o using a wall
switch is not sucient to prevent electrical shock.
NOTE: If installing the light kit instead of the decorative cap, skip ahead to
the "ATTACHINGTHE LIGHT KIT" instructions on the next page.
Step 1. Remove the three mounting plate screws from the mounting plate.
Retain mounting plate screws. (Fig.19)
Step 2. Raise the wire cover to the mounting plate.
NOTE: Make sure that all wires protruding from the center of the mounting
plate are inside of the wire cover.
Align the holes in the wire cover with the holes in the mounting plate, then
install the three mounting plate screws that were removed from the
mounting pate into the aligned holes. Tighten all 3 mounting plate screws
to secure the wire cover in place. (Fig. 20)
Step 3. Place the decorative cap over the wire cover and twist the
decorative cap (clockwise) to secure the decorative cap to the wire
cover. (Fig. 21)

16 | KICHLER.COM
ATTACHING THE LIGHT KIT
(IF NOT INSTALLING THE DECORATIVE CAP)
Light Kit Housing
Mounting Plate
Mounting Plate Screw
Fig. 22
Fig. 23
Mounting Plate Screw
Mounting
Plate Screw
Dot Label
Dot Label
CAUTION: Before continuing installation, confirm that the
power is still turned o at the main circuit breaker or by
removing the circuit fuse. Turning the power o using a
wall switch is not sucient to prevent electrical shock.
NOTE: If installing the decorative cap instead of the light kit, see the
"INSTALLING THE DECORATIVE CAP" instructions on the previous page.
Step 1. Remove the mounting plate screw that is marked with a brown
dot label from the mounting plate. Retain mounting plate screw. Loosen the
other two mounting plate screws (do not remove). (Fig. 22)
Step 2. Place the key hole slots in the light kit housing over the 2
mounting plate screws that were loosened on the mounting plate. Rotate
the light kit housing (clockwise) until it locks in place against the mounting
plate screws at the narrow ends of the key hole slots.
Align the remaining hole in the light kit housing with the remaining hole in
the mounting plate. Install the mounting plate screw that was removed
from the mounting plate into the aligned holes. Tighten all 3 mounting
plate screws to secure the light kit housing in place. (Fig. 23)

54" Fit | 17
ATTACHING THE LIGHT KIT (continued)
Step 2. Hold the light kit close to the light kit housing. (Fig. 25)
Connect the WHITE wire from the light kit to the WHITE wire from the fan
by pushing the wire connectors together.
Connect the BLACK wire from the light kit to the BLACK wire from the fan
by pushing the wire connectors together.
Step 3. Tuck the wire connections neatly into the light kit housing. Place the
key hole slots in the light kit over the 2 light kit housing screws that were
loosened from the light kit housing. Rotate the light kit (clockwise) until it locks
in place against the light kit housing screws at the narrow ends of the key
hole slots.
Align the remaining hole in the light kit with the remaining hole in the light kit
housing. Install the light kit housing screw that was removed from the light
kit housing into the aligned holes. Tighten all 3 light kit housing screws to secure
the light kit in place. (Fig. 25)
Step 1. Remove one of the light kit housing screws from the outer edge of
the light kit housing. Retain light kit housing screw. Loosen the other two
light kit housing screws (do not remove). (Fig. 24)
Light Kit Housing
Light Kit
Housing Screw
Wire Connectors
Light Kit Housing
Light Kit Light Kit
Housing Screw
Fig. 24
Fig. 25

18 | KICHLER.COM
INSTALLING THE LIGHT KIT SHADE
CAUTION: Before continuing installation, confirm that the power is
still turned o at the main circuit breaker or by removing the circuit
fuse. Turning the power o using a wall switch is not sucient to
prevent electrical shock.
Step1. Carefully raise the light kit shade to the fan and seat against the
light kit housing. Carefully rotate the light kit shade (clockwise) until it
locks into place in the light kit housing.
DO NOT OVER-TIGHTEN. (Fig. 26)
Fig. 26

54" Fit | 19
OPERATING INSTRUCTIONS
Select a location to install your CoolTouchTMwall plate. You can replace an existing
wall switch, or install the wall plate on ANY flat surface.
Option 1: Install the wall plate using an existing wall switch outlet box.
CAUTION: Switch installation must comply with all local and national electric code.
Make sure the electrical power is TURNED OFF at the main panel before continuing.
Step 1. Remove the existing wall plate and the old switch from the wall outlet box.
Wire nut the BLACK leads (hot) together and push back inside the outlet box. (Fig.27)
Step 2. Install the metal plate and the CoolTouchTM wall plate to the existing wall
outlet box with 2 screws provided. lnsert the two plastic plugs into the wall plate.(Fig.28)
Option 2: Install the wall plate on ANY flat surface.
Step 1. Select the desired location and use the CoolTouchTM wall plate to mark the
location for the mounting holes.
Step 2. Use the drywall anchors and screws provided to finish the installation.
Step 1. Insert the transmitter into the wall plate by inserting the bottom of the transmitter
first and then pressing the top of the transmitter into the pocket. The transmitter will fully
function from this location or you can remove the transmitter and use it as a hand held
device.(Fig.29)
Step 2. To remove the transmitter from the wall plate, push the release button and the
transmitter will fall into your hand.
INSTALLING THE COOLTOUCH TRANSMITTER WALLPLATE
INSTALLING THE TRANSMITTER
WARNING: All wiring must be in accordancewith theNationalElectrical
Code and localelectricalcodes. Electricalinstallation should be performed
bya qualifed licensedelectrician.
Fig. 27
Fig. 29
Fig. 28
Outlet Box Metal plate
Screws
Screw
CoolTouchTM Wall Plate
Plastic Plug
Outlet Box
Switch
Wall Plate
Release
Button

OPERATING INSTRUCTIONS (continued)
20 | KICHLER.COM
INSTALLING THE TRANSMITTER BATTERIES
Step 1. Remove the safety screw and the battery cover from the back of the
transmitter. Retain safety screw. (Fig. 30)
Step 2. Install two 3V CR2032 batteries (included) with the + side facing up.
(Fig. 31)
Step 3. Reinstall the the battery cover and the safety screw to the back of the
transmitter.
NOTE: If not used for long periods of time (several months), remove batteries
to prevent damage to the handset control. Store the control awayfrom
excessive heat or humidity.
WARNING: Chemical Burn Hazard. Keep batteries away from
children.
This product contains a lithium button/coin cell battery.
If a new or used lithium button/coin cell battery is swallowed or enters the
body, it can cause severe internal burns and can lead to death in as little
as 2 hours.
Always completely secure the battery compartment. If the battery
compartment does not close securely, stop using the product, remove the
batteries, and keep it away from children. If you think batteries might have
been swallowed or placed inside any part of the body, seek immediate
medical attention.
a) The cells shall be disposed of properly, including keeping them away
from children;
b) Even used cells may cause injury.
Fig. 30 Safety Screw
Fig. 31
LEARN
Fig. 32
LEARN
LEARN
Battery Cover
Battery Cover
Safety Screw
