Kichler Lighting Chicago User manual

ChicagoTM
Includes our new
CoolTouchTM Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
A Kichler®Décor™ceiling fan
Designed to coordinate with a popular Kichler Lighting collection.
Instruction Manual

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
2.
3. WARNING: To reduce the risk of electrical
4.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use the outlet boxes marked
"FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
12. Electrical diagrams are for reference only.
Light kits that are not packed with the fan
must be marked suitable for use with the
model fan you are installing.Refer to the
Instructions packaged with the light kits and
switches for proper assembly.
NOTE: NOT SUITABLE FOR USE WITH SOLID-
STATE SPEED CONTROLS.
1. SAFETY RULES
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN TO
OUTLET BOX MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
1
All wiring must be in accordance with the
National Electrical Code, ANSI/NFPA70-1999
and local electrical codes. Electrical installa-
tion should be performed by a qualified
licensed electrician.
WARNING: To reduce the risk of fire,
electric shock, or personal injury, mount
this fan to outlet box marked "Acceptable
for Fan Support" and use mounting
screws provided with the outlet box. Most
outlet boxes commonly used for the sup-
port of light fixtures are not acceptable for
fan support and may need to be replaced.
Due to the complexity of the installation of
this fan, a qualified licensed electrician is
strongly recommended.
conductor of a fan identified as grounded
condutor to be connected to a grounded
conductor of power supply, conductor of fan
identified as ungrounded conductor to be
connected to an ungrounded conductor of
power supply,conductor of fan identified for
equipment grounding to be connected to an
equipment-grounding conductor.
breaker or fuse box before cleaning and
maintenace, attempting Installation.
shock and fire, do not use this fan with
any solid-state fan speed control device.
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS WHEN
INSTALLING THE BRACKETS, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS IN BETWEEN ROTAT-
ING FAN BLADES.

2

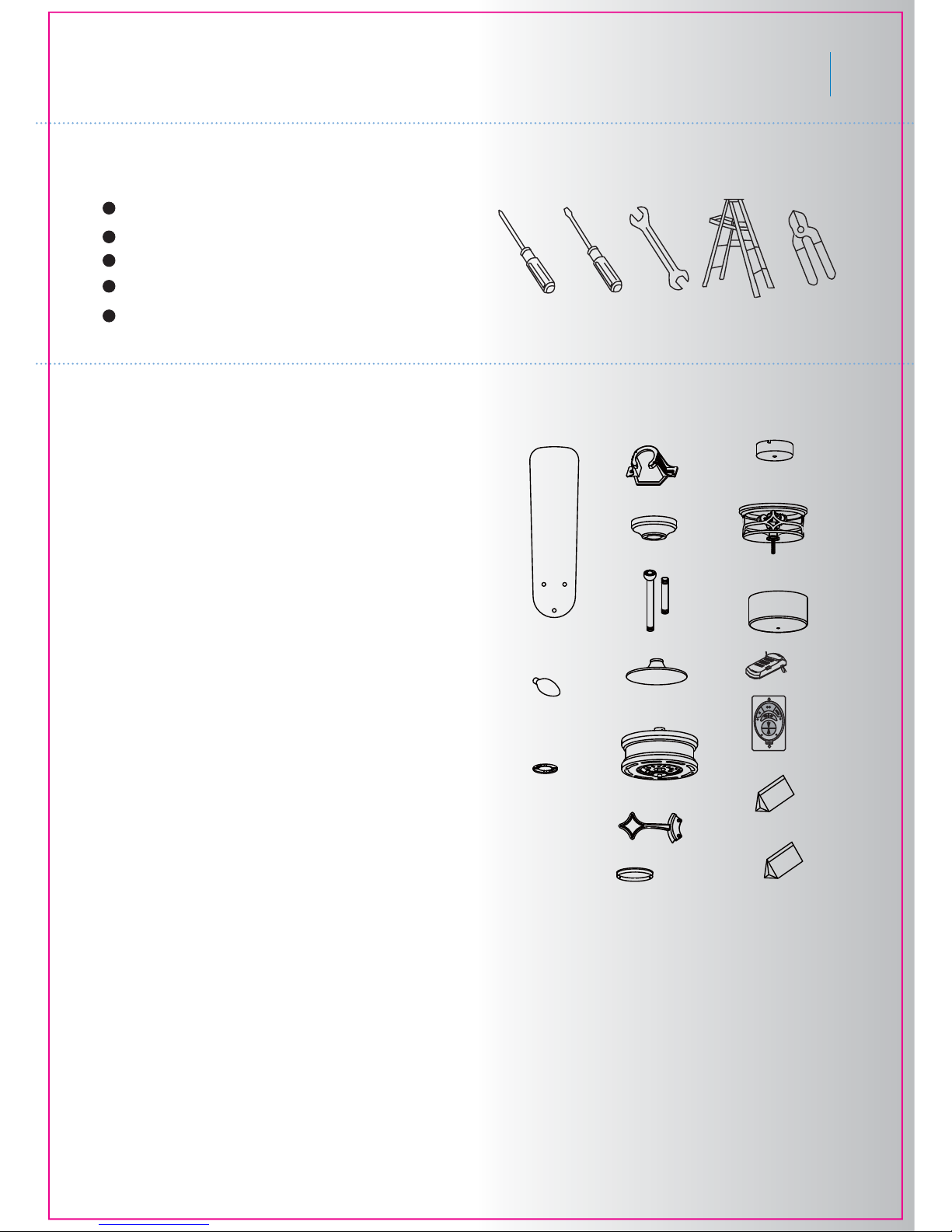

Philips screw driver
Slot screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
ChicagoTM
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Mounting bracket (1)
c. Canopy (1)
d. Ball/downrod assembly (1)
& extra downrod (1)
e. Coupling cover (1)
f. Fan assembly (1)
g. Blade brackets (5)
h. Mounting plate (1)
i. Switch housing (1)
j. Light kit (1)
k. Glass bowl (1)
l. Receiver +7 wire nuts
m. CoolTouch™ Control System
n. Canopy cover (1)
o. Bulbs (3)
p. Package hardware:
1) Mounting hardware:
a. wood screws (2), flat washers (2),
æææscrews(2),wire nuts(4)
2) Blade attachment hardware:
a. screws (16), flat washers (16),
æææfiber washers (16)
3) Blade bracket hardware:
a. screws (1)
4) Safety cable hardware:
a. wood screw (1), spring washer
(1), flat washer (1)
5) Balance kit
q. Decorative plate hardware:
decorative plate (1), finial (1),
light kit hardware (1)
l
m
n
o
q
i
p
h
g
f
k
j
e
d
c
b
a

3
4. MOUNTING OPTIONS
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
NOTE: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need a
joist hanging bracket as shown in Fig 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
If there isn't an existing UL ( CUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.

4
ChicagoTM
Fig. 7
Fig. 5
Fig. 6
Fig. 8
Screw
shipping block
Fan assembly
Washer
120V wires
Mounting screw
Electrial box
Mounting
bracket
Set Screw
Cross Pin
Hanger Ball
Downrod
Downrod
Lock pin
Set screw
Hitch pin
5. HANGING THE FAN
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the fan motor and housing
assembly from the protective plastic bag and
take the lower styrofoam packing pad out of
the carton. Place the styrofoam pad on the
floor, then place the fan assembly into the
styrofoam pad with the bottom of the motor
facing up. (The styrofoam pad serves as a
holder for the fan during the first stages of
assembly). Remove the plastic motor shipping
blocks and discard. (Fig. 5)
Step 2. Secure the mounting bracket to the
ceiling outlet box using screws and washers
provided with the outlet box. (Fig. 6)
Step 3. Use a screwdriver to loosen the cross
pin and remove it from downrod assembly.
Loosen the set screw and rotate the hanger
ball off the downrod. (Fig. 7)
Step 4. Loosen the two set screws and
remove the hitch pin and lock pin from the
motor coupling assembly. (Fig. 8)
Step 5. Carefully feed fan electrical wires up
through the downrod. Thread the downrod
onto the motor coupling until the hitch pin
holes are aligned. Next, replace hitch pin and
lock pin, and tighten both set screws. (Fig. 8)

5
Fig. 10
Registration slot

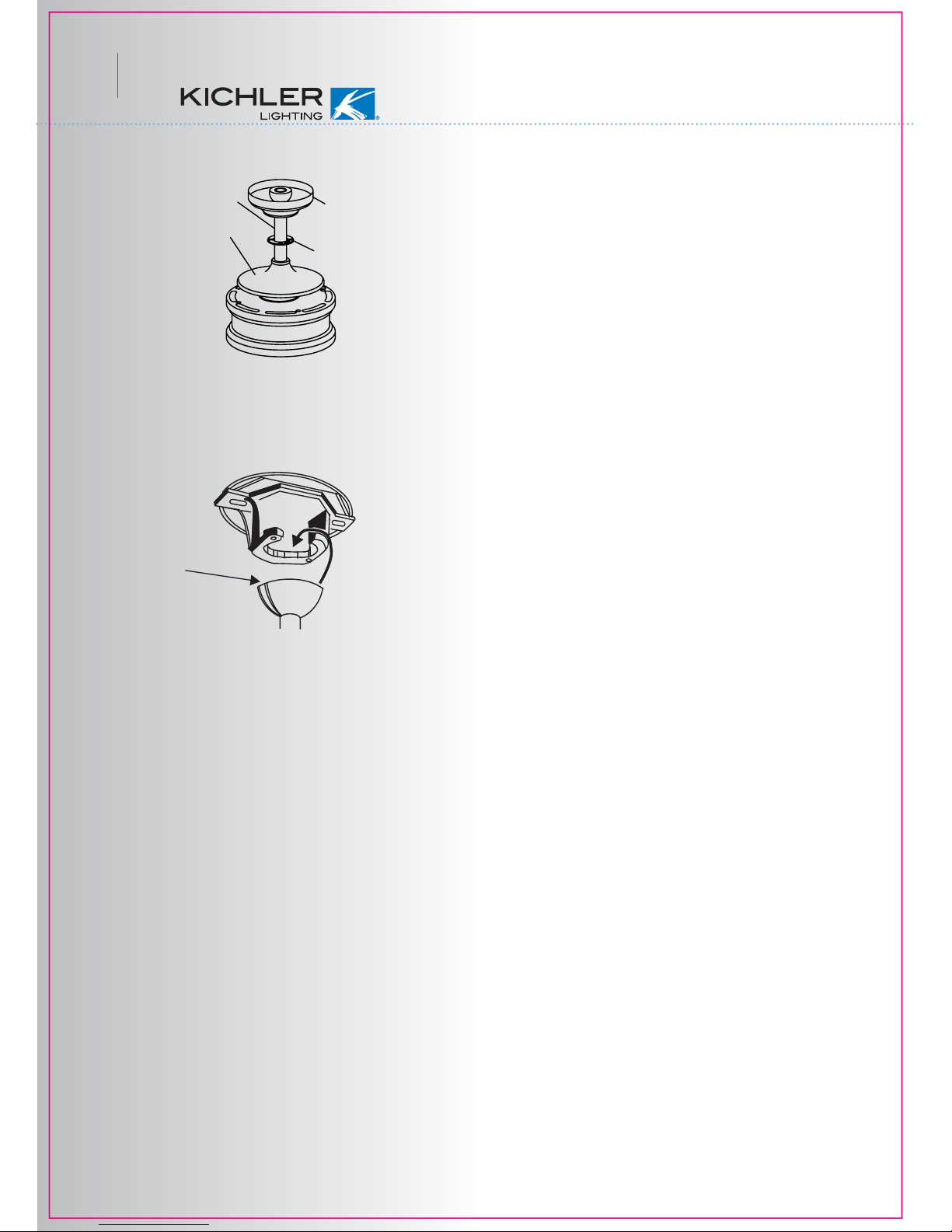

Fig. 9 Step 7. Now lift the motor assembly into
position and place the hanger ball into the
hanger bracket. Rotate until the “Check Tab”
has dropped into the “Registration Slot” and
seats firmly. (Fig. 10)
NOTE: The entire motor assembly should
not rotate if this is done correctly.
NOTE: Please make sure all set screws
are in place and tight before installation
the following steps.
Canopy cover
Downrod Canopy
Coupling cover
Step 6. Slip the coupling cover, canopy
cover and canopy onto the downrod. Rein-
stall hanger ball into the downrod and make
sure the cross pin is in place and set screw
on hanger ball is tight. Secure the coupling
cover is resting on the top of ceiling fan.
(Fig. 9)

6
ChicagoTM
Fig. 12
Fig. 13
Code switch
Receiver
Hanger
bracket
Battery Compartment
6. INSTALLATION OF SAFETY SUPPORT
( For Canadian Installation ONLY )
7. MAKE THE ELECTRIC CONNECTIONS

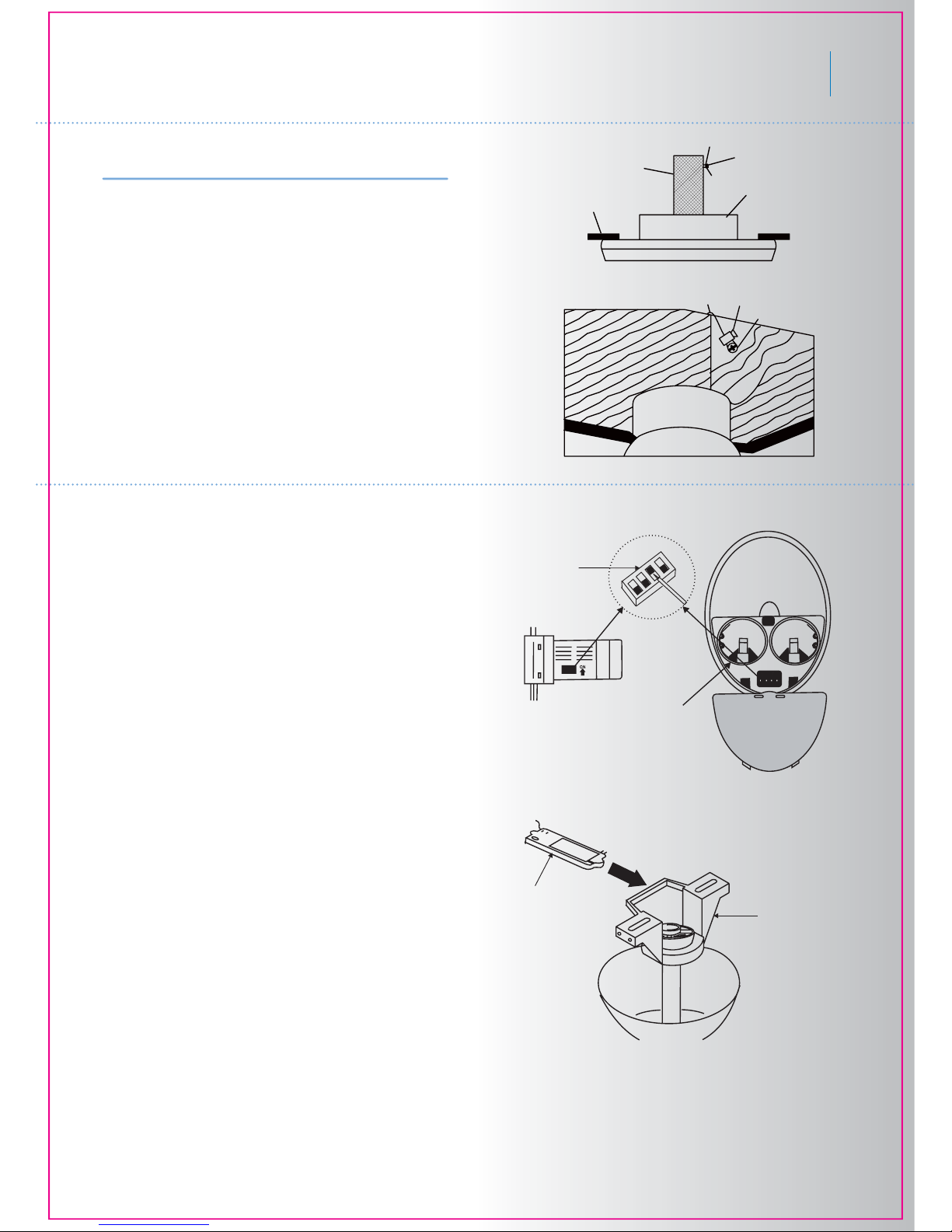

A safety support cable is provided to help prevent
the ceiling fan from failing, please install it as
follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the mounting
bracket but do not tighten. (Fig. 11-1)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the extra
cable through the cable clamp until the overall
length is correct, put the end of the cable back
through the cable clamp, forming a loop at the
end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the
safety cable over the wood screw and under the
washer. Tighten the wood screw securely. See
Fig. 11-2
WARNING: To avoid possible electrical shock,
be sure the electricity is turned off at the main
circuit breaker or fuse box before wiring.
WARNING: If your house wires are different
colors than referenced in this manual, stop
immediately. A professional electrician is recom-
mended to determine proper wiring.
NOTE: The CoolTouch™ Control System is
equipped with 16 code combinations to prevent
possible interference from or to other remote
units. The frequency switches on your receiver
and transmitter have been preset at the factory.
Please recheck to make sure the switches on
the transmitter and receiver are set to the same
position, any combination of settings will position
the fan as long as each switch on the transmitter
and receiver are set to the same position. (Fig.
12) Changing the order of switches on each
switch block, changes the operational frequency.
Step 1. Insert the receiver into the mounting
bracket, with the flat toward the ceiling. (Fig. 13)
Step 2. Motor to Receiver Electrical Connec-
tions:
NOTE: Make all of the following connections
with “Wire Nut” connectors.
Connect the black wire from the fan to black wire
marded “TO MOTOR L” from the receiver. Con-
nect the white wire from the fan to the white wire
marked “TO MOTOR N” from the receiver.
Connect the blue wire from the fan to the blue
wire marked “For Bottom Light” from the
receiver. Place a plastic wire nut on the end of
the Orange Wire coming from the receiver
marked “For Upper Light”. Your ceiling fan is not
equipped with a Upper Light. Secure all the wire
connections with the plastic wire nut provided.
(Fig. 14 on the next page)
Fig. 11-2
Fig. 11-1
Ceiling
Support Brace
Outlet Box
Wood Screw
Flat Washer
Spring Washer
Wood Screw
Safety Cable Cable Clamp

7
Fig. 14
Fig. 15
Step 3. Remote Receiver to Outlet Box Electri-
cal Connections: Connect the black
(hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver. Connect
the white(neutral) wire from the ceiling to the
white wire marked "AC in N" from the
Receiver. Secure the wire connections with
the plastic wire nuts provided. (Fig. 14)
Step 4. If your outlet box has a ground wire
(green or bare copper) connect it to the fan
ground wires. Secure the wire connection with
a plastic nut provided.
NOTE: Carefully tuck the wire connections up
into the outlet box. (Fig. 14)
NOTE: The transmitting unit must be installed
at a maximum distance of 30 feet from the
ceiling fan for proper signal transmission
between the transmitting unit and the fanʼs
receiving unit.
8. INSTALLING THE CEILING CANOPY
WARNING: One last time, make sure the “Check
Tab” at the bottom of the hanger bracket is prop-
erly seated in the “Registration Slot” on the side
of the hanger ball before attaching the canopy to
the bracket. Failure to properly seat the “Check
Tab” could damage the electrical wires when the
ceiling fan blade direction is changed while the
fan is running.
Step 1. Make sure all of the electrical connec-
tions are tucked neatly into ceiling outlet box.
Step 2. Slide the canopy up to ceiling fan and
onto the two screws on hanger bracket. Rotate
the canopy clockwise and tighten the two screws.
Next, while holding the canopy with one hand,
slide the canopy cover over the screws and
rotate clockwise until tight.
NOTE: You may need to adjust the canopy
mounting screws as necessary until the canopy
and canopy cover have a snug fit. (Fig. 15)
white (neutral)
Blue(for bottom light)
Ground wire
White("AC IN N")
Copper (ground)
White("to motor N")
Green or bare
White (neutral)
Black (motor)
Orange (For
upper light)
Blue(for bottom light)
Black ("to motor L")
Receiver
Black("AC" IN L")
Black (hot)
Outlex box
Canopy cover
Canopy
Screw
Hanger bracket
Outlet box

8
ChicagoTM
9. ATTACHING THE FAN BLADES
Fig. 16
Fig. 17
Fig. 18
10. INSTALLATING THE MOUNTING PLATE
Step 1 Attach the blade to the blade bracket
using the screws, washers and fiber washers
as shown in Figure 16. Start screw into
bracket. Repeat for the two remaining screws.
Blade
Blade bracket
Fiber washer
Metal washer
Screw
Fan assembly
Screw
Step 2. Place the key holes on the mounting
place over the remaining 2 screws on the
mounting ring, turn mounting plate until it locks
in place at the narrow section of the key holes.
Secure by tightening 2 screws and reinstalling
the third screw. (Fig. 18)
Note: If you would like to install the light fixture
that come with your ceiling fan, please skip to
step 12 and continue. If you want your ceiling
fan installed without the light fixture, follow step
11 and then skip to Step 14.
Step 1. Remove 1 of 3 screws on the mounting
ring and loosen the other 2 screws. Do not
remove (the mounting ring located on the
motor shaft).
Mounting ring
Screw
Mounting plate
Step 2. Make sure the blade is straight and
tighten each screw until fiber washer is
slightly compressed and all three screws
are secure. (Fig. 16)
Step 3. Fasten blade assembly to motor
using “pre-installed” mounting screws in the
blade bracket (Fig. 17)

9
Fig. 20
Fig. 19
12. INSTALLING THE LIGHT KIT
11. INSTALLING THE SWITCH HOUSING
Connection plug
Mounting plate
Switch housing
NOTE: Before continuing, make sure the power
is disconnected by turning off the circuit breaker
of removing the fuse at the circuit box.
Step 1. Loosen the 3 screws on the switch
house mounting plate.
Step 2. The square plastic wiring connectors
from the ceiling fan and the switch housing will
only fit together one way. Match up the color on
the side of the connectors, then push them
together until the snap engages.
Step 3. Tuck the connections neatly into the
switch housing. Align the key holes on the
switch housing with the screws on the mounting
plate. Turn the switch housing until it locks in
place at the narrow end of the key holes.
Tighten all 3 screws previously loosened.
(Fig. 19)
Step 1. Remove th finial NUT located in the
center of the switch housing. See Fig. 20.
Step 2. Remove the hex nut, lock washer and
metal washer from the light fixture mounting
stem.
Step 3. Feed the electrical wires from the light
fixture through the hole in the switch housing
(starting with th black wire first, it has a larger
connector). Threaded th light kit onto the
switch housing, add the metal washer, lock
washer and hex nut on the inside of the switch
housing and tighten securely. (Fig. 20)
NOTE: Please take the reverse module,
capacitor and 190w power limiter out of the
switch housing prior to threading the light kit to
switch housing.
ModelNo: PL-190B
AC120V 60HZ
PowerLimit
Max.190W(ON/OFF)
IncandescentorBallast
LIGHT/BLACK
Capacitor Limiter
Reverse module
Finial nut
White wire
Black wire
Light kit
Lock washer
Metal washer
Hexnut
Switch housing

10
ChicagoTM
Fig. 22
Fig. 21
Fig. 23
Reverse
module
Limiter
LIGHT/BLACK
PowerLimit
Max.190W(ON/OFF)
IncandescentorBallast
ACIN L/RED
ACINN/WHITE
ModelNo:PL-190B
AC120V 60HZ
Capacitor
Light kit
Light kit
Mounting plate
Bulb
Manual nut
Silicon washer
Metal washer
Glass shade
Decorative plate
Finial

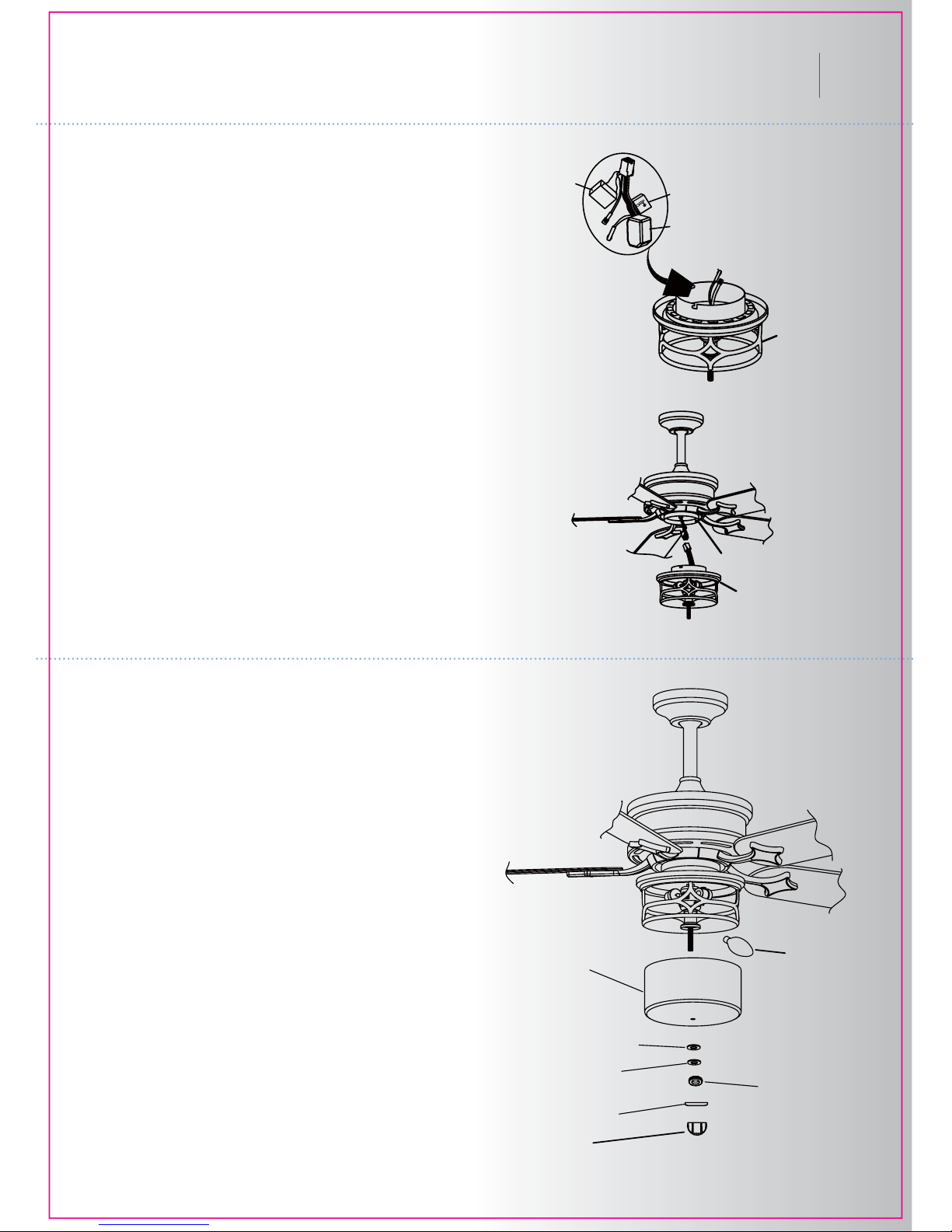

Step 4. Connect the black wire connectors from the
light fixture and switch housing by pushing them
together. Follow the same precedure with the white
wire connectors. Tear adhesive paper pre-sticking
on one side of the reverse module, capacitor and
190w power limiter. Stick them on the inside of
switch housing. (Fig. 21)
Step 5. The square plastic wiring connectors from
the ceiling fan and the light fixture will only fit
together one way. Match up the color on the side
of the connectors, then push them together until
the snap engages.
Step 6. Loosen the 3 screws on the mounting
plate. Tuck the connections neatly into the switch
housing. Align the key hole on the switch housing
with the screws on the mounting plate. Turn light
fixture until it locks in place at the narrow end of
the key holes. Tighten all 3 screws previously
loosened. (Fig. 22)
Step 1. Install the light bulbs (included). Slide the
glass bowl over the threaded pipe. Place the silicon
washer, metal washer and thread the manual nut
onto the pipe. Place the decorative plate and
tighten the glass bowl with the finial. (Fig. 23)
NOTE: This “Energy Policy Act 2005” compliant fan
includes a device that limits the total wattage of its
light fixture to 190 wattage. By installing a combina-
tion of light bulbs that exceeds 190 watts or if an
electrical surge causes the wattage to exceed 190
watts, the light fixture will automatically turn off. If
this should happen, you will need to reset the light
fixture by turning the power off to the ceiling fan
and / or light fixture, reinstalling lamps totaling less
than 190 watts and then turning the power back on.
YOUR NEW KICHLER CEILING FAN IS NOW
READY TO USE. REMEMEBER TO RESTORE
ALL POWER.
13. INSTALLING THE LIGHT BULB &
GLASS SHAED

Fig. 24
Fig. 25
Fig. 26

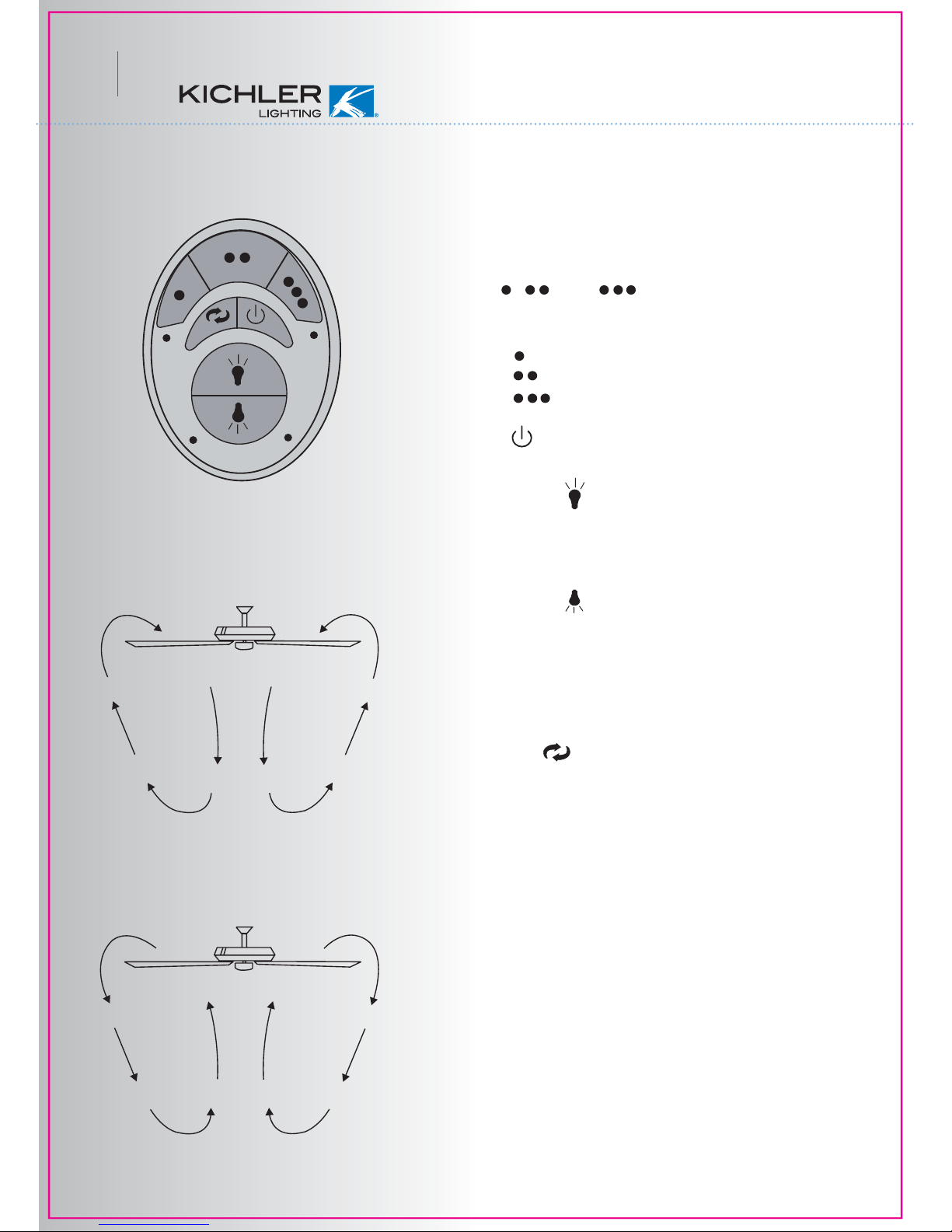

14. OPERATING INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation.
A. , , and buttons:
These three buttons are used to set the
fan speed as follows:
= low speed
= medium speed
= high speed
B. button:
This button turns the fan off.
D. The " " button:
C. The " " button:
Press and release the button to turn the
light ON or OFF. Press and hold the button to
set the desired brightness. The light key has
an auto-resume, it will stay at the same
brightness as the last time it was turned off.
D. The " " button is used to set the fan
forward or reverse, press the button forward
(for warm weather) or reverse (for cool
weather).
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: To operate the reverse function on this
fan, press the reverse button while the fan is
running.
Warm weather-(Forward) A downward airflow
creates a cooling effect as shown in Fig. 25.
This allows you to set your air conditioner on
a warmer setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 26. This allows you to set your heating
unit on a cooler setting without affecting your
comfort.
Press to turn the upper light on and off,
hold for full range dimming. (If your ceiling fan
is equipped with an “Upper Light”)
11

15. INSTALLING THE CoolTouch™
CONTROL SYSTEM WALL PLATE
To install the coolTouchTM control system wall
plate, you can select the following locations to
fulfill your wall plate installation.
1. Using the existing wall outlet box:
Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut the
BLACK leads (hot) together and push back
inside the outlet box. (Fig. 27)
2. Install on flat wall:
Attach the metal plate to outlet box by two (2)
screws. Place the coolTouchTM wall plate on a
flat wall using the wall anchors and 2 wood
screws provided.
3. Install 2,3 volt #2032 battery included with the
coolTouchTM control system.
Note: To prevent damage to transmitter, remove
the batteries if not used for long periods of time
(months). (Fig. 29)
16. INSTALLING THE TRANSMITTER
1. To place the transmitter in the wall plate, put
the bottom end in first and then press the top
into the wall plate. The transmitter is now held
in the wall plate and will function from here.
(Fig. 30)
2. To remove the transmitter from the wall plate,
push the release button and the transmitter will
fall into your hand.
Fig. 27
Fig. 28
Fig. 29
Fig. 30
Release
button
Wall plate
Switch
Outlet box
12
ChicagoTM
CoolTouch wall plate
Outlet box
Metal plate

17. TROUBLESHOOTING
18. SPECIFICATIONS
2.13'11.01
kgs 12.4 kgs
RPM CFM N.W. G.W. C.F.
0.34
0.49
0.59
15.2
36.3
75.3
58
103
165
1520
3340
5040
120
Fan Size
52"
Speed Volts
Amps Watts
Low
Medium
High
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are
set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control(s).
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Do not connect the fan with wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
4. Check to make sure the batteries are installed porperly. ( postive +side
facing out)
5 . Check to make sure the batteries are not dead.
13
