Kichler Lighting LYNDON User manual

52" Lyndon Patio LED
TM

TABLE OF CONTENTS
SAFETY RULES ………………………………………………………. 4
TOOLS REQUIRED ……………………………………………… 5
PACKAGE CONTENTS …………………………………………. 5
MOUNTING OPTIONS ………………………………………… 6
HANGING THE FAN ………………………………………....... 7
INSTALLATION OF SAFETY SUPPORT ……………… 9
CONTROL SYSTEM SET-UP ……………………………… 10
ELECTRICAL CONNECTIONS …………………………… 10
FINISHING THE INSTALLATION ………………………... 12
ATTACHING THE FAN BLADES …………………………… 13
INSTALLING THE MOUNTING PLATE …………………14
INSTALLING THE LIGHT KIT ………………………………… 14
INSTALLING THE BULB AND GLASS SHADE …… 15
INSTALLING THE WALL CONTROL …………………… 16
OPERATING INSTRUCTIONS ……………………………… 17
TROUBLESHOOTING …………………………………………… 18
3
52" Lyndon Patio LED
TM

8. Make sure the installation site you choose allows a minimum
clearance of 7 feet from the blades to the floor and at least 30 inch
from the ends of the blades to any obstruction.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
10. After making the electrical connections, spliced conductors
should be turned upward and pushed carefully up into outlet box.
The wires should be spread apart with the ground wire and white
(common) wire to one side with the black (load) wire to the other
side of the outlet box.
11. Electrical diagrams are reference only.Light kits that are not
packed with the fan must be ETL Listed and marked suitable
for use with the model fan you are installing. Switches must
be ETL General Use Switches. Refer to the Instructions
packaged with the light kits and switches for proper assembly.
SAFETY RULES
READ AND SAVE THESE INSTRUCTIONS
4
1. To reduce the risk of electric shock, insure electricity has
been turned o at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National
Electrical Code and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of fire or electric shock, use
only the control provided with the fan.
4. WARNING: To reduce the risk of fire, electric shock, or
Personal Injury, mount directly to a structural framing
member or to an outlet box marked ‘Acceptable for Fan
Support of 15.9kg(35 lbs)or less’. For outlet box mounting,
use mounting screws provided with the outlet box.
5. To operate the reverse function on this fan, slide the reverse
switch to the opposite position.
6. Avoid placing objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the
fan.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT
BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

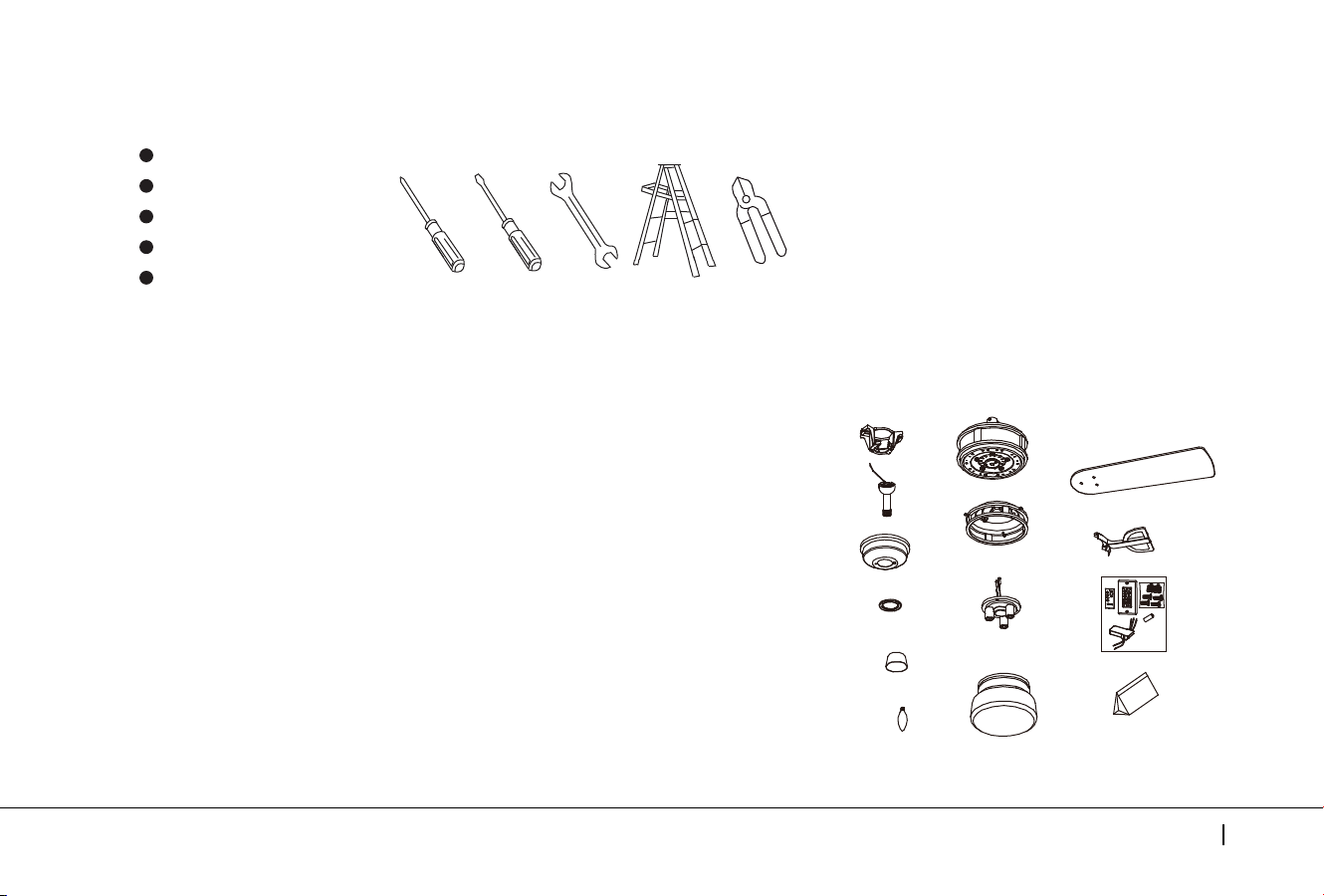

PACKAGE CONTENTS
Unpack your fan and check the contents . You should have the following items:
A. Mounting bracket
B. Ball / downrod assembly (1)
C. Canopy
D. Canopy Trim Ring
E. Coupling Cover
F. Motor Body
G. Mounting Plate
H .Light Kit
I. Fan Blades (5)
J. Set of 5 blades arm and pre-installed
mounting screws
K. 4-watt B10 LED Bulb (3)
Phillips screwdriver
Blade screwdriver
11 mm wrench
Step ladder
Wire cutters
TOOLS REQUIRED
L. Glass Shade
M. Control Kit
N. Package Hardware
1) Mounting Hardware:
wire connectors (3)
2) Blade Attachment Hardware:
screws (15)
3) Safety Cable Hardware:
wood screw (1), spring washer (1),
flat washer (1)
4) Slip Resistant Sleeve Hardware:
slip resistant sleeve (3)
5
A
F
G
H
LN
M
J
I
B
C
D
E
K
52" Lyndon Patio LED
TM

6

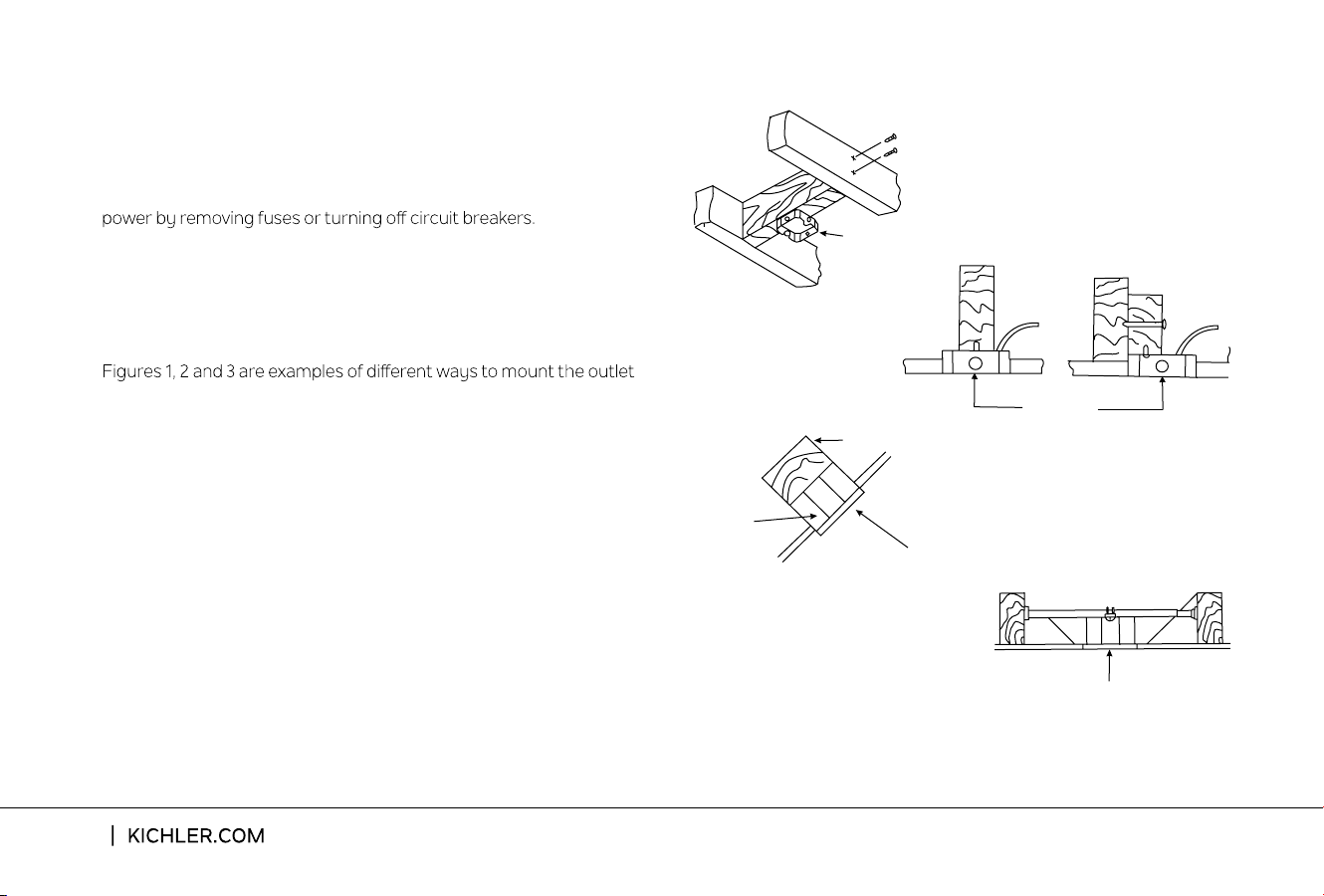

MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
NOTE: : You must use 12” or longer downrod for 30° slope (max
angle 30°). (Fig. 3)
you may need to purchase and install a “Joist Hanger” for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plane
Fig. 3
ANGLED CEILING
MAXIMUM 30° ANGLE
Outlet box
Fig. 4

HANGING THE FAN
REMEMBER to turn o the power before you begin installation. This is necessary
for your safety and also the proper programming of the control system.
To properly install your ceiling fan, follow the steps below.
Step 1 . Before attaching fan to outlet box (not included), ensure the outlet box is
securely fastened to at least two points to a structural ceiling member (a loose box
will cause the fan to wobble). Pass the 120 volt supply wires from the ceiling outlet
box through the center of the ceiling mounting bracket. Install mounting bracket to
outlet box in ceiling using the screws and washers included with the outlet box.
( Fig. 5)
Step 3. Remove the hanger ball from downrod assembly by loosening set screws ,
removing the cross pin, and twisting ball o the rod.( Fig. 7)
Fig. 5
Fig. 6
Outlet Box
Flat Washer
Screw
Mounting
Bracket
Fig. 7
Downrod
Cross Pin Set Screw
Hanger Ball
7
52" Lyndon Patio LED
TM
Step 2.Remove one of the two shoulder screws in the mounting bracket and save it
for later use. Loosen the second shoulder screw without fully removing it. (Fig. 6)
Mounting Bracket
Shoulder Screw

8
Fig. 8
Fig. 9
Fig. 10

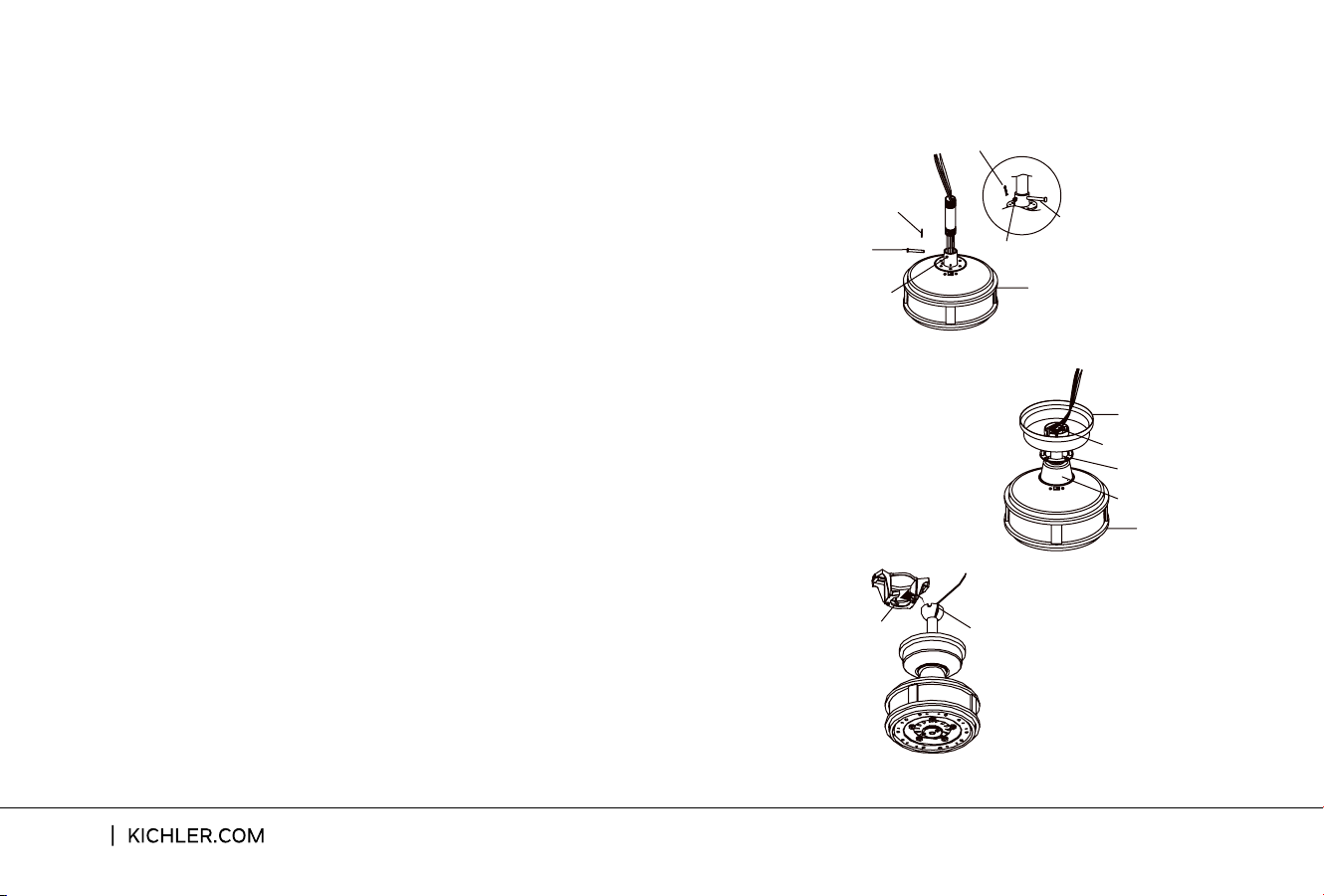

HANGING THE FAN(continued)
Step 4. Loosen the two set screws and remove the clip and cross pin from the top
coupling of the motor body.Carefully feed the fan wires up through the downrod.
Thread the downrod onto the motor coupling until the cross pin holes are aligned.
Next, replace the cross pin and clip, and tighten both set screws. (Fig.8)
Step 5. Slip the coupling cover, canopy trim ring and canopy onto the downrod.
Carefully reinstall the hanger ball onto the downrod. Make sure the cross pin is in
the correct position and the set screws are tight and the wires are not twisted.
(Fig.9)
Step 6. Now lift the motor body into position and place the hanger ball into the
hanger bracket. Rotate until the “Check Tab” has dropped into the “Registration
WARNING: Failure to properly seat the “Check Tab” can damage the ceiling fan
during operation.
Slot” and seats firmly. (Fig.10) The entire motor body should not rotate if this is
done correctly.
Clip
Clip
Cross Pin
Set Screw Motor Body
Cross Pin
Canopy
Hanger Ball
Canopy Trim Ring
Coupling Cover
Motor Body
Registration Slot
Check Tab
Set Screw

9
52" Lyndon Patio LED
TM
Step 1.
NOTE:
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from faIling, please
install it as follows.
Drive a wood screw and washers into the side of the brace that holds the outlet
box. Leave 3mm (1/8") of space between the support brace and the washer. (Fig. 11)
Insert the safety cable through the mounting bracket and one of the holes in the
outlet box into the ceiling. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the overall length is
correct, put the end of the cable back through the cable clamp, forming a loop at the
end of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the
safety cable over the wood screw and under the washer. Tighten the wood screw
securely. (Fig. 12)
Although the safety support cable is required for Canadian installations only.
It’s a good idea to make the attachment with any installation.
Step 2.
Fig. 11
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling
Fig. 12
Safety Cable Bolt Wood Screw

10

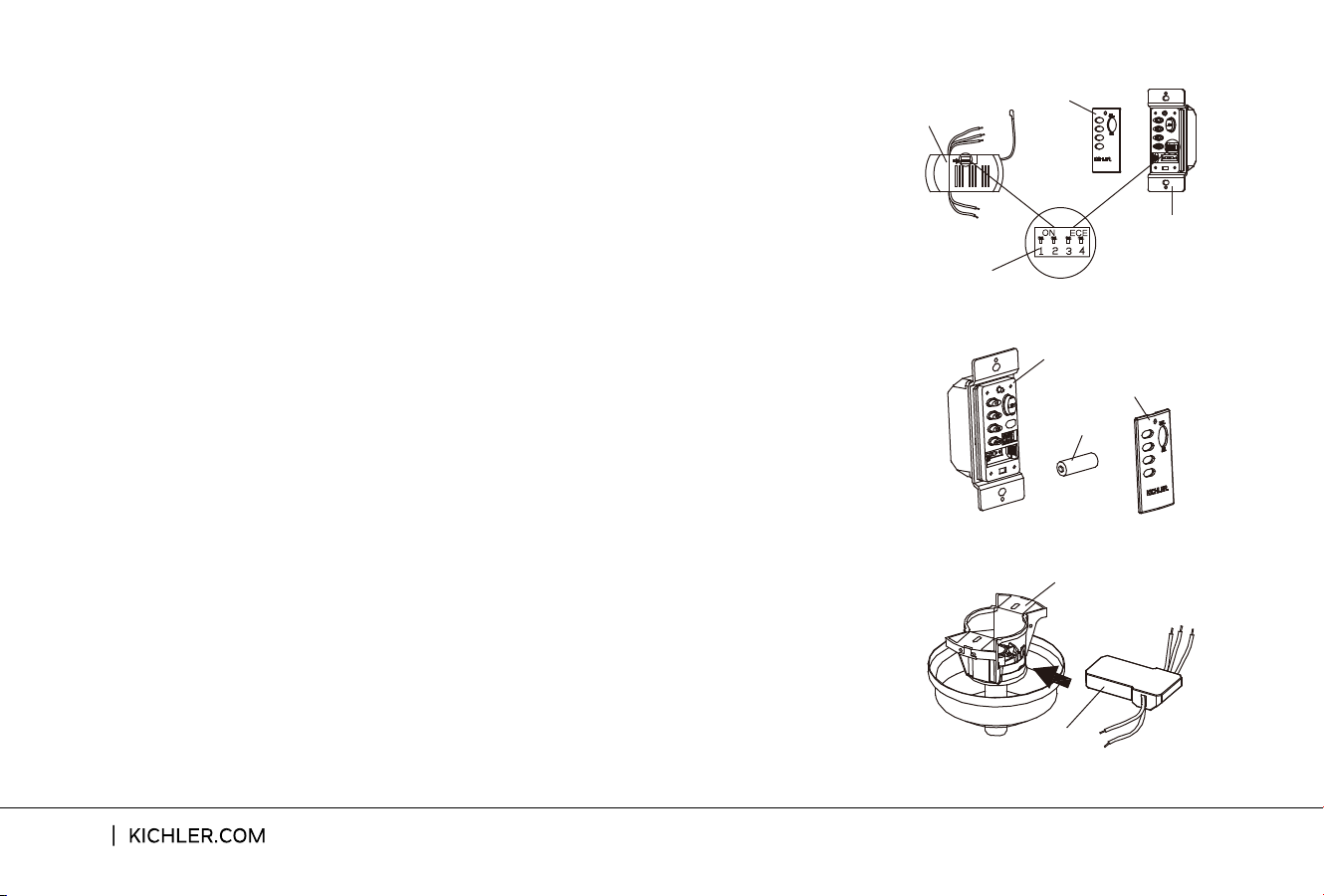

CONTROL SYSTEM SET-UP
NOTE: The wall control and receiver have 16 dierent code combinations. To prevent possible
interference from or to other remote units, simply change the combination code on the receiver
and wall control as below.
Step 1. Slide the code switches on the receiver to your choice of either up or down using a small
ballpoint pen (not included). (Fig. 13)
Step 2. To set the code on the wall control, use a small flat screwdriver and gently pry it apart
from the top or bottom of the switch plate. Slip the code switches to the same positions as set
on the receiver. (Fig.13)
NOTE: Factory setting is all up. Do not use this position.
NOTE: If you are using more than one fan in the same area and want to control them separately,
change code switches on receiver and wall control to a new setting.
Step 3. Install the 23A 12V battery (included) with wall control system and make sure it is seated
correctly. Replace the switch plate. (Fig. 14)
NOTE: Remove battery if remote has not been used for a long period of time in order to avoid
damage. Store wall control away from excessive heat or humidity.
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power at the main
circuit panel before wiring.
Follow the steps below to connect the fan to your household wiring. Use the wire connectors
supplied with your fan. Secure the connector with electrical tape. Make sure there are no loose
wire stands or connections.
WARNING: If your house wires are dierent colors than referenced in this manual, stop
immediately. A professional electrician is recommended to determine proper wiring.
Step 1. Insert the receiver into the mounting bracket, and keep flat in opposition of ceiling. (Fig. 15)
Fig. 13
Fig. 14
Fig. 15
Code Switch
Receiver
Switch Plate
Wall Control
Wall Control
Battery
Receiver
Mounting Bracket
Switch Plate

Fig. 16
11
52" Lyndon Patio LED
TM
ELECTRICAL CONNECTIONS (continued)
Step 1: Motor to receiver electrical connections:
Connect the BLACK wire from the fan to BLACK wire marked “TO MOTOR L” from the receiver.
Connect the WHITE wire from the fan to the WHITE wire marked “TO MOTOR N” from the receiver.
Connect the BLUE wire from the fan to the BLUE wire marked “FOR LIGHT” from the receiver.
Secure all the wire connections with the plastic wire connectors provided. (Fig.16)
Step 2: Remote receiver to outlet box electrical connections:
Connect the BLACK (hot)wire from the ceiling to the RED wire marked “AC in L”
from the receiver.
Connect the WHITE (neutral) wire from the ceiling to the WHITE wire marked “AC in N”
from the receiver.
Secure the wire connections with the plastic wire connectors provided. (Fig.16)
Step 3: Connect GROUND (GREEN) wires from hanger ball and mounting bracket,
to GROUND (GREEN or BARE COPPER) from house.Secure the wire connection
with a plastic connectors provided. After connecting the wires, spread them apart
so that the green and white wires are on one side of the outlet box and black
and blue wires are on the other side. (Fig.16)
NOTE: Carefully tuck the wire connections up into the outlet box.
NOTE: Fan must be installed at a maximum distance of 30 feet from the transmitting unit
for proper signal transmission between the transmitting unit and the fan’s receiving unit.
Outlex box
White (Neutal)
White (“AC IN N”)
Green or bare
copper (ground)
White (“TO MOTOR N”)
Ground wire
White (Neutral)
Black (hot)
Red (AC IN L)
Receiver
Black (“TO MOTOR L”)
Black (motor)
Blue (FOR LIGHT)
Blue (for light)

12
FINISHING THE INSTALLATION

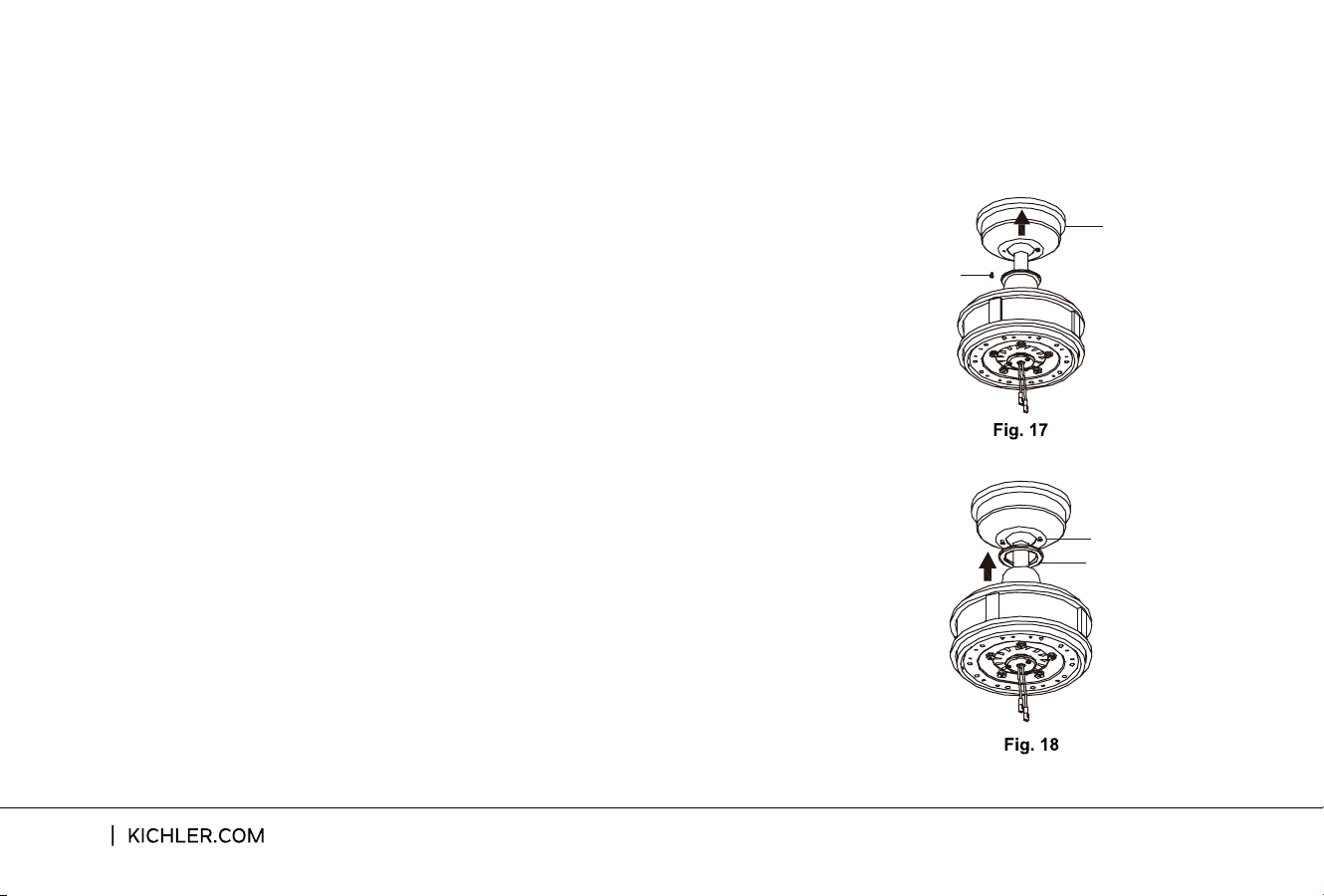

Step 1. Assemble canopy by rotating key slot in canopy over shoulder screw in
mounting bracket. Tighten shoulder screw. Fully assemble and tighten second
shoulder screw that was previously removed. (Fig. 17)
Step 2.Securely attach and tighten the canopy hole cover over the shoulder screws
in the mounting bracket utilizing the keyslot twist-lock feature. (Fig. 18)
Canopy
Shoulder Screw
Shoulder Screw
Canopy Hole Cover

13
52" Lyndon Patio LED
TM
ATTACHING THE FAN BLADES
NOTE: Before continuing , make sure the power is disconnected by turning o
the circuit breaker of removing the fuse at the circuit box.

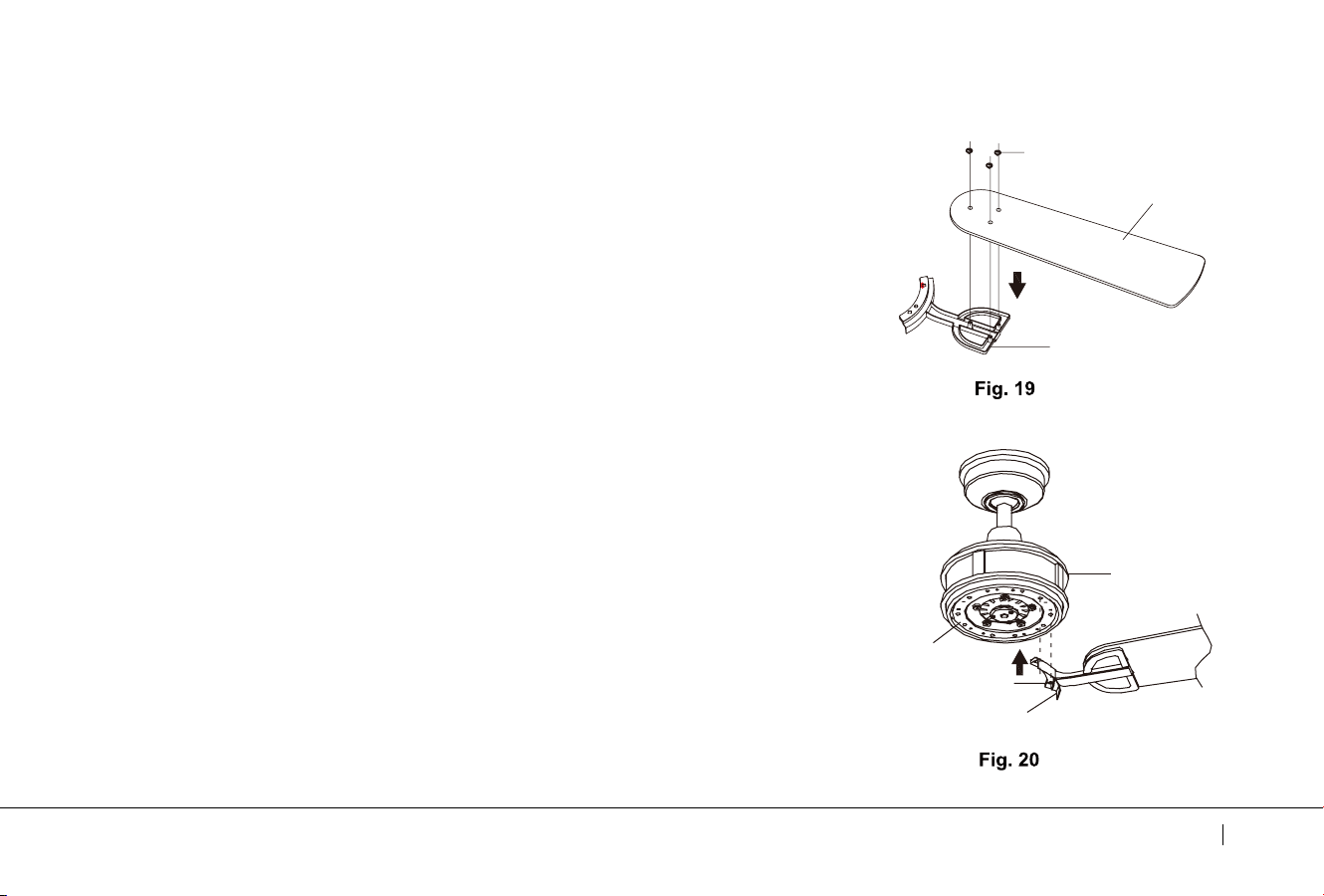

Step 1. Position the blade over the blade arm with threaded posts showing.
Make sure the bottom edge of the blade is fully seated against the blade arm.
With a Phillips screwdriver, start a screw into the blade arm (do not tighten)
and repeat for the 2 remaining blade screws . Tighten each screw securely
starting with the center screw. Make sure the blade is straight.
Step 2. Fasten blade assembly to the holes located on the bottom of the
flywheel. Tighten the two "pre- installed" motor screws in the blade arm.
Repeat steps for the remaining blades assemblies. (Fig. 20)
Blade Screw
Motor Body
Flywheel
Motor Screw
Blade Arm
Blade
Blade Arm
Repeat steps for the remaining blades. (Fig. 19)

14
INSTALLING THE MOUNTING PLATE

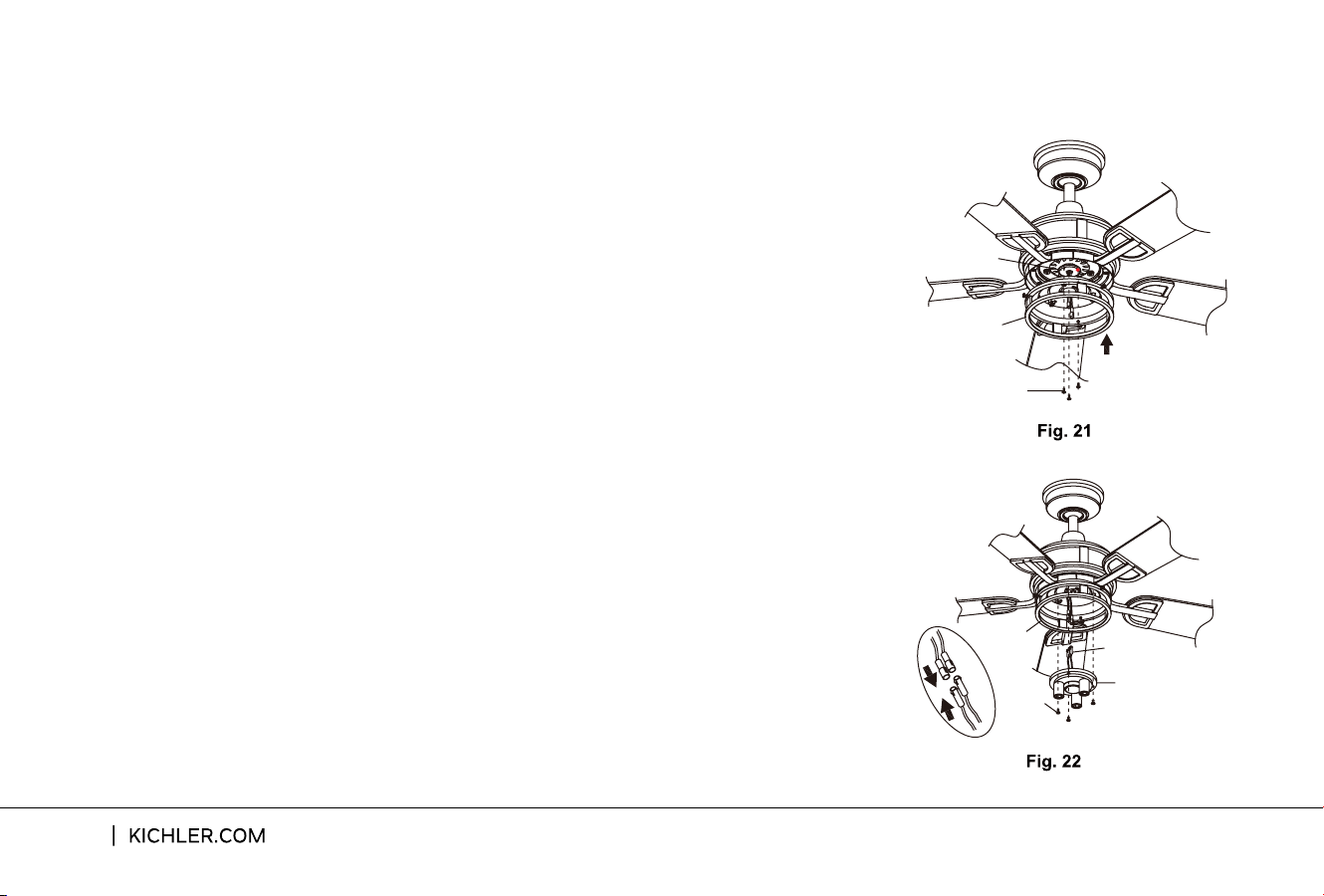

Step 1. You will find one dot label on the mounting ring. Remove the 3 screws preinstalled
on mounting ring and keep them for reuse later. Align the dot labels on the mounting
plate to the mounting ring. Attach the mounting plate to the mounting ring with three
screws removed previously. Please adjust the mounting plate if necessary, to line up the
rim both on the motor body and mounting plate. Tighten the 3 screws securely.(Fig. 21)
INSTALLING THE LIGHT KIT
NOTE: Before continuing installation, confirm that the power is still turned o at the main
circuit breaker or by removing the correct fuse. Turning the power o using a wall switch
is not sucient to prevent electrical stock.
Step 1. Remove the 3 preinstalled screws from the mounting plate as shown. Save them
for reuse on step 3. (Fig. 22)
Step 2. Hold the light kit close to the mounting plate and connect the WHITE wires from
the mounting plate and fan by pushing the connectors together. Follow the same
procedure with the BLACK wires. (Fig. 22)
Step 3. Tuck the connections neatly into the light kit. Align the screw holes on the light kit
and mounting plate. Securely tighten all 3 screws removed previously. (Fig. 22)
Mounting Ring
Mounting Plate
Screw
Wiring Connector
Mounting
Plate
Screw Light Kit

15
52" Lyndon Patio LED
TM
INSTALLING THE BLUB AND GLASS SHADE

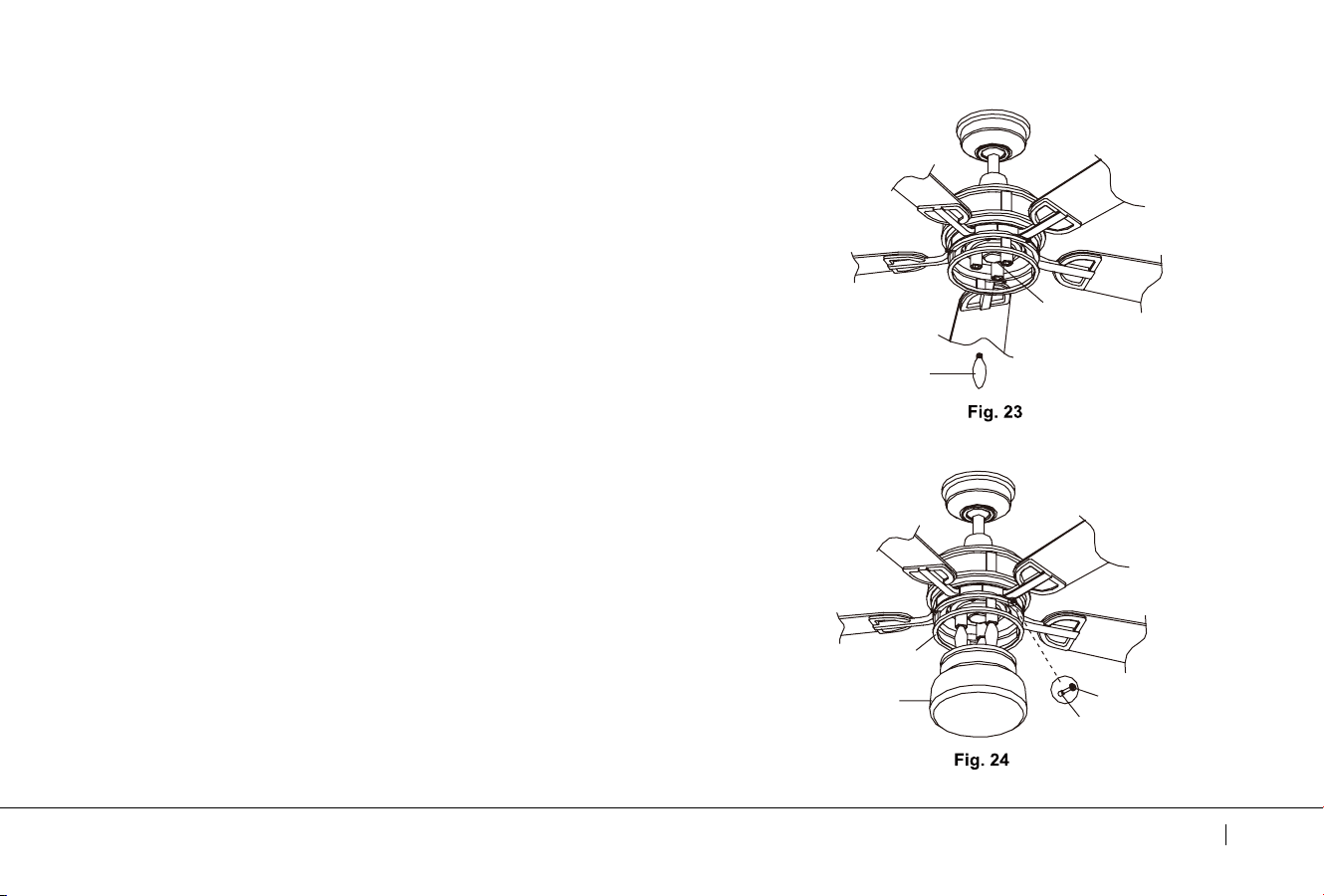

Step 1. Install the 3, 4-watt B10 LED bulbs (included). (Fig. 23)
Step 2. Place the slip resistant sleeve on the end of the thumb screw with
knurled head. Lift the glass shade allowing it against the mounting plate
and securely tighten with the 3 thumb screws only by hand to avoid
damaging glass. Do not overtighten the screws.(Fig.24)
Light Kit
Bulb
Mounting Plate
Thumb Screw
Slip Resistant Sleeve
Glass Shade

16
INSTALLING THE WALL CONTROL
All wiring must be in accordance with the National Electrical Code and local electrical
codes. Electrical installation should be performed by a qualified licensed electrician.
Select a location to install your wall control.You can replace an existing wall switch,
or install the wall control to a new outlet box.
Note: Make sure the electircal power is TURNED OFF at the main panel before continuing.
Note: SWITCH INSTALLATION MUST COMPLY WITH ALL LOCAL AND NATIONAL
ELECTRIC CODE.
Step 1. Remove the existing wall plate and the old switch from the wall outlet box.
Wire nut the BLACK leads (hot) together and push back inside the outlet box. (Fig. 25)
or select the desired location with a new wall outlet box.
Step 2. Use the screws provided to secure the wall control to the outlet box. (Fig. 26)
Outlet Box
Outlet Box
Wall Control Wall Plate
Switch
Wall Plate

17
52" Lyndon Patio LED
TM
OPERATING INSTRUCTIONS:
1. Fan Control:
To start the fan. Press the selected speed button to run the fan at the desired speed
and press the "OFF" button to turn o the fan.
HI-high speed
MED-medium speed
LOW-low speed
2. Light On/O-press and release light button.
3. Light Dimmer-continuous pressure on the light button dims light in a continuous
cycle from light to dark, or dark to light.
4. Fan Reverse - controls direction, forward or reverse.
Speed setting for warm or cool weather depend on factor such as th room size,
ceiling height, number of fans and so on.
Warm Weather Operation: Forward (counterclockwise) A downward airflow creates a
cooling eect . This allows you set your air conditioner on a warmer setting without
aecting your general comfort. (Fig. 28)
Cool Weather Operation: Reverse (clockwise) An upward airflow creates a warm air o
the ceiling areas. This allows you set your air conditioner on a cooler setting without
aecting your general comfort. (Fig. 28)
Speed Buttons Light Control Button
Motor O Button
Restore power to ceiling fan and test for proper operation. (Fig. 27)
illuminate, if not, check to make sure the battery is inserted and seated correctly.
NOTE: To prevent damage to transmitter, remove the battery if not used for long
periods of time ( months ).
Test the transmitter by pressing and releasing ANY button. A RED Light should

18
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact.CAUTION: Make sure the main power is OFF
when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight.Make sure the light
bulbs are not touching any other component.
6. Do not connect this fan to a wall mounted variable speed control(s). They are not compatible with ceiling
fan motors or remote controls.
7. Make sure the upper canopy has a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.Check this level by selecting a point
on the ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possibly result in smoother operation.
TROUBLESHOOTING
Remote control
malfunction.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control
system EXCEPT a basic On/O wall switch, if desired.

19
52" Lyndon Patio LED
TM
