INSTRUCTION MANUAL
Product images may vary slightly from actual product.
52" Starkk™LED

KICHLER.COM

TABLE OF CONTENTS
SAFETY RULES .................................................................4
TOOLS AND MATERIALS REQUIRED.......................5
PACKAGE CONTENTS ....................................................5
MOUNTING OPTIONS.....................................................6
HANGING THE FAN.......................................................... 7
INSTALLATION OF SAFETY SUPPORT..................10
ELECTRICAL CONNECTIONS ....................................11
FINISHING THE INSTALLATION................................12
ATTACHING THE FAN BLADES................................. 13
INSTALLING THE LIGHT PLATE ............................... 13
INSTALLING THE LED LIGHT KIT
AND GLASS SHADE.......................................................14
OPERATING INSTRUCTIONS..................................... 15
TROUBLESHOOTING ...................................................16
SPECIFICATIONS............................................................. 17
FCC WARNING.................................................................. 17
3
52" Starkk™LED |

SAFETY RULES
1. To reduce the risk of electric shock, ensure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code (NEC) and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician
3. WARNING: Suitable for use with solid-state speed controls.
4. WARNING: To reduce the risk of personal injury, use only the
two steel screws (and lock washers) provided with the outlet
box for mounting to the outlet box. Most outlet boxes
commonly used for the support of lighting fixtures are not
acceptable for fan support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must be securely
mounted and capable of supporting a minimum of 50
pounds. Use only UL (cUL for Canadian Installation) Listed
outlet boxes marked “FOR FAN SUPPORT”.
6. The fan must be mounted with a minimum of 7 feet
clearance from the trailing edge of the blades to the floor.
7. Do not operate reversing switch while fan blades are in
motion. Fan must be turned o and blades stopped before
reversing blade direction.
8. Avoid placing objects in the path of the blades.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX
MARKED “ACCEPTABLE FOR FAN SUPPORT”.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
11. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
12. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be Listed and marked “suitable for use”
with the model fan you are installing. Switches must be General
Use Switches. Refer to the Instructions packaged with the light kits
and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)
DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
SPECIAL NOTICE
This appliance is equipped with a “Wattage Limiting Device”
required by the United States Department of Energy. The device
has been installed at the factory and can not be removed.
Installing Lamps in excess of 190 total watts will disable the
unit’s light fixture. If this should happen, you will need to reset
the lighting fixture by turning the power o to the ceiling fan
and/or light fixture, reinstalling lamps totaling less than 190 watts
and then turning the power back on.
4 | KICHLER.COM

TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
•
Phillips screwdriver
•
Blade screwdriver
•
11 mm wrench
•
Step ladder
•
Wire cutters

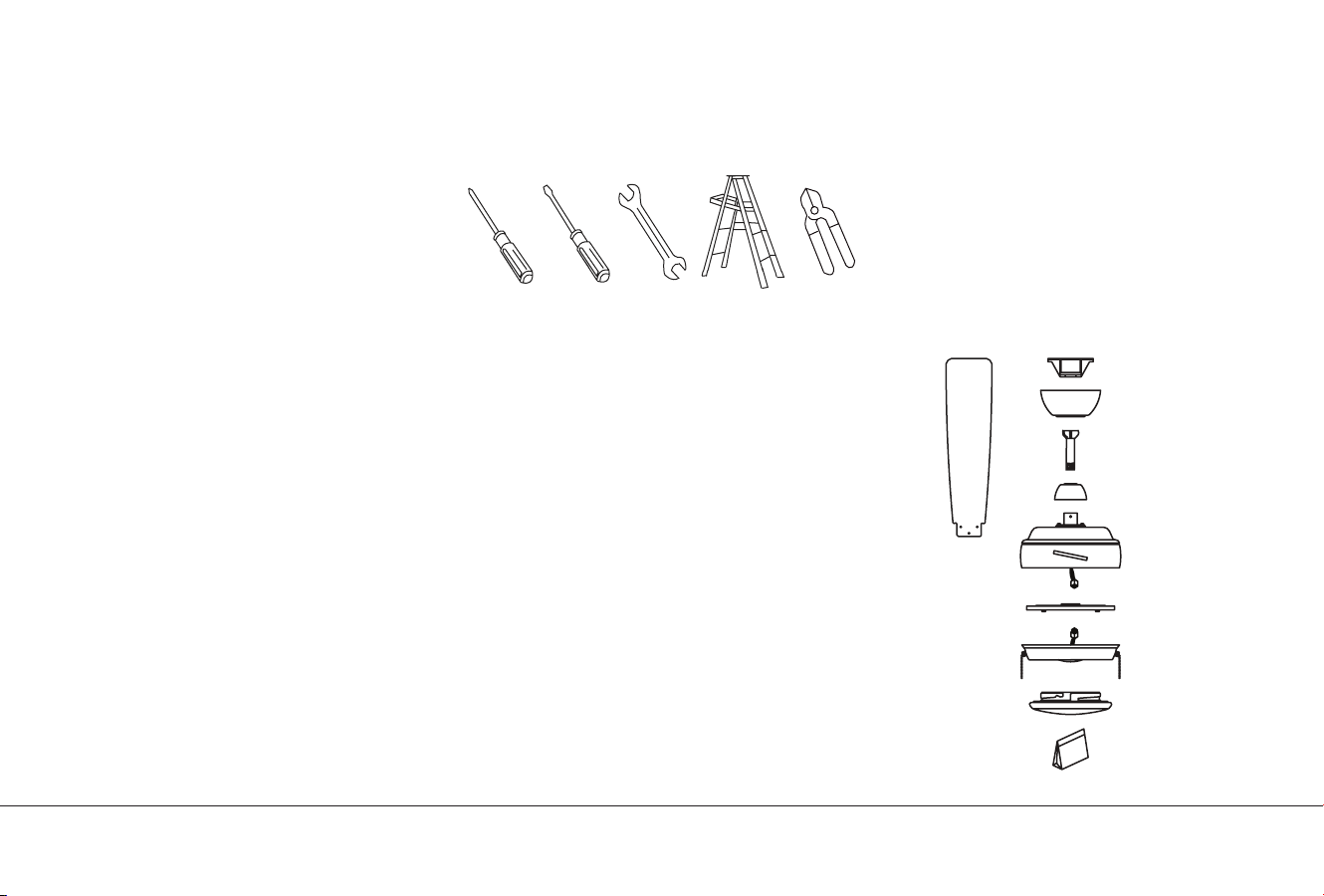

Unpack your fan and check the contents . You should have the following items:
A. Fan blades (5)
B. Ceiling mounting bracket
C. Canopy
D. Ball/downrod assembly
E. Coupling cover
F. Fan motor assembly
G. Light plate
H. 16W LED light kit/switch housing
I. Glass Shade
J. Package hardware
1) Mounting hardware :
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (2)
2) Blade attachment hardware :
screws (17), fiber washers (17)
3) Blade bracket attachment hardware:
screws (2)
4) Safety cable hardware :
Wood screw , lock washer, flat washer
5) Pull chains and fobs (2)
6) Balance kit
a
b
c
d
e
f
g
h
i
j
5
52" Starkk™LED |

MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.

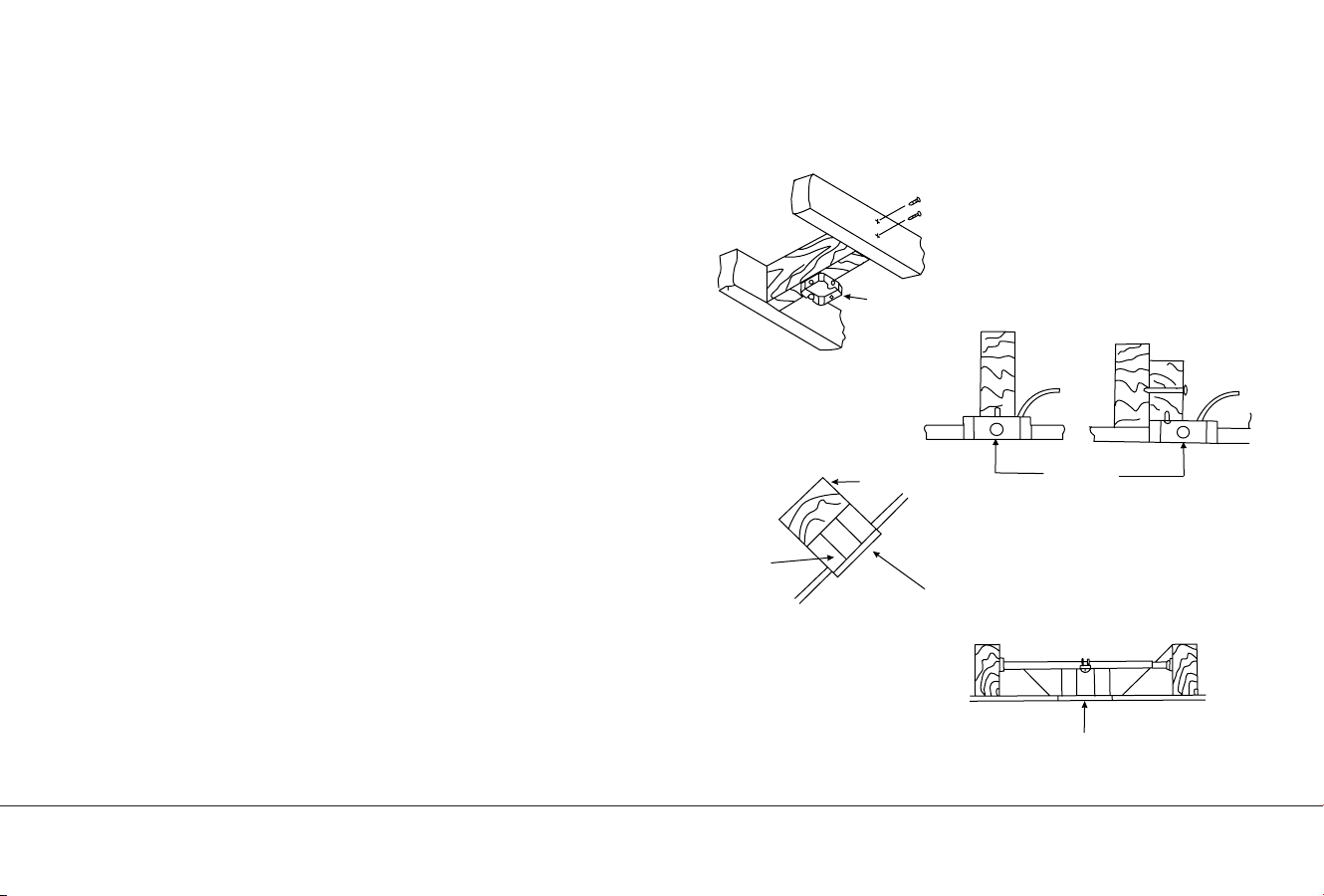

Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist Hanger”
for the support of the outlet box. Make sure the joist hanger you
purchase has been designed for use with ceiling fans. (Fig. 4)
Outlet box
Fig. 1
Outlet box
Fig. 2
Fig. 3
Recessed
outlet box
Provide strong
support
Ceiling
mounting
plane
ANGLED CEILING
MAXIMUM 15° ANGLE
Fig. 4
Outlet box
6 | KICHLER.COM

HANGING THE FAN
REMEMBER to turn o the power before you begin. To properly install your ceiling
fan, follow the steps below.

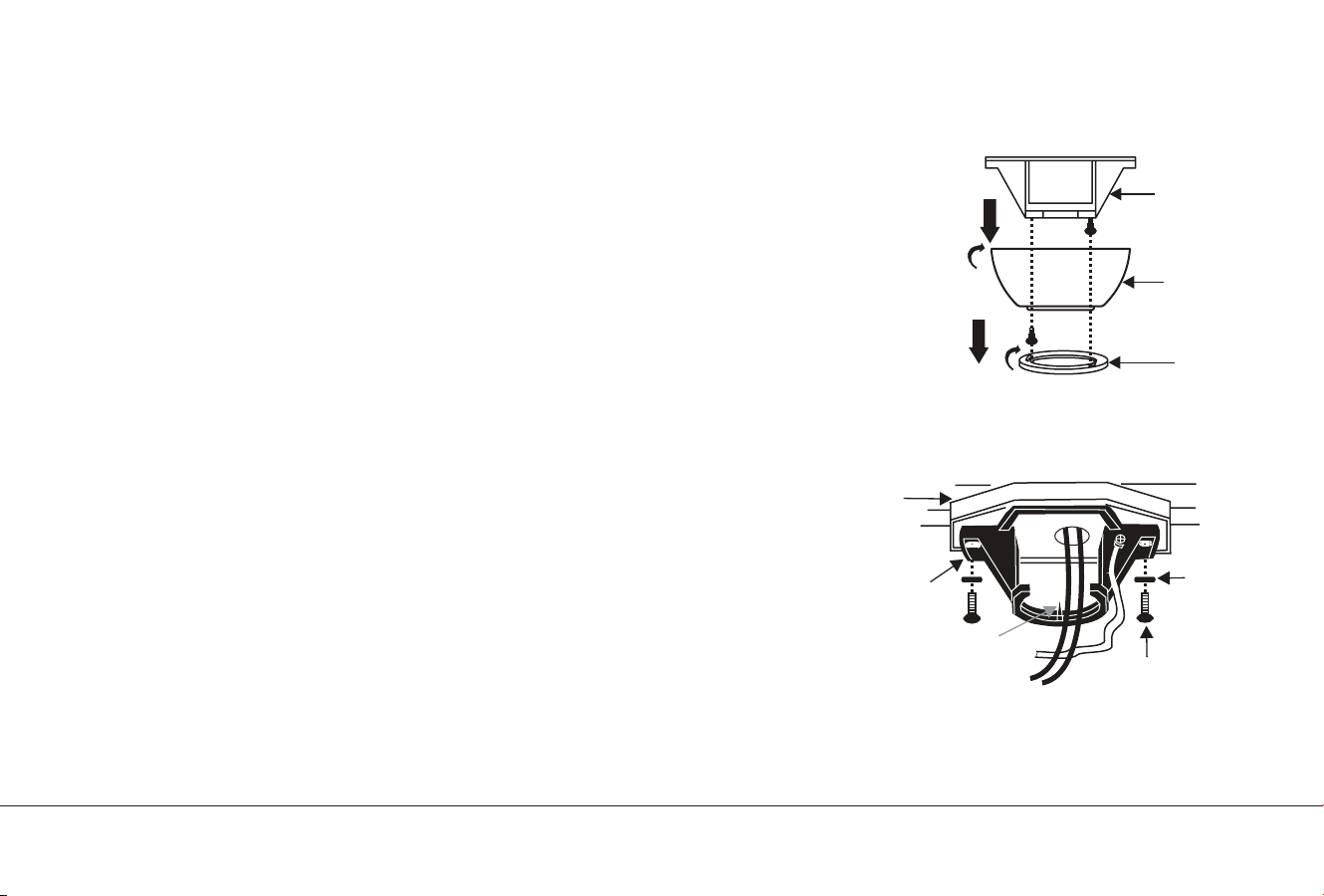

Step 1. Remove the decorative canopy bottom cover from the canopy by turning
the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by removing (and
save) one of the two screws. Loosen the remaining screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the screws
and washers included with the outlet box. (Fig. 6)
Fig. 5
Hanger bracket
Ceiling
canopy
Canopy
cover
Fig. 6
CUL Listed
electrical
box
Ceiling
mounting
bracket
Hook
120V Wires
Mounting screws
(supplied with
electrical box)
Washers
7
52" Starkk™LED |

HANGING THE FAN
Step 5. Remove the hanger ball from the downrod assembly by loosening the set screw,
unscrewing and removing the cross pin and unscrewing the ball o the rod. (Fig.7)
Step 6. Loosen the two set screws and remove the hitch pin and retaining clip from the
coupling on top of the motor assembly. (Fig. 8)
Step 7. Carefully feed the electrical lead wires from the fan up through the downrod. Thread
the downrod into the coupling until the hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 8)
Fig. 7
Downrod
Set screw
Cross pin
Hanger
ball
Fig. 8
Supply wires
Downrod
Set screws
Retaining clip Set screws Hitch
pin
8 | KICHLER.COM

HANGING THE FAN
Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod.
Thread the hanger ball onto the downrod, insert the cross pin through the downrod and
tighten. Tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the “Check Tab” has dropped into the “Registration Slot”
and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when seated properly.
WARNING: Failure to reattach the cross pin and seat the “Check Tab” can cause the
fan to fall from the ceiling during operation. Take special care to make sure this pin is
reattached.
Hitch pin
Coupling cover
Downrod
Canopy
Canopy cover
Set screws
Retaining clip
Fig. 9
Fig. 10
Registration slot
9
52" Starkk™LED |

INSTALLATION OF SAFETY SUPPORT
(Required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from faIling.
Step 1. Attach the provided wood screw and washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and washers by pulling
the extra cable through the cable clamp until the overall length is correct. Put the end of
the cable back through the cable clamp, forming a loop at the end of the cable. Tighten the
cable clamp securely. Put the loop in the end of the safety cable over the wood screw and
under the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian installations only, it’s a
good idea to make the attachment with any installation.
Ceiling mounting
bracket Attach safety
cable to ceiling
joist with
screw and
washer
Fig. 11
10 | KICHLER.COM

ELECTRIC CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power at
the main circuit panel.
Follow the steps below to connect the fan to your household wiring. Use the wire
connecting nuts supplied with your fan. Secure the connector with electrical tape. Make
sure there are no loose wire stands or connections.
Step 1. Connect the fan supply (black) wire and light supply (blue) wire to the black
household supply wire as shown in Figure 12.
Step 2. Connect the neutral fan (white) wire to the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to the household ground wire.
Step 4. After connecting the wires, spread them apart so that the green and white wires
are on one side of the outlet box and black wires are on the other side.
Step 5. Turn the connecting nuts upward and push the wiring into the outlet box.
Wiring box
Green ground
BLKBLK
BLUE
WHWH
GRN
Ground to
mounting
bracket or
downrod
Power lines 120v
Fig. 12
11
52" Starkk™LED |

FINISHING THE INSTALLATION
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one of the key hole
slots over the mounting screw on the mounting bracket. Rotate the canopy until the
screw head locks in place at the narrow section of the key hole. See figure 13.
Step 3. Align the remaining circular holes on the canopy with the remaining holes on
the Ceiling Mounting Bracket. Insert and tighten the mounting screw you removed
earlier and the mounting screw from Step 2 above. Attach the canopy cover to the
mounting screw heads by inserting the screw heads into the bottom side of the
canopy cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary until the canopy and canopy cover are
snug. (Fig. 13)
Warning: Make sure the “Check Tab” at the bottom of the hanger bracket is properly
seated in the “Registration Slot” on the side of the hanger ball before attaching the
canopy to the bracket. Failure to properly seat the “Check Tab” could damage the
electrical wires when the ceiling fan blade direction is changed while the fan is running.
Outlet box
Ceiling
mounting
bracket
Screws
Canopy cover
Canopy
Screws
Fig. 13
12 | KICHLER.COM

ATTACHING THE FAN BLADES
INSTALLING THE LIGHT PLATE
Insert the blade through the blade slot in the motor housing. Align the holes in blade and
blade bracket, making sure the holes are also aligned; secure with the screws and fiber
washers provided. Repeat process with other blades. (Fig. 14)
Step 1. Loosen the two screws on the mounting ring attached to the motor shaft and
“remove” and save the third screw. (Fig. 15)
Step 2. Place the key hole slots on the light plate over the two screws previously loosened
on the mounting ring.
Turn the light plate until is locks in place at the narrow section of the key hole slots.
Tighten both key hole screws and replace the third screw previously removed and tighten
securely.
Fig. 14
Screws
Fiber
washers Blades
Slot
Fig. 15
Mounting ring
Screws
13
52" Starkk™LED |

INSTALLING THE LED LIGHT KIT AND GLASS SHADE
Step 1. Loosen the three mounting screws on the inside of the 16W LED light kit/
switch housing. (Fig.16)
Step 2. While holding the switch housing under your ceiling fan, push the square
wire connectors together, one from the fan and one from the switch housing.
Step 3. Tuck the connections neatly into the light plate. Place the key holes on the
16W LED light kit/switch housing over the 2 screws previously loosened from the
light plate, turn the 16W LED light kit/switch housing until it locks in place at the
narrow section of the key holes. Secure by tightening all three screws. (Fig.16)
Step 4. Raise the glass shade against the 16W LED light kit/switch housing and turn
clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 16)

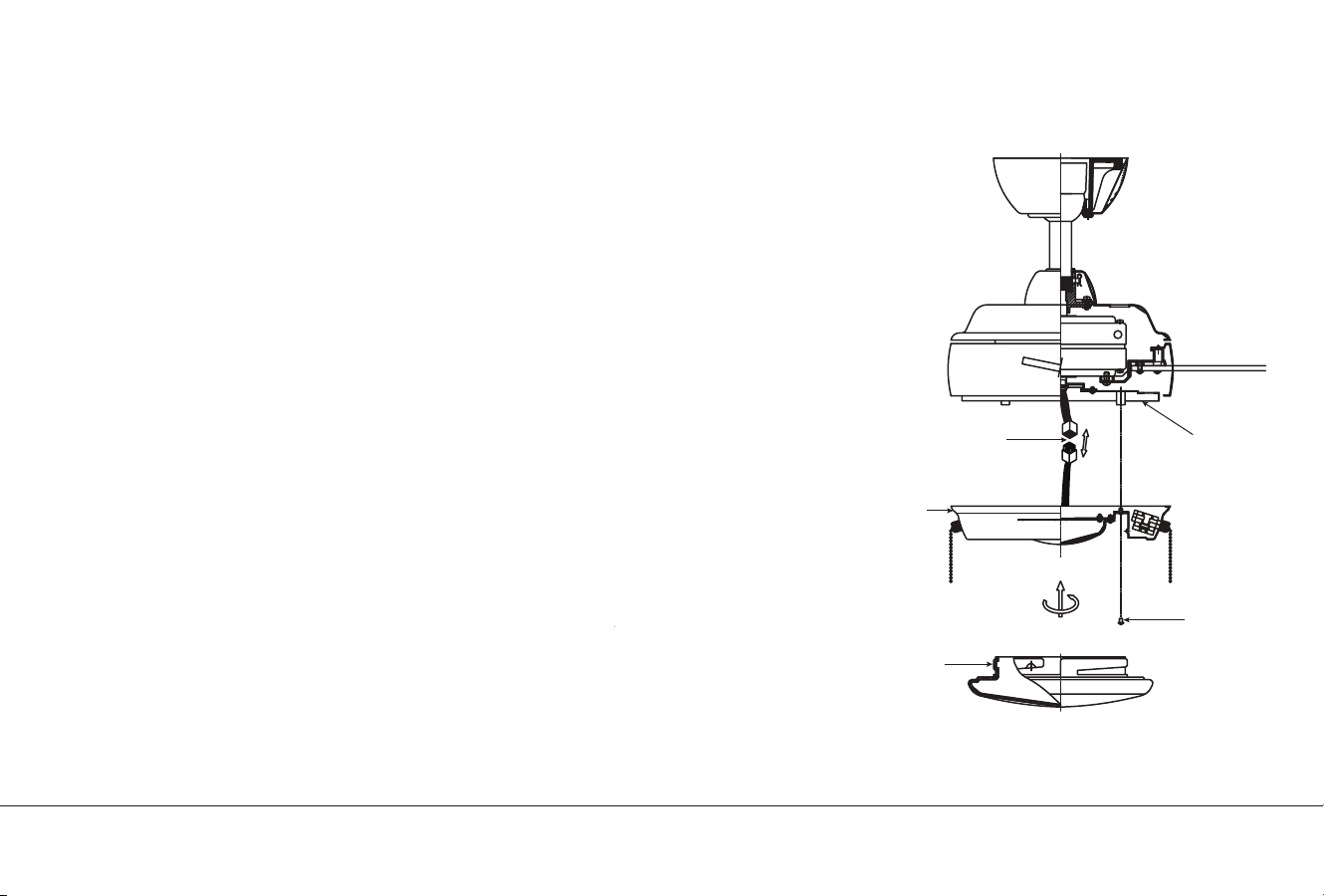

Square wire
connector
16W LED light kit/
switch housing
Glass shade
Screws
Light plate
Fig. 16
14 | KICHLER.COM

OPERATING INSTRUCTIONS
Turn the power on and check the operation of your ceiling fan.
The pull chain controls the 3 speeds of your ceiling fan.
1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the motor
o.
The Black Slide Switch on the side of the switch housing controls the
direction of the blades “Forward and Reverse”.
Warm Weather Operation: Forward (counter clockwise) A downward airflow
creates a cooling eect as shown in Fig. 17. This allows you to set your air
conditioner on a warmer setting without aecting your general comfort.
Cool Weather Operation: Reverse (clockwise). An upward airflow moves
warm air o the ceiling areas as shown in Fig. 18. This allows you to set your
heating unit on a cooler setting without aecting your general comfort.
Fig. 17
Fig. 18
15
52" Starkk™LED |

TROUBLESHOOING
Problem Solution
Fan will not start. 1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main power is OFF when
checking any electrical connection.
Fan sounds noisy. 1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is OFF.
4. Allow a 24-hour “breaking-in” period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight.Make sure the light bulbs
are not touching any other component.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this type
of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
Fan wobble. 1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is posi-
tioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8”.
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO ENSURE THE PROPER OPERATION
OF YOUR CEILING FAN. NEVER ATTACH THE BLADE ASSEMBLIES UNTIL THE CEILING FAN HAS BEEN
MOUNTED ON THE CEILING. DO NOT BEND THE BLADE ARMS WHILE INSTALLING, BALANCING OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
16 | KICHLER.COM

SPECIFICATIONS
FCC WARNING
Fan Size Speed Volts Amps Watts RPM CFM CFM/W N.W. G.W. C.F.
52" High 120 0.44 52.50 161 4289.90 82
11
kgs 12 kgs 1.92'Medium 120 0.31 5.30 111 2931.69 116
Low 120 0.18 8.40 59 1545.35 184
These are approximate measurements. They do not include data for any lamps or fixtures attached to the ceiling fan.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, and connect the equipment into
an outlet on a circuit dierent from that to which the fan is connected.
17
52" Starkk™LED |

KICHLER® LIGHTING
7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010
CLEVELAND, OHIO 44131-8010
CUSTOMER SERVICE 866.558.5706
8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY

MANUEL D’INSTRUCTIONS
Le produit peut diérer légèrement des illustrations.
LED StarkkMC 52 po

KICHLER.COM
