Kichler Lighting Lucia User manual

Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
A Kichler®Décor™Ceiling Fan
Instruction Manual
Includes our new
CoolTouchTM Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.

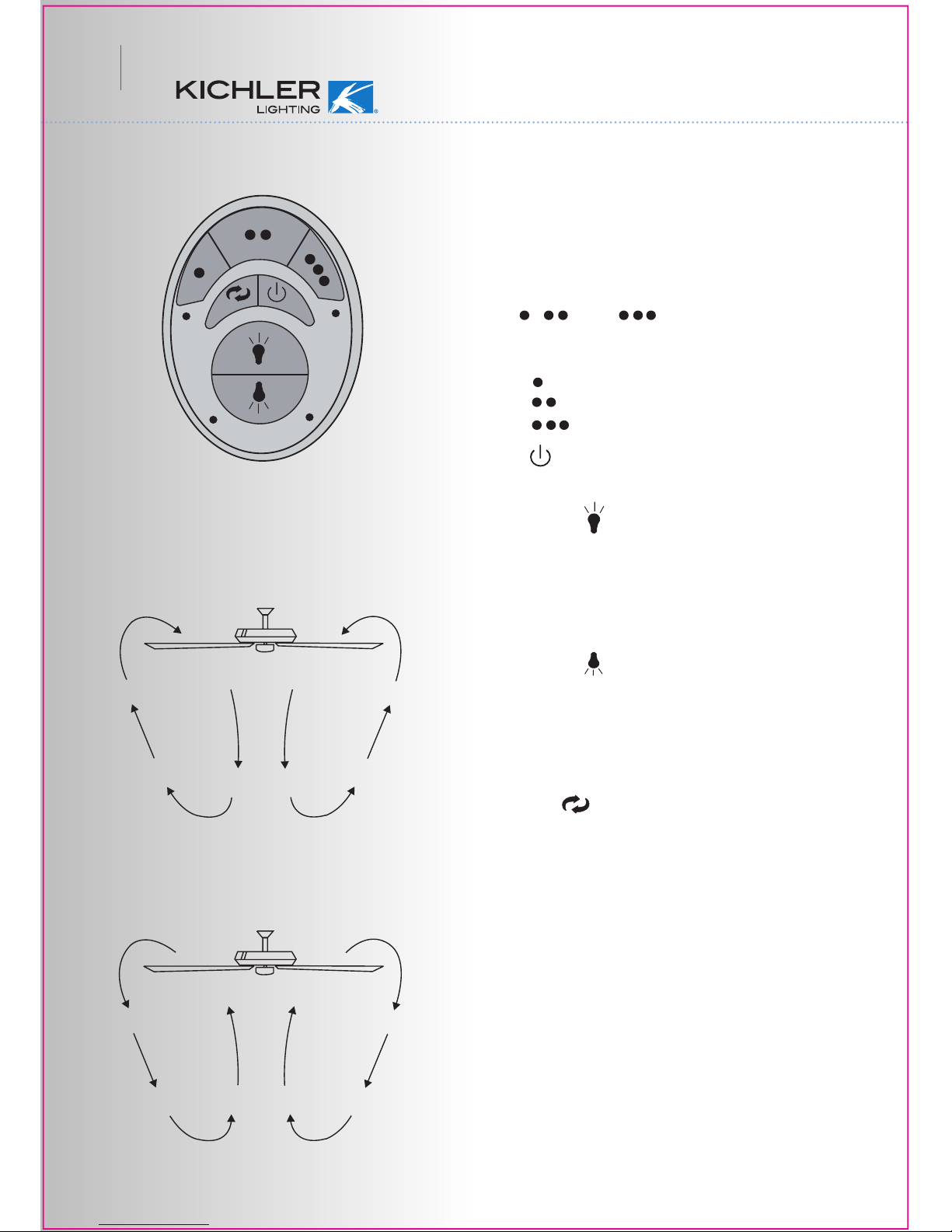

7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the ground wire and white (common) wire
to one side with the black (load) wire to the
other side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET
BOX MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can not
be removed.
Installing Lamps in excess of 190 total watts
will disable the unit's light fixture. If this
should happen, you will need to reset the
lighting fixture by turning the power off to
the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
Philips screw driver
Slot screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
LuciaTM
a. Ceiling Mounting Bracket (1)
b. Canopy (1)
c. Canopy Cover (1)
d. Decorative Ring (1)
e. Ball / Downrod Assembly (1)
f. Decorative Arm (3)
g. Coupling Cover (1)
h. Upper Glass Bowl (1)
i. Fan Assembly (1)
j. Fan Blades (5)
k. Set of Blade Brackets (5)
l. Mounting Plate (1)
m. Switch Housing for no light kit (1)
n. Light Fixture Assembly (1)
o. Inner Glass Bowl (1)
p. Outer Glass Bowl (1)
q. Receiver + 7 Wire Nuts
r. CoolTouch™ Control System
s. Candelabra Bulbs (4)
t. Halogen Bulbs (2)
u. Package Hardware:
1) Mounting hardware:
a. wood screws (2), flat washers(2),
screws(2),wire nuts(4)
2) Blade Attachment Hardware:
a. screws (21), flat washers(21),
fiber washers(21)
3) Blade Bracket Hardware:
a. screws (11)
4) Safety Cable Hardware:
a. wood screw (1), spring washer (1),
flat washer (1)
5) Balance Kit (1)
v. Light kit Hardware:
a. manual nut (1), silicon washer (1),
metal washer (1), finial (1)
w. Mounting Plate Hardware:
a. glass mounting plates(3), manual nuts (3)
r
s
a
k
c
d
f
g
h
i
j
l
m
n
o
p
q
b
e
t
u
vw

3
4. MOUNTING OPTIONS
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a longer
downrod to maintain proper clearance between
the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal
operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.
If there isn't an existing UL ( cUL for Canadian

4
LuciaTM
5. HANGING THE FAN
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Remove the fan motor and housing assembly
from the protective plastic bag and take the lower
Styrofoam packing out of the carton. Place the
styrofoam on the floor. Place the fan assembly
on the styrofoam for protection while working /
assembling the fan.
To properly install your ceiling fan, follow the steps
below.
Step 1. Pass the 120 volt supply wires from the
ceiling outlet box through the center of the ceiling
mounting bracket. (Fig.6)
Step 2. Attach the ceiling mounting bracket to the
outlet box using the screws and washers included
with the outlet box. (Fig. 6)
Step 3. Remove the hanger ball from the downrod
assembly by loosening the set screw, removing the
Step 4. Loosen the two set screws and remove the
hitch pin and retaining clip from the coupling on top
of the motor assembly. (Fig. 8)
Step 5. Carefully feed the electrical lead wires from
the fan up through the downrod. Thread the downrod
into the coupling until the Hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten
both set screws. (Fig 8)
Fig. 7
Fig. 5
Fig. 6
Fig. 8
Set Screw
Cross Pin
Hanger Ball
Downrod
Shipping Block
Downrod
Supply wires
Hitch pin
120 V wires
Listed electrial box
Washer
Mounting screw
Ceiling Mounting Bracket
Retaining clip
cross pin and slide the ball off the rod. (Fig.7)

5
Step 8. Remove the three (3) decorative wire
arms from the packing. Note that, one end of
each set of wires are welded together. Feed
the welded end of the wire through the
decorative ring on the downrod and fit the
other end into the holes on the decorative
bracket. (see Fig. 11). Repeat this process
for the other two (2) decorative wire arms,
then tighten the set screw on the decorative
ring as shown.
Step 10. Now lift the motor assembly into position
and place the hanger ball into the ceiling mounting
bracket. Rotate the motor assembly until the
"Check Tab" on the mounting bracket has dropped
into the "Registration Slot" on the hanging ball and
seats firmly. (Fig. 13)
Step 9. Install four (4) 15 watt lamps (included).
One in each of the sockets. (Fig. 12)
Step 7. Loosen the set screws preinstalled on
the decorative ring. Slip the coupling cover,
decorative ring, canopy cover and canopy onto
the downrod. Reinstall the hanger ball onto the
downrod and make sure the cross pin is in
place and the set screw on hanger ball is tight.
(Fig. 10)
Step 6. Carefully pass the upper glass bowl
over the downrod and let it rest on top of the
motor housing. Align the slot on the mounting
plate with the screw stem on the motor hous-
ing. Set the mounting plate so the screw stem
comes through the slot on the mounting plate
with the bottom curled end of the mounting
plate resting against the side of the glass
bowl. Tighten the manual nut provided.
Repeat this process for the remainig two
mounting plates. (Fig. 9)
NOTE: The entire motor assembly should not
rotate if this is done correctly.
NOTE: Please make sure all set screws are in
place and tight before installation the following
steps.
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Bulb
Canopy
Canopy Cover
Coupling Cover
Decorative Ring
Manual Nut
Fan Assembly
Upper Glass Bowl
Mounting Plate
Decorative bracket
Screw
Decorative Ring
Decorative arm
Fig. 13
Registration slot
Ceiling Mounting Bracket
Check
tap

6
LuciaTM
6. INSTALLATION OF SAFETY SUPPORT
( For Canadian Installation ONLY )
Fig. 15
Fig. 16
7. MAKE THE ELECTRIC CONNECTIONS
Code switch
Battery Compartment
Receiver
Hanger
bracket
A safety support cable is provided to help
prevent the ceiling fan from falling, please install
it as follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the mounting
bracket but do not tighten. See Figure 14-1
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
owerall length is correct, put the end of the
cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end of
the safety cable over the wood screw and under
the washer. Tighten the wood screw securely.
See Figure 14-2
WARNING: To avoid possible electrical shock,
be sure the electricity is turned off at the main
circuit breaker or fuse box before wiring.
NOTE: The CoolTouch™ Control System is
equipped with 16 code combinations to prevent
possible interference from or to other remote
units. The frequency switches on your receiver
and transmitter have been preset at the factory.
Please recheck to make sure the switches on the
transmitter and receiver are set to the same
position, any combination of settings will operate
the fan as long as each switch on the transmitter
and receiver are set to the same position. (Fig.
15) Changing the order of switches on each
switch block, changes the operational frequency.
Step 1. Insert the receiver into the ceiling mounting
bracket with the flat side of the receiver facing the
ceiling. (Fig. 16)
For best performance, make sure the Black Antenna,
on the end of the receiver, remains extended and not
tangled with any of the electrical wires.
Step 2. Motor to Receiver Electrical Connections:
(Fig. 17, next page)
Connect the black wire from the fan to the black wire
marked "TO MOTOR L" on the receiver.
Connect the white wire from the fan to the white wire
marked "TO MOTOR N" on the receiver.
Connect the blue wire from the fan to the blue wire
marked "FOR LIGHT" on the receiver.
Connect the Orange wire from the fan to the Orange
wire from the receiver marked "For Upper Light".
(Fig. 17)
NOTE: Some model fans may not have Upper Lights
OR the Orange wires
Secure each set of wire connections with the plastic
wire nuts provided in the parts bag.
Fig. 14-1
Fig. 14-2
Safety CableCable Clamp
Wood Screw
Flat Screw
Spring Washer
Ceiling
Support Brace
Outlet Box
Wood Screw

7
Fig. 18
Step 3. Receiver to Supply Wires Electrical
Connections: (Fig. 17)
Connect the black (load) wire from the ceiling
outlet box to the black wire marked "AC in L"
on the receiver.Connect the white (neutral) wire
from the ceiling outlet box to the white wire
marked "AC in N" on the receiver.
with the plastic wire nuts provided in the parts
bag.
Step 4. Connect the ground wire (green or bare
copper) from the outlet box to the ground wire on
the ceiling mounting bracket and the ground wire
from the ceiling fan.
After making all connections, separate the white
and green wire connections to one side and the
black wire connections to the other side of the
outlet box.Carefully tuck all wire connections up
into the outlet box.
Fig. 17
8. INSTALLING THE CEILING CANOPY
NOTE: For optimal operation and signal
transmission, the CoolTouch™ Remote
Transmitter should be installed and/or
operated at a maximum distance of 30
feet from the ceiling fan receiver.
Step 2. Slide the canopy up to ceiling and onto
the two screws on hanger bracket. Rotate the
canopy clockwise and tighten the two screws.
Next, while holding the canopy with one hand,
slide the canopy décor over the screws and
rotate clockwise until tight.
Step 1. Make sure all of the electrical connec-
tions are tucked neatly into ceiling outlet box.
WARNING: One last time, make sure the
“Check Tab” at the bottom of the hanger bracket
is properly seated in the “Registration Slot” on
the side of the hanger ball before attaching the
canopy to the bracket. Failure to properly seat
the “Check Tab” could damage the electrical
wires when to ceiling fan blade direction is
changed while the fan is running.
NOTE: You may need to adjust the canopy
mounting screws as necessary until the canopy
and canopy cover have a snug fit. (Fig. 18)
Canopy Cover
Canopy
Screw
Hanger bracket
Outlet box
Blue(motor)
Black(motor)
White(neutral)
White("to motor N")
Receiver
Ground Wire
Orange
(for upper light)
Blue
(for bottom light)
Black("to motor L")
White("AC IN N")
Green or bare
copper(ground)
White(neutral)
Black("AC IN L")
Black(hot)
Outlet box
Orange(motor)
Secure each set of electrical connections

8
LuciaTM
9. ASSEMBLYING AND ATTACHING
THE FAN BLADES
Fig. 19
Fig. 20
Fig. 21
Step 1. Attach the blade to the blade bracket
using the screws, washers and fiber washers
provided. Refer to Fig. 19 as needed. Start
each screw into bracket. Repeat for the three
(3) remaining screws.
Step 2. Make sure the blade is straight and
tighten each screw until the fiber washer is
slightly compressed and all four screws are
secure.
Step 3. Insert the blade assembly into one of
the slots on the blade bracket ring, align the
mounting holes on the blade bracket with the
mounting holes on the inside of the bracket
ring and insert two (2) mounting screws and
tighten securely. Repeat this procedure for the
remaining Four (4) blade assemblies. See Fig.
20 as needed.
10. INSTALLATING THE MOUNTING PLATE
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened.
Turn the mounting plate until it locks in place
at the narrow end of the key holes. Replace
the screw you removed and securely tighten
all three. (Fig. 21)
Step 1. Remove 1 of the 3 screws on the
mounting ring (located on the motor shaft)
and loosen the other 2 screws but do not
remove them.
Screw
Metal Washer
Fiber Washer Blade
Blade Bracket
Blade
Blade Bracket
Blade Bracket Ring Screw
Mounting Plate
Molex Connection
Screw
fan, please skip to step 12 and continue.
without the down light fixture, follow step
11 and then skip to step 14.
Mounting Ring
If you want your ceiling fan installed
light fixture that came with your ceiling
NOTE: If you plan on installing the down

9
Fig. 23
Fig. 22

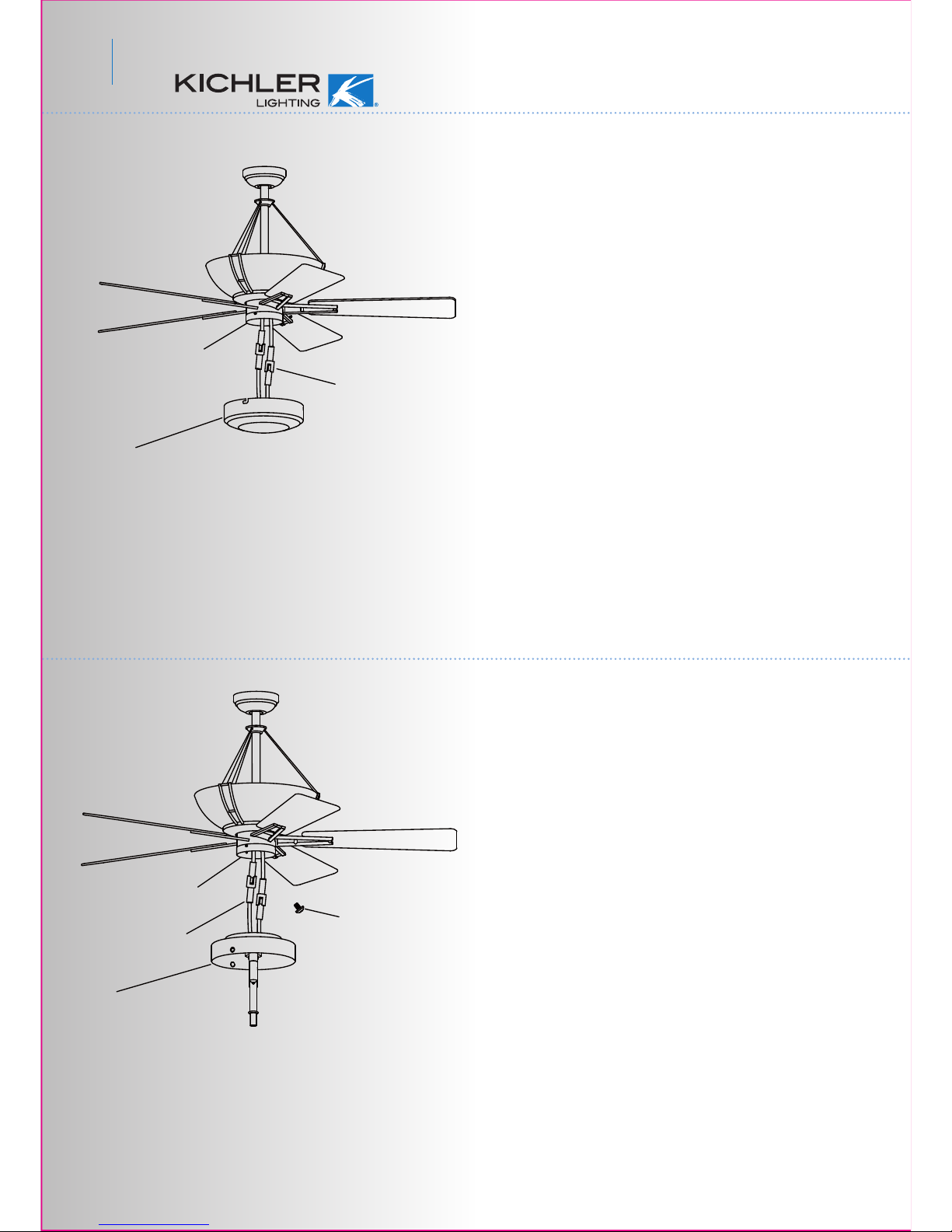

11. INSTALLING THE SWITCH HOUSING
NOTE: Before continuing, make sure the power
is disconnected by turning off the circuit breaker
of removing the fuse at the circuit box.
Step 1. Remove 1 of the 3 screws on the edge of
the mounting plate and loosen the other 2
screws, do not remove.
Step 2. Connect the black wire connectors from
the switch housing and fan assembly by pushing
them together. Follow the same procedure with
the white wire connectors. (Fig. 22)
Step 3. Tuck the new connections neatly into the
switch housing. Align the key holes on the switch
housing with the 2 screws on the mounting plate.
Rotate the switch housing until it locks in place at
the narrow end of the key holes. Tighten all three
screws. (Fig. 22)
12. INSTALLING THE LIGHT KIT
PROCEED TO STEP 14
Molex Connector
Switch Housing
Mounting Plate
Screw
Mounting Plate
Molex Connector
Step 1. Remove 1 of the 3 screws on the
mounting plate and loosen the other 2 screws.
(Do not remove)
Step 2. Connect the black wire connectors from
the Light Fixture and the fan assembly by pushing
them together. Follow the same procedure with
the white wire connectors. (Fig. 23)
Step 3. Tuck all wire connections neatly into the
mounting plate. Align the key holes on the light
fixture with the screws on the mounting plate, turn
the light fixture until it locks in place at the narrow
end of the key holes. Tighten all screws. (Fig. 23)
Light Fixture

10
LuciaTM
Fig. 24
Fig. 25
13. INSTALLING THE LIGHT BULB &
GLASS SHAED
Step 1. Insert one 50 watt halogen lamp
into each of the two sockets in the light
fixture.
Step 2. Lift the inner glass cylinder and
align the protrusions on the inside of the
metal right on the light fixture with the
indentations on the glass cylinder. How,
twist the cylinder clockwise to lock into
place. Refer to Fig. 24 as needed.
Step 3. Slide the glass bowl over the
threaded pipe on the light fixture. Place
the silicon washer and metal washer on
the threaded pipe, thread the manual
nut onto the pipe. Finally, attach and
tighten the decorative finial, careful not
to over tighten.
Special Notice: 4HISAPPLIANCEISEQUIPPED
WITHAh7ATTAGE,IMITING$EVICEvREQUIREDBY
THE5NITED3TATES$EPARTMENTOF%NERGY
4HEDEVICEHASBEENINSTALLEDATTHEFACTORY
ANDCANNOTBEREMOVED
Installing Lamps in excess of 190 total watts
will disable the unitʼs light fixture. If this
should happen, you will need to reset the
lighting fixture by turning the power off to the
ceiling fan and /or light fixture, reinstalling
lamps totaling less than 190 watts and then
turning the power back on.
Halogen Bulb
Inner Glass Bowl
Finial
Manual Nut
Metal Washer
Silicon Washer
Inner Glass Bowl
Outer Glass Bowl
Your New Kichler Ceiling Fan is now ready to
use. Remember to RESTORE all power.
Fig. 26
Remove the battery compartment cover on the
back of the CoolTouch™ Transmitter and
insert both batteries provided. Make sure the +
sign is facing up.
Take care during this procedure NOT TO
move the frequency dip switches inside this
compartment. The settings MUST remain the
same as the settings on the receiver for proper
communication with the control system.
14. INSTALLING THE BATTERY

••••
11
Fig. 27
Restore power to ceiling fan and test for
proper operation.
A. , , and buttons:
These three buttons are used to set the
fan speed as follows:
= low speed
= medium speed
= high speed
B. button:
This button turns the fan off.
D. The " " button:
C. The " " button:
Press and release the button to turn the
light ON or OFF. Press and hold the button to
set the desired brightness level. The next time
you turn the light on, the system will remember
this setting.
press this button the fan blades will reverse
direction. This button functions ONLY when
the fan blades are in operation.
Fig. 28
Fig. 29
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
Warm Weather Operation: Forward (counter
clockwise) A downward airflow creates a
cooling effect as shown in Fig. 28. This allows
you to set your air conditioner on a warmer setting
without affecting your general comfort.
Cool Weather Operation: Reverse (clockwise).
An upward airflow moves warm air off the ceiling
areas as shown in Fig. 29. This allows you to set
your heating unit on a cooler setting without
affecting your general comfort.
Press and hold the button to set the
desired brightness level. The next time
you turn the light on, the system will
remember this setting. (some models
may not include this up light feature)
15. OPERATING INSTRUCTIONS
D. The " " button is used to set the fan in
forward or reverse operation. Each time you
It's a good idea to remove these batteries if
your fan is not used for extend periods of time,
(months).

12
LuciaTM
Fig. 30
Fig. 31
Fig. 32

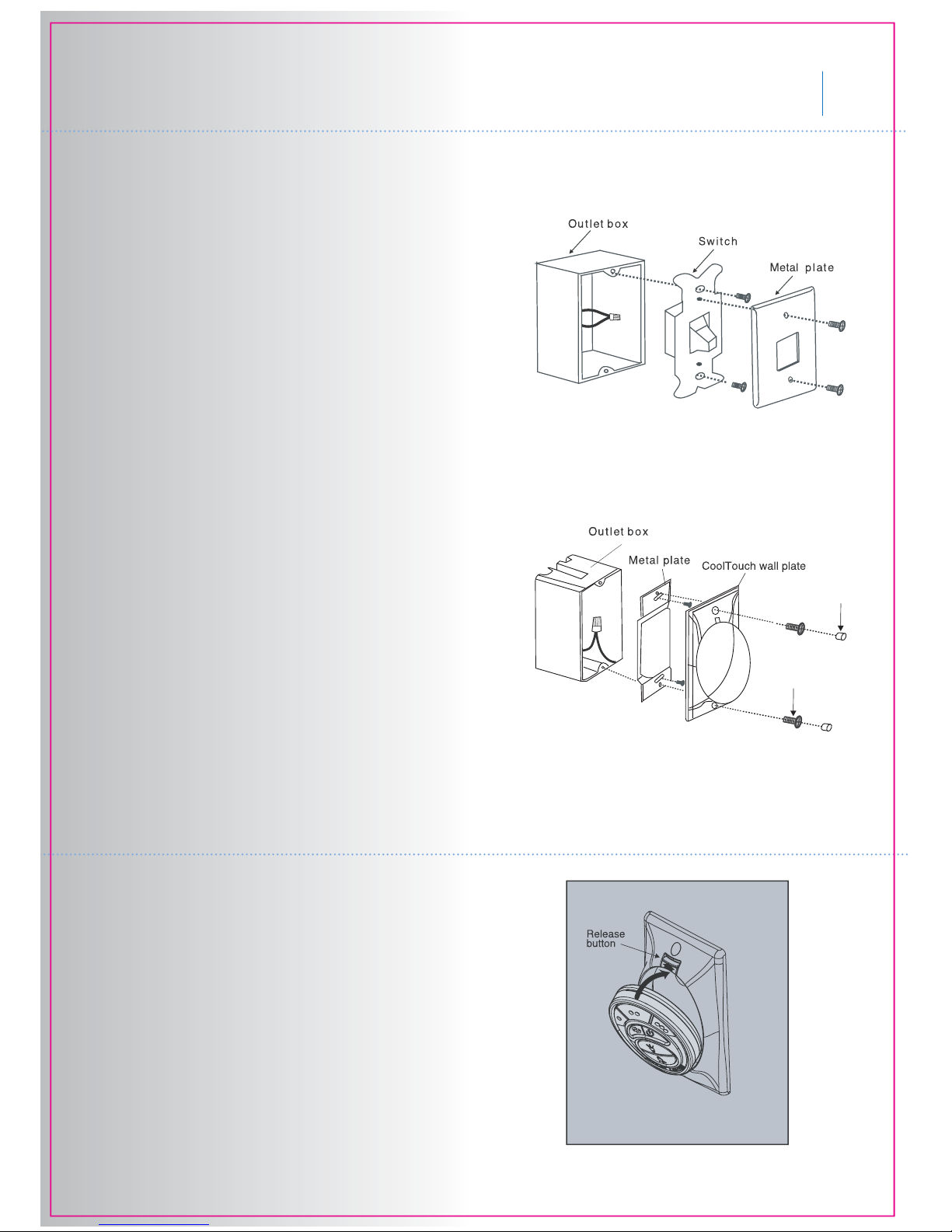

16. INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE
Select a location to install your CoolTouch™
Control System Transmitter. You can replace an
existing wall switch or, install the transmitter on
ANY flat surface.
Option 1: Install the control system using an
existing wall switch outlet box.
Make sure the electrical power is TURNED
OFF at the main panel before continuing.
Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut the
BLACK leads (hot) together and push back inside
the outlet box. (Fig. 30)
Step 2. Attach the metal plate and CoolTouch™
wall plate to the existing wall outlet box with 4 screws
provided. Then place the two plastic plugs into the
wall plate. (Fig.31)
Option 2: Install the control system on ANY flat surface.
Select the desired location and use the CoolTouch™
wall plate to mark the location for the mounting holes.
Plastic wall anchors and screws are provided for this
type of installation.
After installing the wall anchors, attach the CoolTouch™
wall plate with the mounting screws and then insert the
plastic plugs to finish the installation. (Fig.31)
17. INSTALLING AND REMOVING THE
HAND HELD TRANSMITTER
1. To place the transmitter in the wall plate, put
the bottom end in first and the press the top into
the wall plate. The transmitter is now held in the
wall plate and will function from here. (Fig. 32)
2. To remove the transmitter from the wall plate,
push the release button and the transmitter will
fall into your hand. Now the transmitter can be
use “Any where” as long as you are within 30
feet of the ceiling fan.
Screws
Plastic plugs

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the batteries are installed properly. Positive (+) side facing out.
4. Check to make sure the batteries are not dead.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Make sure the light bulbs are not touching any other component.
6. Do not connect the fan with wall mounted variable speed control(s).
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
2. Make sure the frequency dip switches in the transmitter and receiver have
identical settings.
3. Make sure the Black Antenna on the receiver is NOT tangled with any other
electrical wires and is extended around the inside of the ceiling canopy.
18.TROUBLE SHOOTING
19. SPECIFICATIONS
