Instruction Manual
DorsetTM
A Kichler®Decor™ ceiling fan

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the ground wire and white (common) wire
to one side with the black (load) wire to the
other side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET
BOX MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can not
be removed.
Installing Lamps in excess of 190 total watts
will disable the unit's light fixture. If this
should happen, you will need to reset the
lighting fixture by turning the power off to
the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Ceiling mounting plate
c. Motor and hanger plate assembly
d. Motor housing
e. Set of 5 blade brackets and Pre-Installed
mounting screws
f. Light fixture mounting plate
g. Light fixture
h. Glass shade
i. E-12 40 Watt T-3 Krypton Lamps (3)
j. Receiver
k. CoolTouch™Control System
l. Part bag contents
1) Mounting hardware:
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (2)
2) Blade attachment hardware:
screws (17), washers (17),
fiber pads (17)
3) Safety cable hardware:
wood screw, lock washer, flat washer
4) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
ab
c
d
e
g
h
i
j
k
l
f
DorsetTM

3
4. MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 are examples of different ways to
mount the outlet box.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 3)
Outlet box
Outlet box
Fig. 1
Fig. 3
Outlet box
Fig. 2

4
Fig. 5
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.
Step 1. Secure the ceiling mounting Plate to
the ceiling outlet box using screws and
washers included with your outlet box. (Fig. 4)
Step 2. Carefully lift the fan motor/hanger
plate assembly up to the ceiling mounting
plate and hang the assembly on the hook
attached to one end of the ceiling mounting
plate. See figure 5.
Fig. 4

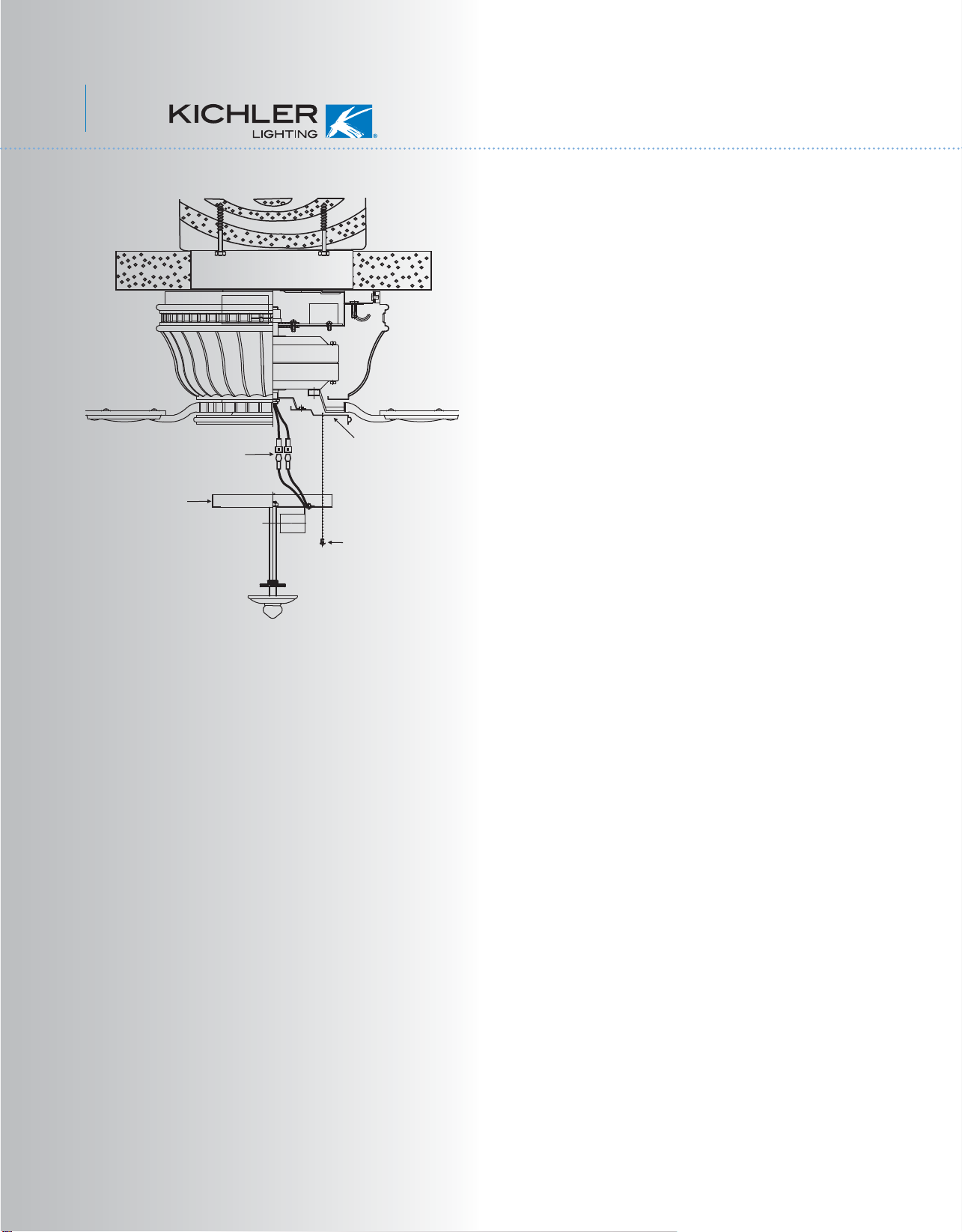

5. HANGING THE FAN
CUL Listed
electrial box
Washers
Mounting screws
Ceiling mounting
plate
Motor
Hook
Ceiling mounting
plate
Hanger plate
DorsetTM
Fig. 6
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian Installations ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling.
Step 1. Attach the provided wood screw and
washer to the ceiling joist next to the mounting
bracket but do not tighten. (Fig. 6)
Step 2. Adjust the length of the safety cable to
reach the screw and washer by pulling the
extra cable through the cable clamp until the
overall length is correct. Put the end of the
cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end
of the safety cable over the wood screw and
under the washer. Tighten the wood screw
securely.
Attach safety cable
to ceiling joist with
screw and washer

5

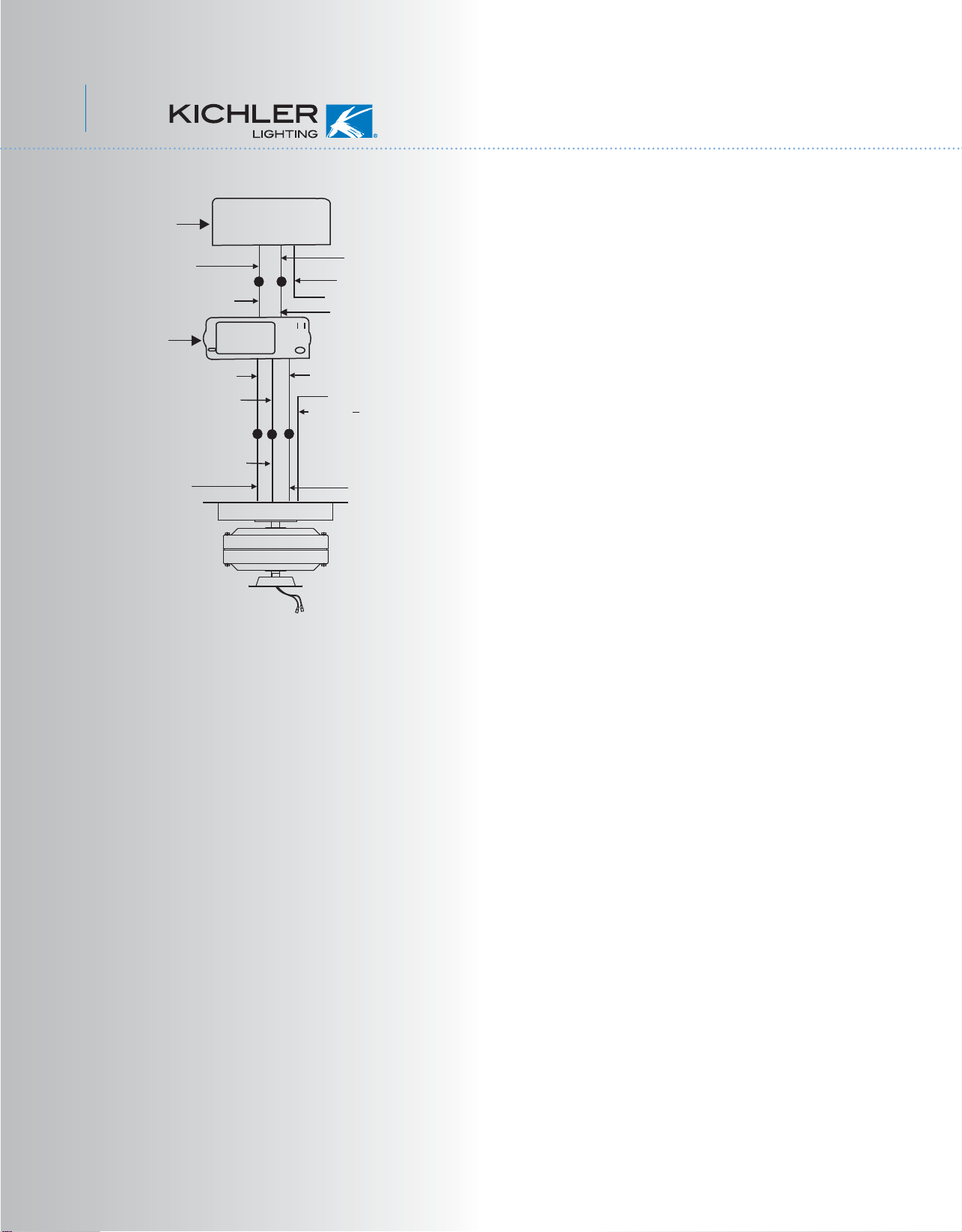

7. ELECTRICAL CONNECTIONS
Fig. 7
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts suppled with your fan. Secure
the connectors with electrical tape. Make sure
there are no loose wire strands or connections.
1. Motor to Receiver Electrical Connections:
(Fig. 7)
Connect the black wire from the fan to the
black wire marked "TO MOTOR L" on the
receiver.
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" on the
receiver.
Connect the blue wire from the fan to the blue
wire marked "FOR LIGHT" on the receiver.
Secure each set of wire connections with the
plastic wire nuts provided in the parts bag.
2. Receiver to Supply Wires Electrical
Connections: (Fig. 7)
Connect the black (load) wire from the ceiling
outlet box to the black wire marked "AC in L"
on the receiver.
Connect the white (neutral) wire from the
ceiling outlet box to the white wire marked "AC
in N" on the receiver.
Secure each set of electrical connections with
with the plastic wire nuts provided in the parts
bag.
3. Connect the ground wire (green or bare
copper) from the outlet box to the ground wire
on the ceiling mounting bracket and the
ground wire from the ceiling fan.
After making all connections, separate the
white and green wire connections to one side
and the black wire connections to the other
side of the outlet box.
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green) (Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)

6
DorsetTM
Note: Fan must be installed at a maximum
distance of 30 feet from the CoolTouch™
Remote Transmitter for optimal signal
transmission between the transmitter and the
fan's receiving unit.
For best performance, make sure the Black
Antenna, on the end of the receiver, remains
extended and not tangled with any of the
electrical wires.
NOTE: The CoolTouch™ Control System is
equipped with 16 possible frequency
combinations to prevent interference from or
with other remote control units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitter and receiver are set to
the same position. (Fig. 8)
Insert the receiver into the receiver socket
located in the mounting bracket with the flat
side of the receiver facing the motor. (Fig. 9)
Fig. 8
Fig. 9
Code switch
Receiver
(on top of the Hanger plate)
Transmitter
Receiver
Mounting
Bracket
Receiver
Socket

Fig. 10
Fig. 11
1. Remove the four sets of nuts and washers
located on the mounting plate threaded
studs.
2. Place the control receiver between the
mounting bracket and the ceiling mounting
plate with all of the wiring connection made
in the previous step.
3. Swing the motor assembly up into position
under the ceiling mounting plate, align the
holes on the mounting bracket with the four
studs on the mounting plate and secure with
the nuts and washers previously removed.
(Fig. 10)
NOTE: If the receiver included with your
ceiling fan has an "orange wire", Insure that it
has a wire nut attached to the end of the wire.
No exposed wire should show after
installation.
The Orange wire is intended for use with
"Decorative Up lighting" on most models.
8. FINISHING THE INSTALLATION
Washers
Nuts
Mounting
Plate threaded
studs
Mounting
plate
Motor
housing
Carefully lift the motor housing up to the ceiling
mounting plate aliening the mounting studs
with the mounting supports on the inside of the
motor housing.
The four mounting studs should be place into
the mounting supports on the inside of the
motor housing.
Twist the housing clockwise until snug. (Fig. 11)
9. FINISHING THE FAN INSTALLATION
Mounting
supports
Ceiling
mounting
plate
Mounting
studs
Receiver
7

Fig. 12
Fig. 13
10. ATTACHING THE FAN BLADES
Step 1. Place a blade on a blade bracket
aligning the mounting holes on each. Start
each set of mounting screws, washers and
fiber pads into each hole.
Make sure the blade is straight on the blade
bracket and tighten each mounting screw until
the fiber pad is slightly compressed.
Step 2. Attach each blade assembly to the
motor using the "Pre-installed" mounting
screws in the blade bracket. (Fig 12)
Repeat the above process for each blade
assembly.
11. INSTALLING THE LIGHT FIXTURE
MOUNTING PLATE
1. Loosen two screws on the mounting ring
attached to the motor shaft and "remove" and
save the third screw. (Fig. 13)
2. Place the key holes on the light fixture
mounting plate over the 2 screws previously
loosened on the mounting ring, turn light
fixture mounting plate until it locks in place at
the narrow section of the key holes. Secure by
tightening the 2 screws previously loosened
and the one previously removed. (Fig. 13)
Blades
Blade bracket
Fiber pads
Washers
Screws
Screws
Screws
Light Fixture
Mounting Plate
Mounting ring
8
DorsetTM

Fig. 14
12. INSTALLING THE LIGHT FIXTURE
NOTE: Before continuing installation, confirm
that the power is still turning off at the main
circuit breaker or by removing the correct fuse.
Turning the power off using a wall switch is not
sufficient to prevent electrical shock.
1. Loosen the two screws on the light fixture
mounting plate attached to the motor shaft and
"remove" and save the third screw. (Fig. 14)
2. Hold the light fixture close to the fan and
connect the white wires by pushing the
connectors on the wire ends together. Follow
the same procedure for the black wires. (Fig
14)
3. Tuck the connections neatly into the light
fixture mounting plate. NOTE: Be careful not
to pinch the light fixture wires between the
light fixture and the light fixture mounting plate.
4. Place the key hole slots on the light fixture
over the two screws previously loosened on
the light fixture mounting plate.
Turn the light fixture until is locks in place at
the narrow section of the key hole slots.
Tighten both key hole screws and replace the
third screw previously removed and tighten
securely. (Fig. 14)
Screws
Light fixture
Wire Connector Light fixture
mounting plate
9

Fig. 15
13. INSTALLING THE LAMPS AND
GLASS SHADE
1. Install 3, E-12 40 Watt T-3 Krypton lamps
(provided). (Fig. 15)
2. Remove the metal nut, glass cap and
decorative nut from the light fixture stem.
Place the glass shade over the light fixture
stem and secure with the metal nut (rubber
side on against the glass).
Place the glass cap on the stem and secure
with the decorative nut.
Restore power and your ceiling fan is ready for
operation.
Lamp
Decorative nut
Glass cap
Metal nut
Glass shade
10
DorsetTM

Fig. 16
Fig. 17

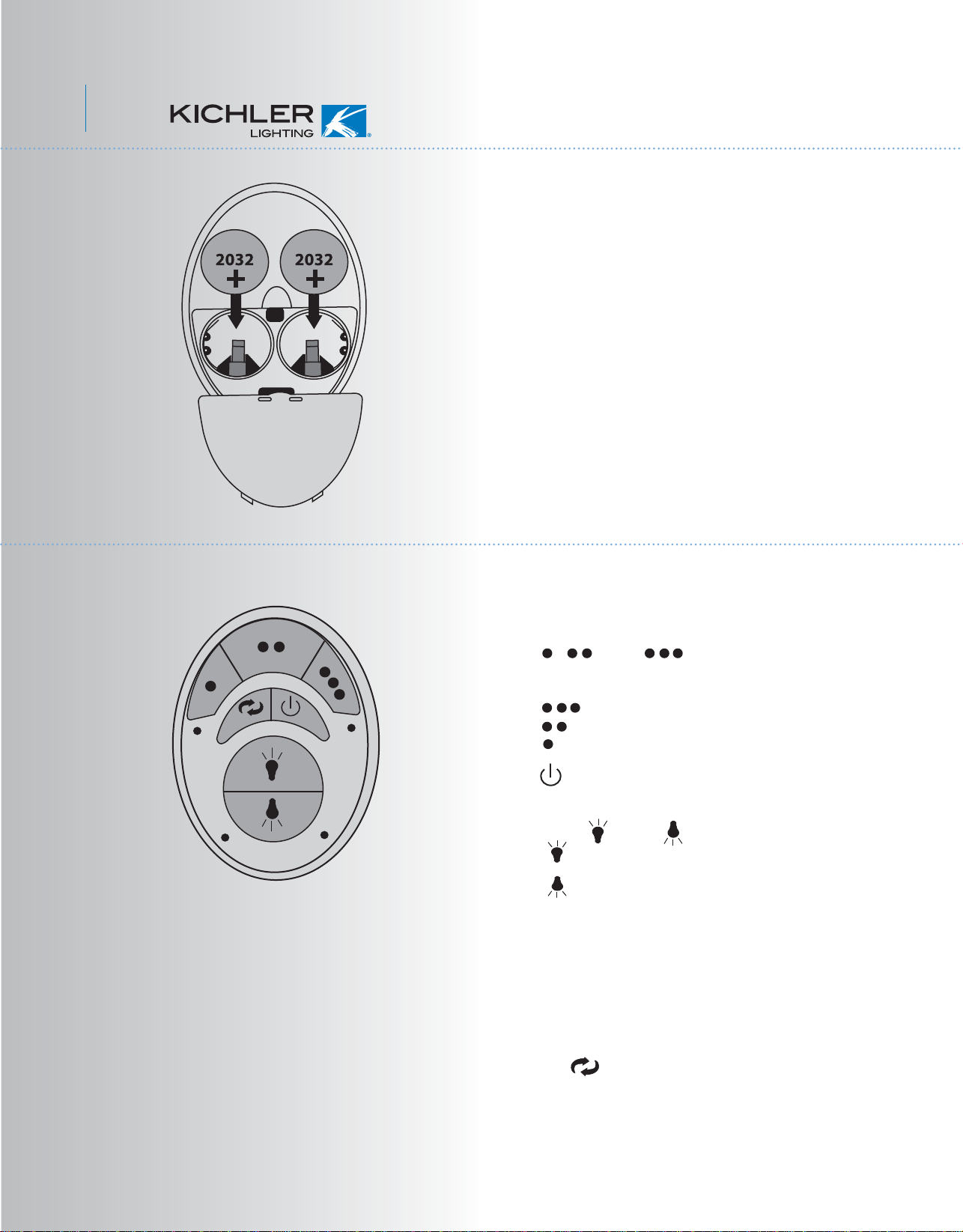

Remove the battery compartment cover on the
back of the CoolTouch™ Transmitter and
insert both batteries provided. Make sure the +
sign is facing up.
Take care during this procedure NOT TO
move the frequency dip switches inside this
compartment. The settings MUST remain the
same as the settings on the receiver for proper
communication with the control system.
It's a good idea to remove these batteries if
your fan is not used for extend periods of time,
(months).
15. OPERATING INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation.
A. , , and buttons:
These three buttons are used to set the
fan speed as follows:
= low speed
= medium speed
= high speed
B. button:
This button turns the fan off.
C. The " " and " " button:
The " " button turns the upper light ON or
OFF and also controls the brightness setting.
The " " button turns the bottom light ON or
OFF and also controls the brightness setting.
Press and hold either button to set the desired
brightness level. The next time you turn the
light on, the system will remember this setting.
Press and release either button to turn the
light ON or OFF.
D. The " " button is used to set the fan in
forward or reverse operation. Each time you
press this button the fan blades will reverse
direction. This button functions ONLY when
the fan blades are in operation.
14. INSTALLING THE BATTERIES
11

Fig. 18
Fig. 19
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.

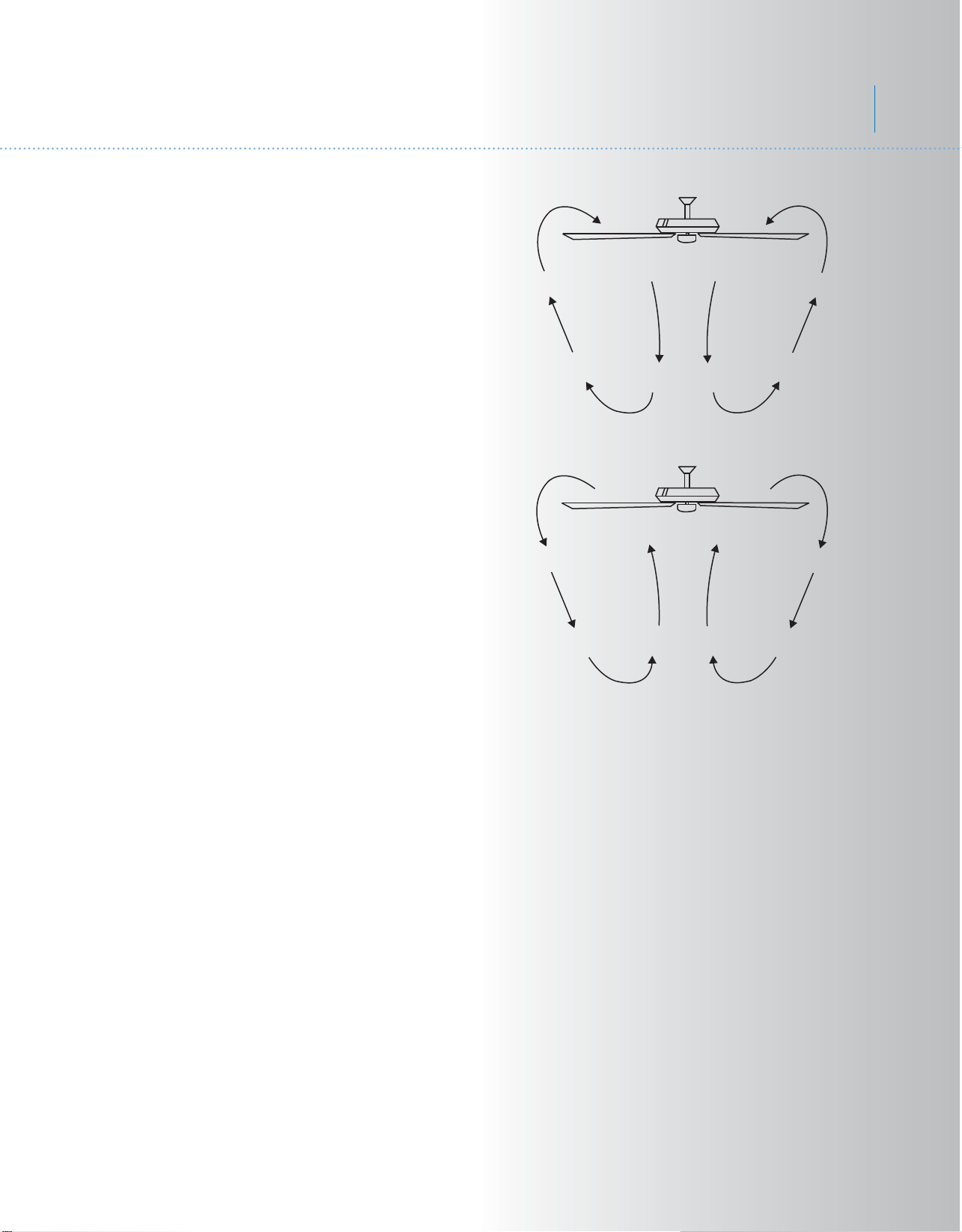

Warm Weather Operation: Forward (counter
clockwise) A downward airflow creates a
cooling effect as shown in Fig. 18. This allows
you to set your air conditioner on a warmer
setting without affecting your general comfort.
Cool Weather Operation: Reverse
(clockwise). An upward airflow moves warm
air off the ceiling areas as shown in Fig. 19.
This allows you to set your heating unit on a
cooler setting without affecting your general
comfort.
12
DorsetTM

Fig. 20
Fig. 21
16. INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE
17. INSTALLING THE TRANSMITTER
1. Insert the transmitter into the wall plate by
inserting the bottom of the transmitter first and
then press the top of the transmitter into the
pocket. The transmitter will fully function from
this location or you can remove the transmitter
and use as a "Hand Held" device.
2. To remove the transmitter from the wall
plate, push the release button and the
transmitter will fall into your hand.
Wall plate
Switch
Outlet box
Release
button
Fig. 22
Select a location to install your CoolTouch™
Control System Transmitter. You can replace
an existing wall switch or, install the
transmitter on ANY flat surface.
Option 1: Install the control system using an
existing wall switch outlet box.
Make sure the electrical power is TURNED
OFF at the main panel before continuing.
Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut
the BLACK leads (hot) together and push back
inside the outlet box. (Fig. 20)
Step 2. Install the metal plate and CoolTouch™
wall plate to the existing wall outlet box with 4
screws provided. Then place the two plastic
plugs into the wall plate. (Fig. 21)
Option 2: Install the control system on ANY
flat surface.
Select the desired location and use the
CootTouch™ wall plate to mark the location
for the mounting holes.
Plastic wall anchors and screws are provided
for this type of installation.
After installing the wall anchors, attached the
CoolTouch™ wall plate with the mounting
screws and then insert the plastic plugs to
finish the installation.
Screws
Screws
Plastic plugs
CoolTouch™wall plate
Outlet box Metal plate
13

19. SPECIFICATIONS
These are approximate measures. They do not include Amps and Wattage used by the light fixture.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make sure the
main power is OFF when checking any electrical connection.
3. Make sure the batteries are installed properly. Positive (+) side facing out.
4. Check to make sure the batteries are installed properly. (Positive + side facing out)
5. Check to make sure the batteries are not dead.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior
wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light fixture, make sure the screws securing the glassware are
tight. Make sure the lamps are not touching any other component.
6. Do not connect the fan with wall mounted variable speed control(s).
7. Make sure the upper edge of the motor housing is a short distance from the ceiling.
It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this
level by selecting a point on the ceiling above the tip of one of the blades. Measure this
distance. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO INUSRE THE
PROPER OPERATION OF YOUR CEILING FAN. NEVER ATTACH THE BLADE
ASSEMBLIES UNTIL THE CEILING FAN HAS BEEN MOUNTING ON THE CEILING.
DO NOT BEND THE BLADE ARMS WHILE INSTALLING, BALANCING OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with
any other control system EXCEPT a basic On/Off wall switch, if desired.
2. Make sure the frequency dip switches in the transmitter and receiver have identical
settings.
3. Make sure the Black Antenna on the receiver is NOT tangled with any other
electrical wires and is extended around the inside of the ceiling canopy.
18. TROUBLESHOOTING
2.42'
10.24
kgs 13.47 kgs
0.57
0.48
0.31
69.00
36.00
11.50
164~168
118
57
5087
3428
1629
74
95
142
RPM CFM CFM/W N.W. G.W. C.F.
120
120
120
Fan Size
52"
Speed Volts
Amps Watts
Low
Medium
High
14
DorsetTM
