Kichler Lighting Spyn User manual

52" Spyn LED

TABLE OF CONTENTS
SAFETY RULES ………………………………………………………. 4
TOOLS REQUIRED ……………………………………………… 5
PACKAGE CONTENTS …………………………………………. 5
MOUNTING OPTIONS ………………………………………… 6
HANGING THE FAN ………………………………………....... 7
INSTALLATION OF SAFETY SUPPORT ……………… 9
ELECTRICAL CONNECTIONS …………………………… 10
FINISHING THE INSTALLATION ……………………….. 11
ATTACHING THE FAN BLADES …………………………… 12
INSTALLING SWITCH HOUSING ………………………… 12

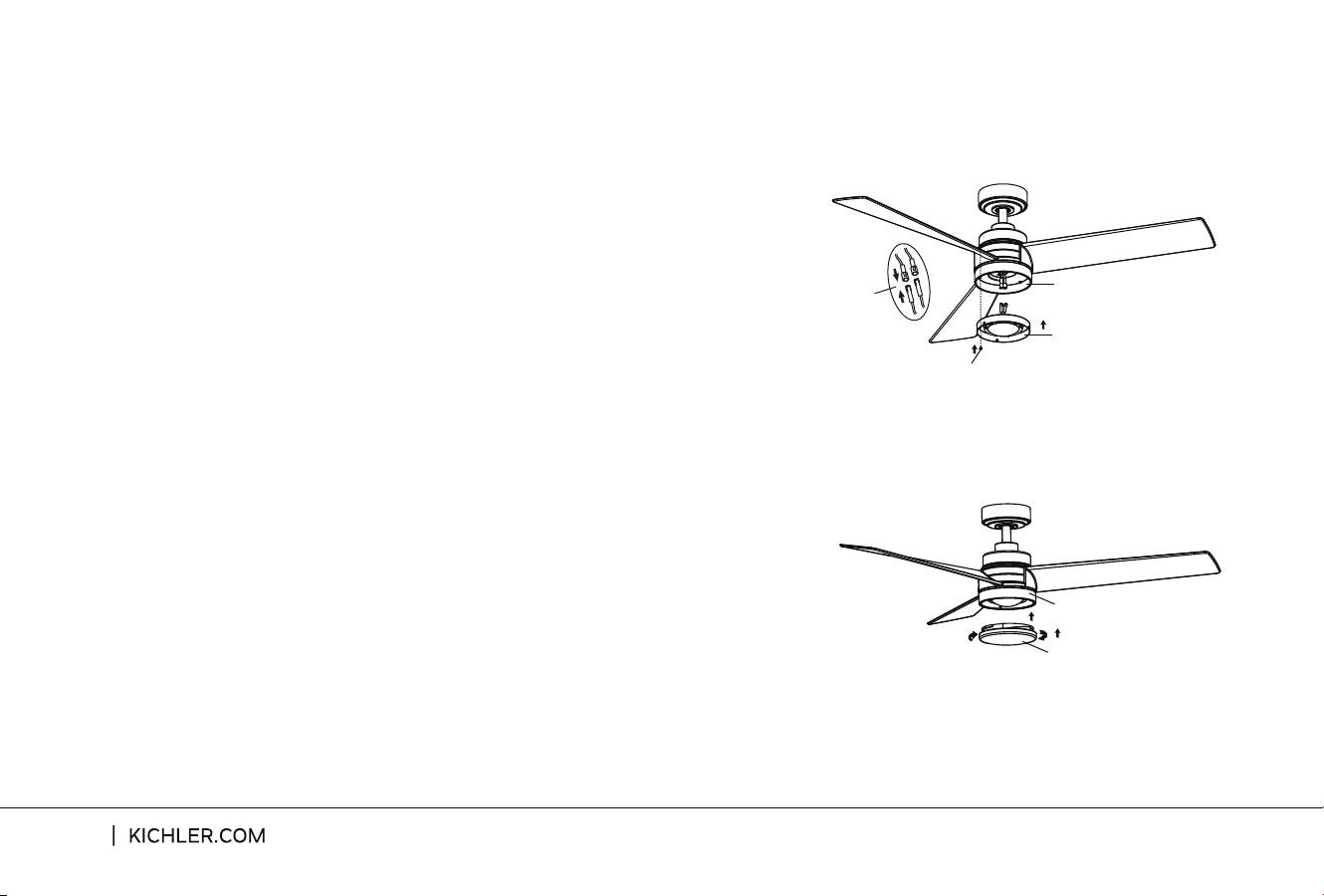

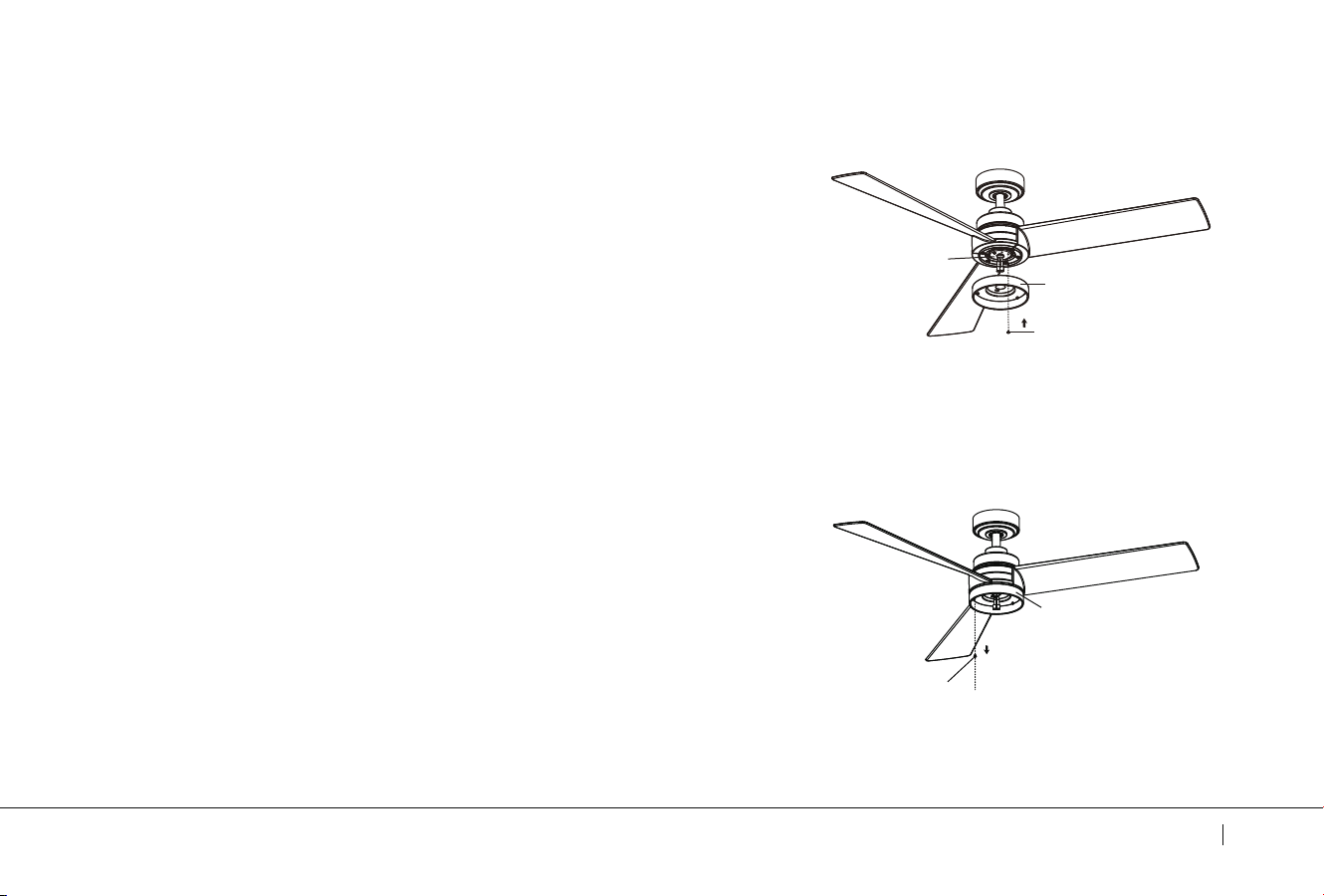

INSTALLING THE LIGHT KIT ………………………………… 13

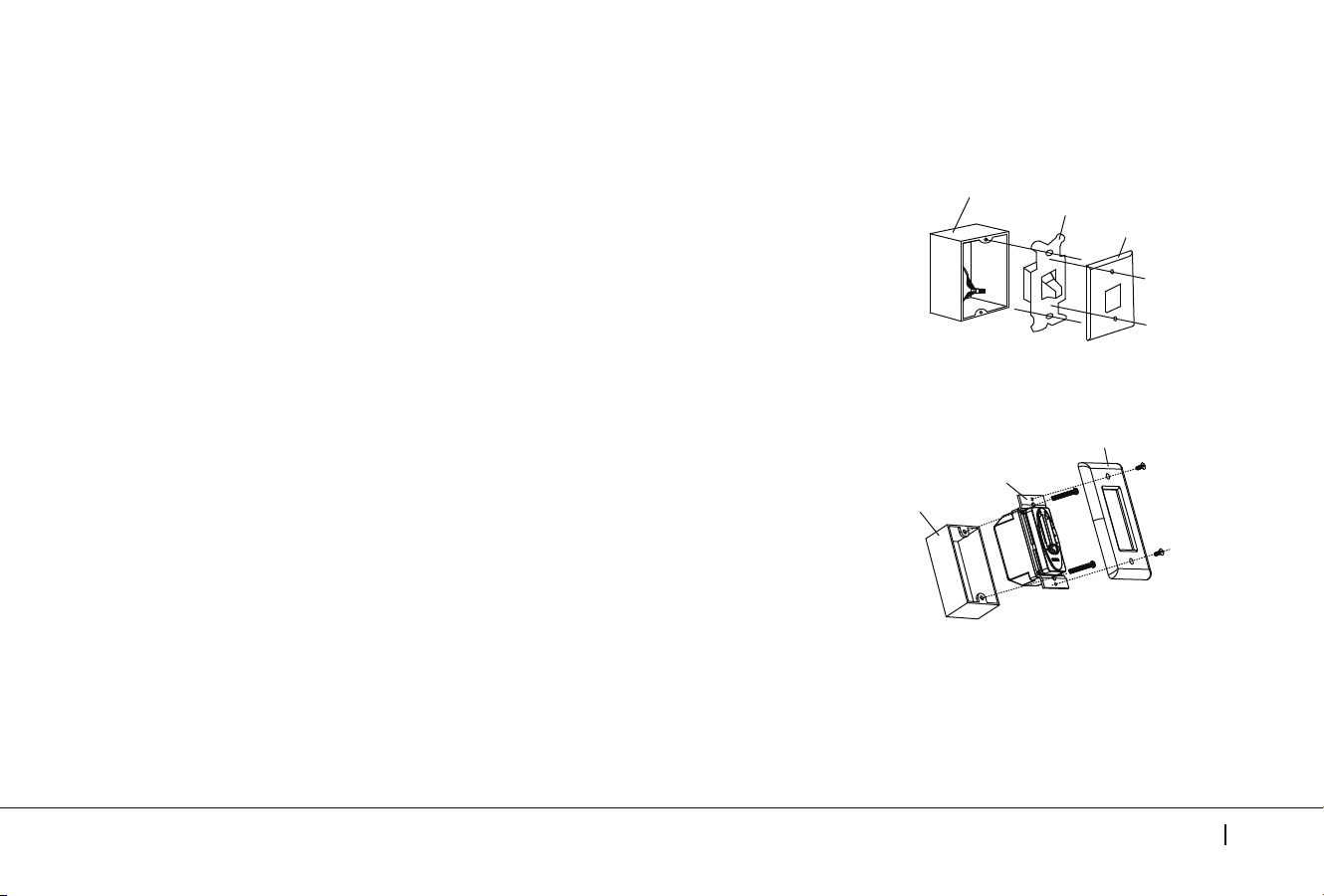

INSTALLING THE WALL CONTROL …………………… 15
OPERATING INSTRUCTIONS ……………………………… 16
TROUBLESHOOTING …………………………………………… 17
52" Spyn LED
3

8. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
9. After making the electrical connections, spliced conductors
should be turned upward and pushed carefully up into outlet box.
The wires should be spread apart with the ground wire and white
(common) wire to one side with the black (load) wire to the other
side of the outlet box.
10. Electrical diagrams are reference only.Light kits that are not
packed with the fan must be ETL Listed and marked suitable
for use with the model fan you are installing. Switches must
be ETL General Use Switches. Refer to the Instructions
packaged with the light kits and switches for proper assembly.
SAFETY RULES
4
1. To reduce the risk of electric shock, insure electricity has
been turned o at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National
Electrical Code and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of fire or electric shock, use
only the control provided with the fan.
4. WARNING: To reduce the risk of personal injury, use
only the two steel screws (and lock washers) provided
with the outlet box for mounting to the outlet box. Most
outlet boxes commonly used for the support of lighting
fixtures are not acceptable for fan support and may
need to be replaced,consult a qualified electrician if in
doubt.
5. To operate the reverse function on this fan, slide the reverse
switch to the opposite position.
6. Avoid placing objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the
fan.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT
BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

PACKAGE CONTENTS
Unpack your fan and check the contents . You should have the following items:
A. Mounting bracket
B. Ball / downrod assembly
C. Canopy
D. Canopy Hole Cover
E. Coupling Cover
F. Motor Body
G. Fan Blade (3)
H .Switch Housing
I. Light Kit
J. Shade
Phillips screwdriver
Blade screwdriver
11 mm wrench
Step ladder
Wire cutters
TOOLS REQUIRED
K. Wall Control System
L. Package hardware
1) Mounting hardware :
Wood screw (2) ,Flat Washer (2) , Screw (2) ,
Lock washer (2), Wire Connector (3)
2) Blade attachment hardware :
Screws (8) , Washers (8)
3) Safety cable hardware :
Wood screw (1) ,Spring washer (1),
Flat washer (1)
4) Balance kit
52" Spyn LED
5
IK
J
E
F
A
B
C
D
L
H
G

6
MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a “Joist Hanger” for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plane
Fig. 3
ANGLED CEILING
MAXIMUM 20° ANGLE
Outlet box
Fig. 4

HANGING THE FAN
REMEMBER to turn o the power before you begin installation. This is necessary
for your safety and also the proper programming of the control system.To properly
install your ceiling fan, follow the steps below.
Step 1 . Before attaching fan to outlet box (not included), ensure the outlet box is
securely fastened to at least two points to a structural ceiling member (a loose box
will cause the fan to wobble). Pass the 120 volt supply wires from the ceiling outlet
box through the center of the ceiling mounting bracket. Install mounting bracket to
outlet box in ceiling using the screws and washers included with the outlet box or
screws and washers in the hardware bag. (Fig. 5)
Step 2. Remove the hanger ball from downrod assembly by loosening set screws ,
removing the cross pin, and sliding ball o the rod.( Fig. 6)
Fig. 5
Outlet Box
Flat Washer
Screw
Mounting
Bracket
Fig. 6
Downrod
Cross Pin Set Screw
Hanger Ball
52" Spyn LED
7

8
Step 5
WARNING:
. Now lift the motor body into position and place the hanger ball into the mounting
bracket. Rotate until the "Check Tab" has dropped into the "Registration Slot " and
seats firmly. ( Fig. 9) The entire motor body should not rotate if this is done correctly.
Failure to properly seat the "Check Tab" can damage the ceiling fan during
operation.
HANGING THE FAN
Step 4. Slip the coupling cover, canopy hole cover and canopy onto the downrod.
Carefully reinstall the hanger ball onto the downrod . Make sure the cross pin is in
the correct position and the set screw is tight and the wires are not twisted . ( Fig. 8)
Step 3. Loosen the two set screws and remove the clip and cross pin from the top
coupling of the motor body.Carefully feed the fan wires and safety cable up through
the downrod. Thread the downrod onto the motor coupling until the cross pin holes
are aligned. Next, replace the cross pin and clip, and tighten both set screws. (Fig. 7)
Fig. 7
Fig. 8
Fig. 9
Set Screw
Downrod
Clip
Set Screw
Cross Pin
Motor Body
Clip Cross Pin
Canopy
Cherk Tab
Registration Slot
Hanger Ball
Hanger Ball
Mounting Bracket
Canopy Hole Cover
Coupling Cover

Step 1.
NOTE:

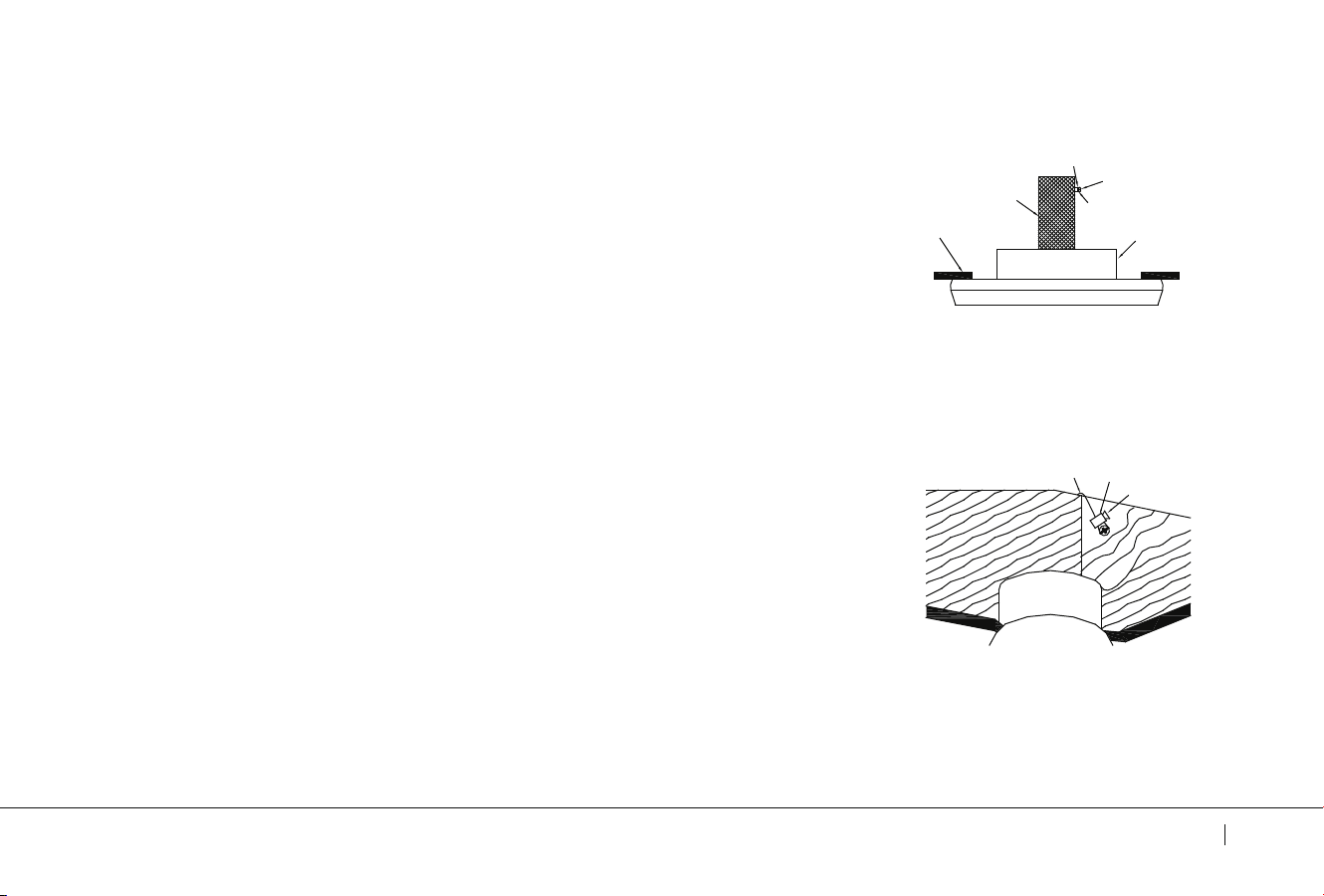

INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from faIling, please
install it as follows.
Drive a wood screw and washers into the side of the brace that holds the outlet
box. Leave 3mm (1/8") of space between the support brace and the washer. (Fig. 10)
Insert the safety cable through the mounting bracket and one of the holes in the
outlet box into the ceiling. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the overall length is
correct, put the end of the cable back through the cable clamp, forming a loop at the
end of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the
safety cable over the wood screw and under the washer. Tighten the wood screw
securely. (Fig. 11)
Although the safety support cable is required for Canadian installations only.
It’s a good idea to make the attachment with any installation.
Step 2.
Fig. 10
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling
Fig. 11
Safety Cable Bolt
Wood Screw
52" Spyn LED
9

10
MAKE THE ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power
at the main circuit panel before wiring. Follow the steps below to connect the fan to
your household wiring. Use the wire connectors supplied with your fan. Secure the
connector with electrical tape. Make sure there are no loose wire stands or connections.
WARNING: If your house wires are dierent colors other than referenced in this manual,
stop immediately. A professional electrician is recommended to determine proper wiring.
Step 1. Connect the BLACK wire from the fan to BLACK wire marked “TO MOTOR L”
from the wall control. (Fig.12)
Step 2. Connect the BLUE wire from the fan to BLUE wire marked “FOR LIGHT” from
the wall control.(Fig.12)
Step 3. Connect the WHITE wire from the fan to the household neutral WHITE wire.(Fig. 12)
Step 4. Connect the BLACK with WHITE stripes wire marked “AC IN L” from the wall control
to the household BLACK/WHITE supply wire.(Fig. 12)
Step 5. Connect GROUND(GREEN) wires from mounting bracket and downrod ball and wall
control, to GROUND(GREEN) or BARE(COPPER) wire from house.(Fig.12)
Step 6. Secure the wire connection with plastic connectors provided. After connecting the
wires, spread them apart so that the green and white wires are on one side of the outlet box.
black and white stripes wire and blue wire are on the other side. (Fig. 12)
NOTE: Carefully tuck the wire connections up into the outlet box.
Fig. 12
Ground wire
White (Neutral)
Black (motor)
Black ("TO MOTOR L")
Blue(for light)
AC IN N( White)
B/W ("AC" IN L")
Green or bare copper (ground)
AC IN L(Black/white)
Ground/Earth
Wall Control
Blue( light)

NOTE: Before continuing , make sure the power is disconnected by turning
o the circuit breaker of removing the fuse at the circuit box.
Step 1. Remove one of the two shoulder screws in the mounting bracket. Loosen
the second shoulder screw without fully removing it. (Fig. 13)
Step 2. Assemble canopy by rotating key slot in canopy over shoulder screw
in mounting bracket. Reinstall the shoulder screw that was previously removed,
then retighten two shoulder screws securely.(Fig.14)

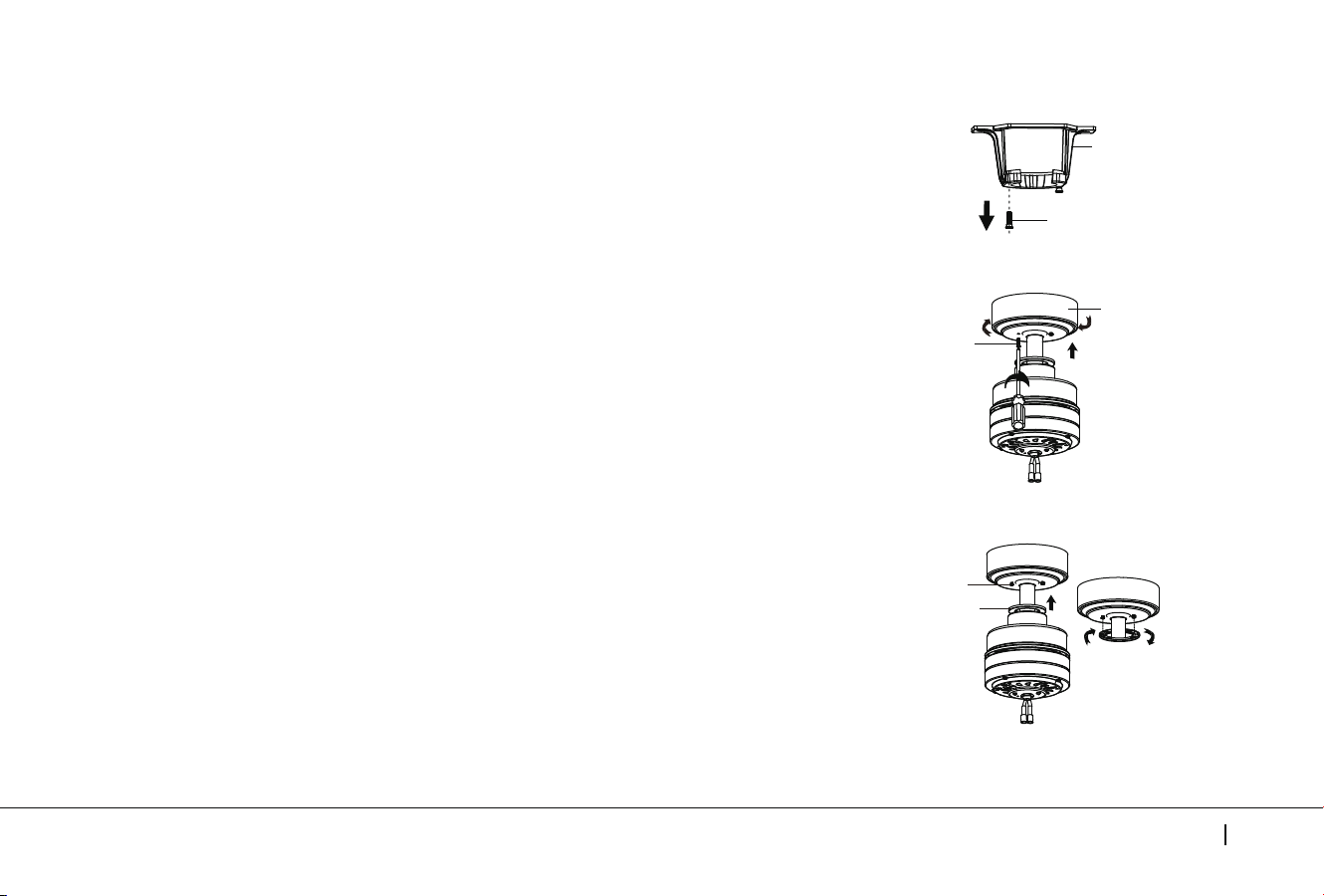

FINISHING THE INSTALLATION
Step 3. Securely attach and tighten the canopy hole cover over the shoulder
screws in the mounting bracket utilizing the keyslot twist-lock feature. (Fig. 15)
Fig. 13
Fig. 15
Fig. 14
52" Spyn LED
11
Mounting Bracket
Shoulder Screw
Canopy
Shoulder Screw
Shoulder Screw
Canopy Hole Cover

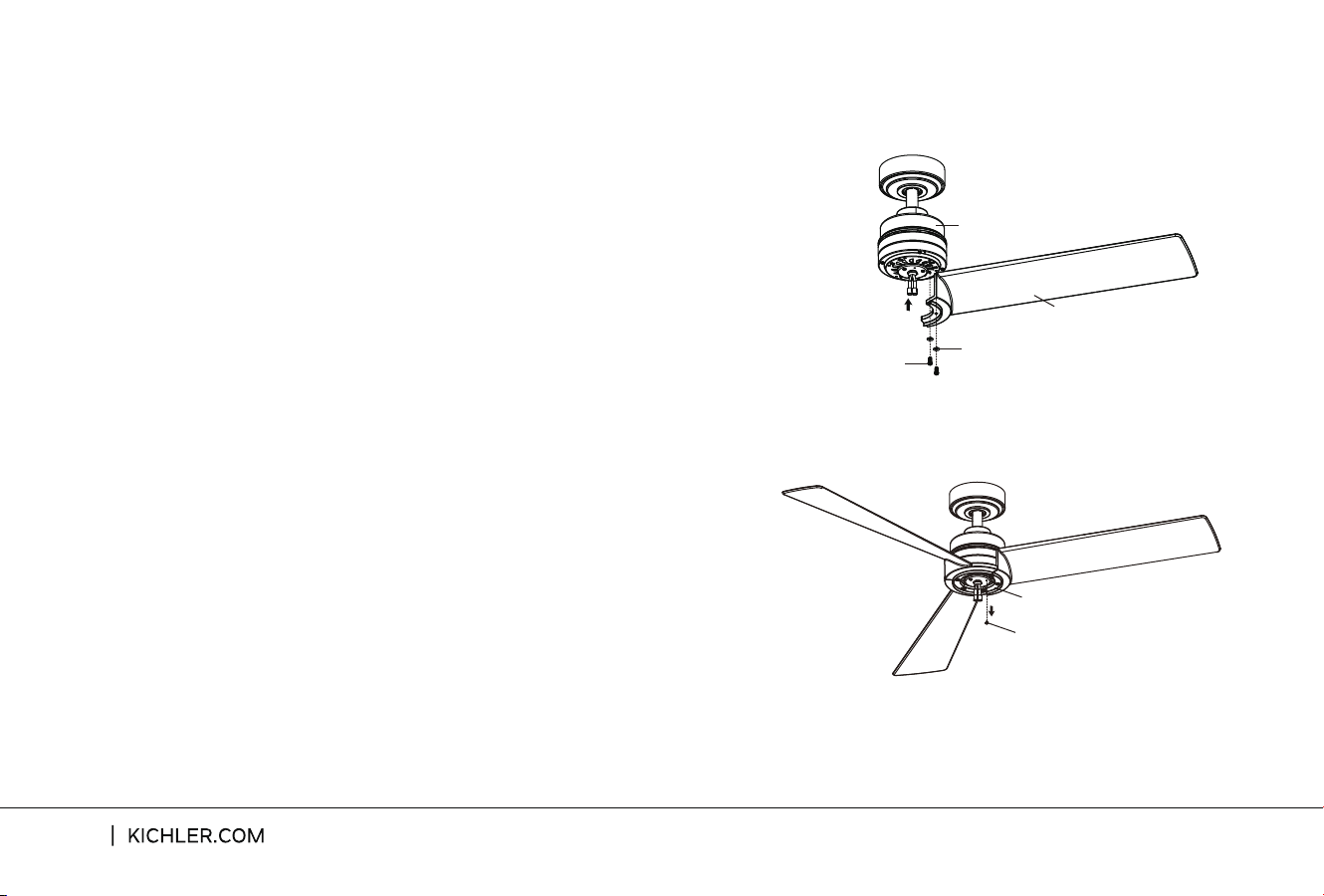

ATTACHING THE FAN BLADES
NOTE: Before continuing , make sure the power is disconnected by turning
o the circuit breaker of removing the fuse at the circuit box.
Step 1. Lightly attach the blade to the motor body with washers and screws
found in the blade attachment hardware pack. Then, securely tighten after
two screws are attached.(Fig.16)
12
Fig. 17
Fig. 16
Step 1. Remove one of three mounting plate screws preinstalled on
mounting plate and keep for later use. Loosen the other two (do not
remove).(Fig.17)
NOTE: Before continuing installation, confirm that the power is still turned
o at the main circuit breaker or by removing the circuit fuse. Turning the
power o using a wall switch is not sucient to prevent electrical stock.
INSTALLING THE SWITCH HOUSING
Motor Body
Blade
Washer
Screw
Mounting Plate
Screw

Step 2. Place the two slot holes on the switch housing over the 2 screws
previously loosened from the mounting plate. Rotate the switch housing
until it locks in place at the narrow end of the key holes. Secure by tightening
the 2 screws previously loosened and the one previously removed. (Fig. 18)
Step 1. Remove one of the three screws pre-installed on the outer edge side
of the switch housing and save for later use. Loosen the other two (do not
removed. (Fig. 19)
Fig. 18
Fig. 19
52" Spyn LED
13
NOTE: Before continuing installation, confirm that the power is still turned
o at the main circuit breaker or by removing the circuit fuse. Turning the
power o using a wall switch is not sucient to prevent electrical stock.
INSTALLING THE LIGHT KIT
INSTALLING THE SWITCH HOUSING
Mounting Plate
Swith Housing
Screw
Swith Housing
Screw

14
INSTALLING THE LIGHT KIT
Step 2. Hold the light kit close to the switch housing and connect the WHITE
wires from the light kit and fan by pushing the connectors together. Follow
the same procedure with the BLACK wires. (Fig. 20)
Fig. 20
Fig. 21
Step 3. Tuck the connections neatly into the light kit. Place the two slot holes
on the light kit over the 2 screws previously loosened from the switch housing.
Rotate the light kit until it locks in place at the narrow end of the key holes.
Secure by tightening the 2 screws previously loosened and the one previously
removed.(Fig.20)
Step 4. Secure the shade to switch Housing by twisting in a clockwise direction.
Do not over-tighten. (Fig. 21) Swith Housing
Shade
Swith Housing
Light Kit
Screw
Connetors

52" Spyn LED
15
INSTALLING THE WALL CONTROL
All wiring must be in accordance with the National Electrical Code and local electrical codes.
Electrical installation should be performed by a qualified licensed electrician. Select a location
to install your wall control. You can replace an existing wall switch, or install the wall control on
ANY flat surface.
NOTE: SWITCH INSTALLATION MUST COMPLY WITH ALL LOCAL AND NATIONAL
ELECTRIC CODE .
Step 1. Remove the existing wall plate and the old switch from the wall outlet box, place the
new control and wall plate. Wire nut the lead wire (hot) together and push back inside
the outlet box. (Fig. 22) or select the desired location with a new wall outlet box.
Step 2. Use the screws provided to secure the wall control to the outlet box.(Fig. 23)
Outlet Box
Switch
Wall Plate
Fig. 22
Fig. 23
Outlet Box
Wall Control
Wall Plate

16

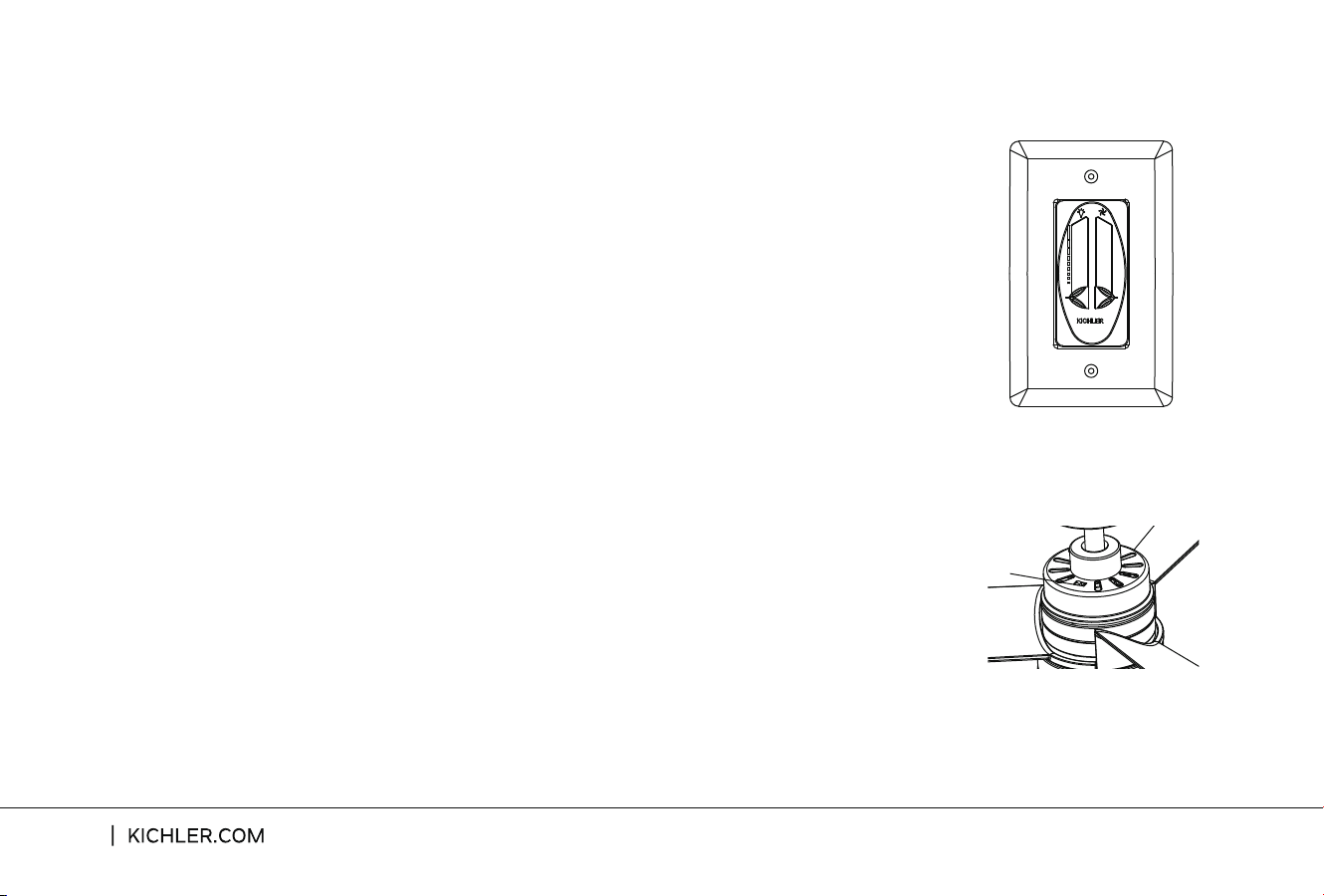

OPERATING INSTRUCTIONS
Restore power to ceiling fan and test for proper operation.
1. Fan Control: To start the fan. Slide the selected speed switch to run the fan at the desired
speed:(Fig.24)
1- High speed;
2- Medium speed;
3 - Medium-high speed;
4- Low speed;
2. Light Control: Slide to turn the light on or o, and light dimming.(Fig.24)
3. Reverse Switch: Controls direction, forward or reverse.(Fig.25)
Your fan is shipped from the factory with the reversing switch positioned to circulate air
downward. If airflow is desired in opposite direction, turn the fan o and wait for the blades
to stop running. then slide the reversing switch to the opposite position, and turn the fan on
again. The fan blades will turn in the opposite direction and reverse the airflow.
Your New Kichler Ceiling Fan is now ready to use. Remember to RESTORE all power.
Fig. 24
Fig. 25
4
3
2
1
Reverse Switch

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1.Check circuit fuses or breakers.
2.Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF
when checking any electrical connection.
3.Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
4.Insure the batteries have a good charge.
1.Make sure all motor housing screws are snug.
2.Make sure the screws that attach the fan blade brackets to the motor are tight.
3.Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.
4.Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5.If using an optional light kit, make sure the screws securing the glassware are tight.Make sure the light
bulbs are not touching any other component.
6.Do not connect this fan to a wall mounted variable speed control(s). They are not compatible with ceiling
fan motors or remote controls.
7.Make sure the upper canopy has a short distance from the ceiling. It should not touch the ceiling.
1.Check that all blade and blade arm screws are secure.
2.Most fan wobbling problems are caused when blade levels are unequal.Check this level by selecting a point
on the ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3.Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4.If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possibly result in smoother operation.
TROUBLESHOOTING
52" Spyn LED
17

18
Problem Solution
TROUBLESHOOTING
Remote control
malfunction.
1.Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control
system EXCEPT a basic On/O wall switch, if desired.

52" Spyn LED
19
