Kichler Lighting Vassar 330002OZ User manual

 2*
 2*
Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Instruction Manual
52” Vassar™LED
Includes our new
Wall Remote Control System

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualied
licensed electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of fire,
electric shock, or personal injury, mount to
outlet box marked "acceptable for fan
support of 15.8 kg (35 lbs.) or less" and
use mounting screws provided with the
outlet box. Most outlet boxes commonly
used for the support of light fixtures are
not acceptable for fan support and may
need to be replaced. Due to the
complexity of the installation of this fan, a
qualified licensed electrician is strongly
recommended.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the oor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
1
1. SAFETY RULES
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can
not be removed.
Installing Lamps in excess of 190 total
watts will disable the unit's light fixture. If
this should happen, you will need to reset
the lighting fixture by turning the power off
to the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2
3. PACKAGE CONTENTS
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
52" VassarTM LED
a
b
c
g
h
d
e
f
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (3)
b. Canopy & Ceiling mounting bracket
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Light plate
g. 17W LED light kit
h. Glass shade
i. Decorative bottom cover
j. Receiver
k. Wall Transmitter
l. Part bag contents
1) Mounting hardware:
wood screws (2), flat washers (2),
star washers (2), wire nuts (3),
screws (2)
2) Blade attachment hardware:
screws (11), fiber washers (11)
3) Safety cable hardware:
wood screw, spring washer, flat washer
4) Balance Kit
i
j
k
l

3
4. MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power
by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 30°ANGLE

4
Fig. 6
Fig. 7
Fig. 8
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
CUL Listed
electrial
box
120V Wires
Washers
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket
from the canopy by removing (and save one
of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the
downrod assembly by loosening the set
screw, removing the cross pin and
unscrewing the ball off the rod. (Fig.7)
Step 6. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 8)
Step 7. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 8)
Downrod
Cross pin
Hanger
ball Set screw
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws
Fig. 5
Hanger bracket
Ceiling
canopy
Canopy
cover
5. HANGING THE FAN
52" VassarTM LED

5
Fig. 9
Fig. 10
Registration slot
Downrod
Canopy
Canopy cover
Step 8. Slip the coupling cover, canopy cover
and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats rmly. (Fig. 10)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan
to fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Set screws
Hitch pin Retaining
clip
Coupling cover

6
Fig. 11
Fig. 12
Fig. 13
Code switch
Receiver
Hanger
bracket
Hanger bracket
Safety cable Attach safety cable
to ceiling joist with
screw and washer
7. ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts suppled with your fan. Secure
the connectors with electrical tape. Make sure
there are no loose wire strands or connections.
NOTE: The CoolTouch™ Control System is
equipped with 16 possible frequency
combinations to prevent interference from or
with other remote control units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitter and receiver are set to
the same position. (Fig. 12)
Step 1. Insert the receiver into the ceiling
mounting bracket with the flat side of the
receiver facing the ceiling. (Fig. 13) For best
performance, make sure the Black Antenna, on
the end of the receiver, remains extended and
not tangled with any of the electrical wires.
Step 2. Motor to Receiver Electrical
Connections: (Fig. 14) Connect the black wire
from the fan to the black wire marked "TO
MOTOR L" on the receiver.
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling, please install
it as follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the mounting
bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct, put the end of the cable
back through the cable clamp, forming a loop at
the end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of
the safety cable over the wood screw and under
the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.
HI
MED
LOW
FAN OFF
LIGHT
ON ECE
1234
ON ECE
1234
ON
52" VassarTM LED

7
Fig. 14
Fig. 15
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
Step 1. Tuck all the connections neatly into the
ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots over
the mounting screw on the mounting bracket.
Rotate the canopy until the screw head locks in
place at the narrow section of the key hole. See
figure 16.
Step 3. Align the remaining circular hole on the
canopy with the remaining hole on the Ceiling
Mounting Bracket. Insert and tighten the
mounting screw you removed earlier and the
mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting screw
heads by inserting the screw heads into the
bottom side of the canopy cover and rotating
the cover clockwise.
NOTE: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig. 15)
Connect the white wire from the fan to the white
wire marked "TO MOTOR N" on the receiver.
Connect the blue wire from the fan to the blue
wire marked "FOR LIGHT" on the receiver.
Secure all the wire connections with the plastic
wire nuts provided.
Step 3. (Fig. 14) Receiver to House Supply
Wires Electrical Connections: Connect the black
(hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver. Connect the
white(neutral) wire from the ceiling to the white
wire marked "AC in N" from the Receiver.
Secure the wire connections with the plastic
wire nuts provided.
Step 4. (Fig. 14) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires, spread
them apart so that the green and white wires are
on one side of the outlet box and black and blue
wires are on the other side. Carefully tuck the
wire connections up into the outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the CoolTouch™
Remote Transmitter for optimal signal
transmission between the transmitter and the
fan's receiving unit.
8. FINISHING THE INSTALLATION
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Outlet box
Black (hot)
Black ("AC IN L")
Receiver
White (neutral)
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Black ("to motor L")
Blue (for light)
Blue (for light)
Black (motor)

8
9. ATTACHING THE FAN BLADES
Fig. 16
Fig. 17
Insert the blade through the blade slot in the
motor housing. Align the holes in blade and
blade bracket, making sure the holes are also
aligned and secure with the screws, fiber
washers and blade support plates provided.
Repeat process with other blades. (Fig. 16)
Blades
Screws
Fiber
washers
Light plate
Mounting ring
Screws
10. INSTALLING THE LIGHT PLATE
Step 1. Loosen the two screws on the
mounting ring attached to the motor shaft and
"remove" and save the third screw. (Fig. 17)
Step 2. Place the key hole slots on the light
plate over the two screws previously loosened
on the mounting ring.
Turn the light plate until is locks in place at the
narrow section of the key hole slots.
Tighten both key hole screws and replace the
third screw previously removed and tighten
securely.
52" VassarTM LED

9
Fig. 19
Fig. 20
Decorative
bottom cover
11. INSTALLING THE LED LIGHT KIT
AND GLASS SHADE
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box.
Step 1. Loosen the three mounting screws on
the inside of the LED light kit. (Fig.18)
Step 2. While holding the LED light kit under
the fan motor, make the wire connections:
(Fig. 18)
- Red to white
- Black to black
NOTE: If you do not plan to install the LED
light kit with your fan at this time, don’t
make the wire connections. Raise the
decorative bottom cover against the LED light
kit and turn clockwise until snug, DO NOT
OVERTIGHTEN. (Fig. 20)
Step 3. Tuck the connections neatly into the
light plate. Place the key holes on the LED
light kit over the 2 screws previously loosened
from the light plate, turn the LED light kit until
it locks in place at the narrow section of the
key holes. Secure by tightening all three
screws. (Fig.18)
Step 4. Raise the glass shade against the light
kit and turn clockwise until snug, DO NOT
OVERTIGHTEN. (Fig. 19)
Fig. 18
Screws
Glass shade
Wire connectors
LED light kit
Light plate

10
13. OPERATING INSTRUCTIONS
Remove the face plate of the Wall Switch by
lifting at the top and then insert the supplied
12V battery. Duracell MN21/Eveready A23/GP
23A all 12V.
Replace the switch face plate.
To prevent possible damage to the
transmitter, remove these batteries if not used
for long periods of time (months).
12. INSTALLING THE BATTERIES
HI Button = High Speed
MED Button = Medium Speed
LOW Button = Low Speed
FAN OFF Button = Motor Off
Light Button =the "LIGHT" button
turns the light ON or OFF and also controls the
brightness setting. (Fig. 22.)
Press and hold either button to set the desired
brightness level. The next time you turn the
light on, the system will remember this setting.
Press and release either button to turn the
light ON or OFF.
This control system is NOT designed to
"Reverse" the rotation of the blades. To set
the fan blades in reverse, the reverse slide
switch is located on the top of the motor
housing. (Fig. 23.)
Fig. 21
Fig. 22
HI
MED
LOW
FAN OFF
ON ECE
1234
LIGHT
U/L
D/L
23AE 12V
Fig. 23
Slide switch
52" VassarTM LED

11
14. INSTALLING THE BASIC FUNCTION
WALL CONTROL SYSTEM WALL
PLATE
Select a location to install the Basic Function
Wall Control System Transmitter and Wall
Plate.
Install the wall plate using an existing wall
switch outlet box. Make sure the electrical
power is TURNED OFF at the main panel
before continuing.

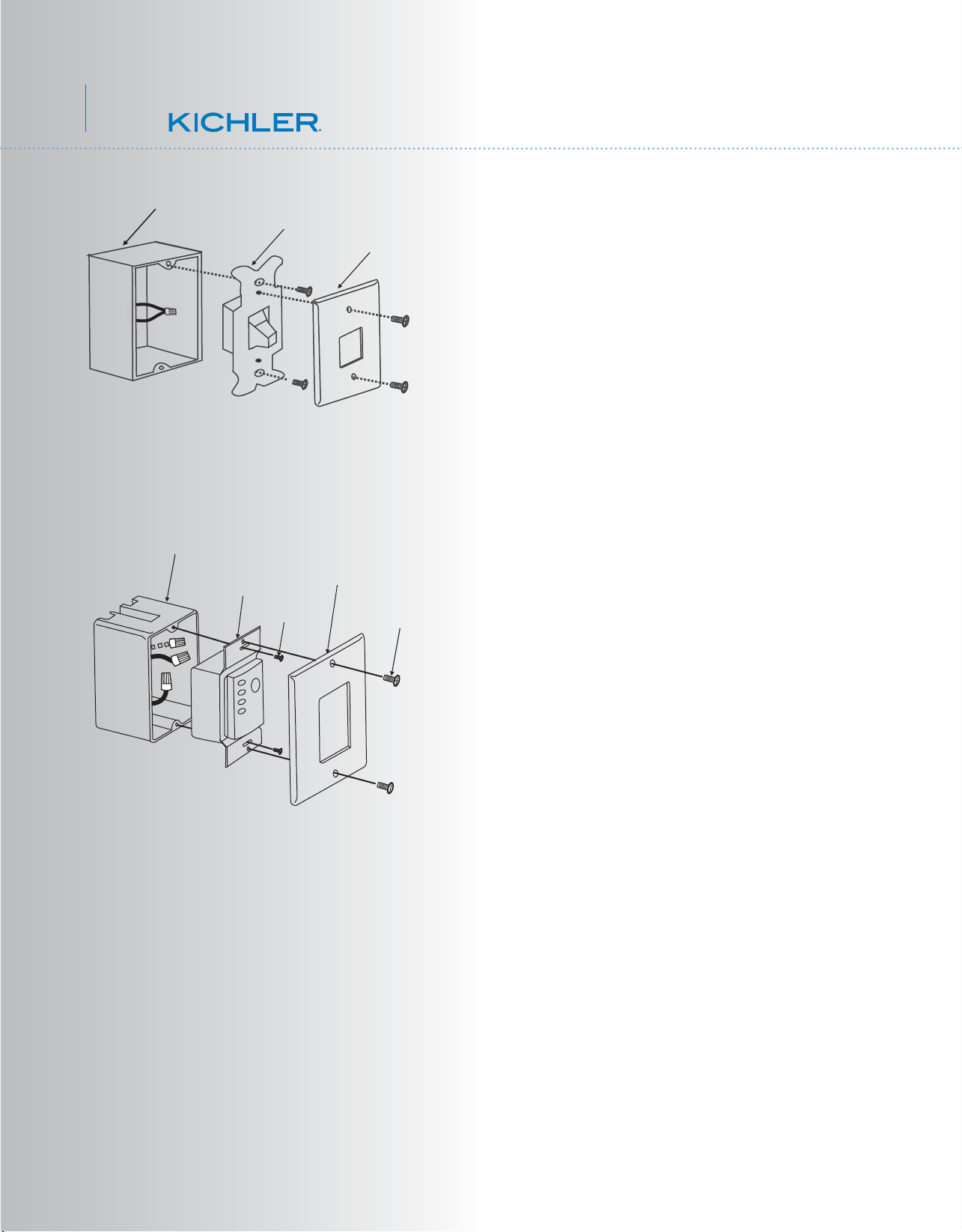

Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut
the BLACK leads (hot) together and push
back inside the outlet box. (Fig. 24)
Step 2. Install the wall plate on the existing
wall outlet box using the screws provided.
(Fig. 25)
After installing the wall anchors, attached the
wall plate with the mounting screws to finish
the installation.
Fig. 25
Fig. 24
Wall plate
Switch
Outlet box
Screws
Outlet box
Screws
Wall plate
Switch

12
Fig. 26
Fig. 27
15. OPERATING INSTRUCTIONS
The Black Slide Switch on the side of the
switch housing controls the direction of the
blades "Forward and Reverse".
Warm weather - Forward (counter clockwise)
A downward airflow creates a cooling effect
as shown in Fig. 26. This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - Reverse (clockwise) An
upward airflow moves warm air off the ceiling
area as shown in Fig. 27. This allows you to
set your heating unit on a cooler setting
without affecting your comfort.
NOTE: To change the direction of rotation for
the fan blades, locate the reverse switch
located on the top of the motor housing.
52" VassarTM LED

17. SPECIFICATIONS
These are approximate measurements. They do not include data for any lamps or fixtures
attached to the ceiling fan.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall
switch, if desired.
2. Make sure the frequency dip switches in the transmitter and receiver have
identical settings.
3. Make sure the Black Antenna on the receiver is NOT tangled with any other
electrical wires and is extended around the inside of the ceiling canopy.
16. TROUBLESHOOTING
13
1.57'
10.5
kgs
11.5
kgs
0.47
0.40
0.29
55.40
29.10
11.80
176
126
80
5041.38
3415.17
2213.64
91
117
188
RPM CFM CFM/W N.W. G.W. C.F.
120
120
120
Fan Size
52"
Speed Volts
Amps Watts
High
Medium
Low
