Kikusui PAV10-20 User manual

200 W type
PAV10-20 PAV160-1.3
PAV20-10 PAV320-0.65
PAV36-6 PAV650-0.32
PAV60-3.5
PAV100-2
400 W type
PAV10-40 PAV160-2.6
PAV20-20 PAV320-1.3
PAV36-12 PAV650-0.64
PAV60-7
PAV100-4
600 W type
PAV10-60 PAV160-4
PAV20-30 PAV320-2
PAV36-18 PAV650-1
PAV60-10
PAV100-6
800 W type
PAV10-72 PAV160-5
PAV20-40 PAV320-2.5
PAV36-24 PAV650-1.25
PAV60-14
PAV100-8
Regulated DC Power Supply
PAV Series
LAN Interface Manual
1. Description 4
2. Network Connection 6
3. Webpage 18
4. Specifications 33
Appendix 35
Part No. IB029782
Mar. 2016

2PAV L A N
The manuals are intended for users of the PAV series and
their instructors. Explanations are given under the presump-
tion that the reader has knowledge of power supplies.
Manual construction
•SetupGuide
This manual is intended for first-time users of the product. It
gives an overview of the product, connecting procedures,
safety precautions, etc. Please read this manual before you
operate the product.
• Quick Reference
The quick reference briefly explains the control panel and
the basic operation of it.
• Safety Information
This document contains general safety precautions for this
product. Keep them in mind and make sure to observe
them.
• User’s manual (PDF)
This manual is intended for first-time users of this product. It
provides an overview of the product, notes on usage, and
specifications. It also explains how to connect the product,
configure the product, operate the product, perform mainte-
nance on the product, and so on.
• USB/RS232/RS485 Communication Interface Manual
(PDF)
This manual explains how to control the product remotely
using SCPI commands.
The interface manual is written for readers with sufficient
basic knowledge of how to control measuring instruments
using a PC.
• LAN Interface Manual (PDF)
This manual explains how to control the product remotely
for users of the PAV series with the optional LAN interface.
The interface manual is written for readers with sufficient
basic knowledge of how to control measuring instruments
using a PC.
You can download the most recent version of these manuals
from the Kikusui Electronics Corporation website (http://
www.kikusui.co.jp/en/download/).
You can view the PDF files using Adobe Reader 10 or later.
Before reading this manual
First read the User’s Manual, which includes information on
the product's hardware, to avoid connecting or operating the
product incorrectly.
Trademarks
Microsoft, Windows, and Internet Explorer are registered
trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
All company names and product names used in this manual
are trademarks or registered trademarks of their respective
companies.
Copyrights
The contents of this manual may not be reproduced, in whole
or in part, without the prior consent of the copyright holder.
The specifications of this product and the contents of this man-
ual are subject to change without prior notice.
• The PAV series is categorized into four types according to
the output capacity. This manual contains sections that
describe each type separately or several types collectively.
The type categories are provided on the front cover.
• The PAV series with a LAN interface is also referred to as
the “PAV with LAN” or simply PAV.
• The term “PC” is used to refer generally to both personal
computers and workstations.
• The following markings are used in the explanations in this
manual.
Indicates information that you should know.
Copyright© 2015 Kikusui Electronics Corporation
About PAV manual
Notations used in this manual

PAV LAN 3
Contents
About PAV manual ................................... 2
Notations used in this manual ................. 2
Contents ..................................................... 3
1 Description ................................................4
Features ........................................................ 4
2 Network Connection ........................6
LAN port ........................................................ 6
LAN configuration.......................................... 7
Network types......................................... 7
Selecting the LAN interface.................... 8
Control functions that can be used
simultaneously with LAN ...................... 10
LAN Connection.......................................... 11
Starting a connection............................ 11
Displaying and changing the IP
address ............................................. 11
Checking the host name....................... 13
Displaying the MAC address................ 13
LAN reset ............................................. 14
RS485 Multi-Drop Connection .................... 15
Description ........................................... 15
LAN connections .................................. 16
RS485 connection ................................ 17
3Webpage....................................................18
Home Page ................................................. 18
Opening the Home page ...................... 18
Description of the Home page.............. 19
Logging In and Logging Out........................ 20
Logging in............................................. 20
Logging Out.......................................... 21
DC Power Page .......................................... 22
Output tab............................................. 22
Protection tab ....................................... 24
System tab ........................................... 25
Utility tab............................................... 26
LAN Page.................................................... 27
Configure tab........................................ 27
Advanced tab ....................................... 30
Users tab.............................................. 31
Help Page ................................................... 32
4 Specifications .......................................33
Appendix
Troubleshooting .......................................... 35
Driver Software ........................................... 37
Control using a VISA driver.................. 37
Control using an IVI driver.................... 38
Socket Communication .............................. 39
Communication using sockets............. 39
WAN Connection........................................ 41
LAN Commands......................................... 42
Global Commands for Multi-Drop
Connection . .............................................. 43
Selecting the PAV ............................... 43
Responses to global commands ......... 43
Index....................................................... 44

4PAV LAN
1Description
The local area network (LAN) option can be used to perform remote control, measurement,
and status check on the PAV series.
The PAV can be controlled from a PC web browser through the web interface embedded in
the PAV.
Automatic control and measurement applications can be created using the standard network
protocol and measurement commands.
Features
Standard TCP/IP network communication
•LAN (local area network)
•WAN (wide area network)
•Communication with remote locations using the Internet
Webpage
•Network communication configuration
•Controlling and reading the PAV output and status from a GUI screen.
•Multi-user control and security settings to eliminate dangerous connection procedures
•Password for webpage protection
LAN protocol
•Supports VISA drivers, TCP socket, and UDP socket
•Supports VXI-11 discovery and Ping server
•LAN status indicator LED that lights when a network connection is established
•Simple creation of original auto control programs
Remote programming function
•Standard SCPI command language
•Supports VISA drivers and all test and measurement utilities
•TCP socket and UDP socket support PLCs, Linux, and other non-VISA controllers.

PAV LAN 5
1. Description Features
Front panel
•IP address and MAC address can be verified from the front panel.
•IP address can be assigned from the front panel.
•LAN reset can be performed from the front panel.
•Users can remotely control the blinking of the front panel display to identify which PAV is
being controlled in a rack.
Rear panel
•Equipped with an Ethernet RJ-45 port (standard 8-pin jack port for LAN)
•The RJ-45 port is equipped with a link LED and activity LED.
•The LAN status indicator LED on the rear panel shows the LAN communication status.
The LED can be controlled to blink to identify which PAV is being controlled.
RS485 multi-drop connection
•Up to 30 PAVs can be connected using the included RS485 link cables.
•All the PAVs in a RS485 multi-drop connection can be controlled using a single IP
address.
•PAVs in a RS485 multi-drop connection do not require the LAN option (except the mas-
ter unit).

6PAV LAN
2Network Connection
This chapter describes the LAN port, LAN configuration, and RS485 multi-drop connection.
LAN port
The LAN port is on the rear panel. The following figure is for the 10 V to 100 V rated output
voltage model, but the LAN port is in the same location on the 160 V to 650 V rated output
voltage model.
No. Name Function
1 LAN port RJ-45 port for LAN connection.
2 Link LED Green solid: When the PAV is connected to LAN.
3 Activity LED Orange blinking: When a message packet is
detected.
4
LAN sta-
tus indica-
tor LED
Normal operation Green solid: When the PAV can connect to LAN.
PAV identification Green blinking1,2
1 You can use the identification function by accessing the webpage from a PC or the like or by
sending an SCPI command. When used, this LED blinks in sync with the front panel display.
This function is useful to identify which PAV you are controlling when there are several PAVs
mounted in the rack. If the PAVs are connected in a multi-drop configuration, only the LED of
the PAV with LAN (master unit) blinks.
2 To stop this blinking, click Blink Identify (p.22) on the webpage, send an SCPI command
(p.42), or turn or press the setting knob of the front panel.
LAN fault
Red solid:
When the PAV is not in LAN remote mode, when a
LAN connection failed to be completed, or when the
LAN connection is disconnected.
1
23
4

PAV LAN 7
2. Network Connection LAN configuration
LAN cable
Prepare a category 5 or better straight or crossover LAN cable.
LAN configuration
Network types
Network connection using a server
This is the typical network connection. A LAN is operated with a server under the manage-
ment of network administrators. The server assigns an IP address and other LAN parameters
to the PAV.
P2P (peer-to-peer) network connection
This is a connection where the PAV and the PC are connected directly. The PC only connects
to the PAV, not to any other network.
In the factory default setting, the PAV automatically assigns its own IP address and other LAN
parameters. To return to the default settings, perform a LAN reset (p.14). In addition, if the PC
is configured for automatic IP address assignment, the PAV assigns an IP address to the PC.
For details on IP addresses, see “Displaying and changing the IP address .” (p.11).
The RS485 link cable included with the PAV cannot be used for LAN connection.
Ethernet hubNetwork
Server
Category 5 cable
Open the webpage on the PC,
or send an SCPI command.
PAV with LAN
Assign the IP address using a DHCP server
or a fixed IP address to the PAV.
Category 5 cable
(straight or crossover cable)
IP address is automatically assigned.
(169.254.xxx.xxx)
Open the webpage on the PC,
or send an SCPI command.
The PC is not connected to another network.
PAV with LAN

8PAV LAN
LAN configuration 2. Network Connection
Selecting the LAN interface
Use the REM menu to select the LAN interface. This menu is also used to set the IP address,
MAC address and perform LAN reset.
REM menu structure
Interface
Address
Baud Rate
Language
IP Address
MAC Address
LAN Reset
RS232
RS485
USB
LAN
1...31
1200...
SCPI
IP-1...IP-4
MAC-1...MAC-6
Reset
nnnn
nnnn
REM
Parameter
1200, 2400, 4800, 9600, 19200, 38400, 57600
PAG
Adr
INtF 232
485
USb
LAn
SCPI
PAG
bAUd
LANG
IP IP1
... IP4
MAC MA1
... MA6
rSt rSt
Legend Move: Turn the VOLTAGE knob
Move: Turn the CURRENT knob.
Enter: Press the CURRENT knob.
CURRENT
Press the knob.
VOLTAGE
Enter:
Subsystem (first menu level)
Function (second menu level)
Parameter (third menu level)
Subsystem Function

PAV LAN 9
2. Network Connection LAN configuration
Subsystem and function
The subsystem and function correspond to first and second menu levels.
Parameter
The third menu level. It contains the IP address and MAC address items.
LAN remote mode setup procedure
1Turn the POWER switch on.
2Press REM.
The REM LED lights, and the voltmeter shows “INtF.”
3Press the VOLTAGE knob.
The voltmeter shows “INtF,” and the ammeter shows the communication interface
name.
4Turn the CURRENT knob to select the communication interface “LAn”.
5Press the CURRENT knob.
When the interface is set, the display blinks and returns to the original screen.
Subsystem Function
item Panel display item Panel display
Interface INtF
RS2321
1 Factory default setting
232
RS485 485
USB USb
LAN2
2 Valid when equipped with LAN
LAn
Address Adr 1 to 31
611 to 31
Baudrate3
3 The setting is valid when RS232/RS485 is selected.
bAUd 1200 to 57600
960011200 to 57.6
Command language LANG SCPI1SCPI
PAG4
4 PAG series communication commands, cannot be used when the LAN interface
is selected
PAG
IP address5
5 Displayed on models with LAN installed when LAN is selected
IP IP1 to IP4 IP1 to IP4
MAC address5MAC MAC1 to MAC6 MA1 to MA6
LAN reset5rSt Reset rSt

10 PAV LAN
LAN configuration 2. Network Connection
Control functions that can be used simultaneously with LAN
On a PAV with LAN, you can use local mode and external control simultaneously with LAN.
However, LAN cannot be used simultaneously with serial communication (USB/RS232/
RS485) remote mode. For the serial communication setup procedure, see the USB/RS232/
RS485 communication interface manual.
Local mode (front panel setup)
Even when connected to LAN, the PAV can be configured using the front panel knobs and
keys.
Switching to local mode
When the PAV is in LAN remote mode, the front panel REM LED is lit. Press REM to turn off
the REM LED and switch to local mode.
If the PAV does not switch to local mode even when you press REM, perform one of the fol-
lowing procedures.
External control
Even when connected to LAN, you can control and monitor the PAV series using external
analog signals through the PAV’s J1 and J3 connectors.
Procedure (switching to local mode) Description
• Stop sending commands.
Press REM.
If the PAV continuously receives configura-
tion change commands through LAN, the
PAV switches to remote mode each time it
receives a command.
• SYSTem:REMote[:STAte] LOC/0
Send this command. The PAV may be set to local lockout mode
through LAN.
• Turn the POWER switch off and then back
on.
Press REM.

PAV LAN 11
LAN Connection
Starting a connection
A PAV with LAN automatically determines whether a network connection is available. Then, it
automatically detects a network server and receives an IP address assignment or assigns an
IP address to itself. Further, it sends its IP address and host name to other devices in the net-
work.
1Turn the POWER switch on.
The front panel voltmeter displays “LAn” for about 2 seconds. Then, the PAV pro-
ceeds as follows.
In safe start mode, “OFF” is displayed.
In auto start mode, the output is in the state that it was in immediately before the AC
input was turned off.
In a typical network (network server) connection
When the PAV rear panel LAN status indicator LED lights green about 10 seconds
later, the connection is complete.
In a P2P (peer-to-peer) network
When the PAV rear panel LAN status indicator LED lights green about 30 to 40 sec-
onds later, the connection is complete.
When the PAV obtains an IP address, the LAN status indicator LED lights green.
You can check the IP address on the front panel.
If the LAN status indicator LED does not light green, see “Troubleshooting” (p.35).
Displaying and changing the IP address .
Displaying the IP address
To display the IP address on the front panel. follow the procedure below.
1Press REM.
2Turn the VOLTAGE knob until the voltmeter shows “IP.”
3Press the VOLTAGE knob.
4Turn the VOLTAGE knob.
The voltmeter shows “IP1” to “IP4,” and the ammeter displays the corresponding IP
address.
You can connect the LAN cable regardless of whether the PAV is turned on or off.

12 PAV LAN
LAN Connection 2. Network Connection
Changing the IP address
You can change all four numbers (octets) of the IP address from the front panel. An IP
address has four numbers (e.g., 10.97.4.4). Set each number in the range of 1 to 254.
5Turn the CURRENT knob.
You can change the IP address.
6Press the CURRENT knob.
The IP address is confirmed.
The voltmeter shows “LAn”, and the ammeter shows “HOLd” for about 1 second.
If the address that you want to assign is already used by another device, the front
panel LED blinks, and the address returns to the original value.
Press any key to stop the blinking.
IP address explained
Network connection is possible by assigning an IP address to the PAV. An IP address is a
group of four numbers delimited by periods. The following three modes are available for IP
address assignment: DHCP, auto IP, and static (fixed) IP.
• If you change the IP address from the front panel or by performing the procedure on the
Modify page on the Configure tab of the LAN page on the webpage, the PAV’s IP address
becomes static (fixed).
• In this case, address assignment through DHCP and auto IP are invalid.
Item DHCP Auto IP Static (fixed) IP
Mode
setting
After a LAN reset, set to
DHCP.
If a DHCP server is not
available, after a LAN
reset, set to auto IP.
Set using the Modify
page on the Configure
tab of the LAN page on
the webpage or through
IP1 to IP4 address on
the front panel.
Assignment
Network server assign-
ment.
PAV self-assignment.
Range No limitation. 169.254.xxx.xxx No limitation.
Valid period
Changes when many
devices are connected
to the DHCP server.
Fixed as long as there is
no address overlapping.
Always fixed.
Address
overlapping
Address overlapping is
prohibited by the DHCP
server.
Automatically obtains a
different IP address.
The LAN status indica-
tor LED and front panel
LED blink.

PAV LAN 13
2. Network Connection LAN Connection
Checking the host name

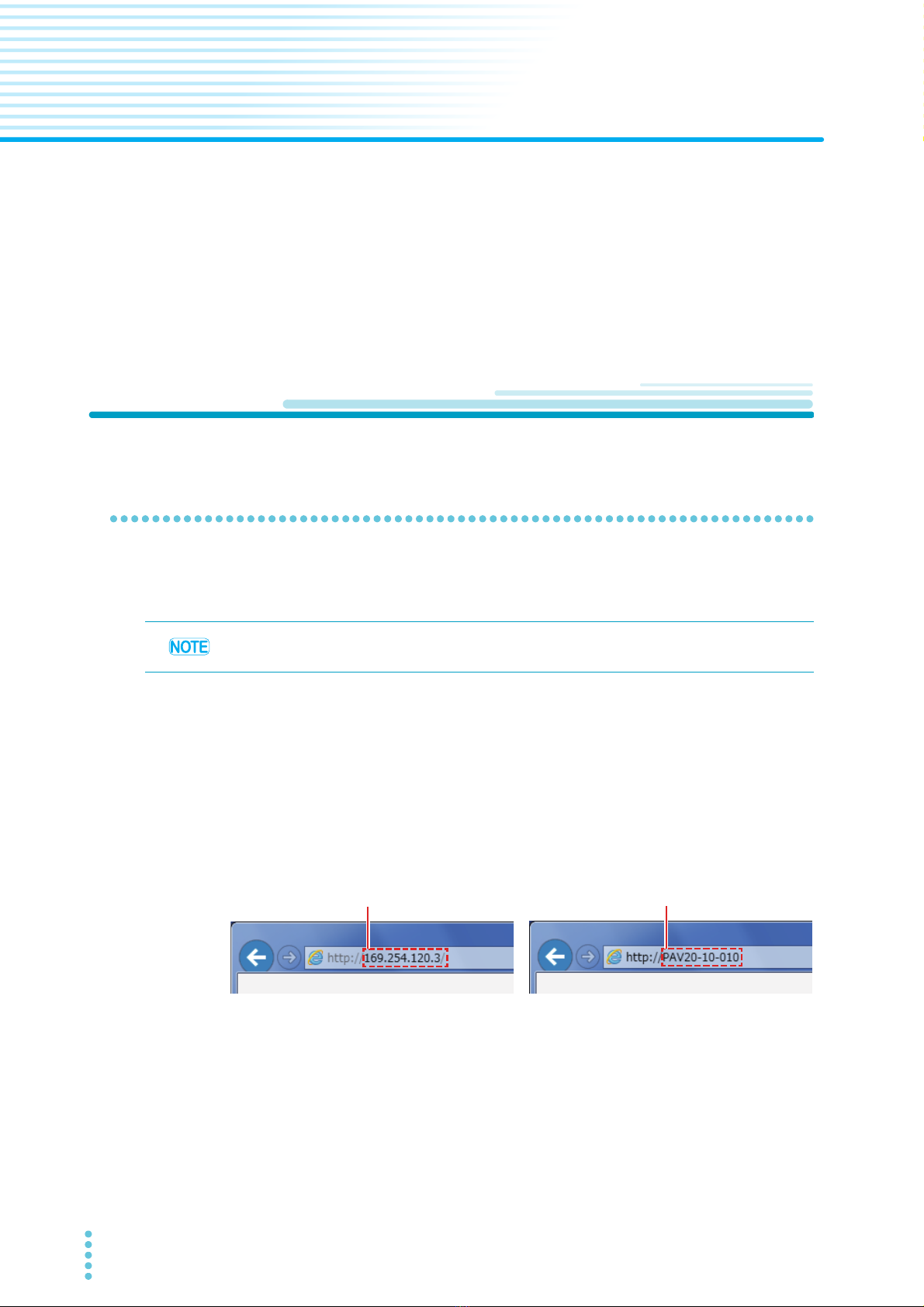

A host name is a text address used in place of a numerical address (e.g., PAV60-7-678).
You cannot view the host name from the PAV front panel. You can view and create a host
name from the webpage. (p.28)
For example, if you set the host name to “KIKUSUI,” you can send commands also to “KIKU-
SUI.”
After a LAN reset (p.14), the PAV is automatically assigned with a host name made up of a
combination of the model name and serial number.
Example:
The handling of the host name varies depending on the network connection. See the follow-
ing table. When using host names for communication, assign unique host names to each
PAV.
Displaying the MAC address
To display the MAC address on the front panel. follow the procedure below.
1Press REM.
2Turn the VOLTAGE knob until the voltmeter shows “MAC.”
3Press the VOLTAGE knob.
4Turn the VOLTAGE knob.
The voltmeter shows “MAC1” to “MAC6,” and the ammeter displays the corresponding
MAC address.
Model name Serial number Automatically generated host name1
1 <model><rated voltage>–<rated current>–<last three digits of the serial number>
PAV10-40 WITH LAN VJ000123 PAV10-40-123
PAV160-2.6 WITH LAN VJ000456 PAV160-2P6-456
Item DHCP Auto IP Static (fixed) IP
Format PAVvv-aa-nnn PAVvv-aa-nnn Host name not allowed
Host name protocol NetBIOS NetBIOS Host name not allowed
Host name on the
webpage

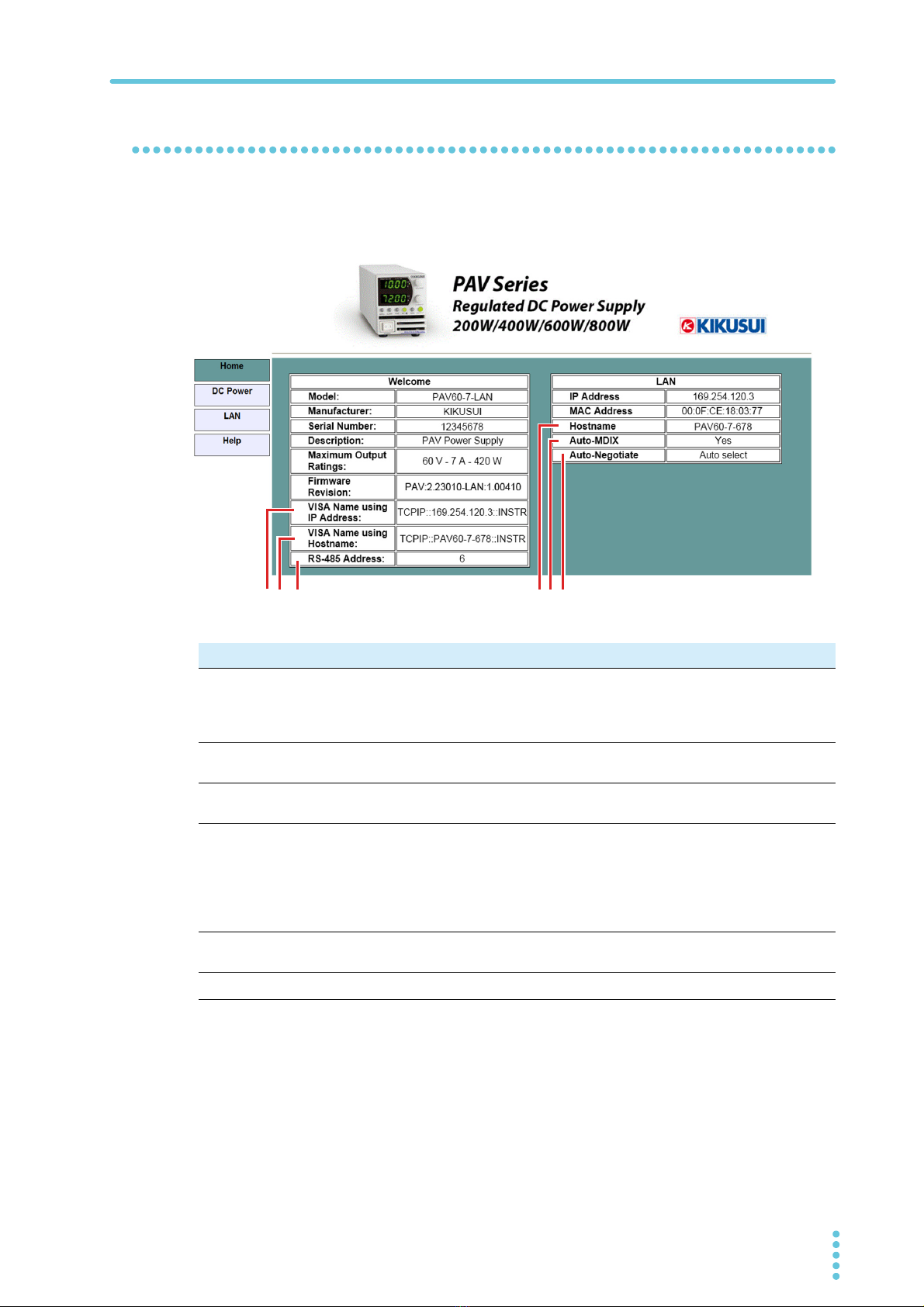

The IP address is displayed on the homepage of the webpage and on the
Configure tab of the LAN page.

14 PAV LAN
LAN Connection 2. Network Connection
LAN reset
The LAN reset function returns the LAN parameters to their factory default values.
1Press REM.
2Turn the VOLTAGE knob until the voltmeter shows “rSt.”
3Press the VOLTAGE knob.
4The ammeter shows “rSt.”
5Press the CURRENT knob.
The system is reset.
The voltmeter shows “LAn”, and the ammeter shows “HOLd” for about 1 second.
6Turn the POWER switch off and then back on.
Default LAN settings
Item Default value See
TCP/IP mode DHCP enabled (If DHCP setting fails, auto IP
assignment is used.) (p.29)
IP address 169.254.xxx.xxx
(The numbers in “xxx” are automatically assigned.)
Subnet mask 255.255.0.0 (p.27)
Default gateway 0.0.0.0
(p.27)DNS server 0.0.0.0
Description PAV Power Supply
Controller access One client only (p.29)
Ping server Enabled
(p.30)
LAN timeout 1800 seconds (30 minutes)
Auto negotiation Auto detection of the data rate
VXI-11 discovery Enabled
Password None (p.31)

PAV LAN 15
RS485 Multi-Drop Connection
Description
Up to 30 PAVs without LAN can be connected to a PAV with LAN. An IP address is assigned
to the PAV with LAN, and the other PAVs without LAN can connect to the LAN through the
PAV with LAN. This scheme is called multi-drop connection. (See the following figure.)
In a multi-drop connection, global commands can be applied to all PAVs connected through
RS485 link cables.
In a multi-drop connection, only a single controller (e.g., PC) can connect to the PAV with
LAN at any given time. Make sure it is a one-to-one connection.
IN OUT IN OUT
RS485
link cable
RS485
link cable
IN OUT
1st PAV 2nd PAV 31st PAV
- J4 -
- J4 - - J4 -
IN OUT IN OUT
RS485
link cable
RS485
link cable
IN OUT
1st PAV 2nd PAV 31st PAV
- J4 -
- J4 - - J4 -
LAN
PAV with LAN
(master unit)
Using different
IP addresses
Using different
RS485 addresses
The same RS485
address can be used.
Slave unit Slave unit
Up to 30 units
can be connected.
PAV with LAN
(master unit)
Slave unit Slave unit
LAN
PC
Category 5
Cable

16 PAV LAN
RS485 Multi-Drop Connection 2. Network Connection
LAN connections
The PAV connected to LAN is called the master unit.
Configuring the master unit
1Connect the master unit to the LAN.
2Using RS485 link cables, connect J4-OUT to J4-IN on the rear panel of
each PAV.
See the connection diagram on the previous page.
3Turn on the POWER switch of each PAV.
4Set the master unit to LAN remote mode.
5Set the RS485 addresses of each PAV other than the master unit.
Setting the RS485 addresses
On PAVs without LAN, set RS485 addresses.
If PAVs without LAN are in analog remote mode, switch to local mode. (p.10)
1Press REM on the front panel.
The ammeter shows “Adr.”
2Press the CURRENT knob.
The voltmeter shows “Adr,” and the ammeter shows the address.
3Turn the CURRENT knob to select the address.
4Press the CURRENT knob.
The default RS485 address is 6, but you can change it in the range of 1 to 31. The
RS485 address is not related to the IP address. When connecting multiple PAVs
through RS485, be sure to assign a unique address to each PAV.

PAV LAN 17
2. Network Connection RS485 Multi-Drop Connection
RS485 connection
PAVs configured for RS485 connection are called slave units.
Each slave unit sends or receive commands independently through the master unit’s LAN
port.
Configuring the RS485 multi-drop connection
1Using an RS485 link cable, connect the J4-OUT connector of the master
unit to the J4-IN connector of a slave unit.
2Turn on the POWER switch of each PAV.
3Set each PAV to RS485 remote mode.
4Set each PAV’s address.
Setting the data rate (baudrate)
5Press REM.
6Turn the VOLTAGE knob until the voltmeter shows “bAUd.”
7Press the VOLTAGE knob.
The ammeter shows the baudrate.
8Turn the CURRENT knob to set the value to “57.6.”
Be sure to set the same baudrate (57.6) on each PAV.
9Press the CURRENT knob.

18 PAV LAN
3Webpage
The PAV webpages consists of the Home page, DC Power page, LAN page, and Help page.
They have the following features.
•Model name, model information, firmware version, and LAN settings can be read.
•Configuring the LAN connection is easy.
•Configuring and monitoring the PAV output are easy.
Home Page
Opening the Home page
When the PAV rear panel LAN status indicator LED is lit green, the PAV webpages are avail-
able.
1Check the IP address from the front panel. (p.11)
2On the PC, open Internet Explorer or other web browser.
3Enter the PAV’s IP address or host name as shown in the following fig-
ure.
If the PAV is set to DHCP or auto IP and the PC is running a NetBIOS naming service,
you can enter a host name. For the procedure to enter host names, see “Checking the
host name” (p.13).
4Press ENTER.
The PAV Home page appears. If it does not, see “Troubleshooting” (p.35).
When an auto control program is in progress, you cannot open webpages.
IP address
Host name

PAV LAN 19
3. Webpage Home Page
Description of the Home page
Click Home to open the Home page.
213 546
No. Item Description
1VISA Name using IP
Address
In auto control programing, VISA is one of various communication driv-
ers.
On LAN devices, the IP address is also used in the VISA resource
name. (p.11)
2VISA Name using
Hostname
In auto control programming, a host name can be used in place of a
VISA resource. (p.13)
3 RS-485 Address This address is necessary for multi-drop connection.
The PAV with LAN is the master unit of the multi-drop connection.
4 Hostname
A unique name of a device on the network.
For details on default host names, see "“Checking the host name”
(p.13)." For the procedure to change host names, see ““Modify page
(Configure tab > LAN Modify window)” (p.28).”
If a host name is not registered in the network name server, the IP
address is displayed.
5 Auto-MDIX When connected with a LAN cable (straight or crossover cable),
devices on the network are automatically detected.
6 Auto-Negotiate The LAN is automatically adjusted to the maximum speed.

20 PAV LAN
Logging In and Logging Out
Logging in
To change the PAV output settings and LAN settings you must log in.
1Click DC Power or LAN.
The color of the selected button changes. (The above figure is an example of the DC
Power page.)
2Click LOGIN.
A login window appears.
3In the Username box, enter “admin.”
4In the Password box, enter the password.
The default password is blank. We recommend that you set a password after logging
in.
5Click Login in the Login window.
The controls become available. The LOGIN button changes to a LOGOUT button.
Password
You can set the password on the Users tab (p.31) of the LAN page. If you perform a LAN
reset from the front panel, the password will be cleared.
Login window
Login button
Page select button
