Kiloview CV180 User manual

Multifunctional video converter
SD/HD/3G-SDI to HDMI&VGA&CVBS （ AV ）
Quick Start Guide
2021
Thanks for your purchasing! Before using this product, it is recommended that you read the guide carefully. To
ensure your personal safety and avoid physical or electrical damage to the device, please strictly follow the
instructions of this guide or install and use it under the guidance of professionals. Incorrect electrical connections
or physical installation may cause permanent damage to the device and even threaten personal safety.

CV180, an SDI multi-function video converter, which can convert SDI to SDI, HDMI,
VGA and AV (CVBS), supporting frame conversion, resolution conversion, color
conditioning, image scale up/down and more. One input and multiple output!
CV180 has built-in high-performance SDI cable equalizer (EQ), which can effectively
guarantee the transmission distance of SDI (HD SDI 200m, 3G SDI 100m [Note:
Meets Belden 1694A cable standards, SDI standard signal indicators]). Different from
the current traditional converter products on the market, it has a built-in professional
image conversion processing chip. Before converting to HDMI interface, it will firstly
process the image enhancement, noise reduction, de-interlacing (optional) function of
SDI image. Then the users can set the saturation, brightness, contrast, and
automatically adapt to the best HDMI display output format according to the
connected DDC results of HDMI devices, or output the fixed resolution (any SDI
formats can be converted and output to HDMI). It features with intelligent format
conversion and be able to achieve broadcast-grade image quality.
Features
⚫Compatible with all SD/HD/3G SDI signals input.
⚫Professional SDI lightning protection design.
⚫Transmission distance: HD SDI 200m, 3G SDI 100m (Note: Meets Belden
1694A cable standards, SDI standard signal indicators).
⚫Support image enhancement processing, de-noising, de-interlacing (optional),
smart resolution conversion and frame rate conversion, supporting any standard
SDI video resolution converting to HDMI&VGA&CVBS(AV).
⚫Support SDI output, and de-interlacing, resolution and frame rate conversion.
⚫Color adjusts like luminance, contrast ratio, saturation, hue.
⚫Color depth processing, no frame loss, no delay, broadcast-level video quality.
⚫Support maintaining 4:3/16:9 proportion, avoiding video stretching proportion
distortion.
⚫Support HDMI 1.4 standard, auto analysis HDMI EDID (DDC processing),
insuring only output the video format supported by HDMI monitor. Optional
1080i de-interlacing. Optional HDMI output RGB/YUV color space.
⚫Support SDI audio de-embedding, outputting dual track analog stereo sound.
⚫Support lock HDMI output format to insure no black screen when SDI signal lost.

⚫Support SDI LOOPBACK, the loop signal is EQ and clock recovered, to improve
the quality of SDI source signal and play a role of signal relay.
⚫Output blue screen/black screen signal when SDI signal is losing.
⚫OSD display for output/input signal.
⚫Remote control, easy to use.
1. Device installation and connection
Please check the unit and accessories listed as below:
1. One unit
2. One AC 110-220V input and one DC 12V/1A output power supply
3. One remote control
4. User manual
5. Product certification/warranty card 1 set
Getting ready:
1. One good quality 75Ω BNC cable. Poor cable quality cable will affect the
transmission distance of SDI signals.
2. One HDMI cable, one VGA cable or one CVBS cable.
3. SDI input source, SDI/HMDI/CVBS monitor or receiving device.
Connection diagram as below:
2. Device working instructions
There is a work light at one end of the panel output signal of SD/HD/3G SDI
SDI-HDMI&VGA&CVBS video converter, after power on the PWR indicator is
always on and the unit starts to work.

Lights
Status
Description
PWR
OFF
Not powered on or abnormal start
Flashing
Abnormal
On
Powered on
RUN
OFF
Abnormal
Flashing/On
Working
LOCK
OFF
No SDI signal input/SDI signal
unlocked
Flashing
Ineffective SDI input format
On
SDI signal input is normal and locked
correctly
3. Video conversion rules
The video converter can output on two output ports and one SDI port simultaneously.
The default (factory setting) output port is HDMI+CVBS (AV), and the loop out is
SDI. The frame rate and de-interlacing can be settled. You can select the output
interface combination by remote control, or directly press the HDMI, VGA or AV
button on the remote control to select.
By default, HDMI output is 720P60, VGA output resolution will be close to the input
signed resolution in width and height. CVBS (AV) output format is PAL. CVBS (AV)
output format is 480i (NTSC) or576i (PAL), and any other format will be scaled and
converted to PAL/NTSC format. You can also select the output resolution by remote
control, or via the K1, K2 select (configure by the remote controller menu).
When there is no SDI signal input, or the input signal format is incorrect, the output
will keep the last image for 10s. or the default output will be a blue screen or a black
screen, and the last image and the size & time can be configured by remote control.

4. Remote controller operation
Set the output of the converter by remote control provided by the manufacturer.
Please check the battery is properly installed when using in the first time. When using
the remoter controller, please aim it at the IR receiving port of the converter
Basic operations：
MENU Display/hide converter control menu ▲ ▼ Select the menu option for
up/down
Select menu item Return
RESET Restore factory setting
INFO Display current input/output video format information
HDMI VGA CVBS Select the output interface
The menu contents maybe difference as the converter software version upgrades. Let
us check the configuration through the remote control "MENU":

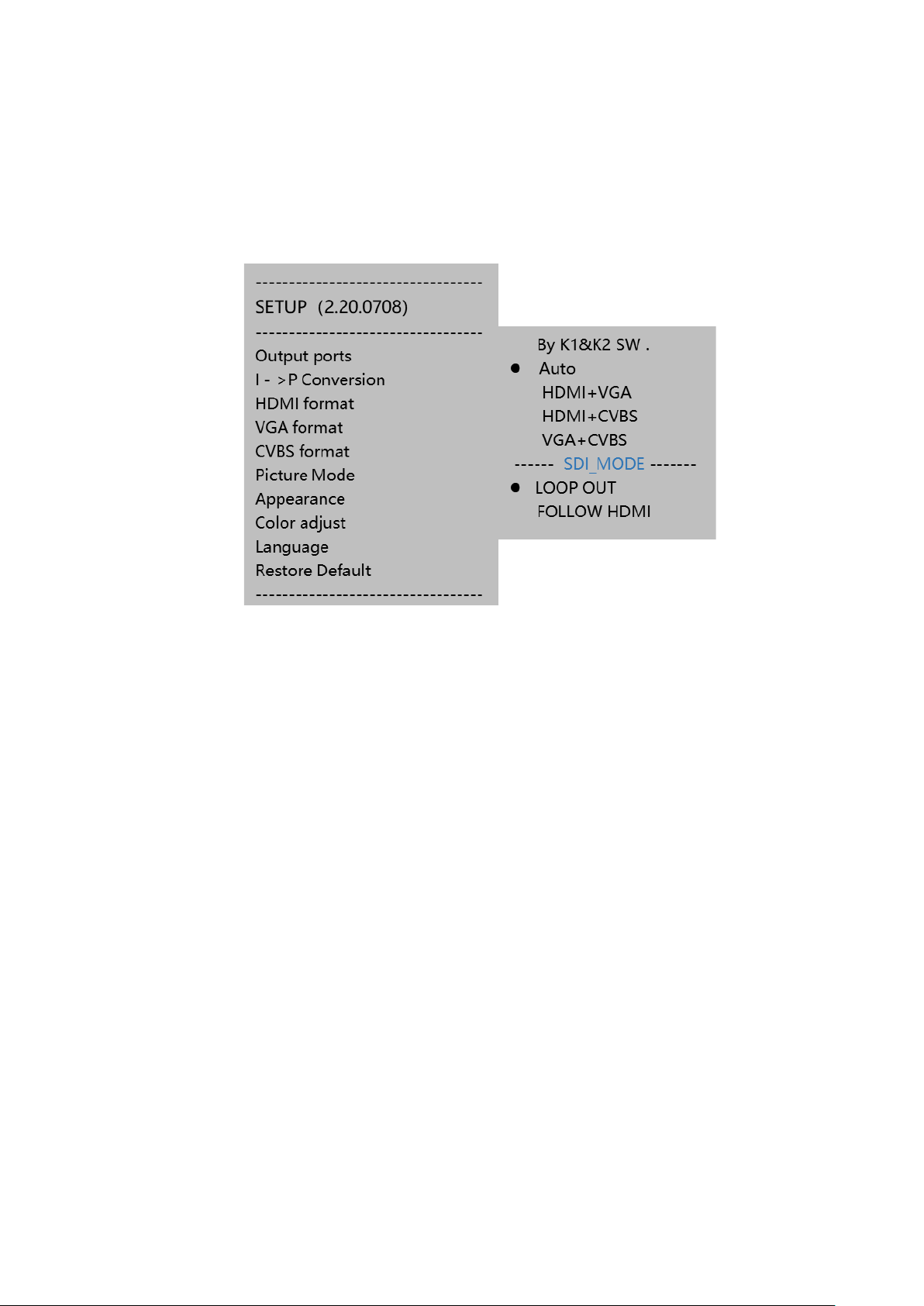

1) Output setting
By remote controller menu "Output ports" can be selected to different video interfaces.
Kiloview CV180 can convert and output in the two interfaces simultaneously, the
output interface include combination: HDMI + CVBS (AV), HDMI + VGA, VGA +
CVBS (AV). If you select "Select by K1 & K2" that the outputs interface selection
can be decided by a combination of DIP switch K1 and K2 as below:

K1: OFF/K2: OFF HDMI+VGA K1:OFF/K2:ON CVBS+VGA
K1: ON/K2: OFF HDMI + VGA K1: ON/K2:ON HDMI+CVBS(AV)
By default, the SDI output interface loops out the same SDI input format. You can
select by "Output Configuration"-"SDI MODE"-"Same as HDMI". At this time, the
SDI output frame rate and resolution can be converted.
2) De-interlacing
The CV180 converter can de-interlace the 1080i50/59.94/60 format video before
outputting. It adopts the de-interlace algorithms and turn on 3D noise reduction to
process the edge of the image which after de-interlacing, to make the image achieve
the desired effect. To turn on or off the automatic de-interlacing function, please
select the "De-Interleaving" option in the menu.
3）Output video format settings
CV180 converts the input format to the same output format by default. If you need,
you can lock an output interface for a specific format. Set the HDMI output format by
remote controller menu "HDMI format", same operations for VGA and CVBS
formats settings.
When you select the video source in the setup menu "By the K1 & K2 SW", it means
the output video source is decide by K1, K2 combination:
For HDMI：
K1: OFF/K2: OFF 1080P60 K1: OFF/K2: ON 1080P30
K1: ON/K2: OFF 720P60 K1: ON/K2: ON 1080P60
For VGA：

K1: OFF/K2: OFF Auto conversion by default
K1: OFF/K2: ON 1280x720@60Hz
K1: ON/K2: OFF 1920x1080@60Hz
K1: ON/K2: ON 80 0x600@60Hz
CVBS(AV) need to set by remote controller, cannot be selected by K1&K2
combination.
4) Image ratio adjustment
CV180 adopts "Stretch" mode for conversion output by default. It is applicable to
normal situation. However, if the input video signal is 576i 4:3 or 480i 3:2, and you
want to convert it to 720p/1080p 16:9，after stretching, the video will be distorting.
Vice versa, if you convert 16:9 video to 4:3 or 3:2. In this case, you can select
"Picture mode →Fit option by remote control menu, or "Stretch" mode to adjust. In
the maintaining ratio mode, there will be added black padding border around the
video.
5) Prompt & Screen
CV180 converter comes with video input and output format information by default. If
you want to turn off the prompt, please select "prompt & screen" in the remote-control
menu, and select "cancel prompt message". Otherwise, please select "Auto prompt".
When there is no SDI signal input, or the input signal format is incorrect, the output
will keep the last image for 10s by default. You can set the maintenance time or no
image maintenance by "image maintenance".
CV180 converter supports production auxiliary functions such as image safe area,
sound column, center cross, etc. You can enable or disable relevant functions freely.
6) Color conditioning
The default values of brightness, contrast, saturation and hue are 128 (middle value),
and the value range is 0-255. Based on the middle value, increase/decrease the value
corresponding to the increase or decrease of brightness/contrast/saturation.
7) Restore factory settings
You can restore the factory set by "Restore default” button on the remote control.
Kindly noted all the settings would be restored to the factory default.
When there are problems when output like the output interface does not display
properly, you can also use the remote controller aiming at CV180's IR receiver, press
POWER/RESET " button on the remote control. Hold for one second and repress the
"POWER/RESET" button to restore the factory settings.

5. Software control and firmware upgrade
Besides remote control, you can also choose software control. Install
“Smart Converter Tools”on your computer, connect the device to your computer by
MINI USB port through a USB cable, and select the converter device recognized by
the software.
When the device needs to update, you can use "Upgrade" to select the local firmware
and start the upgrading. After completing, you can see the software version through
the "NENU" button on the remote control.
6FAQ
1) The PWR indicator light is off
Please check whether the power supply is working, or if the power supply meets the
device of the standard (DC 12V/1A).
2) The PWR indicator light is flashing
Device fault, please contact the vendor for repairing.
3) LOCK indicator is flashing, output blue screen/black screen
SDI input signal is not normal (not locked), please check the connection of SDI signal
whether is correct, replace the SDI cable and confirm whether the input format is
supported.
4) RUN indicator light is off
Device fault. If the device output is abnormal, try to restore the factory settings.
5) No image output
First, use the remote control to check if there is a menu display. If so, check whether
the input is normal. If not, check the output cable and receiving monitor, and modify
the output resolution format to match the receiving device. If the problem still exists,
please press the POWER/RESET button on the remote control, hold for one second
and repress the " POWER/RESET " button to restore the factory settings.

6) No HDMI/analogy audio output
Please check whether the SDI signal is with audio. then whether the HDMI displayer
support audio (some displayers with HDMI interface but not support audio, actually it
is DVI displayer).
