Kiloview P1 User manual

P1 Video Encoder
4G Video Encoder
（2021-11 version）
The most versatile IP-Based Video Solution Provider in the world
Quick Start Guide
Contents
◼Packing list
◼Device interface and function
◼Device connection, login and application
◼Using guide for the bonding service
◼Device upgrade and restore the factory setting
Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the
device, please strictly follow the instructions of this guide to install and use it under the guidance of professionals. Incorrect electrical connections or physical
installation may cause permanent damage to the device and even threaten personal safety.

1Packing List
(1) Device×1
(2) Power Supply×1
(3) Cole Shoe
(4) Warranty Card×1
(5) Quick Start Guide×1
(6) 4G Antennas
2Device Interfaces
1
2
3
4
5
9
6
7
8
11
11
9
12
10
13

(1) Power port
(2) Battery level/charging indicator
(3) SDI input
(4) SDI signal indicator
(5) Power button
(6) Power indicators
(7) Streaming button
(8) Streaming indicator
(9) 4G antenna port
(10) Reset
(11) USB expansion port
(12) WiFi indicator
(13) 4G indicator
(14) SIM slot
(15) Micro SD/TF slot

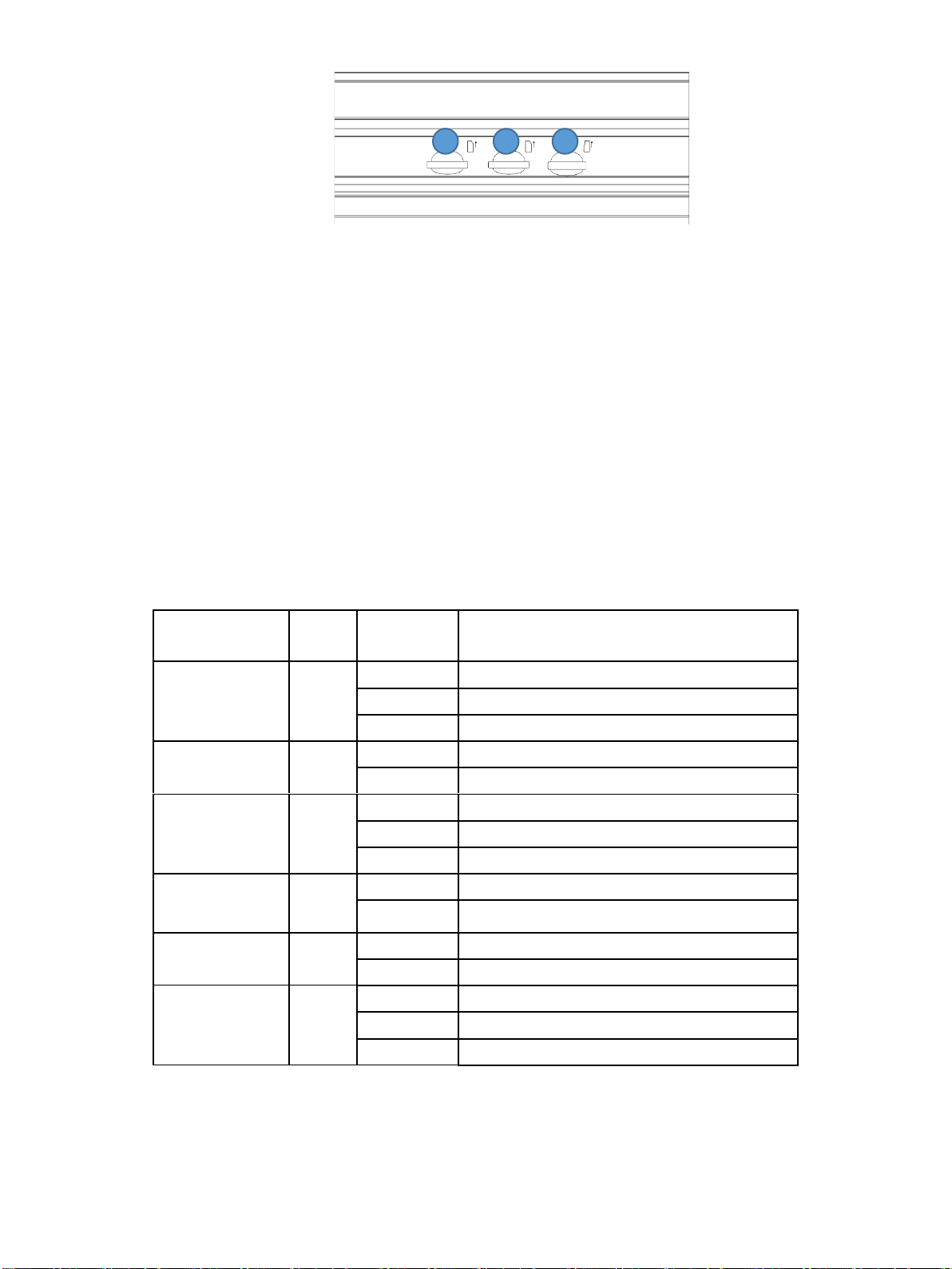

3Device Indicator
Name
Color
Status
Description
Power Indicator
White
ON
Working
Flashing
Starting
OFF
Power off or failure
SDI signal
indicator
White
ON
SDI signal locked
OFF
SDI signal unconnected
Battery indicator
White
ON
Working
Flashing
Charging
OFF
The device is abnormal or not started
Streaming
Indicator
White
ON
Start streaming
OFF
Stop streaming
WiFi Indicator
Red
ON
Working
OFF
WiFi disconnected
4G Indicator
Red
Slow flashing
Finding network（200ms high/1800ms low）
Slow flashing
Standby（1800ms high/200ms low）
Fast flashing
Data transmission（125ms high /125ms low）
14
14
15

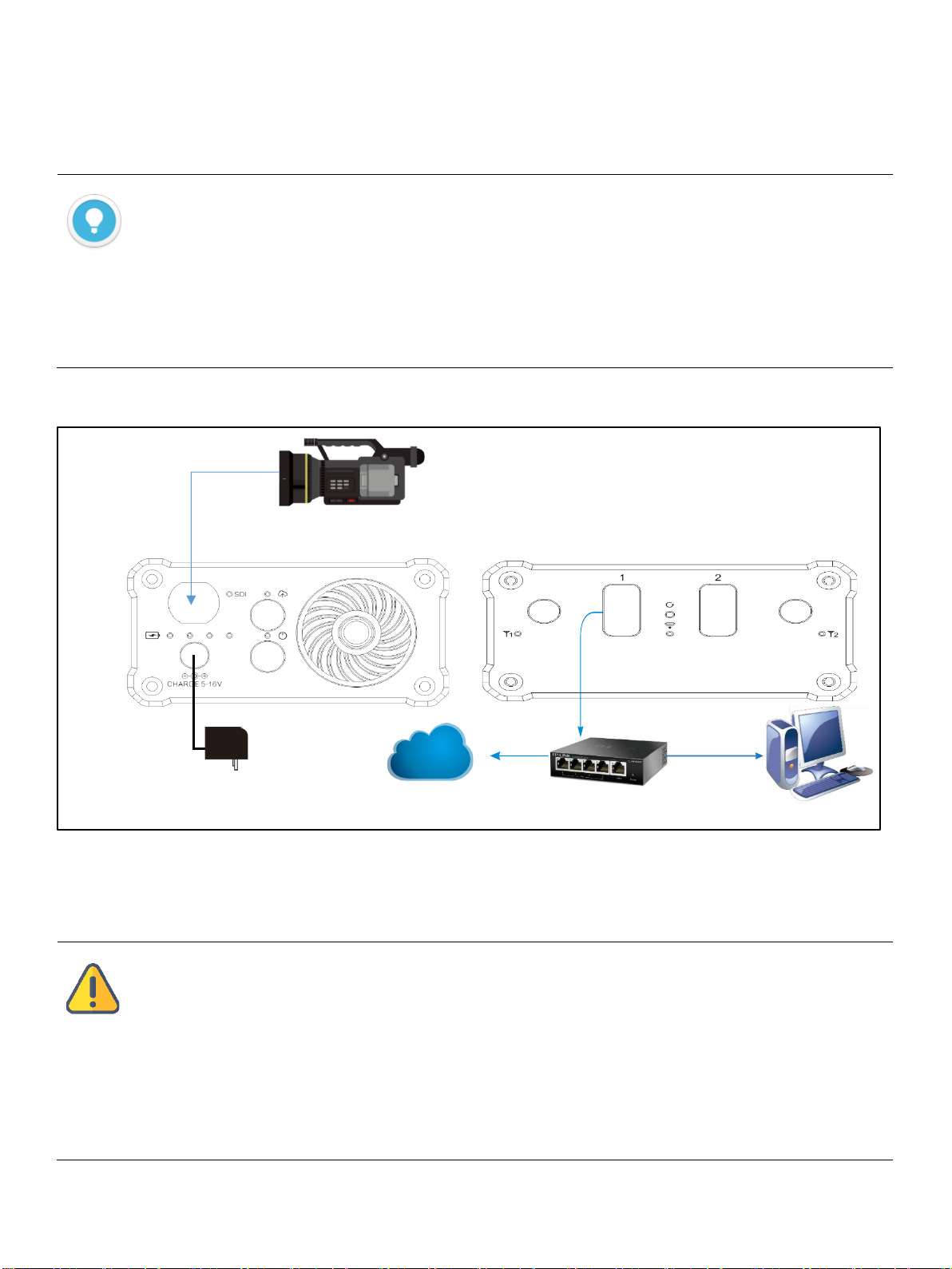

4Device Connection
Note
⚫Please use the standard power adapter to power the device. Other unqualified power supplies may
damage the device.
⚫The device is powered by a built-in battery, it can be used for 3-5 hours without connecting the power
adapter.
⚫Press the power button for more than 5s until the power indicator no longer flashes, the .boot is
complete.
Introduction
⚫For the first usage, please use the USB to RJ45 connector to connect the device to the wired network.
⚫After logging into the device web page, you can configure the wired network, 4G and WIFI.
⚫If multiple network links are connected, while aggregate links are not used, the network priority is the
wired network, followed by the WIFI and the 4G.
SDI Video Source
Configure PC
AC100~240V
Switcher
Power Supply
Network

5Device Discovery
5.1 Use the free tool ---ONVIF Device Manager
Step 1: Start ONVIF Device Manager, all devices in the network can be found in the
device list.
Step 2: Click the device in the device list, the device information will be displayed in the
information bar.
Download the ONVIF Device Manager for free
Visit the website https://sourceforge.net/projects/onvifdm/ to download and install ONVIF Device
Manager. Please follow the software operation guidelines for the download method/installation.
ONVIF Device Manager is a network video app for managing network video, network video storage
and network video analysis. Realize services such as discovery device, media, imaging, analysis and
PTZ.

5.2 Solution for the device cannot be found
If the P1 device cannot be found on the network with above method due to the network
issues, please try to access the device by the default fixed IP address 192.168.1.168. That is,
fill the http://192.168.1.168/ in the browser to enter the WEB page.
6Login to the device WEB page
Enter to the WEB page, the default user name and the password are both admin.
Note
⚫To ensure information security, it is recommended to change your password immediately after logging
in for the first time!
⚫Due to the browser compatibility issues, it is recommended to use Chrome, Firefox or Edge.
Introduction
⚫Access method: Open a web browser and enter in the address bar: http://device IP address/ (the device
IP address is the IP address of the P1 displayed in the device list).
⚫The working network that the device is connected to needs to support automatic acquisition of IP
(DHCP). After the device automatically acquires the IP, it can be discovered by the software through
Onvif.
For more information about the login of P1 device, please visit Kiloview
official website:
https://www.kiloview.com/en/support/docs/p2/user/login-and-network-configuration/ethernet/

7Device Working
7.1 Video source checking

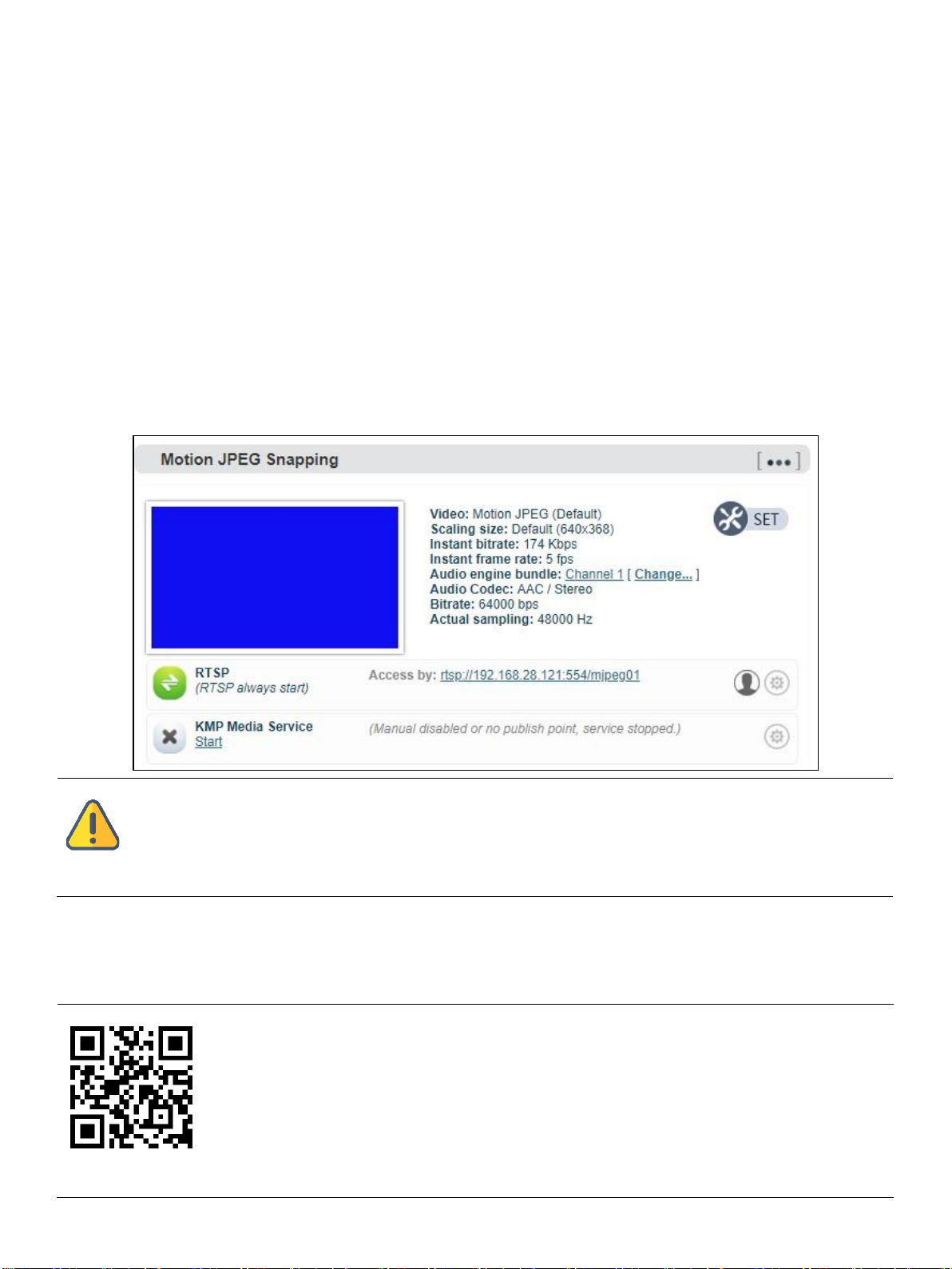

Login to the device WEB page, enter the "Devices and Media Streams"-"Encoding and
Streaming Parameter Settings", and check through the Motion JPEG stream. If there is no
video input, it is a blue image. If the video is connected, it will display the real-time video
image, and it changes every 3 seconds.
Note
If the video source is connected, the blue screen or abnormality is still displayed, please check the video
input source, video resolution format or cable, etc.
7.2 Encoding streams checking
Download the VLC
Download and install the VLC through the official address https://www.videolan.org/vlc/. Please
follow the official guidelines of VLC for the download /installation.
VLC is a free, open source, cross-platform multimedia player and framework that can play most
multimedia files, as well as DVD, CD, VCD and various streaming protocols.

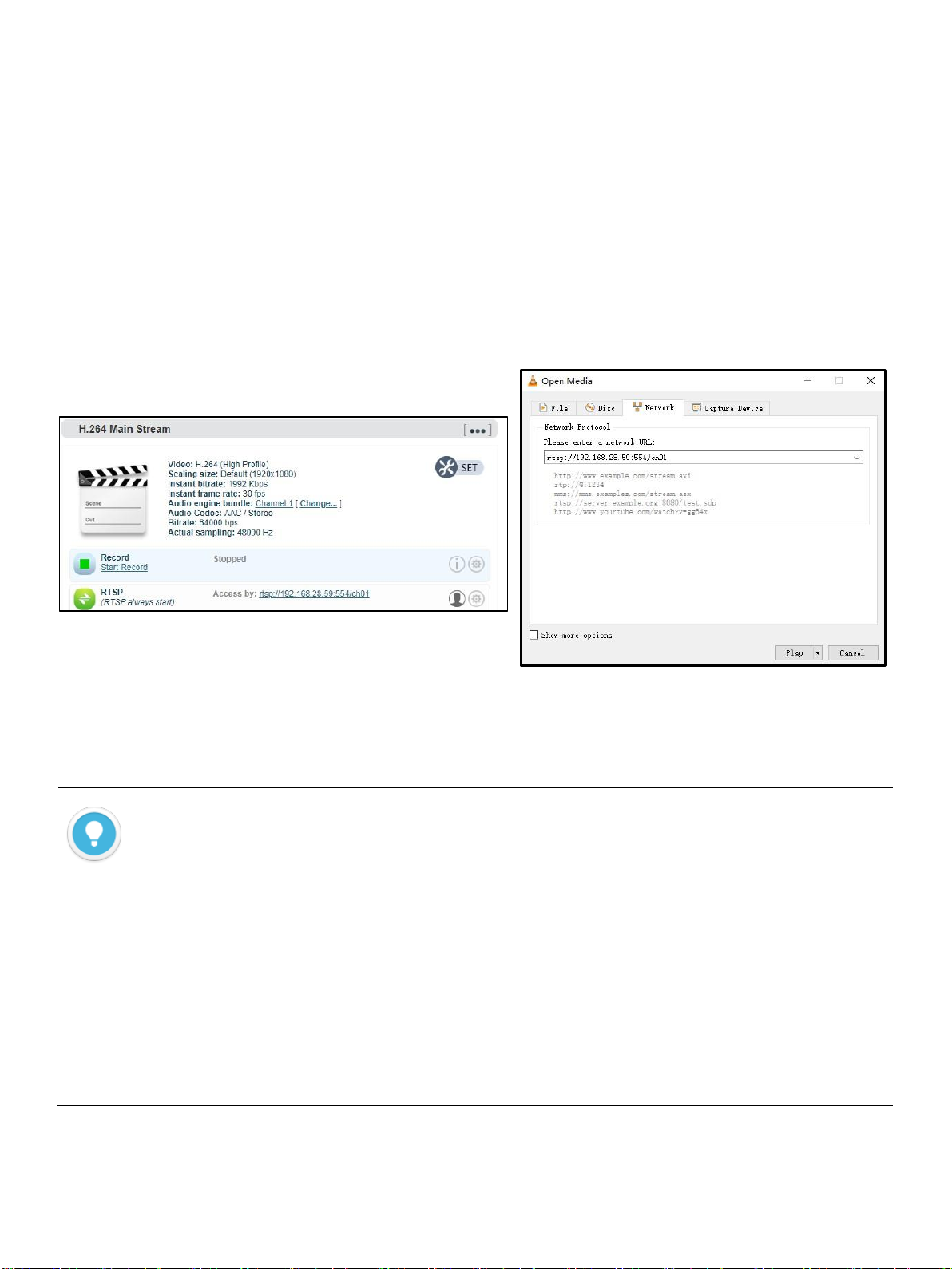

1. Click the "Encoding and Streaming"-"Encoding and Streaming Parameter Settings";
2. In the H.264 stream, copy the URL address displayed on the right side of RTSP;
3. Open "Media" ----“Network Streaming" of VLC;
4. Enter the URL address of RTSP in the network, and click the [Play] button in the lower right
corner;
5. VLC will play the input video of device.
7.3 RTMP live streaming
Introduction
Streaming services pushed through the device's WEB page are only transmitted through a single network.
If you need to transmit through an aggregated link, please refer to the section on bonding services.
⚫The bonding service adopts Kiloview’s patented algorithm (KiloLink) to solve the problem of weak
network transmission. According to the signal strength of each network, it is intelligently adjusted,
and it maximizes the bandwidth of all network links for transmission.
⚫The bonding service can dynamically adjust the code rate. When the network link bandwidth is not
enough, the code rate is automatically reduced to adapt to the current link bandwidth; when the link
bandwidth is sufficient, it will smoothly increase to the code rate configured by the encoding.
⚫When network packet loss occurs, the aggregated link will retransmit through multiple network links
to keep the video stable and smooth.

First, add an RTMP push point on the device side. Click "Encoding and Media Streaming" --
- "Encoding and Streaming Parameter Settings", and then click "Add a Streaming Service"
under the H.264 main stream, and select "RTMP Push" in the pop-up window ", after
confirming, generate a push point.
Take FACEBOOK as an example, first obtain the RTMP push URL on the live platform. Login
to FACEBOOK, click "Live Video" to enter the live room, and click "Use Stream Key" for live
broadcast. Fill in the URL of live broadcast and Stream Key into the URL address of the RTMP
push point, and start the streaming service. You can see the video in the live broadcast room.

8KiloLink Server
8.1 4G network connection
Login to the device Web page, click “Network & Service Settings” – "Network interface
management", and click "Settings"-"Add a new wireless WAN connection" of the 4G card.
Introduction
⚫If the platform RTMP streaming address and live broadcast code are separate, please use the symbol
"/" to add the live broadcast code after the RTMP address. The format is: rtmp address/live code.
⚫Please make sure the device is connected to the network, and configure the correct IP address, DNS
and other parameters.
For more information about the P1 streaming service, please visit
Kiloview website:
https://www.kiloview.com/en/support/docs/p2/user/parameters-
configuration/encoding-streaming-media/#Streaming_media_service
Introduction
⚫The device can support up to 5 networks transmission:
1. 2 internal 4G modems + 2 USB extensions 4G modems + one WIFI
2. 2 internal 4G modems + 1 USB extensions 4G modems + one WIFI + one Ethernet.
⚫When inserting 4G USB modems, there are two modes: one is “MODEM” mode, the other is
“ETHERNET CARD” mode. In the MODEM mode, it will be recognized as 3G/4G Modem 3 or 3G/4G
Modem 4. In the ETHERNET CARD mode, it will be recognized as USB network connection 1 or USB
network connection 2.
⚫The device does not support hot swapping of the SIM card, please insert the 4G SIM card when the
device is off, or restart the device after inserting the SIM card

8.2 KiloLink platform deployment
Introduction
APN: Fill in the correct APN according to different operators. If you are not sure, please contact your local
4G card operator.
For more information about network configuration, please visit
Kiloview official website:
https://www.kiloview.com/en/support/docs/p2/user/login-and-network-
configuration/network-config/
Please make sure that your KiloLink server have been updated to
the latest version, please refer to:
https://www.kiloview.com/en/support/docs/kilolink-bonding-
platform/kilolink-bonding-platform/

8.3 Device connection

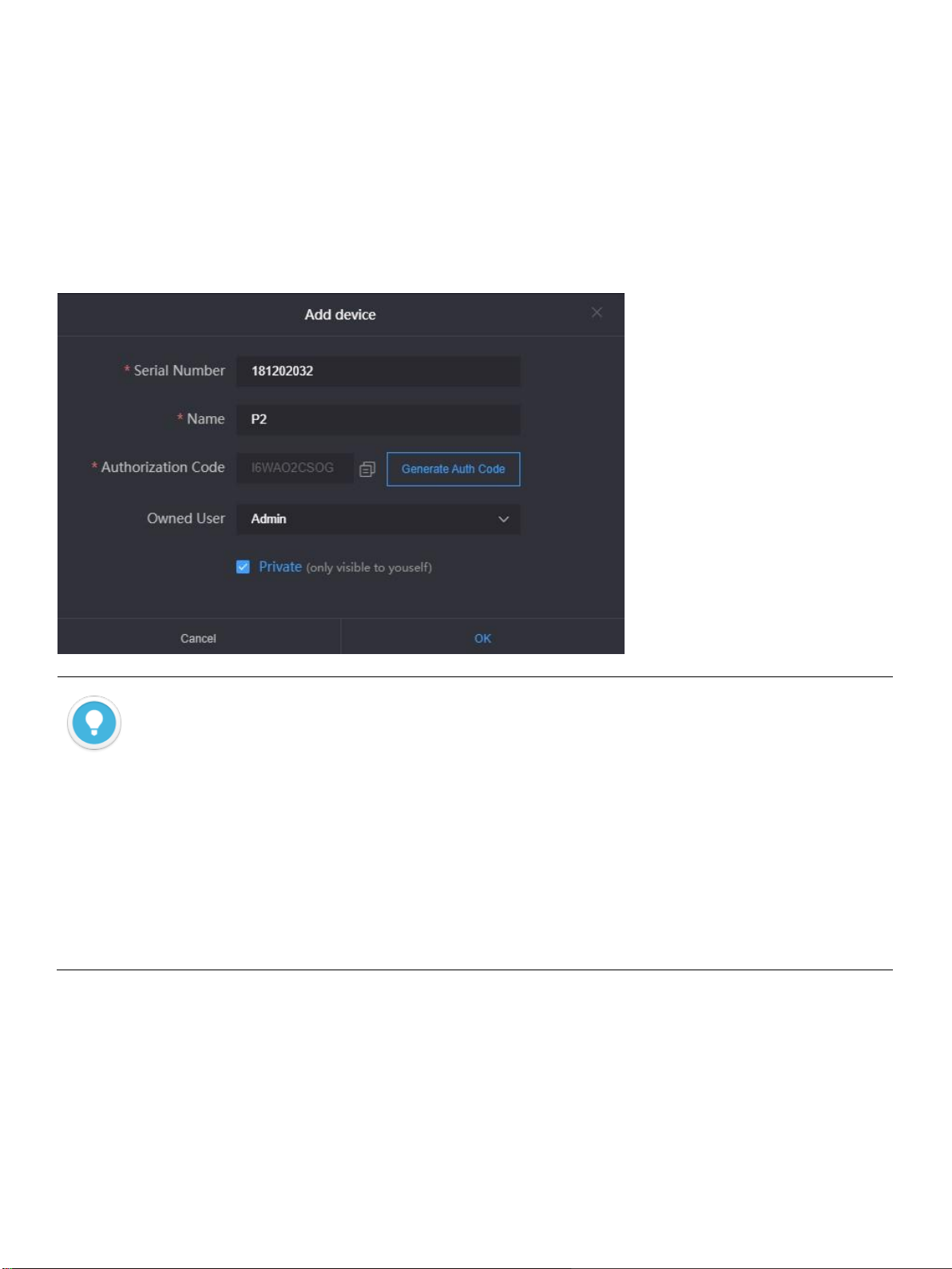

Step 1: Add the device to the platform and generate an authorization code.
Click “Device management”-“Add device”， configure the parameters and generate an
authorization code.
Step 2: Device registration
Login to the device Web page, click “Network & Service Settings”–“Connect Bonding
Server”, and configure the parameters to start the bonding service.
Introductions:
⚫Serial Number: Login to the device Web page to get the Serial Number in the lower left corner of
“System Information”, which consists of 9 figures.
⚫Name: Any combinations of alphabets, numbers and symbols.
⚫Authorization Code: Click “Generate Auth Code”, then an authorization code combining with letters
and numbers will be generated automatically, which will be used for device registration.
⚫Owned User: The added devices can be visible to a certain user you assigned. All devices will be
displayed under the management account.
⚫Private: After selected private, the added device will only be visible to yourself and the management
account (admin).

8.4 Streaming service
Login to the KiloLink bonding platform webpage, click any area in the line of the online
device under “Device Management", and the device streaming service and video preview
window will pop up.
Introduction
Please make sure that your device firmware has been updated to the latest version, please refer to Chapter
9 "Firmware Upgrade" to download and update the device
⚫Server address: The IP address of the bonding server, which support domain names.
⚫Port: The default port is 60000.
⚫Auth Code: Generated when adding the device to the bonding platform.
Introduction
⚫Streaming with the streaming service of the bonding platform, all traffic will be transmitted through
the aggregation link. If the streaming service is pushed on the web page of the device, it will only be
transmitted through a single network, and the network link is not selectable.
⚫The maximum bitrate of the streaming cannot exceed the code rate configured on the encoder. When
the network link bandwidth is not enough, the streaming service will adaptively reduce the output
bitrate.

9Firmware upgrading
9.1 Download upgrade firmware
9.2 Upgrade device firmware

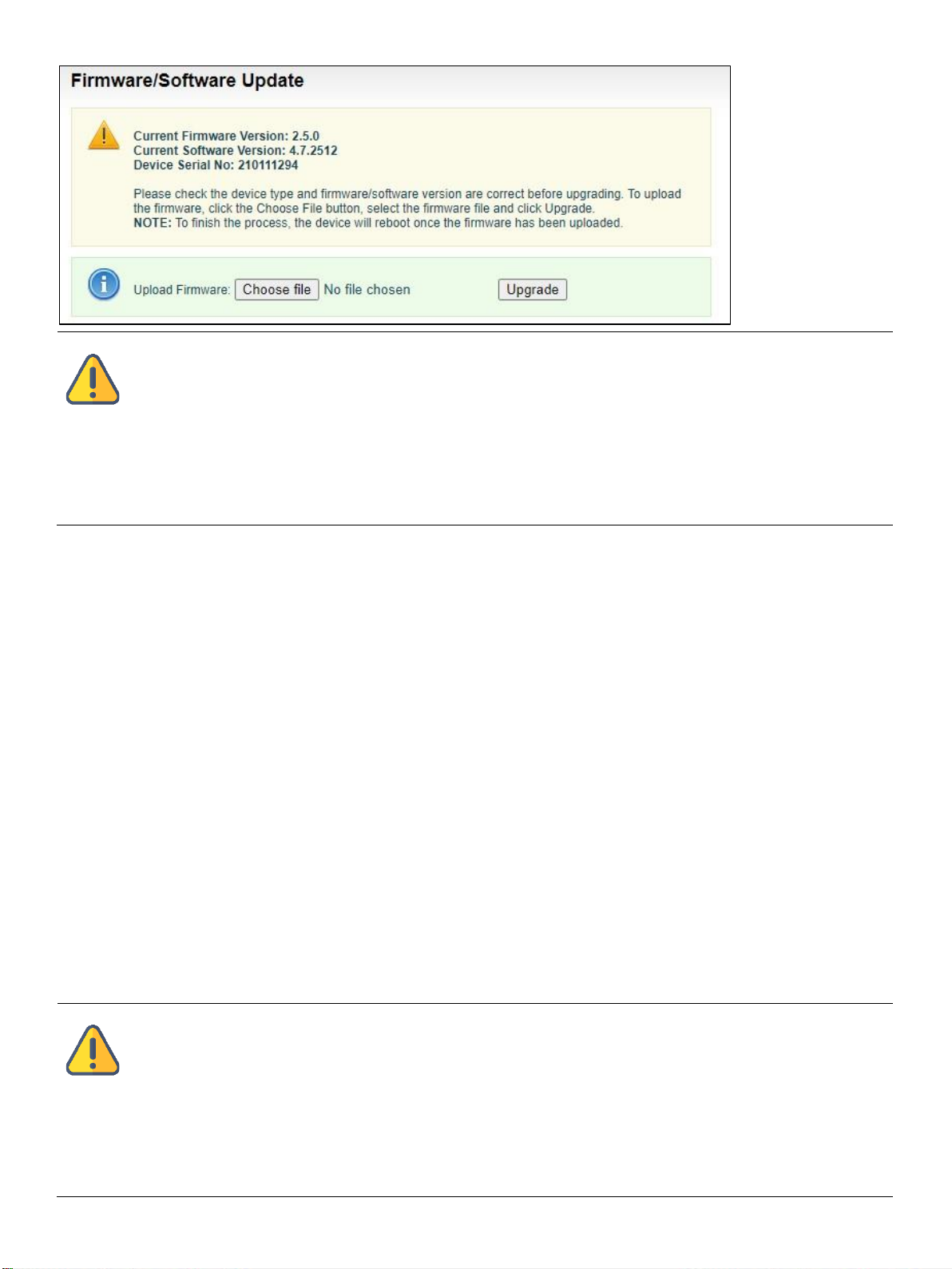

Login the management web page of P1, click "Settings"-- "Firmware Upgrade" to check
whether the latest firmware version downloaded is higher than your current version. If yes,
select the downloaded firmware and click "Firmware Upgrade".
After uploaded the firmware successfully, it need reboot the device. After clicking “ok”, the device will
restart, please be patient.
For more information of the KiloLink bonding platform streaming
service, please visit:
https://www.kiloview.com/en/support/docs/kilolink-bonding-
platform/kilolink-bonding-platform/
Kiloview will continue to provide the firmware of updating functions
and fixing bug for P1, please visit:
https://www.kiloview.com/en/support/download/
Select “video encoders” > “P1”, find and download the latest firmware.

Note
⚫Please not power off during the upgrade process, otherwise the device couldn’t work.
⚫Due to the configuration differences between different versions, it is recommended to restore the
factory settings of the device after the upgrade to ensure a better user experience.
⚫Generally, it will take 3-5 minutes to upgrade the device. If it’s still not completed after 5 minutes,
please try refreshing webpage, if you still can’t access it, please try to contact technical support.
10 Restore factory settings
If the device cannot work normally after modifies the parameters or forgot internet IP
configuration and couldn’t search and find the device, please restore factory settings.
Two methods for restoring factory settings:
1) If you can login to web page, then via the WEB page, click "Settings—System settings--
Restore factory settings".
2) If you can’t login to web page, press the RESET button for 5 seconds in the bottom of
device.
Note: After restoring factory setting, below parameters will be turned to
default value:
⚫Login username and password will be “admin”;
⚫IP address will be restored as 192.168.1.168, subnet mask will be 255.255.255.0;
⚫All encoding parameters of video and audio will be restored to default value.

11 Others
To prolong the device life，please unplug the power and keep it properly if you do not use
it for a long time.
P series encoders support multi-party voice intercom. For more
details and to obtain KIS intercom server, please visit:
https://www.kiloview.com/en/kiloview-intercom-server
For more product information and guidelines of the P series, please
visit:
https://www.kiloview.com/en/support/docs/p2/user/
Website for Kiloview official technical support
https://www.kiloview.com/cn/support/
Changsha KILOVIEW Electronics Co., Ltd
https://www.kiloview.com/
Address: B4-106 栋/109 栋B4-106/109, Jiahua Intelligence Valley Industrial Park, 877 Huijin Road, Yuhua District,
Changsha,China
Email：[e-mail] Tel：[phone]
