Kiloview E1-s User manual

E1-s Wired Video Encoder
USER MANUAL
KILOVIEW Electronics CO., LTD.

Legal Notices
Subject to the receiving of this document from Changsha Kiloview Electronics Co., Ltd., (Hereinafter
referred to “Kiloview”), the following terms are understood and agreed. Or else, please stop using
this document.
This document is copyright of Kiloview, all rights reserved. The document covers the proprietary
information of the company. No company or individual may copy, transmit, distribute, use or disclose
the document and any images, forms, data and other information contained in the document without
the prior written permission of the company.
is the registered trademark of Kiloview. The name and logo are the trademarks or registered
trademarks of the company. Other products or company names mentioned in this document may be
the trademarks or registered trademarks of their respective owners. The reading of this document
without the prior written consent of the company or the third-party rights holder does not imply that
the reader is given any right to use any of the marks appearing in this document by implication, non-
evidence or otherwise.
This product complies with the design requirements related to environmental protection and personal
safety. The storage, usage and disposal of the product shall be in accordance with the product manual,
relevant contract or relevant national laws and regulations.
This document is provided "as is" and "only in this state". Products and technical updates are subject
to change without prior notice.
For matters not covered in this document, please visit our website www.kiloview.com for information
and technical support.

CONTENTS
1 PRODUCT INTRODUCTION................................................................................................................1
1.1 E1-S WIRED VIDEO ENCODER .............................................................................................................1
1.1.1 Advantages ............................................................................................................................ 1
1.1.2 Parameters............................................................................................................................. 2
2 OPERATION GUIDANCE...................................................................................................................... 3
3 PACKING LIST AND INTERFACE DESCRIPTION............................................................................... 4
3.1 PACKING LIST.................................................................................................................................... 4
3.2 DEVICE INTERFACES........................................................................................................................... 4
3.3 SIGNAL INDICATOR ........................................................................................................................... 5
4 INSTALLATION AND CONNECTION.................................................................................................. 6
4.1 INSTALLATION AND CONNECTION ......................................................................................................6
4.1.1 Connect the power adapter................................................................................................. 6
4.1.2 Connect video signal ............................................................................................................7
4.1.3 Connect network................................................................................................................... 7
5 LOGIN AND NETWORK CONFIGURATION....................................................................................... 7
5.1 LOGIN TO THE DEVICE THROUGH ETHERNET ....................................................................................... 7
5.2 NETWORK CONFIGURATION............................................................................................................... 8
5.2.1 Ethernet.................................................................................................................................. 8
5.2.2 Convenient management functions.................................................................................10
5.2.3 Android APP ........................................................................................................................11

6 PARAMETERS CONFIGURATION .....................................................................................................13
6.1 DASHBOARD...................................................................................................................................13
6.2 BASIC SETTINGS..............................................................................................................................15
6.2.1 Change WEB login password.............................................................................................15
6.2.2 Location and time ...............................................................................................................16
6.2.3 Restore factory settings.....................................................................................................17
6.2.4 Firmware upgrading...........................................................................................................17
6.3 VIDEO &AUDIO ADJUSTMENTS.......................................................................................................18
6.3.1 Video source choice and adjustments .............................................................................18
6.3.2 Audio signal source ............................................................................................................19
6.4 ENCODING AND STREAM .................................................................................................................19
6.4.1 Audio encoding parameter setting ..................................................................................19
6.4.2 Encoding and stream setting ............................................................................................21
6.4.3 Steaming media service .....................................................................................................23
6.4.3.1 Motion JPEG stream........................................................................................................24
6.4.3.2 RTSP service .....................................................................................................................24
6.4.3.3 RTMP Pushing (Live streaming) ....................................................................................26
6.4.3.4 TS-UDP Pushing (unicast and multicast) .....................................................................27
6.4.3.5 HLS service .......................................................................................................................29
6.4.3.6 SRT-TS pushing................................................................................................................30
6.5 LOCAL RECORDING..........................................................................................................................33
6.6 NETWORK STORAGE (NAS).............................................................................................................38

6.7 TEXT/IMAGE/TIME OVERLAY ..........................................................................................................39
6.7.1 Graphic overlay management...........................................................................................39
6.7.2 Overlay..................................................................................................................................40
6.8 SERVICE CONFIGURATION ................................................................................................................42
6.8.1 Web service configuration.................................................................................................42
6.8.2 Onvif service configuration...............................................................................................42
6.8.3 Telnet service configuration..............................................................................................43
6.9 SERIAL PORT AND PTZ....................................................................................................................44
6.9.1 USB serial port.....................................................................................................................44
6.9.2 PTZ setting...........................................................................................................................44
6.9.3 Control panel.......................................................................................................................45
6.10 QUICK RESET AND REBOOT ..............................................................................................................45
6.10.1 Quick reset ...........................................................................................................................45
6.10.2 Reboot ..................................................................................................................................46
6.11 LOGS AND DEBUG ...........................................................................................................................46
6.12 PRESET CONFIGURATION .................................................................................................................46

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
1
1PRODUCT INTRODUCTION
1.1 E1-s wired video encoder
E1-s wired video encoder can encode SDI video source and compress into IP stream, to realize long-
distance HD transmission/live broadcast over WAN or LAN network.
1.1.1 Advantages
➢High bandwidth adaptability, makes it possible to transmit high definition, low-
latency, non-padding image under low bit network.
⚫With branded chips solution together with video dynamic noise reduction and image
enhancement technology, it can realize good encoding image under low bit
transmission;
⚫High-quality video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p
network;
⚫Advanced video buffering technology and FEC technology ensures video encoding
delay ≤67ms and stable and smooth transmission;
⚫Adjustable bit rate from 64kbit/s～40Mbit/s.
➢Powerful streaming media service function, supports RTSP/RTMP/UDP-TS/Onvif/SIP/SRT
and some other customized protocols.
⚫SRT/RTSP/RTMP/ HLS/UDP-TS/Onvif and some other streaming media protocols supported for
live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform /NVR
system;
⚫Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p60Hz
video encoding, output resolution can be customized.
➢Portable and low power consumption makes it 24 hours continuous working available.

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
2
⚫Capable with customized text and image overlay function, which can be at any position on the
screen;
⚫Audio embedding encoding supported, with voice intercom function (need to deploy voice
intercom software);
⚫With Micro SD/TF card slot, supports local recording and NAS network storage.
⚫With video real-time loop function, there is no delay and convenient for monitoring;
⚫24h continuous working available；
Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to
network, decoding, etc.
1.1.2 Parameters
Model
E1-s
Video input
1*BNC SDI
Video Loop out
1*BNC SDI
Analog audio ports
2*3.5mm
USB interface
2*USB 2.0 Type-A
Network Support
Ethernet
Media transmission
protocols
RTMP/HLS/TS over UDP/RTSP /Onvif/SRT
Video resolution
Up to 1080P60Hz, resolutions supported:
1080p23.98/24/25/29.97/30Hz；1080p50/59.94/60Hz；
1080i50/59.94/60Hz；720p23.98/24/25/29.97/30Hz；720p50/59.94/60Hz
Video coding
H264/AVC and Motion-JPEG

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
3
Audio coding
AAC/G.711
Encoding latency
≤67ms
Image and text
overlay
Custom text, image overlay function, can be superimposed to any position on
the screen
Recording
1*Micro SD/TF card, local recording, NAS network storage
Management
WEB/Android APP
Power
supply/consumption
DC 12V 1A/4W
Operating
temperature
125*89*28mm/380g
Size/Weight
-20℃~55℃
2Operation guidance
⚫Installation and connection of the device
Connect the power and video input source correctly, power on the device.
⚫Network Connection and Configuration
The simplest way is to connect the encoder to the network through a USB to network port or directly
connect to a computer through a wired way, and use the default management IP address of the device
to log in to the WEB page (default user name/password: admin/admin) to set it up.
⚫RTSP pull flow
Using a decoder or a PC-based player (such as VLC) to get RTSP stream from the encoder, and the
RTSP stream service is continuously enabled.
⚫Other streaming service

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
4
If necessary, you can also configure the device for live streaming such as RTMP, RTMPS, UDP, HLS, etc.
3Packing list and interface description
3.1 Packing list
Name
Unit
Quantity
Note
Encoder
PCS
1
DC12V/1A power adaptor
PCS
1
Quick Start Guide
PCS
1
Certificate/Warranty card
PCS
1
3.2 Device interfaces
1 Power Input 2 Mini USB 3 Audio Output 4 Audio Line In
5 SDI IN 6 SDI LOOP 7 100M Ethernet Interface 8 Working Indicator
9 USB Expansion Port 10 Micro SD/TF Card 11 Power Switch 12 Reset

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
5
3.3 Signal indicator
Name
Color
Status
Description
POWER
Red
Always
on
Power supply is connected
Flashing
Power failure
Off
Power supply is not connected or failure
SIGNAL
Green
Always
on
Signal is connected
Flashing
Signal is not locked or reset to factory setting indication
(while the RUN light also will flash)
Off
Signal is not connected
RUN
Green
Always
on
Device working normal
Flashing
Restore device to factory settings (while the RUN light also
will flash)
Off
Device working abnormal/ not started

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
6
4Installation and connection
4.1 Installation and connection
4.1.1 Connect the power adapter
Using the power adapter (DC 12v) connect to the main product, after the power is turned on, then the
product starts working immediately.
Note: Please use the equipped power adapter. Using other unqualified power supplies may
damage the device.

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
7

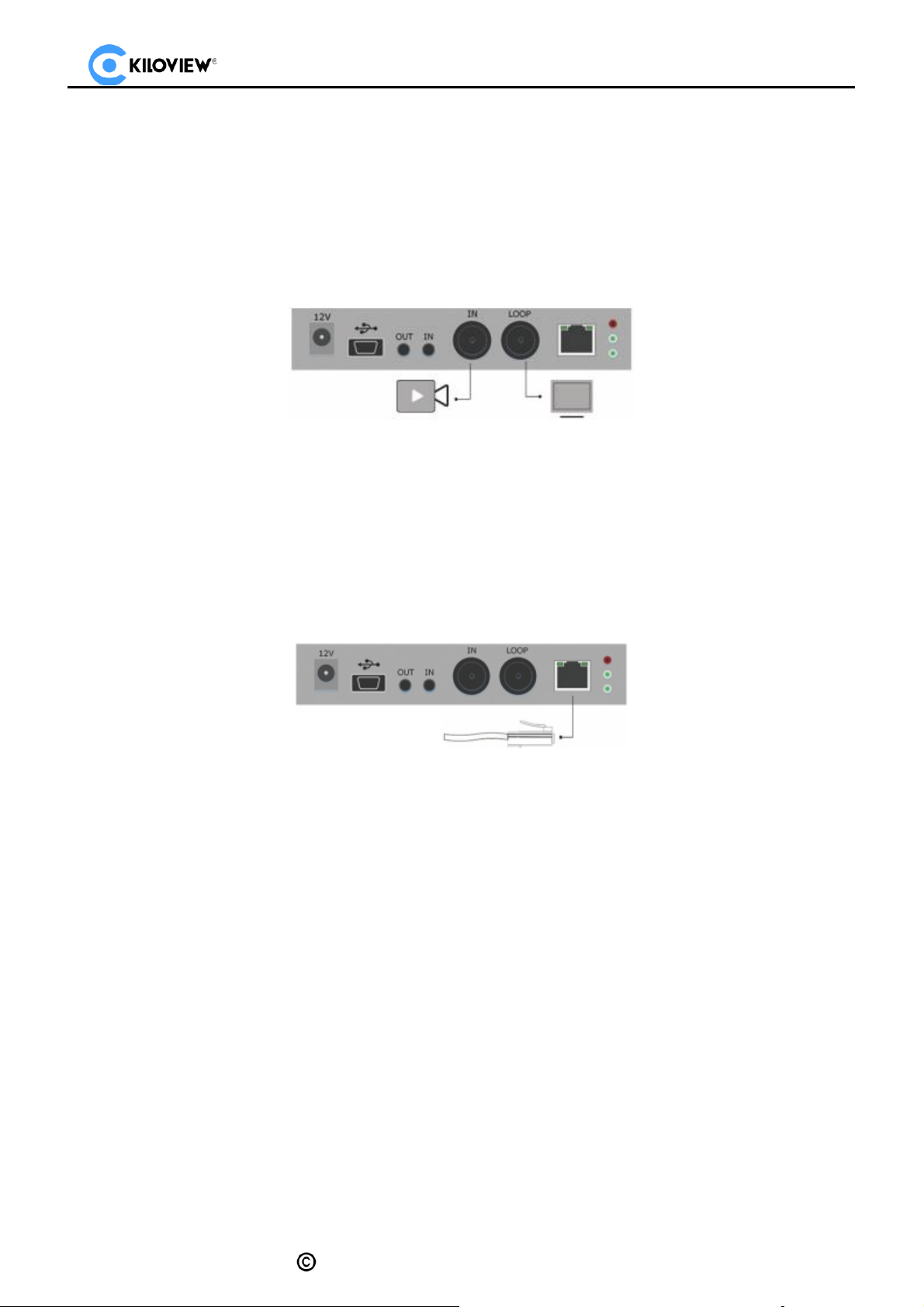

4.1.2 Connect video signal
Connect the SDI signal from the source (such as a camera) to the input port of the device via a cable.
The LOOP end can be monitored in real time by connecting to the monitor.
4.1.3 Connect network
Connect one end of the network cable to the encoder Ethernet port. The other end is connected to
the network switch or the computer's Ethernet port.
5Login and network configuration
5.1 Login to the device through Ethernet
First connect the RJ45 Ethernet port of the encoder and the computer to the same switch, or connect
the encoder directly to the computer network port. Then configure the encoder and computer to the
same network segment so that the computer can access to the web page of the encoder.
The default management IP address of the encoder is 192.168.1.168（This is the failsafe address of the
device. Generally, do not modify this IP address.）. If the IP address of the computer is not in the
network segment of 192.168.1.*, please set the IP address of the computer network port to
192.168.1.*.
Open the WEB browser, directly input the encoder's IP address (default is 192.168.1.168) or the URL
http://192.168.1.168 and press Enter to open the login interface. After opening the page, an
authentication dialog will pop up, please fill in the username and password, the default username is
admin, the default password is admin, and then click "Login".

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
8
Note: Due to the browser compatibility issues, it may cause the web page display abnormal, it is
recommended to use Chrome and Firefox.

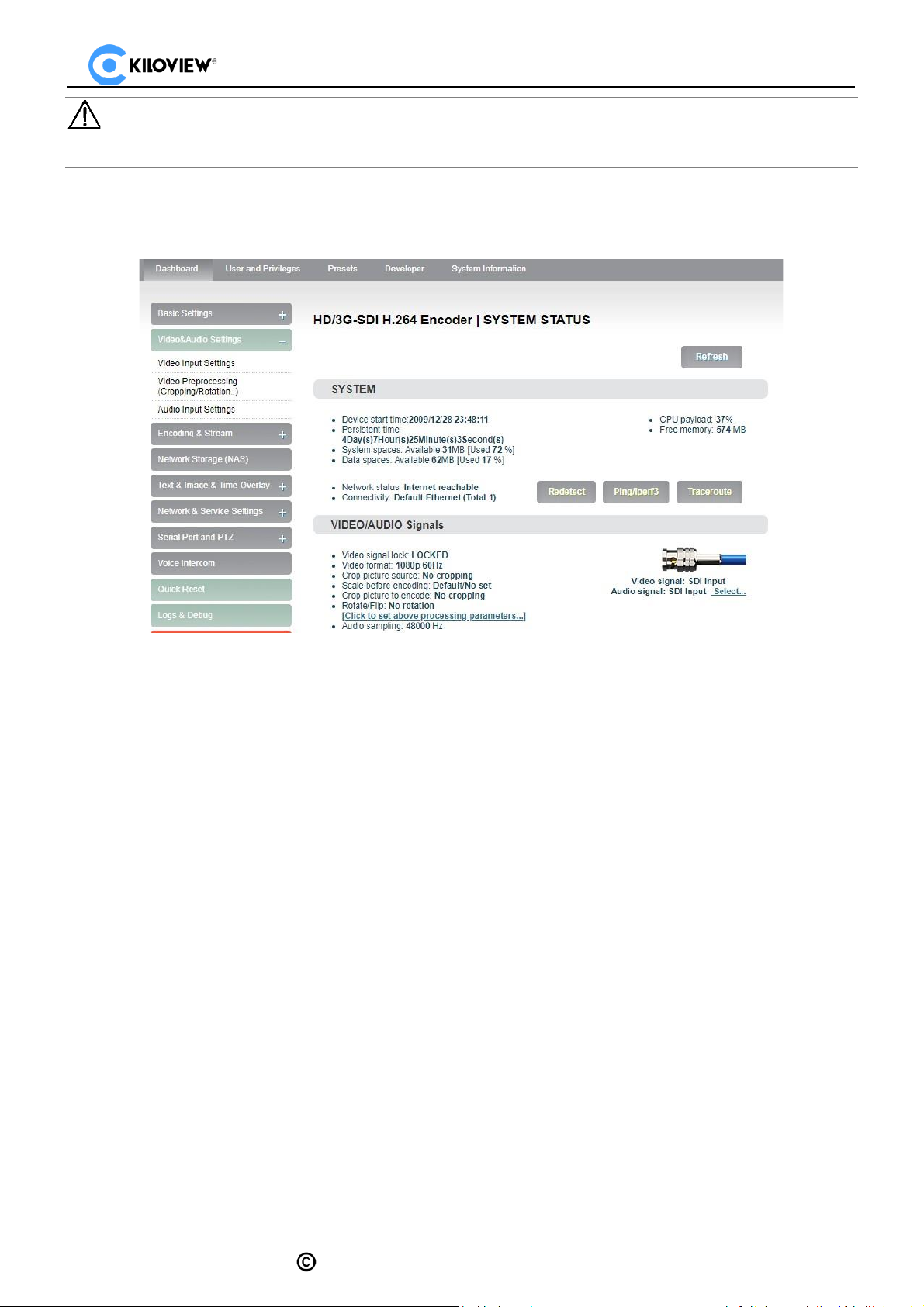

After login, the encoding and function parameters can be set on the encoder management web page. The
page is shown as below:
5.2 Network configuration
5.2.1 Ethernet
The encoder can provide an Ethernet access through. This port can be configured with an IP address
(The encoder network port can be configured with dual IP addresses, the IP address configured here
is not the default management IP address) and default setting is DHCP. It will automatically get a
complete IP address, gateway and DNS according to this LAN.

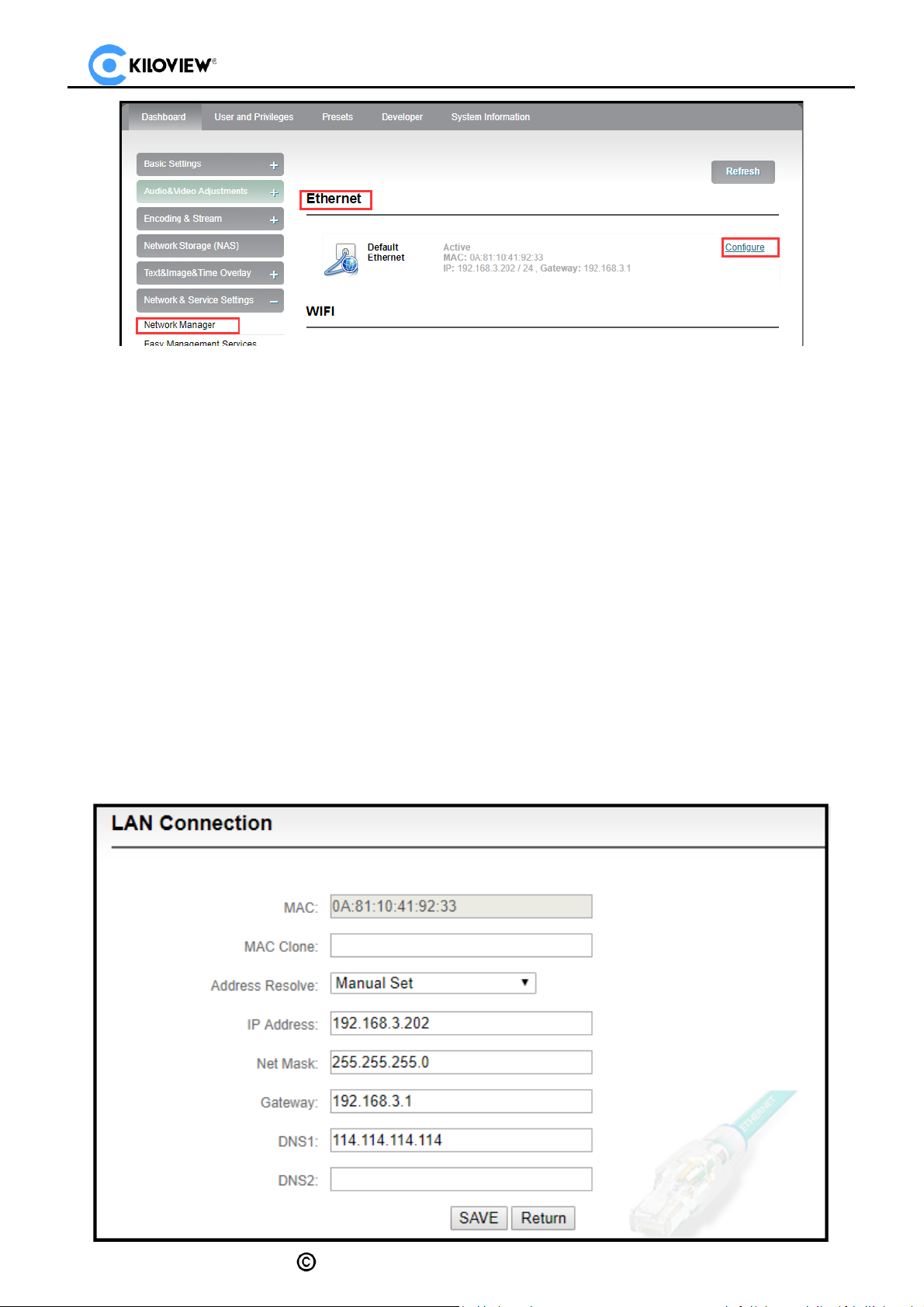

Click "Network & Service Settings", click "Network Manager" to enter the following interface, you can
see the IP address with Ethernet.

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
9
In addition to the way of DHCP, the encoder also supports manual IP assignment. To change the IP of
the wired network, click “Configure” button in the Ethernet to enter the interface for configuring
the IP. There are two ways to get the address, one is DHCP, and the other is to manual. To use DHCP
to automatically obtain IP, you must first ensure that the router or switch has enabled the DHCP service.
This method is simple and convenient, but the IP obtained by DHCP changes continuously, and you
cannot directly know what IP address that the encoder gets. The way to manually specify is to enter a
fixed IP to the encoder, and this IP address is fixed as long as the encoder does not restore the factory
settings, and this method is more stable. Therefore, the two methods have their own advantages, and
can be selected accordingly.

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
10
After Ethernet is configured correctly, you can see that the connection status is “Internet reachable”
and the Internet connection is the default Ethernet port on the Information Board.
5.2.2 Convenient management functions
The "localized connection" is configured with a dedicated IP address on Ethernet (This is the failsafe IP
address of the Ethernet port. Generally, do not modify this IP address). In this way, even if you forget
the IP settings of the Ethernet, or if the IP cannot be learned because DHCP gets the address, you can
still connect and access the device through the configured private IP address.
“Localized connection" is to bind the encoder to a separate IP address, this IP address does not affect
the use of other network cards, in special cases, it can play a role to manage encoder. This address can
be manually changed, and the default address is 192.168.1.168.
Note: When accessing the device through a convenient managed IP address, your computer
must have an IP address on the same network segment.

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
11
5.2.3 Android APP
⚫Please download the Android APP from
Kiloview website, only support Android
system at present.
（http://www.kiloview.com/companyfile/shi
-pin-bian-ma-qi-Android-APP-45.html）
⚫Connect your phone to the same network
segment of the WIFI that the device
connects. Open the APP and search the
connected devices under the same network
segment automatically in the device list.
⚫The device information shown in the list
includes device interface information, device
serial number, device IP address, etc.
⚫Click your device from the device list to enter
into management page.

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
12

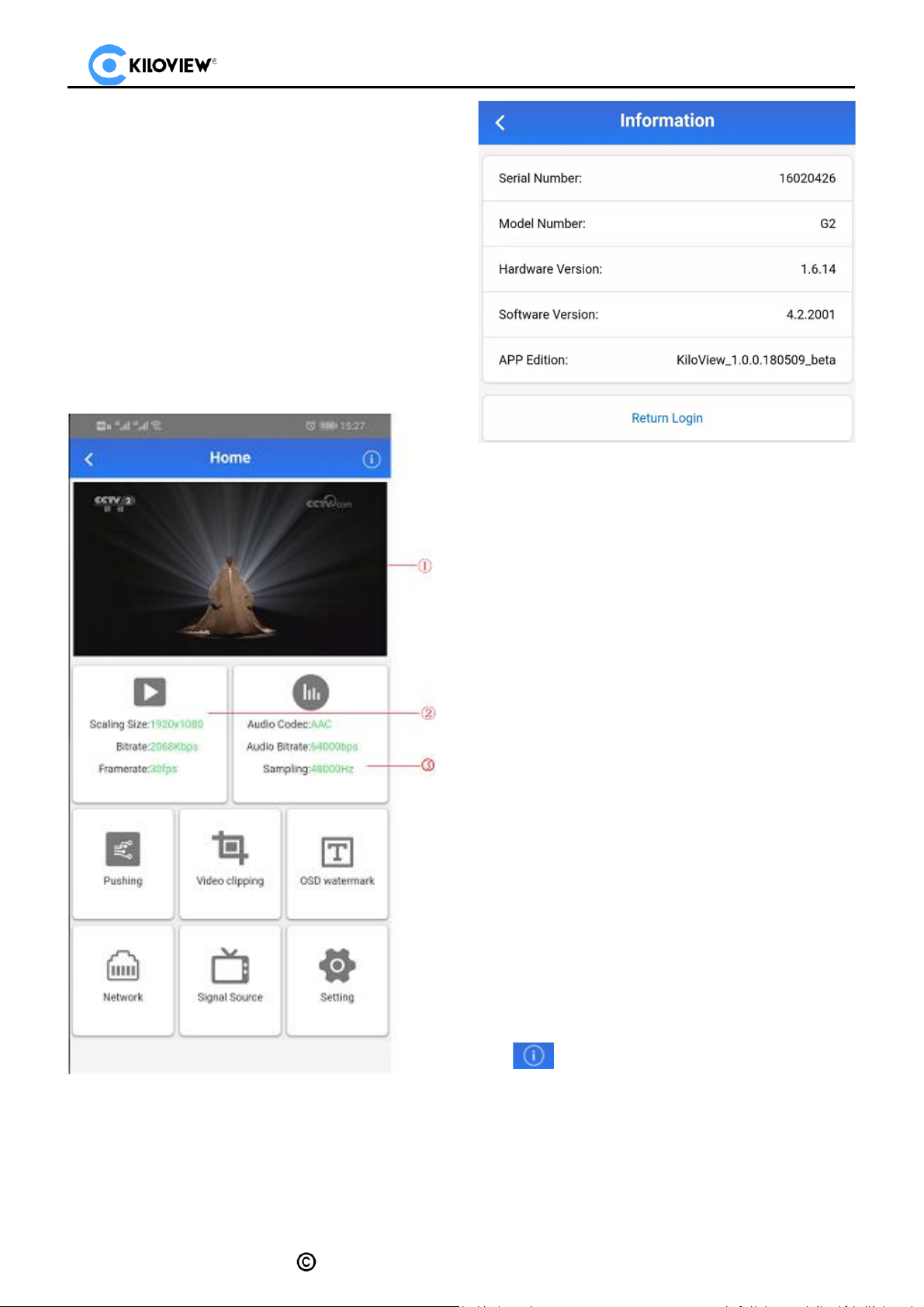

⚫On the configuration page, it shows video
source image on the area of ① to monitor
whether video source is normal. This image
stream is refreshed in three seconds.
⚫Click②for main stream configuration (Please
refer to 6.4.2).
⚫Click③for audio encoding configuration
(Please refer to 6.4.1).
⚫Click “Pushing” for stream service
configuration (Please refer to 6.4.3).
⚫Click “Video Clipping” for video clipping
function.
⚫Click “OSD watermark” for image overlay
function configuration. APP only supports
text and time overlay configuration, image
overlay is configured on Web page (Please
refer to 6.7).
⚫Click “Network” for network configuration
(Please refer to 5.3).
⚫Click “Signal Source” for audio and video
source choice page (Please refer to 6.3).
⚫“Advanced setting” is used for quick reset,
device reboot, restoring factory settings and
device name modifications.
Click and enter into device information
page.

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
13
13
6Parameters configuration
6.1 Dashboard

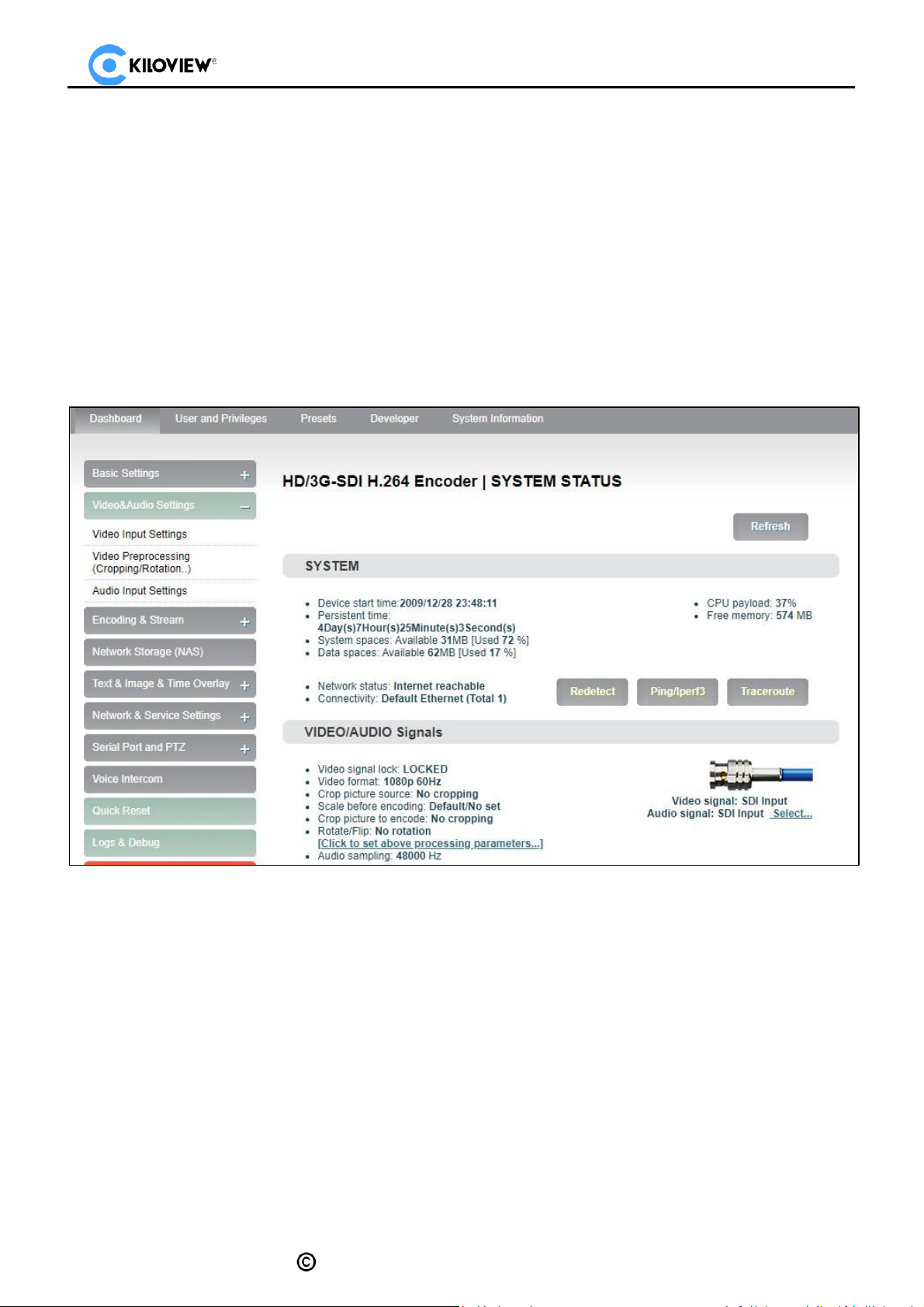

“Dashboard” is an overview of the current running status of the device and the status of audio and
video streams. Users can click the “Refresh” button to refresh in real time, which can greatly help
the encoder setting and troubleshooting.
⚫System
Users can check device information including “device start time”, “persistent time”, “system
spaces”, “data spaces”, “network status” and “connectivity” of the device, and go for “Ping”
testing. If users need to push to Internet platforms, network status should be “Internet reachable”,
or it cannot push streams.
The “Ping” provides a simple function to test whether the network is reachable. Open the “Ping”
button, enter the test address, click “Ping”, wait for 3s, and “Connectivity” is displayed as

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
14
14
“reachable, packet loss rate 0%" which means the network is good and streams can be pushed to
the Internet normally.
Note: If Ping public IP address is reachable, but Ping domain name is unreachable, generally,
it is because the DNS server configuration is incorrect.

Copyright KILOVIEW Electronics CO., LTD. All rights reserved.
E1-s Video Encoder User Manual
15
15

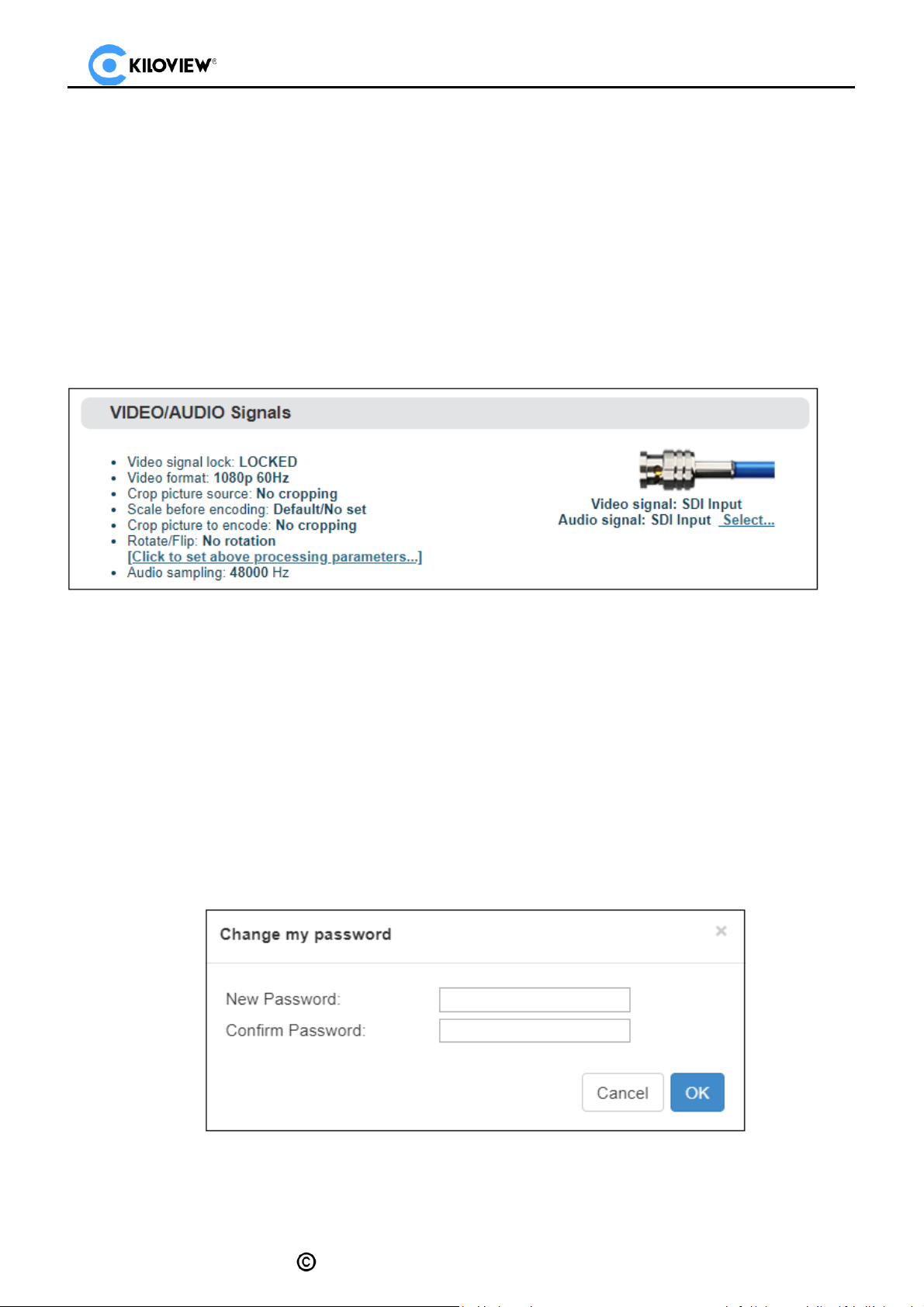

⚫Video/Audio signals status
It can show “Video/audio signal”, “video format”, “preprocessing”, “audio sampling”as below:
If “video signal lock”displayed as “no signal (display blue screen)”, it means the video input source
is not detected by the device. Please check if the input cable is plugged in. If “Audio sampling” is
displayed as “0Hz”, the audio signal is not collected on the device. Please check if the audio of the
input source is normal.
6.2 Basic settings
Users can go for some basic function settings here.
6.2.1 Change WEB login password
Click “Change Password”, an option box will pop up, users can modify the WEB login password, the
default password is admin.
