1.0 General information
The car seat has been designed, tested, and approved in accordance with
the requirements of UN/ECE Regulation No. 129 concerning the approval
of child restraint systems (UN/ECE R129/03).
Do not position the car seat forward-facing until the child is 15 months old
and 76 cm tall.
The car seat can be installed in the car in the positions indicated by the
manufacturer in the vehicle user’s manual. It is required to read the
vehicle user’s manual.
Please refer to the chart on the next page for correct installation
instructions.

3
Child’s height
Car seat orientation
Car seat installation
40cm–105cm
ISOFIX + support leg + internal safety
harness
76cm-105cm
ISOFIX + support leg + internal safety
harness
100cm-150cm
ISOFIX + three-point car seat belt
three-point car seat belt

4
2.0 Safety Instructions
Please take a few minutes to read this instruction manual to ensure
proper safety for your child.
•DO NOT install the car seat on rearward facing or side-
facing seats in the vehicle.
•DO NOT place the car seat on seats equipped with an
active front airbag.
• A car seat can be installed in the middle seat only if the
seat is equipped with a three-point car seat belt, ISOFIX
connectors and a Top Tether strap.
• If the car seat is installed in the front seat of the
vehicle, the front airbag must be deactivated.
• It is recommended to install the seat only in the rear
seats of the car.

5
A: Headrest part of the insert
B: Fasteners
C: Insert
D: Internal safety harness
E: Internal safety harness buckle
3.0 Securing the child
3.1 Installing the insert
Use the additional insert until the child reaches 76 cm.
1. Connect the headrest part of the insert to the rest of the insert with the
fasteners
2. Detach the safety harness
3. Move the seat belt to the sides of the car seat
4. Put the insert in place

6

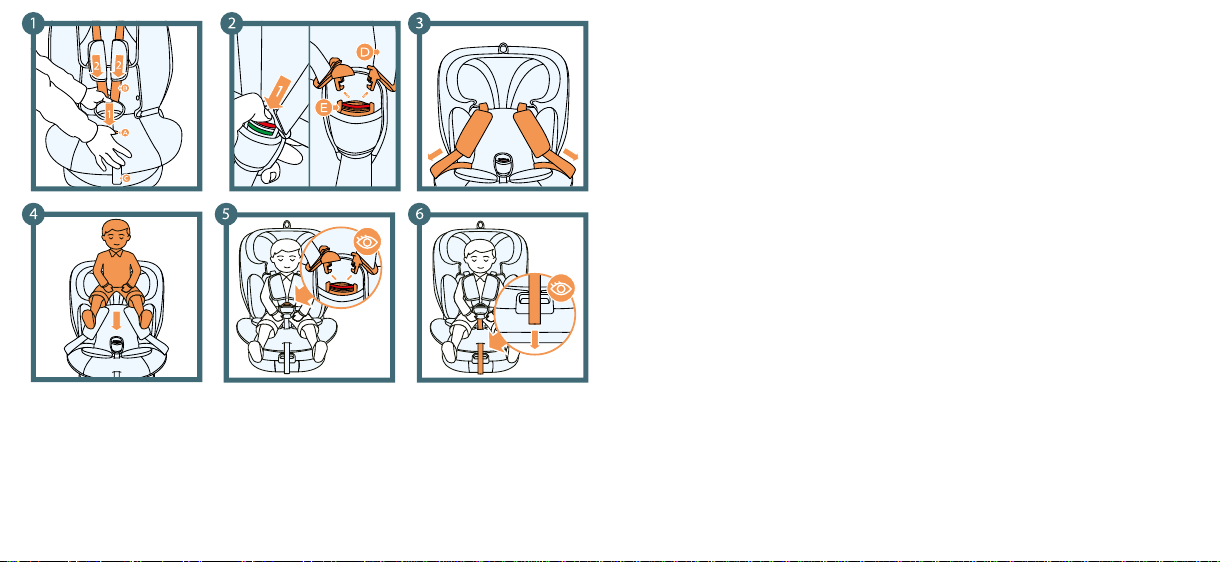

A: Safety harness adjustment button
B: Safety harness
C: Safety harness adjuster strap
D: Safety harness
E: Safety harness buckle
3.2 Adjusting the safety harness
Loosen the safety harness by pressing the button and pulling the safety
harness all the way down at the same time.
1. Press the safety harness adjustment button while simultaneously
pulling the safety harness to the limit.
2. Unbuckle the safety harness
3. Move the safety harness to the sides of the car seat
4. Place the child in the car seat
5. Fasten the safety harness
6. Adjust the safety harness to the child by pulling the safety harness
adjuster strap
Adjust the height of the shoulder safety harness –it should enter the
backrest flat, horizontally, just above the child's shoulders.

7

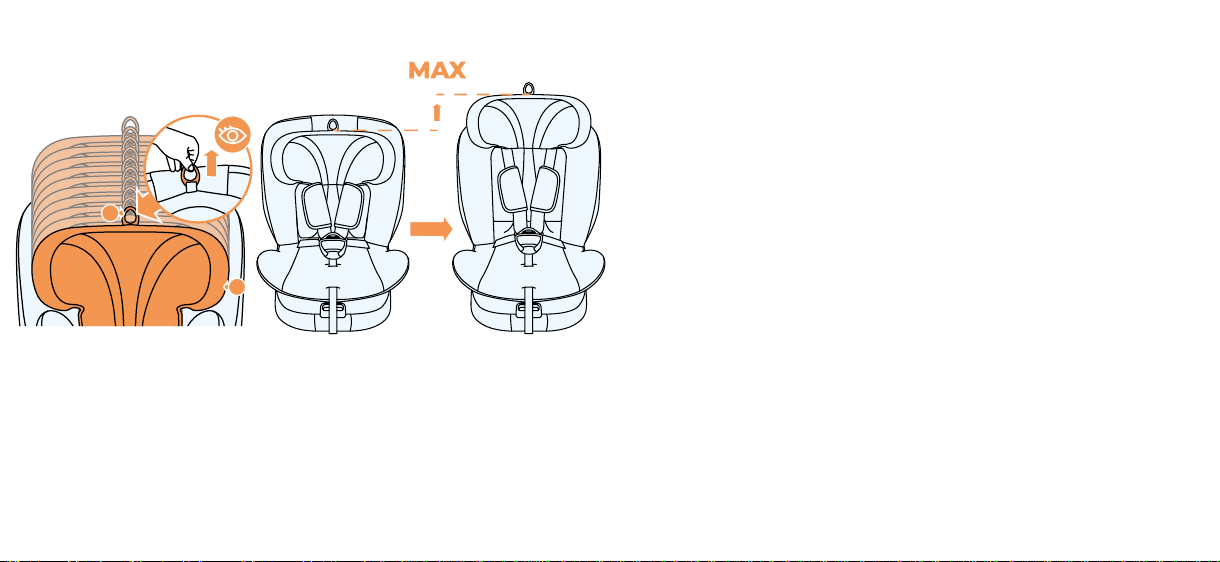

A: headrest height adjuster strap
B: headrest
3.3 Headrest height
The headrest should be adjusted to the child's head well, the lower part of
the headrest should be positioned at the child's shoulder height.
1. Grasp the headrest height adjustment strap, which is located on the top
of the headrest, and pull it up gently
2. Adjust the headrest by selecting one of the nine options; when the
height is adjusted, let go of the adjustment strap
IMPORTANT: Make sure the seat headrest is locked in place



8
A: Backrest angle of incline adjustment lever
3.4 Backrest angle of incline adjustment
mechanism
1. Pull the backrest angle of incline adjustment lever
2. Adjust the seat angle of incline
3. Release the lever in the required position (one of five available options)
4. Move the seat slightly until you hear a distinct "click" sound
NOTE! It is possible to adjust the backrest angle of incline for children with
a height of 76-105 cm.

9
A: Car seat easy spin lever
3.5 Easy spin mechanism
Easy spin mechanism is a function that helps you comfortably place or
remove your child from the car seat.
1. Pull the car seat easy spin lever
2. Rotate the car seat to the side of your choice. You will hear a "click"
indicating that the car seat is locked in the selected position
3. Place your child in the car seat
4. Secure the child with the safety harness
IMPORTANT! For safety reasons, when the support leg is not fully
extended from the car seat base, the car seat locks, and it is not possible
to rotate it.

10
A: Safety harness adjustment button
B: Safety harness
C: Safety harness adjuster strap
D: Safety harness
E: Safety harness buckle
3.6 Securing the child with the internal safety
harness
1. Loosen the safety harness fully by pressing the button and pulling the
harness straps
2. Unfasten the buckle
3. Place the safety harness on the sides of the car seat
4. Place the child in the car seat
5. Adjust the headrest to the child's height
6. Fold the two buckle latches together to interlock and insert them into
the buckle until you hear a "click"

11
A: Safety harness adjuster strap
B: Safety harness
3.7 Tightening the safety harness
1. Pull the internal safety harness to eliminate the clearance in the waist
section, the safety harness should lie flat.
2. Tighten the safety harness with the adjuster strap until the safety
harness lies flat on the child's body.
IMPORTANT! Make sure the safety harness is not twisted.
4.0 Installation in the vehicle
4.1 Rearward facing installation of the car seat
for children between 40 and 105 cm (from 0
and approximately 4 years old) using the
ISOFIX system and the support leg.
IMPORTANT! The vehicle manual provides the location of the ISOFIX
attachment points and other necessary information for installing the car
seat in the car. The user must necessarily read the vehicle manual.



12

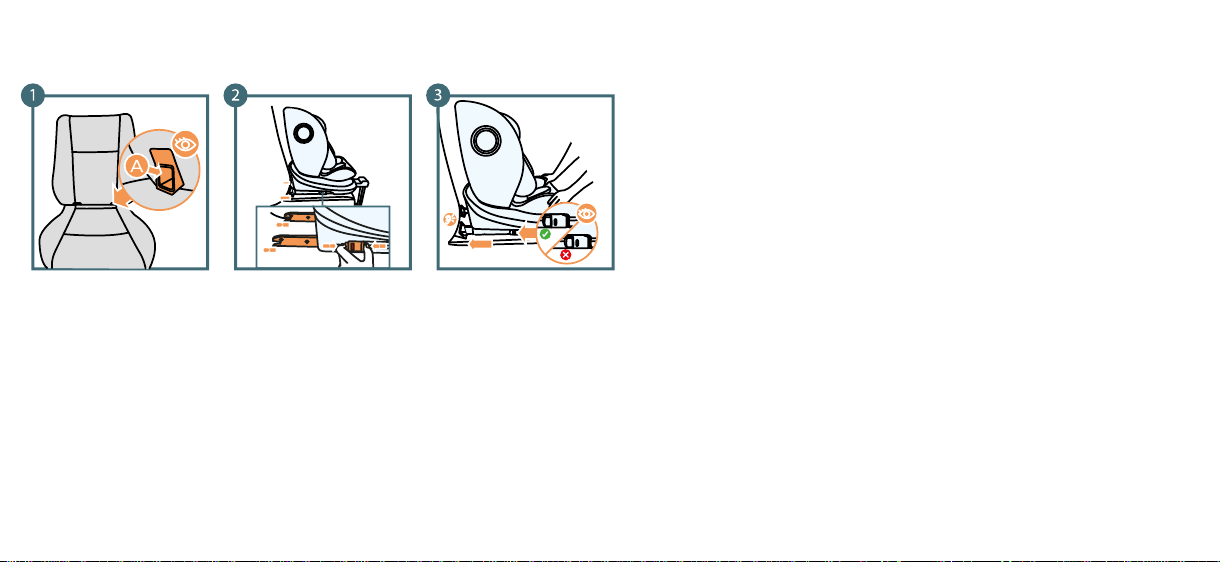

A: ISOFIX arms/ connectors of the car seat
4.1.1 Installation using the ISOFIX system
Before placing the car seat in the car, unfold the support leg.
1. Attach the ISOFIX pads to the seat connectors in the vehicle.
2. Place the car seat together with the unfolded support leg on the seat in
the vehicle. Press both sides of the ISOFIX release button and extend the
ISOFIX connector arms to their maximum length.
3. Grasp the car seat with two hands and slide both latches into the
mountings in the vehicle seat. When you hear the "click" of each ISOFIX
latches, push the car seat against the backrest by applying firm, even
pressure on both sides.
NOTE! The locking latches are only properly attached when both button
indicators are completely green.

13

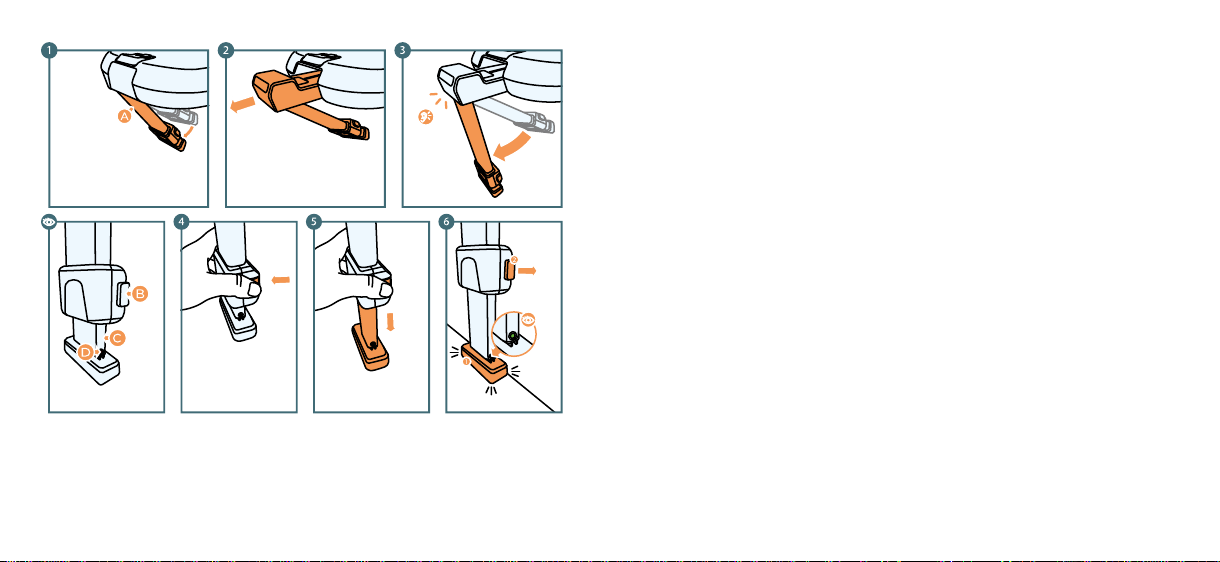

A: Support leg base
B: Support leg height adjustment buttons (on both sides of the leg)
C: Support leg extension
D: Support leg correct installation indicator
4.1.2 Installing the support leg
1. Pull the support leg of the car seat out of the base
2. Pull the upper part of the leg towards you
3. Fully unfold the leg until you hear a "click"
4. Press the leg height adjustment buttons on both sides of the leg (this
will release the leg height lock, and the leg will automatically extend)
5. Adjust the leg height –it should be pressed firmly against the floor
6. Release the buttons
The support leg is installed correctly, if, after taking these steps the car
seat is right in place and the correct installation indicator is green.

14
• NOTE! Never install the support leg on the storage box in the floor of
the car - the storage box can break during an accident; if in doubt, refer to
the vehicle manual.
• NOTE! The support leg must never be unsupported, and no objects can
be placed under it.
• IMPORTANT! The support leg shall support the car seat –it shall not lift
the bottom part of the I-360 seat above the level of the seat of the
vehicle.

15
A: Support leg
4.2 Forward facing installation of the car seat
for children between 76 and 105 cm using the
ISOFIX system and the support leg.
1. Unfold the stabilizing leg- you will hear a "click" when unfolded.
2. Place the car seat on the seat of the vehicle
3. Connect the ISOFIX latches with the vehicle mountings
4. Push the car seat easy spin lever and turn the seat forward facing (you
will hear a "click" indicating that the car seat is locked in the correct
position) Press the support leg height adjustment button and hold until
the leg extends (adjust the height of the leg –it should stand firm on the
floor).

16

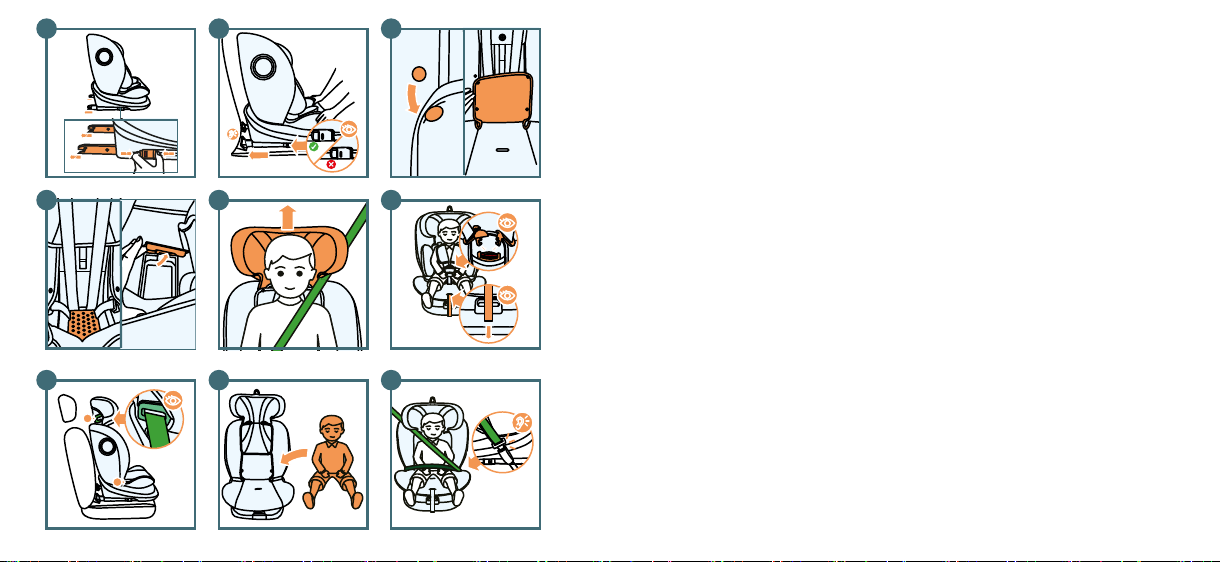

4.3 Forward facing installation of the car seat
for children between 100 and 150 cm using the
three-point car seat belt.
1. Install the car seat on the seat of the vehicle using the ISOFIX
connectors (forward-facing).
2. Push the car seat as far as possible into the seat and check for correct
installation - the installation indicators should turn green.
3. Unfasten the fasteners and uncover the car seat backrest
4. Open the car seat cover and fasten the internal safety harness inside
the seat.
5. Place the child in the car seat
6. Adjust the headrest to his/her height.
7. Guide the shoulder belt through the green shoulder belt guide.
8. Guide the car seat belt through both lap belt guides. Fasten the car seat
belt. You will hear a characteristic "click".
  
  

  



17

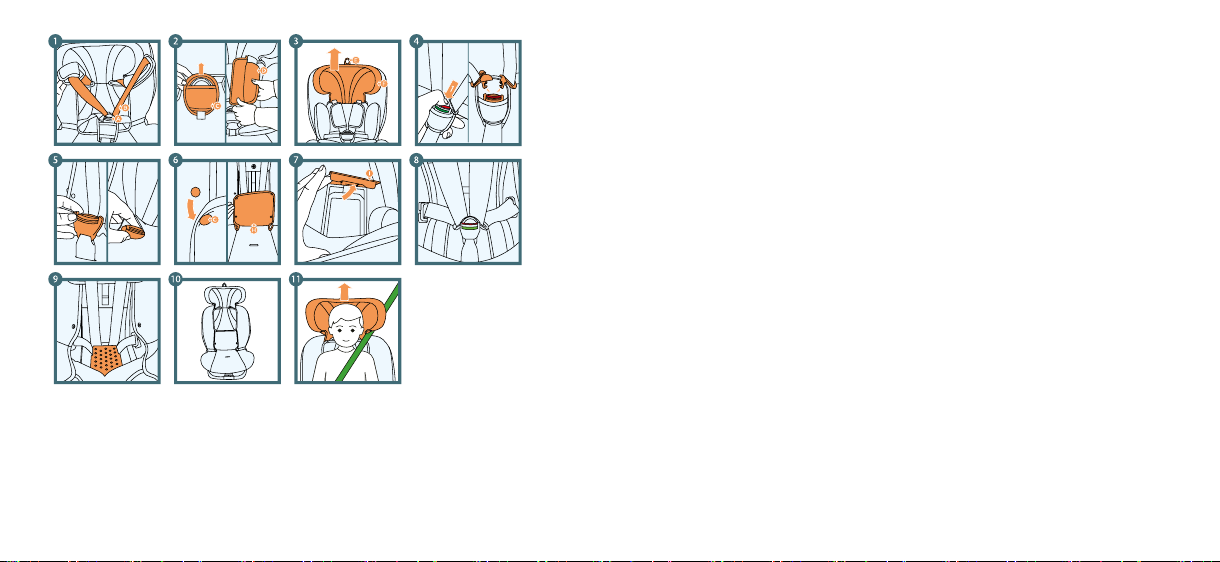

A: Internal safety harness buckle E: Headrest adjustment lever
B: Safety harness F: Headrest
C: Buckle pad G: Fasteners
D: Shoulder pads H: Back part of the cover
I: Safety harness storage
compartment
5.0 Stowing away the five-point safety harness
1. Loosen the safety harness fully by pressing the button and pulling the
safety harness. Remember: do not pull the shoulder pads.
2. Remove the shoulder pads and buckle pad by unfastening the fasteners
3. Place the headrest in the highest position
4. Unfasten the buckle
5. Put the buckle through the opening in the cover
6. Unfasten the fasteners and uncover the car seat backrest
7. Open the storage cover
8. Fasten the five-point safety harness
9. Put the fastened safety harness into the storage compartment so that it
lies flat along the backrest
10. Put the cover back on the car seat using the fasteners on the edges of
the fabric.
11. Adjust the headrest to the child's height.

18
5.1 Removing the car seat (ISOFIX system +
support leg)
1. Fold the support leg extension by holding the two buttons on the sides
of the leg extension and push it up by retracting it into the other part of
the leg. You will hear a "click" which indicates that the leg has been
retracted.
2. Grasp the foot and slide it back into the support leg.
3. Press the release button located on both ISOFIX latches. (The latches
will be released and the colour of the ISOFIX indicators will change from
green to red)
4. Slide the ISOFIX latches into the car seat using the sliding lever

19
A: Insert
B: Headrest
C: Buckle pad
D: Shoulder pad
E: Fasteners
F: Front part of the car seat backrest cover
G: Side protection
5.2 Removing the cover
1. Remove the insert
2. Move the headrest to the highest position
3. Remove the shoulder pads and buckle pad
4. Unfasten four fasteners securing the cover to the front part of the car
seat backrest and the fasteners on the sides of the car seat
5. Remove the fabric from the headrest starting from the sides
6. Starting from the bottom of the car seat, carefully remove the cover
7. Pull out the fabric around the side protection elements
8. Remove the entire fabric by putting it over the top part of the car seat
5.3 Installation of the cover
To reinstall the cover, simply reverse the above sequence of steps. Adjust
the cover to the installation points on the car seat. Start by installing the
cover on the car seat shell and finally on the headrest section.









  




20
6.0 Cleaning
NOTE: Do not use the car seat without the cover.
•The cover can be removed and washed using mild powder and delicate
wash cycle (30°C).
•Follow the washing instructions on the cover label. Colours may fade if
washed at temperatures above 30°C.
•Do not spin or tumble dry the cover (the layers of material may split).
•Prolonged sun exposure of the cover is prohibited.
• Plastic parts can be cleaned with soapy water.
• Do not use aggressive cleaning agents (such as solvents).
•The safety harness can be cleaned in lukewarm soapy water.
Warning! Metal snaps should never be removed from the safety harness.
Full Warranty Terms and Conditions are available at
WWW.KINDERKRAFT.COM
