LABORATORY LINE
POLYTRON® PT 1200 E
Hand Disperser (Ecoline), dispersing devices for budget-conscious labs

THE EXPERT FOR YOUR LABORATORY
Since more than 60 years we are perfecting the rotor/
stator technology, working in close cooperation with
users and universities. When using our technology,
yourtest samples will be dispersed into homogeneous
systems. Depending on the type of samples
you will get homogeneous emulsions, dispersions or
suspensions. This is the best foundation for all subsequent
analyses or formulations.
ERGONOMICS
– Easy operation with an on-off switch and speed control
– Lightweight
– Intelligent variable speed control for long equipment life
– Low noise
– Height adjust stand (available as an option)
– Switch aggregate quickly with Click & Go coupling
– Easy aggregate clean-up with EasyClean Design
RESULTS ARE CONVINCING
– Smallest sizes of particles / droplets: because precise
analysis require homogeneous samples
– Efficient sample preparation: because fast dispersion
saves time
– Standard or custom-made aggregates: perfected for
and in cooperation with the users
– Cleaning and disassembly: EasyClean design makes
it very simple
– Quick coupling of the aggregates: by using Click & Go
– Best materials available: because without them,
we could not call it Swiss Made
– Durability is a Swiss virtue
This ergonomic hand disperser is lightweight and therefore ideal for rapid turnaround of smaller
sample volumes. The extensive range of dispersing aggregates covers a wide range of sample prepa-
ration applications.

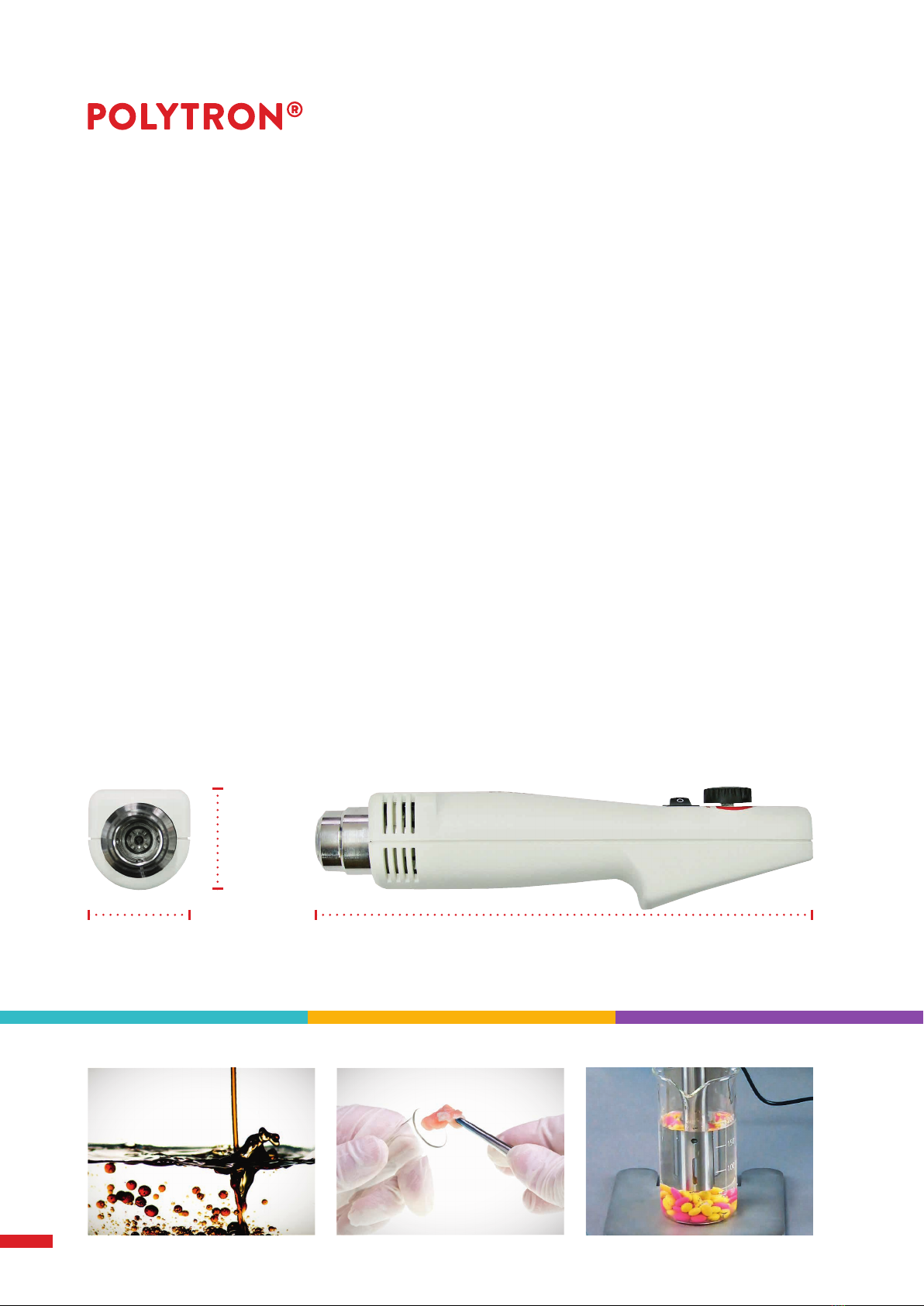

PT 1200 E
Efficient and Economical.
–
44mm
55 mm
220 mm
2

TECHNICAL INFORMATION
Processing volume
(water)
0.05 up to 250 ml
Tip speed Up to max. 14m/s
Up to max. 21m/s (X-Aggregate)
Applicable aggregates ø 3, 5, 7, 12 mm
ø 20mm X-Design
Speed range 0 to 25 000 rpm
Drive coupling Aggregates with E coupling
Noise level (drive without
aggregate)
≤ 65 dB(A) at 20 000 rpm
≤ 76 dB(A) at 25 000 rpm
Motor Universal with carbon brushes
Drive power 100W
Connection voltage 90 – 230 V ± 10%, 50Hz/60Hz
Relative humidity (max.) 80 % during storage
80 % during operation
Operating temperature 0 – 40 °C
Protection class acc. to
DIN
IP 20
Dimensions (LxW xH) Drive: 220 x 44 x 55mm
Power supply: 132 x58x 30mm
Weight Drive: 440g
Power supply: 310g
EMC standards IEC / EN 61000-6-2/ EN 61000-6-3
Safety standard IEC / EN 61010-2-51
USERS / APPLICATION RANGES
– General homogenizing applications
– Dispersions, suspensions, and emulsions
– Dispersion of plant, animal and human tissue samples
in various liquids and volumes
– Extraction of active pharmaceutical ingredients (API)
in pills and tablets
– Sample preparation for medical diagnostics and
RNA / DNA analysis
– Breakdown of animal and plant cells
– Emulsions and suspensions in tiny volumes
– Cell breakdowns for enzyme studies
– Preparation of samples for genetic studies
– Deagglomeration of cell complexes
This list provides a small selection of possible applications.
3

S
T
A
T
O
R
S
T
E
P
2
S
T
E
P
1
S
T
E
P
3
R
O
T
O
R
S
T
E
S
T
A
T
O
R
THE PRINCIPLE
The spinning rotor generates a vacuum. The sample is drawn
in and discharged to the outside through the stator’s slots.
Between the rotor / stator (shear gap), the product is subject
to high deceleration-tangential and radial acceleration forces.
The individual particles /droplets are torn apart and thus
reduced in size; they are reducedto several micrometers in
size through additional cutting and crashing effects.
THE RESULT
Microscopic dispersions, emulsions, suspensions, and
foams are generated. Droplets, particles, and gas bubbles
are reduced to several micrometers or smaller. Small and
large substances are dispersed more economically, faster,
and better than with any other system.
Your samples are efficiently «POLYTRONIZED».
Who is the inventor of it?
The roots of today’s Kinematica began in the former chemical/physical research institute of Prof. P.
Willems in Lucerne, Switzerland, the inventor of the modern rotor/ stator dispersion technology.
Kinematic dispersion.
Using the rotor / stator system.
–
4

STANDARD AGGREGATES (EC
DESIGN WITH TWO GEAR RINGS)
This is all you need for popular appli-
cations in the preparation of samples
and formulation development. The
cutting teeth embedded in the head of
the tool optimize the pre-crushing of
the sample. An enclosed ring design
provides optimum protection for those
teeth and prevents them from bending.
SPECIAL AGGREGATES (W, M, B,
SYN, Z & X DESIGN)
Specializations in the chemical,
pharmaceutical, cosmetic, and food
industry, as well as the life sciences,
makes new designs inevitable. These
aggregates are based on state-of-the-
art technology and only available from
Kinematica.
The highly specialized tool is subject
to further development that involves
close cooperation with our customers
and universities. Thus, it is continu-
ously perfected for specific applica-
tions.
MATERIALS
Whether you need a tool with
standard or special geometry, all
aggregates are manufactured from
high-alloy stainless steel 316L,
electrolytically polished and made in
Switzerland. Our synthetic aggregates
(SYN) are manufactured from the
highest quality materials available.
This guarantees their application at a
motor speed up to 30 000 rpm.
BEARINGS
All dispersing aggregates for the PT
1200 E are equipped with high-qual-
ity synthetic bearings. They exhibit
excellent mechanical properties and
chemical resistance. They are all FDA
approved.
CLEANING AND DISASSEMBLY
EasyClean: Our technology ensures
the simplest removal and fast clean-
ing, either by hand, dishwasher, or au-
toclave. Disassembling the precisely
fitting components is simple and fast.

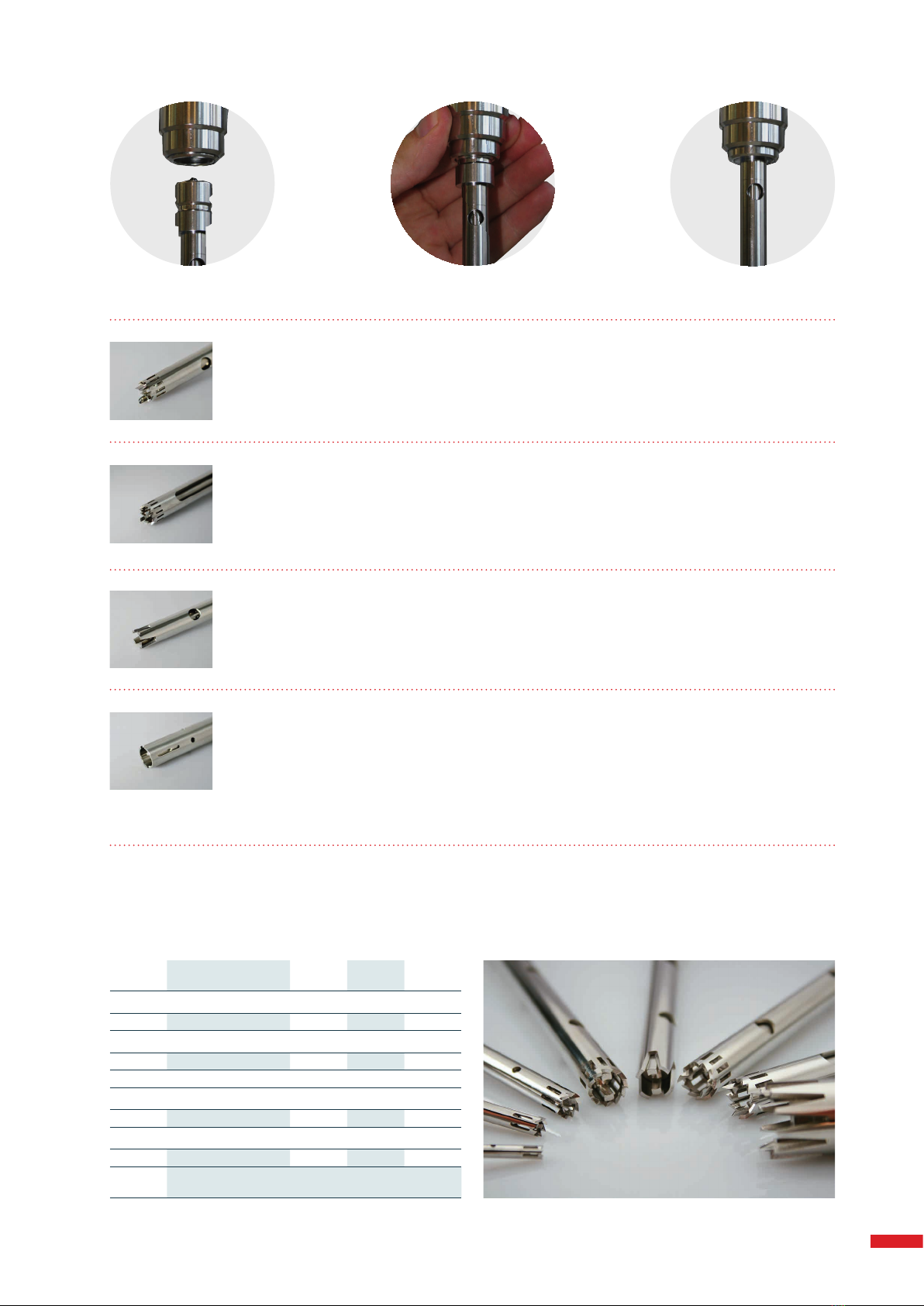

LOCKING SYSTEM
All our POLYTRON® aggregates
are fitted with a high-precision quick-
release system: The Click & Go.
The high efficiency and the uniqueness of our POLYTRON® dispersing aggregate can only be
achieved through superior manufacturing precision and the sophisticated Kinematica design
method. This is 100 % Swiss Made.
Aggregate Technology.
Unrivaled.
–
5

EC STANDARD DISPERSING AGGREGATE
Design
The universal geometry uses two rows of teeth, is suitable
for a large spectrum of laboratory applications, and it is
reliable and efficient.
Selection and applications
– All standard dispersing tasks
– Grinding of animal and human tissue samples in a variety
of fluids and volumes
– Sample preparation for the extraction and dissolution of
organic materials
– Sample preparation for medical diagnostic procedures as
well as DNA analysis
– Extractions of systems / substances from vegetable-
derived samples
– Disruption of animal and human cells
– Deagglomeration of united cell structures
– Intensive mixing
SYN SYNTHETICS
Design
Disposable aggregates for the processing of multiple
samples per day, where the required sterilization of stainless
steel aggregates represents a significant time limitation.
Available in PES / Special POM. Sterilepackaging in packet
sizes of 25 units each (ø 7 mm) and 10 units per packet
(ø 12 mm) each.
Selection and applications
– Prevention of X contamination
– All standard dispersing applications similar to EC aggregate
B BIOTRONA® HIGHTURBULENCE MIXER
Design
High-turbulence mixing head with the least possible shear
forces and energy inputs.
Selection and applications
– Quick removal and suspension of solid particles; also
suitable for high viscosity applications
Sales No. Product ø/ length
mm
Volume ml max. Tip
speed m/s
EC «STANDARD DISPERSING AGGREGATE»
11030004 PT-DA 03/ 2EC-E050 3/50 0.05 – 2 3
11030012 PT-DA 05/ 2EC-E085 5 /85 0.1 – 5 5
11030031 PT-DA 07/ 2EC-E107 7 / 107 0.3 – 10 7
11030062 PT-DA 12 /2EC-E123 12 / 123 2 – 250 12
11030042 PT-DA 12/ 2EC-E157 12 /157 2 – 250 12
SYN «SYNTHETICS»
11030030
25 x PT-DA 07/ 2SYN-E082*
7/82 0.3 – 10 7
11030037
25 x PT-DA 07/ 2SYN-E082**
7/82 0.3 – 10 7
11030038
12 x PT-DA 07/2SYN-E082**
7/82 0.3 – 10 7
11030035 10 x PT-DA 12/ 2SYN-E126* 12 / 126 2 – 250 12
11030036
10 x PT-DA 12/2SYN-E126**
12 / 126 2 – 250 12
*Sterile pack / **Non-sterile pack
B «BIOTRONA® HIGH-TURBULENCE MIXER»
11030034 PT-DA 07 /BEC-E107 7/107 10 – 100 7
11030286 PT-DA 12 /BEC-E157 12/ 157 50 – 500 12
Kinematica aggregates solve all problems you are faced with every day in the laboratory. Using our
Click & Go quick release makes the changing of aggregates very easy.
Dispersing aggregates for PT 1200 E.
Your applications, our solution.
–
6

M OUTSIDE CUTTING BLADES
Design
Outside blades pre-cut samples that are larger than
the rotors diameter. Subsequently, they can be dispersed
inside the generator.
Selection and applications
– Dispersing of large samples made simple
– All standard dispersing applications similar to EC aggregate
Z ZDESIGN
Design
Breaking up of hard probes, with integrated V-notch
technology. Additional, integrated holes for cleaning.
Selection and applications
– Hard and brittle material
– Sweet corn and grain
– Breaking, opening and dispersing of pills
– Breaking, hard grains
W WDESIGN
Design
The W-design prevents fibrous, stringy or solid samples
from clogging the rotor/stator.
Selection and applications
– Dispersing fibrous, stringy or solid samples
(e.g., pieces of meat)
– All standard dispersing applications similar to EC aggregate
X XDESIGN
Design
A special geometry designed for dispersing tablets
and pills or for preventing suppositories from clogging
or agglutinating.
Selection and applications
– Ultrafast crushing of tablets, coated pills, and
suppositories
– Basis for the analysis of active pharmaceutical
ingredients (APIs)
– Used in the substance analysis or for the quality control
during the production of tablets
Sales No. Product ø / length
mm
Volume ml max. Tip
speed m/s
M «OUTSIDE CUTTING BLADES»
11030266 PT-DA 12 /2MEC-E157 12 /157 2 – 250 14
Z ZDESIGN
11030067 PT-DA 12/ 2ZMEC-E157* 12/ 157 2 – 250 12
* Z-Design aggregate with knives
W WDESIGN
11030060 PT-DA 12 / 2WEC-E157 12 / 157 2 – 250 14
X «X-DESIGN»
11030255 PT-DA 20/ 2XEC-E116 20/ 116 min. 10* 21
*When using a vessel ø 22mm / volume is always dependent
on the diameter of the vessel
Step 1 Step 2 Step 3
7

THE PROBLEM
For normal cylindrical beakers, the flow creates a vortex.
The mixing and dispersing efficiency decreases considerably
since the product is no longer being optimally processed
through the dispersing generator head. This lengthens
processing times, requiring more energy input. Depending
on the shape of the vortex, this may also lead to additional
air being introduced.
THE SOLUTION

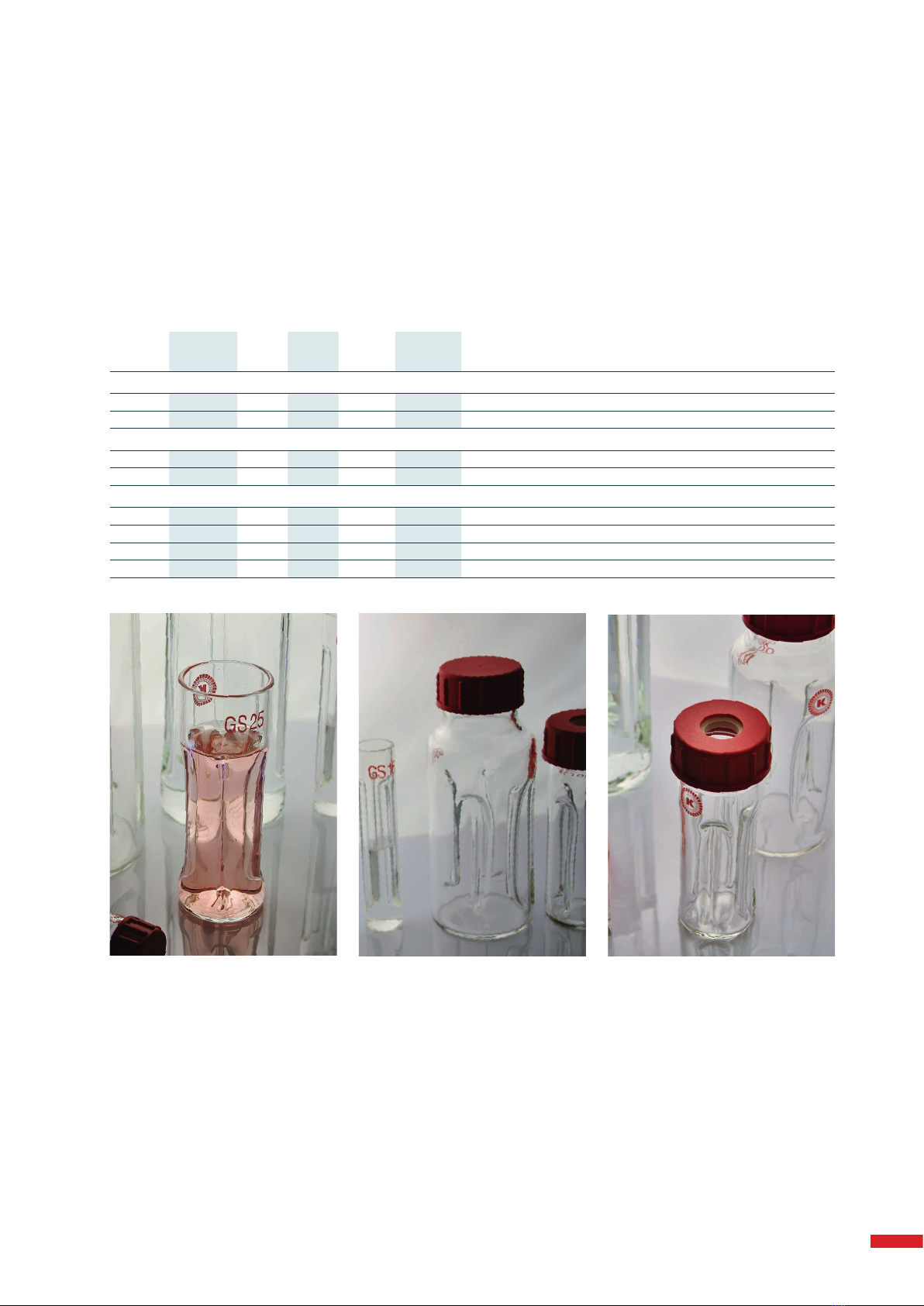

Our specially designed GS jars have a cloverleaf-like shape.
This effectively interrupts the flow in the radial direction and
generates additional counteracting forces. These high turbu-
lences maximize the mixing and dispersion efficiency, thus
minimizing processing time and requiring less energy.
THE SELECTION
Our GS-glasses are available in chemical- and tempera-
ture-resistant borosilicate glass or in stainless steel, with
working volumes from a few milliliters to several liters,
with or without lid and with or without sealed feedthrough.
Choosing the right dispersing aggregate is crucial for good results. The right vessel
also contibutes to achive the desired result.
Dispersing vessels.
For best results.
–
GS vessel principle (viewed from top)
8

Sales No. Product Ø/H
(mm)
Process
volume
Thickness Thread Description
Open on top
11051010 GS 15 30 / 100 35ml 2.8 mm – –
11051011 GS 25 54 / 150 150 ml 3.5 mm – –
With screw cap and sealing
11051020 GS 15K 30 / 100 35ml 2.8 mm GL25 –
11051021 GS 25K 54 / 150 150 ml 3.5 mm GL45 –
Incl. cover with sealing and hole
11051030 GS 15KL08 30/ 100 35 ml 2.8 mm GL25 8 mm hole
11051031 GS 15KL12 30/ 100 35 ml 2.8 mm GL25 12mm hole
11051040 GS 25KL12 54 /150 150 ml 3.5 mm GL45 12mm hole
11051041 GS 25KL20 54 / 150 150 ml 3.5 mm GL45 20 mm hole
9

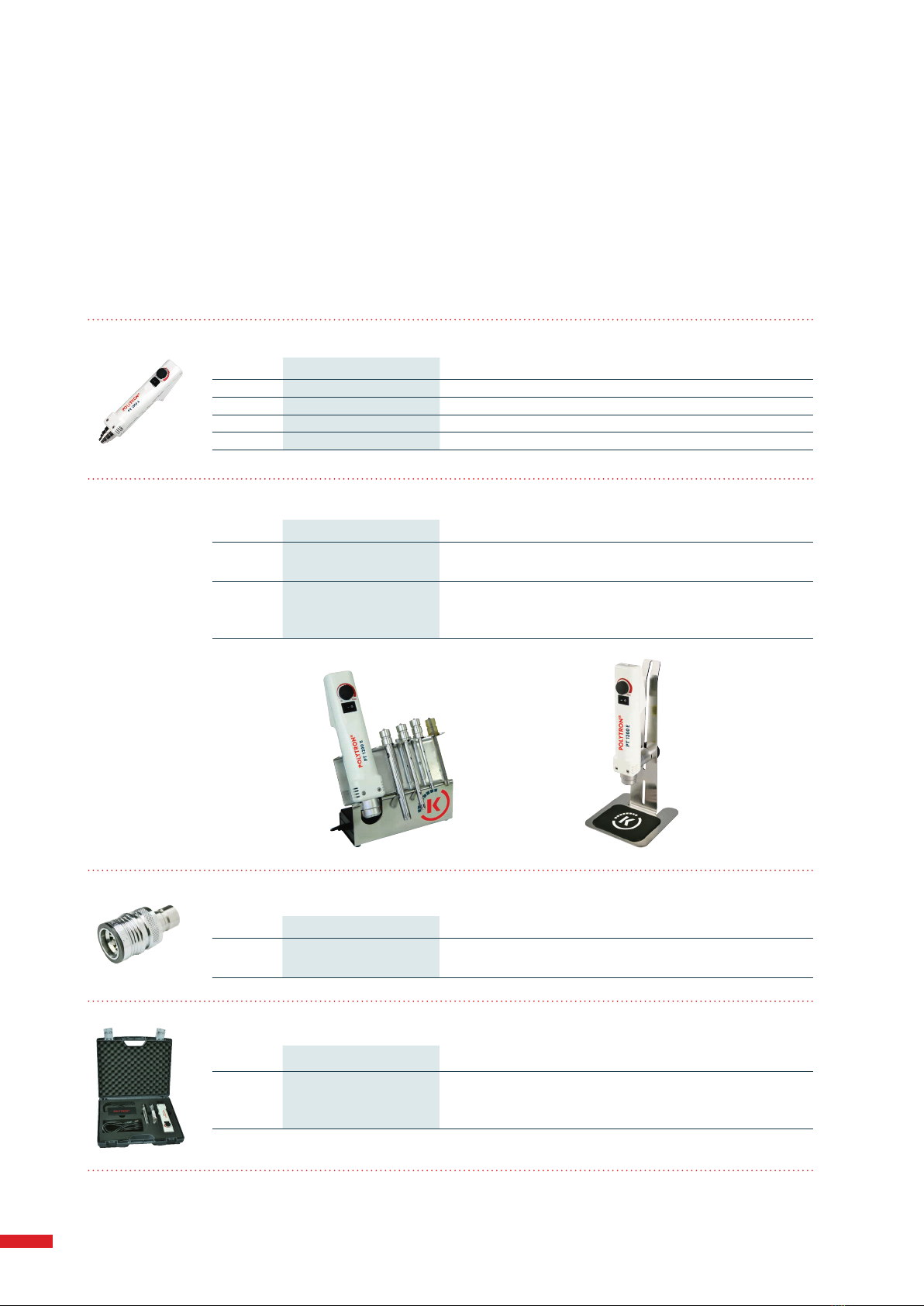

Depending on your specific requirements, it is possible to expand the PT 1200 E drive with our
functional accessories. Our expert personnel will be happy to assist you and answer all the questions
you might have.
Order information and accessories.
Authorized extension of your system.
–
CARRYING CASE
ADAPTER
DRIVES
HOLDER SYSTEM AND STAND
Sales No. Product Description
11010025 PT 1200 E, 230 V EU-power cable and tabletop power supply (1.8m)
11010027 PT 1200 E, 230 V CH-power cable and tabletop power supply (1.8m)
11010028 PT 1200 E, 230 V UK-power cable and tabletop power supply (1.8m)
11010026 PT 1200 E, 100 – 120 V Power cable and tabletop power supply (1.8m)
Sales No. Product Description
11040006 HS 1200 E Stainless steel holder for drive unit, tabletop power supply, four dispersing
aggregates and two tools. Weight: 0.68 kg
11040007 ST-P 13 /320 Stainless steel plate stand with anti-slip mat made of silicone, with height-
adjustable holder for the drive and for fastening the base station.
Weight: 1.00kg
Sales No. Product Description
11040004 Carrying case Made of polypropylene (anthracite), with feet, continuous hinge, sturdy clip
closures and openings for drive unit, tabletop power supply, cables, and two
aggregates. Dimensions: 350 x 245 x100 mm /Weight (empty): 1.10 kg
10
Sales No. Product Description
11035002 Adapter PT-DA / PT-DA (E / C) This adapter connects older C-coupling dispersing aggregates such as
PT 1200 C/CL / B with E-coupling drive units.

Users / application ranges.
Best solution for every application.
–
Since 1962 we are a leading supplier of dispersing solutions for applications in the chemical,
biotechnology, pharmaceutical, cosmetics and food industries. Due to our close relationships
with our customers we detect new trends early and we always look for ways to find an ideal
solution for you.
11

HEADQUARTERS
Kinematica AG
Luzernerstrasse 147a
CH-6014 Luzern
Switzerland
Phone [phone]
Fax [phone]
[e-mail]
kinematica.ch
WESTERN EUROPE
Kinematica GmbH / Germany / Phone + 49 7634 504 800 0 / [e-mail]
–
NORTH AND SOUTH AMERICA
Kinematica, Inc. / USA / Phone + 1 631 750 6653 / [e-mail]
–
CENTRAL AND EASTERN EUROPE
Kinematica AG / Ukraine / Phone + 38 067 230 76 89 / [e-mail]
–
ASIA AND GREATER CHINA
Kinematica Asia Limited / Hong Kong / Phone + 852 249 769 65 / [e-mail]
English / Version 08.2018
Our mission. Your solution.
Homogenizing perfected: for every industry.
–
CHEMICAL
PHARMA
COSMETICS
LIFE SCIENCE
FOOD
Kinematica’s broad portfolio of solutions can address almost every
dispersing application for the pharmaceutical, cosmetic, chemical,
food and life science industry. Innovative powder-induction systems,
solutions for completely sterile environments, or fully-compliant
ATEX architecture are just some examples of the broad portfolio that
Kinematica can offer with true scalability from pilot-plant to large
plant configurations.
Our state-of-the-art technology, in addition to a professional
consulting and engineering suite of services, can address avariety
of processes such as blending / mixing / stirring, emulsifying,
deagglomerating, foaming, crushing and homogenizing withparticle
size reduction from a
few micrometers down to nanometers insize:
the proprietary design and innovative geometry of our aggre-
gates/ generators can downsize and provide perfect statistical
particle distribution for the finest emulsions/suspensions and
foam dispersions.
