KISANKRAFT KK-IC-410P User manual

KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 1 of 52
Product
Agricultural
Inter-Cultivator
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-IC-410P
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE OF
SALE OR DELIVERY WHICHEVER IS EARLIER.
Dealer’s
Invoice Date
Dealer’s Invoice No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free from defects
in material or workmanship. All parts defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts
as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or
workmanship. KisanKraft or its manufacturersmake no warranty with respect to items not manufactured
or sold by them. No onsite warranty is provided by KisanKraft Limited or its manufacturers. Defective
items must be brought/sent to our Authorized Dealer or KisanKraft Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft Limited nor any
of its manufacturers, nor its authorized dealers assume any responsibility, if the failure was caused by
the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine or misuse, (3)
Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6) Repairs made by
unauthorized parties and/or with unauthorized parts, (7) Improper set up, adjustments, tampering or
altered products (8) Any modification to the product what-so-ever.
Important: (1)Normal maintenance and adjustments tothe product is the responsibility of thecustomer.
(2) Normal wear and tear are not covered under warranty. (3) Rubber/plastic parts and consumables
such as blades, clutch and clutch-bell, sparkplugs, nylon line, air-filters, fuel-filters, oilseals and gaskets
etc. are not covered under the warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not
covered under the warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable for general
damages, including bodily injuries, or for incidental or consequential damages including, but not limited
to, loss of use, loss of profits, loss of production, expense of substitute equipment or other commercial
loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties, obligations, or
liabilities. Any implied warranties, obligations, or liabilities, including, but not limited to, any implied
warranty of merchantability shall be limited in duration to the applicable warranty period. Any action for

KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 2 of 52
breach of any warranties hereunder, including, but not limitedto, any implied warranty ofmerchantability
must be brought within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited or any
of its manufacturers has the authority to increase or alter the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not transfer if the
product is resold by the first buyer. The above warranties are extended to the first end user (original
purchaser), and no warranty is made, nor authorized to be made assignable on resale by the first end
user.
What youmust do to obtain limited warranty service: To obtain performance of any obligation under
this warranty for failure during the applicable warranty period, you must deliver the defective product,
to the nearest Authorized Dealer, along with proof-of-purchase (invoice/receipt). KisanKraft Limited, its
manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if
the malfunction is the result of a defect covered by this warranty. Please note that the decision of
KisanKraft Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to consumers. All
sales or supplies are made through Authorized Dealers. It is the responsibility of the Authorized Dealer
to provide all after-sales service to consumers. Any warranty claim should be raised by dealer to
KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
➢This purchase is not contingent upon a product demonstration. The purchaser shall satisfy himself
with the product, includingany product demonstration or verification of anyfunction, beforebuying.
KisanKraft Limited or its authorized dealers, including online sellers, shall not be liable to give any
on-site demonstration after purchase of any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation, Demonstration, Repair,
Routine Maintenance etc.), should be done through the Authorized Dealer selling this product.
➢Dealers should have their own technician to provide After Sales Services to their Customers.
KisanKraft Limited provides free training to Authorized Dealer’s technicians at KisanKraft Limited’s
head office, on request from Authorized Dealer.
➢

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 3 of 52
User Manual
Note: Pictures shown in this manual are only for illustration purposes.
KisanKraft Limited
Warehouse: 818 3B1 to 818 3B18, Podalakur - Sangam Road, Prabagiripatnam, Podalakur,
Nellore - 524345, Andhra Pradesh, INDIA
Head Office: Sri Huchhanna Tower, #4,1st Main,7-A Cross, Maruthi Layout, Dasarahalli, HAF
Post, Hebbal, Bangalore 560024, Karnataka, INDIA
♦Bangalore (HO) ♦Ahmedabad ♦Bhopal ♦Coimbatore
♦Guwahati ♦Hyderabad ♦Nellore ♦Jaipur ♦Karnal
♦Kolkata ♦Lucknow ♦Patna ♦Pune ♦Raipur ♦

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 4 of 52
CONTENTS
BEFORE GETTING STARTED..........................................................................7
SAFETY INFORMATION ................................................................................7

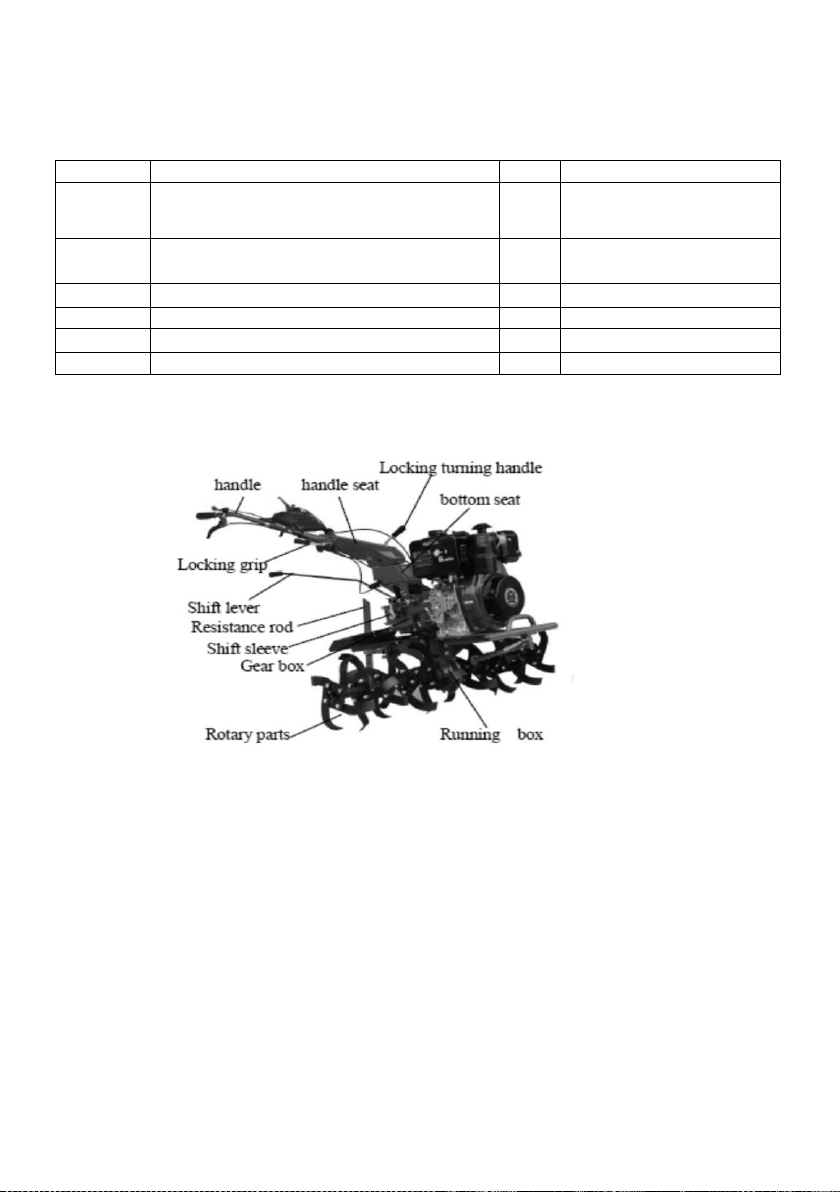

OVERVIEW ...................................................................................................9
ASSEMBLY..................................................................................................11
OPERATION................................................................................................15
CONNECTING THE ATTACHMENTS ............................................................16
IMPORTANT POINTS IN ENGINE OPERATION ............................................18
MAINTENANCE & SERVICE.........................................................................21
TROUBLESHOOTING ..................................................................................27
TECHNICAL SPECIFICATION........................................................................32
PART DIAGRAM..........................................................................................33

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 5 of 52
Product
Agricultural
Inter-Cultivator
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-IC-410P
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE OF
SALE OR DELIVERY WHICHEVER IS EARLIER.
Dealer’s
Invoice Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free from
defects in material or workmanship. All parts defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limitedto repair or replacement by KisanKraft Limited or its manufacturers of such
parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material
and/or workmanship. KisanKraft or its manufacturers make no warranty with respect to items not
manufactured or sold by them. No onsite warranty is provided by KisanKraft Limited or its
manufacturers. Defective items must be brought/sent to our Authorized Dealer or KisanKraft
Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft Limited
nor any of its manufacturers, nor its authorized dealers assume any responsibility, if the failure
was caused by the following:
(1) Operation of product with incorrectfuel or lubricants, (2) Incorrectusage of machine ormisuse,
(3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6) Repairs made by
unauthorized parties and/or with unauthorized parts, (7) Improper set up, adjustments, tampering
or altered products (8) Any modification to the product what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility of the
customer. (2) Normal wear and tear are not covered under warranty. (3) Rubber/plastic parts and
consumables such as blades, clutch and clutch-bell, sparkplugs, nylon line, air-filters, fuel-filters,
oil seals and gaskets etc. are not covered under the warranty. (4) Electrical Motor, Electrical Parts,
Battery Etc. are not covered under the warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable for
general damages, including bodily injuries, or for incidental or consequential damages including,
but not limited to, loss of use, loss of profits, loss of production, expense of substitute equipment
or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties, obligations,
or liabilities. Any implied warranties, obligations, or liabilities, including, but not limited to, any
implied warranty of merchantability shall be limited in duration to the applicable warranty period.

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 6 of 52
Any action for breach of any warranties hereunder, including, but not limited to, any implied
warranty of merchantability must be brought within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited
or any of its manufacturers has the authority to increase or alter the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not transfer if
the product is resold by the first buyer. The above warranties are extended to the first end user
(original purchaser), and no warranty is made, nor authorized to be made assignable on resale by
the first end user.
What you must do to obtain limited warranty service: To obtain performance of any obligation
under this warranty for failure during the applicablewarranty period, you must deliver thedefective
product, to the nearest Authorized Dealer, along with proof-of-purchase (invoice/receipt).
KisanKraft Limited, its manufacturers and its dealers reserve the right to inspect the claimed
defective part(s) to determine if the malfunction is the result of a defect covered by this warranty.
Please note that the decision of KisanKraft Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the responsibility of
the Authorized Dealer to provide all after-sales service to consumers. Any warranty claim should
be raised by dealer to KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
➢This purchase is not contingent upon a product demonstration. The purchaser shall satisfy
himself with the product, including any product demonstration or verification of any function,
before buying. KisanKraft Limited or its authorized dealers, including online sellers, shall not
be liable to give any on-site demonstration after purchase of any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation, Demonstration,
Repair, Routine Maintenance etc.), should be donethrough the Authorized Dealer selling this
product.
➢Dealers should have their own technician to provide After Sales Services to their Customers.
KisanKraft Limited provides free training to Authorized Dealer’s technicians at KisanKraft
Limited’s head office, on request from Authorized Dealer.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 7 of 52
BEFORE GETTING STARTED
Thank you for purchasing our Inter-cultivator.
•This manual can guide you to solve the problems when you are installing,
manipulating, and repairing the machine. With the continuous innovation and
improvement ofthe products, thecontents in theinstruction manualmay differ slightly
from the actual situations, your understanding and pardon is highly appreciated. If
you find some problems or have some good suggestions, please do not hesitate to
contact your dealer.
•No part of this publication may be reproduced without written permission.
•This manual should be considered a permanent part of the cultivator and remain with
it if it is resold.
SAFETY INFORMATION
Safety is very important for you and others. We have written down important safety
information in both manual and machine. Please read it carefully.
Safety information gives you warning that you may bring potential danger to yourself and
others. The key words with “!” are put before every piece of information. These words are
“danger, warning, attention”.
Please pay attention to the meanings of the above-mentioned identifiers.
! Danger: if you don’t operate follow those indicated in the manual, serious injuries, even death
will be caused.
! Warning: if you don’t operate follow those indicated in the manual, device damage and injures
will be caused.
! Attention: if you don’t operate follow those indicated in the manual, device damage and injures
may be caused.
Damage prevention
You can see other important information marked with “ATTENTION”.
ATTENTION: If you don’t operate as those indicated in the manual, device damage will be
caused.
If mini cultivator is operated follow those indicated in the manual, it will
work safely and reliably. Before operating the mini cultivator, please
read this manual carefully. Otherwise, injures and device damage will
be caused
Attention
•When starting engine, please turn gear lever to neutral position.
•When the machine is working, please pay attention to safety!
•Be careful about the rotary blades because they may hurt you!
•Fuel and lube oil must be clear.
•Before shifting the gear, you must disconnect the clutch. When holding the backshift bar,
the gear lever must be put in the neutral position.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 8 of 52
•Fuel is flammable, you must pay attention to fire and exploding.
As the machine is always improved, photos or illustrations shown here may slightly vary with
the actual machine
1. Training
a). Carefully read this manual, fully know all the controlling functions and the proper operation,
learn how to quickly stop and disport the cultivator.
b). Children are not allowed to use cultivator. And adults who don’t learn this manual are also
not allowed to use this cultivator.
c). Keep working area without other people, especially children and pets.
2. Preparation
a). Check working area and move away all the obstacles.
b). Disengage all the clutches and place gear to neutral position before starting engine.
c). Do not use cultivator without suitable clothes and skid-proof shoes.
d). Carefully deal with fuel which is highly flammable.
1). Use suitable container to store fuel.
2). Do not add fuel when engine is working or hot.
3). Always add oil outdoor. Never fill oil indoors.
4). Wrest on fuel tank cap and clean out spilling fuel.
e). When engine is working, do not do any adjustment which are not allowed.
f). Wearing eye protect glasses when preparation, working and servicing.
3. Operate
a). Never use hand or foot to touch rotary blades when it is working
b). When go across cobbled road, crosswalk, and road, pay more attention to the latent danger.
Do not let people ride on the cultivator.
c). If cultivator bumps something, stop to check. If it is broken, repair it and then start it.
d). Be careful when working, do not fall or slip.
e). If cultivator has abnormal noise, it means that it may have problems. Stop the cultivator to
check reason.
f). Stop engine before leaving, cleaning blades, servicing, adjusting and checking.
g). When the cultivator is not in use, shift gear to the neutral gear and stop the engine.
h). Before checking, cleaning and repairing the cultivator, stop engine and confirm if every part
is in stop state.
i). Do not use the cultivator indoors, because exhaust is poisonous.
j). Do not use the cultivator when there isn’t proper equipment.
k). Keep away from children and pets.
l). Do not let cultivator overload because of deep cultivating depth and fast speed.
m). Do not let cultivator run on the slippery road. Be careful when moving in reverse direction.
n). Do not let bystanders come near the cultivator.
o). Additional equipment provided by manufacture only can be used.
p). Do not use cultivator when it is dark.
q). When work on the hard land, blades may hitch the land and push cultivator forward. In this
condition, release the cultivator and let it go itself, do not try to control it. Or else, there will be
danger.
r). Do not work on the sharp slope.
s). When using the cultivator on slope, be careful to not let cultivator fall.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 9 of 52
4. Service and store
a). Keep cultivator and its additional equipment in well working condition.
b). Periodically check engine bolts and other bolts, make sure they are fixed well, to ensure
cultivator in good working condition.
c). Cultivator should be stored indoor and away from fire. Stop and cool the engine before
storage.
d). If cultivator needs to be stored for a long time, this manual should also be preserved along
with.
e). Do not try to repair the cultivator without proper knowledge, and proper tools.

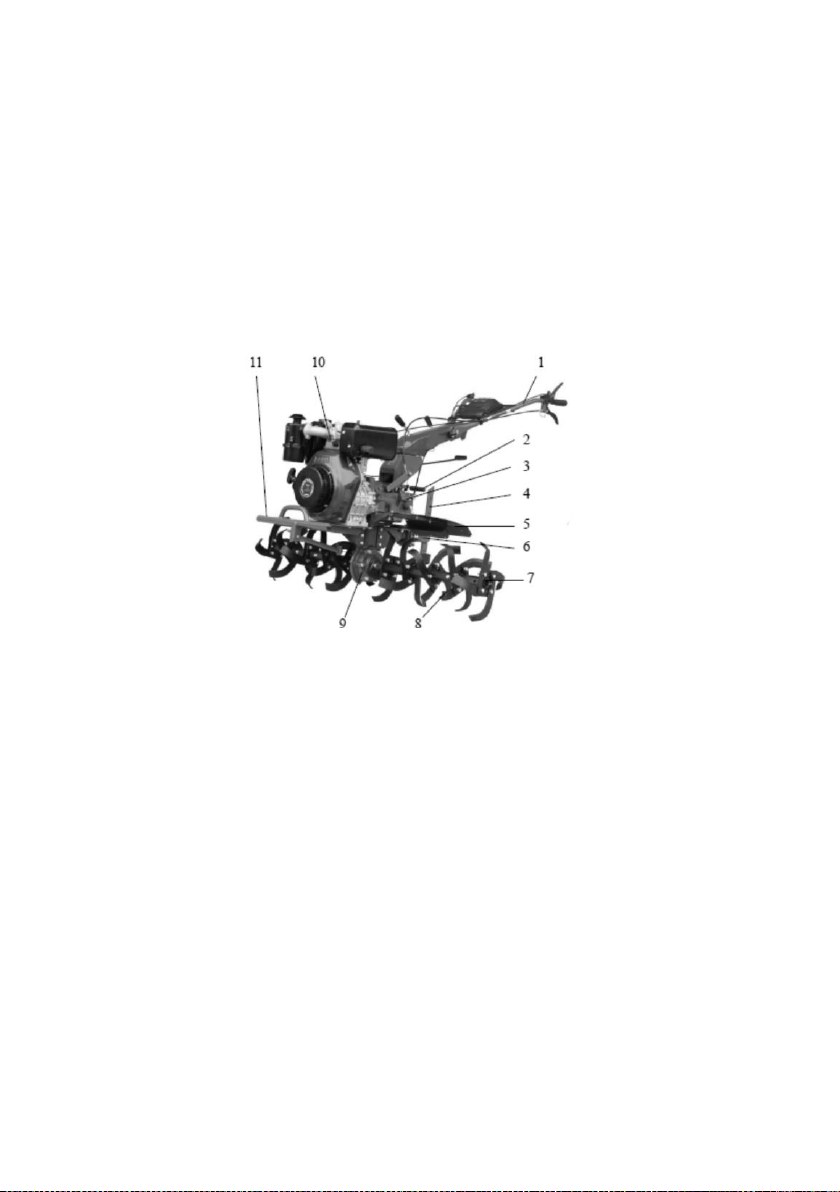

OVERVIEW
1. Hand bar Assy
2. Output clutch grip
3. Gear box Assy
4. Resistance rod
5. Fender
6. Drag bar
7. Rotary device components
8. Rotary blades
9. Running case Assy
10. Diesel engine
11. Bumper

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 10 of 52
Applicable Scope
1. Inter-cultivator / weeding:
Inter-cultivator / weeding
components are installed on both
sides of the driving shaft of Inter-
Cultivator running gear. Tighten the
shaft with two bolts M8×55. Then the
Inter-Cultivator can work (as shown
in the pic)
Cultivator device mode
4groups
5groups
4blades
4blades
Cultivator blades
2×4×4
2×5×4
Cultivator scope(mm)
1100
1350
Suitable soil
Paddy field with
insufficient water;
clayed soil
solid soil
Wet soil
Dry soil
2. Ditching and Ridge forming:
Take away resistance rod, install ditching
device and adjust the width and height of
ditching device ( as shown in the picture)
3. Short distance transportation
Install forearm of Inter-Cultivator case on the drag body and wheels on the driving shaft. The rated
load is 250kg. At the rated speed of diesel engine, fast shift speed is about 10km/h and slow shift
speed is 1.8km/h.
4. Multifunctional work
Take away the safety cover of gear box the back bolt of main shaft, the key sleeve of the shaft, then
install the attaching belt pulley and coupling on the main shaft of gear box and fasten with bolts.
Ordinary V-belt A-model is used for the cross section of belt pulley. The rated sped of belt pulley is
3000r/m. When it is attached with relative machine tools, auxiliary tools, you can carry out such
multifunctional work: bailing, sprinkling, chemical spraying, and threshing, reaping, and generating
power.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 11 of 52
5. Instruction table of attaching tools
Number
Name
Unit
Usage
1
Inter-cultivator / weeding wheels of paddy
field
Set
Cultivator in paddy field
2
Water pumping device (self-priming water
pump 3-inch)
Set
Pumping water
3
Ditcher
Set
Ditching
4
Reaper
Set
Reaping rice, wheat
5
Grass cutter
Set
Cutting weeds
6
Weeding
Set
Smashing soil block
ASSEMBLY
Unpacking
1. Wheels and cultivator blades assembling: Take the Inter-Cultivator chassis out of packing
materials, fix the chassis, put the wheel tube or Cultivator blades tube on both ends of the hexagon
PTO shaft, fix with pin 6*40 and pin clip in bolts box.
2. Handle assembling: take out the handle and handle seat, align the handle seat with bottom seat
fluted disc, tighten with spring washer 16 and locking turning handle. Align the fluted discs of the
handle with the fluted discs of the handle seat, adjust the handle height to comfortable position,
use bolt M12×140, spring washer 12 and locking grip to fix them.
3. Resistance rod installation: take away the pins between the resistance rod and connecting shelf
to get the resistance rod and adjust its direction by 180°.
4. Mud fender installation: Install frames of both sides and protection frame components on the
Inter-Cultivator. Then install protection panel of both sides and paddy field protection panel of both
sides.

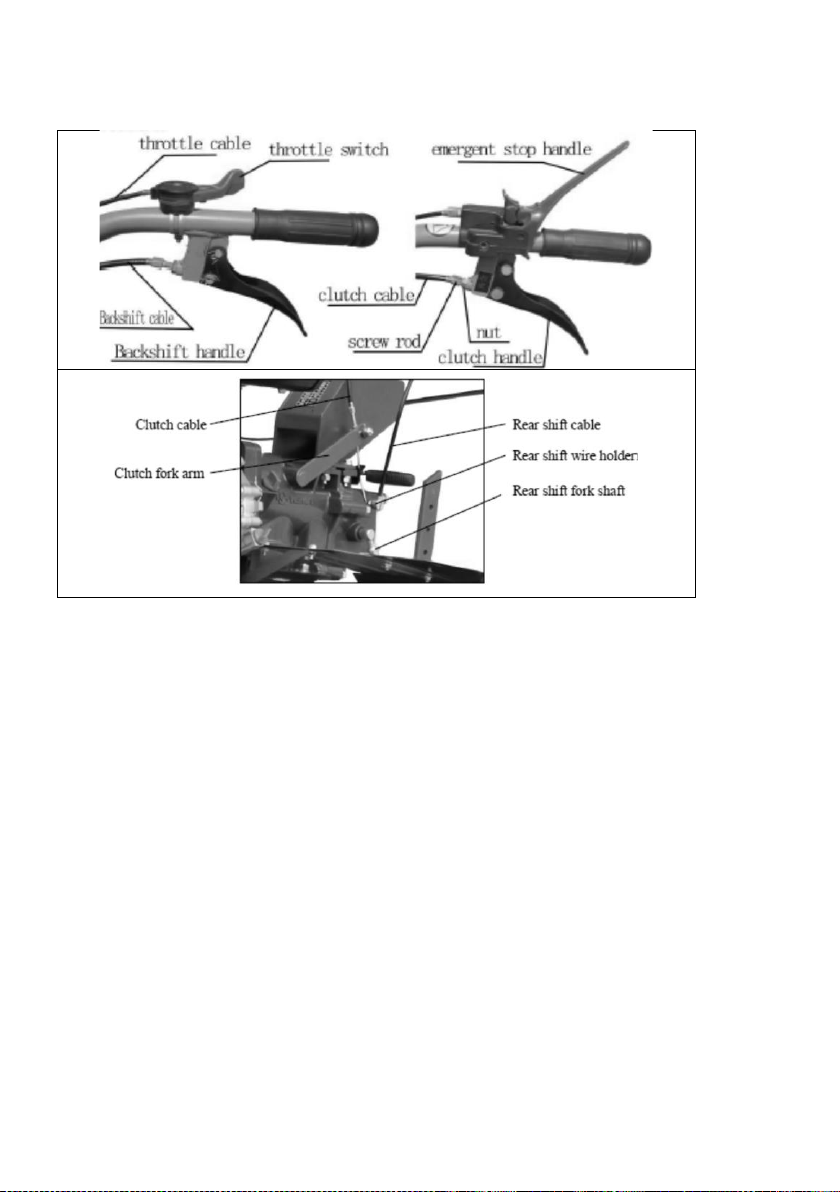

Installation and adjustment of cables

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 12 of 52
Adjustment of clutch cable (Refer to pictures above)
1. Unlock nuts on the screw rod.
2. Instantaneously rotate the screw rod to show the shortest part of the handlebar.
3. Thread the cable head into clutch plug behind the gear box assembly and make sure the head
is in the big hole of the plug.
4. Thread the steel wire-rope into the M8 hole of arm plug, and then properly press down the
clutch fork arm to insert the cable head into clutch plug.
5. Rotate out the screw rod and clip it repeatedly, unlock the clutch handlebar until spring force of
clutch can reset the bar, finally fasten the nuts.
Backshift cable adjustment (Refer to pictures above)
1. Unlock the fasten nuts on the screw rod.
2. Instantaneously rotate the screw rod to show the shortest part of the handlebar.
3. Thread the cable into the backshift shaft at the side of gear box and make sure the cable head is
in the big hole of shaft.
4. Properly counterclockwise rotate the backshift fork shaft, thread the cable into the narrow slit of
backshift plugs through the side of the gear box and make sure the cable head is in the big hole
of the plug.
5. Rotate out the screw rod and holdfast it repeatedly, unlock the backshift bar. When spring force
can reposition the bar, you should fasten the nuts.
Throttle cable adjustment (Picture given below)

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 13 of 52
1. Turn throttle switch to the fastest
position.
2. Thread the steel wire-rope of the gun
into the pole and plug of regulation
panel of the diesel engine gun
3. Fasten the steel wire-rope and fix the
screw.
4. Adjust the throttle switch repeatedly
until the gun bar of the regulation panel
can be in the fastest or slowest position
Checking and Refueling
1. Check whether the connection bolts are loose or not and fasten the loose bolts according to the
bolt moment in the following table3. Table 3
Name
Moment (N.M)
Flange and petrol engine
20～25
Flange and gear box
35～40
Bolts behind the main shaft of gear box
10～12
Bolts on the backshift shaft of gear box
26～40
Bolts between the engine frame and running case
35～40
Bolts on the end cover of running gear
10.6～15
Bolts on the drag bar of running gear
50～60
Bolts between the running gear and gear box
35～40
Drag bar
45～60
Bolts on the bottom plate of petrol engine
35～40
Bolts on the handlebar frame
35～40
2. Check if the handlebars of the operation system (gun, clutch, shift lever, backshift) are flexible. If
they are not in their positions, please adjust them
3. Turn lever to the neutral position
4. Refueling:

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 14 of 52

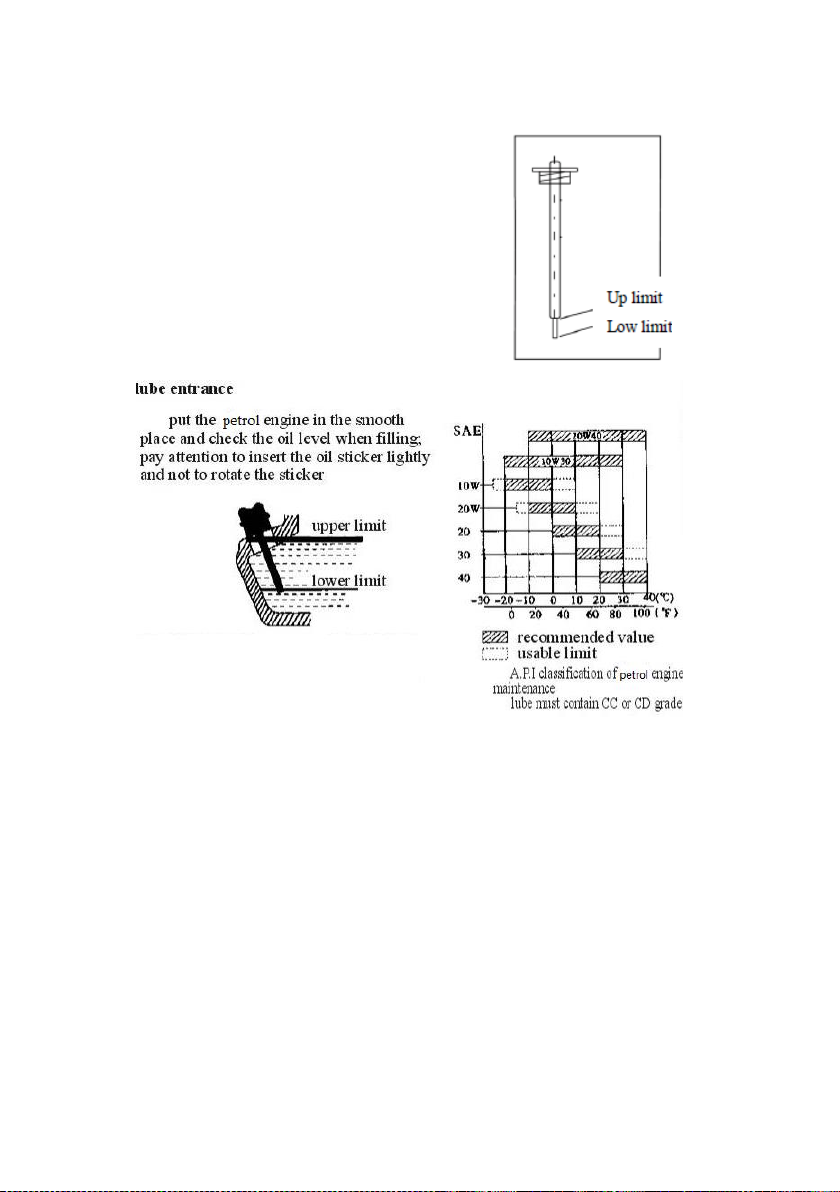

•SAE10W-40 oil is recommended.
•Refuel the gear box with oil num20. Lay
down the machine and refuel through the
hole upper the gear box. Checking oil level
by dipstick (attention: not rotate the oil
ruler). The oil level should be in the range
of the dipstick showed in the picture.
•Refuel air cleaner with oil, take away the
synthetic glass cover tent below the
cleaner, and refuel 0.1L num.20 oil.
•Choose engine oil according to the
working environment
Attention: Fuel level should not exceed above the mark.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 15 of 52
OPERATION
Attention: Inter-Cultivator must go through running-in before operating.
A. Slow gear
1) Hold the clutch bar with left hand to open the clutch.
2) Pull back the shift lever with right hand, meanwhile, pay attention if it is in the slow
position, then hold the right bar with right hand (attention: do not hold the backshift
bar).
3) Slowly unlock the clutch bar to close the clutch. In this situation, Inter-Cultivator can
run at slow gear.
4) Speed up properly with right hand, then Inter-Cultivator can run at a low speed of
5km/h
B. Fast gear
1) Hold the clutch bar with left hand to open the clutch.
2) Push the shift lever to the front with right hand, meanwhile, pay attention if it is in the
fast position, then hold the bar with right hand (attention: do not hold the backshift
bar)
3) Slowly unlock the clutch bar to close the clutch. In this situation, Inter-Cultivator can
run at fast gear.
4) Speed up properly with right hand,then Inter-Cultivatorcan run at aspeed of 10km/h.
C. Back gear
1) Hold the clutch bar with left hand to open the clutch.
2) Adjust the shift lever to the neutral position with right hand.
3) Slowly unlock the clutch bar to close the clutch, then Inter-Cultivator will step back. (
Attention: Do not unlock the backshift bar)
4) If it is unnecessary to step back, you should holdfast clutch bar slowly with left hand,
then unlock the shift bar with right hand.
D. When shifting in the process of running, you should decelerate (the standard should be
the continuous work of diesel engine), then close the clutch. You should change the shift
until the machine stop working
E. When changing the direction, you should rotate the bar to left or right. (Attention: Do not
s hold the bar in wrong way, so as to avoid damaging the wheels when directing).
F. Stop working
1) Hold the clutch bar with left hand to open the clutch.
2) After adjusting the shift lever to the neutral position, you should unlock the clutch bar
to make the machine stop working.
3) When it necessary to stop working, the procedure should be done according to the
engine instruction. (Attention: This work is usually done on the smooth ground.)

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 16 of 52
CONNECTING THE ATTACHMENTS
1) When rotating, you should take away the wheels, fix hexagonal sleeve of rotary device on
both sides of the hexagonal shaft with boltsM8×55. Attention: thereare blade units on both
sides; make sure the blade cutting edge works firstly when the Inter-Cultivator runs. After
the rotary blades are installed, you must install the safety panel to prevent injures by
blades. Cultivator depth can be adjusted through adjusting resistance rod.
2) When ditching, you should take down resistance rod, install the ditcher and adjust its
depth and height. After finishing these, you can do ditching work. (Look at picture3)
Range of ditching scope: 14cm-40cm
Range of ditching depth: 11cm-25cm
3) Short-distance transportation
Install forearm of Inter-Cultivator case on the drug bar of running gear and install wheels
on the driving shift of the running gear. After finishing these, you can transport. The rated
load is 250kg. Under the rated rotary speed of diesel engine, the fast speed is around
10km/h and slow speed 1.8km/h.
4) Multifunctional work
5) Take off the resistance rod, rotate the handle for 180°, and put the auxiliary shift on “L”
position. Connect the implements (reaper,intercultivator, mower, grass cutter, sprayer
pump and etc.) to gearbox back cover, PTO side, screw nuts on the 4 bolts there. Put the
shift lever on neutral position “0”, put the auxiliary shift lever on low-speed position “L”, use
the rear shift handle to start working with the multi- functional implements.
Shifting position
Connecting position

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 17 of 52
Important points in Inter-cultivator Usage
•When using cultivator, you should pay attention to the working situation and the sound,
check the connection. If there is abnormal situation, you should stop theintercultivator
and check.
•Never carry out work in heavy load condition if cultivator has not been used for some
time, especially for the new ones or the repaired ones.
•Pay attention to the oil level of diesel engine and gear box. Please refuel oil in insufficient
condition.
•Never cool the diesel engine in the way of water-pouring.
•Preventintercultivator from falling down when cultivating.
•Never install mini cultivator with rotary blades work on sand or stone to avoid damaging
blades.
•After Cultivator, pay attention to clear away dirt in the intercultivator, such as mud, grass
and oil stain.
•Frequently wash the sponge in the air filter and change oil more often.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 18 of 52
IMPORTANT POINTS IN ENGINE OPERATION
1. Break-In Of New Engine:
If your engine has not yet break-in, improper usage will shorten the life of engine. The
initial 20 hrs. is the break-in-period. The operator must obey the following items
2. Running In For 5mins After First Start:
Run with low speed and low load before the engine gets hot. Avoid running with high
speed and full load, or low speed and no load.
3. Avoid Running with Overload:
During break-in period, the engine can't run with full load, but can run with 3000rpm and
50% load.
4. Change Engine Oil Regularly:
After working for 20hrs, change the oil when engine is still warm, otherwise it will be
difficult to drain the residual oil from the engine.
Oil Bath Type Air Filter:
1. Check the oil level before operating.
2. Fill oil up to upper limit. If oil is dirty, change it. Please use diesel to clean oil bath
element frequently, then dip the element in the oil and squeeze out extra.
Running
WARNING
•Be sure to operate the engine in a good, ventilated place in order to avoid exhaust
poisoning.
•Avoid letting hands, body & clothes entangle in output shaft, belt pulley, V-type belt
pulley and other moving parts, so as to prevent from getting injured.
•Stop the engine first and then maintain the movable parts and other parts around it.
Make sure there are no tools and sundries in the body of the engine before
operating.
Run engine for 5mins to warm up
Note:
•The muffler becomes very hot during and immediately after operation. Please don't
touch it.
•The air filter will inhale the air around itself when the engine works. Don't let the
hands, body and clothes approach the air filter to avoid injury.
After the engine becomes warm, put the speed lever on necessary position to run the
engine.
Note
•Be sure to use the speed lever to adjust the speed of engine.
•Do not loosen the speed limit screw and fuel control screw; otherwise, the speed
and output of the engine will be abnormal.
Running
a) If the engine gives out black smoke continuously, it is because the engine is
overloaded. The belt pulley of the engine or that of the powered equipment must be
adjusted.
b) Pay attention to the following points when the engine is running:

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 19 of 52
i. Whether there is abnormal sound and vibration?
ii. Whether the exhaust is normal?
iii. Whether the engine gives out white or black smoke continuously?
If any of the above phenomena is detected, stop the engine immediately and contact the
nearest dealer.
Methods of Starting the Agricultural Mini cultivator
Starting by Hand:
1. Open fuel switch.
2. Put engine speed lever in the start position
3. Lock Auto-cut off switch.
4. Hold recoil starter handle.
5. Pull the starting handle slowly until you feel resistance, then release it slowly.
6. Push the decompression lever down by hand to no compression position. It will get
back automatically by itself after the engine gets started.
7. Starting: Hold the starting handle with both the hands and pull the rope lightly until
you feel the resistance, then pull the rope fast with more strength.
8. If it is not easy to start the engine when the weather gets cold. You could take down
the refuel screw on the cylinder cover and fill in 2ml oil before starting.
Note:
Tighten the refuel screw on the cylinder cover except filling oil in order to avoid rain and dust
to get into the engine and causing damage to the engine.
Safety Instructions:
DO'S
•Do visual check every time before starting,
•Keep Agricultural Inter-Cultivator Clean
•Do use recommended Fuel and Lubricants only
•Do check the fuel level
•Do check air intake filter oil level
•Do check engine oil and gear oil levels
•Do check for any leakage
•Do check decompress knob before starting
•Do check if the gear is in neutral position before starting
•Do use recommended attachments only
•Do maintain distance (1ft) from buildings and other equipment’s when operating,
to avoid any accidents
•Keep the machine away from flammable materials
•Keep the machineaway from children and pets to avoid any injuries or accidents.
•Only operator with knowledge of machine and its operations must be permitted
to operate Agricultural Inter-Cultivator
•Must stop the enginebefore refueling and refuel in a place with good ventilation.
•Must clean and spilled or over flown fuel of the Agricultural Inter-cultivator
•Let Agricultural Inter-Cultivator cool down before storing indoors.
DON’TS...
•Don't overfill the tank with fuel, but also never let fuel tank run out empty

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-410P
This warranty is null & void, if you fail to register the warranty with KisanKraft
by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 20 of 52
•Don't use adulterated fuel
•Do not work on excessively steep slopes
•Do not change the engine governor setting or over speed the engine
•Do not put hands or feet near or under rotating parts.
•Don't smoke or allow flame or spark where Agricultural Inter-cultivator is
refueled or where fuel is stored
•Don't inhale exhaust for it can contain poisonous carbon monoxide
•Don't run Agricultural Inter-cultivator in a place without adequate ventilation
•Don't lean/tilt Diesel tank more than 20°, otherwise fuel may spill
•Don't cover Agricultural Inter-cultivator top so as to avoid fire
•Don't touch muffler/exhaust, as it gets hot during operating and stays hot for
some time even after stopping
•Don't delay on service schedules
•Don't Operate Diesel Hal continuously more than 2hrs.30mins for any given
operation (Give a break of 20mins)
•Don't make any alterations in Design, Operations and Functioningof Agricultural
Inter-cultivator other than Company's recommendation
•Do not operate the engine in a confined space where dangerous carbon
monoxide fumes can collect.
