KISANKRAFT KK-IC-750RT User manual

KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 1 of 36
Product
Agricultural
Inter-Cultivator
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-IC-750RT
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER IS
EARLIER.
Dealer’s
Invoice Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free
from defects in material or workmanship. All parts defective in material and workmanship
are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limitedto repair or replacement by KisanKraft Limitedor its manufacturers
of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be
defective in material and/or workmanship. KisanKraft or its manufacturers make no
warranty with respect to items not manufactured or sold by them. No onsite warranty is
provided by KisanKraft Limited or its manufacturers. Defective items must be brought/sent
to our Authorized Dealer or KisanKraft Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft
Limited nor any of its manufacturers, nor itsauthorized dealers assume any responsibility,
if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine or
misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6)
Repairs made by unauthorized parties and/or with unauthorized parts, (7) Improper set
up, adjustments, tampering or altered products (8) Any modification to the product what-
so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility
of the customer. (2) Normal wear and tear are not covered under warranty. (3)
Rubber/plastic parts and consumables such as blades, clutch and clutch-bell, sparkplugs,
nylon line, air-filters, fuel-filters, oil seals and gaskets etc. are not covered under the
warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not covered under the
warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable
for general damages, including bodily injuries, or for incidental or consequential damages

KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 2 of 36
including, but not limited to, loss of use, loss of profits, loss of production, expense of
substitute equipment or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations, or liabilities, including, but
not limited to, any implied warranty of merchantability shall be limited in duration to the
applicable warranty period. Any action for breach of any warranties hereunder, including,
but not limited to, any implied warranty of merchantability must be brought within the
applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft
Limited or any of its manufacturers has the authority to increase or alter the obligations of
this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended to
the first end user (original purchaser), and no warranty is made, nor authorized to be made
assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, you must
deliver the defective product, to the nearest Authorized Dealer, along with proof-of-
purchase (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve
the right to inspect the claimed defective part(s) to determine if the malfunction is the result
of a defect covered by this warranty. Please note that the decision of KisanKraft Limited
with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the
responsibility of the Authorized Dealer to provide allafter-sales service to consumers. Any
warranty claim should be raised by dealer to KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
➢This purchase is not contingent upon a product demonstration. The purchaser shall
satisfy himself with the product, including any product demonstration or verification of
any function, before buying. KisanKraft Limited or its authorized dealers, including
online sellers, shall not be liable to give any on-site demonstration after purchase of
any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation,
Demonstration, Repair, Routine Maintenance etc.), should be done through the
Authorized Dealer selling this product.
➢Dealers should have their own technician to provide After Sales Services to their
Customers. KisanKraft Limited provides free training to Authorized Dealer’s
technicians at KisanKraft Limited’s head office, on request from Authorized Dealer.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 3 of 36
User Manual
KisanKraft Limited
Podalakur Sangam Road, Opp. Sudalagunta Sugar Factory, Prabhagiripatnam Village,
Podalakur Mandal Sri Potti Sreeramulu, Nellore - 524 345, Andhra Pradesh
♦Bangalore (HO) ♦Nellore (Factory) ♦Ahmedabad ♦Bhopal ♦Bhubaneswar ♦
Coimbatore ♦♦ Jammu ♦Guwahati ♦Hubli ♦Hyderabad ♦Jaipur ♦Karnal ♦Kolkata ♦
Lucknow ♦Patna ♦Pune ♦Raipur
Disclaimer: Pictures used in this manual are only for illustration purpose.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 4 of 36
CONTENTS
BEFORE GETTING STARTED ........................................................................... 7
APPLICATION................................................................................................. 7
SAFETY INSTRUCTIONS.................................................................................. 7
OVERVIEW.....................................................................................................9
TECHNICAL SPECIFICATION ......................................................................... 10
OPERATION INSTRUCTIONS ........................................................................11
MAINTENANCE............................................................................................ 18
TROUBLESHOOTING.................................................................................... 24
PART DIAGRAM........................................................................................... 29

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 5 of 36
Product
Agricultural
Inter-Cultivator
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-IC-750RT
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER IS
EARLIER.
Dealer’s
Invoice Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free
from defects in material or workmanship. All parts defective in material and workmanship
are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers
of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be
defective in material and/or workmanship. KisanKraft or its manufacturers make no
warranty with respect to items not manufactured or sold by them. No onsite warranty is
provided by KisanKraft Limited or its manufacturers. Defective items must be brought/sent
to our Authorized Dealer or KisanKraft Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft
Limited nor any of its manufacturers, nor its authorized dealers assume any responsibility,
if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine
or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6)
Repairs made by unauthorized parties and/or with unauthorized parts, (7) Improper set
up, adjustments, tampering or altered products (8) Any modification to the product what-
so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility
of the customer. (2) Normal wear and tear are not covered under warranty. (3)
Rubber/plastic parts and consumables such as blades, clutch and clutch-bell, sparkplugs,
nylon line, air-filters, fuel-filters, oil seals and gaskets etc. are not covered under the
warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not covered under the
warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable
for general damages, including bodily injuries, or for incidental or consequential damages

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 6 of 36
including, but not limited to, loss of use, loss of profits, loss of production, expense of
substitute equipment or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations, or liabilities, including, but
not limited to, any implied warranty of merchantability shall be limited in duration to the
applicable warranty period. Any action for breach of any warranties hereunder, including,
but not limited to, any implied warranty of merchantability must be brought within the
applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft
Limited or any of its manufacturers has the authority to increase or alter the obligations of
this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended to
the first end user (original purchaser), and no warranty is made, nor authorized to be
made assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, you must
deliver the defective product, to the nearest Authorized Dealer, along with proof-of-
purchase (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve
the right to inspect the claimed defective part(s) to determine if the malfunction is the
result of a defect covered by this warranty. Please note that the decision of KisanKraft
Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the
responsibility ofthe Authorized Dealerto provide allafter-sales service to consumers. Any
warranty claim should be raised by dealer to KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
➢This purchase is not contingent upon a product demonstration. The purchaser shall
satisfy himself with the product, including any product demonstration or verification
of any function, before buying. KisanKraft Limited or its authorized dealers, including
online sellers, shall not be liable to give any on-site demonstration after purchase of
any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation,
Demonstration, Repair, Routine Maintenance etc.), should be done through the
Authorized Dealer selling this product.
➢Dealers should have their own technician to provide After Sales Services to their
Customers. KisanKraft Limited provides free training to Authorized Dealer’s
technicians at KisanKraft Limited’s head office, on request from Authorized Dealer.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 7 of 36
BEFORE GETTING STARTED
Thank you for purchasing our Inter-cultivator.
•This manual can guide you to solve the problems when you are installing,
manipulating, and repairing the machine. With the continuous innovation and
improvement of theproducts, the contents in the instruction manualmay differslightly
from the actual situations, your understanding and pardon is highly appreciated. If
you find some problems or have some good suggestions, please do not hesitate to
contact your dealer.
•No part of this publication may be reproduced without written permission.
•This manual should beconsidered a permanent part of the cultivator and remain with
it if it is resold.
APPLICATION
This machine is small, lightweight, multi-functional, and with a high efficiency for cultivation. It
can climb hills, run in water, walk over the field ridges and ditches, move freely, and change
the directions easily, and it is especially applicable to various works in hilly area, dry land, paddy
field, orchard, vegetable garden and greenhouse, etc. Cultivating, ditching & ridging, and
transport are the machine’s basic functions. Moreover, after being equipped with relative
devices and tools, it may be used to pump water, spray water and pesticide, reap the crops,
generate electricity, fertilizer, implant seeds, threshing, cut tendrils, grind something, etc. The
machine has a simple structure, can be easily repaired and its fuel consumption is less. It is
your ideal micro agricultural machine.
SAFETY INSTRUCTIONS
•Read the instructions carefully. Be familiar with the controls and the proper use of
the equipment.
•Never allow children or people unfamiliar with these instructions to use the machine.
•Never work while people, especially children, or pets are nearby.
•Operator or owner is responsible for accidents or hazards to other people or their
property. Before starting the machine:
•Ensure sufficient engine oil.
•Press clutch during gear shifting.
•Load after idling the machine for 5 minutes.
•Close the choke for cold start
•Keep the choke half open for hot start.
•Before starting the machine, set shifting bar to the neutral position.
•When the machine is working, pay attention to the safety!
•Be careful not to be hurt by the rotary blades!
•While grasping the reverse handle, theshifting bar must be set to the neutral position.
•Fuel and lubricant must be clean.
•Clutch must be broken off when changing the shift.
•Please read the contents of nameplate on the handlebar carefully before using the
machine.
•Must install the safety protecting board on the machine before using machine or after
maintenance.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 8 of 36
•Muffler is a high
temperature spare part, do
not touch the Inter-
cultivator in work or out of
work freshly.
•When the Inter-cultivator is
working, keep an eye on
the rotary parts, do not be
too close to the machine to
avoid being hurt by the
rotary blades.
•Keep the components of
oil box away from fire and
smoke.
•Keep this machine stable
before use and read the
instruction carefully
•Please refuel on time
•Please pay attention to
warning signs

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 9 of 36
OVERVIEW
1.Accelerator switch
5.Engine
9.Beam
2.Steering armrest
frame
6.Fender
10. clutch
3.Shift rod
7.Road wheel
4.Steering armrest
base
8.Gearbox assembly

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 10 of 36
TECHNICAL SPECIFICATION
Project Name
Design Value
Engine
4 Stroke, Diesel Engine
Model Name
KK-IC-750RT
Structure Type
Vertical-single-cylinder, four stroke,
air-cooled, direct-injection
Rated Power
7.8 hp. / 5.82 kW
Rated Speed
3600 RPM
Start-up mode
Resilient rope starting
Fuel type
Diesel
Appearance Dimensions (length × width ×
height)
1150*570*860 MM
Displacement
418.6
Working Width
90 cm
Working Depth
15-30 cm

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 11 of 36
OPERATION INSTRUCTIONS
I Rotary Tillage:
Rotary tillage components are installed on both sides of the driving shaft of mini tiller running gear.
Tighten the shaft with two bolts M8×55. Then the mini tiller can work. (Look at table2 and Picture2).

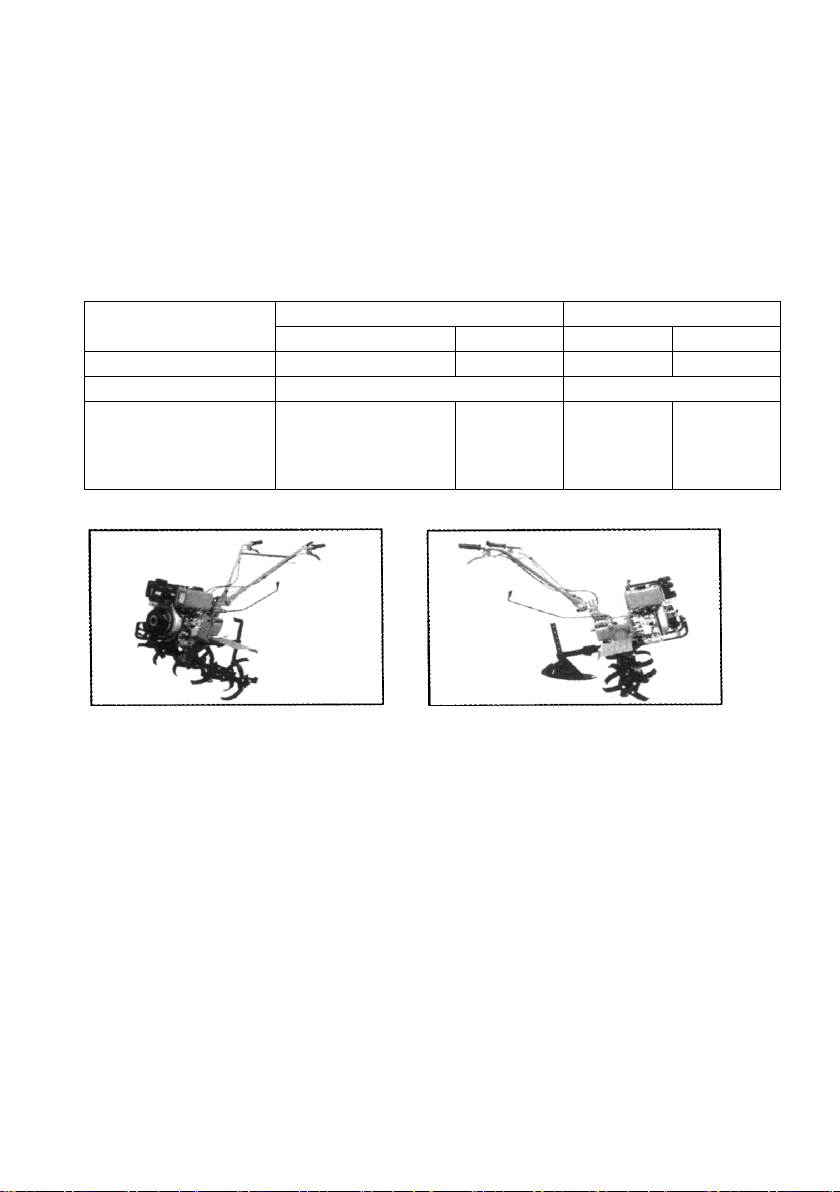

Table 2
Tilling device mode
3groups
4groups
3blades
4blades
3blades
4blades
Tilling blades
3×6
4×6
3×8
4×8
Tilling scope(mm)
765
1050
Suitable soil
Paddy field with
insufficient water;
clayed soil
solid soil
Wet soil
Dry soil
Picture2: tilling device Picture3: ditching device
Ⅱ. Ditching and ridge forming
Take away shift lever, install ditching device and adjust the width and height of ditching device.
(Picture3)
Ⅲ. Short distance transportation
Install forearm of mini tiller case on the drag body and wheels on the driving shaft. The rated load is
250kg. At the rated speed of diesel engine, fast shift speed is about 10km/h and slow shift speed is
5km/h.
Ⅳ. Multifunctional work
Take away the safety cover of gear box (num.2 in picture 1), n the back bolt of main shaft, the key
sleeve of the shaft, then install the attaching belt pulley and coupling on the main shaft of gear box
and fasten with bolts. Ordinary V-belt A-model is used for the cross section of belt pulley. The rated
speed of belt pulley is 3000r/m. When it is attached with relative machine tools, auxiliary tools, you

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 12 of 36
can carry out such multifunctional work: bailing, sprinkling, chemical spraying, threshing, reaping,
and generating power. OPERATION
ⅠUp packing assembly(Picture4)
1. Road wheels installation install the connect socket to the wheels install road wheels on both
sides of hexagonal shaft and fix the wheels with 2 bolts M8×55, 2 nuts M8.
2. Traction frame installation install the connection frame to the traction frame with big pin insert
it into the open pin insert the resistance knife to the connect square snot choose proper height
and fix it with latch.
3. Handlebar installation: turn the two fluted discs on the handlebar to right with the fluted discs
on both sides of the disc plate. Pay attention to adjust handlebar position. Connect it with
auxiliary bolts M16×140 and gasket 16, then fixes the clutch cable, gun cable and backshift
cable on the handlebar with wire dip.
4. Shift lever installation: take away the pins between the shift lever and connecting shelf to get
the shift lever and adjust it to “0”.
5. Toolbox installation install the toolbox onto handlebar fix it with 2 bolts M8 x 16.
6. Battery installation put the battery to the battery box fix it onto the battery box with 2 battery
fixing bar, 1 battery cross bar and 2 butterfly shaped nuts.
7. Installation of engine cover install the front part of engine cover to the threaded hole of engine
outer case use 2 M8×16 nuts to fix the end part to the thermal board of battery.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 13 of 36
ⅡInstallation and adjustment of cables
1. Clutch cable adjustment(look at picture5 and 6)
Picture 5
1. Unlock nuts on the screw rod.
2. Instantaneously rotate the screw rod to show the shortest part of the handlebar.
3. Thread the cable head into clutch plug behind the gear box assy. and make
sure the head is in the big hole of the plug.
4. Thread the steel wire-rope into the M8 hole of arm plug, and then properly press
down the clutch fork arm to insert the cable head into clutch plug.
5. Rotate out the screw rod and clip it repeatedly, unlock the clutch handlebar until
spring force of clutch can reposition the bar, and then fasten the nuts.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 14 of 36
1. Backshift cable adjustment(Picture5 and 6)
2. Unlock the fasten nuts on the screw rod.
3. Instantaneously rotate the screw rod to show the shortest part of the handlebar.
4. Thread the cable into the backshift shaft at the side of gear box and make sure
the cable head is in the big hole of shaft.
5. Properly counterclockwise rotate the backshift fork shaft, thread the cable into
the narrow slit of backshift plug through the side of the gear box and make sure
the cable head is in the big hole of the plug.
6. Rotate out the screw rod and holdfast it repeatedly, unlock the backshift bar.
When spring force can reposition the bar, you should fasten the nuts.
1.Use of emergency stop handle (look at picture5)
Emergency stop handle must be pressed down when starting the engine release the
handle when anything emergent happens the engine will stop immediately to prevent
dangerous things happen.

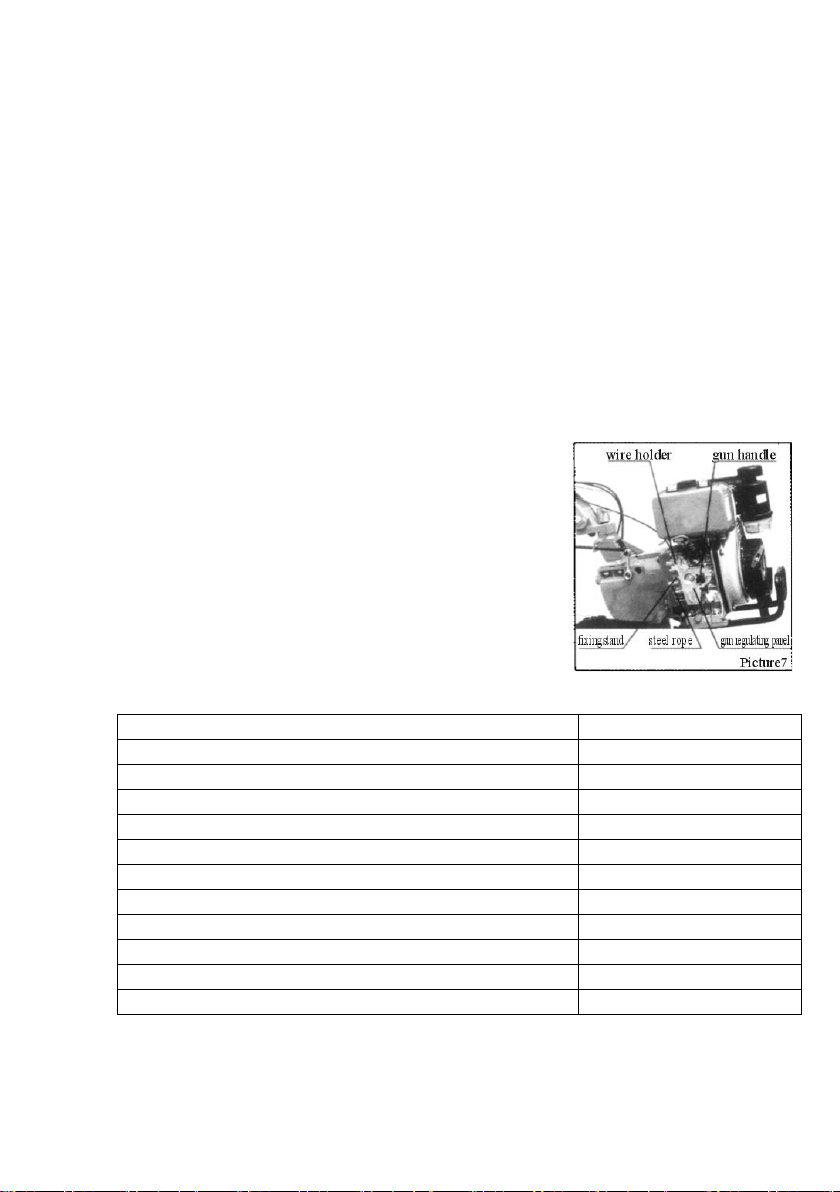

2.gun cable adjustment(look at picture7) Diagram
1. Turn gun switch to the fastest position.
2. Thread the steel wire-rope of the gun into the pole
and plug of regulation panel of the diesel engine
gun.
3. Fasten the steel wire-rope and fix the screw.
4. Adjust the gun switch repeatedly until the gun bar
of the regulation panel can be in the fastest or
slowest position.
ⅢChecking and Refueling
Name
Moment(N.M)
Flange and diesel engine
20～25
Flange and gear box
35～40
Bolts behind the main shaft of gear box
10～12
Bolts on the backshift shaft of gear box
26～40
Bolts between the engine frame and running case
35～40
Bolts on the end cover of running gear
10.6～15
Bolts on the drag bar of running gear
50～60
Bolts between the running gear and gear box
35～40
Drag bar
45～60
Bolts on the bottom plate of diesel engine
35～40
Bolts on the handlebar frame
35～40

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 15 of 36
1. Check whether the connection bolts are loose or not and fasten the loose bolts
according to the bolt moment in the following table3 (diesel engine bolts and nuts
moment is in diesel engine instruction).Table 3
2. Check if the handlebars of the operation system (gun, clutch, shift lever, backshift) are
flexible. If they are not in their positions, please adjust them.
3. Turn lever to the neutral position.
Refueling:

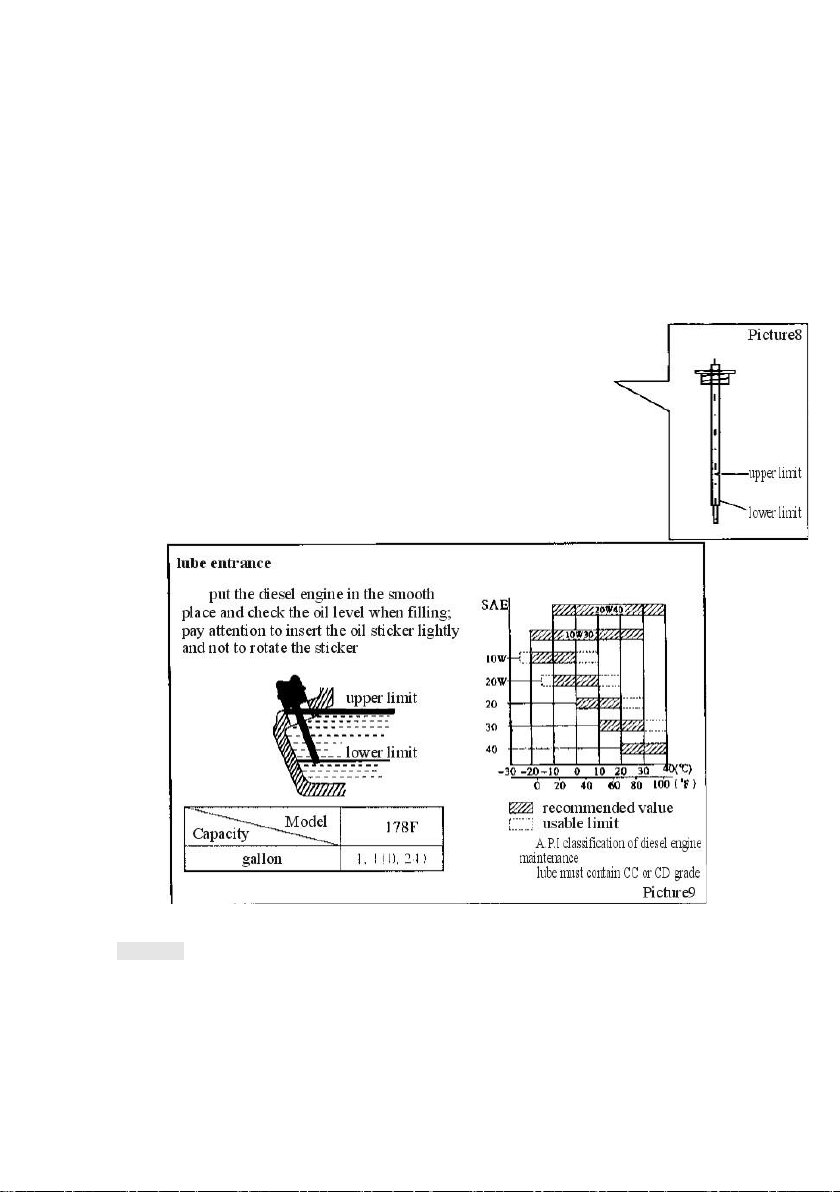

1) 20W40 engine oil is recommended. Please refer to the
picture9.
2) Refuel the gear box with oil gear oil 90 grade /140 grade
depending on the gear gauge. Lay down the machine
and refuel through the hole upper the gear box.
Checking oil level by dipstick (attention: not rotate the oil
ruler). The oil level should be in the range of the dipstick
showed in the picture.
3) Refuel air cleaner with oil, take away the synthetic glass
cover tent below the cleaner, and refuel 0.1L num.20 oil.
4) .Choose diesel engine oil according to the working
environment(Picture9)
1. Refuel the oil tank with num.0, num.-10 or num.-20 light oil (please refer to the diesel
engine instruction).
Attention: fuel level should not exceed above the mark.
2. Make fore starting preparations according to the diesel engine instruction.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 16 of 36
ⅣStarting(attention: the shift lever must be in the neutral position)
1. Start diesel engine according to the procedure of instruction.
2. The diesel engine should run 2 to 3 minutes at the idle speed (1500 to 2000r/m)
with no-load.
3. Check if the diesel engine runs normally. If not, it should stop working and be
inspected.
Ⅴoperation(attention: mini tiller must go through running-in before operating.
Please refer to chapter4)
1. Slow gear
1. Hold the clutch bar with left hand to open the clutch.
2. pull back the shift lever with right hand, meanwhile, pay attention if it is in the
slow position, then hold the right bar with right hand(attention: do not hold the
backshift bar).
3. Slowly unlock the clutch bar to close the clutch. In this situation, mini tiller can
run at slow gear.
4. Speed up properly with right hand, then mini tiller can run at a low speed of
5km/h.
5. Fast gear
6. Hold the clutch bar with left hand to open the clutch.
7. Push the shift lever to the front with right hand, meanwhile, pay attention if it is
in the fast position, then hold the bar with right hand(attention: do not hold the
backshift bar)
8. Slowly unlock the clutch bar to close the clutch. In this situation, mini tiller can
run at fast gear.
9. Speed up properly with right hand, then mini tiller can run at a speed of 10km/h.
3. Back gear
•Hold the clutch bar with left hand to open the clutch.
•Adjust the shift lever to the neutral position with right hand.
•Slowly unlock the clutch bar to close the clutch, then mini tiller will step back.(
attention: do not unlock the backshift bar)
•If it is unnecessary to step back, you should holdfast clutch bar slowly with left
hand, then unlock the shift bar with right hand.
1. When shifting in the process of running, you should decelerate (the standard
should be the continuous work of diesel engine), thenclose theclutch. Youshould
change the shift until the machine stop working
2. When changing the direction, you should rotate the bar to left or right.(attention:
do not mis-hold the bar, so as to avoid damaging the wheels when directing)
3. Stop working
•Hold the clutch bar with left hand to open the clutch.
•After adjusting the shift lever to the neutral position, you should unlock the
clutch bar to make the machine stop working.
•When it necessary to stop working, the procedure should be done according to
the diesel engine instruction.(attention: this work is usually done on the smooth
ground.)

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 17 of 36
ⅥConnection of attaching tools
1. When rotating, you should take away the wheels, fix hexagonal sleeve of rotary
device on both sides of the hexagonal shaft with boltsM8×55. Attention: there
are blade units on both sides; make sure the blade cutting edge works firstly
when the mini tiller runs. After the rotary blades are installed, you must install
the safety panel to prevent injures by blades. Tilling depth can be adjusted
through adjusting shift lever and its included angle with the ground.(refer to
table 4)

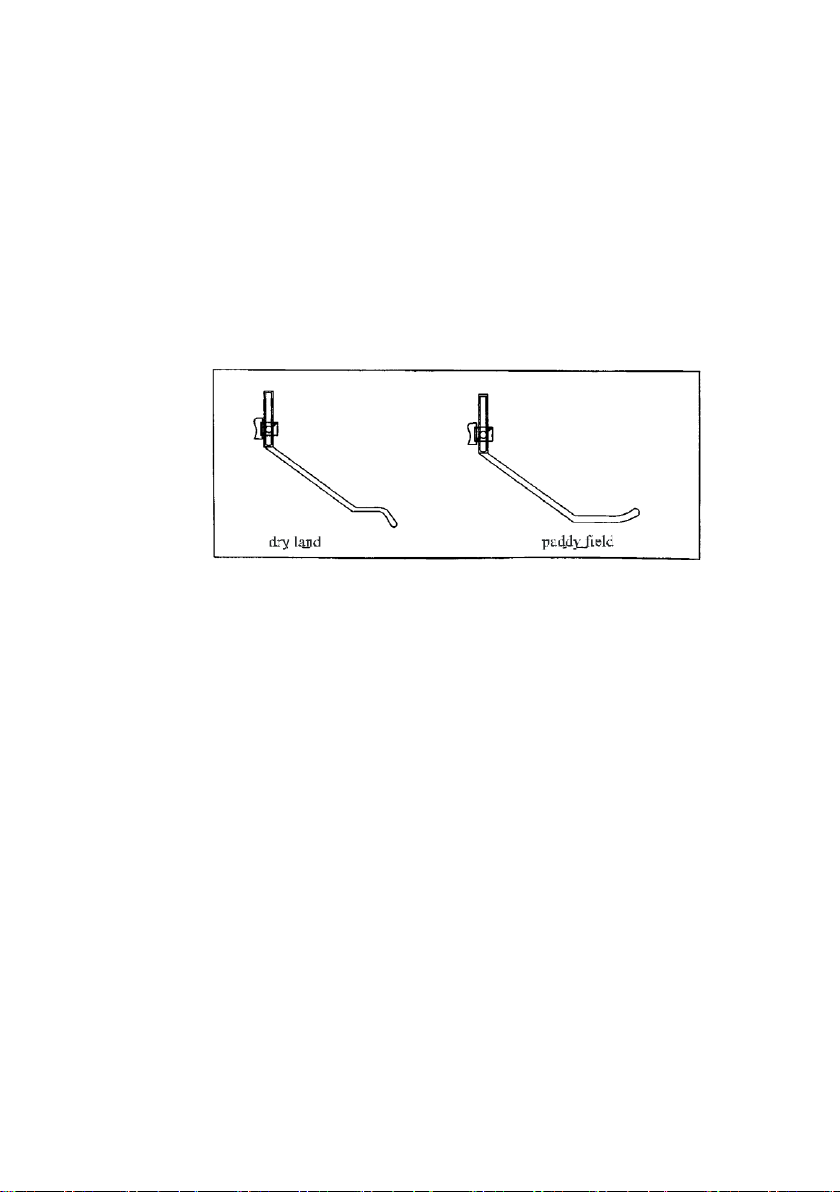

2. Rotary tillage of paddy field: when the depth of paddy field is below 25cm, you
can go tilling with curved blades of paddy field directly. When the depth of
paddy field is between 25-45 cm, you can go tilling with rotary wheels of paddy
field. table 4
3. When ditching, you should take down shift lever, install the ditcher and adjust its
depth and height. After finishing these, you can do ditching work.(look at
picture3)
Range of ditching scope: 14cm-40cm
Range of ditching depth: 11cm-25cm
4. Short-distance transportation
Install forearm of mini tiller case on the drug bar of running gear and install
wheels on the driving shift of the running gear. After finishing these, you can
transport. The rated load is 250kg. Under the rated rotary speed of diesel
engine, the fast speed is around 10km/h and slow speed 5km/h.
5. Multifunctional work
Take away safety cover behind gear box, bolts behind main shaft, take key
sleeve of shaft, push the belt pulley or key slot of coupling into the key, then
fasten it with bolt. V-belt A-model is used for the cross section of belt pulley
slot. The rated rotary speed of belt pulley is 3000r/m. when it is attached with
relative machine tools, you can carry out such multifunctional work: bailing,
sprinkling, chemical spraying, threshing, reaping, and generating power.
Ⅶ.Attention items of using mini tiller
1. When using mini tiller, you should pay attention to the workingsituation and sound
of every part, check if the connection is good. There mustn’t be loosed connection.
If there is abnormal situation, you should stop the mini tiller and check.
2. Never carry out work with heavy load if mini tiller has not been used for a long
time, especially the new ones or the repaired ones.
3. Pay attention to the oil level of diesel engine and gear box. When they are
insufficient, please refuel them.
4. Never cool the diesel engine in the way of water-pouring.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 18 of 36
5. Prevent mini tiller from falling down when tilling.
6. Never install mini tiller with rotary blades work on sand or stone to avoid damaging
blades.
7. After tilling, pay attention to clear away dirtiness on the mini tiller: mud, grass and
oil stain.
8. Frequently wash the sponge in the air filter and change oil more often.
MAINTENANCE
Due to rotary situation, abrasion and load change of mini tiller, bolts will become loose,
and parts will be worn during the work. These changes will destroy the proper working
state of mini tiller, create abnormal fitting clearance, degrade output of diesel engine,
increase oil consumption, lead to the maladjustment of spare parts, increase malfunction
of mini tiller. All these will seriously affect the working efficiency of mini tiller. To decrease
the frequency of the above-mentioned accidents, prevention of maintenance work must be
done strictly and regularly to keep the mini tiller in a good technical state and prolong its
life.
I Running-in of mini tiller:
1. As for running-in of mini tiller, please refer to its instruction.
2. If mini tiller is new oris just heavy repair, it should work without loadfor one hour.
After the mini tiller works with light load for five hours, all oil in gear box and
crankcase of diesel engine should be drained immediately. Afterwards, you
should refuel adequate clean oil, run the minitiller at idle speed for 3to 5 minutes
to wash it , then drain oil completely. Please refuel oil and carry out running-in
for 4 hours according to the fourth procedure of chapter3. By doing so, the mini
tiller can work in normal condition.
ⅡTechnical maintenance of mini tiller
A. Every-time maintenance (before and after work ):
1. Listen and check if there is malfunction of every part(such as abnormal noise,
overheat, loose screw and so on).
2. Check if there is oil leakage from diesel engine, gear box and running gear.
3. Check if the oil level of diesel engine and gear box is between the upper and
lower limit of dipstick.
4. Clean the whole machine and spare parts which are with mud, grass and oil
stain regularly.
5. Do daily record.
B. Primary maintenance (per 150 hours)
6. Carry out maintenance work based on all contents of every- time
maintenance.
7. Wash gear box, running gearbox and change lube oil.
8. Check and adjust clutch, shift system and reverse gear system.
C. Secondary maintenance (per 800 hours)
9. Carry out maintenance work based on all contents of primary maintenance.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 19 of 36
10. Check all gears and bearings. If they are fretted severely, please replace
them.
11. Check other parts of mini tiller, such as: rotary blades or bolts and so on. If
there is damage, please replace them.
D. Technical inspection (per 1500-2000 hours)
12. Take the whole machine to the specific maintenance station, to have a check.
If the spare parts are severely fretted, they must be changed or repaired
according to the situation.
13. Invite special technician to check friction plate and clutch.
E. As for the maintenance of diesel engine, please refer to its instruction.
ⅢTechnical maintenance table of mini tiller(mark”0” indicates the maintenance
contents)
Working intervals
and maintenance
contents
Every
day
Work
with half
load for 8
hours
Work for
one month
or 20 hours
Work for 3
months or
150 hours
Every
year or
1000
hours
Per 2
years or
2000
hours
Check and
tighten nuts, bolts
0
Check and refuel
lube
0
Check and
change lube
0(first
time)
0(second
time)
0(third time
or more)
Check if there is
oil leakage
0
Clean mud, grass
and oil stain
0
Debug
malfunction
0
Adjust operation
parts
0
Friction plate of
clutch
0
Gears and
bearings
0

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-750RT
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 20 of 36
Ⅳ. Long-period storage of mini tiller
When mini tiller needs storing for a long period, the following measures should be taken to
prevent tarnishing.
1. Keep diesel engine with seal according to its instruction.
2. Wash oil stain and clean dust on the machine.
3. Drain lube oil in the gear box and refuel new oil.
4. Paint pickling oil on non-aluminum parts where there is no paint.
5. Store mini tiller in the dry, safe place where there is enough aeration.
6. Properly keep the attaching tools, certificates of conformity and instruction of
mini tiller.
Debugging method
ⅠDebugging method of bevel gear assy.
When bevel gear drives abnormally with loud noise, you should check and debug it
immediately. The debugging methods are as follows:
