KISANKRAFT KK-IC-520 User manual

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 1 of 24
Product
Agricultural
Inter-Cultivator
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-IC-520
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER IS
EARLIER.
Dealer’s
Invoice Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free
from defects in material or workmanship. All parts defective in material and workmanship
are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limitedto repair or replacement by KisanKraft Limitedor its manufacturers
of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be
defective in material and/or workmanship. KisanKraft or its manufacturers make no
warranty with respect to items not manufactured or sold by them. No onsite warranty is
provided by KisanKraft Limited or its manufacturers. Defective items must be brought/sent
to our Authorized Dealer or KisanKraft Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft
Limited nor any of its manufacturers, nor itsauthorized dealers assume any responsibility,
if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine or
misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6)
Repairs made by unauthorized parties and/or with unauthorized parts, (7) Improper set
up, adjustments, tampering or altered products (8) Any modification to the product what-
so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility
of the customer. (2) Normal wear and tear are not covered under warranty. (3)
Rubber/plastic parts and consumables such as blades, clutch and clutch-bell, sparkplugs,
nylon line, air-filters, fuel-filters, oil seals and gaskets etc. are not covered under the
warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not covered under the
warranty.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 2 of 24
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable
for general damages, including bodily injuries, or for incidental or consequential damages
including, but not limited to, loss of use, loss of profits, loss of production, expense of
substitute equipment or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations, or liabilities, including, but
not limited to, any implied warranty of merchantability shall be limited in duration to the
applicable warranty period. Any action for breach of any warranties hereunder, including,
but not limited to, any implied warranty of merchantability must be brought within the
applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft
Limited or any of its manufacturers has the authority to increase or alter the obligations of
this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended to
the first end user (original purchaser), and no warranty is made, nor authorized to be made
assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, you must
deliver the defective product, to the nearest Authorized Dealer, along with proof-of-
purchase (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve
the right to inspect the claimed defective part(s) to determine if the malfunction is the result
of a defect covered by this warranty. Please note that the decision of KisanKraft Limited
with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the
responsibility of the Authorized Dealer to provide allafter-sales service to consumers. Any
warranty claim should be raised by dealer to KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
➢This purchase is not contingent upon a product demonstration. The purchaser shall
satisfy himself with the product, including any product demonstration or verification of
any function, before buying. KisanKraft Limited or its authorized dealers, including
online sellers, shall not be liable to give any on-site demonstration after purchase of
any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation,
Demonstration, Repair, Routine Maintenance etc.), should be done through the
Authorized Dealer selling this product.
➢Dealers should have their own technician to provide After Sales Services to their
Customers. KisanKraft Limited provides free training to Authorized Dealer’s
technicians at KisanKraft Limited’s head office, on request from Authorized Dealer.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 3 of 24
User Manual
KisanKraft Limited
Podalakur Sangam Road, Opp. Sudalagunta Sugar Factory, Prabhagiripatnam Village,
Podalakur Mandal Sri Potti Sreeramulu, Nellore - 524 345, Andhra Pradesh
♦Bangalore (HO) ♦Nellore (Factory) ♦Ahmedabad ♦Bhopal ♦Bhubaneswar ♦Coimbatore ♦
♦Jammu ♦Guwahati ♦Hubli ♦Hyderabad ♦Jaipur ♦Karnal ♦Kolkata ♦Lucknow ♦Patna ♦Pune ♦Raipur

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 4 of 24
CONTENTS
BEFORE GETTING STARTED ........................................................................... 7
APPLICATION................................................................................................. 7
SAFETY INSTRUCTIONS.................................................................................. 7
OVERVIEW..................................................................................................... 9
TECHNICAL SPECIFICATION ......................................................................... 10
ASSEMBLING AND ADJUSTMENT................................................................ 11
OPERATION ................................................................................................. 13
MAINTENANCE............................................................................................ 13
PART DIAGRAM........................................................................................... 15

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 5 of 24
Product
Agricultural
Inter-Cultivator
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-IC-520
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER IS
EARLIER.
Dealer’s
Invoice Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free
from defects in material or workmanship. All parts defective in material and workmanship
are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers
of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be
defective in material and/or workmanship. KisanKraft or its manufacturers make no
warranty with respect to items not manufactured or sold by them. No onsite warranty is
provided by KisanKraft Limited or its manufacturers. Defective items must be brought/sent
to our Authorized Dealer or KisanKraft Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft
Limited nor any of its manufacturers, nor its authorized dealers assume any responsibility,
if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine
or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6)
Repairs made by unauthorized parties and/or with unauthorized parts, (7) Improper set
up, adjustments, tampering or altered products (8) Any modification to the product what-
so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility
of the customer. (2) Normal wear and tear are not covered under warranty. (3)
Rubber/plastic parts and consumables such as blades, clutch and clutch-bell, sparkplugs,
nylon line, air-filters, fuel-filters, oil seals and gaskets etc. are not covered under the
warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not covered under the
warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable
for general damages, including bodily injuries, or for incidental or consequential damages

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 6 of 24
including, but not limited to, loss of use, loss of profits, loss of production, expense of
substitute equipment or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations, or liabilities, including, but
not limited to, any implied warranty of merchantability shall be limited in duration to the
applicable warranty period. Any action for breach of any warranties hereunder, including,
but not limited to, any implied warranty of merchantability must be brought within the
applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft
Limited or any of its manufacturers has the authority to increase or alter the obligations of
this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended to
the first end user (original purchaser), and no warranty is made, nor authorized to be
made assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, you must
deliver the defective product, to the nearest Authorized Dealer, along with proof-of-
purchase (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve
the right to inspect the claimed defective part(s) to determine if the malfunction is the
result of a defect covered by this warranty. Please note that the decision of KisanKraft
Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the
responsibility ofthe Authorized Dealerto provide allafter-sales service to consumers. Any
warranty claim should be raised by dealer to KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
➢This purchase is not contingent upon a product demonstration. The purchaser shall
satisfy himself with the product, including any product demonstration or verification
of any function, before buying. KisanKraft Limited or its authorized dealers, including
online sellers, shall not be liable to give any on-site demonstration after purchase of
any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation,
Demonstration, Repair, Routine Maintenance etc.), should be done through the
Authorized Dealer selling this product.
➢Dealers should have their own technician to provide After Sales Services to their
Customers. KisanKraft Limited provides free training to Authorized Dealer’s
technicians at KisanKraft Limited’s head office, on request from Authorized Dealer.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 7 of 24
BEFORE GETTING STARTED
Thank you for purchasing our Inter-cultivator.
•This manual can guide you to solve the problems when you are installing,
manipulating, and repairing the machine. With the continuous innovation and
improvement of theproducts, the contents inthe instruction manualmay differslightly
from the actual situations, your understanding and pardon is highly appreciated. If
you find some problems or have some good suggestions, please do not hesitate to
contact your dealer.
•No part of this publication may be reproduced without written permission.
•This manual should be considered a permanent part of the intercultivator and remain
with it if it is resold.
APPLICATION
This machine is small, lightweight, multi-functional, and with a high efficiency for
Intercultural/weeding operations. It can climb hills, run in water, walk over the field ridges and
ditches, move freely, and change the directions easily, and it is especially applicable to various
works in hilly area, dry land, paddy field, orchard, vegetable garden and greenhouse, etc.
Intercultural/weeding operations, ditching & ridging, and transport are the machine’s basic
functions. Moreover, after being equipped with relative devices and tools, it may be used to
pump water, spray water and pesticide, reap the crops, generate electricity, fertilizer, implant
seeds, threshing, cut tendrils, grind something, etc. The machine has a simple structure, can
be easily repaired and its fuel consumption is less. It is your ideal micro agricultural machine.
SAFETY INSTRUCTIONS
•Read the instructions carefully. Be familiar with the controls and the proper use of
the equipment.
•Never allow children or people unfamiliar with these instructions to use the machine.
•Never work while people, especially children, or pets are nearby.
•Operator or owner is responsible for accidents or hazards to other people or their
property.
Before starting the machine:
•Ensure sufficient engine oil.
•Press clutch during gear shifting.
•Load after idling the machine for 5 minutes.
•Close the choke for cold start
•Keep the choke half open for hot start.
•Before starting the machine, set shifting bar to the neutral position.
•When the machine is working, pay attention to the safety!
•Be careful not to be hurt by the rotary blades!
•While grasping the reverse handle, theshifting bar must be set to the neutral position.
•Fuel and lubricant must be clean.
•Clutch must be broken off when changing the shift.
•Please read the contents of nameplate on the handlebar carefully before using the
machine.
•Must install the safety protecting board on the machine before using machine or after
maintenance.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 8 of 24

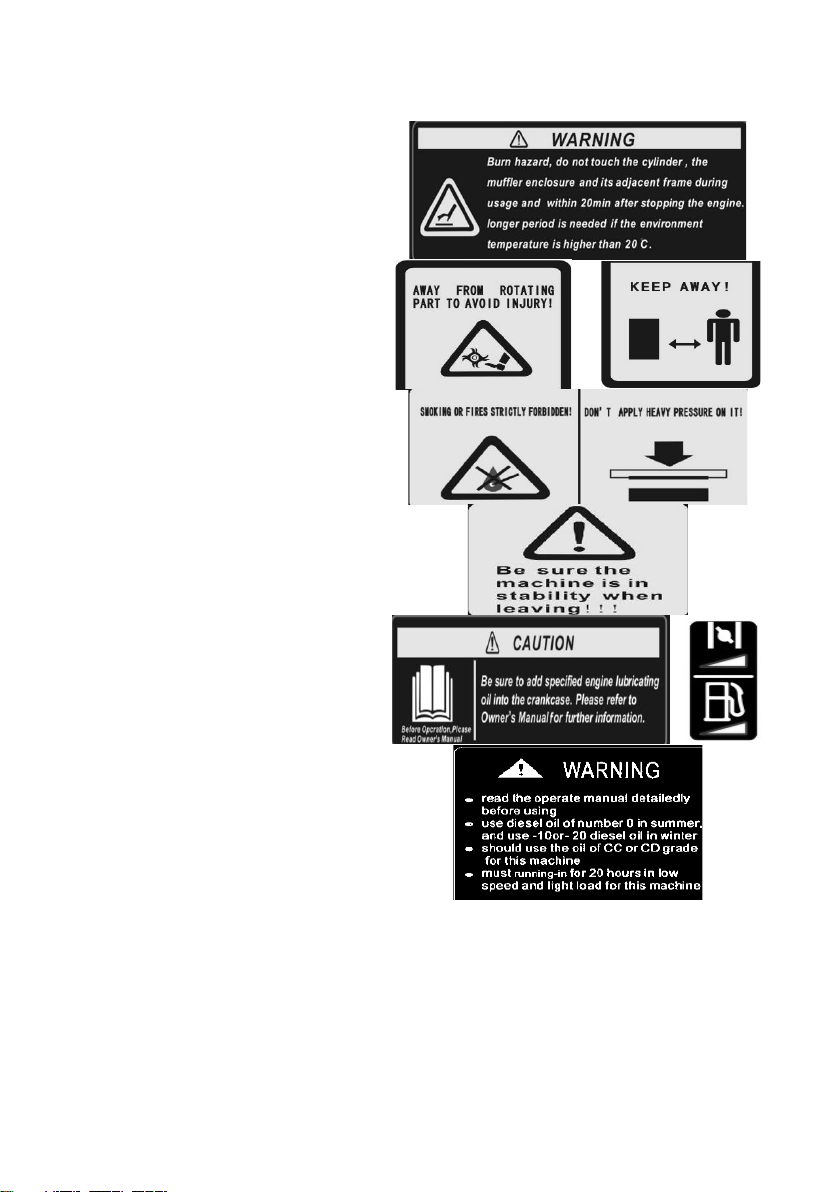

•Muffler is a high
temperature spare part, do
not touch the Inter-
cultivator in work or out of
work freshly.
•When the Inter-cultivator is
working, keep an eye on
the rotary parts, do not be
too close to the machine to
avoid being hurt by the
rotary blades.
•Keep the components of
oil box away from fire and
smoke.
•Keep this machine stable
before use and read the
instruction carefully
•Please refuel on time
•Please pay attention to
warning signs

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 9 of 24

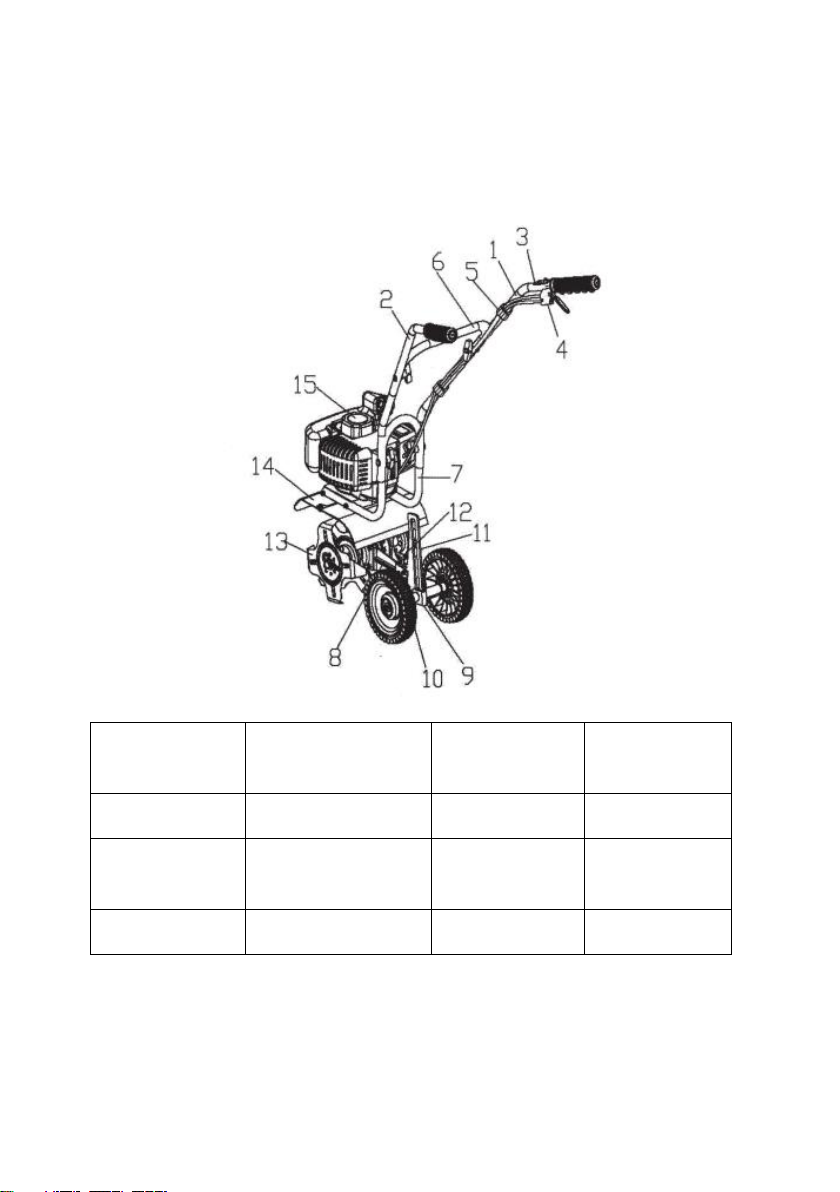

OVERVIEW
1.Right handle
2. left handle
3. stop switch
4. throttle lever
assembly
5.Fasten buckle
6. middle handle
7. down handle
8. Back bracket
9. Wheel adjuster
base
10.wheel
11. Wheel
adjuster plate
12. Depth skid
13. blade
14. Mud guard
15.engine

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 10 of 24
TECHNICAL SPECIFICATION
Body
Transmit method
Centrifugal friction clutch
Intercultural/weeding operations
width
30 cm
Reduction ratio
32:01:00
Net weight
14kg
Engine
Engine type
2-stroke Petrol Engine
Discharging volume
52cc
Method of starting
Recoil starting
Igniting mode
Not pot of touch ignition
Ratio of the mixing oil
Mixing rate between 90# Petrol and
two-stroke oil is 25:1
Standard power
1.47kw /6500 r/min

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 11 of 24
ASSEMBLING AND ADJUSTMENT

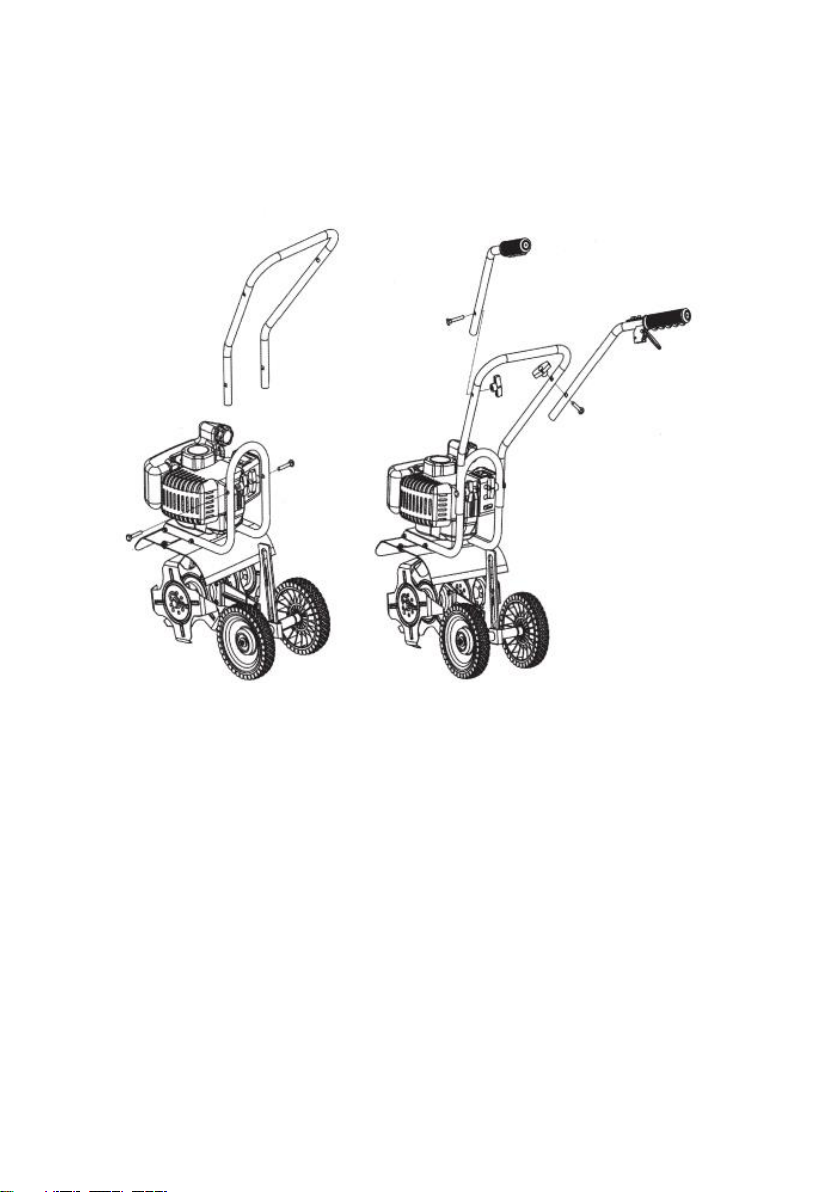

I Assembly of middle and down handles (Fig.1)
As fig 1 shows, insert the middle handle to down handle until the holes match, and then fasten the
two handles by the bolts and nuts.
II. Assembly of left/right handle
As above fig 2. first, match the left/right handle holes to the middle handle holes, fasten the bolts
and nuts.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 12 of 24
Ill. Assembly of throttle wire
A head of throttle wire connected to the carburetor; the other head connected to the throttle
lever assy. First, adjust the throttle lever at the bottom, and then insert the big head of the
throttle wire to the hole of the throttle lever assy. Put the throttle wire into the groove.
Attention: turn the throttle lever handle for checking the startup If dissatisfied the use, you can
adjust the carburetor
and the bolt.
IV. Assembly of the stop switch
The long stop switches and throttle wire to the right handle to avoid loss.
V. Adjustment of the depth
There are three grooves in the connect plate, the wheels put in the highest groove when
working. When not working, the wheels need putting in the middle or the bottom grooves
(depend on operator's height). Adjust depth skid, there are several holes in the depth skid, you
can adjust it according to self-request

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 13 of 24
OPERATION.
Adding oil
Mixing rate between 93# Petrol and two-stroke oil is 25:1
Attention: 1. forbid to use pure Petrol or the mixture oil rate above 25:1.
Adding fuel must be done under the instruction of the fireproofing
Start up
1) Press the button of carburetor 5-6 times, until some fuel in the tube, then close the broker.
Note: if engine is in high temperature, you should put the choker on the original position.
2) Open the accelerograph 113-1/2.
3) Pull the starter smoothly, after starting the engine, open choker fully.
Note: (1). Make sure there is nothing lock the gear wheels before starting
(2). when the gear blade is running, make sure the gear blade does not come up against
anything or anybody.
Assignment
Strictly control the rotating speed, the free-load forward speed should be at 0.5m/sec when
the rotate speed arrives at 8000-9000/min.
To be ensure the quality of rotating blade, don't touch it to other objects, such as stone.
Stopping
1) Put the throttle lever at the idle speed, make the engine run 2-3 minutes.
2) Turn off the stop switch.
Note: In urgent case, turn off the throttle switch, and turn off the stop switch. Keep your hands far
away from rotating blade, the gear is still turning after stopping the machine.
MAINTENANCE
Maintenance body
1) After the machine works for one or two hours or when stopping to add oil; you must check
each screw and nut on the machine to make sure they are not loosening.
2) Add the lube in the gear box when the machine works around 20 hours
3) When the blade or gear damaged, please repair or replace at once.
Maintenance engine

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 14 of 24
(1) Maintenance spark plug
Keep the spark plug cleaning, the electrode gap should be moderate suitable to ensure the
engine working well. The correct gap should be around 0.5-0.7mm, check frequently and adjust
it when the gap is too long or too short.
(2) Maintenance the air filter
Air filter surface should be cleaned often, if the cleaner element were jammed, dean the
element. Clean the filter body by gas. Drop a little motor oil on the cleaner element, not attach it
back to the inside cover until the oil dry. If the sponge is too dirty, please change a new one.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 15 of 24
PART DIAGRAM

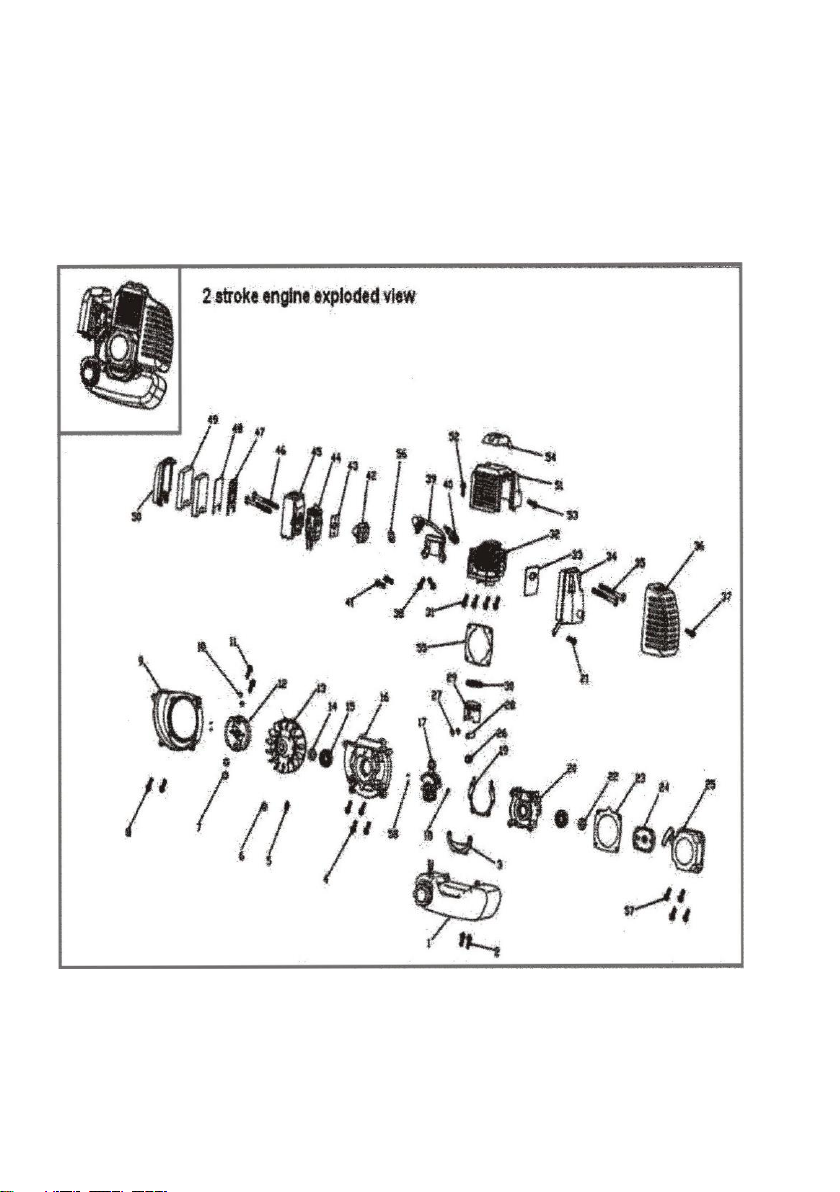

FIG I : PETROL ENGINE EXPLODED PICTURE AND PARTS LIST

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-520
This warranty is null & void, if you fail to register the warranty with KisanKraft by
sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 16 of 24
No
Part name
Qty
No
Part name
Qty
1
011tank
1
16
Left case
1
2
Allen screw M5x20
2
17
crank shaft
1
3
Oi tank bracket
1
18
Woodruff key
1
4
Allen screw M5X35
4
19
Case washer
1
5
MB nut
1
20
Right case
1
6
washer
1
21
Allen screw M5x12
1
7
washer
2
22
12x22x7 oil seal
1
8
Allen screw M5x20
2
23
Recoil starter
1
aluminum gasket
9
Left cover
1
24
Start dial
1
10
Spring washer
2
25
Recoil starts
1
11
Step screw M8X24
2
26
Needle bearing
1
12
Dutch
1
27
Piston pin clip
2
13
Fly wheel
1
28
Piston pin
1
14
15x30x7 oil seal
1
29
piston
1
15
6202 bearing
2
30
Piston ring
2

KisanKraft®
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 17 of 24
Part name
Qty
No
Part Name
Qty
Allen straw M5x20
4
45
Air filter
1
cylinder
1
46
Allen screw M5x55
2
Muffler gasket
1
47
Air filter gasket
1
muffler
1
48
Air filler net
2
Allen screw 6Mx60
2
49
Air filter sponge
Muffler cover
1
50
Air filter cover
Allen screw M5x12
1
51
Cylinder cover
Allen SUM M5x25
2
52
Allen screw M5x12
Ignition coil
1
53
Allen screw M5x20
1
Spark plug
1
54
Cylinder cover cap
1
Allen screw(M5•30)
2
55
Cylinder paper
gasket
Intake manifold
1
56
Intake manifold paper
gasket
1
Carburetor paper
1
57
Allen screw M5x20
4
gasket
Carburetor
1
58
Locating pins
4

KisanKraft®
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
