KISANKRAFT KK-IC-250D User manual

KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 1 of 50
Product
Agricultural
Inter-Cultivator
KisanKraft
Invoice
Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-IC-250D
KK-IC-255D
KK-IC-256D
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE
OF SALE OR DELIVERY WHICHEVER IS
EARLIER.
Dealer’s
Invoice
Date
Dealer’s
Invoice No.
Buyer’s Info (Name, Address, Phone,
etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s
Sign
Dealer’s
Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be
free from defects in material or workmanship. All parts defective in material and
workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its
manufacturers of such parts as appear to KisanKraft or its manufacturers, upon
inspection, to be defective in material and/or workmanship. KisanKraft or its
manufacturers make no warranty with respect to items not manufactured or sold by
them. No onsite warranty is provided by KisanKraft Limited or its manufacturers.
Defective items must be brought/sent to our Authorized Dealer or KisanKraft Limited’s
office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft
Limited nor any of its manufacturers, nor its authorized dealers assume any
responsibility, if the failure was caused by the following:
(1) Operation of product with incorrectfuel or lubricants, (2) Incorrect usage of machine
or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage,
(6) Repairs made by unauthorized parties and/or with unauthorized parts, (7) Improper
set up, adjustments, tampering or altered products (8) Any modification to the product
what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the
responsibility of the customer. (2) Normal wear and tear are not covered under
warranty. (3) Rubber/plastic parts and consumables such as blades, clutch and clutch-
bell, sparkplugs, nylon line, air-filters, fuel-filters, oil seals and gaskets etc. are not
covered under the warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not
covered under the warranty.

KisanKraft®
Warranty Certificate
(DEALER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 2 of 50
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be
liable for general damages, including bodily injuries, or for incidental or consequential
damages including, but not limited to, loss of use, loss of profits, loss of production,
expense of substitute equipment or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations, or liabilities, including,
but not limited to, any implied warranty of merchantability shall be limited in duration
to the applicable warranty period. Any action for breach of any warranties hereunder,
including, but not limited to, any implied warranty of merchantability must be brought
within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of
KisanKraft Limitedor any of its manufacturers has the authority to increase or alter the
obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended
to the first end user (original purchaser), and no warranty is made, nor authorized to
be made assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, you
must deliver the defective product, to the nearest Authorized Dealer, along with proof-
of-purchase (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers
reserve the right to inspect the claimeddefective part(s) todetermine if the malfunction
is the result of a defect covered by this warranty. Please note that the decision of
KisanKraft Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the
responsibility of the Authorized Dealer to provide all after-sales service to consumers.
Any warranty claim should be raised by dealer to KisanKraft Limited as per warranty
policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
➢This purchase is not contingent upon a product demonstration. The purchaser
shall satisfy himself with the product, including any product demonstration or
verification of any function, before buying. KisanKraft Limited or its authorized
dealers, including online sellers, shall not be liable to give any on-site
demonstration after purchase of any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation,
Demonstration, Repair, Routine Maintenance etc.), should be done through the
Authorized Dealer selling this product.
➢Dealers should have their own technician to provide After Sales Services to their
Customers. KisanKraft Limited provides free training to Authorized Dealer’s
technicians at KisanKraft Limited’s head office, on request from Authorized
Dealer.

KisanKraft®
Agricultural Inter-Cultivator
KK-IC-250D / 255D / 256D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 3 of 50
User Manual
KK-IC-250D
KK-IC-256D
KisanKraft Limited
Warehouse: 818 3B1 to 818 3B18, Podalakur - Sangam Road, Prabagiripatnam,
Podalakur, Nellore - 524345, Andhra Pradesh, INDIA
Head Office: Sri Huchhanna Tower, #4,1st Main,7-A Cross, Maruthi Layout,
Dasarahalli, HAF Post, Hebbal, Bangalore 560024, Karnataka, INDIA
♦Bangalore (HO) ♦Ahmedabad ♦Bhopal ♦Bhubaneswar ♦Coimbatore
♦Guwahati ♦Hubli ♦Hyderabad ♦Jaipur ♦Karnal
♦Kolkata ♦Lucknow ♦Nellore ♦Pune ♦Raipur

KisanKraft®
Agricultural Inter-Cultivator
KK-IC-250D / 255D / 256D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 4 of 50
CONTENTS
Before Getting Started.................................................................................................. 7
Applicable Scope.......................................................................................................... 7
Safety Instructions........................................................................................................ 7
Product Overview......................................................................................................... 9
Assembly.................................................................................................................... 10
Operation and use of Inter-cultivator........................................................................... 13
Operation Check......................................................................................................... 15
Operating the Engine.................................................................................................. 17
Methods of Starting the Agricultural Intercultivator...................................................... 19
Stopping the Engine................................................................................................... 21
Maintenance............................................................................................................... 21
Technical Specifications............................................................................................. 32
Troubleshooting.......................................................................................................... 33
Parts Diagram & List-KK-IC-250D/256D/255D............................................................ 36

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 5 of 50
Product
Agricultural
Inter-Cultivator
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-IC-250D
KK-IC-255D
KK-IC-256D
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE
OF SALE OR DELIVERY WHICHEVER IS
EARLIER.
Dealer’s
Invoice
Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone,
etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s
Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be
free from defects in material or workmanship. All parts defective in material and
workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its
manufacturers of such parts as appear to KisanKraft or its manufacturers, upon
inspection, to be defective in material and/or workmanship. KisanKraft or its
manufacturers make no warranty with respect to itemsnot manufactured or sold by them.
No onsite warranty is provided by KisanKraft Limited or its manufacturers. Defective
items must be brought/sent to our Authorized Dealer or KisanKraft Limited’s office for
service.
What is not covered: The warranty shall become null and void and neither KisanKraft
Limited nor any of its manufacturers, nor its authorized dealers assume any
responsibility, if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine
or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage,
(6) Repairs made by unauthorized parties and/or with unauthorized parts, (7) Improper
set up, adjustments, tampering or altered products (8) Any modification to the product
what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility
of the customer. (2) Normal wear and tear are not covered under warranty. (3)
Rubber/plastic parts and consumables such as blades, clutch and clutch-bell,
sparkplugs, nylon line, air-filters, fuel-filters, oil seals and gaskets etc. are not covered
under the warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not covered
under the warranty.

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 6 of 50
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable
for general damages, including bodily injuries, or for incidental or consequential
damages including, but not limited to, loss of use, loss of profits, loss of production,
expense of substitute equipment or other commercial loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations, or liabilities, including, but
not limited to, any implied warranty of merchantability shall be limited in duration to the
applicable warranty period. Any action for breach of any warranties hereunder, including,
but not limited to, any implied warranty of merchantability must be brought within the
applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft
Limited or any of its manufacturers has the authority to increase or alter the obligations
of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended to
the first end user (original purchaser), and no warranty is made, nor authorized to be
made assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, you must
deliver the defective product, to the nearest Authorized Dealer, along with proof-of-
purchase (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve
the right to inspect the claimed defective part(s) to determine if the malfunction is the
result of a defect covered by this warranty. Please note that the decision of KisanKraft
Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to
consumers. All sales or supplies are made through Authorized Dealers. It is the
responsibility of the Authorized Dealer to provide all after-sales service to consumers.
Any warranty claim should be raised by dealer to KisanKraft Limited as per warranty
policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
➢This purchase is not contingent upon a product demonstration. The purchaser shall
satisfy himself with the product, including any product demonstration or verification
of any function, before buying. KisanKraft Limited or its authorized dealers, including
online sellers, shall not be liable to give any on-site demonstration after purchase of
any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation,
Demonstration, Repair, Routine Maintenance etc.), should be done through the
Authorized Dealer selling this product.
➢Dealers should have their own technician to provide After Sales Services to their
Customers. KisanKraft Limited provides free training to Authorized Dealer’s
technicians at KisanKraft Limited’s head office, on request from Authorized Dealer.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 7 of 50
Before Getting Started
Thank you for purchasing our Intercultivator.
•This manual contains information on operation and maintenance of the Inter-
cultivator, which is based on the most recent product information available at the
time of approval for printing. We reserve the right to make amendments without
prior notice and without incurring any obligation for sequences.
•No part of this publication may be reproduced without written permission.
•This manual should be considered a permanent part of the Intercultivator and
remain with it if it is resold.
•Please pay special attention to statements preceded by the following words:
! DANGER
Indicates a strong possibility of severe personal injury or death if
instructions are not followed.
! WARNING
Indicates a possibility of personal injury or equipment damage if
instructions are not followed.
! NOTE
Gives helpful information.
Applicable Scope
Intercultural/Weeding Operations:
This Intercultivator can be used for mountain area, hills, paddy field, orchard, and garden,
vegetable field, shed and so on.
Assemble blades on both side of Inter-cultivator, and use pin to fixed blades, before starting
the Intercultural/Weeding operations.
Ditching:
Remove the resistance rod, assemble the ditching blade, and then start doing ditching work.
Safety Instructions
Important:
•Before starting the engine, turn the shift lever to the “Neutral Position”.
•Be careful when the Inter-cultivator is ON.
•Check the blades.
•The fuel and oil must be suitable and clean.
•Release clutch before gear shifting and slow down the engine. It is safer when
engine is running slow.
•Fuel is easy to catch fire.
•When working in paddy field or on a slope, use the reverse gear carefully.
Training:
1. Carefully read this manual, fully know all the controlling functions and the proper
operation, learn how to quickly stop and separate the Inter-cultivator.
2. Children and adults who don’t understand this manual are not allowed to use
the Inter-cultivator

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 8 of 50
3. Keep working area without people (other than operator), especially children and
pets.
Preparation:
1. Check working area and move away all the sundries.
2. Disengage all the clutches and place gear to neutral position before starting
engine.
3. Do not use Inter-cultivator without suitable clothes and skid-proof shoes.
4. Carefully deal with fuel which is tinder.
a) Use suitable container to store fuel.
b) Do not add fuel when engine is ON or if it is hot.
c) Carefully add oil outdoors. Don’t allow to add oil indoors.
d) Wrest on fuel tank cap and wipe the spilt fuel.
5. Do not do any adjustments, when engine is ON.
6. Wear eyes protect glasses during preparation, working and servicing.
Operate:
1. Never use hand or foot to touch rotary blades when it is moving
2. If Inter-cultivator hits something, stop to check. If blade is broken, repair it and
then start again.
3. Be careful when working on slopes, do not fall or slip.
4. If Inter-cultivator has abnormal noise, it means that it may have problems. Stop
the Inter-cultivator to check reason.
5. Stop the engine before cleaning blades, servicing, adjusting, and checking.
6. When no people working on the Inter-cultivator, shift gear to the neutral gear
and stop the engine.
7. Stop engine and check if all other parts have stopped, before doing any checks,
cleaning, and repairing work.
8. Do not operate the Inter-cultivator indoors, as the engine exhaust is poisonous.
9. Keep the machine away from children and pets.
10. Do not overload the Inter-cultivator, because of deep weeding depth and fast
speed.
11. Be careful while reversing the Inter-cultivator on the slippery road.
12. Do not let onlookers come near the Inter-cultivator.
13. Do not use Inter-cultivator during nights and in insufficient light
14. While working on the hard land, blades may hitch the land and push Inter-
cultivator forward. In this condition, release the Inter-cultivator and let it go itself,
do not try to control it, which is dangerous.
15. Do not work on the sharp slopes.
Service and Storage:
1. Keep Inter-cultivator and its additional equipment in well working condition.
2. Periodically check engine bolts and other bolts, make sure they are fixed well,
to ensure Inter-cultivator in good working condition.
3. Inter-cultivator should be kept indoors and away from fire. Stop and allow the
engine to cool.
4. If Inter-cultivator needs to be stored for a long time, this manual should be also
kept as an integral part.
5. Do not try to repair the Inter-cultivator without proper knowledge and tools.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 9 of 50
Product Overview
①. Resistance rod
②. Gear box
③. Tow bar
④. Dust fender
⑤Wheel
⑥Walking case
⑦Engine
⑧Handle bar

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 10 of 50
Assembly
1. Assembling After Packing
1.1 Fix the machine, attach the wheels on both side of machine and use pin to fix wheels.
1.2 Handle assembly: Match gear plate on handle with gear plate on handle seat, and
then adjust straight position of handle, and then use long bolt, spring washer, and locked
grip to lock handle. Then use cable clip to hold clutch cable, reverse gear cable, and
throttle cable on handle.
2. Assemble and Adjust Cable
. Emergency stop handle
2.1 Adjustment of clutch cable
1. Loosen the locked nut.
2. Deasil turn bolt into shortest.
3. Put cable head into clutch cable seat of transmission box, and make sure that cable
head is in the big hole.
4. Put steel wire into M8 hole of clutch arm seat, press clutch arm fork, and hang cable
head on clutch cable seat.
5. Turn off Bolt and hold it tightly. Loosen the clutch handle until spring in clutch can
return handle, and then locked nut.
2.2 Adjustment of reverse cable.
1. Loose locked nut.
2. Deasil turn bolt into shortest.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 11 of 50
3. Put cable head into clutch cable seat of transmission box, and make sure that cable
head is in the big hole.
4. Anticlockwise turn reverse fork axle, and put cable through narrow slot, and make
sure head into big hole of seat.
5. Turn off Bolt and holdit tightly. Loose reverse handle until spring inclutch can return
handle, and then locked nut.
2.3 Adjusting of throttle cable. (Drawing 4)
1. Turn throttle switch into max.
2. Put steel wire of throttle cable
through wire seat and fixed seat
which is on control panel.
3. Tight steel wire, locked screw on
locked seat
4. Adjust fuel switch some time, until
fuel rod on control panel into max.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 12 of 50
KK-IC-255D

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 13 of 50
Operation and use of Inter-cultivator
Ⅰ.Up packing assembly (Picture4)
1. Fix the body of Inter-cultivator install running wheels on both sides of hexagonal shaft
and fix the wheels with 2 bolts M8×55, 2 nuts M8.
2. Handlebar installation: turn the two fluted discs on the handlebar to right with thefluted
discs on both sides of the disc plate. Pay attention to adjust handlebar position.
Connect it with auxiliary bolts M16×140 and gasket 16, then fixes the clutch cable,
throttle cable and backshift cable on the handlebar with wire dip.
3. Resistance rod installation: take away the pins between the resistance rod and
connecting shelf to get the resistance rod and adjust its direction by 180°.
4. Mud fender installation: install frames of both sides and protection frame components
on the Inter-cultivator. Then install protection panel of both sides and paddy field
protection panel of both sides.
Ⅱ. Installation and adjustment of cables

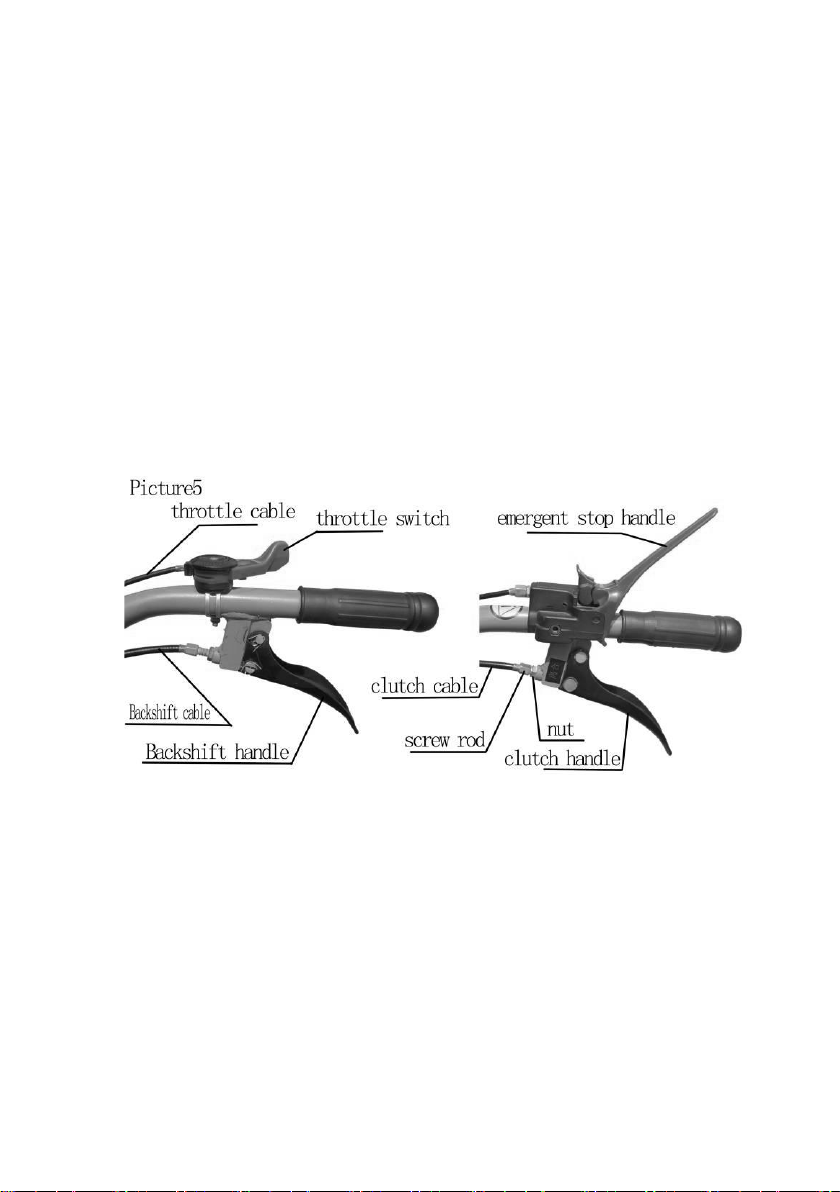

1. Clutch cable adjustment (look at picture5 and 6)

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 14 of 50
1. Unlock nuts on the screw rod.
2. Instantaneously rotate the screw rod to show the shortest part of the handlebar.
3. Thread the cable head into clutch plug behind the gear box assy. and make sure the head
is in the big hole of the plug.
4. Thread the steel wire-rope into the M8 hole of arm plug, and then properly press down
the clutch fork arm to insert the cable head into clutch plug.
5. Rotate out the screw rod and clip it repeatedly, unlock the clutch handlebar until spring
force of clutch can reposition the bar, and then fasten the nuts.

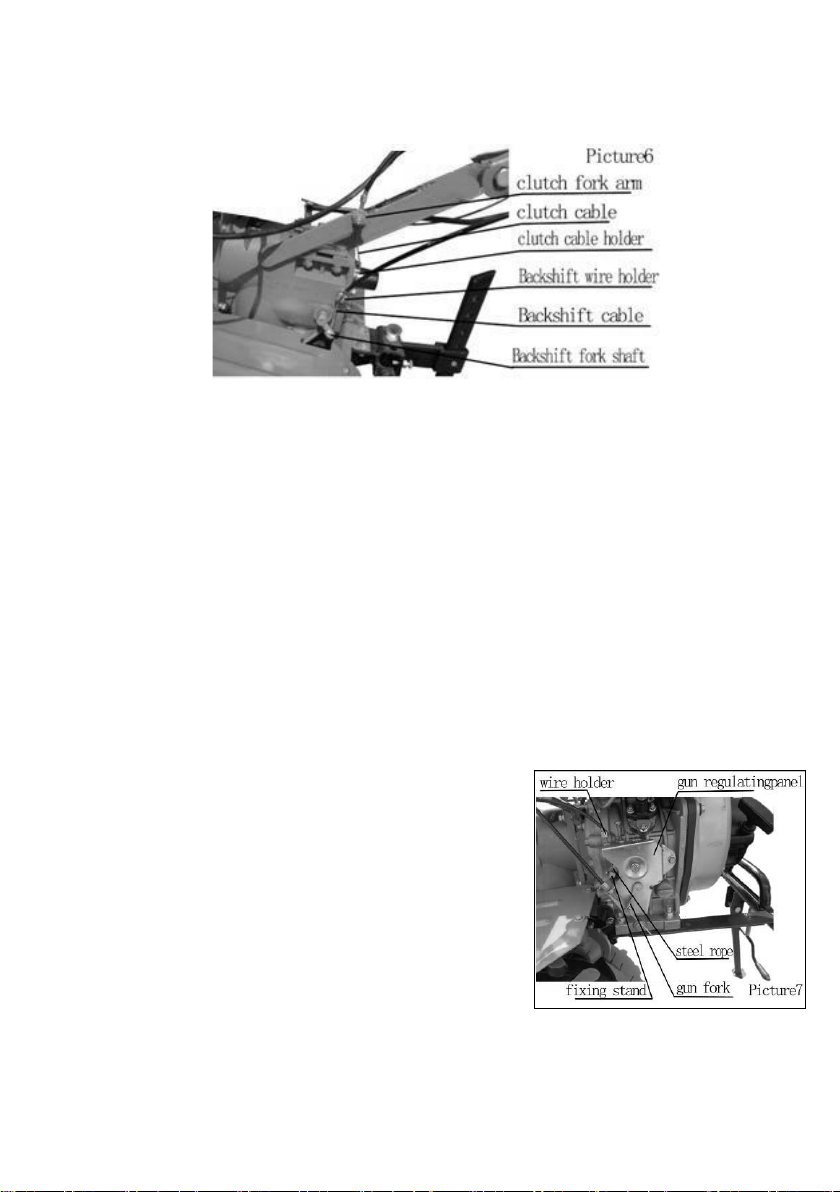

2. Backshift cable adjustment (Picture5 and 6)
1. Unlock the fasten nuts on the screw rod.
2. Instantaneously rotate the screw rod to show the shortest part of the handlebar.
3. Thread the cable into the backshift shaft at the side of gear box and make sure the cable
head is in the big hole of shaft.
4. Properly counterclockwise rotate the backshift fork shaft, thread the cable into the narrow
slit of backshift plugs through the side of the gear box and make sure the cable head is in
the big hole of the plug.
5. Rotate out the screw rod and holdfast it repeatedly, unlock the backshift bar. When spring
force can reposition the bar, you should fasten the nuts.
3. Throttle cable adjustment (look at picture7)
Diagram
①. Turn throttle switch to the fastest position.
②. Thread the steel wire-rope of the gun into the pole
and plug of regulation panel of the diesel engine
gun.
③. Fasten the steel wire-rope and fix the screw.
Adjust the throttle switch repeatedly until the gun bar of
the regulation panel can be in the

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 15 of 50

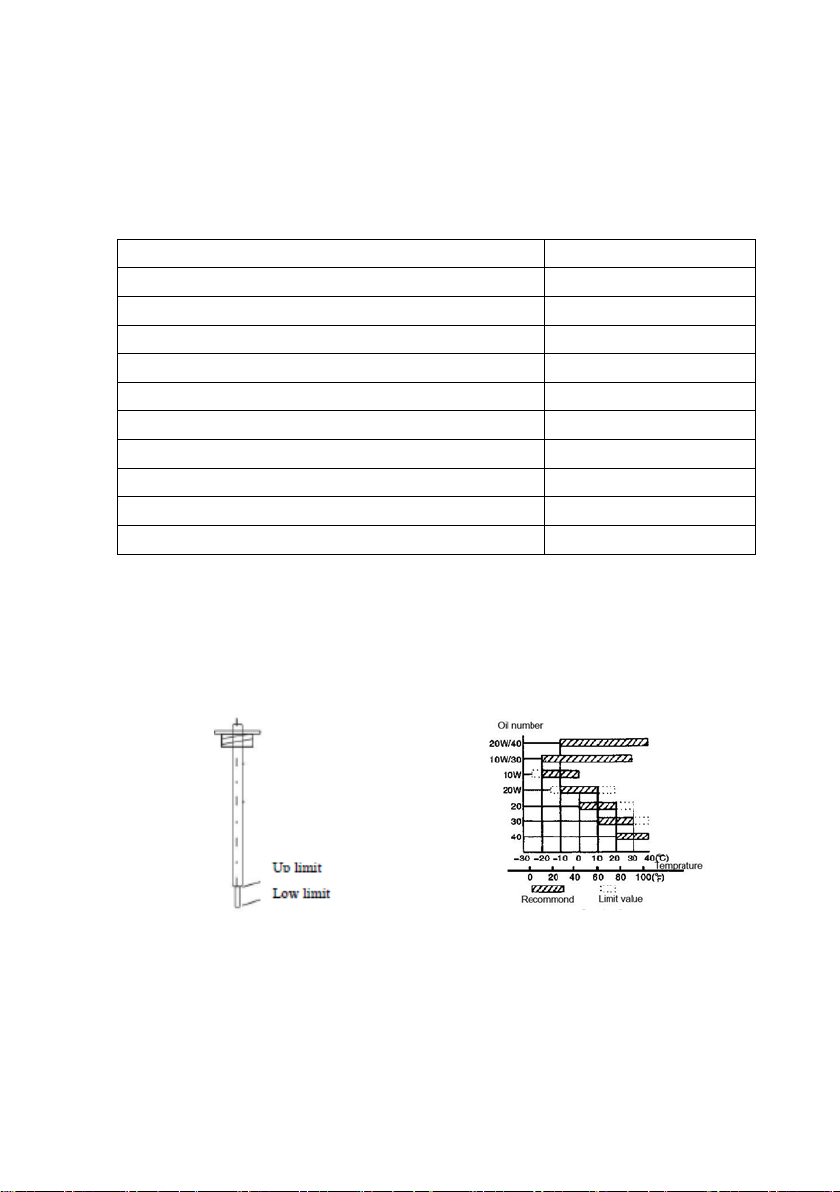

Operation Check
1. Check and add oil
1.1 Check if connections of everywhere if they are loosening and fixed upon the moment
needed.
Name
Moment (Nm.)
Flange and engine
20-25
Flange and transmission box
35-40
Transmission reverse axle locked bolt
26-40
Engine support frame and walking case locked bolt
35-40
Walking case end cover locked bolt
10.6-15
Walking case and tow bar locked bolt
50-60
Transmission box and walking case connection bolt
35-40
Tow bar
45-60
Engine bottom seat locked bolt
35-40
Handlebar fixed bolt
35-40
1.2 Check if all rod (Oil, clutch, reverse, gear shift) are flexible, and adjust them well.
1.3 Turn gear shift rod into neutral.
1.4 Add oil
①Add SAE10W-40 into crank case of engine.
②Add Nr.20 oil into transmission box. Put Inter-cultivator horizontal, take off oil ruler.
And add oil through transmission box filling hole. And insert oil ruler to check oil level. If
oil level is between up limit and low limit, turn off oil ruler.
④According to working condition choose different oil.
2. Start
2.1 Start engine according to introduction of engine operation.
2.2 Engine should work at idling speed (1450-1750r/min) for two or three minutes.
2.3 Check if engine work right, if not, stop to check.
3. Operate

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 16 of 50
! NOTE: Inter-cultivator should be break-in before using, according to introduction of
SECTION NINE.
3.1 Using of flameout switch.
Start place
Stop place
! NOTE: Inter-cultivator should break-in before use.
3.1 Using of flameout switch.
3.1.1 Start: Turn flameout switch to the place as shown above and use lock clip to block
switch. And then start the engine
3.1.2 Work: While working, hold flameout switch. Turn lock clip back. And hold on clutch
rod to change gear. Then hold on flameout switch, and release clutch rod and then start
weeding.
3.1.3 In emergency situation, release flameout switch to stop the engine.
! WARNING: While weeding, don’t turn lock clip.
3.2 Slow gear
3.2.1 Hold on the clutch rod with left hand and meanwhile press down flameout switch to
disengage the clutch.
3.2.2 Pull back the shift gear rod with right hand and then turn to slow gear. After shifting
the gear, use right hand to hold the handle grip.
! NOTE: Don’t hold reverse handle during the above situation.
3.2.3 Slowly release clutch rod, then clutch will engage and Inter-cultivator can work at
slow speed.
3.2.4 Turn accelerator to bigger, then Inter-cultivator can work on slow gear at 5km/h.
3.3 Fast gear
3.3.1 Hold on clutch rod with left hand and meanwhile press down flameout switch to
disengage clutch.
3.3.2 Pull back the shift gear rod with right hand and then turn to fast gear. After shift gear,
use right hand to hold handle grip.
! NOTE: Don’t hold reverse handle during the above situation.
3.3.3 Slowly release clutch rod, then clutch will engage, and Inter-cultivator can work at
slow speed.
3.3.4 Increase the accelerator, then Inter-cultivator can work on fast gear at 10km/h.
3.4 Reverse gear
3.4.1 Hold on clutch rod with left hand and meanwhile press down flameout switch to
disengage clutch.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 17 of 50
3.4.2 Pull back the shift gear rod with right hand and then turn to neutral gear. And then
use right hand to hold on reverse handle.
3.4.3 Then slowly release clutch rod so that the Inter-cultivator can go in reverse direction
! NOTE: Don’t release reverse handle. And before turning to reverse gear, must turn
accelerator to smaller (but engine should not stop, the speed will be about 2000r/min)
which will be safer.
3.4.4 When there is no need of reverse gear, hold on the clutch and right handle, release
the reverse handle.
3.5 When Inter-cultivator is moving, don’t shift the gear. First reduce the accelerator and
then release clutch, until Inter-cultivator stop walking, the shift gear.
3.6 Turning. Turning handle to left or right can turn Inter-cultivator.
! NOTE: While turning, don’t hold wrong handle or rod, else, gears will be damaged.
3.7 Stop
3.7.1 Hold clutch rod, and meanwhile hold flameout switch to disengage clutch.
3.7.2 Turn shift gear rod to neutral, loosen clutch rod, then Inter-cultivator will stop
working.
3.7.3 If engine need to be stopped
Connecting the attachments
4.1 Intercultural/Weeding Operations:
When need weeding, disassemble walking wheel, and then put blades onto both side
of axle. And use pin and clip to fix. After blades are assembled, must assemble dust
fender. Dust fender can protect. Weeding depth can be adjusted by deep resistance rod.
4.2 Ditching:
When needed to do ditching work, take off the deep resistance rod, adjust ditching
blades height, and then start ditching work.
Ditching width: 40cm
Ditching depth: 11-25cm
5 Usage
! NOTE:
•If you hear any strange noise while working on Inter-cultivator, stop the engine to
check.
•When Inter-cultivator is cool, don’t add heavy load. Especially if working with new
machine and machine which is being used after a long time/ repair.
•Check to see if there is oil in transmission box, if no oil, please add.
•Do not pour water on Inter-cultivator for cooling it.
•Don’t allow the Inter-cultivator with blades move on hard road.
•After using, clean the Inter-cultivator which will prolong the life of the Inter-
cultivator. Clean the air cleaner element periodically and change it if necessary.
Operating the Engine
1. Break-In Of New Engine:
If your engine has not broken in yet, improper usage will shorten the life of engine. The
initial 20 hrs. is the break-in-period. The operator must obey the following:
•Running-in for 5mins after first start.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 18 of 50
Running with low speed and low load before the engine gets hot. Avoid running with
high speed and full load, or low speed and no load.
•Avoid running with overload.
During break-in period, the engine can't run with full load, but can run with 3000rpm
and 50% load.
•Change Engine Oil Regularly.
After working for 20hrs, change the oil
when engine is still warm, otherwise it will
be difficult to drain the residual oil in the
engine.
Oil Bath Type Air Filter:
1. Check the oil level before operating.
2. Fill oil up to the upper limit. If oil is dirty, change it. Please use diesel to clean oil bath
element frequently, then dip the element in the oil and squeeze out extra.
2. Running
WARNING
•Be sure to operate the engine in a good, ventilated place in order to avoid exhaust
poisoning.
•Avoid letting hands, body & clothes entangle in output shaft, belt pulley, V-type belt
pulley and other moving parts, so as to prevent from getting injured.
•Stop the engine first and then maintain the movable parts and other parts around it.
Make sure there are no tools and sundries in the body of the engine before
operating.
2.1 Run engine for 5mins to warm up
NOTICE
•The muffler becomes very hot during and immediately after operation. Don't touch it.
•The air filter will inhale the air around itself when the engine works.
•Don't let the hands, body and clothes approach the air filter to avoid injury.
2.2 After the engine becomes warm, put the speed lever on necessary position to run the
engine.
NOTICE
•Be sure to use the speed lever to adjust the speed of engine.
Do not loosen the speed limit screw and fuel control screw; otherwise, the speed and
output of engine will be abnormal.

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 19 of 50
2.3 If the engine gives out black smoke
continuously, it is because the engine is
overloaded. The belt pulley of the
engine or that of the powered
equipment must be adjusted.
Fuel-control screw Speed-limit screw
2.4 Pay attention to the following points when the engine is running:
i. Whether there is abnormal sound and vibration?
ii. Whether the exhaust is normal?
iii. Whether the engine gives out white or black smoke continuously?
If any of the above phenomena is detected, stop the engine immediately and contact the
nearby dealer.
Methods of Starting the Agricultural Intercultivator
Starting by Hand:
1. Open fuel switch.
2. Put engine speed lever in the “start”position
3. Lock Auto-cut off switch.
4. Hold recoil starter handle.
4.1 Pull the starting handle slowly until you feel resistance, then release it slowly.
4.2 Push the decompression lever down by hand to no compression position. It will get
back automatically by itself after the engine gets started.
4.3 Starting: hold the starting handle with two hands, pull the rope lightly until you feel
the resistance, then pull the rope fast with strength.
4.4 If it is not easy to start the engine when the weather gets cold. You could take down
the refuel screw on the cylinder cover and fill in 2ml oil before starting.
Notice
Tighten the refuel screw on the cylinder cover except filling oil in order to avoid rain and
dust to get in the engine and wearing or damage of the engine.
Safety Instructions:
Do's:
•Do visual check before starting, every time
•Keep Agricultural Inter-cultivator Clean
•Do use recommended Fuel and Lubricants Only
•Do Check Fuel Level
•Do Check Air Intake Filter oil level
•Do Check Engine Oil and Gear Oil levels
•Do Check for any leakage
•Do Check Decompress Knob before starting
•Do Check Gear in Neutral position before starting
•Do use recommended attachments Only
•Do maintain distance (1ft) from buildings and other equipment when operating, to avoid
any accidents

KisanKraft®
AGRICULTURAL INTER-CULTIVATOR
KK-IC-250D,256D,215D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 20 of 50
•Keep away from flammable materials
•Keep away from children and pets to avoid any injuries or accidents.
•Only operator with knowledge of machine and its operations must be permitted to
operate Agricultural Inter-cultivator
•Must stop engine before refueling, and refuel in good ventilation place
•Must clean and spilled or over flown fuel of the Agricultural Inter-cultivator
•Let Agricultural Inter-cultivator cool down before storing indoors.
Don’ts:
•Don't spill the fuel, but also never let fuel tank run out empty
•Don't use adulterated fuel
•Don't smoke or allow flame or spark where Agricultural Inter-cultivator is refueled or
where fuel is stored
•Don't inhale exhaust for it can contain poisonous carbon monoxide
•Don't run Agricultural Inter-cultivator without adequate ventilation
•Don't lean/tilt Diesel Hal more than 20°, otherwise fuel may spill
•Don't cover Agricultural Inter-cultivator top so as to avoid fire
•Don't touch muffler/exhaust, as it gets hot when operating and stays hot for some time
after stopping
•Don't delay on service schedules
•Don't Operate Diesel Hal continuously more than 2hrs.30mins for any given operation
(Give break of 20mins)
•Don't make any alterations in Design, Operations and Functioning of Agricultural Inter-
cultivator other than Company's recommendation.

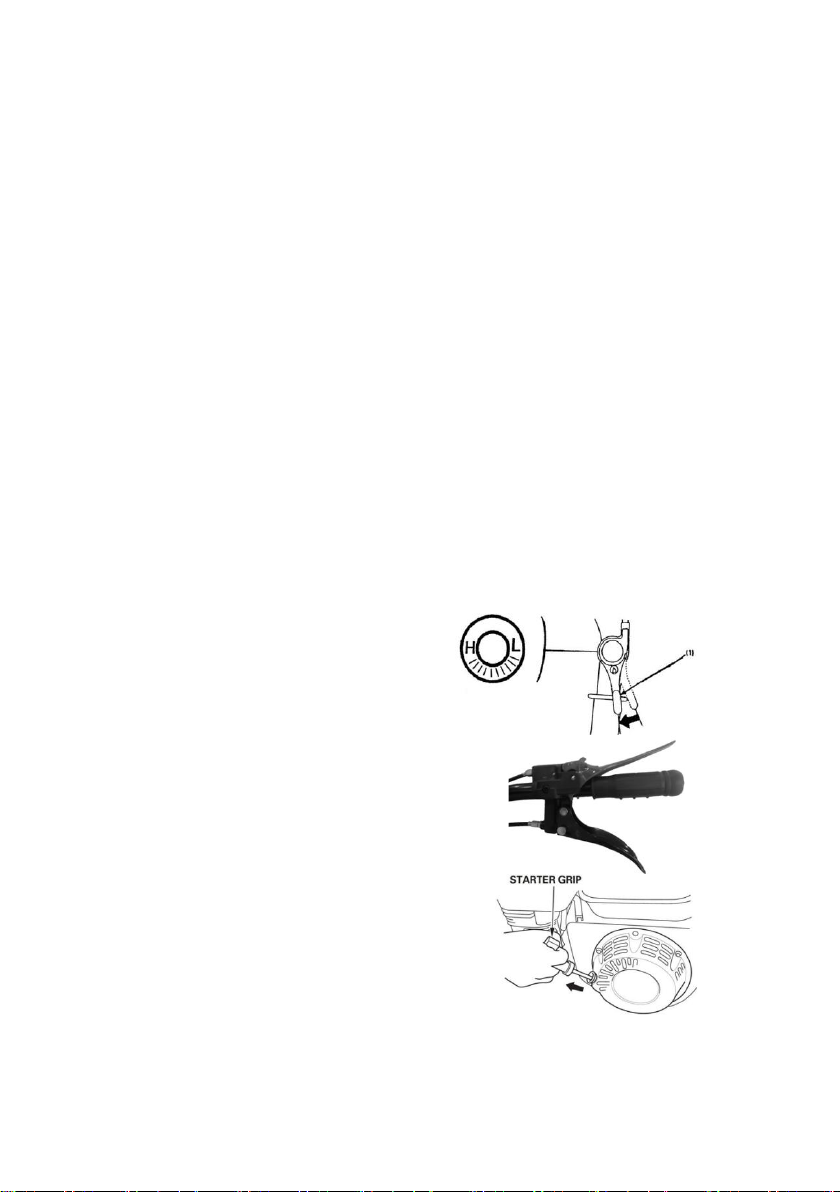

1.3 Slightly turn oil control rod to right. 。
(1) Oil control rod.
1.4 Turn flameout switch to the place as
drawing show, and use locked clip to fix
flameout switch
1.5 Slightly pull recoil starter grip until
feel resistance, and then put it fast.
