FOOD PROCESSOR ACCESSORY KIT INSTRUCTIONS
W10832406A_Australia_v2.indd 2 5/3/16 11:18 AM

3
English
FOOD PROCESSOR ACCESSORY KIT INSTRUCTIONS
FOOD PROCESSOR SAFETY
Important safeguards.......................................................................................... 4
Electrical equipment waste disposal................................................................... 6
PARTS AND FEATURES
Parts and accessories.......................................................................................... 7
Food Processor Accessory Kit accessories......................................................... 8
Compatible Cook Processor accessories........................................................... 9
ASSEMBLING THE FOOD PROCESSOR ACCESSORY KIT
Before rst use ................................................................................................. 10
Attaching the work bowl.................................................................................. 10
Attaching the work bowl cover........................................................................ 11
Installing the adjustable slicing disc ................................................................... 11
Installing the reversible shredding disc ............................................................. 12
Installing the multipurpose blade, dough blade, or egg whip ........................... 12
USING THE FOOD PROCESSOR ACCESSORY KIT
Using the 2-in-1 feed tube................................................................................ 13
Processing foods............................................................................................... 14
Food processing tips......................................................................................... 15
Removing processed foods............................................................................... 16
CARE AND CLEANING
Cleaning the Food Processor Accessory Kit..................................................... 17
TROUBLESHOOTING ......................................................................................... 18
TABLE OF CONTENTS
This Food Processor Accessory Kit model 5KZFP11 is intended for use with
Cook Processor models 5KCF0103 and 5KCF0104 only.
For more information, visit our website at:
KitchenAid.com.au
W10832406A_Australia_v2.indd 3 5/3/16 11:18 AM

4

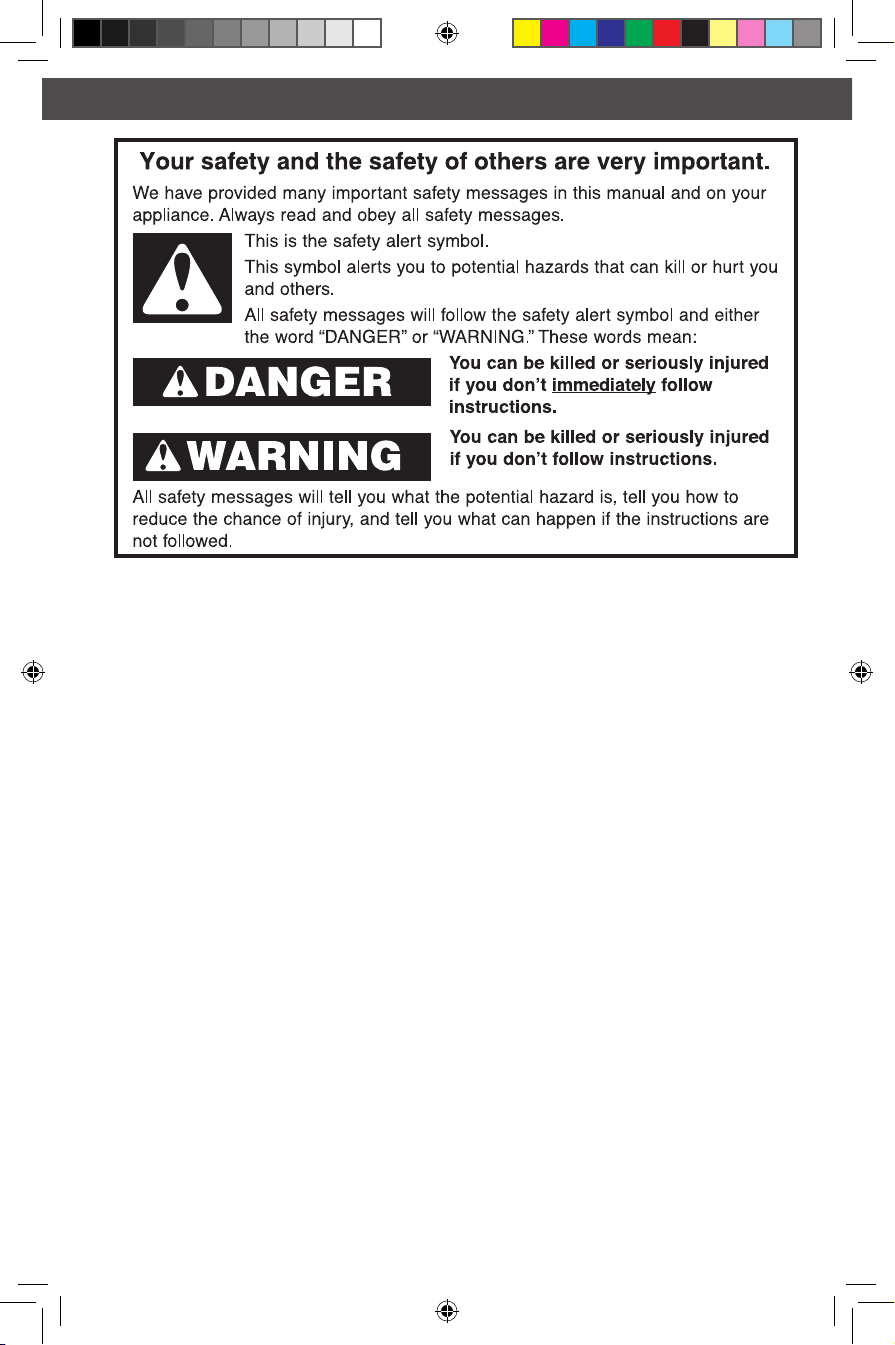

FOOD PROCESSOR SAFETY
FOOD PROCESSOR SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety
precautions should always be followed, including
the following:
1. Read all instructions.
2. To protect against risk of electrical shock, do not put
Food Processor in water or other liquid.
3. Be careful if hot liquid is poured into the food
processor. Steam can be ejected suddenly.
4. Close supervision is necessary when any appliance is
used by or near children.
5. This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
6. Children shall not play with the appliance.
7. Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and if they understand the
hazards involved.
W10832406A_Australia_v2.indd 4 5/3/16 11:18 AM

5
English
FOOD PROCESSOR SAFETY
FOOD PROCESSOR SAFETY
8. Always disconnect the appliance from the outlet when
not in use, before putting on or taking off parts, and
before cleaning.
9. Avoid contacting moving parts.
10. Care shall be taken when handling sharp cutting
blades, emptying the bowl, and during cleaning.
11. Switch off the appliance and disconnect from supply
before changing accessories or approaching parts that
move in use.
12. Do not operate any appliance with a damaged cord or
plug, or after the appliance malfunctions, or is dropped
or damaged in any manner. Return appliance to the
nearest Authorized Service Facility for examination,
repair, or electrical or mechanical adjustment.
13. The use of attachments not recommended or sold by
KitchenAid may cause re, electric shock, or injury.
14. Do not use outdoors.
15. Do not let cord hang over edge of table or counter.
16. Keep hands and utensils away from moving blades
or discs while processing food to reduce the risk
of severe injury to persons or damage to the Food
Processor. A scraper may be used but must be used
only when the Food Processor is not running.
17. Blades are sharp. Handle carefully.
18. To reduce the risk of injury, never place cutting blade
or discs on base without rst putting bowl properly in
place.
19. Be certain cover is securely locked in place before
operating appliance.
20. Never feed food by hand. Always use the food pusher.
21. Do not attempt to defeat the cover interlock
mechanism.
22. This product is designed for household use only.
SAVE THESE INSTRUCTIONS
W10832406A_Australia_v2.indd 5 5/3/16 11:18 AM

6
Electrical equipment waste disposal
Disposal of packing material
The packing material is 100% recyclable
and is marked with the recycle symbol .
The various parts of the packing must
therefore be disposed of responsibly
and in full compliance with local authority
regulations governing waste disposal.
Scrapping the product
- This appliance is marked in compliance with
European Directive 2012/19/EU, Waste
Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
- The symbol on the product or on the
accompanying documentation indicates
that it should not be treated as domestic
waste but must be taken to an appropriate
collection centre for the recycling of
electrical and electronic equipment.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local city ofce,
your household waste disposal service or the
shop where you purchased the product.
FOOD PROCESSOR SAFETY
PARTS AND FEATURES
W10832406A_Australia_v2.indd 6 5/3/16 11:18 AM

7
English
Reversible
(2 mm and 4 mm)
shredding disc
Manually adjustable
slicing disc
(thin to thick)
Work bowl
cover with
2-in-1 food
chute
3.58 L / 15 cup*
workbowl
2-piece
food pusher
Disc adapter
FOOD PROCESSOR SAFETY
PARTS AND FEATURES
* Max. capacity for dry ingredients.
Max. capacity for liquid ingredients = 2.5 L
Parts and accessories
Accessory Storage Case
This Food Processor Accessory Kit model 5KZFP11 is intended for use with Cook Processor
models 5KCF0103 and 5KCF0104 only.
W10832406A_Australia_v2.indd 7 5/3/16 11:18 AM

8
Accessory Food Speed
Max.
Quantity Operating Time
Adjustable Slicing Disc Fruit (soft) 8 1.0 kg 40 sec.
Potatoes 8 1.0 kg 40 sec.
Tomatoes 8 1.0 kg 30 sec.
Vegetables (soft) 8 1.0 kg 40 sec.
Fruit (hard) 8 1.5 kg 30 sec.
Vegetables (hard) 8 1.0 kg 40 sec.
Reversible Shredding
Disc
Potatoes 9 1.0 kg 34 sec..
Vegetables (soft) 9 0.5 kg 60 sec.
Cabbage 9 0.5 kg 60 sec.
Cheese (cheddar) 9 0.5 kg 10 sec.
Fruit (hard) 9 1.5 kg 40 sec.
Vegetables (hard) 9 0.5 kg 60 sec.
PARTS AND FEATURES
Reversible
(2 mm and 4 mm)
shredding disc
Manually adjustable
slicing disc
(thin to thick)
Disc adapter
PARTS AND FEATURES

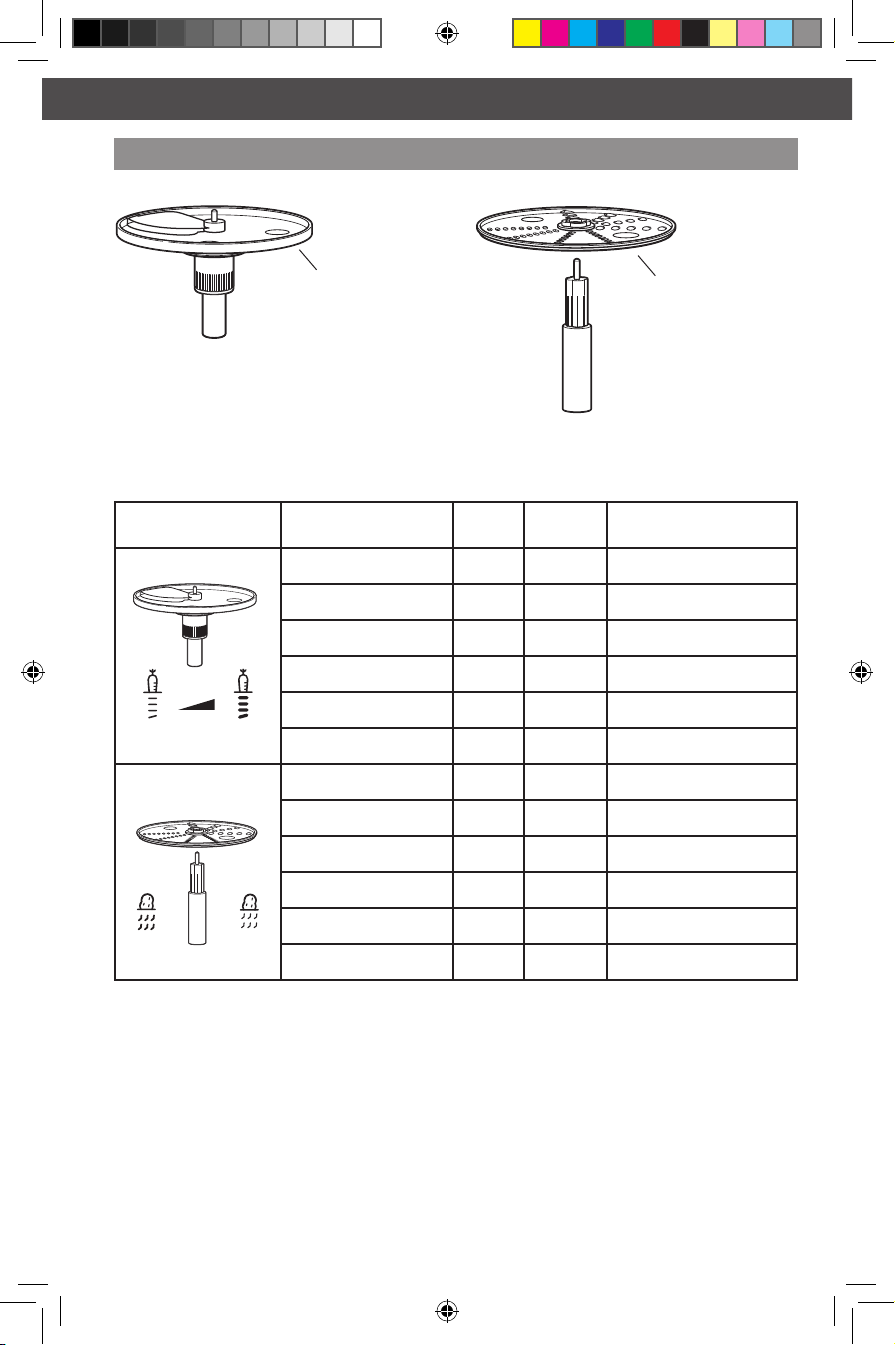

Food Processor Accessory Kit accessories
Refer to the guide below for recommended speeds and quantities when using the Food
Processor Accessory Kit discs.
Slice
thick
Slice
thin
Shred
medium
Shred
ne
W10832406A_Australia_v2.indd 8 5/3/16 11:18 AM

9
English
PARTS AND FEATURES
PARTS AND FEATURES
Compatible Cook Processor accessories*
Many of the accessories included with the Cook Processor may also be used with the Food
Processor Accessory Kit. Refer to the guide below for recommended speeds and quantities
for compatible accessories included with the Cook Processor (sold separately).
IMPORTANT: To avoid splashing or excess vibration, always follow recommended speeds
shown on the Egg Whip.
Accessory Food Speed
Max.
Quantity Operating Time
MultiBlade Pureed soups 10 2.5 L Up to 1 min. for puree†
Meat (boneless) 10 1.0 kg Up to 1 min. for puree†
Fish (boneless) 10 1.0 kg Up to 1 min. for puree†
Vegetables 10 1.0 kg 2 min.†
Compote 10 500 g 30 sec.
Nuts (almonds, pecans,
walnuts, peanuts) 10 700 g 30 sec.
Dough Blade Bread dough 2 1.2 kg 2–4 min.
Pastry 5 1.2 kg 2–3.5 min.
Brioche bread 5 1.2 kg 2–3.5 min.
Cake batter 6 1.5 L 2 min.
Crepe batter 8 1.5 L 2 min.
Egg Whip Egg whites 7–9 8 eggs 5–10 min.
Mayonnaise, whipped
cream 7–9 1.3 L 5–8 min.
Cremes, sauces 4–6 1.2 L 5–10 min.
†Cut into 2 cm pieces
W10832406A_Australia_v2.indd 9 5/3/16 11:18 AM

10
ASSEMBLING THE FOOD PROCESSOR ACCESSORY KIT
NOTE: Your Food Processor is shipped with the accessory storage tray and work bowl
cover installed on the work bowl. Remove storage tray before use.
Before rst use
Attaching the work bowl to the Cook Processor (sold separately)
1Turn the work bowl cover so that the
arrow lines up with the unlock symbol
to remove cover from the work bowl.
2Lift out the accessory storage tray.

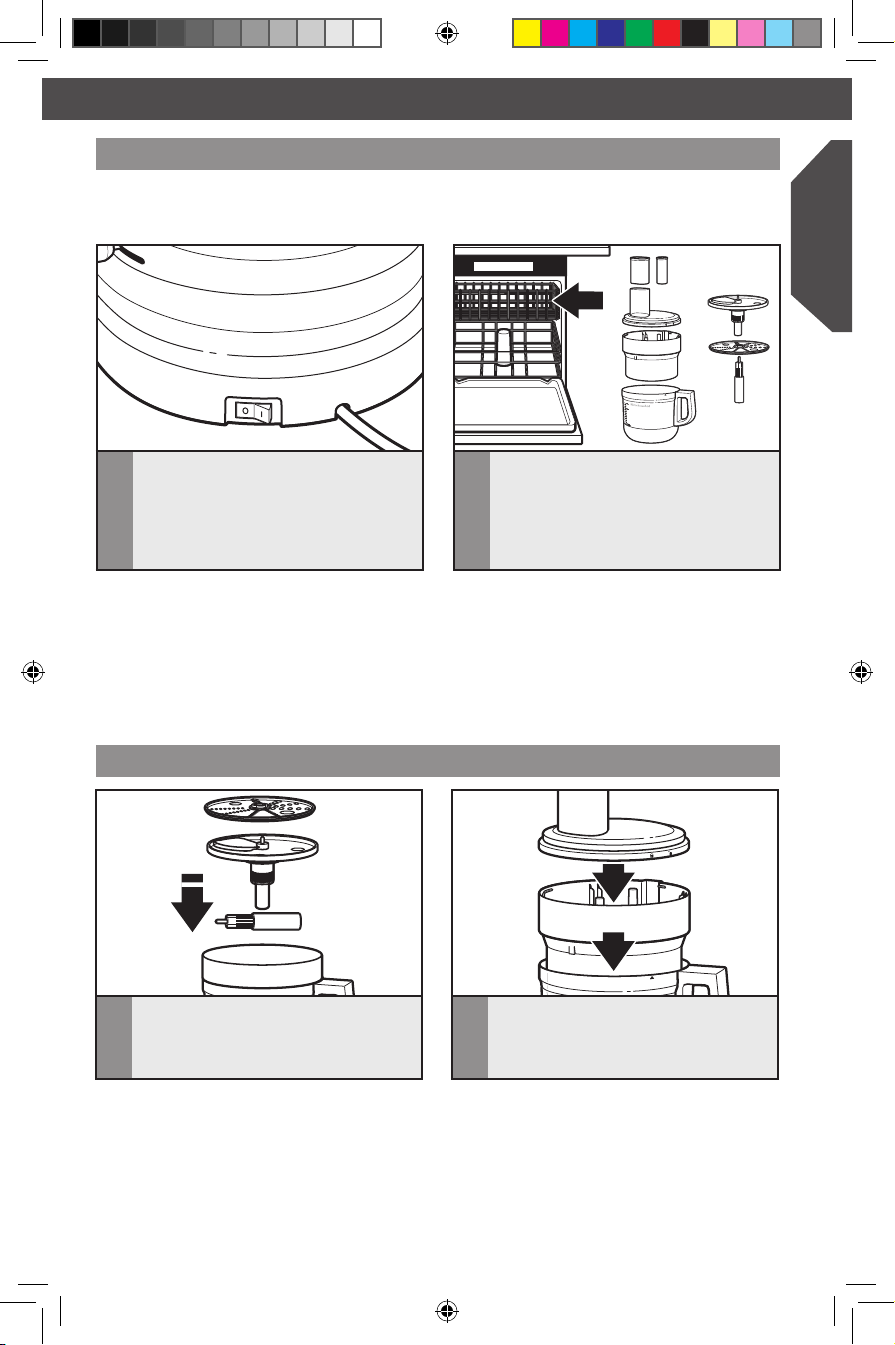

Before using your Food Processor Accessory Kit for the first time, wash all parts and
accessories either by hand or in the top rack of the dishwasher (see “Cleaning the Food
Processor” section).
ASSEMBLING THE FOOD PROCESSOR ACCESSORY KIT
1Place the work bowl on the Cook
Processor base, making sure it locks into
place. If the work bowl is not locked in
place, UNLOCKED will show in the Cook
Processor’s display.
IMPORTANT: Place the Cook Processor on a dry, level countertop with the controls
facing forward. Do not plug in the Cook Processor until it is completely assembled.
W10832406A_Australia_v2.indd 10 5/3/16 11:18 AM

11
English
ASSEMBLING THE FOOD PROCESSOR ACCESSORY KIT
ASSEMBLING THE FOOD PROCESSOR ACCESSORY KIT

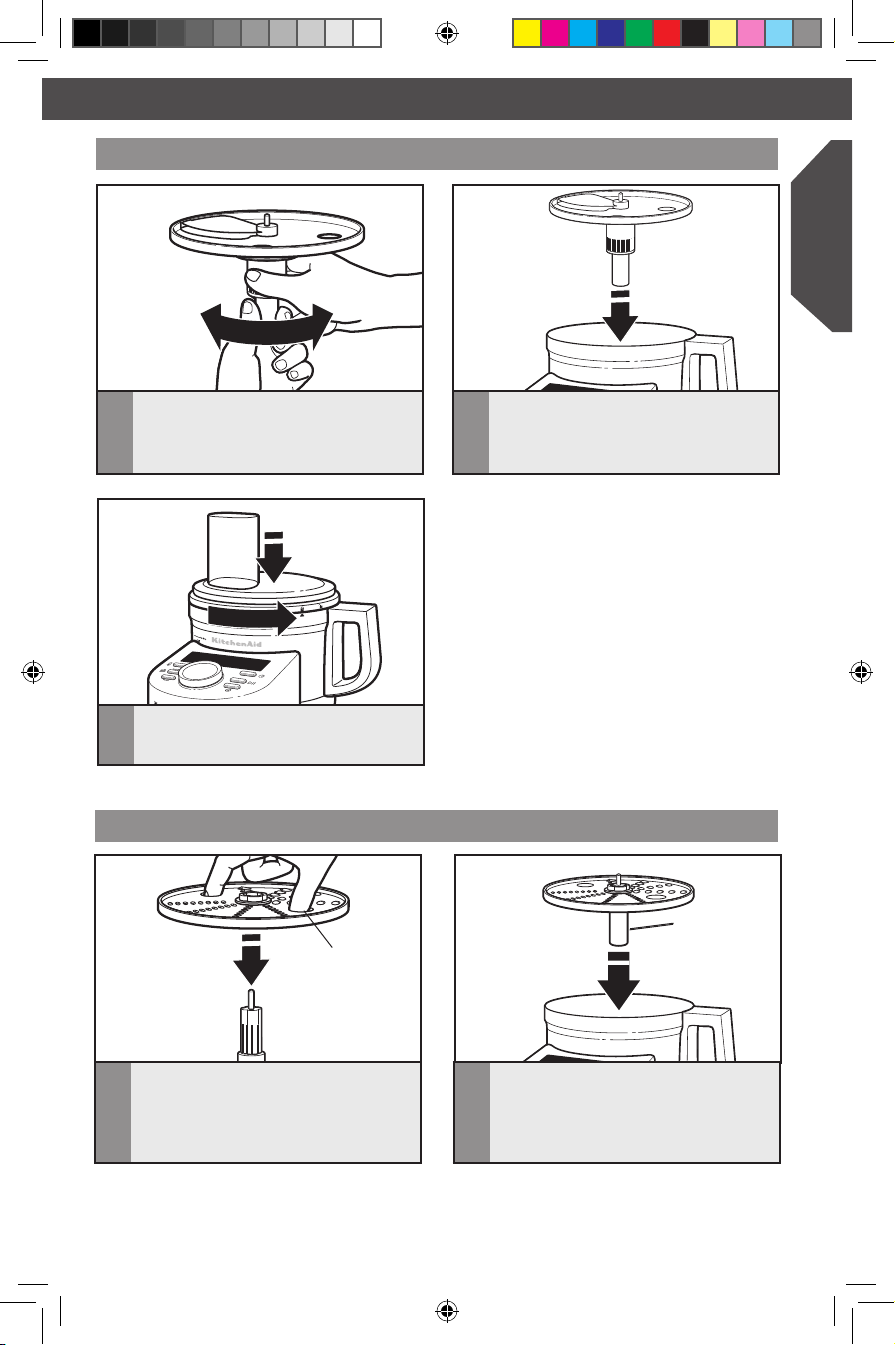

Installing the adjustable slicing disc
2Hold the slicing disk by the finger grips
and lower it onto the drive shaft. You
may need to turn the disc until it drops
down into place onto the shaft.
3Install the work bowl cover, being sure
it locks into place.
1Adjust the slicing thickness by holding
the drive adapter in one hand and
turning the adjustment collar with the
other until the desired thickness is set.
Installing the reversible shredding disc
TIP: You may need to turn the disc/adapter until it drops down into place.
1Hold the reversible shredding disc
by the 2 finger grips with the desired
shredding side facing UP. Insert the disc
adapter into the hole in the bottom of
the disc.
2With the work bowl installed, slide the
disc adapter onto the drive shaft. Then
install the work bowl cover, being sure it
locks into place.
Finger grip
Disc
adapter
W10832406A_Australia_v2.indd 11 5/3/16 11:18 AM

12
ASSEMBLING THE FOOD PROCESSOR ACCESSORY KIT
USING THE FOOD PROCESSOR ACCESSORY KIT
Multipurpose blade, dough blade or egg whip
IMPORTANT: The multipurpose blade, dough blade and egg whip are included with the Cook
Processor (sold separately) and may be used with the Food Processor Accessory Kit.
1Place the blade on the power shaft.
Rotate the blade so it falls into place on
the power shaft.
2Push to lock: Press down firmly on the
multipurpose blade until it is down as
far as it will go.
3Install the work bowl cover, being sure
it locks into place.
Attaching the work bowl cover
1Place the work bowl cover on the
work bowl, aligning the arrow with
the unlock symbol. Rotate the cover
counterclockwise until it locks into place.
2Fit the food pusher into the 2-in-1
feed tube. See “Using the 2-in-1 Feed
Tube” for details on working with
different sized foods.
NOTE: Your Food Processor Accessory Kit will not operate unless the work bowl and
work bowl cover are properly locked on the base. If the lid is not properly installed, LID
OPEN will appear in the display.
W10832406A_Australia_v2.indd 12 5/3/16 11:18 AM

13
English
ASSEMBLING THE FOOD PROCESSOR ACCESSORY KIT
USING THE FOOD PROCESSOR ACCESSORY KIT

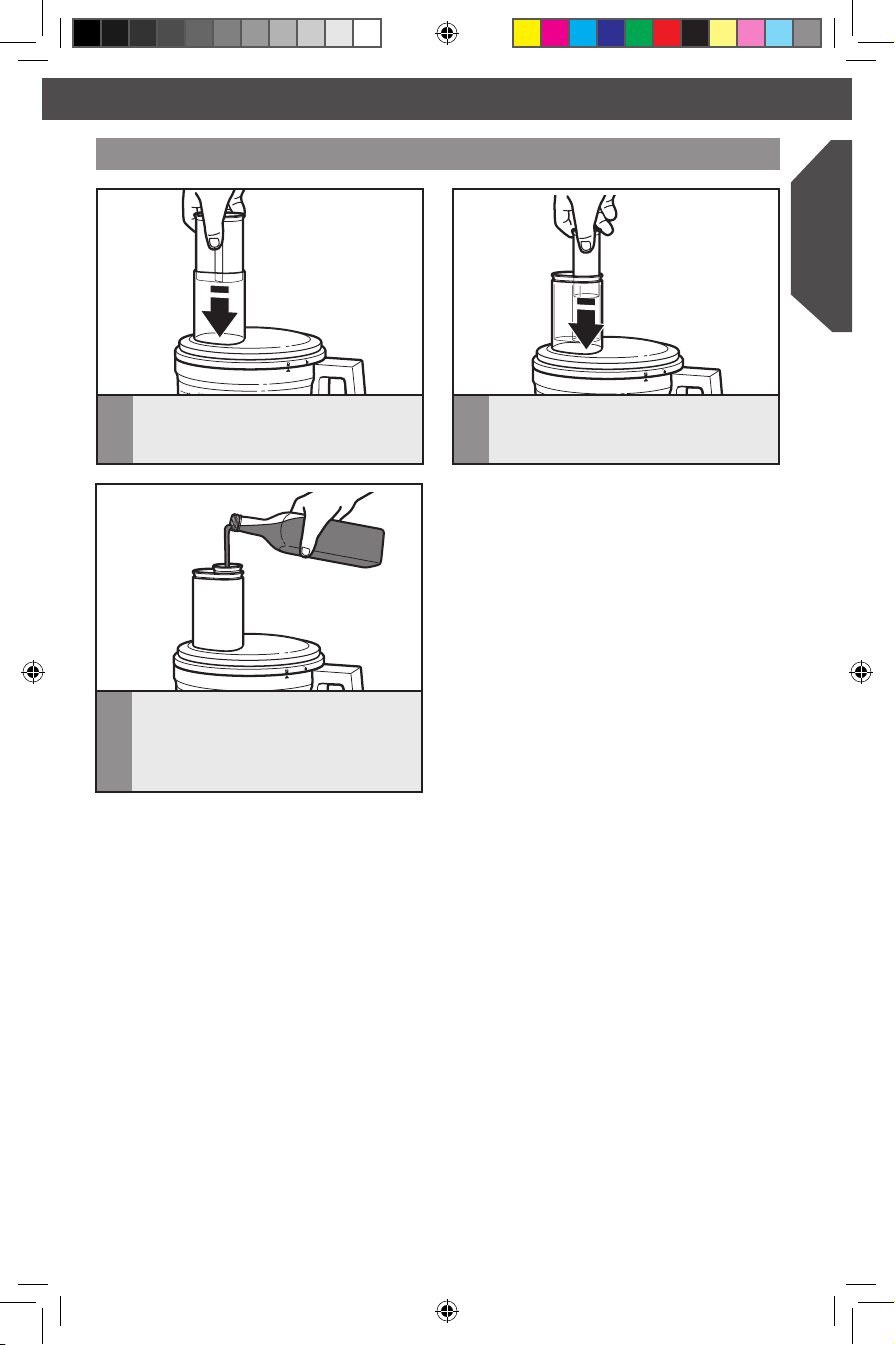

Using the 2-in-1 feed tube
1Use the entire feed tube and the large
food pusher to process large items. 2Place the large food pusher in the feed tube to process smaller items using the
small pusher.
3Use the drizzle hole in the small food
pusher to slowly drizzle oil or other
liquid ingredients into the work bowl.
The drizzle hole flow rate is ideal for
making mayonnaise.
W10832406A_Australia_v2.indd 13 5/3/16 11:18 AM

14
USING THE FOOD PROCESSOR ACCESSORY KIT
USING THE FOOD PROCESSOR ACCESSORY KIT

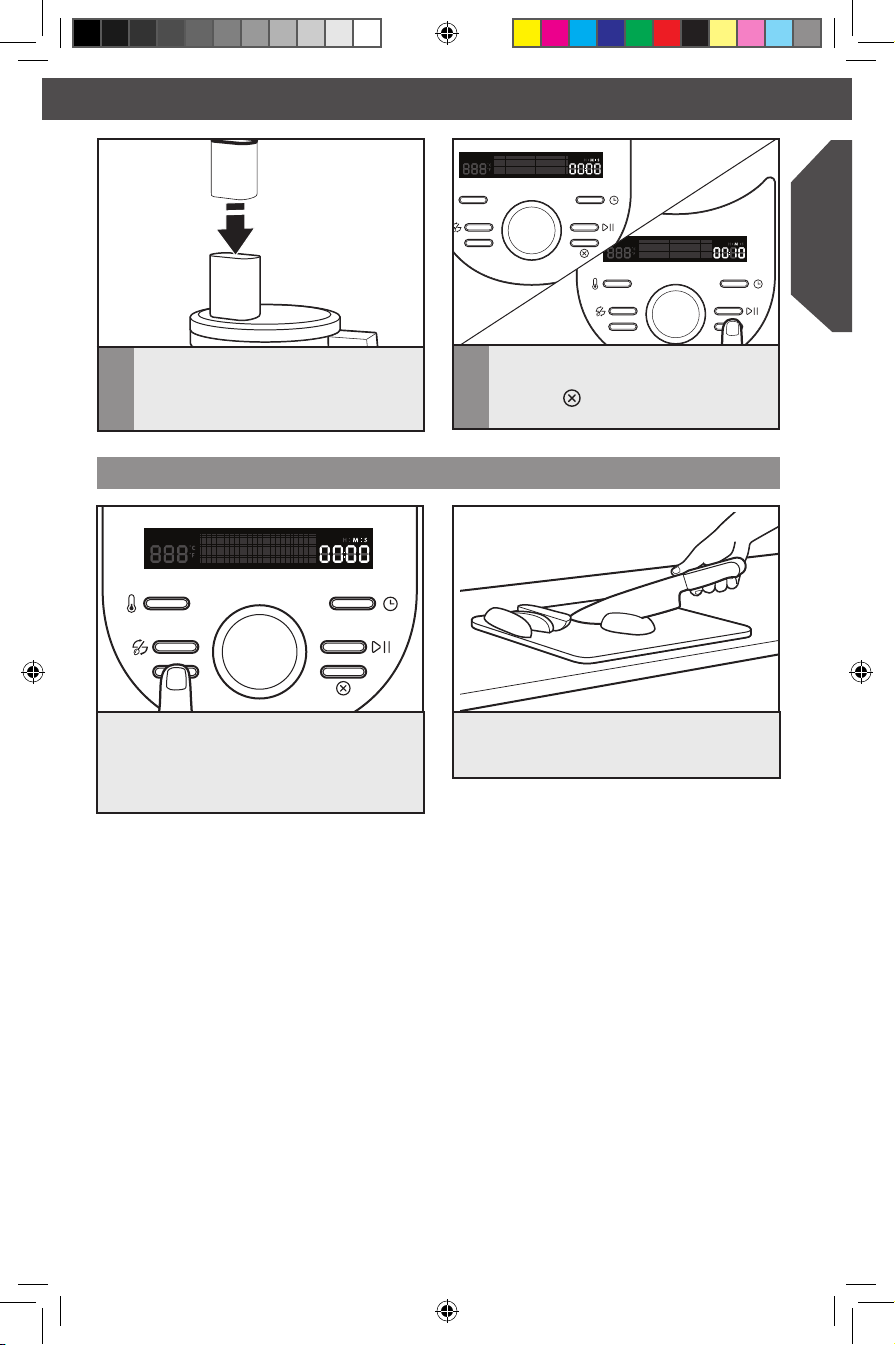

1Turn on the Cook Processor by setting
the main power switch to I (ON).
3Select the recommended processing
speed. Press and hold to change speeds
more quickly.
4Press the (Start) button to turn
on the motor and begin the timer
countdown (if set).
Pulse
˚C
˚F
HMS
Quick Stir
Pulse
˚C
˚F
HMS
Quick Stir
2Press (Time) and use the dial to set
the desired processing time, if desired.
Processing Foods
Before operating the Food Processor
Accessory Kit, be sure the work bowl,
blades, and work bowl cover are properly
assembled on the Cook Processor base.
Rotating Blade Hazard
Always use food pusher.
Keep ngers out of openings.
Keep away from children.
Failure to do so can result in
amputation or cuts. This line on the work bowl indicates
the maximum level of liquid that can be
processed in the work bowl.
W10832406A_Australia_v2.indd 14 5/3/16 11:18 AM

15
English
USING THE FOOD PROCESSOR ACCESSORY KIT
USING THE FOOD PROCESSOR ACCESSORY KIT
Pulse
˚C
˚F
HMS
Quick Stir
The pulse control allows precise control of
the duration of processing. It’s great for jobs
which require a light touch. Just press and
hold the PULSE Button to start processing
at high speed, and release it to stop.
Cut larger foods such as potatoes or cabbage
into pieces that will fit easily into the food
chute, approximately 4x6 cm.
Pulse
˚C
˚F
HMS
Quick Stir
Pulse
˚C
˚F
HMS
Quick Stir
6When the timer reaches 00:00, a tone
will sound and the motor will stop.
Or press (cancel) to stop the motor
at any time.
5Feed ingredients into the feed chute
using steady pressure. Always use the
food pusher to push ingredients.
Food Processing Tips
W10832406A_Australia_v2.indd 15 5/3/16 11:18 AM

16
CARE AND CLEANING
USING THE FOOD PROCESSOR ACCESSORY KIT
Removing processed foods

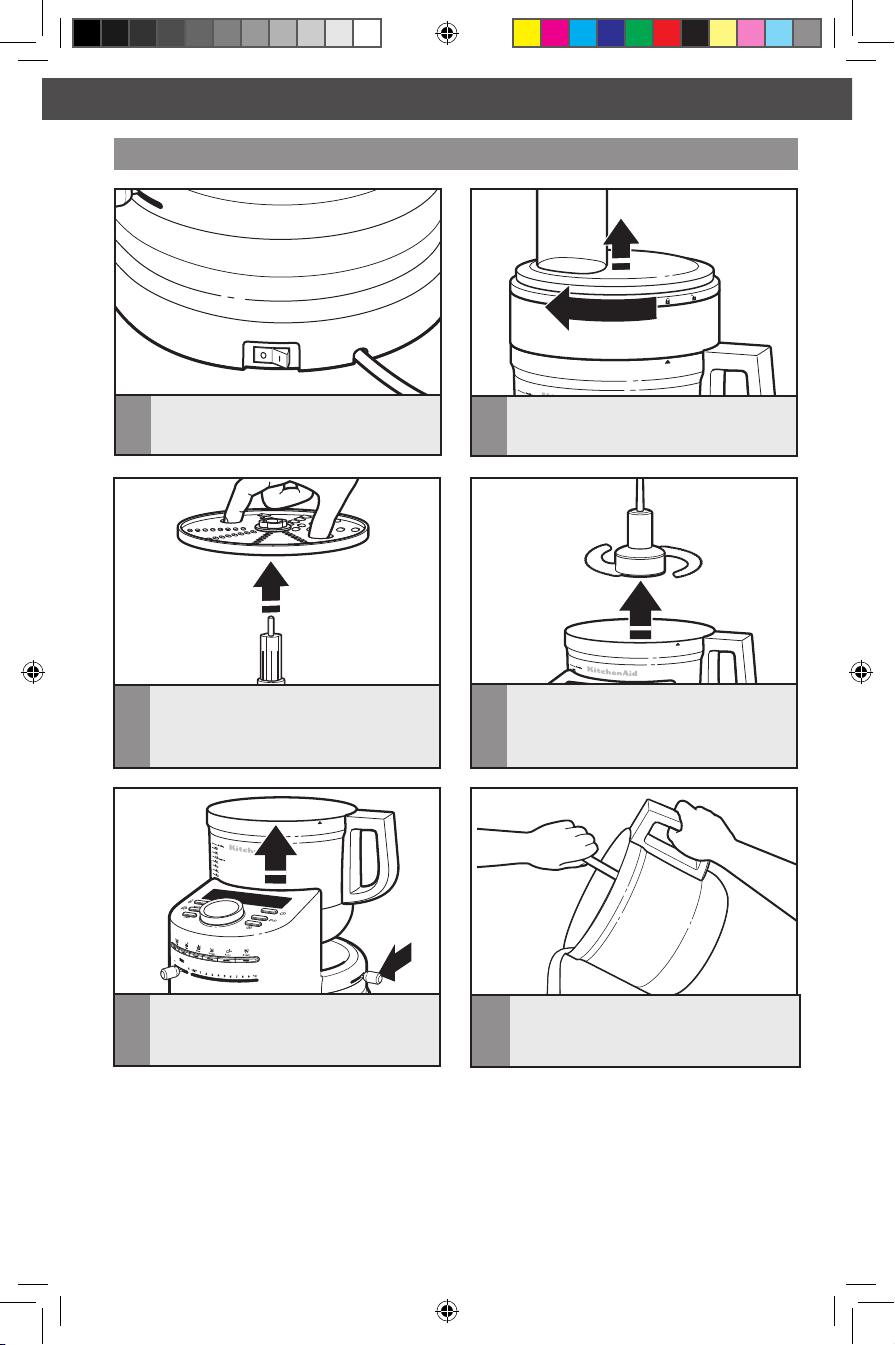

1Set the Cook Processor power switch
to O (Off). 2Turn the work bowl cover so that the
arrow points to UNLOCK and remove.
3If using a disc, remove it before
removing the bowl. Holding the disc
by the 2 finger grips, lift it straight up,
then remove the adapter.
6Remove food from the bowl with a
spatula.
4If using a Cook Processor accessory, lift
straight up to remove.
5Press the release lever on the Cook
Processor base to unlock the work bowl
from the base. Lift to remove.
W10832406A_Australia_v2.indd 16 5/3/16 11:18 AM

17
English
2All parts are top rack dishwasher safe.
Avoid laying the work bowl on its side
(see below). Thoroughly dry all parts
after washing. Use gentle dishwashing
cycles such as normal. Avoid high
temperature cycles.
Cleaning the Food Processor Accessory Kit
IMPORTANT: These BPA-free bowls require special handling. If you choose to use a
dishwasher instead of hand washing, please follow these guidelines.
1Set the Cook Processor power switch
to O (Off) and unplug the Cook
Processor before cleaning. Refer to the
Instructions provided with your Cook
Processor for instructions on cleaning
the Cook Processor base.
NOTE: If washing the Food Processor
Accessory Kit parts by hand, avoid the
use of abrasive cleansers or scouring pads.
They may scratch or cloud the work bowl
and cover.
CARE AND CLEANING
USING THE FOOD PROCESSOR ACCESSORY KIT
Storing the Food Processor Accessory Kit
1Store discs and adapter in storage case
as shown. You may need to rotate the
adjustable slicing disc until it drops down
onto the drive shaft in the bowl.
2Nest the accessory storage tray in the
bowl, and install bowl cover.
W10832406A_Australia_v2.indd 17 5/3/16 11:18 AM

18
• Display shows UNLOCKED:
Bowl is not locked into the base correctly.
Check the bowl to be sure it is locked into
place.
• Display shows LID OPEN:
Lid is not locked in place.
Food Processor Accessory Kit doesn’t
run:
• Make sure that the bowl is fully seated
on the Cook Processor base and the lid is
properly aligned and locked in place
• Be sure the large food pusher is inserted
in the feed tube.
• When using the large feed tube opening,
make sure that food is not above the Max.
Fill line on the feed tube.
• Have you selected a speed?
• Is the Cook Processor plugged in?
• Is the fuse in the circuit to the Cook
Processor in working order? If you have
a circuit breaker box, be sure the circuit
is closed.
• Unplug the Cook Processor, then plug it
back into the outlet.
• If the Cook Processor is not at room
temperature, wait until it reaches room
temperature and retry.
Food Processor Accessory Kit not
shredding or slicing properly:
• Make sure the raised-blade side of the
disc is positioned face up on the common
adapter.
• If using the adjustable slicing blade, make
sure it is set to the correct thickness.
• Make sure ingredients are suitable for
slicing or shredding.
If the work bowl cover won’t close
when using the disc:
• Make sure the disc is installed correctly,
with the raised nub on top, and is
positioned properly on the drive adapter.
If the problem is not due to one of the
above items, see the “Warranty and
Service” section.
If your Food Processor Accessory Kit should malfunction or fail to operate, check
the following:
TROUBLESHOOTING
For information on warranty, please visit kitchenaid.com.au
or kitchenaid.co.nz
W10832406A_Australia_v2.indd 18 5/3/16 11:18 AM

19
English
TROUBLESHOOTING
W10832406A_Australia_v2.indd 19 5/3/16 11:18 AM

20
W10832406A 05/16
© 2016. All rights reserved.
Specications subject to change without notice.
W10832406A_Australia_v2.indd 20 5/3/16 11:18 AM
