Kleenmaid CH17 User manual

COOKTOP
c o l l e c t i o n
Instructions for Use
and Warranty Details
Ceramic Cooktops CH17 - Ceramic Touch Control 600 mm
CH18 - Ceramic Touch Control 780 mm

Congratulations on the purchase of your
new Kleenmaid appliance.This appliance
has been designed and manufactured to
give you years of reliable performance.
For best results, carefully read the
instructions on how to install your new appliance. Correct
installation will avoid delays and unnecessary service calls.
Once installation is complete, read this booklet and get to
know the controls and the features of your new appliance.
If you need further information call our
Customer Care Centre
1300 652 100
We reserve the right to alter the specifications with no
influence on the operation of the appliance. This instruction
manual cannot be reason for claim.

CONTENTS
General description ............................................................ 2
Description of sensors ........................................................ 3
Description of timer...............................................................4
Operating....................................................................... 5,6,7,8
Safety........................................................................................... 9
Considerations........................................................................ 9
Using pans .............................................................................. 10
Cleaning ................................................................................. 11
Installation ................................................................. 12,13,14
Wiring Diagram..............................................................15,16
Warranty and Service.........................................................17
WARNING
1
• Repair of any fault in your hob must be carried out only by an
Authorized Repair Agent, otherwise the guarantee is not
valid.
• The technical details and identification of the appliance are
shown on the specifition plate.
Consult this plate before proceeding with electrical
connection.
• Electrical connection must be carried out by a specialist
familiar with the laws and official regulations governing such
installation in your State.

2
GENERAL DESCRIPTION
DOUBLE HOTPLATE
....
..
....
....
MODEL
CH17
MODEL
CH18
Control
sensors
Control
sensors
DOUBLE HOTPLATE

3
DESCRIPTION OF SENSORS
MODELS: CH17 and CH18
Double hotplate control point
Double hotplate sensors
Hotplate pilot light
Selected power display
Residual heat display
Power sensors
from 0to 9
from 9to 0
Blocking sensor
ON/OFF
Blocking control point

DESCRIPTION OF TIMER
The double hotplate is equipped with a minute timer (1to
99) that automatically switches off the heat and sounds an
alarm at the end of the selected time.The double hotplate
can operate with or without programming.
Setting the timer
Touch the sensor +/- sensor for the clock to set
numbers of minute duration required. To change the
timer rapidly, keep your finger on the +/- sensor.
Warning function
When the double hotplate is not switched on, the timer
operates as a warning. If the double hotplate is switched
on after pre-selection has been made, it also acts as a
warning.When the set time has elapsed it will give a
warning signal which can be switched off by operating
one of the sensors.
Stopping the program
Touch the sensor until the minute display reaches 00.
Operation of timer
With the double hotplate active, if a specific time is pre-
selected, it will act as a timer and switch off the double
hotplate once this time has elapsed. An audible signal will
advise that the time has expired.
Switch off the warning by operating one of the sensors.
Note:
When operating as a timer, the pilot light switches on 00.
When operating as a warning, the light does not switch on.
Display and sensors
4
MODEL-CH-18

5
OPERATING
Sensors
The vitroceramic cooking surface is fitted with sensors that are touch-
sensitive and also react to the presence of a reflective object.
The hotplates are operated by touching the corresponding sensors with your
fingers.
Take care to touch only one sensor at a time, otherwise they will not react to
the touch.
Setting up
While the cooking surface is inoperative, the indicators for all sensors are
switched off.
Starting up
Touch the ON/OFF sensor for 3 seconds. The power 0displays will light
up. If no power is selected within five seconds, the hotplate will automatically
switch off and must be switched on again.
Keep the sensors clean and do not place objects on them. The sensors may
misinterpret dirt or objects placed on them as finger contacts.

OPERATING
Selecting power. - /+
Each hotplate has - / +. power sensors. Touching these allows the power to
be adjusted in the range 1 to 9.
To alter the power while the hotplate is on, touch - / +sensors to obtain the
required power level.
Switching off a hotplate. -
Touch the hotplate’s -sensor until it shows 0. If the hotplate is hot, Hwill
light up.
¡Warning!
If a power cut occurs while the residual heat display is on, remember that
when power is restored the display will not reappear even though the
hotplate is still hot.
Residual heat display H.
When activated but with level 0,the corresponding displays shows 0and
H.alternatively.
While a hotplate is still hot but switched off, the display will show H.
Depending on the power that was used, this display may remain on for up to
approximately 30 minutes.
Do not touch the area of the hotplate. THERE IS A RISK OF BURNING.
6

7
Hotplate blocking function.
The blocking of the hotplates prevent accidental changes while they are
operating. The initial selections are maintained and the indicators remain
active. The hotplates should be blocked to prevent children from operating
them or to prevent the effects of accidental contact with containers or tools.
Press the blocking sensor until its pilot light comes on.
Unblocking
Touch the blocking sensor until its pilot light switches off.
OPERATING
Double hotplate
The rear right sensors operate a small central circuit . To operate the
outer part, touch the double hotplate sensor until its pilot light comes
on. Switch off by touching the sensor until the pilot light switches off.
Focus hotplate - Model CH18
When the sensors for the rear left are operated, note that only its circular
circuit will operate. To switch on the outer part at the same time, touch the
source hotplate sensor 0 until its control point switches on.
To switch off the focus hotplate, touch the focus hotplate sensor 0 until
the control point switches off.

Automatic programming 9.
(quick heating)
Each control area includes an automatic programming function.
This programming allows the corresponding maximum temperature to be
reached quickly and maintained automatically.
Selection.
Touch the sensor +once to turn on its decimal point, if it is in position 9.
the display will show 9.
Pre-selection is active for 10 seconds to allow the required power level to be
selected.
Touch the sensor -to reduce it to the required level (levels 3.to 6.are
recommended).
Once the automatic heating temperature is reached, a short warning will
sound and the decimal point will switch off. The hotplate will continue to
operate normally.
To cancel the automatic programming, touch the -sensor and the decimal
point will switch off.
OPERATING
8

9
Safety systems.
In order to protect the electronics, if the control unit detects excessive heat it
will switch off the hotplate closest to the sensors and the letter Hwill appear
on the display.This hotplate can be activated when the temperature of the
electronic unit returns to normal.
Each hotplate is equipped with an interior temperature limiter that switches
off the hotplate if the vitroceramic surface is heated excessively.
Automatic.
If a hotplate is left on accidentally, it will automatically be switched off after a
period of time has elapsed, depending on the power level that has been
selected (level 1- 10 hours, level 9- 1hour).
Important.
If the vitroceramic surface breaks or you notice cracks in it, disconnect the
equipment. Call Kleenmaid Customer Call Centre for service assistance.
If more than one sensor is pressed simultaneously, the keys are blocked.
If all the power levels are at 0, the control is automatically switched off after
5 seconds.
If one or more sensors are pressed for more than 30 seconds (a container or
tools are resting on the sensor), the control will automatically be switched
off and a warning will sound every 30 seconds while the sensor remains
pressed.
SAFETY
SPECIAL CONSIDERATIONS

10
USING PANS
Most stainless steel, enamel, iron,
ceramic and copper pans can be used
on vitroceramic hobs.
Aluminium pans are not recommended
as they may stain the vitreous surface,
unless they have stainless-steel covered
bottoms. (Consult Manufacturer of the
aluminium cookware before using on
the ceramic cooktop)
Hotplates should not be switched on
without a pan on top. The base of the
pan should be flat and dry. Pans that
have been used on gas cookers are not
normally flat and absorb heat poorly.
Make sure that the diameter of the pan
is at least that of the hotplate.
Avoid scraping pans over the
vitroceramic surface, as it may become
scratched. Always lift the pan.
Never use tinfoil or plastic containers.
They will melt and fuse permanently
with the vitroceramic surface.
STAINLESS STEEL
ENAMEL
CERAMIC
COPPER
ALUMÍNIUM ALUMÍNIUM
STAINLESS STEEL
YES

11
CLEANING
Clean the vitroceramic surface
frequently, when it is cool. Never use
abrasive products or pads. Clean
with a damp cloth and soapy water.
Once a week, clean thoroughly with
specific products that preserve and
protect vitroceramic hobs. Scrape off
hard stuck dirt with the scraper
(Included in accessory bag).
If sugar (or sugary matter) or plasttic
is accidentally burnt on the hob,
remove at once with the scraper
while still hot. Otherwise the spill
may leave a permanent mark.
Do not use the hob as a work surface.
Be particulary careful with dirt like
soil or dust from vegetables, cleaning
powders, etc. which may scratch the
surface when pans are placed over it.
IMMEDIATELY
SOAP + WATER
SCOURER

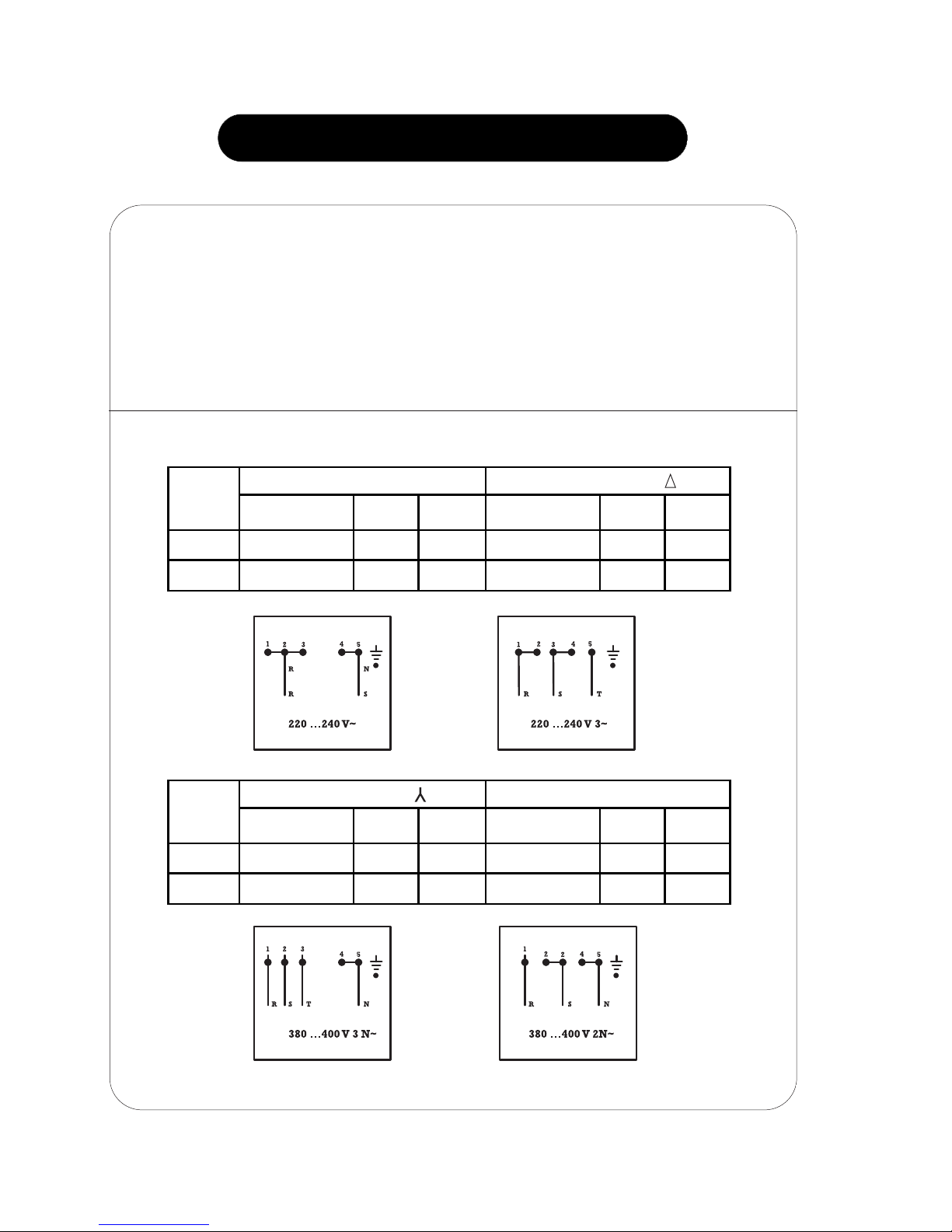

INSTALLATION
The vitroceramic hotplate is supplied with a power cable prepared for 220 to
240V AC.
The cooktop must be connected to the main supply with the cable provided.
Total power
Hotplate: 60 cms., 6.3kW, Hotplate: 75 cms., 7.4 kW
This device complies with EMC standards.
60 cms 220...240V~ 27.5 A 32 A 220...240V~ 14 A 16 A
220...240V~ 16.5 A 20 A75 cms 220...240V~ 32 A 32 A
Voltage Int.nominal Protection
by phases
Voltage Int.nominal Protection
by phases
PLATE
Three phase
60 cms 380...400V~ 11 A 12 A 380...400V~ 16 A 20 A
380...400V~ 19 A 20 A75 cms 380...400V~ 13 A 16 A
Voltage Int.nominal Protection
by phases
Voltage Int.nominal Protection
by phases
PLATE
Three phase
12

13
INSTALLATION
Place the hob face down on a
table. Remove the backing paper
and affix the sealing gasket all
round the perimeter.
1
2
Cut out a piece of the worktop following
the dimensions provided below.
Minimum distance between hole and
side wall 100 mm.
Minimum distance between hole and
rear wall 50 mm.
MODEL: CH18

INSTALLATION
3Place the hob alongside the cavity in
the worktop and connect the power
cable to the electrical socket.
IMPORTANT: Carry out connection
with the power disconnected. There
must be a good grounding connection
and a switch must be provided in an
accessible place to isolate all phases.
Kleenmaid will not accept responsability for
installations carried out other than as directed here.
The cooktop is equipped with a power input cable
for high temperatures and must be installed with
this cable.
4
Next insert the hob in the worktop
cavity, pressing down firmly to ensure a
good seal.
5
NOTE: This equipment complies with EMC standards.
14
Fix the 4 clamps underneath the hob to
the 4 corners of the cavity.
(Clamps, brackets and nuts are
supplied in acessory bag).

15
WIRING DIAGRAM
V-A= GREEN - YELLOW COLOUR AZ = BLUE T = RED B = WHITE M = BROWN N = BLACK G = GREY
MODEL: CH17

WIRING DIAGRAM
V-A= GREEN - YELLOW COLOUR AZ = BLUE T = RED B = WHITE M = BROWN N = BLACK
16
MODEL: CH18

WARRANTY AND SERVICE
DOMESTIC WARRANTY - FULL FIVE YEAR WARRANTY
In addition to all statutory rights which you, the Consumer, have under the relevant laws in
respect of this appliance, during the first five years of ownership as the original purchaser
of this Kleenmaid appliance, we guarantee that any fault caused by faulty material or
workmanship becoming apparent will be rectified free of charge for parts and labour,
provided that all service is performed during normal working hours by Kleenmaid or
their designated Agents.Where the appliance is installed outside the normal servicing
area of the above, the Purchaser must pay for the cost of transporting the appliance to and
from the Agent or the Agent’s travelling cost to and from the Purchaser’s home.
COMMERCIAL WARRANTY - ONE YEAR WARRANTY
When this appliance is installed in a commercial application, you, the Consumer, have
under the relevant laws in respect of this appliance, during your first one year of
ownership as the original purchaser of the Kleenmaid appliance, we guarantee that any
fault caused by faulty material or workmanship becoming apparent, will be rectified free
of charge for parts and labour, provided that all service is performed during normal
working hours by Kleenmaid or their designated Agents.Where the appliance is installed
outside the normal servicing area of the above, the Purchaser must pay for the cost of
transporting the appliance to and from the Agent or the Agent’s travelling cost to and from
the Purchaser’s home.
WHAT THESE WARRANTIES DO NOT COVER
We are not responsible for any damage or malfunction unless caused by a defect in
material or workmanship. This includes but is not limited to abuse, misuse, improper
installation and transportation damage.We are not responsible for any consequential
damages from any malfunction.
WARRANTY DOES NOT COVER REPLACEMENT OF LIGHT GLOBES OR
GLASS BREAKAGE DUE TO IMPACT
In case of fractured glass do not use your appliance.
WARRANTY REGISTRATION
Please complete the enclosed warranty card and post it to us or phone our Customer Call
Centre.
SERVICE ASSISTANCE
To assist you when phoning our Customer Call Centre number to arrange a service call
please complete the following details and have them ready when you call.
Model Number: Date of purchase:
Kleenmaid Store purchased from:
KLEENMAID CUSTOMER CALL CENTRE
CONTACT NUMBER
1300 652 100
Date of installation:
17

Other products in Kleenmaid’s
range of world’s best appliances:
• Washers
• Dryers
• Vacuum Cleaners
• Dishwashers
• Cooktops
• Cookware
• Rangehoods
• Ovens
• Refrigerators & Freezers
• Sinks & Taps
• Waste Disposals
Kleenmaid Head Office:
PO Box 5560, Maroochydore Business Centre, Queensland 4558
For sales information on the full range of quality
kitchen and laundry appliances, phone 13 13 08
10-00 C60T016A9
Printed on recycled paper.
