Kleenmaid cooking ICTFX9020EX Installation guide

cooking collection
Instructions for use and warranty details
Induction Cooktop & Integrated
Air Extraction System
Model No.: ICTFX9020EX (Extractor)
and ICTFX9020HB (Cooktop)
�kLEEnma1d
To register your warranty or make a
warranty claim, scan this QR code:

2

Safety Warnings ........................................................................ 4
Using the Extraction System......................................................11
Care and Cleaning ...................................................................19
Installation ................................................................................21
Component Descriptions .....................................................................25
Electrical Diagram.................................................................................29
Warranty ...................................................................................................33
Overview of Induction Cooktop and
Integrated Air Extraction System ................................................8
Induction Cooking ..................................................................... 8
Using the Cooktop ....................................................................12
Cooking Guidelines ...................................................................17
Filter Maintenance and Replacement .......................................20
Connecting the Cooktop to the Mains Power Supply.................28
Technical Specifications ............................................................30
Hints and Tips.............................................................................31
Error Codes and Troubleshooting ..............................................32
3

Safety Warnings
Your safety is important to us. Please read this information before
using your cooktop and make this User Manual available to your
installer. A current version of the manual is available on the
Kleenmaid website. (See back cover for details.)
Important Safety Instructions for Installation
•Read these instructions carefully before installing or using this appliance.
•No combustible material or products should be placed on this appliance at
any time.
•Please make this information available to the person responsible for
installing the appliance as it could reduce your installation costs.
•In order to avoid a hazard, this appliance must be installed according to
these instructions for LQVWDOODWLRQ
•This appliance is to be properly installed and earthed only by a suitably
qualified person.
•This appliance should be connected to a circuit which incorporates an
isolating switch providing full disconnection from the power supply.
•Failure to install the appliance correctly could invalidate any warranty or
liability claims.
•Take care - panel edges may be sharp.
•The air from the Air Extraction System must not be discharged into a flue
that is used for exhausting fumes from appliances burning gas or other fuels.
Regulations concerning the discharge of air must be fulfilled.
•Ensure there is a minimum vertical clearance of 8mm, from the bottom of
the cooling fan grilles under the cooktop assembly, to any other object.
Electrical Shock Hazard
•Disconnect the appliance from the mains electricity supply before carrying
out any work or maintenance on it.
•Connection to a good earth wiring system is essential and mandatory.
•Alterations to the domestic wiring system must only be made by a qualified
electrician.
•Failure to follow this advice may result in electrical shock or death.
Important Safety Instructions for Operation and Maintenance
Electrical Shock Hazard
•Do not cook on a broken or cracked cooktop. If the cooktop surface should
break or crack, switch the appliance off immediately at the mains power
supply (wall switch) and contact a qualified technician.
•Switch the cooktop off at the wall before cleaning or maintenance.
•Failure to follow this advice may result in electrical shock or death.
4

Health Hazard
•This appliance complies with electromagnetic safety standards. However,
persons with cardiac pacemakers or other electrical implants (such as insulin
pumps) must consult with their doctor or implant manufacturer before using
this appliance to make sure that their implants will not be affected by the
eOHFWURPDJQHWLFILHOG)DLOXUHWRIROORZWKLVDGYLFHPD\UHVXOWLQGHDWK
•During use, accessible parts of this appliance will become hot enough to
cause burns.
•Do not let your body, clothing or any item other than suitable cookware
contact the Induction glass until the surface is cool.
•Metallic objects such as knives, forks, spoons and lids should not be
placed on the surface since they can get hot
•Keep children away.
•Handles of saucepans may be hot to touch. Check that saucepan
handles do not overhang other cooking zones. Keep handles out of
reach of children.
•Failure to follow this advice could result in burns and scalds.
Cut Hazard
•The razor-sharp blade of a cooktop scraper which may be used for
cleaning is exposed when the safety cover is retracted. Use with extreme
care and always store safely and out of reach of children.
•Failure to use caution could result in cuts or other injuries.
Hot Surface Hazard
Important Safety Instructions
•Never leave the appliance unattended when in use. Boil over causes
smoking and greasy spillovers that may ignite.
•Never use your appliance as a work or storage surface.
•Never leave any objects or utensils on the appliance.
•Do not place or leave any magnetisable objects (e.g. credit cards, memory
cards) or electronic devices (e.g. computers, MP3 players) near the appliance,
as they may be affected by its electromagnetic field.
•Never use your appliance for warming or heating the room.
•After use, always turn off the cooking zones and the cooktop as described
in this manual (i.e. by using the touch controls). Do not rely on the pan
detection feature to turn off the cooking zones when you remove the pans.
•Do not allow children to play with the appliance or sit, stand, or climb on it.
•Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
•Do not leave children alone or unattended in the area where the appliance
is in use.
5

•Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be done by a qualified
technician.
•Do not use a steam cleaner to clean your cooktop.
•Do not place or drop heavy objects on your cooktop.
•Do not stand on your cooktop.
•Do not use scourers or any other harsh abrasive cleaning agents to clean
your cooktop, as these can scratch the Induction glass.
•If the power supply cable is damaged, it must only be replaced by a
qualified technician.
•This appliance is intended to be used in household and similar
applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments; and
-bed and breakfast type environments.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without
supervision.
•WARNING: Unattended cooking on a cooktop with fat or oil can be
dangerous and may result in fire. NEVER try to extinguish a fire with water,
but switch off the appliance and then cover flame e.g. with a lid or a fire
blanket.
•Metallic objects such as knives, forks, spoons and lids should not be
placed on the cooktop surface since they can get hot.
•After use, switch off the cooktop element by its control and do not rely on
the pan detector.
•The appliance is not intended to be operated by means of an external
timer or separate remote-control system.
•CAUTION:The cooking process has to be supervised. A short term
cooking process has to be supervised continuously.
•WARNING:In order to prevent tipping of the appliance, stabilizing means
must be installed. Refer to the instructions for installation.
•WARNING:Use only cooktop guards designed by the manufacturer of the
cooking appliance or indicated by the manufacture of the appliance in the
instruction for use as suitable or cooktop guards incorporated in the
appliance. The use of inappropriate guards can cause accidents.
•This appliance incorporates an earth connection for functional purposes
only.
6

•The air extraction system is for home use only, and not suitable for
barbecue, roast shop and other commercial purposes.
•The air extraction system and its filter should be cleaned regularly to
maintain it in good working condition.
•Clean the air extraction system according to the instructions in the User
Manual to avoid possible danger of fire.
•Before connecting this appliance check that the power cord is not damaged.
A damaged power cord must be replaced by qualified service personnel only
in order to avoid a hazard.
•Ensure there is adequate ventilation of the room especially when the air
extraction system is used at the same time as other appliances.
•CAUTION: This extraction system is not intended to be used with gas
cooktops.
•CAUTION: Accessible parts may become hot when used with cooking
appliance.
Electrical Shock Hazard
Only connect this unit into a properly earthed outlet. If in doubt seek advice
from a suitably qualified electrical engineer.
Failure to follow these instructions can result in death, fire, or electrical shock.
7

Top View
Cooktop Control Panel
Induction Cooking
ontrol panels
controls
slider control
Timer selector
1 1
2 2
3
3
4
5 5
1
2
1 2 23 4
4
6 5
3
6
Digital display
Timer control
Overview ofInductionCooktopand
Integrated Air Extraction System
8

Before Using Your New Cooktop
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your Induction
cooktop.
•It is recommended that for general use the Air Extraction System is
turned on before the Cooktop.
Using the Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g.
a utensil or a cloth) covering them. Even a thin film of water may make the
controls difficult to operate.
Choosing the Right Cookware
• Only use cookware with a base suitable for induction
cooking. Look for the induction symbol on the
packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out
a magnet test. Move a magnet towards the base of the pan. If it
is attracted, the pan is suitable for induction.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.
• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or
copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
5
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
9

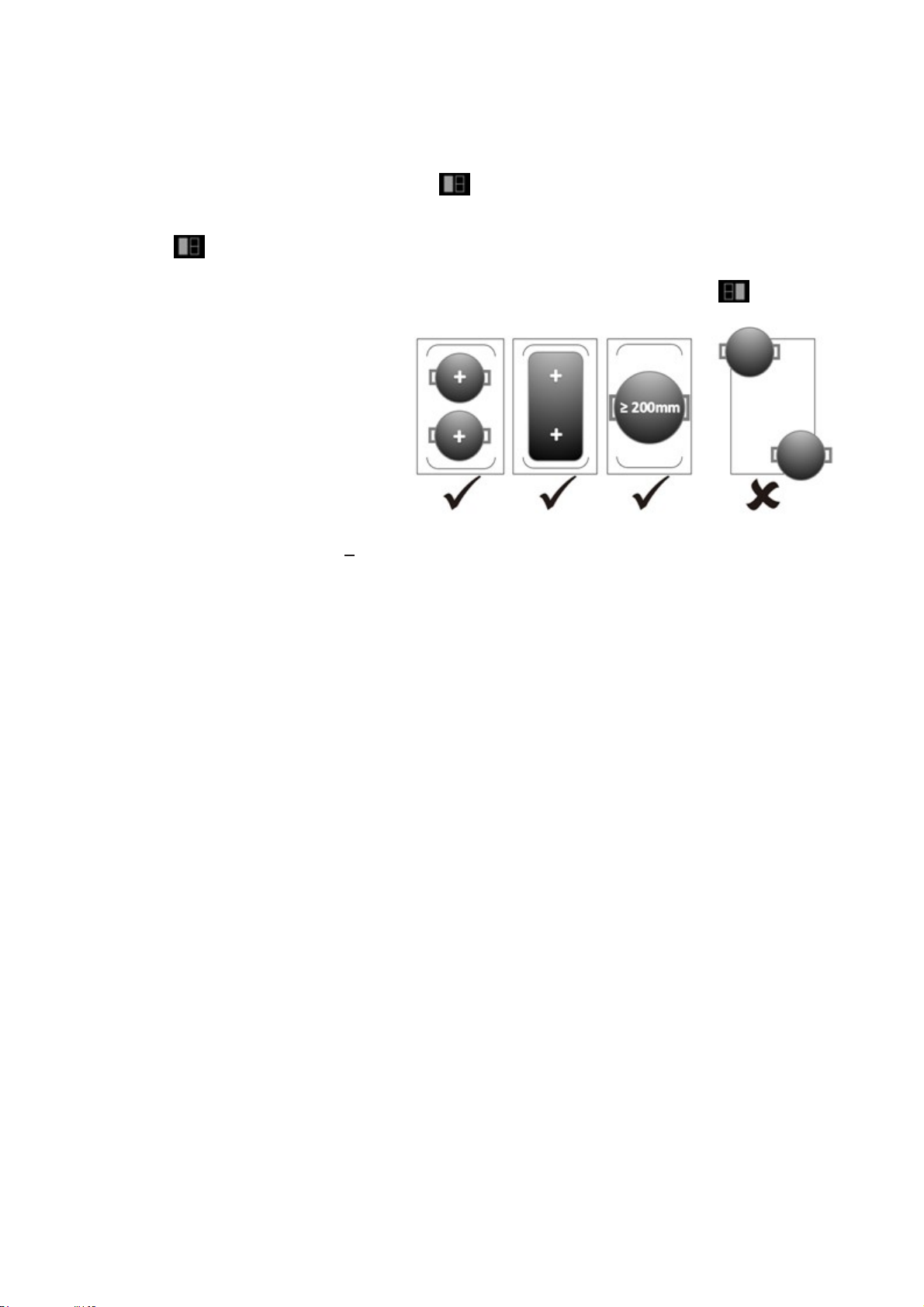

graphic of the zone selected. The further the pan extends over the sides of the
burner, the less effective the burner will be. If you use a smaller pot efficiency
could also be less than expected. Always centre your pan on the cooking zone.
Always lift pans off the Induction cooktop – do not slide or they may
scratch the glass.
Pan Dimensions
Within certain limits the cooking zones automatically adapt to the
diameter of the pan placed on them, however there is a specified minimum
diameter for the bottom of a pan to be used on each cooking zone (see
table below). To obtain the most efficient cooking operation, please place
the pan in the centre of the cooking zone.
Minimum Diameter mm
140
120
≥200
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is
the same size as the cooking zone. Use pans whose diameter is as large as the
Cooking Zone
1 Rear left/Rear right zone
2 Front left/Front right zone
Flex zone
10

On/off.
Touch to increase the speed.
Touch to decrease the speed.
If the timer control is pressed repeatedly during the countdown the display
will stop flashing and the countdown will cease.
At the end of the 5 minute countdown the extractor motor and the light will turn
off automatically. The display continues to flash, and the beeping continues.
Press any key to stop the beeping and flashing and return to standby state. If
there is no action, it will automatically return to standby after 5 seconds.
Boost function: Press and hold until the buzzer sounds. The indicator
light will keep flashing. The Boost speed will engage and the digital display
will show 'b' synchronously. After operating for 5 minutes the Boost function
will cease and the extractor will return to speed 3 automatically.
To cancel the Boost function during operation press and hold to return to
speed 3.
Timer control.
The digital display indicates: 1 for low
speed.
2 for medium speed.
3 for high speed.
b for Boost function (maximum speed).
Key combinations for the air extraction system
Turn on the extractor system: Touch the on/off button and the
extractor will commence operation at the same speed at which it was last
to decrease the extractor speed. Touch
for 1 second or touch the timer control.
used. Touch to increase or
the on/off button to turn off.
Quick timer: Touch and
Using the Extraction System
It is recommended that for general use the Air Extraction System is turned
on before the cooktop.
Touch control panel for ease of operation
The display will flash and the 5 minute countdown will begin.
11

1. Touch the ON/OFF control.
After power on, the buzzer beeps once, all displays
show " – " indicating that the induction
cooktop has entered the standby mode.
2. Place a suitable pan on the cooking zone that you
wish to use.
• Make sure the bottom of the pan and the surface
of the cooking zone are clean and dry.
3. Touch the cooking zone selection control,
and an indicator next to the key will flash.
4. Select a power level by sliding from left to right
along the power level control until the desired power
level (0-9) is shown in the display.
• If you don’t choose a power level within 1 minute, the cooktop will
automatically switch off. You will need to start again at step 1.
•You can modify the power level at any time during cooking.
Usingthe Cooktop
Cooking Zones: These instructions are for the left side of the control panel.
The right side operates in a similar manner, using the relevant buttons and
display.
To start cooking
12

If the display flashes Ā8āalternately with the heat setting
This means that:
•there is no pan placed on the correct cooking zone or,
•the pan being used is not suitable for induction cooking or,
•the pan is too small or not properly centered on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 2 minutes if no suitable pan is
placed on it.
When Cooking is Finished
1. Touch the cooking zone selection control of the zone to be switched off.
2. Turn the cooking zone off by sliding down to” 0”. Make sure the display
shows”0”.
3. Turn the whole cooktop off by touching the ON/OFF control.
4. Beware of hot surfaces. "H" will show which cooking zone is hot to touch. It
will disappear when the surface has cooled down to a safe temperature. It can
also be used as an energy saving function. Use the zone that is still hot to heat
other pans.
To Use the Flex Zone
control to use the left Flex zone.
(There is no need need to select the Left front zone or Left rear zone separately.)
Touch the control again if you want to cancel the Flex Zone during operation.
Follow the same procedure to use the right Flex Zone, using the control.
Correct and incorrect layout of
pans on Flex zones. See also
Pan Dimensions on page 10.
13
Select a heat setting by touching the
This area can be used as a single zone or as two different zones, according to
cooking needs.

. The timer indicator will show “ Lo “
To Lock the Controls
Touch the keylock control
To Unlock the Controls
for a short time.
1. Make sure the cooktop is turned on.
2. Touch and hold the keylock control
3. The cooktop is now ready to use.
When the cooktop is in lock mode, all the controls are disabled
except ON/OFF and Pause/Resume. The induction cooktop can be
turned off with the ON/OFF control in an emergency, but then it must
be unlocked before the next operation.
Over-Temperature Protection
A temperature sensor monitors the temperature inside the Induction cooktop.
When an excessive temperature is detected, the Induction cooktop will stop
operation automatically.
Detection of Small Articles
When an unsuitable size or non-magnetic pan (e.g. aluminium), or some
other small item (e.g. knife, fork, key) has been left on the cooktop,
the cooktop automatically goes to standby in 1 minute. The fan will keep
cooling down the induction cooktop for a further 1 minute.
Auto Shutdown Protection
Auto shut down is a safety protection function for your cooktop. It shuts down
automatically if you forget to turn off your cooktop. The default working times
for various power levels are shown in the table below: 
Power level 1 2 3 4 5 6 7 8 9
Default working timer (hour) 8 8 8 4 4 4 2 2 2
People with a heart pace maker should consult with their doctor before
using this unit or any other induction cooktop.
Locking the Controls
•The controls can be locked to prevent unintended use (for example children
accidentally turning the cooking zones on).
•When the controls are locked, all the controls except the ON/OFF and Pause/
Resume controls are disabled.
14

Set the timer to turn one or more cooking zones off after the set time is up.
The timer can be set from 00 up to 99 minutes.
1. When the timer is set, it will begin to count down immediately. The display
will show the remaining time and the timer indicator will flash for 5 seconds.
2. Buzzer will beep for 30 seconds and the timer indicator shows “- - “ when the
set time is finished.
Setting the timer to turn off one cooking zone:
1. Touch the cooking zone selection control, then touch the timer control, the
minder indicator will start flashing and show “30”. If you want to set the timer
for example for 25 minutes:
2. Touch timer control . As the indicator is flashing set the "tens" figure by
sliding to choose “2”, then press the timer again. As the indicator is flashing set
the single digit figure by sliding to the ”5”. The indicator will start flashing, “25”
will show in the timer display for 3-5 seconds, then the timer is set and count
down will commence.
Hint: Sliding the timer control from left to right once when the "tens" place is
, and the
display again.
Pause/Resume Function
If you want to pause the working cooktop, touch button will
show” 11 11”. To resume cooking, touch the button
Using the Timer
15

flashing will increase the time by 10 minutes. Sliding the control from right to
left will decrease the time.
3. If the setting time exceeds 99 minutes, the timer will automatically return to
00 minute setting. The ” 00” showing in the minute display indicates the timer
is canceled. Show the”-“, or press the timer to cancel the timer directly.
4. When the timer is set, it will begin to count down immediately. The
display will show the remaining time and the timer indicator will flash for 5
seconds.
NOTE: The red dot next to the power level indicator will illuminate indicating
the zone that is selected.
5. When the cooking timer expires, the corresponding cooking zone will switch
off automatically and its related display will show “H”.
Other cooking zones will continue operating if they were switched
on previously.
Setting the timer to turn off more than one cooking zone:
1. If this function is used for more than one cooking zone, the timer indicator will
show the shortest time.
(e.g. if a zone has a set time of 3 minutes, and another zone has a set
time of 6 minutes, the timer indicator shows “3”.)
NOTE: The flashing red dot next to the power level indicator means the
Sliding the timer control from left to right once when the single digit place is
flashing will increase the time by 1 minute. Sliding the control from right to
left will decrease the time.
16

timer indicator is showing the time of that cooking zone. If you want to
check the set time of another cooking zone, touch the cooking zone
selection control. The timer will indicate its set time.
2. When cooking timer expires, the corresponding cooking zone will be
automatically switched off and show “H”.
NOTE: To change the time after the timer is set, start again from step 1.
Cooking Guidelines
Take care when frying as the oil and fat heat up very quickly,
particularly if you’re using high power. At extremely high temperatures
oil and fat will ignite spontaneously and this presents a serious fire risk.
Cooking Tips
• When food comes to the boil, reduce the temperature setting.
•Using a lid will reduce cooking times and save energy by retaining heat.
•Minimise the amount of liquid or fat to reduce cooking times.
•Start cooking on a high setting and reduce the setting when the food has
heated through.
Simmering, cooking rice
• Simmering occurs below boiling point, at around 85˚C, when bubbles are
just rising occasionally to the surface of the cooking liquid. It is the key to
delicious soups and tender stews because the flavours develop without
overcooking the food. You should also cook egg-based and flour-thickened
sauces below boiling point.
•Some tasks, including cooking rice by the absorption method, may require a
setting higher than the lowest setting to ensure the food is cooked properly in
the time recommended.
Searing steak
To cook juicy flavoursome steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
17

2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the
hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend
on the thickness of the steak and how cooked you want it. Times may vary
from about 2 – 8 minutes per side. Press the steak to gauge how cooked it
is – the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax
and become tender before serving.
For stir-frying
1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If
cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking
zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Heat Settings
The settings below are guidelines only. The exact setting will depend on several
factors, including your cookware and the amount you are cooking. Experiment
with the induction cooktop to find the settings that best suit you.
Heat setting Suitability
1 - 2 • delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn quickly
• gentle simmering
• slow warming
3 - 4 • reheating
• rapid simmering
• cooking rice
5 - 6 • pancakes
7 - 8 • sautéing
• cooking pasta
9 • stir-frying
• searing
• bringing soup to the boil
• boiling water
18

Care and Cleaning
What? How? Important!
Everyday soiling on
glass (fingerprints,
marks, stains left by
food or non-sugary
spillovers on the
glass)
1. Switch the power to the
cooktop off.
2. Apply a cooktop cleaner
while the glass is still warm
(but not hot)!
3. Rinse and wipe dry with a
clean cloth or paper towel.
4. Switch the power to the
cooktop back on.
Boilovers, melts,
and hot sugary
spills on the glass
Remove these immediately
with a fish slice, palette knife or
razor blade scraper suitable for
Induction glass cooktops, but
beware of hot cooking zone
surfaces:
1. Switch the power to the
cooktop off at the wall.
2. Hold the blade or utensil at a
30° angle and scrape the
soiling or spill to a cool area
of the cooktop.
3. Clean the soiling or spill up
with a dish cloth or paper
towel.
4. Follow steps 2 to 4 for
'Everyday soiling on glass'
above.
Remove stains left by melts and
sugary food or spillovers as soon
as possible. If left to cool on the
glass, they may be difficult to
remove or even permanently
damage the glass surface.
Cut hazard: when the safety cover
is retracted, the blade in a scraper
is razor-sharp. Use with extreme
care and always store safely and
out of reach of children.
When the power to the cooktop is
switched off, there will be no hot
surface' indication but the cooking
zone may still be hot! Take extreme
care.
Heavy-duty scourers, some nylon
scourers and harsh/abrasive
cleaning agents may scratch the
glass. Always read the label to
check if your cleaner or scourer is
suitable.
Never leave cleaning residue on the
cooktop: the glass may become
stained.
Spillovers on the
touch controls
Switch the power to the
cooktop off.
Soak up the spill
Wipe the touch control area
with a clean damp sponge or
cloth.
Wipe the area completely
dry
5. Switch the power to the
cooktop back on.
The cooktop may beep and turn
itself off, and the touch controls
may not function while there is
liquid on them. Make sure you wipe
the touch control area dry before
turning the cooktop back on.
19

Filter Maintenance and Replacement
Your Kleenmaid Air Extraction System has the following types of filters:
1. The visible aluminum grease filter. These filters should be removed, cleaned and re-
installed at least every three months, and more often if food is regularly fried or grilled. These
filters may be cleaned either with a soft-bristled brush in warm soapy water, or in a dishwasher
(without other items to avoid contaminating the filter). Ensure that each filter is completely dry
before re-installing it into the centre of the cooktop. Normally these filters will last the life of the
extractor however if they are damaged in any way, replacements may be purchased by
emailing [email protected] or calling 02 9310 1207.
To clean the filter:
-Ensure appliance is turned off.
-Remove the inlet grill in the centre of the cooktop.
-Remove grease filter cassette and remove filter from cassette.
-Wash filter in dishwasher, allow to dry and replace filter in cassette.
-Replace grease filter cassette, ensuring the hole in the side of the cassette
is on the same side as the air outlet.
-Replace inlet grill.
2. The internal Kleenmaid KleenAir Activated Charcoal (or “Carbon”) Filter. This filter is
located in the air outlet box mounted in the kick plate and removes cooking odours from the
air if the extractor is installed in recirculating rather than venting mode. These filters cannot
be cleaned and will require replacement. The effective life of the filter depends on the type
and amount of cooking you do. Generally the life of these filters is approximately six months.
However, always replace the filter when it no longer absorbs odours effectively. When
replacement KleenAir Activated Charcoal filters are required they may be purchased by
visiting the Kleenmaid website www.kleenmaid.com.au, emailing
[email protected] or calling 02 9310 1207.
To change the KleenAir Activated Charcoal filter:
-Ensure appliance is turned off.
-Remove the stainless steel outlet grill from the kickplate.
-Remove carbon filter box behind outlet grill, take out charcoal filter and replace with new
filter.
-Replace carbon filter box and stainless steel outlet grill.
20
Warning: It must be ensured that the filters are correctly installed whenever the Air
Extraction System is operating. Failure to do so may damage the extractor and such damage
will not be covered by the manufacturer’s warranty.
