Kleenmaid GCT9012 User manual

cooking collection
Instructions for use and warranty details
*DV&RRNWRS
0RGHO1RGCT9012

Dear Customer,
Thank you and congratulations for choosing Kleenmaid.
Your new appliance has been designed and meticulously tested
to ensure that it meets all your culinary requirements, and
has been carefully manufactured using top quality materials to give
you years of reliable performance.
For best results, carefully read the instructions on how your new
appliance is to be installed. Correct installation will avoid delays and
unnecessary service call costs.
Once installation is complete, please read this instruction manual
carefully and get to know the controls and the features of your
new Kleenmaid appliance. These simple instructions will enable
you to achieve excellent results from the very first time you use it.
Again, congratulations and thank you for choosing The Best You
Can Own.
KLEENMAID

contents
Preface
Instructions for Use and Maintenance
Safety Warning
8
Technical Instructions
6
16
17
18
21
15
13
12
23
2
5
4
3
8
9
10
22
24
Safety Instructions
Installation
Child and People Safety
During Use
Cleaning and Service
Environmental Information
Description of the Appliance
How to Use the Appliance
Safety and Energy Saving Advice
Cleaning and Maintenance
Installation Instructions
Positioning
Installing the Appliance
Gas Connection
Gas Specification
Electrical Connection
Gas Adjustment
Trouble shooting

Danger/Warning
Caution Neglect of this mark may result in minor personal injury
or property damage.
Caution No Access
No Fire Tool Must Do
Danger
- Do not turn on the light.
- Do not switch on/off any electrical appliance and do not touch any electric plug.
- Do not use a telephone.
1 Stop using the product and close the main gas supply valve.
2 Open the window to ventilate.
3 Contact a service centre by using a phone outside.
cilrag nettor fo llems( kael sag eht llems nac uoy taht os ,natpacrem sniatnoc sag leuf ehT *
or egg) even where only a proportion of 1/1000 of the gas is in the air.
The following marks are used in the User Manual as
follows:
3

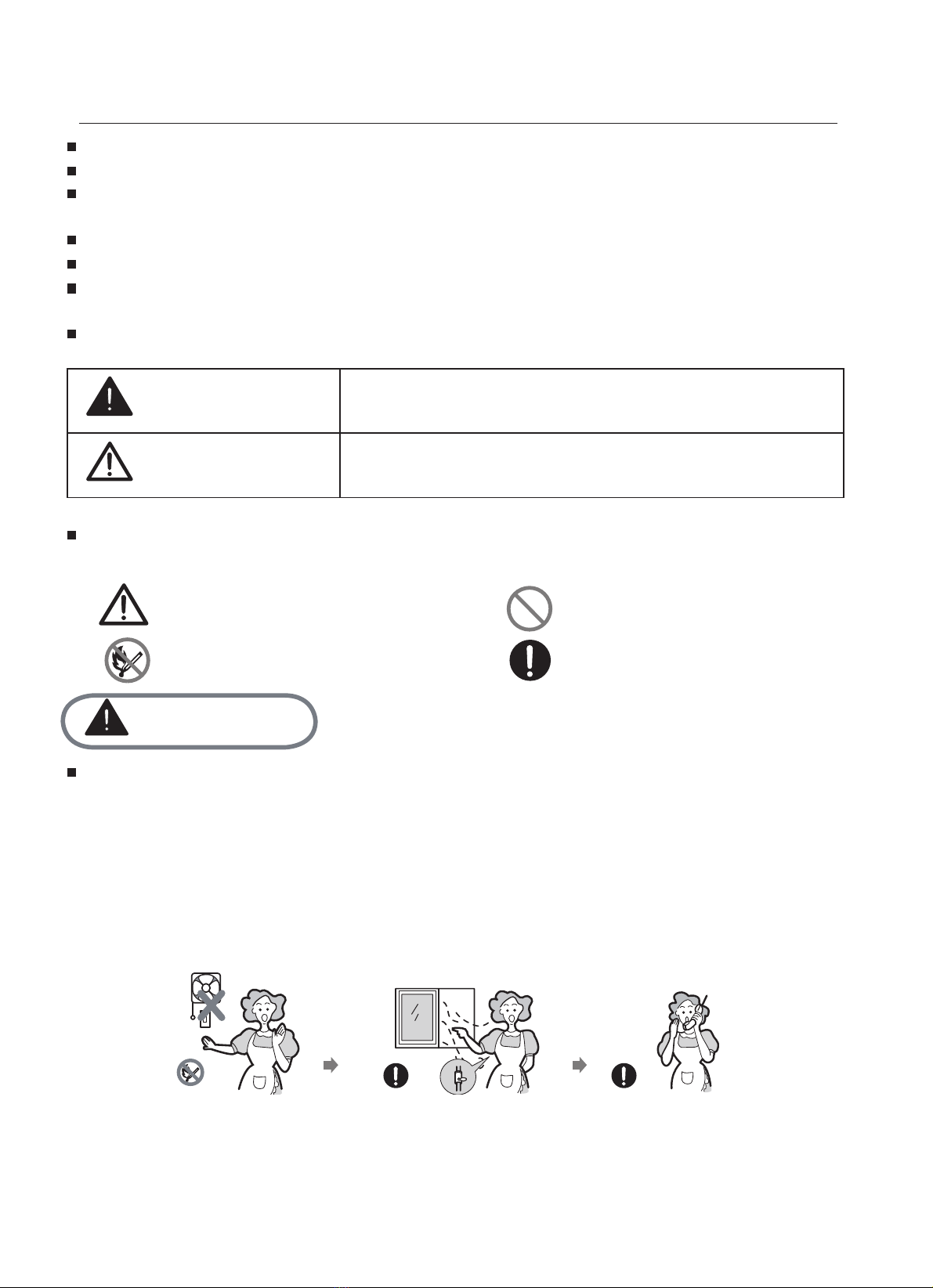

If there is a possible gas leak, take the following actions :
Neglect of this mark may result in severe personal injury
or death.
Safety Instructions
Please take the time to read this User Manual before installing or using the appliance.
This User Manual must be kept with the appliance for any future reference.
If the appliance is sold or transferred to another person, ensure the manual is passed on
to the new user.
The manufacturer declines any liability should these safety measures not be observed.
Read the following contents thoroughly and ensure you understand them.
The manufacturer shall not be responsible for any damages to persons or property caused
by incorrect installation or use of the appliance.
The following marks are made to be easily understood so that you can prevent any
accident caused by misuse in advance, and use the appliance more conveniently.

Installation
Warning
This appliance shall be installed in
accordance with regulations in force
and only used in a well ventilated
space.
Prior to installation,ensure that the
gas and electrical supply complies
with the type stated on the rating
plate.
Where this appliance is installed in
marine craft or in caravans, it should
not be used as a space heater.
The gas pipe and electrical cable
must be installed in such a way that
they do not touch any parts or the
appliance.
Caution
4
220V-240V
■ This appliance should be installed by a qualified technician or installer.
■ The adjustment conditions for this appliance are stated on the label or data plate.
■ Remove all packaging before using the appliance.
■ After unpacking the appliance, make sure the product is not damaged and that the
connection cord is in perfect condition. Otherwise, contact the dealer before
installing the appliance.
■ The adjacent furniture and all materials used in the installation must be able to
withstand a minimum temperature of 85˚C above the ambient temperature of the
room it is located in, whilst in use.
■ In the event of burner flames being accidentally extinguished, turn off the burner
control and do not attempt to re-ignite the burner for at least one minute.
■
The use of a gas cooking appliance results in the production of heat and moisture in the
room in which it is installed. Ensure that the kitchen is well ventilated: keep natural
ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
■ Prolonged intensive use of the appliance may call for additional ventilation, for
example opening of a window, or more effective ventilation, for example increasing
the level of mechanical ventilation where present.

Child and People Safety
Do not allow children to play near or with the appliance.
The appliance gets hot when it is in use.
Children should be kept away until it has cooled.
Warning
Caution
5
■ This appliance is designed to be operated by adults.
■ Children can injure themselves by pulling pans or pots off the appliance.
■ This appliance is not intended for use by children or other persons whose physical,
sensory or mental capabilities or lack of experience and knowledge prevents them
from using the appliance safety without supervision or instruction by a responsible
person to ensure that they can use the appliance safety.

During Use
Warning
The use of a gas cooking appliance
results in the production of heat and
moisture in the room in which it is
installed. Ensure that the kitchen is
well ventilated : keep natural
ventilation holes open or install a
mechanical ventilation device
(mechanical
extractor hood).
Never leave the appliance unattended
when cooking.
Burner
panel is not designed to operate from
an external timer or separate remote
control system.
6

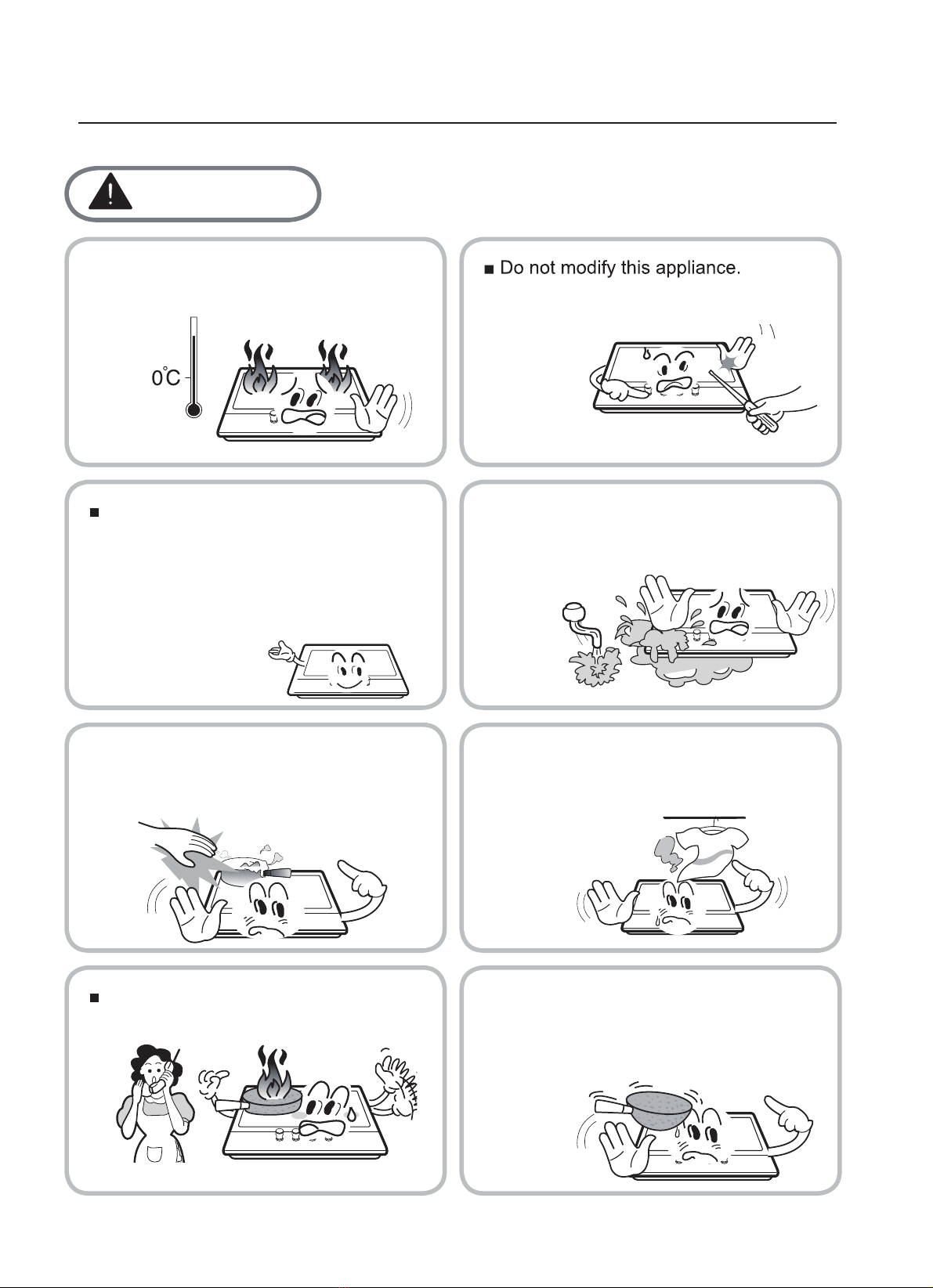

■ Only use the appliance for preparing
food.
in contact with water. Do not operate
this appliance with wet hands.
■ Do not use this appliance if it comes
■ The heating and cooking surfaces of
the appliance become hot when they
are in use - take all due precautions.
■ Do not use large cloths, tea towels or
similar as the ends could touch the
flames and catch fire.
■ Unstable or misshapen pans should
not be used on the appliance as they
can cause an accident by tipping or
spillage.

During Use
■ Do not spray aerosols in the vicinity of
this appliance while it is in operaiton. ‘ ’ position when not in use.
Caution
7
■ Do not use or store flammable materials
in a storage drawer near this appliance.
■ Perishable food, plastic items and
aerosols may be affected by heat and
should not stored above or below the
appliance.
■ Ensure the control knobs are in the
This appliance is intended for domestic cooking only.It is not designed for commercial
or industrial purposes.
Prolonged intensive use of the appliance may call for additional ventilation,for example
opening of a window, or increasing the level of mechanical ventilation where present.
■ When using glass cookware, make sure it is designed for cooktop use.
■ To minimise the possibility of burns, ignition of flammable materials and spillage, turn
cookware handles toward the side or center of the cooktop without extending over
adjacent burners.
■ Always turn burner controls off before removing cookware.
■ Carefully watch foods being fried at a high flame setting.
■ Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh
using the appliance.
'RQRWXVHDWHDWRZHORUVLPLODUPDWHULDOVLQSODFHRIDSRWKROGHU 6XFKFORWKV
FDQFDWFKILUHRQDKRWEXUQHU
foods can cause hot fat to bubble up and over the sides of the pan.
Always heat fat slowly and watch as it heats. Never try to move a pan of
hot fat, especially a deep fat fryer. Wait until the fat is completely cool.
■ Use heat-resistant pot holders or gloves when handling hot pots and pans.
■ Do not let pot holders come near open flames when lifting cookware.
■ Take care not to let pot holders or gloves get damp or wet, as this causes heat to transfer
through the material quicker with the risk of burning yourself.
■ Only ever use the burners after placing pots and pans on them. Do not heat up any empty
pots or pans.
■ Never use plastic or aluminium foil dishes on the appliance.
■ When using other electrical appliances, ensure the cable does not come into contact with
the appliance surfaces of the cooking appliance.
■ If you have any mechanical parts eg. an artifical heart in your body, consult a doctor before
Danger of fire:
Do not store
items on the
cooking surface.

Cleaning and Service
Environmental Information
unusable, by cutting off the cable.
disposed with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
agents.
Warning
clean the appliance.
or serviced by an authorised
technician and only genuine
approved spare parts should
be used.
Caution
8

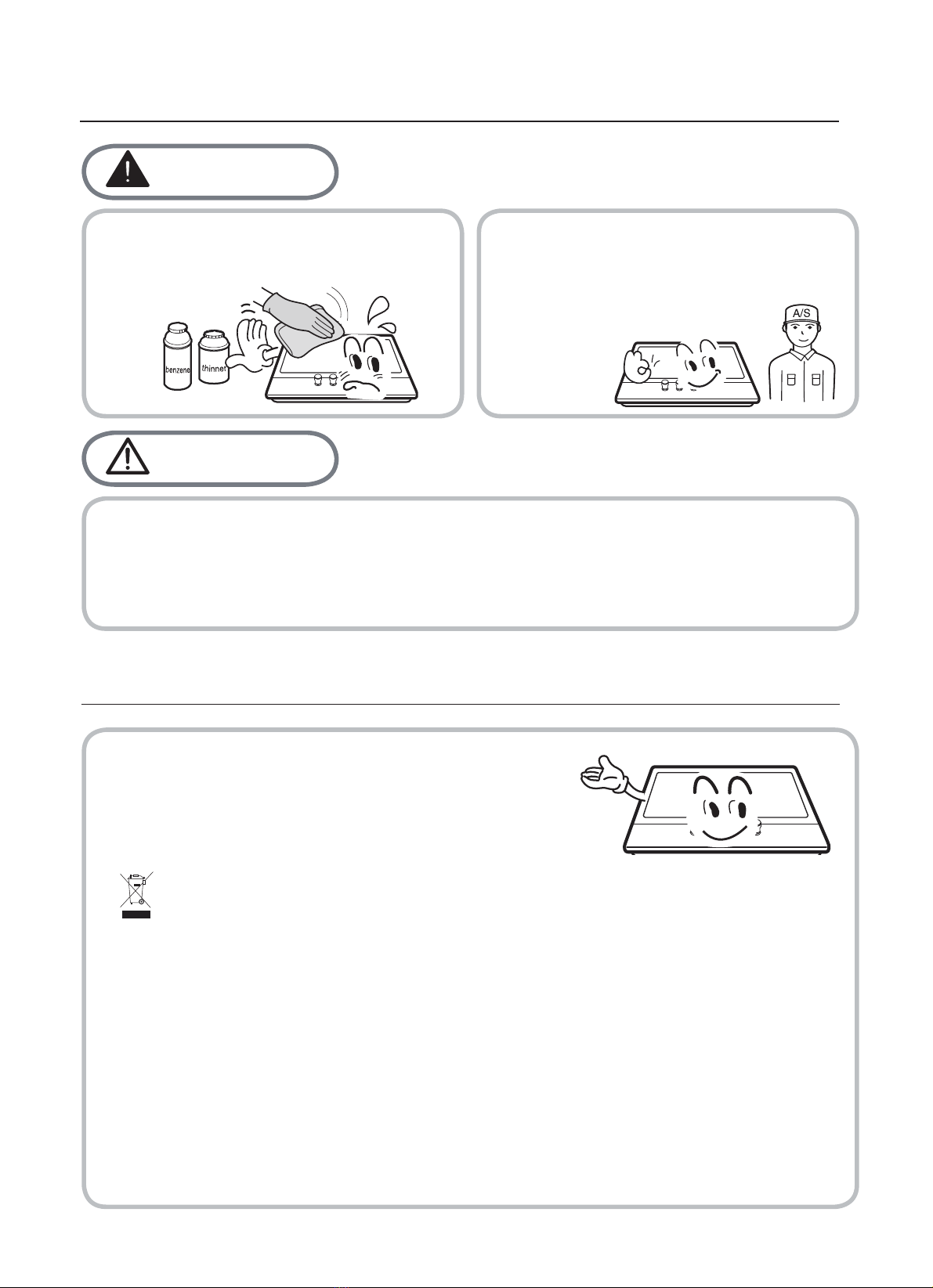

■ Never use abrasive or caustic cleaning ■ This appliance should only be repaired
■ Before attempting to clean the appliance, it should be disconnected from the main
power supply and cooled.
■ You should not use a steam jet or any other high pressure cleaning equipment to
■ After installation, please dispose of the packaging
with due regard to safety and the environment.
■ When disposing of an old appliance, make it
■ This marking shown on the product or its literature, indicates that it should not be
■ Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take this item
for environmentally safe recycling.
■ Business users should contact their supplier and check the terms and conditions of
the purchase contract. This product should not be mixed with other commercial
wastes for disposal.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)

9
Description of the Appliance
ΣQn
11.1kW
860*510*90
Continuous
Ignition
Type
G1/2 thread
2W
220-240Vac,
50Hz-60Hz,
Stainless
Ignition
device
Gas
Connection
Electric
supply
Burner
Feature
Dimension
(W*D*H)
Top Plate
Steel
Rapid (1),
Semi-rapid(2),
Auxiliary (1),
Triple-Crown(1)

A
How to Use the Appliance
ccessories
Description of the Appliance
Black circle: gas off
Large flame: maximum setting
Small flame: minimum setting
10
Bracket (4) Sponge (4)
Screw
(4)
Elbow
(1) Auxiliary pan support (1)
(5)
User
Manual (1)
Voltage regulator valve (1)
Pressure joint(1)
The appliance is fitted with a flame failure safety device on each burner, which is
designed to stop the flow of gas to the burner head in the event of the flame going out.
Injector
The minimum setting is at the end of the anti-clockwise rotation of the control handle.
All operation positions must be selected between the maximum and minimum position.
The symbol on the control panel, next to the control handle will indicate which burner it
operates.
Automatic ignition with flame failure safety device
The following symbols will appear on the control panel, next to each control handle :

How to Use the Appliance
To ignite a burner:
oPress in the control knob of the burner that you wish to light and turn it
anti-clockwise to the maximum position.
o
o
o
oTo switch the burner off, turn the control knob fully clockwise to the gas
off position.
o In case of power failure, the burners can be lit by carefully using a match.
11
If you keep the control knob depressed, the automatic ignition for the
burner will operate.
You should hold down the control knob for 15 seconds after the flame on
the burner has lit. If after 15s the burner has not lit, stop operating the
device and wait at least 1 min before attempting a further ignition of the
burner.
After this 15-second interval, to regulate the flame you should continue
turning the control knob anti-clockwise until the flame is at a suitable level.
The operating position MUST be at a position between the maximum and
minimum position.

Safety and Energy saving advice

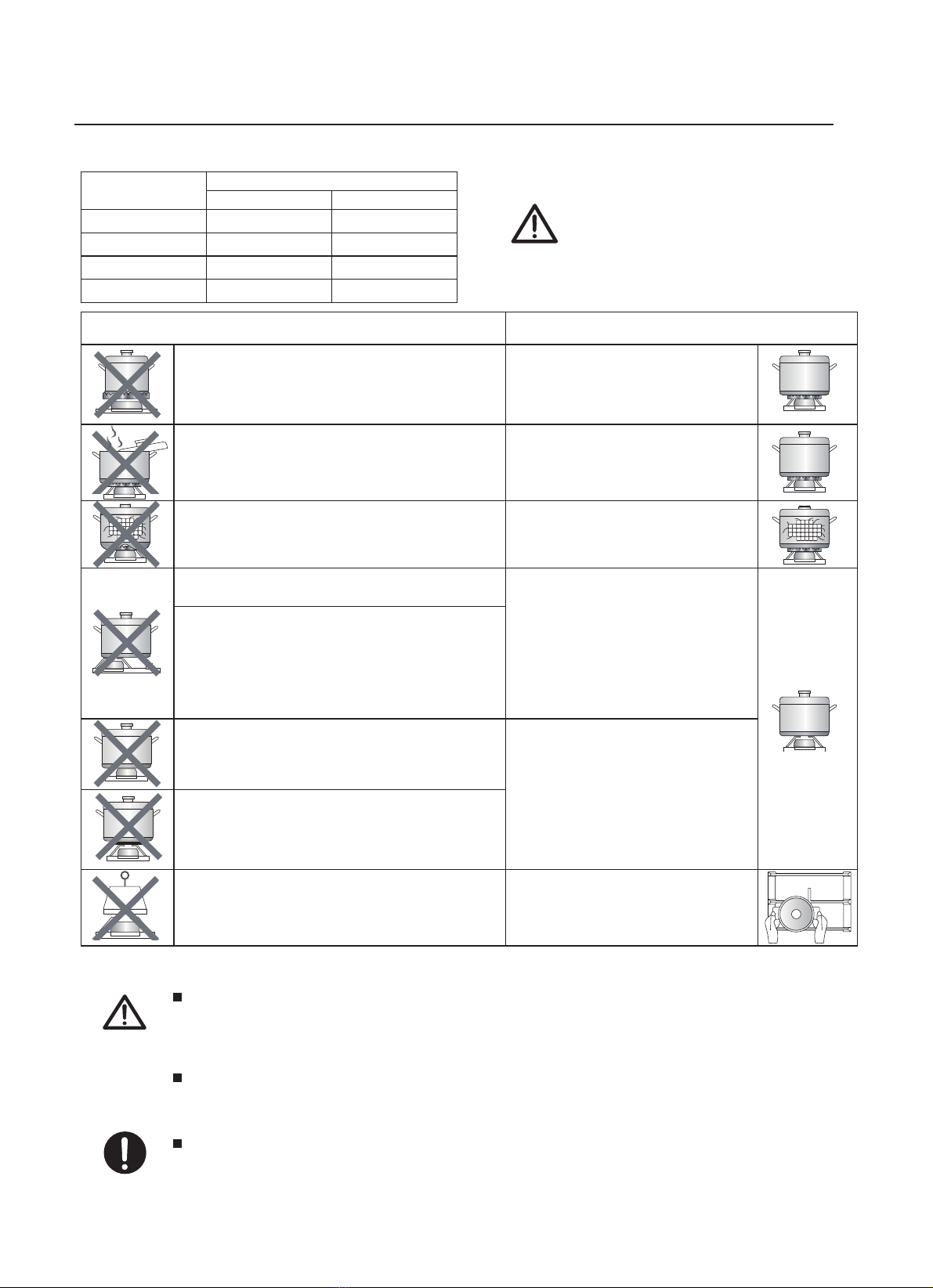

- The diameter of the bottom of the pan should correspond to that of the burner.
BURNERS
200mm 240mm
200mm 240mm
160mm
NO YES
120mm 160mm
180mm
12
Triple-Crown
Rapid
Semi-Rapid
Auxiliary
PANS
min. max.
Do not use small diameter cookware on large
burners.
The flame should never come up the sides of
the cookware.
Avoid cooking without a lid or with the lid
half off as this wastes energy
Do not use a pan with a convex or
concave bottom.
Do not place cookware on one side of a
burner, as it could tip over.
Do not use cookware with a large diameter
on the burners near the controls. When
placed on the middle of the burner large pots
may touch the controls or be so close to
them that they increase the temperature in
this area and may cause damage to the
controls.
Never place cookware directly on top of the
burner.
Do not place anything, eg. flame tamer or
an asbestos mat between a pan and the
pan support as serious damage to the
appliance may result.
Do not place excessive weight on the
cooktop and do not hit the cooktop with
heavy objects.
Always use cookware that is
suitable for each burner, to avoid
wasting gas and discolouring the
cookware.
Place a lid on the cookware.
Only use pots, saucepans and
frying pans with a thick,flat
bottom.
Always place the cookware
right over the burners, not to
one side.
Place the cookware on top of
the trivet.
Handle cookware carefully
whilst they are on the burner.
Ŷ'RQRWXVHFRRNZDUH
WKDW
 
RYHUODSVWKHHGJH of the
burner.
It is not recommended to use roasting pans, frying pans or grill stones
heated simultaneously on several burners because the resulting heat
build-up may damage the appliance.
Do not touch the top plate and trivet whilst in use, or until they cool after
use, to avoid burns or other injury.
As soon as a liquid starts boiling, turn down the flame so that it
barely keeps the liquid simmering.

Cleaning and Maintenance
Soft cloth
Neutral Detergent
Nylon Brush
13
Edible Oil
Abrasive
Detergent
Thinner/Benzene
Metal Brush
Acidic/Alkali
■ Take off the Pan support.
■ Clean these and the control handles with a damp cloth, washing up liquid and warm
water. For stubbon soiling, soak beforehand.
■ Dry everything with a clean soft cloth.
3DQVXSSRUW&RQWUROKDQGOHV
normal because of the high temperatures. Each time the appliance is used these
parts should be cleaned with a product that is suitable for stainless steel.
7RSSODWH
■ Regularly wipe over the top plate using a soft cloth well rung-out in warm water to
which a little washing up liquid has been added.
■ Dry the top plate thoroughly after cleaning.
■ Thoroughly remove salty foods or liquids from the cooktop immediately after use to
avoid the risk of corrosion.
■ Stainless steel parts of the appliance may become discoloured over time. This is
Ŷ &OHDQLQJRSHUDWLRQVPXVWRQO\EHFDUULHGRXWZKHQWKHDSSOLDQFH is
completely cool.
Ŷ7KHDSSOLDQFHVKRXOGEHGLVFRQQHFWHGIURP\RXUPDLQVVXSSO\EHIRUH
FRPPHQFLQJDQ\FOHDQLQJSURFHVV
Ŷ&OHDQWKHDSSOLDQFHUHJXODUO\SUHIHUDEO\DIWHUHDFKXVH
Ŷ$EUDVLYHFOHDQHUVRUVKDUSREMHFWVZLOOGDPDJHWKHDSSOLDQFHVXUIDFH.
COHDQing with ZDWHUDQGDOLWWOHZDVKLQJXSOLTXLG is recommended.

Cleaning and Maintenance
14
212
33
44
57
66
75
1.Place the burner head ( 4 ) on to the burner base ( 5 ) so that the ignition safety
device (6) and the igniter (7) extend through their respective holes in the burner
head. The burner head must click into place correctly.
2.Position the burner caps ( 1,2,3 ) onto the burner head ( 4 ) so that the retaining pins
fit into their respective recesses.
■ Remove the burner caps and burner heads by pulling them upwards and away
from the top plate.
■ Soak them in hot water and a little detergent or washing up liquid.
■ After cleaning and washing them, wipe and dry them carefully. Make sure that the
flame holes are clean and completely dry.
■ Wipe the fixed parts of the burner base with a damp cloth and dry afterwards.
■ Gently wipe the ignition safety device and igniter with a well wrung-out
cloth and wipe dry with a clean cloth.
■ Before placing the burners back on the top plate, make sure that the injector is not
%851(56
ʄ5HDVVHPEOHWKH$X[LOLDU\6HPL5DSLG5DSLGDQG
7ULSOH&URZQEXUQHUVDVIROORZV
5HSODFHSDUWVLQWKHFRUUHFWRUGHUDIWHUFOHDQLQJ
'RQRWPL[XSWKHWRSDQGERWWRP
7KHORFDWLQJSLQVPXVW¿WH[DFWO\LQWRWKHQRWFKHV
blocked.

Warnings
Installation Instructions
15
Ŷ'RQRWPRGLI\WKLVDSSOLDQFH
Ŷ7KLVDSSOLDQFHPXVWEHLQVWDOOHGE\DQDXWKRULVHGWHFKQLFLDQRU
LQVWDOOHU
Ŷ3ULRUWRLQVWDOODWLRQHQVXUHWKDWWKHORFDOGLVWULEXWLRQFRQGLWLRQV
QDWXUHRIWKHJDVDQGJDVSUHVVXUHDQGWKHDGMXVWPHQWRIWKH
DSSOLDQFHDUHFRPSDWLEOH
Ŷ7KHDGMXVWPHQWFRQGLWLRQVIRUWKLVDSSOLDQFHDUHVWDWHGRQWKHODEHO
RUGDWDSODWH
Ŷ7KLVDSSOLDQFHLVQRWFRQQHFWHGWRDFRPEXVWLRQSURGXFWVHYDFXDWLRQ
LQVWDOODWLRQUHJXODWLRQV3DUWLFXODUDWWHQWLRQ VKRXOG  EHJLYHQ WRWKH
UHOHYDQWUHTXLUHPHQWVUHJDUGLQJYHQWLODWRQ
Ŷ%HIRUHLQVWDOOLQJWXUQRIIWKHJDVDQGHOHFWULFLW\VXSSO\WRWKH
DSSOLDQFH
Ŷ$OODSSOLDQFHVFRQWDLQLQJDQ\HOHFWULFDOFRPSRQHQWVPXVWEHHDUWKHG
Ŷ(QVXUHWKDWWKHJDVSLSHDQGHOHFWULFDOFDEOHDUHLQVWDOOHGLQVXFKD
ZD\WKDWWKH\GRQRWWRXFKDQ\SDUWVRIWKHapplianceZKLFK may
EHFRPHKRW
ŶThe gas pipe or connector VKRXOGQ¶WEHEHQWRUEORFNHGE\DQ\RWKHU
DSSOLDQFHV
Ŷ&KHFNWKHGLPHQVLRQVRIWKHDSSOLDQFHDVZHOODVWKHGLPHQVLRQVRI
WKHJDSWREHFXWLQWKHNLWFKHQXQLW
Ŷ7KHSDQHOVORFDWHGDERYHWKHZRUNVXUIDFHGLUHFWO\QH[WWRWKH
DSSOLDQFHPXVWEHPDGHRIQRQÀDPPDEOHPDWHULDO%RWKWKHVWUDWL¿HG
VXUIDFLQJDQGWKHJOXHXVHGWRVHFXUHLWVKRXOGEHKHDWUHVLVWDQW
WRSUHYHQWGHWHULRUDWLRQ
Ŷ7XUQRQDSSOLDQFHWDSDQGOLJKWHDFKEXUQHU
&KHFNIRUDFOHDUEOXHÀDPHZLWKRXW\HOORZWLSSLQJ
,IEXUQHUVVKRZVDQ\DEQRUPDOLWLHVFKHFNWKHIROORZLQJ
%XUQHUcapRQFRUUHFWO\
Burner headSRVLWLRQHGFRUUHFWO\
%XUQHUYHUWLFDOO\DOLJQHGZLWKLQMHFWRUQLSSOH
Ŷ$IXOORSHUDWLRQDOWHVWDQGDWHVWIRUSRVVLEOHOHDNDJHVPXVWEHFDUULHG
RXWE\WKH¿WWHUDIWHUinstallation
Ŷ7KHÀH[LEOHKRVHVKouldEH¿WWHGLQVXFKDZD\WKDWLWFDQQRWFRPHLQWR
FRQWDFWZLWKDPRYHDEOHSDUWRIWKHKRXVLQJXQLWDQGGRHVQRWSDVV
WKURXJKDQ\VSDFHwhere it may become compressed or crowded
GHYLFH,WVKRXOG be installed and connected in accordance with current
Grease cranes produced at the factory are designed to last the life of the
cooktop.
Ŷ

Positioning
45 mm
The edges of the hob must be a minimum distance of 60 mm from a side or
rear wall.
The safety gap between the hob and the rangehood placed above must
comply with the recommendations of the rangehood manufacturer. In case of
no instructions, a minimum distance of 650mm (or other minimum distance as
may be specified by AS/NZS 5601 and interpreted by a certified installer)
should apply.
400 mm between the hob surfaces, providing that the underside of the
horizontal surface is in line with the outer edge of the hob. If the underside of
the horizontal surface is lower than 400 mm, then it must be at least 50 mm
away from the outer edges of the hob.
50 mm clearance around the appliance and between the hob surface and any
combustible materials.
You must have a gap of at least 25 mm and at most 74 mm between the
underneath of the appliance and any surface that is below it.
16
o
o
o
o
o
CLEARANCES REQUIRED
WHEN FITTING THE HOB WITH
A RANGEHOOD ABOVE
900mm
650mm
400mm
400mm
FO 0813
60mm
490mm
in
0.
0mm
M
2
This appliance is to be built into a kitchen unit or 600mm worktop,providing
the following minium distances are allowed;
- An oven must have forced ventilation to install a hob above it.
- Check the dimensions of the oven in the installation manual.
- The cut out size must obey the indication.
815mm

Installing the Appliance
Sponge
Bottom view
The thickness of the sponge is 3 mm.
The width of the sponge is 10 mm.
of the screws. There is one set of screw holes in each
corner of the hob (H) .
Slightly tighten a screw (C) through the bracket (B) so
that the bracket is attached to the hob, but so that you
can still adjust the position
.
2. Carefully turn the hob back over and then gently lower
it into the aperture hole that you have cut out.
3. On the underneath of the hob, adjust the brackets into
a position that is suitable for the worktop, then fully
tighten the screws (C) to secure the hob into position.
(A) SEALING STRIP
(C) SCREW (B) BRACKET
17
Remove the pan supports, the burner caps
and burner heads, carefully turn the
appliance upside down and place it on a
cushioned mat.
Take care that the ignition safety devices
and igniters are not damaged in this operation.
2. Apply the sponge provided around the
edge of the appliance.
3.
1.
Do not leave a gap in the sealing agent or
overlap the thickness.

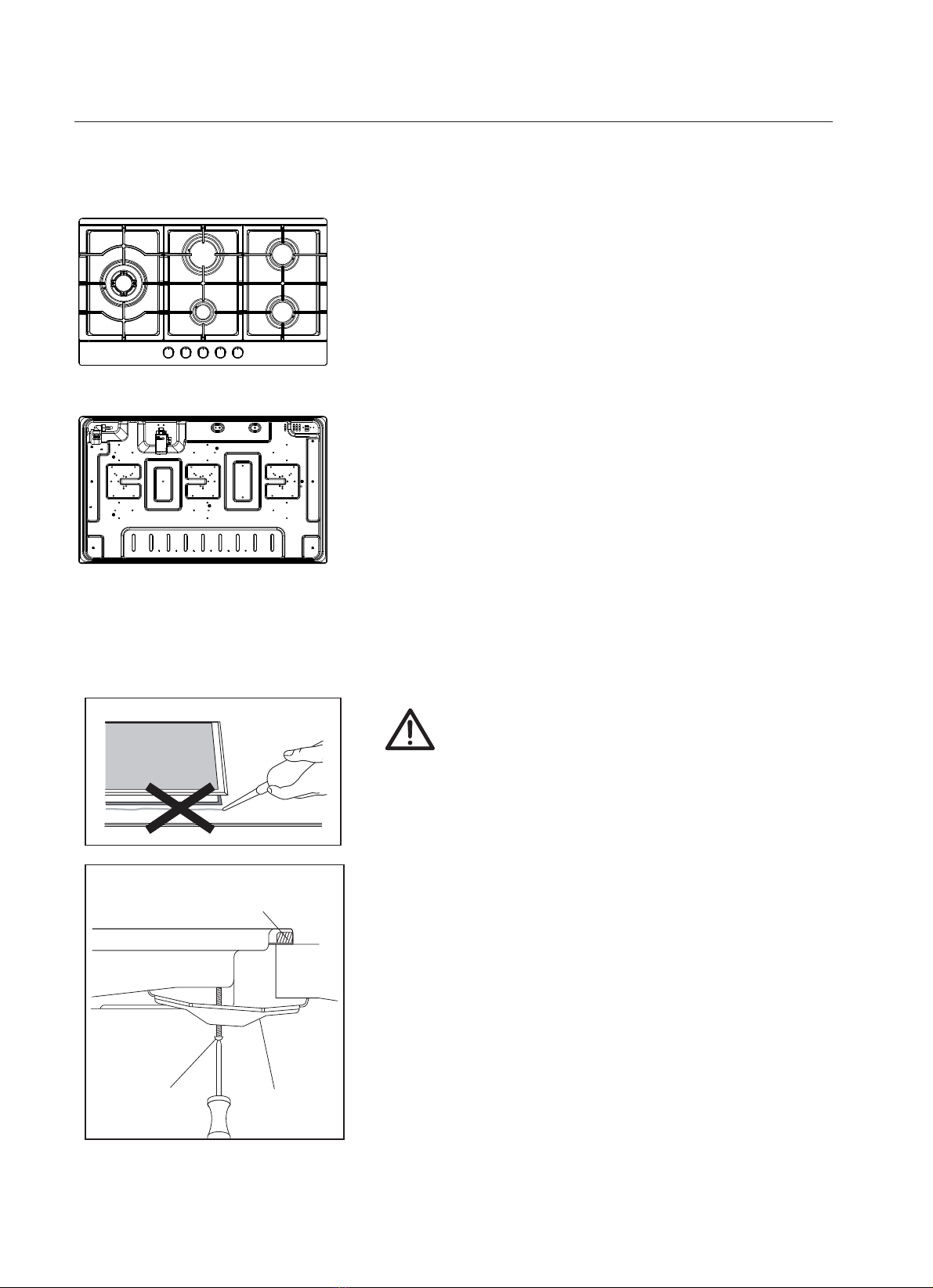

1. Place the bracket (B) over the holes that match the size
7KLVZLOOPDNHLWGLI¿FXOWWRUHPRYHWKH
DSSOLDQFHIURPWKHDSHUWXUHLQIXWXUH
SDUWLFXODUO\LILWQHHGVWREHVHUYLFHG
Do not use a silicon sealant to seal the
appliance against the aperture.

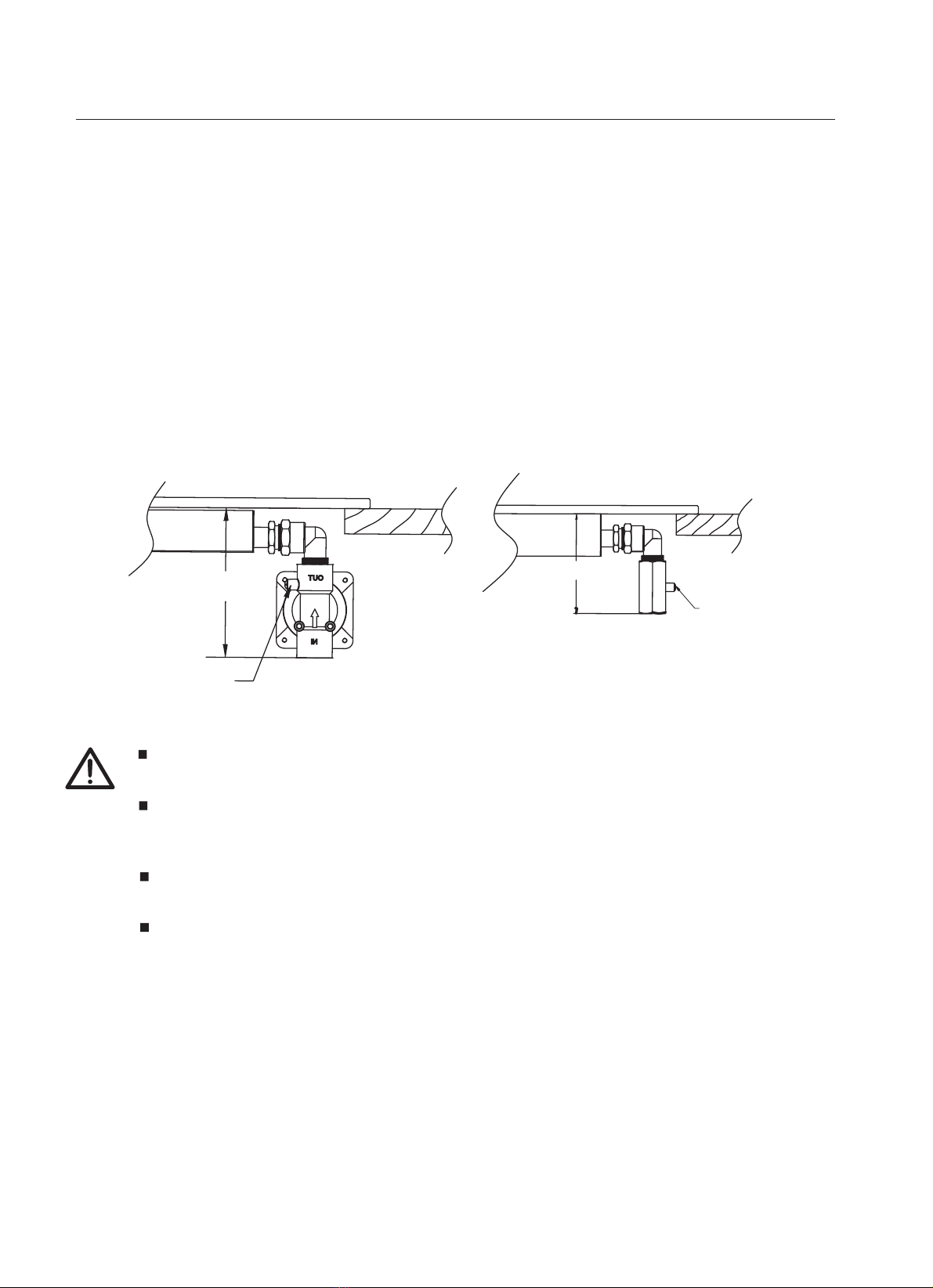

Gas Connection
18
B: Tightly lock a replaceable gas-type fitting onto the main gas tube.
Turn off the electrical power for safety and appliance protection. Close the
main gas supply valve to prevent gas leakage.
Keep inflammable materials away from the appliance.
Put on gloves before commencing work.
CAUTION
Allow the appliance to cool after use for your safety. The high temperature
reached by the appliance may cause burns.
Most of the tools that you might need are shown below. Some are optional.
Replacement of gas-type fitting
Tool: Open-end wrench
Steps for operation:
A: Disassemble with a wrench the gas-type fittings from main gas tube.
When you disassemble/assemble gas connection, use 2 spanners. One for fixing gas
connection elbow, the other for tightening gas hose.
Ŷ7KLVDSSOLDQFHPXVWEHLQVWDOOHGDQGFRQQHFWHGLQDFFRUGDQFHZLWKLQVWDOOD
WLRQUHJXODWLRQVLQIRUFHLQWKHFRXQWU\LQZKLFKWKHDSSOLDQFHLVWREHXVHG
Ŷ7KLVDSSOLDQFHLVVXSSOLHGWRUXQRQQDWXUDOJDVRQO\DQGFDQQRWEHXVHGRQ
DQ\RWKHUW\SHRIJDVZLWKRXWPRGL¿FDWLRQ&RQYHUVLRQIRUXVHRQ/3*DQG
RWKHUJDVHVPXVWRQO\EHXQGHUWDNHQE\DTXDOL¿HGSHUVRQ

Gas Connection
Statutory requirements
This installation must conform with the following:
■ Manufacturer’s Installation instructions
■ Local Gas Fitting Regulations
■ Municipal Building Codes
■ Refer to AS/NZS 5601.1 for Gas Installations
■ AS/NZS 3000 - Wiring Rules
■ Local Electrical Regulations
■ Any other statutory regulations
Preparing to install
Refer to AS/NZS 5601.1 for piping size details. These built-in cooktops are intended to be
inserted in a benchtop cutout. Only an officially authorised technician should connect the
appliance according to the relevant regulations. Before begining, turn off the gas and
electricity supply.
19
A full operational test and a test for possible leakages must be
carried out by the fitter after installation.
Access to the whole length of the connection hose must be possible
and the gas hose must be replaced before the end of its service life
(indicated on the hose).
Before leaving - Check all connections for gas leaks with soap
and water.
DO NOT use a naked flame for detecting leaks. Ignite all burners both
individually and concurrently to ensure correct operation of gas
valves, burners and ignition. Turn gas taps to low flame position and
observe the stability of the flame for each burner individually
and all together. Adhere the duplicate data plate to an accessible
location near the cooktop. When satisfied with the hotplate, please
instruct the user on the correct method of operation. In case the
appliance fails to operate correctly after all checks have been carried
out, refer to the authorised service provider in your area.
Natural gas connection
95
115
LPG gas connection
pressure test point
pressure test point
WARNING: THE BURNER FLAME MUST BE ADJUSTED BY THE
INSTALLER. FAULTY INSTALLATION IS NOT COVERED BY THE
MANUFACTURER’S WARRANTY.
