KLINGER KVN DN 65 User manual

wT 1209/11
Page 1
Assembly Instructions and Handling Regulations for
KLINGER
Piston Valves KVN DN 65 - 200 VI,VIII and
Regulating Piston KVRLN DN 65 - 200, PN 40 VI, VIII
„pressure released type“
with valve ring
″ KX-GT ″
Edition: 05/2001
Rev.: 03/2006
Fluid Control GmbH
Am Kanal 8-10
A-2352 Gumpoldskirchen/AUSTRIA
Telefon:++43(0) 2252 / 600 0
Telefax:++43(0) 2252 / 63336
++43(0) 2252 / 600 - 242
e-mail: [email protected]
WEB: www.klinger.kfc.at

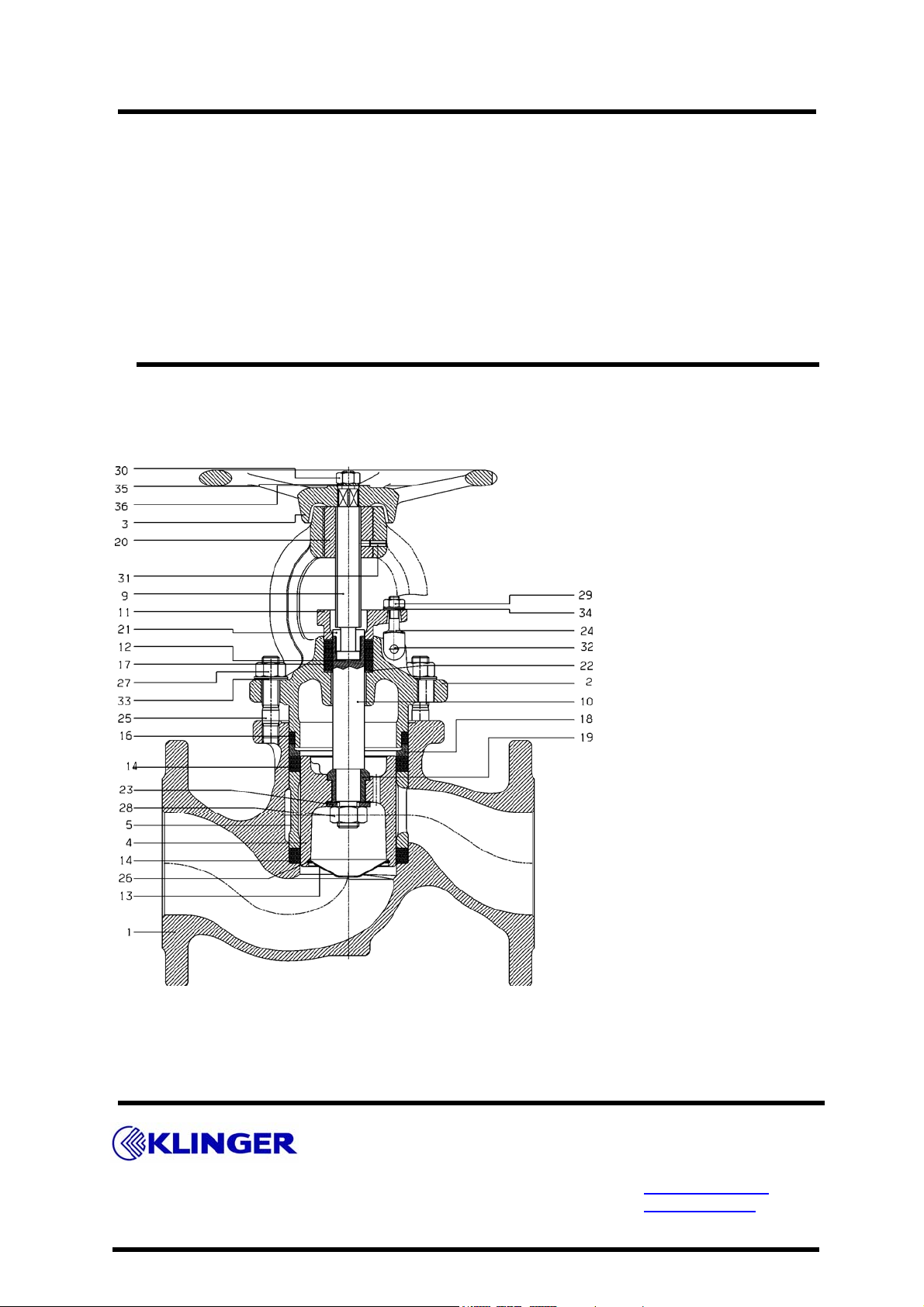

1 Body
2 Bonnet
3 Hand wheel
4 Piston
5 Lantern bush
9 Spindle
10 Piston shaft
11 Gland retainer
12 Disc
13 Piston nose cone
14 Valve ring KX-GT
16 Bonnet valve ring Graphite--L
17 Stuffing-box-ring-set KX-GT
18 Compression piece
19 Piston cone
20 Threaded bush
21 Two-part screwing
22 Spacer
23 Disc
24 Swing bolt
25 Stud bolt
26 Wire ring
27 Hexagon nut
28 Grooved hexagon nut
29 Hexagon nut
30 Hexagon nut
31 Tension pin
32 Straight grooved pin
33 Belleville washer
34 Belleville washer
35 Serrated lock washer
36 T
yp
e
p
late

wT 1209/11
Page 2
Contents
Page 3 Storage Regulations, Installation and Commissioning
Page 4 Operating Instructions, Servicing and Important Information
Page 5 Notes on Hazardous Operating
Page 5 to 8 Errors and Sources of Danger
Maintenance and Repair Instructions
Page 9 to 10 Illustrations for Assembly
Page 11 Data Sheet (Tightening Torques)
Page 12 to 13 Data Sheet Spare Parts
Page 14 Regulating Piston KVRLN

wT 1209/11
Page 3
Storage Regulations for KLINGER PISTON VALVES and Spare Parts
Store valves and spare parts in dry storerooms only.
Fully assembled valves must be stored in delivery condition (valve in closed position, end connections
fitted with protective caps.)
Valve spare parts must be handled with care and should, if possible, be kept in their original packaging
during storage.
If cover film or shrink wrapping is used, take the necessary steps to ensure that there is no
condensation in the air inside the covering.
Appropriate measures must be taken to protect the equipment in dusty environments.
To avoid confusion. all parts stored must be labelled as on the delivery note and stored in the correct
place.
Temperatures in the storeroom must not exceed the limit values of –20°C and +50°C and rapid
changes in temperature (causing condensation and perspiration) should be avoided.
Handling Regulations and Operating Instructions are supplied with, and should always be stored with,
the products to ensure that important information and documents are appropriately passed on.
There are special Components Technical Sheets (Page 12, 13) to aid identification of Klinger spare
parts.
Our customers will be notified by circular letter of any modifications that affect storage requirements.
Klinger accepts no liability derived from guarantees, warranties and product liability legislation for
damage suffered by products due to incorrect storage.
Installation and Commissioning Regulations for KLINGER PISTON VALVES
(KVN Models)
Klinger piston valves can be installed in any position in the piping system. The preferred through flow
direction (indicated by an arrow on the valve body) should, however, be observed.
KVN piston valves of DN 65 – 200 mat. code VI, VIII are equiped with pressure relieved pistons and
therefore have no piston pump action.
After commissioning valves with the KX-GT module, no special maintenance is required since there is
no setting as with conventional, soft-sealing valve rings.
KLINGER piston valves have a very rugged body. However it is still important to ensure that planeside
connections lie parallel and true to axis.

wT 1209/11
Page 4
Note: If the line and valve are subsequently insulated, the insulation should only
extend upto the head flange on the body side so that access to the bonnet hexagon
nuts is not impeded.
Since the valve body can remain in site for repairs and maintenance work, the
valve insulation does not need to be removable.
Klinger accepts no liability relating to guarantees, warranties and product liability legislation for damage
caused by incorrect installation and failure to observe the commissioning regulations.
Operating Instructions for KLINGER PISTON VALVES (KVN Model)
Klinger piston valves must be closed clockwise and opened anti-clockwise.
Especially when closing the valve, the hand wheel should be turned until it adjoins on the bonnet. Unlike
globe valves, piston valves do not require increased final torque. Due to the design of piston valves, a
seal may be achieved before the closed position is reached. To protect the valve rings, piston valves
must always be closed as far as they will go.
Because Klinger piston valves can also be used to regulate and to throttle, the above does not apply
when opening the valve or setting it to the open position for regulating or throttling purposes.
Through flow characteristics for valve throttle positions are available from Klinger on request.
If a valve starts being untight, check the tightening torques of the bonnet fastening nuts (27) referring to
the table on page 11 and tighten if necessary.
The valve has to be in CLOSED position, except valves adjusted with KX-GT valve rings may remain
also in OPEN position.
Klinger accepts no liability relating to guarantees, warranties and product liability legislation for damage
caused by failure to observe the operating instructions.
Recommended Preventative Maintenance to Obtain the Best Possible Service Life
from KLINGER VALVES
As with all spindle-operated mechanisms, regular lubrication can substantially prolong the useful life of
the spindle (9). In addition, less effort is required to operate the hand wheel when the spindle is well
lubricated.

wT 1209/11
Page 5
Hazardous Operating Errors and Possible Sources of Danger
Piston valves provide a particularly good seal. During Temperature changes, process fluid captured
between two piston valves can cause considerable changes in pressure which may exceed the
pressure category of the valve. In such cases, appropriate volume compensation (expansion tank) is
necessary.
Always ensure that the correct tightening torque specified in the Technical Data Sheet on Page 11 is
applied to the bonnet hexagon nuts.
Do not loosen or undo these nuts while the valves are under pressure.
The valves must no be subjected to pressure shock in excess of one and a half times their rated
pressure.
When the spindle thread becomes so worn out that its stability seems endangered, release the pressure
and carry out the necessary maintenance.
Whatever the application, always consult the operating limits diagram (pressure-temperature) and also
consider the suitability of the materials for various process fluids.
Maintenance and Repair Instructions for
KLINGER – PISTON - VALVES (KVN Models)
Klinger piston valves are easy to repair using simple assembly and dismantling tools. The valve does
not have to be removed, but the line system must be depressurised and emptied.
We recommend the following procedure for dismantling:
•Depressurise and empty the system
•Open the valve fully
•Unscrew the stud bolt (25), then unmeant Belleville washers (33)
•Turn the hand wheel (3) clockwise (closing direction),at the same time bonnet (2) rises out of body
•Turn bonnet slightly until the flange adjoin against the stud bolt faces (25) and turn hand wheel anti-
clockwise (opening direction) until the piston (4) is completely free of the top valve ring (14),
(see Fig.1)

wT 1209/11
Page 6
•Remove upper block with hand wheel, piston, piston shaft (10) and spindle (9)
•Remove compression piece (18) and top valve ring using ring extractor hook, (see Fig. 2) *)
•Remove lantern gear using lantern bush (5) extractor, (see Fig. 3) *)
•Remove bottom valve ring (14) with ring extractor hook *)
•*) Be careful not to damage the housing bore of the valve body
•Clean the valve body and the valve ring seat, if necessary with fine sandpaper
•Remove bonnet valve ring (16) from bonnet neck
•Loose hexagon nut (30), remove serrated lock washer (35) and hand wheel (3)
•Unscrew hexagon nuts (29), remove Belleville washer (34) and lift off gland retainer (11)
•Unscrew the spindle downwards out of the threaded bush (20)
•Pull the piston shaft with the spindle down till it is out of the stuffing box ring (17)
•Tap the spacer (22) to remove the stuffing box ring set
Attention: Whenever the valve ring is replaced, always check at the same time that the
piston/spindle/bonnet assembly is functioning properly. Check that:
a) the outer cylinder surface of the piston and piston shaft is smooth and unmarked.
b) the spindle head moves freely in the two-part screwing
c) the trapezoid thread of the spindle is not unduly worn and
d) there is no excessive play between spindle and nut threads (in the bonnet and threaded bush)
If none of the above components needs replacing, lubricate the trapezoid thread and the neck of the
bonnet with a suitable lubricate, such as Metaflux Lubricating Metal Paste 70-85 before reassembling
the valve.
If the spindle. needs to be replaced we suggest to change always spindle and threaded bush as well. If
the above mentioned parts need replacement, proceed as follows:
•Tap the tension pin (31) out of the bonnet (inwards)
•Detach the wire ring (26) and Piston nose cone (13) from the piston
•Clamp the piston shaft in a vice
Attention: Imperatively use soft clamping jaws

wT 1209/11
Page 7
•Unscrew hexagon nut (28) Attention: left-hand thread) and disc (23) remove piston and piston
cone(19).
•Clamp the bonnet in the vice and unscrew the threaded bush using spindle, piston shaft and hand
wheel (see Fig.4)
•Clamp the piston shaft in the vice
Attention: Imperatively use soft clamping jaws
•Undo the two-part screwing (21)
Attention: Left-hand thread
•Remove the disc (12) from the piston shaft
Assembling Spindel Piston Shaft Piston
•Clamp the piston shaft (10) in the vice
Attention: Imperatively use soft clamping jaws
•Place the disc (12) and mount the spindle (9) into the piston shaft (after thoroughly lubricating the
spindle head with suitable lubricant) with the two-part screwing (21)
•Mount the piston cone (19) into the piston and then mount on the piston shaft after thoroughly
lubricating the piston cone
•Place disc (23) and tighten hexagon nut (28)
•Place piston nose cone (13) and mount wire ring (26)
Assembling Bonnet Unit
•Screw threaded bush (20) into bonnet (2), and pin together with tension pin (31)
•Clean stuffing box bore and neck of bonnet
•Place spacer (22) in stuffing box bore and position stuffing box rings (17) on stuffing box bore.
Mount stuffing box rings in use of the gland retainer (11) (see Fig..5)
Attention: Particular care should be taken to ensure that the stuffing box rings are inserted
correctly with the gland retainer
•Mount gland retainer (11) and secure with swing bolt (24) and hexagon nuts (29) and Belleville
washer (34)
Attention: Do not tighten hexagon nuts!

wT 1209/11
Page 8
•Insert spindle (9), piston shaft (10) and piston (4) from underneath into the stuffing box ring set
thoroughly lubricate the spindle with Metaflux Lubricating Metal Paste 70-85 or a comparable
lubricant and screw it into the threaded bush
•Tighten hexagon nut (29) with torque wrench to specified torque
•See technical data sheet page 11
•Mount the hand wheel (3) and the serrated lock washer (35), screw on the hexagon nut (30)
Assembling Body and Bonnet Unit
•Mount the bottom valve ring (14) with the mounting tool (for DN 65 – 200 see fig.6 for
DN 100 – 200 see Fig. 7)
•Insert the cleaned lantern bush (5), ensuring that no teeth are on the valve outlet side
(optimised Kv value)
•Mount the top valve ring (14) with the mounting tool
•Place compression piece (18)
•Press the bonnet valve ring (16) into the body bore with mounting tool
Attention: The bonnet valve ring must under no circumstances be pulled over the bonnet
Attention: Take particular care to ensure that the valve rings (14) are inserted correctly with the
Mounting tool. Do not use grease or lubricant when mounting the valve ring .
•Screw spindle (9) with piston (4) into bonnet as far as it will go (turn hand wheel (3) anti-clockwise)
•After thoroughly lubricating the bonnet neck with a suitable lubricant, position bonnet (2) on valve
body and tap into the body with a plastic hammer until the stud bolts (25) protrude far enough out of
the bonnet block flange (about two threads) for the hexagon nuts (27) to be screwed on
•Screw on hexagon nuts (27)
•Now close valve completely and open it again (when it opens, the bonnet withdraws into the valve
body)
•Position Bellville washer ( 33) and tighten hexagon nuts
•Close valve completely (turn hand wheel clockwise)
•Tighten hexagon nuts with torque wrench in diagonal order to specified torque
For torque specification, see Technical data sheet page 11

wT 1209/11
Page 9
Fi
g
. 1 Fi
g
. 2
Fi
g
.
3
Fi
g
. 4

wT 1209/11
Page 10
Fi
g
. 5 Fi
g
.
6
Fi
g
. 7

wT 1209/11
Page 11
Tightening Torques
Connections: Body-bonnet
Stud bolt Tightening Torque [Nm]
DN Dimension piece KX -GT
65 M 16 x 55 4 20
80 M 16 x 55 6 15
100 M 16 x 60 8 20
125 M 20 x 75 6 20
150 M 20 x 75 8 20
200 M 24 x 75 8 40
Notes upon Torques:
The values specified are guide values and apply to lubricated nuts and bolts.
With valves that have been in service for a long time and already are worn-out on the sealing surface or
in the case of gaseous medium , where leakage is detected under high pressure, the tightening torques
can be increased by max. 40 %.
Connection: Bonnet-Gland retainer
Stud bolt
Tightening Torque [Nm]
DN Dimension piece KX - GT
65 8
80 8
100 15
125 15
150 15
200
M 10 x 50 2
15

wT 1209/11
Page 12
DN D L
65 24 130,5
80 24 142,5
100 30 183
125 30 206
150 30 206
200 30 240 DN Tr L SW
65 22 x 5 163 14
80 22 x 5 163 14
100 24 x 5 180 14
125 24 x 5 218 14
150 24 x 5 218 14
200 24 x 5 247 14
DN D L
65 60 77,5
80 70 88,5
100 90 105,5
125 110 125,5
150 130 139,5
200 170 168,5
DN D d L
65 36 24 24
80 36 24 24
100 46 30 30
125 46 30 30
150 46 30 30
200 46 30 30
DN D d L
65 M 40 x 1,5 Tr 22 x 5 40
80 M 40 x 1,5 Tr 22 x 5 40
100 M 48 x 1,5 Tr 24 x 5 48
125 M 48 x 1,5 Tr 24 x 5 53
150 M 48 x 1,5 Tr 24 x 5 53
200 M 48 x 1,5 Tr 24 x 5 53
piston shaft complet spindle
threade
d
-bush
piston complet st
u
ffin
g
-bo
x
-rin
g
-set KX - GT

wT 1209/11
Page 13
DN D1D
1l 1d 2l 2
65 82 60 13,3 69 10
80 94 70 14,6 80 10
100 112 90 14,6 100 11
125 135 110 16,0 121 13
150 155 130 17,3 141 13
200 200 170 18,6 184 15
Valve rin
g
KX - GT

wT 1209/11
Page 14
Operating instructions for the rebuilding of a piston valve Type KVN to a
regulating piston valve KVRLN
Klinger-regulationg piston valves KVRLN are adjusted with a regulating lantern. Therefore the
throughflow direction is almost linear which facilitates the regulation of the media flow. The sealing
system correspond to the piston valve principe. The Closing function can be applied same as with the
normal piston valve.
See catalogue for fitting dimensions, pressure ratings, materials and application limits.
For the rebuilding of a piston
valve KVN to a regulation piston
valve KVRLN please refer to this
KLINGER mounting and
operating instruction .
The lantern (KVN-Standard) has
to be replaced by a regulating
lantern.
After that the valve can be
assembled again according the
mounting instructions.
