Klugmann KO610TCBL User manual

KO610TCBL
Oven
INSTRUCTION MANUAL
Klugmann Hausgeraete GmbH.
Gropiusstraße 7,
48163 Münster, Deutschland
+49 (0)2501 - 963 5732
+49 (0)2501 - 963 1834
[e-mail]
www.klugmann-hausgeraete.de

2
DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely efcient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the
operation of the appliance.

3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 8
Installation......................................................................................................................... 10
Operation........................................................................................................................... 12
Baking in the oven – practical hints ............................................................................... 25
Cleaning and maintenance.............................................................................................. 26
Troubleshooting..................................................................................................................31
Technical data................................................................................................................... 32

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the ha-
zards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
Warning: Ensure that the appliance is switched off before re-
placing the lamp to avoid the possibillity of electric shock.
You should not use steam cleaning devices to clean the
appliance.

5
SAFETY INSTRUCTIONS
● Ensurethatsmallitemsofhouseholdequipment,includingconnectionleads,do
nottouchthehotovenastheinsulationmaterialofthisequipmentisusuallynot
resistant to high temperatures.
● Donotleavetheovenunattendedwhenfrying.Oilsandfatsmaycatchredue
to overheating or boiling over.
● Donotputpansweighingover15kgontheopeneddooroftheoven.
● Donotuseharshcleaningagentsorsharpmetalobjectstocleanthedoorasthey
can scratch the surface, which could then result in the glass cracking.
● Donotusetheovenintheeventofatechnicalfault.Anyfaultsmustbexedby
anappropriatelyqualiedandauthorisedperson.
● Intheeventofanyincidentcausedbyatechnicalfault,disconnectthepowerand
report the fault to the service centre to be repaired.
● Therulesandprovisionscontainedinthisinstructionmanualshouldbestrictly
observed. Do not allow anybody who is not familiar with the contents of this instruc-
tion manual to operate the oven.
● Theappliancehasbeendesignedonlyforcooking.Anyotheruse(forexample
forheating)doesnotcomplywithitsoperatingproleandmaycausedanger.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.

6
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
 Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch off the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
HOW TO SAVE ENERGY

7
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronicequipment.Asymbol
shown on the product, the in-
struction manual or the packag-
ing shows that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
asignicantcontributiontotheprotectionof
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpack-
ing, please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE

8
DESCRIPTION OF THE APPLIANCE
Oven door handle
Control panel

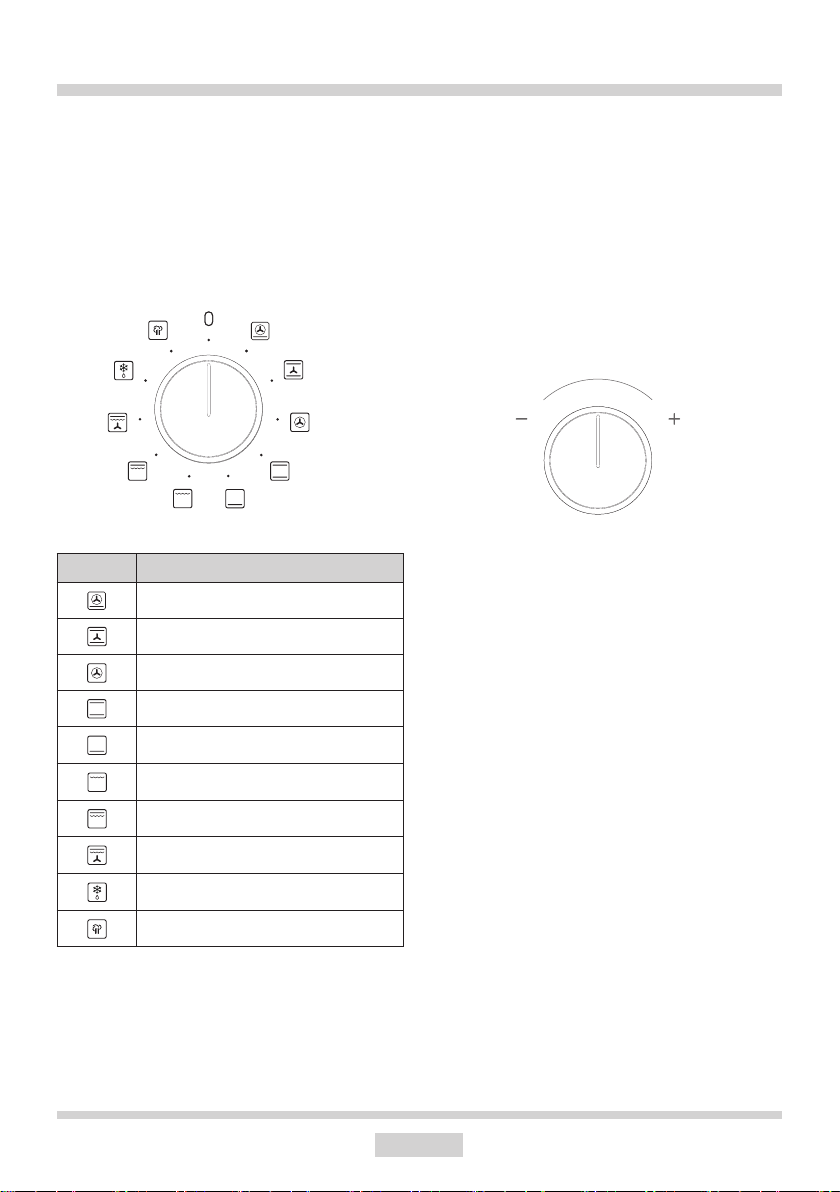

Oven function
selector knob Setting selection
knob
Oven functions
Touch controls
Temperature
Time and function
indication

9
SPECIFICATIONS OF THE APPLIANCE
Cookerttings:
*optional
Side
racks
Baking tray* Grill grate
(drying rack)
Roasting tray*

10
Installing the oven
The kitchen area should be dry and aired
and equipped with efcient ventillation.
When installing the oven, easy access to
all control elements should be ensured.
This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneerusedonttedfurnituremustbe
applied with a heat–resistant adhesive
(100°C). This prevents surface deforma-
tion or detachment of the coating.
Hoods should be installed according to
the manufacturer’s instructions.

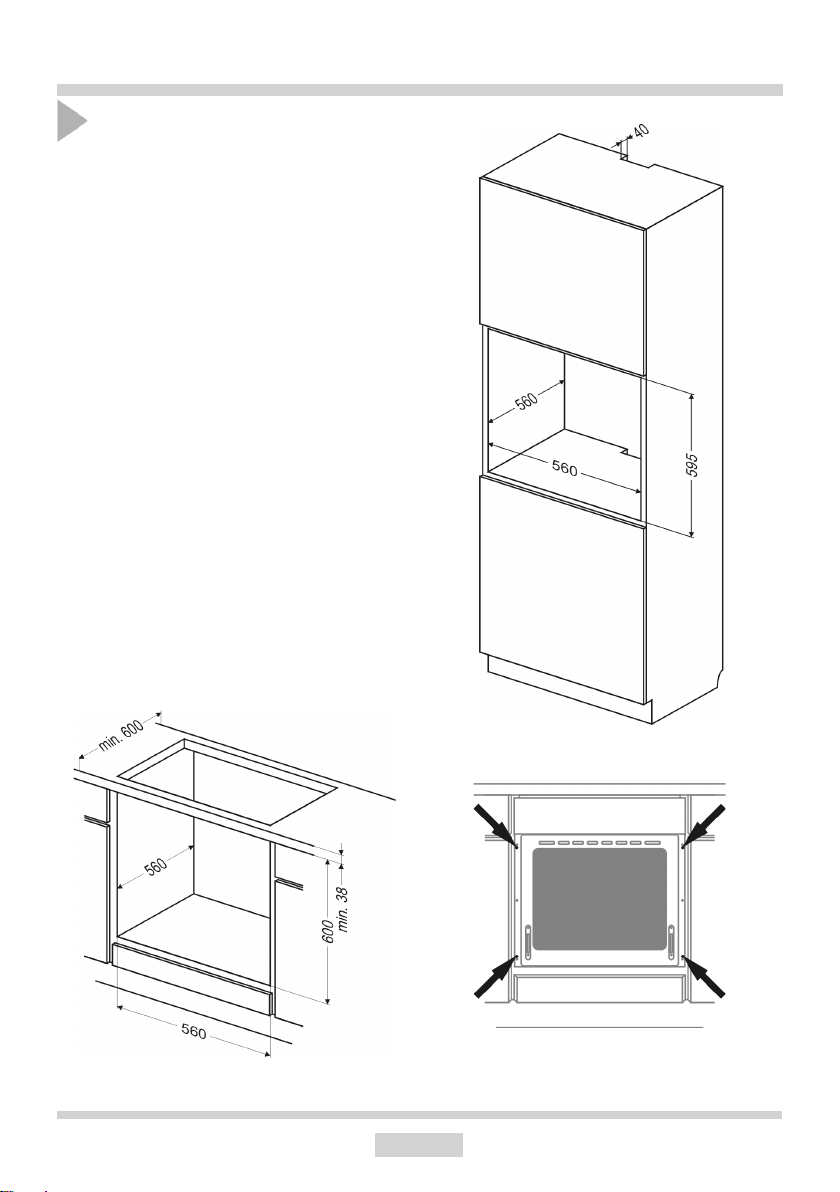

Make an opening with the dimensions
given in the diagram for the oven to be
tted.
Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
INSTALLATION

11
INSTALLATION
The oven is manufactured to work with
a one-phase alternating current (230V
1N~50 Hz) and is equipped with a 3
x 1,5 mm2connection lead of 1.5 mm
length with a plug including a protection
contact.
A connection socket for electricity supply
should be equipped with a protection
pin and may not be located above the
cooker. After the cooker is positioned, it is
necessary to make the connection socket
accessible to the user.
Before connecting the oven to the socket,
check if:
- the fuse and electricity supply are able to
withstand the cooker load,
-theelectricitysupplyisequippedwithan
efcaciousgroundsystemwhichmeets
the requirements of current standards
and provisions,
- the plug is within easy reach.
Electrical connection
Important!
Ifthexedpowersupplycableisdamaged,
it should be replaced at the manufacturer
or at an authorized servicing outlet, or by a
qualiedpersontoavoiddanger.
12
Adjust the position of the oven door
Adjustmentmechanismallowsyoutochange
the height of right side of the oven door
as limited by its design. Oven door height
adjustmentononesideallowsyoutolevel
the door and align it with the control panel.
Adjustmentmethod
 Loosen the nut [1] with size 13 open-end
wrench.
 Usesize4Allenkeytorotateadjustment
spindle [2] within 180° range to obtain the
correct door position. The door position
willbeadjustedinthe±1.5mmrange.
 Tighten the lock nut [1] while holding the
adjustmentspindle[2]inpositionusing
the Allen key.

12
OPERATION
Before using the appliance for
the rst time
Important!
To clean the oven chamber use only
warm water and a small amount of
washing-upliquid.
 Remove packaging, clean the interior of
the oven,
 Take out and wash the oven accessories
with warm water and a little washing-up
liquid,
 Turn on the ventilation in the room or open
a window,
 Heat up the oven (to a temperature of
250°C for approximately 30 minutes),
remove any stains and wipe the interior
carefully. (See section: Using the control
panel),
Important!
The oven features touch control panel
and display. To activate each touch
sensor, touch the glass above the
sensor (indicated by a pictogram).
An acoustic signal will be heard. (See
section: Using the control panel),
Touch sensor surfaces must be
kept clean.

Touch controls
The control panel features 5 touch sensors (no backlight), marked as shown above. Each
time you touch a sensor a beep is emitted (except as indicated in detailed operating instruc-
tions). Which touch sensor are enabled depends on the setting of the function selector knob
(described in detain in section on oven functions). When touch an activated sensor a beep
isemitted[conrmation].Whenyoutouchandholdasensorfor3secondsa[conrmation
2] beep is emitted.
The appliance generates the following beeps:
[conrmation]—sensortouched
[conrmation2]—sensortouchedandheld
[end]—settingentered
[kitchentimeralarm]—themaximumdurationof5minutes.
[end time] – the maximum duration of 5 minutes.

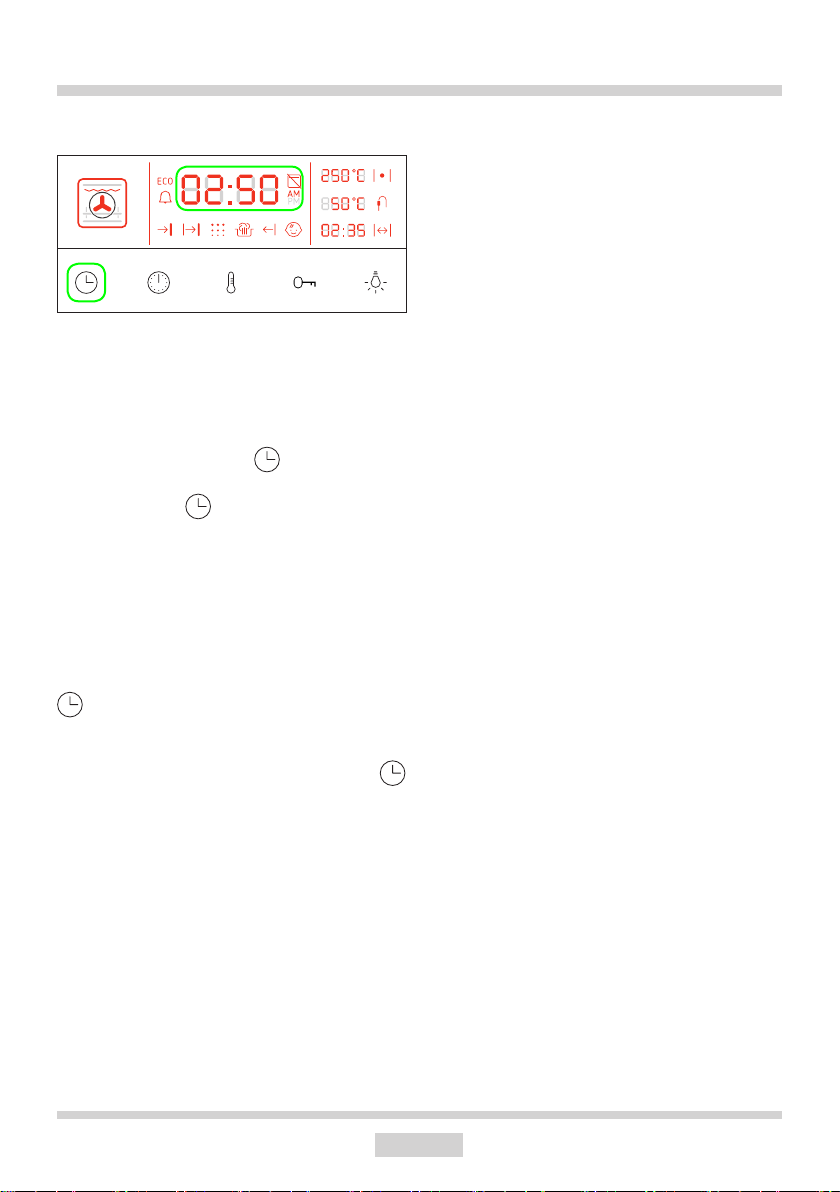

Using the control panel
- clock settings
- kitchen timer, duration, end time settings
- oven cavity and meat probe temperature settings
- Child Lock
- oven cavity lighting on/off
13
OPERATION

Oven functions
Oven functions are indicated as follows:
Time and function indication
The clock — 24-hour orAM / PM.
The displayed functions and symbols.
ECO mode
Kitchen timer
Door lock
(Oven with pyrolytic cleaning)
End Time
Duration
Pyrolytic cleaning
(unavailable)
Steam Cleaning
Fast heat-up active (unavailable)
Child lock active
Temperature
Oven cavity temperature and heating indi-
cator
Meat probe and activation indicator
Start Time/ End Time and activation indica-
tor (timer).
14
OPERATION

Oven function knob
Depending on the model, the function selec-
tor knob features 9 or 11 positions. Each posi-
tion is another oven function. Every function
is indicated by a different pictogram displayed
on the screen.
Setting selection knob
Turn left / right to set the temperature or time.
Turn right toward the "+" to increase. Turn left
toward the "–" to decrease. Turn and hold to
increase/decrease by bigger increments
Position Function
fan heater + bottom heater
bottom heater + top heater + fan
fan with ring heating element
bottom heater + top heater
bottom heater
grill
grill + top heater
grill + top heater + fan
defrosting
cleaning
15
OPERATION

Turn on the oven and set the time.
When you plug in the appliance there is a
[conrmation]beep.Setthecurrenttime.The
current time must be set for the appliance
to operate. Touch controls or knobs do not
respond. An [error] beep is emitted. You can
only set the current time .
The clock shows 24-hour or AM/PM time.
Touch and hold for 3 seconds to set the
time.Youwillhearthe[conrmation2]beep
and"24h"or"12h"willashonthedisplay.
Use the setting selection knob to change
thetimemode.Touch[]brieytoconrm.
Hour digits will start to ash. Use the set-
ting selection knob to set the hour 00–23
(or 01–12 AM, 01–12 PM depending on time
mode).Thehourdigitsstopashing.Touch
brieytoconrm.A[conrmation]beepis
emitted.Theminutesdigitsstarttoashand
you can now set the minute. Use the setting
selection knob to set the minute. Touch
toconrm.An[end]beepisemitted.Digits
arenotashingandtheclockshowscurrent
time.Thesecondindicationcolonisashing.
If you do nothing for 5 seconds when setting
the time, the [settings entered] beep is emit-
ted. The clock will be set to the last setting
entered by the user. The oven enters the
standby mode. You can use oven functions.
In standby mode, the display intensity set to
low. The following are displayed:
 clock,
 symbols of the active functions: oven
cavity residual temperature, child lock,
kitchen timer, door lock.
When you use any controls the appliance
enters the operating mode. Display intensity
is set to high.
Important! In the event of a power outage
all set functions, automatic programmes, set
temperatures and timer are cleared. If you
interrupt the pyrolytic cleaning (or the door
is locked for any other reason), the oven will
start the cooling and door opening procedure
before you can set the time.
Toturnofftheoven—setfunction selector
knob to 0.
OPERATION
16

OPERATION
Child Lock .
Child lock is designed to prevent children from
switching on the oven. Once the child lock is
activated the oven stops responding to any
controls except the unlocking combination.
You can activate/deactivate the child lock
when function selector knob is set to 0.
Activate the child lock.
Set function selector knob to 0, and touch
and hold for 3 seconds. You will hear the
[conrmation2]beep.
Deactivate the child lock.
Set function selector knob to 0, and touch
and hold for 3 seconds. You will hear
the [end] beep.
function
When ECO function is active the appliance
turns off heaters 5 minutes before the End
Time and uses residual heat to continue
cooking. This saves energy.
ECO function is activated / deactivated au-
tomatically when you turn on / off the DURA-
TION or MEAT PROBE functions. The
indicator will be displayed.
When using the meat probe, the heaters
are turned off 2°C before reaching the de-
sired temperature. The set temperature is
reached about 5 minutes after the heaters
are turned off.
17

OPERATION
Light
The light turns on:
 The function selector knob is set to any
cooking function (other than 0).
 Over door is open.
 You touch —[conrmation]beepis
heard.
The light turns off:
 Automatically after 30 seconds or after 10
minutes when oven door is open.
 Automatically 30 seconds after the oven
door is closed if function selector knob
is set to a cooking function (other than 0).
 When you close the door and function
slector knob is set to 0.
 You touch —[conrmation]beepis
heard.
 You set the function selector knob to 0,
and the door is closed.
You can turn on the light permanently dur-
ing the heating function. Touch and hold
for 3 seconds to do this. The light will be on
permanently.Youwillhearthe[conrmation
2] beep. Touch brieytoturnoffthelight.
You will hear the [end] beep. The light will not
be on permanently. The light will not be on
permanently either when you turn the func-
tion selector knob to 0.
18

OPERATION
Heating functions
Turn the function selector knob to set the
heating function. Depending on the model,
the function selector knob features 8 or 10
heating functions and an OFF (0setting).
Function selector knob positions
POSITION 0:
The sensor is inactive. It will not respond to
touch and an [error] beep is emitted.
Clock functions are limited. When you
turn off the oven by setting the function
selector knob to 0the display will show cur-
rent oven cavity temperature. Temperature is
displayed, if it is higher than 60°C. No oven
functions are displayed.
POSITIONS 1–10.
Please refer to the table on the next page for
details on how the oven operates when you
set the function selector knob to individual
heating functions.
Set the heating temperature
Each heating function has an associated
defaulttemperature.Toadjustitatanytime
in the range 0-280°C touch and use the set-
ting selection knobtomaketheadjustment.
NoadjustmentisallowedinCLEANINGand
DEFROST functions. This will be the new set
temperature. If you touch and do nothing for
5seconds,youwillnotbeabletoadjustthe
temperature. You need to touch the sensor
again. The symbol is shown when the
thermostat turns on any of the heaters.
Open the door during operation.
If you open the oven door, if any of the heating
function is activated, the fan and heaters will
turn off until the door is closed. If the door is
open longer than 30 seconds, you will hear
a 15-second [error] beep. Touch any control
to silence the alarm.
19

OPERATION
Table Oven functions
Knob
setting
Display indica-
tion
Oven functions Options Default setting
1
FAN HEATER
BOTTOM HEATER _220°C Level 2
2
BOTTOM HEATER
+ TOP HEATER
+ FAN
_170°C
Level 3
3 FAN HEATER _ 170°C
Level 3
4
BOTTOM HEATER
+ TOP HEATER _180°C Level 3
5
BOTTOM HEATER
(CRISPING) _ 200°C
6 GRILL rotisserie,ifequipped 280°C
Level 5
7
GRILL
TOP HEATER rotisserie,ifequipped 280°C Level 5
8
GRILL
TOP HEATER
FAN
rotisserie,ifequipped 190°C
Level 2
9 DEFROST _ Level 3
10 CLEANING _
bottom heater
90°C
30 min.
20
