Knightsbridge TRLED 1 Series Instruction Manual

1
52
INSTALLATION & MAINTENANCE MANUAL
TRLEDxx1
IP
65
110V

2
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following products:
TRLED151 / TRLED221
GENERAL INSTRUCTIONS
SAFETY
INSTALLATION
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations
(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the
rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for
installation
• This product is Class I and must be earthed
• This product is IP65 rated
Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with
the manufacturer of the sensors that they are compatible with LED luminaires
• Provide power to the required point of installation. Suitable IP rated junction boxes should be used
where required

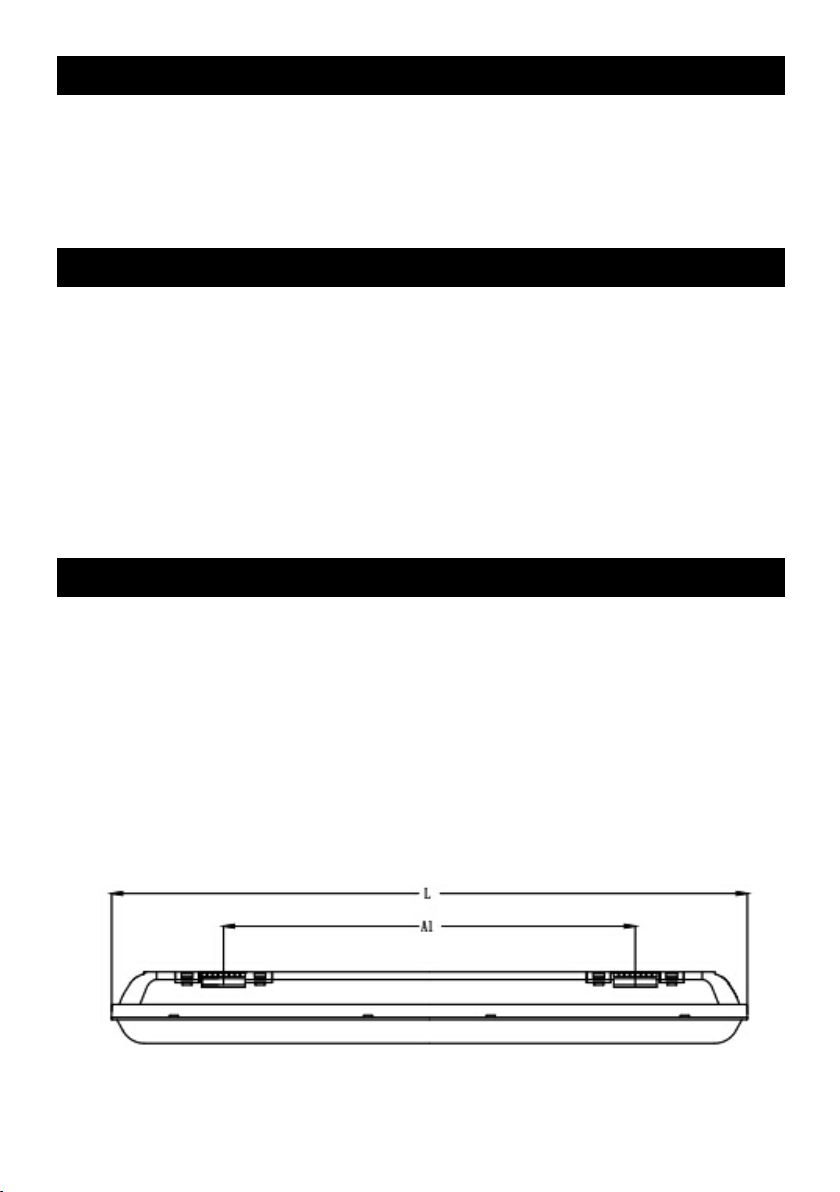

• Referring to Fig. 1, using the mounting brackets as a template, mark the location of the fixing
holes. Drill the fixing holes ensuring not to infringe with any gas/water pipes or electrical cables
• Secure the mounting brackets to the surface. Subject to the surface foundation material, ensure
the correct fixings are used
TRLEDxx
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for future reference and
maintenance.
These instructions should be used to aid installation of the following products:
TRLED12 / TRLED14 / TRLED15 / TRLED16 / TRLED22 / TRLED24 / TRLED25 / TRLED26
SAFETY
•Installation of this luminaire should only be carried out by a qualified electrician or competent person to the
latest Building and current IEE Wiring Regulations (BS7671)
•Please isolate mains prior to installation/maintenance
•Check the total load on the circuit (including when this luminaire and LED load is fitted) does not exceed the
rating of the circuit cable, fuse or circuit breaker
•Please note the IP (Ingress of Protection) rating of this product when deciding the location for installation
•This product is Class I and must be earthed
•This product is IP65 rated
•This product is non-dimmable
Note: Outdoor electrical installations should be protected by an earth leakage circuit breaker such as a residual current
device (RCD)
INSTALLATION
Note: If this luminaire is being used in conjunction with external PIR or sensors, please confirm with the manufacturer of
the sensors that they are compatible with LED luminaires
•Provide power to the required point of installation
•Important: Subject to the surface foundation material, ensure the correct fixings are used if installed outside, the
mains cable should be connected into a suitable IP rated junction box
•Referring to Fig 1, using the mounting brackets as a template, mark the location of the fixing holes. Drill the fixing
holes ensuring not to infringe with any joists, gas/water pipes, or electrical cables that may be hidden behind the
surface
Fig 1
L (mm)
L (ft)
A1 (mm)
TRLED12 / 22
1263
2
390
TRLED14 / 24
1563
4
900
TRLED15 / 25
1828
5
1000
TRLED16 / 26
1263
6
1000
Fig. 1

• Unfasten clips on either side of the
fitting (see Fig. 2)
• Remove the diffuser
• Remove the gear tray by pinching the clips at the two marked locations (see Fig. 3)
• Feed the mains cable through compression gland (included) at the end of the fitting and secure the
fitting to the mounting brackets
• Connect the Live (brown), Earth (green and yellow) and Neutral (blue) via the 3-way terminal
connector on the gear tray (see Fig. 4)
Live (brown)
Neutral (blue)
Earth (green/yellow)
• Replace the gear tray and diffuser ensuring all clips are fastened correctly
• Switch on and check for correct operation
Note: This fitting has 3-way terminal connectors at both ends of the gear tray to facilitate linking
fittings together. A hole should be drilled using a 20mm holesaw. The IP65 rating will be maintained
as long as the 20mm compression gland supplied is used in the drilled hole.
3
Fig. 2
Fig. 3
Fig. 4
•Unfasten clips on either side of the fitting (see Fig 2)
Fig 2
•Remove the diffuser
•Remove the gear tray by pinching the clips at the two locations (see Fig 3)
Fig 3
•When using as a singular fitting, feed cable through a compression gland (included) at the end of the fitting
•Connect the Live (brown), Neutral (blue) and Earth (yellow and green) via the 3-way terminal connector (see Fig
4)
Fig 4
•Replace the gear tray and diffuser ensuring all clips are fastened correctly
•Switch on power supply and check for correct operation
Note: This fitting can be linked to another fitting by using the same 3-way terminal connector in Fig 4 and has knock-outs at
both ends of the fitting which can be drilled using a 20mm holesaw. The IP65 rating will be maintained when a 20mm
compression gland (not provided) is used in the drilled hole.
WARNING
This product must be disconnected from the circuit if it subjected to any high voltage or insulation resistance testing.
Irreparable damage will occur if this instruction is not followed.
GENERAL
Pinch at these points
Neutral (blue)
N
L
Live (brown)
E
Earth (green/yellow)
•Unfasten clips on either side of the fitting (see Fig 2)
Fig 2
•Remove the diffuser
•Remove the gear tray by pinching the clips at the two locations (see Fig 3)
Fig 3
•When using as a singular fitting, feed cable through a compression gland (included) at the end of the fitting
•Connect the Live (brown), Neutral (blue) and Earth (yellow and green) via the 3-way terminal connector (see Fig
4)
Fig 4
•Replace the gear tray and diffuser ensuring all clips are fastened correctly
•Switch on power supply and check for correct operation
Note: This fitting can be linked to another fitting by using the same 3-way terminal connector in Fig 4 and has knock-outs at
both ends of the fitting which can be drilled using a 20mm holesaw. The IP65 rating will be maintained when a 20mm
compression gland (not provided) is used in the drilled hole.
WARNING
This product must be disconnected from the circuit if it subjected to any high voltage or insulation resistance testing.
Irreparable damage will occur if this instruction is not followed.
GENERAL
Pinch at these points
Neutral (blue)
N
L
Live (brown)
E
Earth (green/yellow)
L (mm) L (ft) A1 (mm)
TRLED221 653 2 390
TRLED151 1563 5 1000
NL

4
ML Accessories Limited
LU5 4LT
www.mlaccessories.co.uk DCDEC18_V1
WARNING
GENERAL
WARRANTY
This product must be disconnected from the circuit if subjected to any high voltage or insulation
resistance testing. Irreparable damage will occur if this instruction is not followed.
This product should be recycled in the correct manner when it reaches the end of its life. Check local
authorities for where facilities exist
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may
damage the product
This product is non-dimmable
This product has a warranty of 5 years from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use,
or removal of the batch codes will invalidate the warranty. If this product should fail within its
warranty period it should be returned to the place of purchase for a free of charge replacement.
ML Accessories does not accept responsibility for any installation costs associated with the
replacement product. Your statutory rights are not affected. ML Accessories reserve the right to
alter product specification without prior notice.
