Koba Vision ZoomCam Speech User manual

KOBA Vision
De Oude Hoeven 6 Tel. [phone]
3971 LEOPOLDSBURG [email protected]
Belgium www.kobavision.be
ZoomCam Speech
English - User Manual - Page 2
Deutsch –Gebrauchsanweisung - Seite 25
Specifications - Page 52

KOBA Vision ZoomCam Speech 2
English –User Manual
This manual describes the KOBA Vision ZoomCam Speech. The latest versions of the manual can be
downloaded from the KOBA Vision website: www.kobavision.be.
Chapter 1: Safety and
maintenance instructions
SAFETY INSTRUCTIONS
•Text read by the Vocatex is under no circumstance guaranteed to be a 100%
correct. The text-to-speech function is solelyto be used as a reading aid.
•The power supply must only be replaced by the same type (5V, max. 3A, Medical Grade AC/DC Adapter
(EN60601-1)) after switching off the device and removing the adapter from the grid.
•The connections have been designed to only connect in 1 way. Never force a connection. Install the power
supply of the device in a well ventilated area.
•Never attempt to repair the device by yourself. It is dangerous to remove protective covers which are there to
prevent electric shock. You must contact KOBA Vision or your dealer in caseof defects.
•To avoid electrocution, do not place the device in a spot where it can come into contact with liquids.
•Consult the user manual of the screen or other connected external devices for specific safety instructions
related to this device.
•Save this manual carefully. It contains all necessary information about your device.
•Keep the device in a dry, well-ventilated and clean place. Do not expose the device to direct sunlight or a heat
source.
•Never use this device in ambienttemperatures higher than 35°C.
•This device is designed as aid to magnify documents. Any change of purpose voids the
CE-marking.
•Your product is designed and manufactured with high quality materials and components,
which can be recycled and reused. Do not dispose of your old product in your general
household waste bin. Dispose of the complete product (including its cables, plugs and
accessories) in the designated collection facilities.
MAINTENANCE INSTRUCTIONS
•Disconnect all the cables from the device before cleaning.
•Occasionally clean the device and the lens using adamp cloth intended for cleaning computers and screens.
•Do not allow any fluids to enter the device.
•Treat your device with care and you will enjoy it for years to come.
CE
This device bears the CE approval mark.

KOBA Vision ZoomCam Speech 3
FCC
This device bears the FCC approval mark.
This equipment hasbeen tested and found to comply withthe limitsfor a Class B digital device, pursuant topart
15 of theFCC Rules. These limits are designed to providereasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guaranteethat interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient orrelocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealeror an experiencedradio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.
Chapter 2 : Installation
CONTENT
The ZoomCam Speech issupplied with the following content:
•ZoomCam Speech camera
•USB-C –USB-C 3 cable (1 meter)
•USB-C –USB-A 3 cable (1 meter)
•HDMI cable (2 meter)
•USB-C power supply
•T-support ZoomCam Speech
•2x Remote control ZoomCam Speech
•2x AAA batteries
•Protection bag
•Reading tablet
•Adapter USB-C –Mini Jack 3,5 mm (Audio)
•User Manual
SETTING UP
1. Press the large round button in the hinge between the 2 arms
of the ZoomCam Speech. The button has 3 tactile dots.
2. Keep pressing the button while unfolding the arm until the
button pops out automatically.
1
2

KOBA Vision ZoomCam Speech 4
3. Pressthelargeroundbuttoninthehingebetweenthearmand
the foot. The button has 3 tactile dots.
4. Keep pressing the button while unfolding the arm until the
button pops out automatically.
5. Turn the ZoomCam Speech and set it on his footplate.
6. Ready.
POSITION OF THE CAMERA
The ZoomCam Speech can be used in multiple ways because the camera head can turn in any direction.
1. Behind (recommended)
The arm of the camera is placed at the back. Rotate the
camera around its axis to straighten the image. A3 sheets
can moved freely under the camera.
2. Left or right
The base of the camera is placed on the left or the right.
Rotate the camera around its axis to straighten the image. A4
sheets can moved freely under the camera.
3. Other positions
Rotate the camera around its axis to adjust the image straight.
3
4
5
A4 A4
A3
A4

KOBA Vision ZoomCam Speech 5
CONNECTIONS
1. HDMI
The HDMI connection transfers the image from the
ZoomCam Speech to a screen. This can be a
television screen as well as a monitor.
2. USB-C 3 port - POWER
Power
This USB connection can provide additional power.
This USB connection is used if the other USB
connection does not provide sufficient power or to
connect an external battery or power supply.
Sound
This USB connection also provides sound via a USB-C -
MiniJack 3.5 mm adapter or via the optional USB-C
Bluetooth adapter.
3. USB-C 3 port - PC
The USB connection transfers the image to a
computer or tablet. The connection also provides
power to the device. This USB connection is the main
connection.
READING TABLET
The reading tablet is intended to move
documents smoother over the foot of the
ZoomCam Speech. With the reading tablet
documents can be read more comfortably.
Position the bottom groove of the reading
tablet over the foot of the ZoomCam
Speech. Now you will have a smooth
surface above the foot of the ZoomCam
Speech to move documents.
1. HDMI
2. USB-C (POWER) 3. USB-C (PC)

KOBA Vision ZoomCam Speech 6

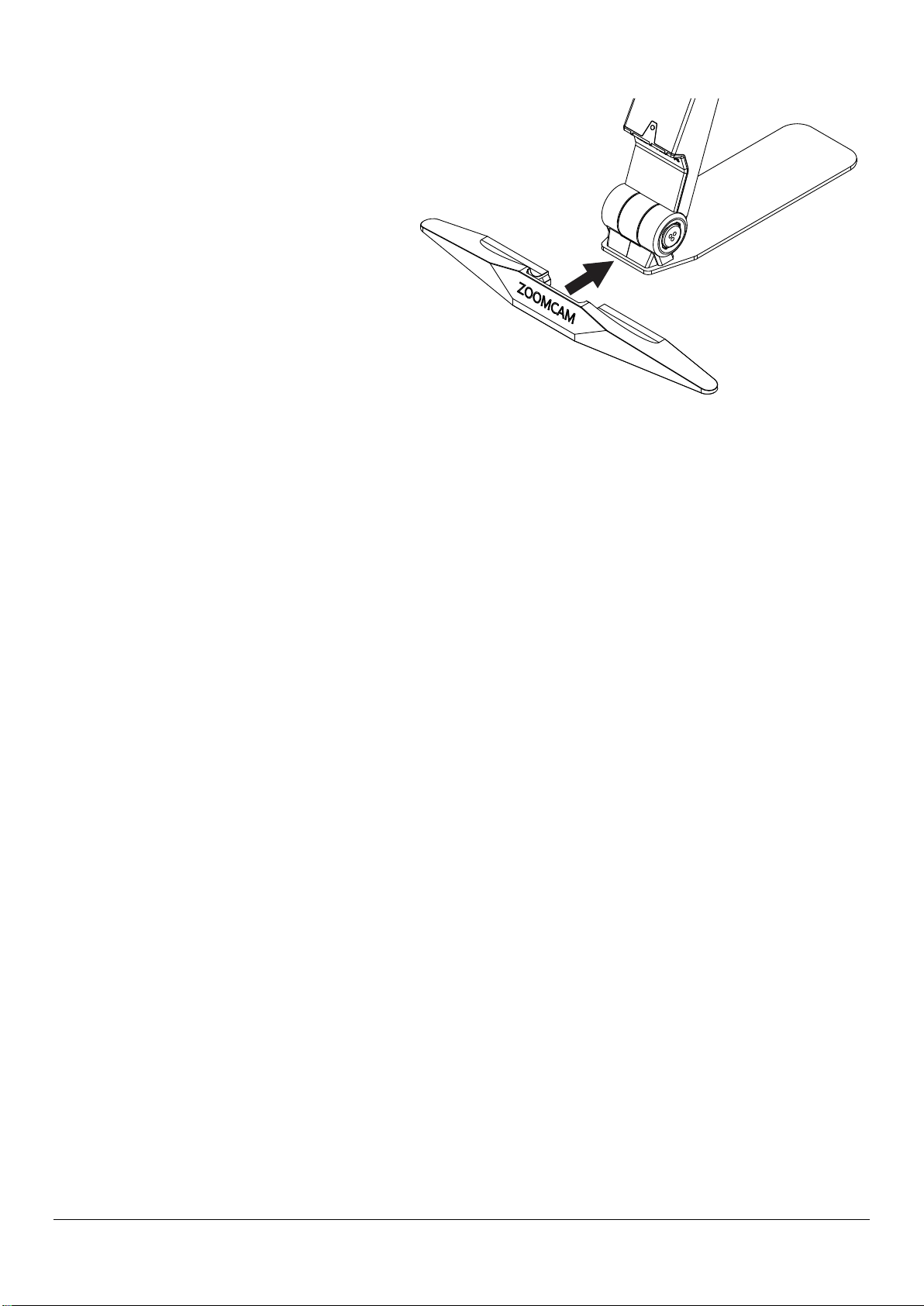

T-SUPPORT
By attaching the supplied T-support to the back
of the ZoomCam Speech's base, the device is
protected from falling over.
POWER SUPPLY
The ZoomCam Speech operates on external power. Power will be supplied to the USB ports. Connect the USB
cable or USB power supply. The LED lights on the front and back inform details about the power source.
•3x green: Enough power. ZoomCam Speech is powered via USB-C. The ZoomCam Speech will turn on
without having trouble with power.
•3x yellow: Not sure of sufficient power. ZoomCam Speech is poweredvia a non USB-C supply.
ZoomCam Speech could have a problem.
•6x red: The ZoomCam Speech can’t turn on, because oftoo less power. Connect a second power source
via USB.
CONNECT THE ZOOMCAM SPEECH TO A SCREEN
To use ZoomCam Speech on a screen (with built-in speakers), connect it via the HDMI connector. Power
the device using the included USB-C power adapter or by connecting the ZoomCam Speech to a USB port
on the screen that provides sufficient power. Use:
•HDMI cable →connect to HDMI interface
•USB-C power supply or USB-C - USB-A cable for connection to the screen →connect 1 of the 2 USB
connections
It is recommended to use a screen with built-in speakers so that the read-aloud function is available without
additional connection.
If thescreen does not have built-in speakers, solve this by:
•Connect the supplied USB-C - Mini Jack 3.5 mm adapter to the middle USB port. Connect the power supply
to the outer USB-C port. Connect external speakers or headphones to the Mini Jack 3.5 mm.
•Connect the optional bluetooth adapter to the middle USB port. Connect the power supply to the outer USB-C
port. Connect a bluetooth speaker or headphones by long pressing the button on the adapter so that the
bluetooth adapter is in pairing mode. Put the speakers or headphones into pairing mode too. Both devices will
pair automatically. For a list of compatible bluetooth adapters, refer to the specifications at the back of the
manual.

KOBA Vision ZoomCam Speech 7
CONNECT THE ZOOMCAM SPEECH TO A COMPUTER OR
TABLET
Use the USB-C (PC) connection to connect the ZoomCam Speech on a computer, tablet or smartphone. If
the device does not have enough power, use the second USB (PWR) connection. Use:
•USB-C cable →connect it tothe outer USB-C connector (PC) - 3
•If the ZoomCam Speech does not have enough power or if you want to connect an external battery, use a
second USB cable →connect it to the middle USB-C connection (PWR) - 2
USB 3, type USB-C 3A
The ZoomCam Speech works optimally with a USB 3, type USB-C 3A.
When connecting the ZoomCam Speech, the LED flashes green.
USB 3, type USB-C 1,5
Each USB-C port delivers at least 1,5A. This port may not provide enough power. If the ZoomCam Speech is not
receiving enough power, the LED flashes 6 times red at the next start-up. In this case, connect the ZoomCam
Speech with a second USB cable, connect the power supply or connect a USB-cable to an external battery.
When connecting the ZoomCam Speech, the LED flashes yellow.
USB 3, type USB-A
It is also possible to use a USB 3, type USB-A. This port may not provide enough power. If the ZoomCam
Speech is not receiving enough power, the LED flashes 6 times red at the next start-up. In this case,
connect the ZoomCam Speech with a USB-C cable, connect the power supply, connect a second USB
cable to the computer or tablet or connect a USB-cable to an external battery.
When connecting the ZoomCam Speech, the LED flashes yellow.
USB 2, type USB-A
It is also possible to use a USB 2, type USB-A. This port does not provide enough power. If the ZoomCam
Speech is not receiving enough power, the LED flashes 6 times red at the next start-up. In this case,
connect the power supply, connect a second USB cable to the computer or tablet or connect a USB-cable
to an external battery.
When connecting the ZoomCam Speech, the LED flashes yellow.
Chapter 3: Operation
REMOTE CONTROL
The ZoomCam Speech is operated with a remote control. The remote control has 2 AAA batteries. On the
back of the remote control there is a cover that you can slide down to replace the batteries.
The receiver is located between the lights in the horizontal arm of the ZoomCam Speech.
The LEDs on the front and back of the ZoomCam Speech flashes when a button is pressed on the remote
control.

KOBA Vision ZoomCam Speech 8
ZoomCam Speech is compatible with the remote control of ZoomCam Speech and also with ZoomCam
without read-aloud function.
ZoomCam Speech
ZoomCam
1
Press briefly: switch between overview and magnification
Hold button: read-aloud full image
Hold button if devices is switched off: switch on without read-aloud
function
2
Press briefly: switch ON
Hold button: switch OFF
3
Zoom in
4
Zoom out
5
Read-aloud –Start –Pause –Stop
6
Press briefly: go back one word in the text
Hold button: go back one sentence in the text
7
Press briefly: go ahead one word in the text
Hold button: go ahead one sentence in the text

KOBA Vision ZoomCam Speech 9
8
Press briefly: switch between photo mode, negative, positive reading
Hold button - negative/positive: changes colour of the background or
characters
Hold button –distance view: mirror image
9
Press briefly: hide/unhide column selector
Hold button: change the colour of the column selector
10
Press briefly: volume up
Hold button: select another reading voice or automatic
11
Press briefly: volume down
Hold button: select another reading voice or automatic
12
Press briefly: switch between brightnes, background, lighting, reading line,
reading bar, ticker
Hold button (ZoomCam Speech): change colour or reading line
Hold button (ZoomCam): switch between overview and magnification
13
Press in colour mode: increase brightness
Press in negative or positive reading: improve background
Press in lighting: more light
Press in reading line: move line up
Press in reading bar: higher
Press in ticker: increase size
14
Press in colour mode: decrease brightness
Press in negative or positive reading: decrease background
Press in lighting: less light
Press in reading line: move line down
Press in reading bar: smaller
Press in ticker: decrease size
15
Decrease reading speed (slower)
16
Increase reading speed (faster)
ICONS
The functions of the ZoomCam Speech are shown with icons on the screen. For some functions, you will see a
red progress indicator tothe left of the icon to indicate how the functionis set or how it is changing.

KOBA Vision ZoomCam Speech 10
Magnification. The camera
zooms in or out.
Photo mode. In this view, the
camera image is unedited.
Negative –positive reading.
In this mode, the image is
converted into artificial
colours for high contrast. By
pressing the colour button
long you can set other
colours.
Brightness. Increase or
decrease the brightness of
the image.
Background. To filter the
background or change the
thickness of the letters.
Lighting. Adjusts the lighting.
Reading line. The image has
a horizontal line. You can
move the line up or down.
Overview. In this view, the
camera zooms to a small
magnification to provide
overview.
Mirroring. This view is only
available in distance mode. In
mirror mode you can point
the camera at yourself.
Volume. The volume is
increasing or decreasing. A
red bar indicates the volume
level.
Reading speed. The reading
speed is increasing or
decreasing. A red bar
indicates the reading speed
level.
Reading bar. Make the bar
higher or smaller.
Ticker. Change size of the
ticker.
Wait. The read-aloud function
is starting. It can take up to
30 seconds for preparing the
read-aloud function. It is
ready after the beep.
The read-aloud function isn’t
available. The device was
started without read-aloud
function.
Column selector. Hold button
to change its colour.
Navigation by sentence or
word.
Switching off. Hold the
button while switching off. A
red bar indicates how long
you need to hold.
abcde
abc

KOBA Vision ZoomCam Speech 11
SWITCHING ON / OFF
In combination with a screen or monitor
Switching on with button 2. Most screens are switched on automatically by the ZoomCam Speech. If this
does not happen, switch on the screen and choose the correct source (see screen manual).
The ZoomCam Speech is turned off by pressing and holding button 2. A red bar indicates when the
ZoomCam Speech will be switched off.
Switching on without read-aloud function
The ZoomCam Speech can be switched on without read-aloud for saving power. Press and hold button 1.
In combination with a computer or tablet (streaming)
The ZoomCam Speech is automatically switched on by the viewer.
The ZoomCam Speech switches off by stopping the stream, by closing the application or by selecting
another camera. ZoomCam Speech switches off with a delay of 30 seconds by default. During these 30
seconds, the image is immediately available when the stream is started again.
ZoomCam Speech switches on with read-aloud function. If you don’t want reading aloud, switch the on with
button 1 before starting the application. You start your application after having started the ZoomCam
Speech.
READING ALOUD
The ZoomCam Speech reads all the displayed text on the screen. By pressingbutton 5 you can startthe reading
process regardless of the chosen magnification.
1. Put the text on the sliding table beneath the ZoomCam Speech.
2. The text now becomes visible on the screen.
3. Select a text block by placing the text block in the middle of the screen or by crossing the text block by
the column selector.
4. Press button 5 to start the read aloud function.
A. Column Selector
B. Text block

KOBA Vision ZoomCam Speech 12
C. Text box
Pause
Reading aloud is initiated by pressing button 5. To pause, press button 5. To resume reading, press
button 5.
Continuous reading
The ZoomCam Speech reads continuously. When you move further into the text, the ZoomCam Speech
will continue reading without interruption. The reading frame disappears when moving but will reappear
when the new position is found.
Reading full image on display
The ZoomCam Speech can read the full image on the display by pressing and holding button 1. The ZoomCap
Speech will read the full image without column recognition. Thisfeatures simplifies reading invoices, bank receipts
and tables.
Navigation
The ZoomCam Speech can navigate by word or by sentence. When pressing and holding button 6 or
button 7 the device will go further or go back sentence by sentence. By pressing briefly you go further or
go back word by word.
You can easily have the text read out again by sliding the text upwards again with the slide table. If you
slide the text upwards by more than 1 cm, the ZoomCam Speech will resume reading aloud from the start
and not from the previous reading position.
Progress indicator
While reading, the ZoomCam Speech displays a progress indicator. This is a bar which is shown at the bottom of
the screen and indicates the progress in the text. The progress indicator can appear in 3 different forms.
Reading within the same column
Slidinguporcontinuereading withoutslidingthe text thatisbeingreadoutofscreen: thereadingframedisappears
and reappears when the new position is found.
Continue reading while the text is slid out at the top of the screen. The frame disappears and reappears when the
textthat is beingread entersthe screenagain. When the text connects, thisis shown by doublebarsthatapproach
one and other.
When it is impossible to reconnect, meaning that the text was slid through toofar, an arrow appears to the right of
the bar. You can position the text back until you see the indicator without the arrow.

KOBA Vision ZoomCam Speech 13
Reading a next column
During the reading of one column you can already move to the next without interrupting reading of the
previous column. In that case an arrow is shown next to the bar. To repeat a text you can slide the text
downwards. The text will be read from the top.
Ticker
Thetickerwilldisplaythereadouttextonthescreen.Thetickercanbeactivated ordeactivatedbypressingbutton
12 until the ticker is shown on the display. The size of the ticker is set by turning button 13 and 14.
The colours are configured automatically depending on the colour of the column selector, set by pressing and
holding button 9.
When changing the size of the ticker with button 13 and 14, the news ticker switches from scrolling to word by
word.
The speed at which the text is displayed is linked to the reading speed of the ZoomCam Speech. You can adjust
the speed with button 15 (slower) and button 16 (faster).
Reading bar
The horizontal reading bar is a clear bar from left to right on the screen. The text that isn’t covered by the
bar is slightly visible. The reading bar is used to cover text or to select a part of the text to read aloud.
Press button 12 until the bar is displayed on the screen. Press button 12 (higher) or button 13 (smaller) to
set the height. Press button 9 to show or hide edge lines. Press long on button 9 to change colours.
Press and hold button 1 to read the text in the reading bar without column recognition.
Press button 5 to read the text in the reading bar with column recognition.
Language and reading voices
Attention! This menu will pop-up automatically when initializing the unit for the first time 30 seconds after startup.
Youcanchangethelanguageoptionsatanytime.Toopenthelanguagemenu,youpressbutton5for10seconds.
The languagemenu will open. The menu has 3 steps:
Step 1: Language of the spoken assisting messages
This is where you adjust the language of the spoken buttons. You choose your mother tongue. An inhabitant of
France chooses French. Select the language with the arrow keys. Press and hold button 5 to go to step 2.
Step 2: Preferred voice
Most languages have several voices. In step 2 you choose your preferred voice for the spoken buttons and your
preferred voice for reading out the texts with the arrow keys. Usually you can choose between a male and female
voice. In French, for example, you can choose between Virginie, Thomas, Felix and Audry. You select the voice
with the arrow keys. Press and hold button 5 to go to step 3.

KOBA Vision ZoomCam Speech 14
Step 3: Otherreading voices
Ifyouwould like to have textsread out by othervoices or in different languages, you canselect other voices in step
3. You select the voice with the arrow keys. By briefly pressing button 5 you can switch a voice on or off. (X)
indicatesthata voiceis switched on.( )indicatesthat avoice isswitchedoff.You canswitchon/offvarious voices.
By holding button 5 you will exit the voice and language menu.
Automatic language recognition
You can activate the option “automatic language recognition” by pressing and holding the volume buttons 10 or
11 until the ZoomCam Speech announces “automatic”.
When this function is set, each text bloc will be read in the according language. The default voice is
predefined. If you want the text to be read in another voice, only select 1 voice per language (your preferred
voice) in the language menu.
POSITION OF THE CAMERA
The camera has a 2-dimensional head that can be adjusted manually.
Rotate
By rotating the camera you can rotate the image and adjust it
correctly so that the text is right on the screen.
Tilt (switch between reading and
distance view)
By tilting the camera up and down you choose to read under the
camera or to use it for distance view.
POSITION SENSOR
The ZoomCam Speech has a sensor that detects the position of the camera. The ZoomCam Speech
knows whether the camera is viewing the distance or is used for reading. The pre-sets between the 2
modes are stored according to the sensor. The ZoomCam Speech remembers the settings for:
Magnification
Coulor
Brightness
Background
Lighting
Reading line
Reading bar
Ticker

KOBA Vision ZoomCam Speech 15
Chapter 4: Using ZoomCam Speech on a
screen
It is recommended to combine the ZoomCam Speech with a screen with built-in speakers. To use the
ZoomCam Speech with a screen, connect the ZoomCam Speech to the screen with an HDMI cable. The
ZoomCam Speech is compatible with a digital display that has a HDMI or DVIconnection. A HDMI-HDMI
cable is supplied with the ZoomCam Speech. For a screen with a different connection you need a different
cable (not included).
Connect the HDMI cable. Also connect a power supply. You can connect the supplied USB-C adapter to
the wall socket or you can use the USB-C - USB-A cable to power the ZoomCam Speech through the
screen. Note: not every screen has a USB port with power or sufficient power.
To display the image on the screen, select the correct source on the screen.
Only screens with built-in speakers provide sound. To connect headphones or external speakers, refer to
chapter 3: Headphone and external speakers.
Chapter 5: Using ZoomCam Speech on a
computer or tablet
To use the ZoomCam Speech with a computer or tablet, connect the ZoomCam Speech via a USB cable.
We recommend using a USB 3, USB-C port. If this is not available, you can also use a regular USB 3
(recommended for better performance) or USB 2, USB-A port. With a USB-A port it may be that there is
insufficient power. In this case, connect a second USB cable, the power supply or an external battery.
By connecting the device, the ZoomCam Speech is automatically configured on the operating system.
IMAGE SPEED AND RESOLUTION
The ZoomCam Speech image is available as "ZoomCam Speech USB Video Stream". You can find it in the
list of available cameras.
The ZoomCam Speech has a resolution of 1920 x 1080 and a frame rate of 60 frames per second. You can
achieve this speed with a USB 3 connection.
The ZoomCam Speech automatically reduces its frame rate when the connection is not optimal. As a
solution, you can:
•Decreasethe resolution in the viewer. The frame rate will be increased automatically.
•Use a USB 3 cable.
•Use a computer / tablet with a USB 3 port.
•Use a high-performance computer.
•Use a high-performance program to displaythe images.
SOUND
The sound is transferred by the audio interface available as"ZoomCam Speech USB Audio Stream". You will find
it inthelistof availableaudiodevices.Dependingontheoperatingsystemorapplication, youneedtoset ittolisten
to the interface.

KOBA Vision ZoomCam Speech 16
WINDOWS (LAPTOP, TABLET, DESK COMPUTER)
The ZoomCam Speech works best in combination with a Windows computer or tablet equipped with anUSB 3
port, preferably USB-C. ZoomCam Speech was successfully tested on several devices, but there is no guarantee
that the ZoomCam Speech will function on all devices.
Under Windows, the ZoomCam Speech shows images in various programs.
Audio
ZoomCam Speech sound cannot be heard through the internal speakers before setting it up in Windows.
•Open the old Windows Control Panel. Click the
start button and type "control panel" and open.
•Open Sound.
•Click on tab Recording.
•Select Microphone ZoomCam Speech
USB Audio Stream and click Properties.

KOBA Vision ZoomCam Speech 17
•Click on tab Listen.
•Enable Listen to this device.
•Click OK. Click OK. Close the control
panel window.
In Windows, the ZoomCam Speech displays images in several applications.
SuperNova (full screen and split screen)
You can switch on or off "Connect and View" using the "Visual" options in the SuperNova control
panel.
Hot key: ALT + NUMPAD ENTER (computer) or LEFT SHIFT + CAPS LOCK + 0 (laptop).
When you turn on "Connect and View" a portion of the screen begins to show the image from the camera or
whiteboard. This area is called the Viewer. You can change the position of the Viewer on the screen and
you can use the Viewer Toolbar to adjust the size, colour and contrast of the image to make it easier to
see.
Selecting the camera
In the "Visual" option, open the "Connect and View" submenu and choose "Settings". The "Connect and View
Settings" dialog box opens showing the "Camera" settings.

KOBA Vision ZoomCam Speech 18
•Select the ZoomCam Speech from the
"Devices" list.
•Check Use Camera Optical Zoom. This means
that SuperNova can control the magnification of
the camera, which improves image quality.
•Check Use camera coulor change. This means
that SuperNova can control the coulors of the
camera, which improves image quality.
•TIP: Under the Settings button you can set the
resolution. We recommend selecting 1920 x
1080, 60 fps. If the picture is slow, you can lower
the resolution.
•Choose OK button.
Adjusting the viewer position and size
By default, the Viewer appears on the top half of the screen. You can change the position and size of the Viewer
through the "Connect and View" settings in the SuperNova Control Panel. You can dock the viewer to the top,
bottom, left or right side of the screen and the Viewer can be set to fill 80%, 50% or 20% of the screen area.
You can also set the Viewer to "Full Screen". While in Full Screen Mode, you can continue to use CAPS LOCK +
MIDDLE MOUSE BUTTON to switch between the Viewer and the desktop.
Switching between the Viewer and the desktop
To access the Viewer toolbar and to make adjustments to the image requires you to place the focus in the
Viewer area.
You can switch between the Viewer and the desktop by pressing CAPS LOCK + MIDDLE MOUSE
BUTTON. If you have both an active camera and whiteboard connection then pressing CAPS LOCK +
MIDDLE MOUSE BUTTON cycles you between camera, whiteboard and desktop.
Magnification
Youcanchangethe sizeoftheimageintheViewerbyusingthemagnificationbuttons inthe Viewer
Toolbar. If you are using a touchscreen device, you can also change magnification by doing a 2
finger pinchor 2 finger stretch.
You can also use the following hot keys:
Zoom in: LEFT CONTROL+ NUMPAD PLUS or CAPS LOCK+ MOUSE WHEEL UP or ALT + EQUALS
Zoom out: LEFT CONTROL + NUMPAD MINUS or CAPS LOCK + MOUSE WHEEL DOWN or ALT + DASH
Always use SuperNova in optical zoom mode. This has the best result.
This icon means you are in optical zoom mode.
Changing the colours of the image
If you are finding viewing the image difficult because of the colours and contrast,then you can use
the Colour Changer button to cycle through a number of different colour schemes.
Locking the image
The Lock Image button lets you freeze the screen on the current image. This allows you to explore
the image in more detail without the possibility of the image changing.
Although available as a Viewer Toolbar button when using a camera, you may find this option
more useful when viewing presentations as it will allow you tofreeze the screen on a particular

KOBA Vision ZoomCam Speech 19
slide rather than relying on the teacher to stop the presentation at that point. When you unlockthe
image the Viewer refreshes the current camera image or shows the current presenter's computer
screen.
Capture image
TheCaptureImagebuttonletsyoucopytheimageintheViewertotheWindowsClipboard.Pressing
CAPS LOCK+P also copies the image in the Viewer to the Windows Clipboard.
You can then copy the image into a document or you can convert the image you have captured to
text by using the SuperNova "Scan and Read" options, or by pressing LEFT CONTROL+CAPS
LOCK+O.
Reading aloud
The OCR button lets you OCR the image of the camera.
Other functions
We recommend not to use them.
Rotate: Rotate the camera head ofthe ZoomCam Speech to rotate the image.
Focus: Do not adjust this. The ZoomCam Speech has an automatic focus.
ZoomText (full screen and split screen)
To start the camera click the Camera button onthe Tools toolbar tab, or use hot key: CAPS LOCK + CTRL + C.
Tip: When using the camera hot key with default ZoomText settings, the layered keys banner is shown on top of
the camera image. Disable the banner via ZoomText –Command Keys –Button Banner Settings –Uncheck
Display the layered keys banner.
If the Camera toolbar is not in view, pressCAPS LOCK + CTRL + C to engage the camera layered key
command mode and then press T to bring the toolbar into view.

KOBA Vision ZoomCam Speech 20
Selecting the camera
On the Tools toolbar tab, click the arrow next to Camera or
navigate to Camera and press the down arrow key. In the
Camera menu, choose Settings.
•In the Active Camera list box, select ZoomCam Speech USB
Video stream.
•Disable: Automatically set camera resolution.
•Resolution: 1920 x 1080
•Frame Rate: 60 FPS
•Click OK.
•TIP: Saveyour settings under ZoomText –Configurations –Save
as default. This will save your settings so you don't have to redo
all the settings again.
Adjusting the viewer position and size
In the Camera toolbar you can choose:
Full screen: the whole screen shows the image of the ZoomCam Speech. To switch between Full and Docked
view, press CAPS LOCK + CTRL + C to activate layered keys mode, then press Tab to switch between Docked /
Full View.
Docked view (split screen): the image of the ZoomCam Speech is displayed on 50% of the screen. You choose
where you want the image to be displayed. You can choose from: top, right, bottom, left. Hotkey: CAPS LOCK +
LEFT / RIGHT ARROW
Magnification
Use the buttons on the ZoomCam Speech remote control to do this. The buttons in the ZoomText Camera
Toolbar also work, but they zoom in and out in large steps.
Other functions
We recommend not to use them.
Rotate: Rotate the camera head ofthe ZoomCam Speech to rotate the image.
Colour: Set this function to normal. Use the ZoomCam Speech remote to adjust the colors.
Brightness: Do not adjust this. Use the ZoomCam Speech remote control to adjust the brightness.
Focus: Do not adjust this. The ZoomCam Speech has an automatic focus.
