Kodak M35 X-OMAT User manual

Publication No. 981159
September 1992
Supersedes 635817 and 635038
12/88
INSTALLATION INSTRUCTIONS
for the
KODAK M35 and M35A X-OMAT Processors
H112_0089AC
 Eastman Kodak Company, 1992

PLEASE NOTE
The information contained herein is based on the experience and knowledge relating to the subject matter gained by
Eastman Kodak Company prior to publication.
No patent license is granted by this information.
Eastman Kodak Company reserves the right to change this information without notice, and makes no warranty, express
or implied, with respect to this information. Kodak shall not be liable for any loss or damage, including consequential or
special damages, resulting from the use of this information, even if loss or damage is caused by Kodak’s negligence or
other fault.
This equipment includes parts and assemblies sensitive to damage from electrostatic discharge. Use
caution to prevent damage during all service procedures.
Related Publications for the M35 and M35A Processors
This publication is part of a series of instruction books that provide technical support information on the KODAK
M35 and M35A X-OMAT Processors. It is recommended that these publications be kept in the binder provided.
If an individual book is misplaced or destroyed, order another copy from your Eastman Kodak Representative
using the Publication Part Numbers below.
981778
PARTS LIST
SERVICE
MANUAL
981777981158
MANUAL
OPERATOR
981157
SITE SPECS INSTALLATION
INSTRUCTIONS
981159
981797
BINDER
COMPLETE
H112_9002BC
Special Tools Required
Only qualified personnel should install this processor. The following tools are required:
Part No. Description
TL-2431 Air Meter
TL-1434 Level - approximately 30 cm (12 inches)
TL-1481 Potentiometer Adjusting Tool
2 981159

Table of Contents
Description Page
Electrostatic Discharge .........................................................................................................................................4
Unpacking the Processor......................................................................................................................................5
Preparing the Processor for Installation.............................................................................................................8
Installing the Feed Shelf, the Detector Crossover Assembly, and the Developer Rack.................................8
Adjusting the Feed Shelf ................................................................................................................................11
Changing to 50 Hz Operation.........................................................................................................................12
Installing the Processor......................................................................................................................................13
Installing the Processor onto a Base .............................................................................................................13
Installing the Processor Through a Wall........................................................................................................14
Leveling the Processor...................................................................................................................................16
Installing Seismic Brackets.............................................................................................................................17
Connecting the Plumbing ...................................................................................................................................18
Connecting the Replenishment Tanks to the Replenishment Pump.............................................................19
Installing the Silver Recovery Unit ....................................................................................................................20
Environmental Requirements .............................................................................................................................21
Connecting the Exhaust Hose........................................................................................................................21
Checking the Ventilation.................................................................................................................................22
Connecting the Main Power for an M35A Processor, 120 Volts Only...........................................................24
Connecting the Power Cord on an M35 Processor, 220 Volts Only..............................................................25
Circuit Diagrams ..................................................................................................................................................29
Preparing the Processor for Use .......................................................................................................................31
Checking the Tubing Clamps, Tanks, and Racks..........................................................................................31
Filling the Tanks..............................................................................................................................................32
Checking the Replenishment Flow Rates ......................................................................................................34
Adjusting the Replenishment Pump ...............................................................................................................36
Installing the Racks.........................................................................................................................................37
Checking the Operation of the Processor......................................................................................................38
New Equipment Warranty ...................................................................................................................................41
Publication Change Table...................................................................................................................................42
981159 3

Electrostatic Discharge
Overview Preventive Measures
ESD--electrostatic discharge--is a primary source of: • Always look for an ESD warning label before doing
any procedure involving static-sensitive
components such as circuit boards. All
• product downtime static-sensitive components are marked with bright
• lost productivity graphic labels, which frequently include
• costly repairs instructions. Follow all label instructions.
• If the work area is carpeted, spray the carpet with
While one cannot feel a static charge of less than an antistatic solution. In low-humidity
3,500 volts, as few as 30 volts can damage or environments, spray carpets periodically with an
destroy essential components in electronic antistatic preparation, available at local stores.
equipment. • Wear a grounding strap when handling
Effective ESD control requires following these static-sensitive components. Always make certain
guidelines. that the clip remains attached to a properly
grounded, unpainted, clean surface.
• Repair static-sensitive components at an
Personnel Awareness ESD-protected work station or use a portable
grounding mat. For help in setting up an
Everyone within the organization needs to be aware ESD-protected work station, contact your Kodak
of ESD, because partial ESD control is no ESD representative.
control at all. Please note: • When moving static-sensitive components from one
area to another, insert and transport the
• ESD is a primary source of components in ESD-protective packaging.
frustrating equipment failures and Transparent antistatic bags are available from a
intermittent malfunctions. variety of manufacturers and will help shield
• ESD affects productivity and components from ESD damage.
profitability.
• ESD can be controlled.
General Precautions
•Do not store trash near static-sensitive equipment.
•Do not place plastic materials near electronic
components. Trash-can liners and styrofoam cups
generate static electricity, which can damage or
destroy electronic components.
4 981159

Unpacking the Processor

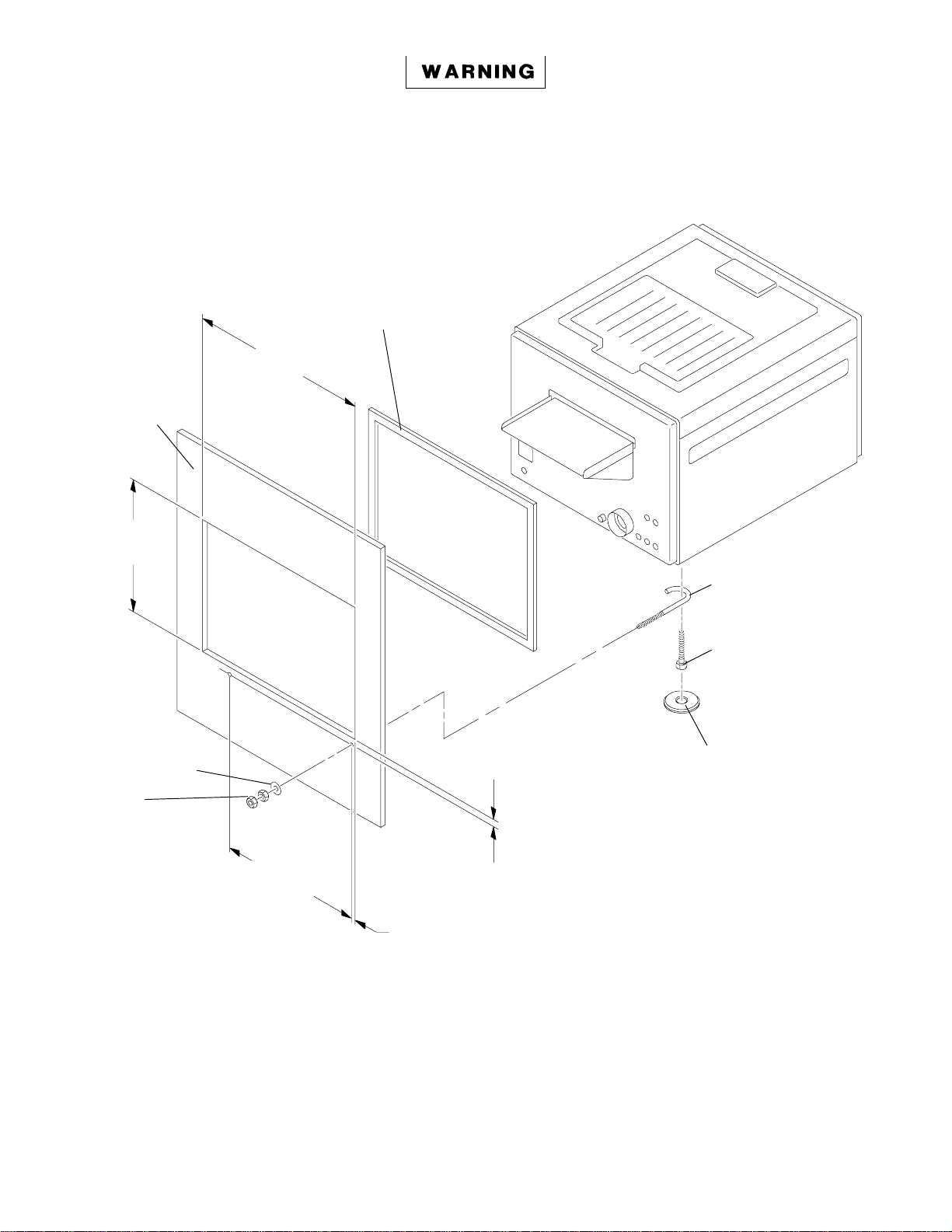

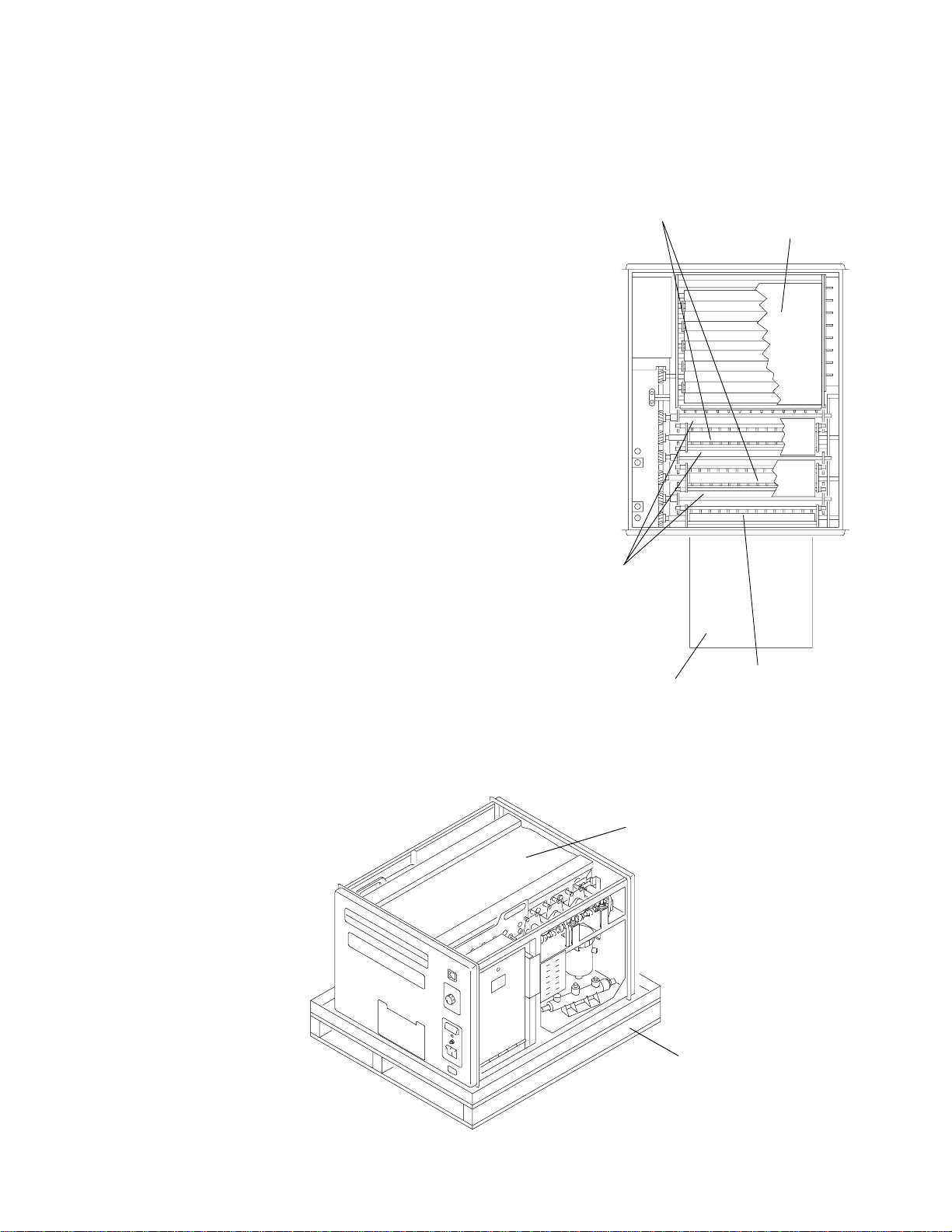

[1] Remove the PACKING CARTON.
[2] Remove and keep the boxes and bags of
parts.
[3] Check the parts with the Packing List as you
unpack.
[4] Remove the:
• TOP COVER
• 2 SIDE PANELS
• PACKING MATERIAL
• DETECTOR CROSSOVER ASSEMBLY
• 2 CROSSOVER ASSEMBLIES
• DRYER ASSEMBLY
• 3 RACKS
H112_0066CC
H112_0066CCA
ASSEMBLY (2)
CROSSOVER
ASSEMBLY
DRYER
ASSEMBLY
CROSSOVER
DETECTOR
FEED SHELF
RACK (3)
H112_0120BA
H112_0120BCA
PACKING MATERIAL
SHIPPING
BASE
981159 5

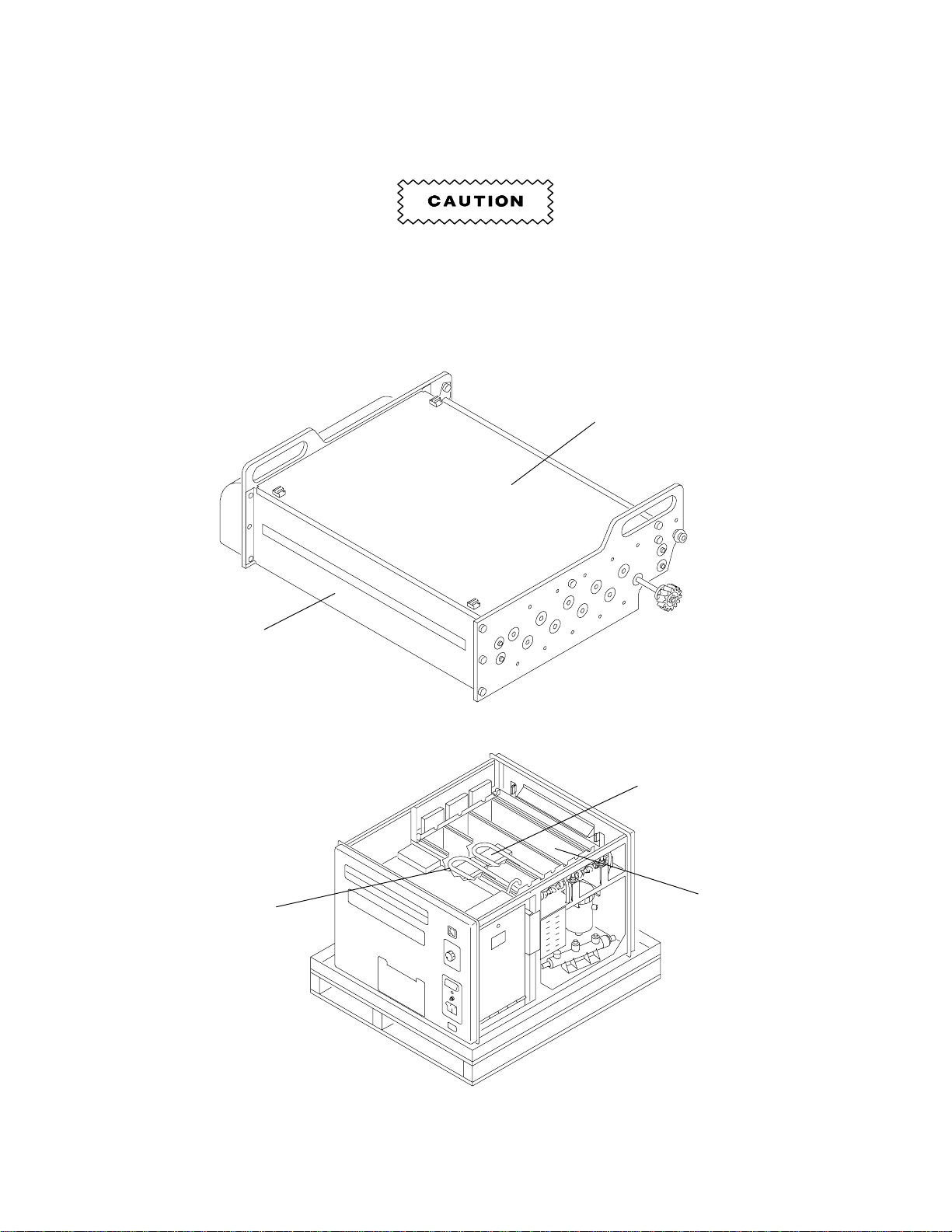

[5] From the DRYER ASSEMBLY, remove the:
• top and bottom COVERS
• PACKING MATERIAL
[6] Install the top and bottom COVERS on the DRYER ASSEMBLY.
Avoid lifting the HEAT EXCHANGERS when removing the PACKING MATERIAL from inside the
TANKS or the fittings may crack.
[7] Carefully remove the PACKING MATERIAL from the TANKS.
H112_0064BA
H112_0064BCB
COVER
DRYER ASSEMBLY
H112_0119BA
H112_0119BCA
PACKING MATERIAL
TANK (3)
HEAT EXCHANGER (2)
6 981159

Checking the Parts
[1] Before starting the processor installation, check that you have all the parts listed below.
Packed In or Prepack Box Quantity
Is Already On the Processor Quantity Bin - Receiving 1
Cover Assembly 1 Deflector - Bin 1
Side Panel Assembly 2 Feed Shelf Assembly 1
Detector Crossover Assembly 1 Gasket - Light Lock 1
Fixer/Wash Crossover Assembly 1 Manual Binder 1
Developer/Fixer Crossover Assembly 1 Support - Rack 1
Developer Rack Assembly 1 Weir - Developer, red 1
Fixer Rack Assembly 1 Weir - Fixer, blue 1
Wash Rack Assembly 1 Weir - Wash, beige 1
Dryer Rack Assembly 1
Wrapped in Paper Quantity
Cover - Evaporation 2
Guard - Splash 1
Tray - Drip 1
Prepack Plastic Bag Prepack Plastic Bag
for an M35A Processor Quantity for an M35 Processor Quantity
Bolt - Hook 2 Bolt - Hook 2
Cartridge - Filter 1 Bracket - Strain Relief, 220 volt only 1
Clamp - Hose, large 2 Cartridge - Filter 1
Clamp - Hose, small 6 Clamp - Hose, large 2
Elbow - Exhaust 1 Clamp - Hose, small 6
Elbow - Hose 1 Elbow - Hose 1
Fastener - Bin 2 Fastener - Bin 2
Guide - Film, right 1 Guide - Film, right 1
Nut - No. 8, 32 3 Nut - No. 8, 32 3
Nut - No. 10, 32 4 Nut - No. 10, 32 4
Plate - Floor 4 Plate - Floor 4
Receptacle - Polarized 1 Relief - Strain, 220 volt only 1
Screw - No. 8, 32 x 5/16 1 Screw - No. 8, 32 x ⁄
383
Screw - No. 8, 32 x ⁄
383 Screw - No. 10, 32 x ⁄ 383
Screw - No. 10, 32 x ⁄
382 Screw - No. 10, 32 x ⁄ 124
Screw - No. 10, 32 x ⁄
124 Sprocket - 19-Tooth, 50 Hz 1
Sprocket - 19-Tooth, 50 Hz 1 Strainer Assembly 2
Strainer Assembly 2 Strip - Data 1
Washer - Flat 4 Washer - Flat 4
Washer - Hook 2 Washer - Hook 2
Washer - Lock, No. 8 3 Washer - Lock, No. 8 3
Washer - Lock, No. 10 6 Washer - Lock, No. 10 7
Washer - No. 8 3 Washer - No. 8 3
Washer - No. 10 6 Washer - No. 10 7
Tie - Wire 2
981159 7

Preparing the Processor for Installation
Installing the Feed Shelf, the Detector Crossover Assembly, and the Developer Rack
[2] Install the:
• FILM GUIDE
• 3 SCREWS - No. 8, 32 x ⁄
38
Do not overtighten the SCREWS. • 3 WASHERS - No. 8
[1] Install the: • 3 LOCK WASHERS - No. 8
• 3 NUTS - No. 8, 32
• FEED SHELF

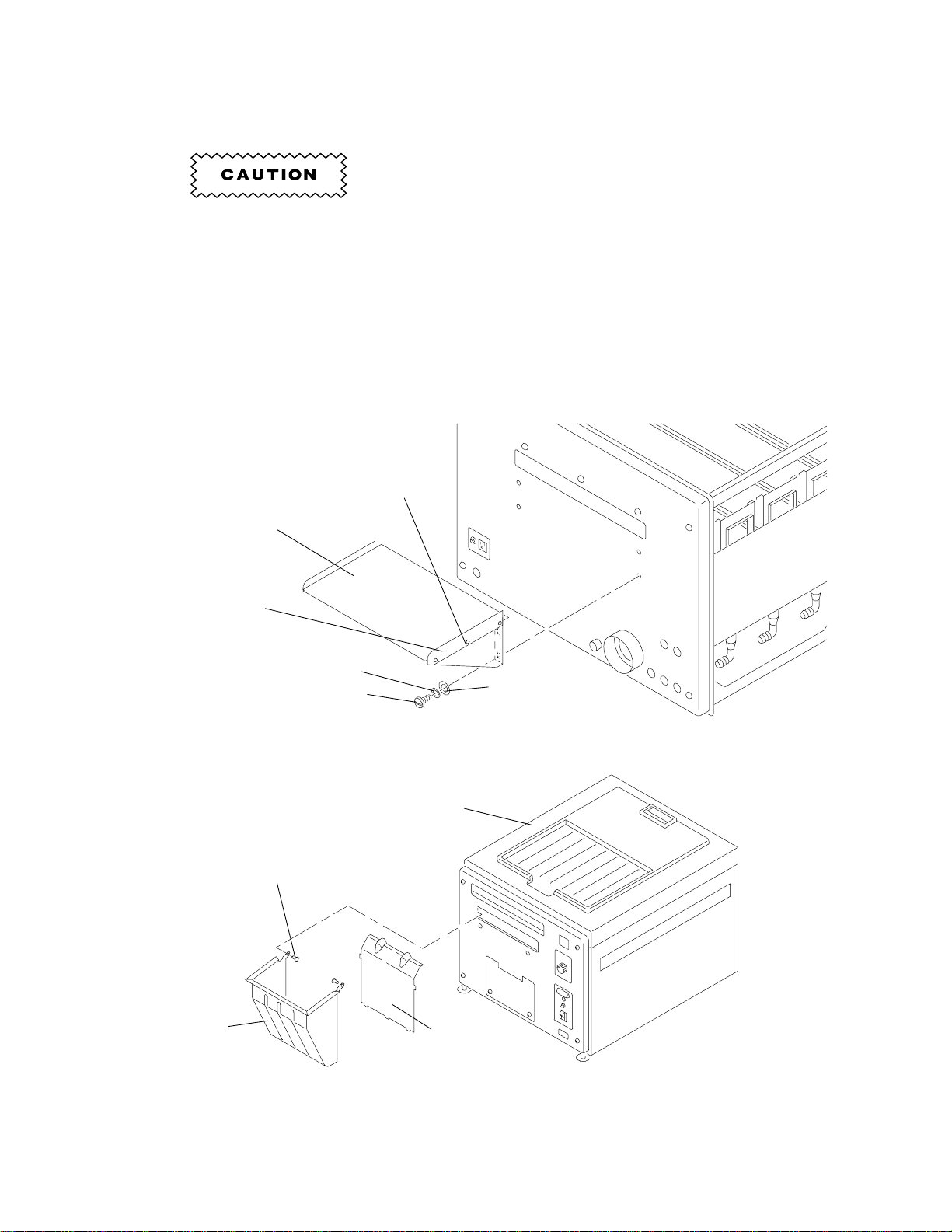

• 4 WASHERS - No. 10 [3] Install the DEFLECTOR in the RECEIVING
BIN.
• 4 LOCK WASHERS - No. 10
• 4 SCREWS - No. 10, 32 x ⁄
12[4] Install the RECEIVING BIN on the processor
using the 2 BIN FASTENERS.
H112_0113BA
H112_0113BCB
FEED SHELF
FILM GUIDE
LOCK WASHER (4)
SCREW (4) WASHER (4)
SCREW (3)
H112_0151BC
BIN
RECEIVING
TOP COVER
BIN FASTENER (2)
DEFLECTOR
H112_0151BCA
8 981159

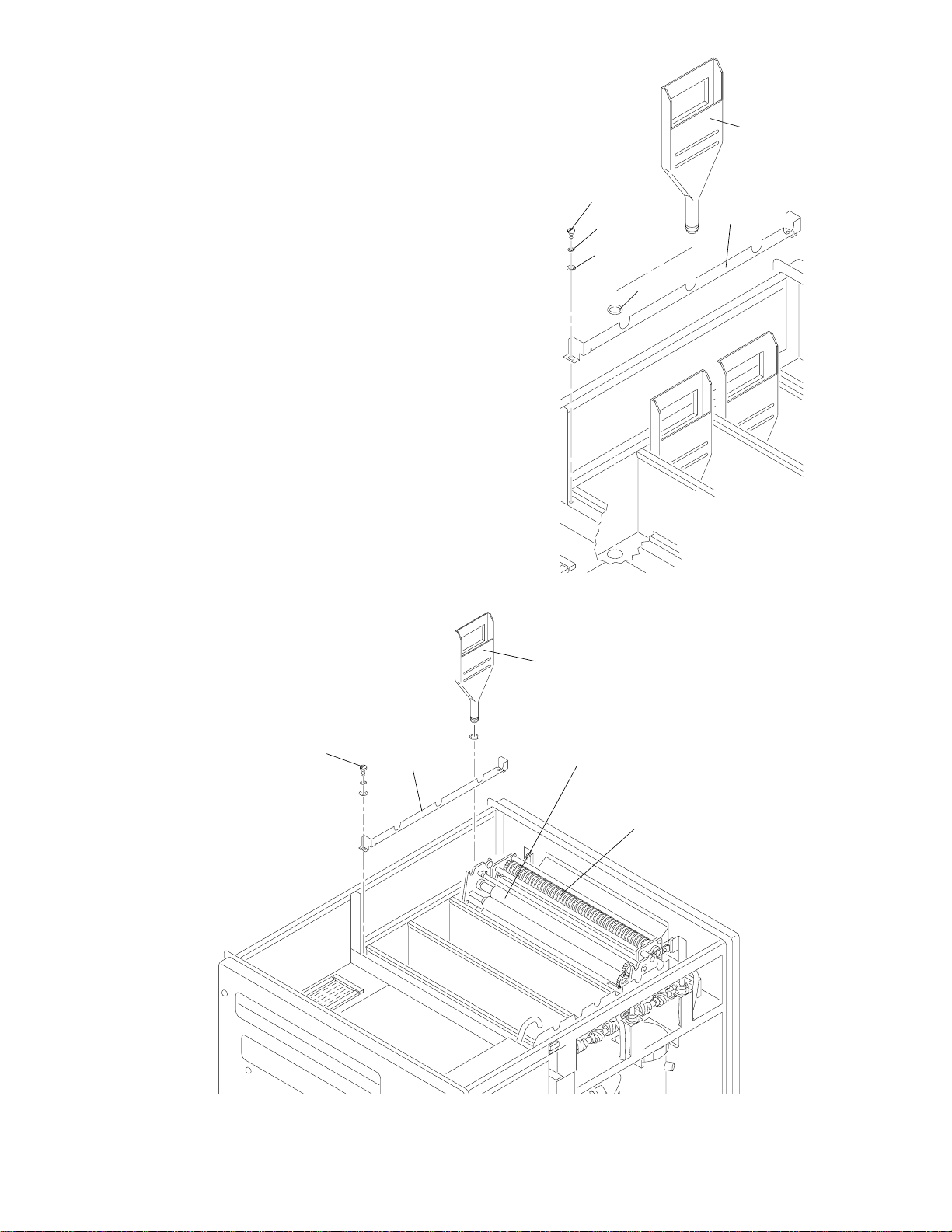

[5] Install the 3 WEIRS.
[6] Install the RACK SUPPORT on the non-drive
side of the processor with the 2 No. 10
WASHERS, LOCK WASHERS, and
SCREWS.
[7] Install the DEVELOPER RACK.
[8] Pull the RACK SUPPORT to the non-drive
side of the processor.
[9] Check the clearance by removing the WEIRS
and the DEVELOPER RACK.
[10] Move the RACK SUPPORT, if necessary.
[11] Tighten the 2 SCREWS on the RACK
SUPPORT.
[12] Install the DEVELOPER RACK, the WEIRS,
and the DETECTOR CROSSOVER
ASSEMBLY.
H112_0146CA
H112_0146CCB
SCREW (2)
LOCK
WASHER (2)
WASHER (2)
RACK
SUPPORT
WEIR (3)
O-RING
H112_0150DA
H112_0150DCA
SCREW (2) RACK
SUPPORT
WEIR (3)
DEVELOPER RACK
DETECTOR
CROSSOVER
ASSEMBLY
981159 9

Adjusting the Feed Shelf

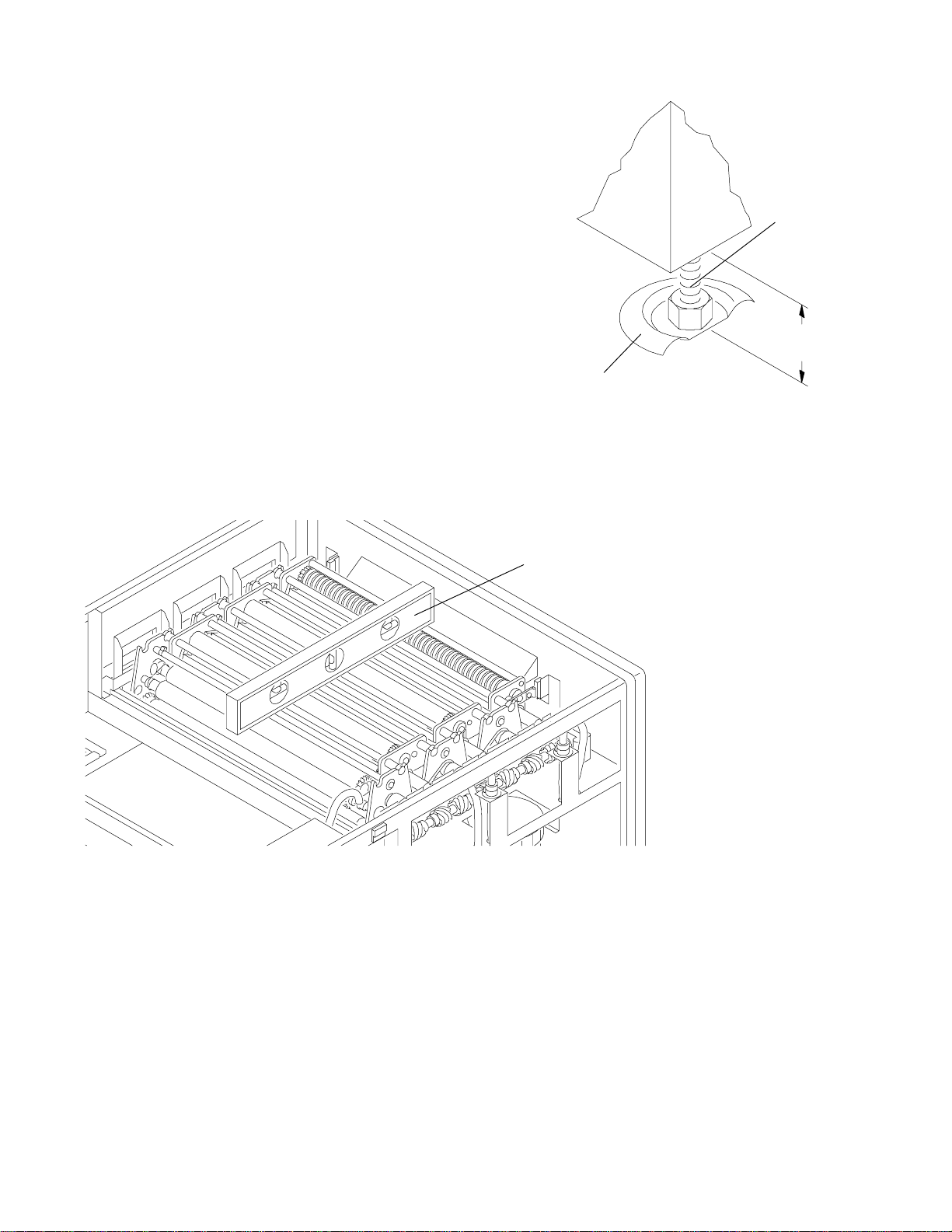

[1] Adjust the height of the FEED SHELF to
approximately 1.5 mm (0.06 or 1/16 in.) below
the NIP of the DETECTOR CROSSOVER
ROLLERS.
(a) Loosen the 4 SCREWS.
(b) Adjust the FEED SHELF for the correct
height by moving the FEED SHELF up
or down.
(c) Insert a sheet of 35 x 43 cm film into
the NIP of the DETECTOR
CROSSOVER ROLLERS.
[2] Use the edges of the film to align the FILM
GUIDE with the DETECTOR CROSSOVER
ROLLERS for squareness.
1.5 mm
(0.06 in.)
H112_0090AA
H112_0090ACA
GUIDE
FILM SHELF
FEED
SCREW (4) ROLLERS
CROSSOVER
DETECTOR
NIP
film entry path
[3] Tighten the 4 SCREWS.
H112_0113BA
H112_0113BCB
FEED SHELF
FILM GUIDE
LOCK WASHER (4)
SCREW (4) WASHER (4)
SCREW (3)
10 981159

Changing to 50 Hz Operation

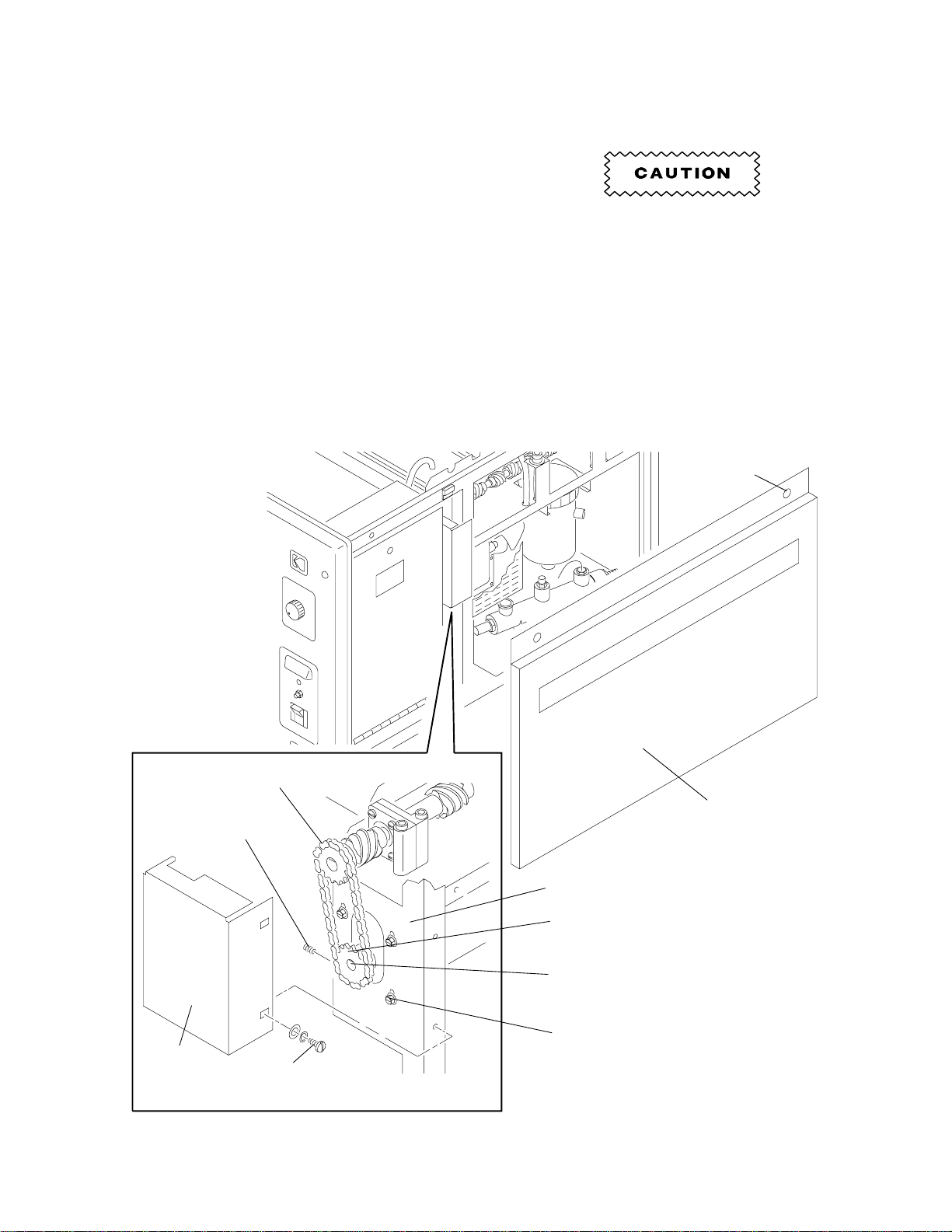

[1] Loosen the 2 SCREWS and remove the drive [10] Check that the DRIVE CHAIN does not touch
SIDE PANEL. the MOUNTING PLATE.
[2] Remove the 2 GUARD SCREWS and the
CHAIN GUARD.
[3] Loosen the 4 MOUNTING SCREWS. Do not overtighten the MOUNTING
[4] Remove the DRIVE CHAIN. SCREWS. Tighten only until the
[5] Loosen the SETSCREW. RUBBER ISOLATORS, not shown, on
the MOUNTING SCREWS are partially
[6] Remove the existing 16-TOOTH SPROCKET seated.
from the MOTOR SHAFT.
[7] Install the new 50 Hz 19-TOOTH SPROCKET [11] Tighten the 4 MOUNTING SCREWS.
on the MOTOR SHAFT. [12] Install the CHAIN GUARD and the 2 GUARD
[8] Tighten the SETSCREW. SCREWS.
[9] Install the DRIVE CHAIN. [13] Install the SIDE PANEL.
H112_0149DA
GUARD
CHAIN
SETSCREW
DRIVE CHAIN
MOUNTING SCREWS (4)
MOTOR SHAFT
16-TOOTH SPROCKET
MOUNTING PLATE
SCREW (2)
PANEL
SIDE
H112_0149DCA
GUARD
SCREW (2)
981159 11

Installing the Processor
Installing the Processor onto a Base
The processor weighs 90 kg (200 lb).
Use qualified personnel to install this
processor.
[1] Remove the processor from the SHIPPING
BASE. See the illustration on page 5.
[2] Remove the 4 LEVELING SCREWS from the
processor.
[3] Install the processor on a stable, flat surface
or on a KODAK M35 X-OMAT Mounting
Stand, CAT No. 808 1176.
[4] Install the LEVELING SCREWS through the
MOUNTING STAND or the stable, flat
surface.
H112_0148CA
H112_0148CCA
PROCESSOR
LEVELING
SCREW
(4)
MOUNTING
STAND
12 981159

Installing the Processor Through a Wall
NOTE
The processor may be installed with either the FEED SHELF or the RECEIVING BIN through the wall.
Dark Room
20 cm
(8 in.)
Offset
71 cm
(28 in.)
Opening
in wall 46 cm
(18 in.)
Plywood
opening
Leave flexibility
in this dimension
to allow for
leveling
of processor
H112_0128CA
H112_0129CA
Dark Room
5 cm
(2 in.)
Offset
56 cm
(22 in.)
Opening
in wall
46 cm
(18 in.)
Plywood
opening
Leave flexibility
in this dimension
to allow for
leveling
of processor
H112_0129CCA
GASKET
LIGHT LOCK
cover wall opening
frame, large enough to
20 mm (0.75 in.) plywood
H112_0128CCA
GASKET
LIGHT LOCK
cover wall opening
large enough to
plywood frame,
20 mm (0.75 in.)
Wall Installation Wall Installation
with the Receiving Bin through the Wall with the Feed Shelf through the Wall
981159 13

• The processor weighs 90 kg (200 lb). Use qualified personnel to install this processor.
• Do not pull the LIGHT LOCK GASKET too tight.
[1] Install the LIGHT LOCK GASKET to the PLYWOOD FRAME. Do not stretch the LIGHT LOCK GASKET.
61 cm (24 in.)
46 cm
(18 in.)
2.5 cm (1.0 in.)
48.7 cm
(19.18 in.)
1.4 cm (.56 in.)
H112_0130DA
H112_0130DCA
plywood frame
and attached to
around opening
LIGHT LOCK GASKET
opening
cover wall
frame to
plywood
(0.75 in.)
20 mm
FLOOR PLATE (4)
SCREW (4)
LEVELING
HOOK BOLT (2)
HOOK
WASHER (2)
HOOK
NUT (4)
14 981159

Leveling the Processor
[1] Move the processor into position.
[2] Install the 4 FLOOR PLATES under the
LEVELING SCREWS or under the
MOUNTING STAND.
NOTE
If an M35 MOUNTING STAND is used,
bolt the processor to the MOUNTING
STAND and level the MOUNTING
STAND.
[3] Level the processor side-to-side and
end-to-end.
[4] Install the 2 HOOK BOLTS around the front
2 LEVELING SCREWS and through the wall.
2.5 cm
(1.00 in.)
H112_0133AA
H112_0133ACA
FLOOR PLATE (4)
LEVELING
SCREW
(4)
See the illustration on page 15.
[5] Install the 4 HOOK NUTS and the 2 HOOK
WASHERS on the 2 HOOK BOLTS.
H112_0126BA
H112_0126BCA
LEVEL
981159 15

Installing Seismic Brackets
IMPORTANT
Local building codes may require that SEISMIC BRACKETS be used.
[1] Install SEISMIC BRACKETS to the processor or to the MOUNTING STAND if required by local codes. A
Seismic Bracket Kit, Part No. 261413, is available.

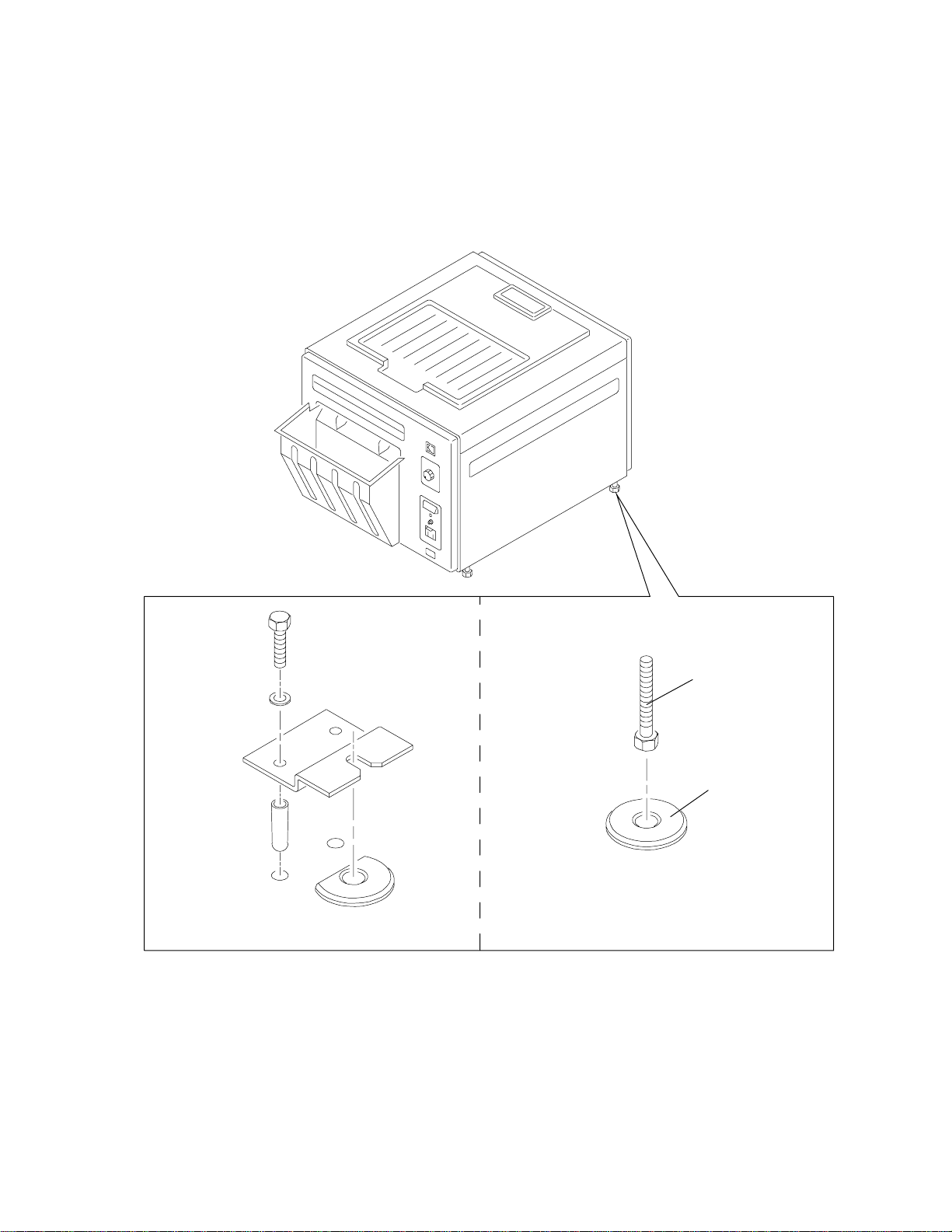

H112_0134DA
H112_0134DCA
LEVELING
SCREW
(4)
FLOOR
PLATE
(4)
SEISMIC BRACKET KIT
16 981159

Connecting the Plumbing
• Use local codes when installing the FLOOR DRAIN.
• Do not use brass or copper for the FLOOR DRAIN. Use PCV or cast iron.
• Do not make a solid connection to the FLOOR DRAIN. Use an open FLOOR DRAIN with a minimum
clearance of 2.5 cm (1 in.) between the tubing from the processor and the FLOOR DRAIN.
[1] Check that the developer and fixer WEIRS are installed correctly.
[2] Use ⁄
12-inch (1.27 cm) ID tubing, Part No. 760476, to connect the developer, fixer, and wash DRAINS to
the FLOOR DRAIN. See the illustration on page 20. Order the tubing by the foot.
[3] Connect the incoming water supply to the WATER INLET of the processor.

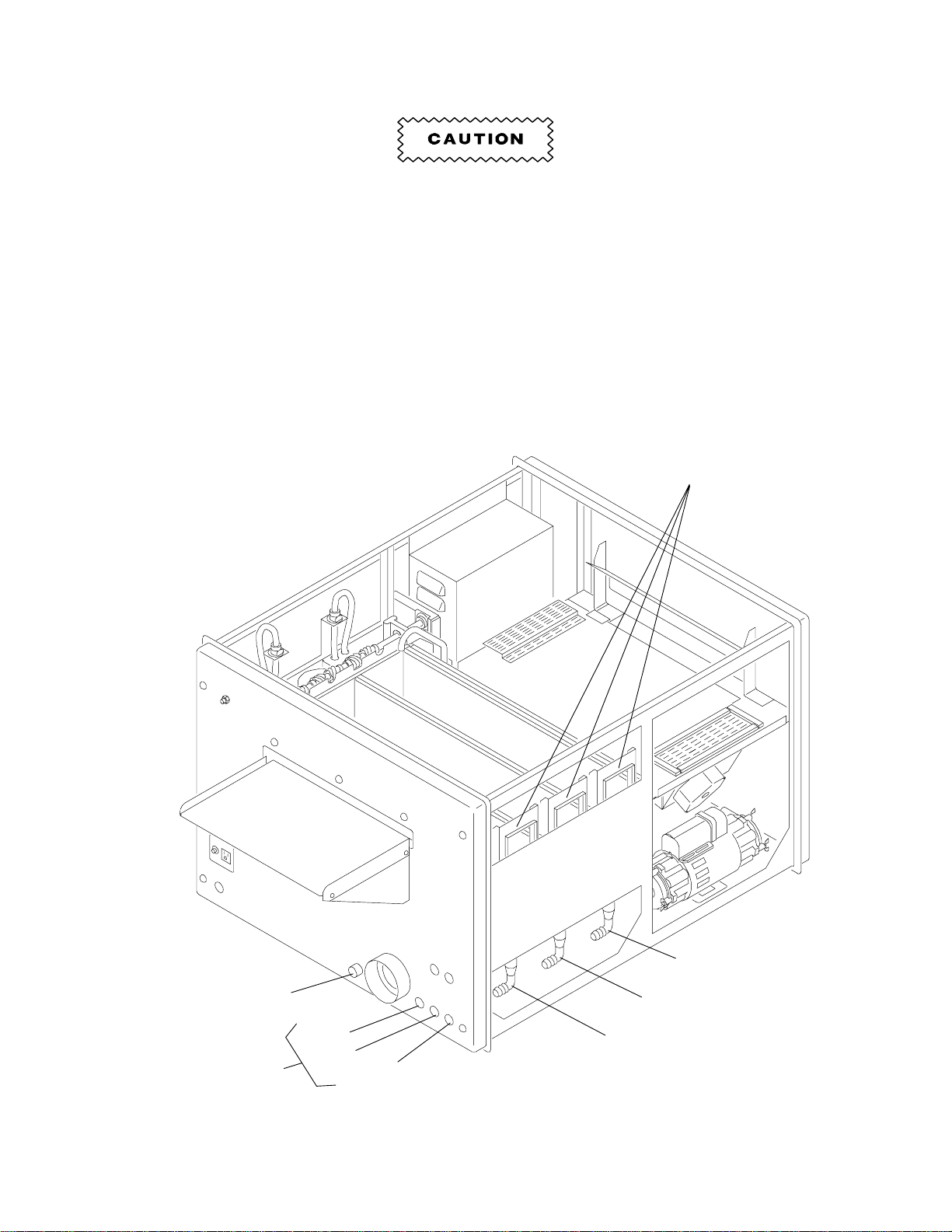

H112_0071DA
fixer
developer
DRAIN (3) developer
fixer
wash
WATER INLET
WEIRS
H112_0071DCB
wash
981159 17

Connecting the Replenishment Tanks to the Replenishment Pump
[1] Check that the connections in the tubing are
tight.
[2] Install the 2 STRAINERS in the tubing
• Do not allow water in the tubing from between the REPLENISHMENT PUMP and
the REPLENISHMENT TANKS. the REPLENISHMENT TANKS. Use the ⁄
38in.
• The highest solution level in the (9.5 cm) TUBING supplied.
REPLENISHMENT TANKS must be below [3] Connect the tubing to the processor TANKS.
the solution level in the processor TANKS. [4] Check that the REPLENISHMENT TANKS are
• Maximum processor solution level is 97 cm connected to the correct processor TANKS.
(38 in.) with the processor installed on an
M35 MOUNTING STAND.

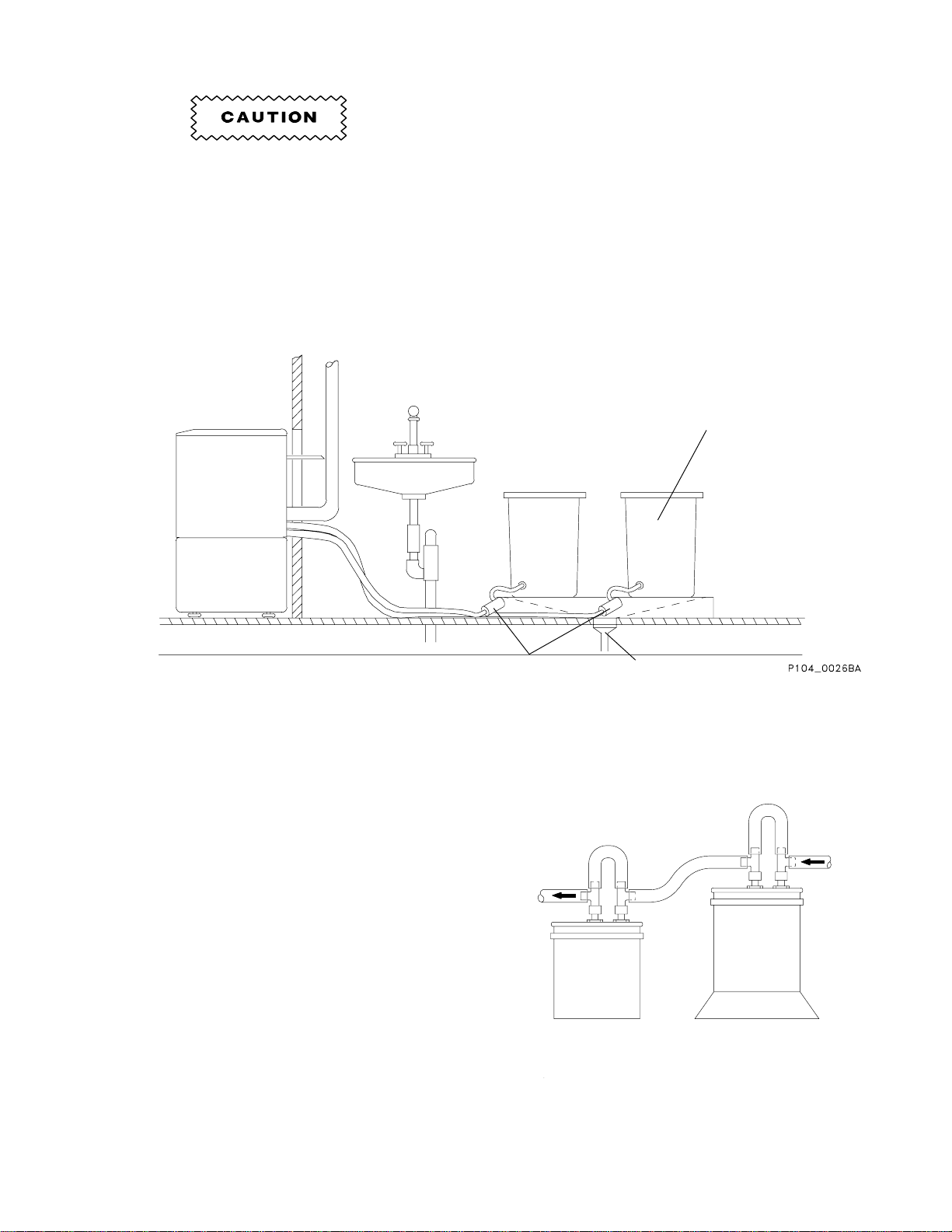

H104_0026BCB
REPLENISHMENT TANKS
STRAINERS FLOOR DRAIN
Installing the Silver Recovery Unit
[1] Connect the SILVER RECOVERY UNIT to the
fixer DRAIN with ⁄
12-inch (1.27 cm) ID tubing.
H112_0118AC
IN
OUT
SILVER RECOVERY UNIT
18 981159

Environmental Requirements
Connecting the Exhaust Hose
The building ventilation system must
draw air to the outside of the building,
so that no air is reused.
[1] Connect a 7.6 cm (3 inch) EXHAUST HOSE,
not supplied, to the EXHAUST ADAPTER.
[2] Connect the EXHAUST HOSE to the
EXHAUST DUCT from the building ventilation
system.
[3] Leave a 5 cm (2 inch) air gap between the
EXHAUST HOSE and the EXHAUST DUCT.
Clearance for
Exhaust Duct

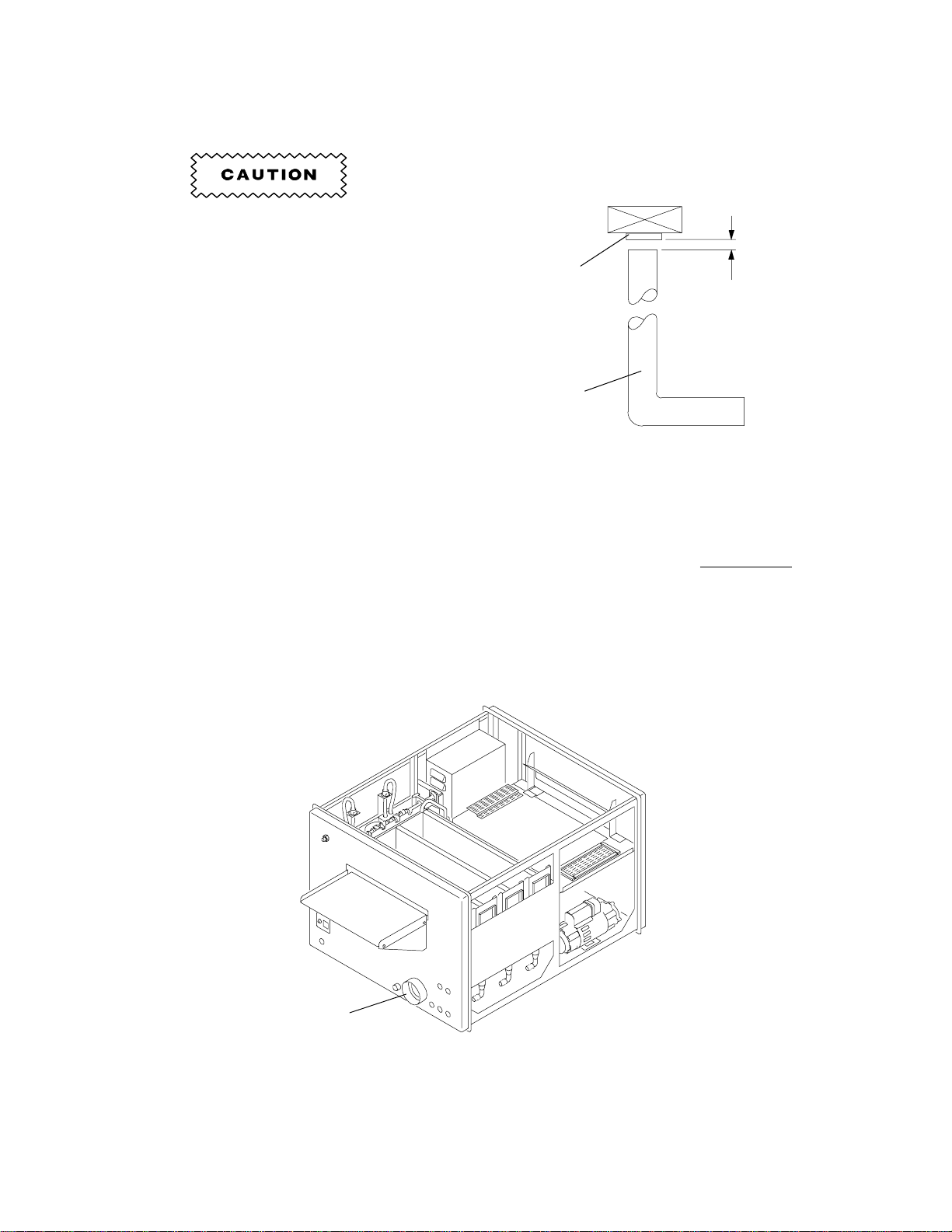

H104_0005AA
HOSE
EXHAUST
DUCT
EXHAUST
H104_0005ACA
maximum
5 cm (2 in.)
IMPORTANT
• If the venting is not correct, fumes will corrode equipment and cause artifacts. Do not install the
processor or accessories if the venting is not correct.
• The building ventilation system must draw air to the outside of the building, so that no air is reused.
• The AIR FLOW is correct when the fumes are flowing out of the processor through the EXHAUST
HOSE. Before installing the processor, or at the next service call, do the following to check that the
AIR FLOW is correct.
H112_0071BA
H112_0071BCB
EXHAUST ADAPTER
981159 19

Checking the Ventilation
Do the following procedure, using an AIR METER TL-2431, to check that the venting is correct.
[1] If the processor is installed, deenergize the processor.
[2] Disconnect the EXHAUST HOSE from the processor EXHAUST ADAPTER.
[3] Place the RUBBER HOSE on the CENTER CONNECTOR of the AIR METER.
[4] If a replenishment J TUBE, Part No. 592380, is available, do the following. If not, advance to Step 5.
(a) Cut off and discard the curved portion of the replenishment J TUBE.
(b) Install the tapered end of the replenishment J TUBE into the RUBBER HOSE.
(c) Advance to step 7.
[5] If a replenishment J TUBE is not available, align a HOSE SUPPORT, such as a straightened coat
hanger, next to the RUBBER HOSE. The ends of the HOSE SUPPORT and the RUBBER HOSE must
be together.
[6] Place TAPE around the HOSE SUPPORT and the RUBBER HOSE at 3 points. See the illustration.
IMPORTANT
The TAPE should not inhibit the AIR FLOW through the RUBBER HOSE.
[7] Insert the replenishment J TUBE or the RUBBER HOSE into the EXHAUST HOSE until the end is 30 cm
(12 in.) from the end of the EXHAUST HOSE.
IMPORTANT
The RUBBER HOSE or J TUBE must be in the center of the EXHAUST DUCT.
[8] Hold the AIR METER vertical, and record the average of several readings.

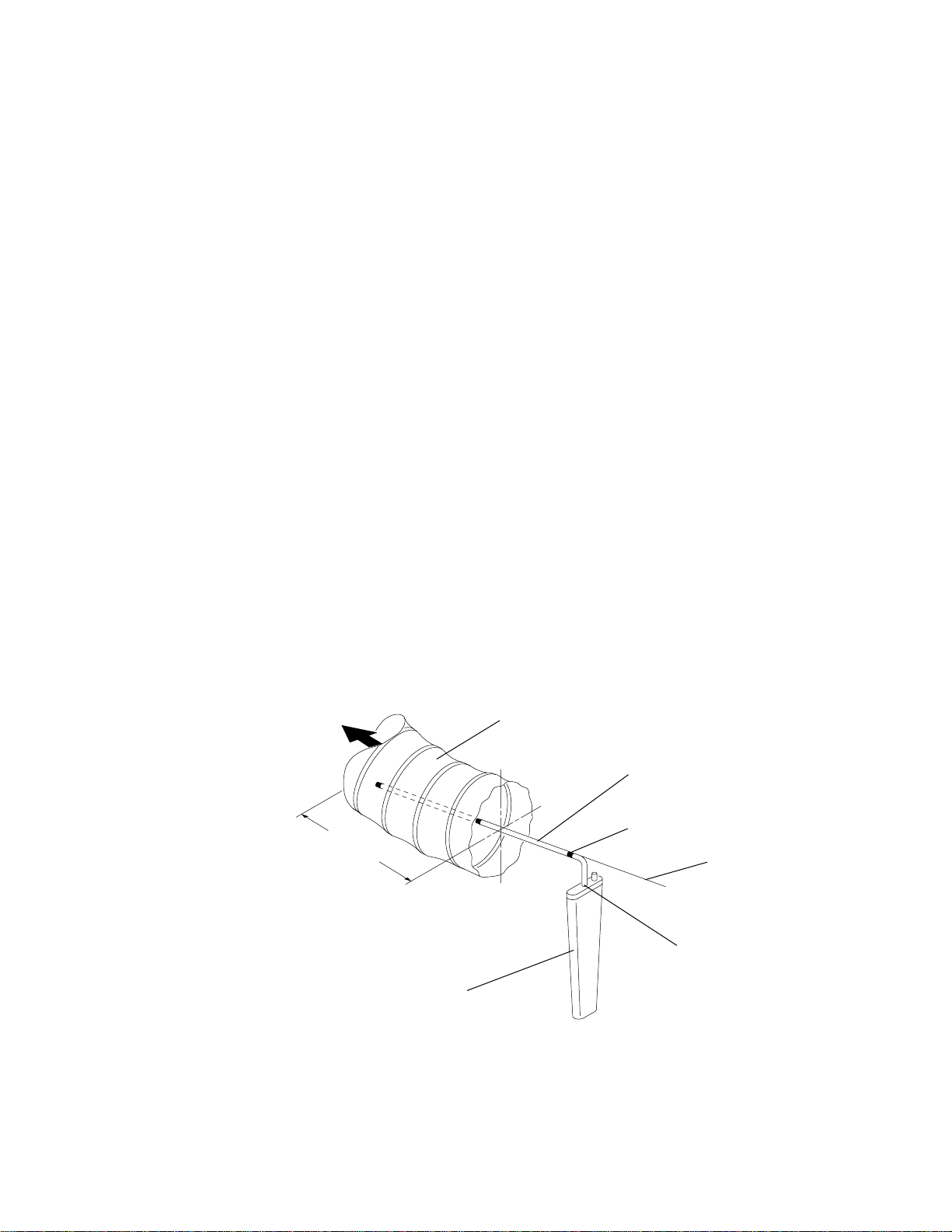

H048_0118BA
(12 in.)
30 cm
AIR FLOW
HOSE SUPPORT
CENTER CONNECTOR
AIR METER
TAPE (3 places)
MODIFIED J TUBE
RUBBER HOSE or
EXHAUST HOSE
H048_0118BCA
20 981159
