Kodak X-Omat M43 PROCESSOR Setup guide

CUSTOMER EQUIPMENT SERVICES DIVISION
© Eastman Kodak Company
Publication No. 981093
October 1994
DIAGNOSTICS
for the
Kodak X-Omat M43 and M43A PROCESSORS
and the
Kodak X-Omat Clinic 1 PROCESSOR
H130_0009DA

2October 1994 – 981093
PLEASE NOTE The information contained herein is based on the experience and knowledge relating to the
subject matter gained by Eastman Kodak Company prior to publication.
No patent license is granted by this information.
Eastman Kodak Company reserves the right to change this information without notice, and
makes no warranty, express or implied, with respect to this information. Kodak shall not be
liable for any loss or damage, including consequential or special damages, resulting from any
use of this information, even if loss or damage is caused by Kodak’s negligence or other fault.
This equipment includes parts and assemblies sensitive to damage from electrostatic
discharge. Use caution to prevent damage during all service procedures.
Important
This manual is intended for use by qualified service personnel only.

General Description of Errors
981093 – October 1994 3
General Description of Errors
Errors • Error codes represent an error or non-standard condition of the PROCESSOR. For further
information, see the tables starting on page .
• Error codes are indicated by blinking LEDs on the DISPLAY PANEL.
• If a non-fatal error or a non-standard condition occurs when film is fed, the ALARM will beep
twice. See Table on page .
• Error codes are listed by order of priority.
• When 2 or more errors occur at the same time, only the highest priority error is shown on the
DISPLAY PANEL.
• When the higher priority error or warning is corrected, the next priority error or warning code is
then displayed on the DISPLAY PANEL.
• Errors are divided into 3 categories:
– Fatal Errors
– Non-Fatal Errors
– Warnings
• Processing films during an error or non-standard condition may affect the image quality.
Fatal Errors
A Fatal Error is any error or non-standard condition that, once detected, causes the PROCESSOR to
enter a protective mode to prevent a hazardous condition. If the PROCESSOR is in a Fatal Error
Condition, record the error code indicated by the number of blinks on the SERVICE INDICATOR and
move the MAIN CIRCUIT BREAKER CB1 to the “O” position.
For Error 1 — If the error occurs while the PROCESSOR is in standby, the PROCESSOR will not
accept any film. The operator cannot correct the error.
For Errors 02 - 04 — If a sheet of film is in transit through the PROCESSOR when these errors occur,
the sheet of film will exit from the PROCESSOR, the PROCESSOR will shut down, and the
PROCESSOR will not accept any more sheets of film. If while the first sheet of film is in transit
through the PROCESSOR, the operator inserts additional sheets of film, the PROCESSOR will:
• operate with the non-functional component disabled
• sound the ALARM in a pattern of 2 seconds on and 2 seconds off
• shutdown after all additional sheets of film exit the PROCESSOR
For Errors 05 and 06 — The transport system will continue to operate. If the operator feeds film while
the PROCESSOR is in this condition, the film will exit wet. See Table on page for a description of
the PROCESSOR’S operation under Fatal Error conditions. If film is moving through the
PROCESSOR, the AUDIO ALARM will sound, in a pattern of 2 seconds ON and 2 seconds OFF, until
the film exits the PROCESSOR.

SITE SPECIFICATIONS
4October 1994 – 981093
Non-Fatal Errors
A Non-Fatal Error is any error or non-standard condition that can sometimes be corrected by the
operator. The PROCESSOR will attempt to correct the problem and will not enter into a protective
mode.
The PROCESSOR will usually accept film and continue to operate, but the image quality may be
reduced. As long as the error condition exists, the PROCESSOR will sound the ALARM twice
whenever the FILM SENSORS detect a leading edge of film being fed into the PROCESSOR. The
operator may be able to resolve the error condition by consulting the Operator Manual Publication No.
981089.
Warings A Warning is any error that the operator may be able to correct and normally does not prevent the
PROCESSOR from accepting film.
The PROCESSOR can continue to operate, but image quality may be affected. As long as the error
condition exists, the PROCESSOR will sound the ALARM twice whenever the FILM SENSORS
detect a leading edge of film being fed into the PROCESSOR. The error is a temporary condition or
one that the operator may be able to correct.

Service Routines
981093 – October 1994 5
Service Routines
Service Routine Selection
Caution
Only qualified service personnel should perform Service Routines.
The Service Routines are capable of controlling and testing the following assemblies:
• REPLENISHMENT PUMP MOTOR
• WASH RECIRCULATION PUMP MOTOR and WASH DIVERTER SOLENOID L3 of the
DIVERTER VALVE ASSEMBLY (M43 and M43A only)
• DEVELOPER HEATER
• WATER INPUT SOLENOID
• DEVELOPER COOLING SOLENOID L2 of the DIVERTER VALVE ASSEMBLY (M43 and
M43A only)
• WASH RECIRCULATION PUMP MOTOR and the DEVELOPER COOLING SOLENOID L2
of the DIVERTER VALVE ASSEMBLY (M43 and M43A only)
• STATUS INDICATORS
READY LIGHT
WAIT LIGHT
SERVICE LIGHT
• FILM SENSORS
• DEVELOPER TEMPERATURE DISPLAY (M43 and M43A only)
• AUDIO ALARM

SITE SPECIFICATIONS
6October 1994 – 981093
The table below summarizes the Service Routines available and the necessary position for all the
SWITCHES on the 100 CIRCUIT BOARD.

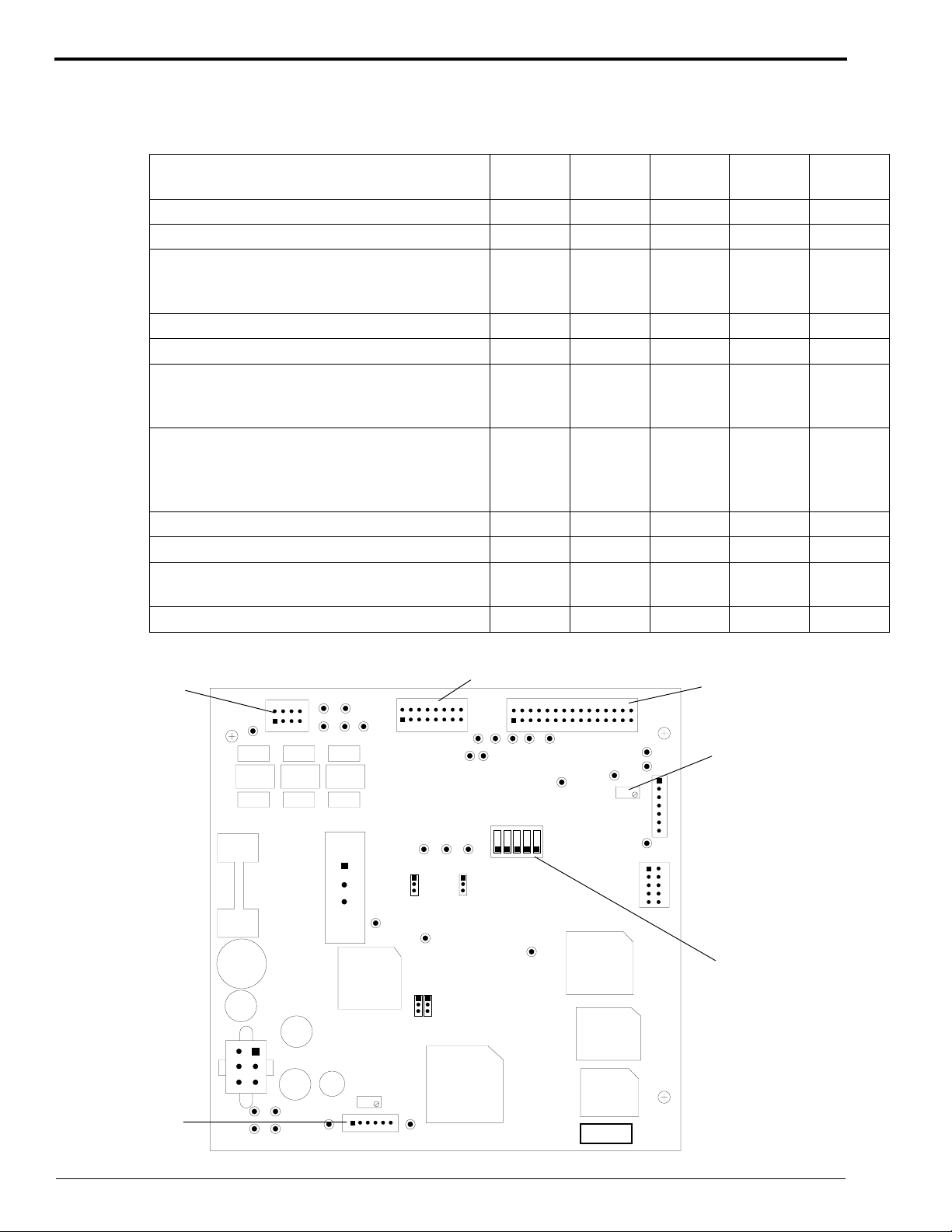

Table 1 SWITCH Positions for Service Routines
Figure 1 DIP SWITCH Settings
Service Routine SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5
No Service Routines Running Off Off Off Off Off
REPLENISHMENT PUMP On On Off Off Off
WASH RECIRCULATION PUMP and WASH
DIVERTER SOLENOID L3 of the DIVERTER
VALVE ASSEMBLY (M43 & M43A only)
On Off On Off Off
DEVELOPER HEATER On On On Off Off
WATER INPUT SOLENOID On Off Off On Off
DEVELOPER COOLING SOLENOID L2 of
the DIVERTER VALVE ASSEMBLY (M43 &
M43A only)
On On Off On Off
WASH RECIRCULATION PUMP and
DEVELOPER COOLING SOLENOID L2 of
the DIVERTER VALVE ASSEMBLY (M43 &
M43A only)
On Off Off Off On
STATUS INDICATORS On Off On On Off
FILM SENSORS On On On On Off
DEVELOPER TEMPERATURE DISPLAY
(M43 & M43A only) On On Off Off On
AUDIO ALARM On Off On Off On
U4 U5 U6
U20
U26
P102
TP28
TP30
P107
P106
TP4
171
210
9
TP1
TP2
30 29
TP3
TP5
TP6
TP7
TP8
TP12
TP15 GND
TP36
21
P105P104
21
21
87
16 15
TP22
TP23
TP25
TP41
TP26
R43
R31
R34
P103
TP32
20V RTN
13
C35 C46
TP9
TP10
TP11
TP27
TP14
TP40
P15V
VCC
P5AD
N15V
TP35 TP31
TP33 TP34
15
26
P101
C42 C44
U31
P108
S1
E5
E4
E1
E2
GND
N5AD
100 BD.
5
1
20V
R42
R25
H130_0146HA
N
CF
F
13
OFFON
13
P105
R42
H130_0146HCA
DIP SWITCHES
shown in the
OFF position
P103
P108
P104

Service Routines
981093 – October 1994 7
Executing a Service Routine
Caution
To prevent changing the replenishment rates, do not place any materials on the FEED TRAY which might interrupt
the beams of the FILM SENSORS while executing a Service Routine.
[1] Remove the TOP COVER from the PROCESSOR.
[2] Energize the PROCESSOR.
[3] Check that all 3 STATUS INDICATORS on the DISPLAY PANEL are not illuminated.
(a) If all 3 INDICATORS are not illuminated, check that the PROCESSOR is in the Replenishment Check
Mode by doing the following steps.
Insert a sheet of film under the MIDDLE FILM SENSOR.
Listen for the PROCESSOR to beep twice to acknowledge the request for replenishment.
Listen for the REPLENISHMENTS PUMP to energize.
Advance to Step 4.
(b) If any of the INDICATORS is illuminated, check for the correct operation of AC INTERLOCK SWITCH
S5 and DC INTERLOCK SWITCH S6. If necessary, install a new INTERLOCK SWITCH(ES). See the
important note on page .
[4] Loosen the 2 SCREWS and remove the DRIVE SIDE ACCESS PANEL.
[5] Pull the SUPPORT SHELF and the ELECTRICAL BOX out of the PROCESSOR. See Figure on page .
Warning
• High voltage.
• Possible damage to components from electrostatic discharge.
• Wear the ANTI-STATIC WRIST STRAP when your hands will be inside the ELECTRICAL BOX.
[6] Connect an ANTI-STATIC WRIST STRAP into the ESD JACK on the front of the ELECTRICAL BOX.
[7] Open the ELECTRICAL BOX. Hold the COVER up with the O-RING.

SITE SPECIFICATIONS
8October 1994 – 981093
Figure 2 Accessing the 100 CIRCUIT BOARD
[8] Enter the Diagnostic Mode by moving SWITCH 1 on the 100 CIRCUIT BOARD to the “ON” position.
Note
If the PROCESSOR does not enter the Diagnostic Mode, check whether the SERVICE INDICATOR on the
DISPLAY PANEL is illuminated. If the SERVICE INDICATOR is illuminated, check whether the DC
INTERLOCK SWITCH S6 has failed closed. If necessary, install a new DC INTERLOCK SWITCH S6. See the
important note on page .
[9] Use SWITCHES 2 through 5 to select the desired Service Routine. See Figure on page .
(a) Move SWITCHES 2 through 5 to select the next Service Routine that you want to execute. After 5
seconds the PROCESSOR will automatically run the Service Routine you selected and continue to run the
Service Routine until you move the SWITCHES to the “OFF” position.
(b) When you are done running Service Routines, move SWITCHES 2 through 5 to the “OFF” position.
[10] When you have executed all desired Service Routines, move SWITCHES 1 through 5 to the “OFF” position.
Note
The PROCESSOR will beep 3 times to acknowledge that all SWITCHES are off.
[11] Move the ELECTRICAL BOX and SUPPORT SHELF to their original positions.
[12] Install the DRIVE SIDE ACCESS PANEL, 2 SCREWS, and TOP COVER onto the PROCESSOR.
Note
• When the SWITCHES are again in the “OFF” position, the PROCESSOR will remain in Replenishment Check
Mode until you install the TOP COVER.
H130_0143HA
BOX
ELECTRICAL
SUPPORT SHELF
ELECTRICAL
BOX
JACK
O-RING
POST
COVER
100 CIRCUIT BOARD
H130_0143HCA
ESD

Service Routines
981093 – October 1994 9
• IftheDCINTERLOCKSWITCHS6hasfailedopen,thePROCESSORwillremainintheReplenishmentCheck
Mode even when you install the TOP COVER. To exit from the Replenishment Check Mode, you would need
to:
– check that the MAGNET is still attached to the TOP COVER and
– if necessary, install a new DC INTERLOCK SWITCH S6. See the important note on page .
• If while the PROCESSOR in the Replenishment Mode, you insert film under the FILM SENSORS and the DC
INTERLOCK SWITCH S6 has failed open, the volume of replenishment delivered may not be correct.
• If any SWITCH is in the “ON” position when you close the TOP COVER of the PROCESSOR, the SERVICE
INDICATOR on the DISPLAY PANEL of the PROCESSOR will illuminate and not blink. The PROCESSOR
will remain in the Diagnostic Mode.
[13] De-energize the PROCESSOR.

SITE SPECIFICATIONS
10 October 1994 – 981093
Service Routine for the REPLENISHMENT PUMPS
[1] Move SWITCHES 1 and 2 to the “ON” position.
[2] After 5 seconds, check that the REPLENISHMENT PUMP has started to operate.
[3] Check that developer and fixer are flowing in the replenishment lines and into the DEVELOPER and FIXER
TANKS.
Service Routine for the WASH PUMP
Caution
Do not do this routine unless water is in the WASH TANK.
[1] Remove the DRYER RACK from the PROCESSOR.
[2] Move SWITCHES 1 and 3 to the “ON” position.
[3] After 5 seconds, check that the WASH PUMP has started to operate by observing that water flows from the
WASH TUBES in the WASH RACK.
Service Routine for the DEVELOPER HEATER
[1] Remove the DEVELOPER RACK from the PROCESSOR.
Warning
• Do not operate the DEVELOPER HEATER unless the DEVELOPER TANK has enough water or solution in it
to cover the DEVELOPER HEATER.
• The surface of the DEVELOPER HEATER will become very hot, 140°C (220°F). Do not touch the
DEVELOPER HEATER.
• Do not remain in this Service Routine for more time than necessary or the developer solution might become
degraded.
[2] Move SWITCHES 1, 2, and 3 to the “ON” position.
[3] After 5 seconds, check that air bubbles are starting to form on the DEVELOPER HEATER in the bottom of the
DEVELOPER TANK. Or use a THERMOMETER 761217 to check that the temperature of the developer near
the DEVELOPER HEATER is increasing.
[4] Install the DEVELOPER RACK.

Service Routines
981093 – October 1994 11
Service Routine for the WATER INPUT SOLENOID
[1] Remove the DRYER RACK and the WASH RACK from the PROCESSOR.
[2] Move SWITCHES 1 and 4 to the “ON” position.
[3] Check the voltage across SOLENOID L3. The voltage should start at 20 V DC.
[4] After 5 seconds, listen for a “click” sound indicating that WATER INPUT SOLENOID has actuated. Check
that water enters the WASH TANK from the WASH INLET BAR in the WASH TANK.
[5] Check the voltage across SOLENOID L3 again. The voltage should have dropped to a holding voltage of 4 V
DC.
(a) If you did measure the correct voltage, measure the resistance across SOLENOID L3 by doing the steps
below.
Disconnect 1 of the LEADS from SOLENOID L3.
Measure the resistance of SOLENOID L3. The resistance should be 19 Ω±10%.
If necessary, install a new SOLENOID L3.
Connect the LEAD to SOLENOID L3.
(b) If you did not measure the correct voltage, continue doing the steps below until you identify the problem.
Check the connection at the 100 CIRCUIT BOARD.
Install a new SOFTWARE PROM U5.
Install a new 100 CIRCUIT BOARD.
[6] Install the WASH RACK and DRYER RACK.
Service Routine for the DEVELOPER COOLING SOLENOIE (L2) of the DIVERTER
VALVE (M43, M43A only)
[1] Remove the DEVELOPER RACK from the PROCESSOR.
[2] Move SWITCHES 1, 2, and 4 to the “ON” position.
[3] After 5 seconds, listen for a “click” indicating that the DEVELOPER COOLING SOLENOID (L2) has
actuated.
[4] Measure the voltage across the outside COIL of the DIVERTER VALVE ASSEMBLY. The voltage should
read 20 V DC for one second, then decrease to a holding voltage of 4 V DC, and then decrease to 0 V DC when
off.

SITE SPECIFICATIONS
12 October 1994 – 981093
Service Routine for the DEVELOPER COOLING SOLENOID (L2) of the DIVERTER
VALVE and the WASH PUMP (M43, M43A only)
[1] Remove the DRYER RACK and the DEVELOPER RACK from the PROCESSOR.
[2] Measure and record the temperature of the solution in the DEVELOPER TANK with a THERMOMETER
761217 near the HEAT EXCHANGER.
[3] Move SWITCHES 1 and 5 to the “ON” position.
[4] After 5 seconds, check that the DEVELOPER COOLING SOLENOID (L2) and the WASH PUMP have started
to operate. Listen for the “click” and do the following:
• Measure the voltage across the outside COIL of the DIVERTER VALVE. The voltage should read 20
V DC for one second, then decrease to a holding voltage of 4 V DC, and then decrease to 0 V DC when off.
• Check that water is circulating by observing the WASH TUBES in the WASH RACK.
• Measure and record the temperature of the solution in the DEVELOPER TANK near the HEAT
EXCHANGER. The temperature should be cooler than the temperature recorded in Step 2.
Service Routine for the STATUS INDICATORS
[1] Move SWITCHES 1, 3, and 4 to the “ON” position.
[2] After 5 seconds, check that all 3 of the STATUS INDICATORS are illuminated -- “READY”, “WAIT”, and
“SERVICE”.

Service Routines
981093 – October 1994 13
Service Routine for the FILM SENSORS
The PROCESSOR is capable of reading the following SENSORS:
• FILM SENSOR 1, by the “ - ” near the left edge of the FEED TRAY
• FILM SENSOR 2, in the middle of the FEED TRAY
• FILM SENSOR 3, by the “ + ” near the right edge of the FEED TRAY
The STATUS INDICATORS on the FRONT ACCESS PANEL indicate the status of the SENSOR being read. The
following Service Routine will check all 3 FILM SENSORS:
[1] Check that the 3 STATUS INDICATORS illuminate correctly by running the Service Routine for the STATUS
INDICATORS. See page .
[2] With no film on the FEED TRAY, check that all 3 STATUS INDICATORS are not illuminated.
[3] Move SWITCHES 1, 2, 3, and 4 to the “ON” position, and then:
(a) Place film under FILM SENSOR 1, and check that the READY INDICATOR is illuminated.
(b) Place film under FILM SENSOR 2, and check that the WAIT INDICATOR is illuminated.
(c) Place film under FILM SENSOR 3, and check that the SERVICE INDICATOR is illuminated.
[4] Remove all film from under the FILM SENSORS.
Service Routine for the Developer Temperature Display Adjustment (M43, M43A Only)
Note
Do this routine every time you change JUMPER E2 on the 100 CIRCUIT BOARD.
The 100 CIRCUIT BOARD in the ELECTRICAL BOX of the PROCESSOR displays a known value on the
DISPLAY PANEL of either:
• 33.9 for Celsius or
• 93.0 for Fahrenheit
[1] Move SWITCHES 1, 2, and 5 to the “ON” position.
[2] If the DISPLAY PANEL does not show “33.9” if Celsius is selected or “93.0” if Fahrenheit is selected, adjust
the POTENTIOMETER R42 on the 100 CIRCUIT BOARD until the DISPLAY PANEL displays the correct
value. See Figure on page . If adjustment is necessary, verify the setpoint.
Service Routine for the AUDIO ALARM
[1] Move SWITCHES 1, 3, and 5 to the “ON” position.
[2] Check that after 5 seconds, the AUDIO ALARM sounds.

SITE SPECIFICATIONS
14 October 1994 – 981093
Troubleshooting Procedures
Checking the SOLID STATE RELAYS for Correct Operation
Possible damage from electrostatic discharge.
ESD
[1] Measure the voltage between CONTACTS 1 and 2. See the figure.
(a) If the controlled component should be operating, you should measure +5 V DC at CONTACTS 3 and 4,
and a voltage of no more than 2 V AC at CONTACTS 1 and 2. If you measured more than 2 V AC at
CONTACTS 1 and 2, install a new RELAY and a new MOV.
(b) If the controlled component should not be operating, you should measure an AC voltage equal to the AC
supply voltage. If you measured an AC voltage of less than the AC supply voltage, install a new RELAY
and a new MOV.
[2] If the tests done in both Steps a and b passed, the failure is not the SOLID STATE RELAY, but the WIRING
HARNESS or the controlled component.
(a) Remove the MOV. Check the MOV for continuity.
If continuity, install a new MOV.
If no continuity, install a new RELAY and a new MOV.
Figure 3 Locating the CONTACTS
H130_0227GA
H130_0227GCB
CONTACT 3
CONTACT 2
CONTACT 1
CONTACT 4
CONTACT 1
CONTACT 2
CONTACT 4
CONTACT 3

Troubleshooting Procedures
981093 – October 1994 15
Checking the resistance of THERMISTORS
[1] Disconnect and remove the THERMISTOR.
[2] Using a THERMOMETER, determine the temperature of the THERMISTOR at the time of the resistance
reading.
[3] Measure the resistance of the complete THERMISTOR circuit by doing the steps below.
(a) Disconnect P104 from J104 at the 100 CIRCUIT BOARD.
(b) To measure the resistance across the DEVELOPER THERMISTOR RT1, use PINS 1 and 3 on P104.
(c) To measure the resistance across the DRYER THERMISTOR RT2, use PINS 7 and 9 on P104.
(d) Compare the resistance value you measured to the value in the Table on page .
If the resistance is within the limit, do the steps below.
Check for a bent PIN on CONNECTOR P/J104.
Connect P/J104.
If the resistance is more than ±10% of the value in Table , measure the resistance at the THERMISTOR
connection.
For the DEVELOPER THERMISTOR RT1, measure the resistance at CONNECTOR P/J18.
For the DRYER THERMISTOR RT2, measure the resistance at CONNECTOR P/J19.
Compare the resistance value you measured to the value in Table on page .
If the resistance is within the limit, connect the THERMISTOR CONNECTOR.
If the resistance is more than ±10% of the value in Table , install a new THERMISTOR.
Resistance Values for THERMISTORS
Temperature Resistance
kΩTemperature Resistance kΩ
°C°F°C°F
10.0 50.0 19.90 44.0 111.2 4.54
12.0 53.6 18.09 46.0 114.8 4.20
14.0 57.2 16.46 48.0 118.4 3.89
16.0 60.8 15.00 50.0 122.0 3.60
18.0 64.4 13.68 52.0 125.6 3.34
20.0 68.0 12.49 54.0 129.2 3.10
22.0 71.6 11.42 56.0 132.8 2.88
24.0 75.2 10.45 58.0 136.4 2.68
25.0 77.0 10.00 60.0 140.0 2.49
26.0 78.8 9.57 62.0 143.6 2.32
28.0 82.4 8.78 64.0 147.2 2.16
30.0 86.0 8.06 66.0 150.8 2.01
32.0 89.6 7.40 68.0 154.4 1.88
34.0 93.2 6.81 70.0 158.0 1.75
35.0 95.0 6.53 72.0 161.6 1.64
36.0 96.8 6.27 74.0 165.2 1.53
38.0 100.4 5.78 76.0 168.8 1.43
40.0 104.0 5.33 78.0 172.4 1.34
42.0 107.6 4.92 80.0 176.0 1.26

SITE SPECIFICATIONS
16 October 1994 – 981093

Operating Conditions
981093 – October 1994 17
Operating Conditions
STATUS INDICATORS
While the PROCESSOR is operating, the condition of the PROCESSOR is communicated to the
operator as outlined below:
• When the READY INDICATOR illuminates and neither the WAIT INDICATOR nor SERVICE
INDICATOR is illuminated or blinking, it indicates that:
– The developer and the DRYER are at the correct temperature.
– You may feed film.
• When the READY INDICATOR illuminates and the WAIT INDICATOR is blinking 3 times, it
indicates that:
– The solutions are at the correct temperature.
– The DRYER has not reached the set-point temperature.
– Emergency films may be run, but may exit wet or damp.
• When the WAIT INDICATOR illuminates and remains illuminated while the PROCESSOR is
operating, it indicates that:
– A film is being fed and is not yet off the FEED TRAY.
– The FILM SENSORS may be blocked by dirt or other debris, or may be defective.
• When the WAIT INDICATOR blinks on and off while the PROCESSOR is operating, it indicates
that:
– There is a temporary error or warning condition. See page .
– There is an error condition that the operator may be able to correct. See Table on pages
through .
– The pattern of “ON” and “OFF” flashes indicates the wait error code.
• When the SERVICE INDICATOR blinks on and off while the PROCESSOR is operating, it
indicates that:
– There is an error condition that the operator may be able to correct. See Table on pages to .
– The pattern of “ON” and “OFF” flashes indicates the service error code number.
• When the SERVICE INDICATOR illuminates and remains illuminated while the PROCESSOR
is operating, it indicates that:
– The PROCESSOR has been left in Diagnostic Mode.
– To exit the Diagnostic Mode, open the ELECTRICAL BOX and move all the DIAGNOSTIC
SWITCHES on the 100 CIRCUIT BOARD to the “OFF” position.
The STATUS INDICATORS help you to diagnose problems with the PROCESSOR. Check them
before servicing the PROCESSOR. See the tables on the pages that follow.

SITE SPECIFICATIONS
18 October 1994 – 981093
ERROR CONDITION Blink Patterns
Tables and show the blink patterns of the STATUS INDICATORS. Use these codes to diagnose problems before
servicing the PROCESSOR.
Warning
•Only qualified service providers should attempt the diagnostic procedures outlined in the following tables.
Doing the following procedures will expose you to high voltage components. Use caution when operating the
PROCESSOR with the COVERS removed. The BLOWER MOTOR and the MAIN DRIVE MOTOR energize
intermittently.
•In PROCESSORS having a serial number of less than 350 or without Mod 1 installed, the BLOWER
MOTOR and the MAIN DRIVE MOTOR will energize intermittently if all of the conditions below are met.
– if the TOP COVER is removed
– if the INTERLOCK TOOL TL-4740 is inserted into the AC INTERLOCK SWITCH S5
•In PROCESSORS having a serial number of 350 or higher or PROCESSORS with Mod 1 installed, the
BLOWER MOTOR and the MAIN DRIVE MOTOR will energize intermittently if all of the conditions below
are met.
– if the TOP COVER is removed
– if the INTERLOCK TOOL TL-4740 is inserted into the AC INTERLOCK SWITCH S5
– if a MAGNET is placed on DC INTERLOCK SWITCH S6
Important
The DC INTERLOCK SWITCH S6 is only found in PROCESSORS that either have a serial number of 350 or
higher, or have Mod 1 installed.
Error Condition - WAIT INDICATOR Blink Patterns
Error Condition Corrective Action
PROCESSOR ready
Ready - On
Wait - Off
Service - Off
NORMAL
OPERATION
No error, film being fed
Ready - On
Wait - On
Service - Off
NORMAL
OPERATION

Operating Conditions
981093 – October 1994 19
Error 11
Developer is over the
set temperature
Occurs when the
temperature of the
developer is more
than 0.3°C (0.5 °F)
above the set-point
temperature.
Ready - Off
Wait - 1 Blink
Service - Off
1. Check that the main water supply to the PROCESSOR is turned on.
2. Check that the WASH DRAIN VALVE and the DEVELOPER DRAIN VALVE are
closed and not leaking.
3. Check that the solution in both the DEVELOPER TANK and the WASH TANK is
at the correct level.
4. Check whether the temperature conditions outlined below are met:
• the main water supply is 5°C (8°F) lower than the developer set-point
temperature, between 4°and 29°C (40°and 85°F).
• the room ambient temperature is not greater than 30°C (86°F).
5. Check the set-point temperature of the DRYER. If the ambient temperature of your
site is in the lower end of the acceptable range of 15 to 30°C (59 to 86°F), the
PROCESSOR may never enter the Standby Mode, which could cause the developer
temperature to become too hot. This is true especially if the ambient water
temperature is higher than 26.6°C (80°F).
6. Check the wash and developer plumbing for leaks, air bubbles, or kinks in the
HOSES.
7. Check the ORIFICE in the DEVELOPER RECIRCULATION HOSE for any dirt or
obstructions.
• Note: The white ORIFICE is for fixer; the black ORIFICE is for developer.
8. OnClinic1PROCESSORSonly,checktheORIFICEinWASHRECIRCULATION
HOSE for any dirt or obstructions.
9. Check that the WASH PUMP is not airlocked.
10. Check that the DEVELOPER RACK and the FIXER RACK are not interchanged.
You can identify the DEVELOPER RACK by the following characteristics:
• red WIRE TIE
• RACK COVER
11. If the DEVELOPER RACK and the FIXER RACK are interchanged, do the steps
below:
• Check that the developer and fixer processing solutions have not become
contaminated. If necessary, drain, rinse, and fill the DEVELOPER and FIXER
TANKS.
• Rinse the RACKS.
• Install the RACKS into the appropriate TANKS.
12. Before installing the DEVELOPER RACK into the DEVELOPER TANK, do the
steps below:
• Check that the MANIFOLD on the DEVELOPER RACK is not loose.
• Insert the INTERLOCK TOOL TL-4740 into the AC INTERLOCK SWITCH
S5, and check that the DEVELOPER RECIRCULATION PUMP is operating
correctly and that the developer solution is circulating.
• If the PUMP is not operating, check the wiring and the AC INTERLOCK
SWITCH S5.
• Remove the INTERLOCK TOOL and install the DEVELOPER RACK.
13. Check that FUSE F1 is not open. If necessary, replace F1 it with a correct size Slo-
Blo FUSE (2.0 AMP for M43A and Clinic 1; 1.0 AMP for M43)
14. Check that J103 is connected securely to the 100 CIRCUIT BOARD.
Error Condition Corrective Action

SITE SPECIFICATIONS
20 October 1994 – 981093
15. Use the Service Routine for the WATER INPUT SOLENOID to check whether the
SOLENOID is operating.
• If the SOLENOID is not operating, clean the WASH INLET BAR and the
SCREEN on the SOLENOID. Check that the voltage across the SOLENOID is
20 V DC for one second, then decreases to a holding voltage of 4 V DC, and then
decreases to 0 V DC when off.
• Check for 65 Ω±5% at COIL L1 of the WATER INPUT SOLENOID.
If necessary, install a new WATER INPUT SOLENOID.
16. Use the Service Routines as described in Table on page .
• For the WASH PUMP to check that SSR-U4 for the WASH PUMP is operating
and that cooling water is circulating.
• If the WASH PUMP is not operating, check for dirt or obstructions in the
DIVERTER VALVE in an M43 or M43A, or in the ORIFICE in a Clinic 1; and
clean the holes in the WASH TUBES.
• On an M43 or M43A PROCESSOR, check that the DIVERTER VALVE is
wired and operating correctly:
• the red and black wires should connect P/J20 to the outer COIL, COOLING
DIVERTER SOLENOID L2
• the green and white wires should connect P/J21 to the inner COIL, WASH
DIVERTER SOLENOID L3
• Check that the actual plumbing of the DIVERTER VALVE matches the
plumbing diagram in the Diagram Package, Publication Number 981092.
• Measure the voltage across the outer COIL, SOLENOID L2. The voltage should
be 20 V DC for one second, then decrease to a holding voltage of 4 V DC, and
then decrease to 0 V DC when off.
• If you did measure the correct voltage, measure the resistance across
SOLENOID L2 by doing the steps below.
• 1. Disconnect 1 of the LEADS from SOLENOID L2.
• 2. Measure the resistance of SOLENOID L2. The resistance should be
19 Ω±10%.
• 3. If necessary, install a new SOLENOID L2.
• 4. Connect the LEAD to SOLENOID L2.
• If you did not measure the correct voltage, continue doing the steps below until
you identify the problem.
• 1. Check the connection at the 100 CIRCUIT BOARD.
• 2. Install a new SOFTWARE PROM U5.
• 3. Install a new 100 CIRCUIT BOARD.
17. Use the procedure on page to check SSR-U3 for the DEVELOPER HEATER.
18. Use the procedure on page to measure the resistance at the DEVELOPER
THERMISTOR. Compare your reading to the values in Table on page .
• If the resistance is not within ±10% of the correct resistance given in Table ,
install a new DEVELOPER THERMISTOR.
19. Check that the resistance of the DEVELOPER HEATER, at a room temperature of
21°C (70°F), is 62 Ω±5% for the M43 and 16 Ω±5% for the M43A and Clinic 1.
20. Check that the line voltage is within specification.
Error Condition Corrective Action
