Koehler K1798 Series Guide

Operation and Instruction Manual
REV A
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: [phone] • Fax: [phone]
http://www.koehlerinstrument.com • e-mail: [e-mail]
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing
K1798X
Corrosion Preventative Properties
Apparatus

CERTIFICATE OF CONFORMANCE
Corrosion Preventive Properties Apparatus
K1798X
This certificate verifies that part number K1798X, Corrosion Preventive Properties
Apparatus, was manufactured in conformance with the applicable standards set
forth in this certification.
Specifications: ASTM D1743-73
FTM 791-4012
This unit is tested before it leaves the factory, to ensure total functionality and
compliance to the above specifications and ASTM standards. Test and inspection
records are on file for verification.
Jesse Kelly
Application Engineer
Koehler Instrument Company

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -1-

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -2-

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -3-
WEEE Directive Compliance Statement
Background
The goal of the WEEE Directive is to encourage design of environment-friendly products that increase reuse,
recycling and other forms of recovery to reduce waste streams and applies to listed Electronic and Electrical
Equipment (EEE) and Koehler's equipment falls broadly into Appendix 1A; Section 9 Monitoring and Control
Equipment: Measuring, weighing or adjusting appliances for household or as laboratory equipment.
Any associated non-embedded equipment such as Lighting (Saybolt Color) and PCs/Printers also fall under
WEEE. If provided with an order these ancillary items must be WEEE compliant. For these and other
reasons (printer cartridges are regionalized) the equipment must be supplied through a third party supplier in
Europe.
The WEEE Directive applies to electrical and electronic equipment falling under the categories set out in
Annex IA provided that the equipment concerned is not part of another type of equipment that does not fall
within the scope of this Directive. Annex IB contains a list of products which fall under the categories set out
in Annex IA.
http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2003:037:0024:0038:en:PDF
We do not qualify for any of the 10 exemption categories.
http://www.dpa-system.dk/en/WEEE/Products/Exemptions
Professional use
For equipment defined for ’professional use’ local authorities have no role to play. Producers and importers
are basically responsible for collection of WEEE recyclables from the professional user and for subsequent
management. A separate statement is given cataloging the items that require separation from the equipment
along with basic information on subsequent processing or recycling prior to disposal of the equipment.
http://www.dpa-system.dk/en/WEEE/Products/Private-or-professional-use
Responsibility for Registration and Annual Reporting:
Koehler will not sell directly to end users in the EU and so has no responsibility to register within each EU
state and to make annual reports. Koehler declares that this responsibility is born by the importer who is the
first level of the distribution chain and is subject to producer responsibility. We will communicate this in
writing to our distributor/importers in the EU stating they are responsible to satisfy WEEE registration and
reporting requirements in the EU states where they conduct sales activities.
It is illegal to market electrical and electronic equipment covered by producer responsibility without being
registered.
http://www.dpa-system.dk/en/WEEE/Producers/Whoissubjecttoproducerresponsibility
Product Design
Koehler's designs allow for complete disassembly to a modular level which usually allows for standard
recycling. A qualified refrigeration system technician must be consulted when disassembling and de-
commissioning any equipment with refrigeration systems.
Koehler's scientific testing equipment is robustly designed to function over a long service life and are typically
repaired many times over the course of years rather than being replaced. We believe that re-use and
refurbishment is the very best form of re-cycling.
All batteries must be readily removable not soldered in place.
Recycling instructions
In the event that replacement becomes necessary, we will include instructions, particularized to each
instrument that informs the customer of their recycling responsibilities and giving them guidance in doing this.

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -4-
All Koehler equipment has been placed on the market since 13th August 2005 and so Koehler is defined as a
"new WEEE producer". As such we must provide information on refurbishment, treatment, and re-use.
Our instrument manual will include this compliance statement and indicate that any collection of materials will
be handled by their authorized distributor. In the event that the distributor is unreachable or is no longer a
distributor for Koehler Instrument, Co., other arrangements may be made including accepting the materials
directly.
Recycling is free of charge. Shipping is the responsibility of the end users. Whether shipping to a distributor or
to Koehler directly, safe, properly declared, and labeled packaging and shipping expenses are the sole
responsibility of the end user.
WEEE Marking
Since Koehler products are subject to the WEEE Directive we must display the WEEE symbol shown above
in accordance with European Standard EN 50419 on the equipment. It must be indelible, at least 5mm in
height, and clearly legible. If the equipment is too small the mark must be in the product literature, guarantee
certificate, or on the packaging. Rules on marking are established in section 49 of the WEEE Order.
Koehler Instrument Company, Inc.
c/o RECYCLING
1595 Sycamore, Ave.
Bohemia, NY 11716
As a minimum the following substances, preparations and components have to be removed from any
separately collected WEEE:
- Mercury containing components, such as switches or backlighting lamps (compact fluorescent lamps, CFL),
- Batteries
- Printed circuit boards if the surface of the printed circuit board is greater than 10 square centimeters (about
4 sq in.),
- Toner cartridges, liquid and pasty, as well as color toner,
- Chlorofluorocarbons (CFC), hydrochlorofluorocarbons (HCFC) or hydrofluorocarbons (HFC), hydrocarbons
(HC)
- Liquid crystal displays (together with their casing where appropriate) of a surface greater than 100 square
centimeters and all those back-lighted with gas discharge lamps,
- External electric cables
- Components containing refractory ceramic fibers as described in Commission Directive 97/69/EC of 5
December 1997 adapting to technical progress Council Directive 67/548/EEC relating to the classification,
packaging and labeling of dangerous substances (2),
- Electrolyte capacitors containing substances of concern (height > 25 mm, diameter > 25 mm or
proportionately similar volume)
2. The following components of WEEE that is separately collected have to be treated as indicated:
- Equipment containing gases that are ozone depleting or have a global warming potential (GWP) above 15,
such as those contained in foams and refrigeration circuits: the gases must be properly extracted and
properly treated. Ozone-depleting gases must be treated in accordance with Regulation (EC) No 2037/2000
of the European Parliament and of the Council of 29 June 2000 on substances that deplete the ozone layer
(4).

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -5-
Table of Contents
1Introduction ...................................................................................................................6
1.1 Koehler’s Commitment to Our Customers .............................................................................................6
1.2 Recommended Resources and Publications.........................................................................................6
1.3 Instrument Specifications.......................................................................................................................6
2Safety Information and Warnings ................................................................................7
3Getting Started...............................................................................................................7
3.1 Packing List............................................................................................................................................7
3.2 Unpacking ..............................................................................................................................................8
3.3 Setup......................................................................................................................................................8
3.4 Pre-operational safety checks................................................................................................................8
4Description.....................................................................................................................9
4.1 Instrument Descriptions .........................................................................................................................9
5Operation .....................................................................................................................10
5.1 Preparation of Bearings .......................................................................................................................10
5.2 Standardization of Thrust Loading Device...........................................................................................10
5.3 Grease Packing Procedure..................................................................................................................11
5.4 Bearing Holder Assembly Procedure...................................................................................................12
5.5 Test Procedure.....................................................................................................................................13
5.6 Rating Procedure .................................................................................................................................14
6Maintenance.................................................................................................................14
6.1 Routine Maintenance ...........................................................................................................................14
6.2 Replacement Parts...............................................................................................................................14
7Wiring Diagrams..........................................................................................................15
7.1 115V Unit Wiring (K17980)..................................................................................................................15
7.2 220-240V Unit Wiring (K17989)...........................................................................................................16
8Service..........................................................................................................................17
9Storage.........................................................................................................................17
10 Warranty.......................................................................................................................17
11 Returned Goods Policy...............................................................................................17
Notes..................................................................................................................................18

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -6-
1 Introduction
The Koehler K1798X, Corrosion Preventative
Properties Apparatus is designed to determine the
corrosion preventative properties of greases when
distributed in a tapered roller bearing stored under
wet conditions
This manual provides important information
regarding safety, technical reference, installation
requirements, operating condition specifications,
user facility resource requirements, and operating
instructions for the Pressure Viscometer. This
manual should also be used in conjunction with
applicable published laboratory procedures.
Information on these procedures is given in
section 1.2.
1.1 Koehler’s Commitment to Our
Customers
Providing quality testing instrumentation and
technical support services for research and testing
laboratories has been our specialty for more than
50 years. At Koehler, the primary focus of our
business is providing you with the full support of
your laboratory testing needs. Our products are
backed by our staff of technically knowledgeable,
trained specialists who are experienced in both
petroleum products testing and instrument service
to better understand your requirements and
provide you with the best solutions. You can
depend on Koehler for a full range of accurate and
reliable instrumentation as well as support for your
laboratory testing programs. Please do not
hesitate to contact us at any time with your
inquiries about equipment, tests, or technical
support.
Toll Free: 1-800-878-9070 (US only)
Tel: [phone]
Fax: [phone]
Email: [e-mail]
http://www.koehlerinstrument.com
1.2 Recommended Resources and
Publications
1. American Society for Testing and Materials
(ASTM)
100 Barr Harbor Drive
West Conshohocken, Pennsylvania 19428-
2959, USA
Tel: [phone]
Fax: [phone]
http://www.astm.org
email: [e-mail]
ASTM Publication:
ASTM D1743: Standard Test Method for
Determining Corrosion Preventive
Properties of Lubricating Greases
ASTM D4950: Classification and
Specification for Automotive Service
Greases
1.3 Instrument Specifications
Models:
K17980
K17989
Electrical
Requirements:
115V 60Hz
230 V 50/60Hz
Drive Motor Speed:
1750 RPM
Dimensions
(lxwxh,in.(cm)):
10x15x20
(25.4x38.1x50.8)
Net Weight:
27 lbs (12.2kg)
Shipping
Dimensions:
5 Cu. ft.
Shipping Weight:
36 lbs (16.3 kg)
Altitude:
Rated for use below
2000m
Environmental
Conditions:
As per section 1.4.1 of
IEC 61010

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -7-
2 Safety Information and Warnings
Safety Considerations. The use of this
equipment may involve hazardous materials and
operations. This manual does not purport to
address all of the safety problems associated with
the use of this equipment. It is the responsibility of
any user of this equipment to investigate,
research, and establish appropriate safety and
health practices and determine the applicability of
regulatory limitations prior to use.
Equipment Modifications and Replacement
Parts. Any modification or alteration of this
equipment from that of factory specifications is not
recommended voids the manufacturer warranty,
product safety, performance specifications, and/or
certifications whether specified or implied, and
may result in personal injury and/or property loss.
Replacement parts must be O.E.M. exact
replacement equipment.
Unit Design. This equipment is specifically
designed for use in accordance with the applicable
standard test methods listed in section 1.2 of this
manual. The use of this equipment in accordance
with any other test procedures, or for any other
purpose, is not recommended and may be
extremely hazardous.
Chemical Reagents Information. Chemicals and
reagents used in performing the test may exhibit
potential hazards. Any user must be familiarized
with the possible dangers before use. We also
recommend consulting the Material Data and
Safety Sheet (MSDS) on each chemical reagent
for additional information. MSDS information can
be easily located on the internet at
http://siri.uvm.edu or http://www.sigma-
aldrich.com.
WARNING: Always de-energize and unplug
instrument when accessing any internal portion of
the instrument. Never remove any side cover or
part of the case or instrument without first de-
energizing and unplugging from the mains.
Potential hazards include:
Hair/clothing/ jewelry entanglement-
rotating spindle/drill
Eye injuries
WARNING: Safety glasses must be
worn at all times in the work areas
Rings and jewelry must not be worn
Long and loose hair must be contained
Close Fitting Clothing Must be Worn
3 Getting Started
The instructions for preparing the equipment
assume that the user is aware of the contents of
this document, which lists the warranty conditions
and important precautions.
3.1 Packing List
K1798X Corrosion Preventative Properties
Apparatus, 115V 60Hz / 220-240V 50-60Hz
K1798X-Manual Operation and Instruction
Manual

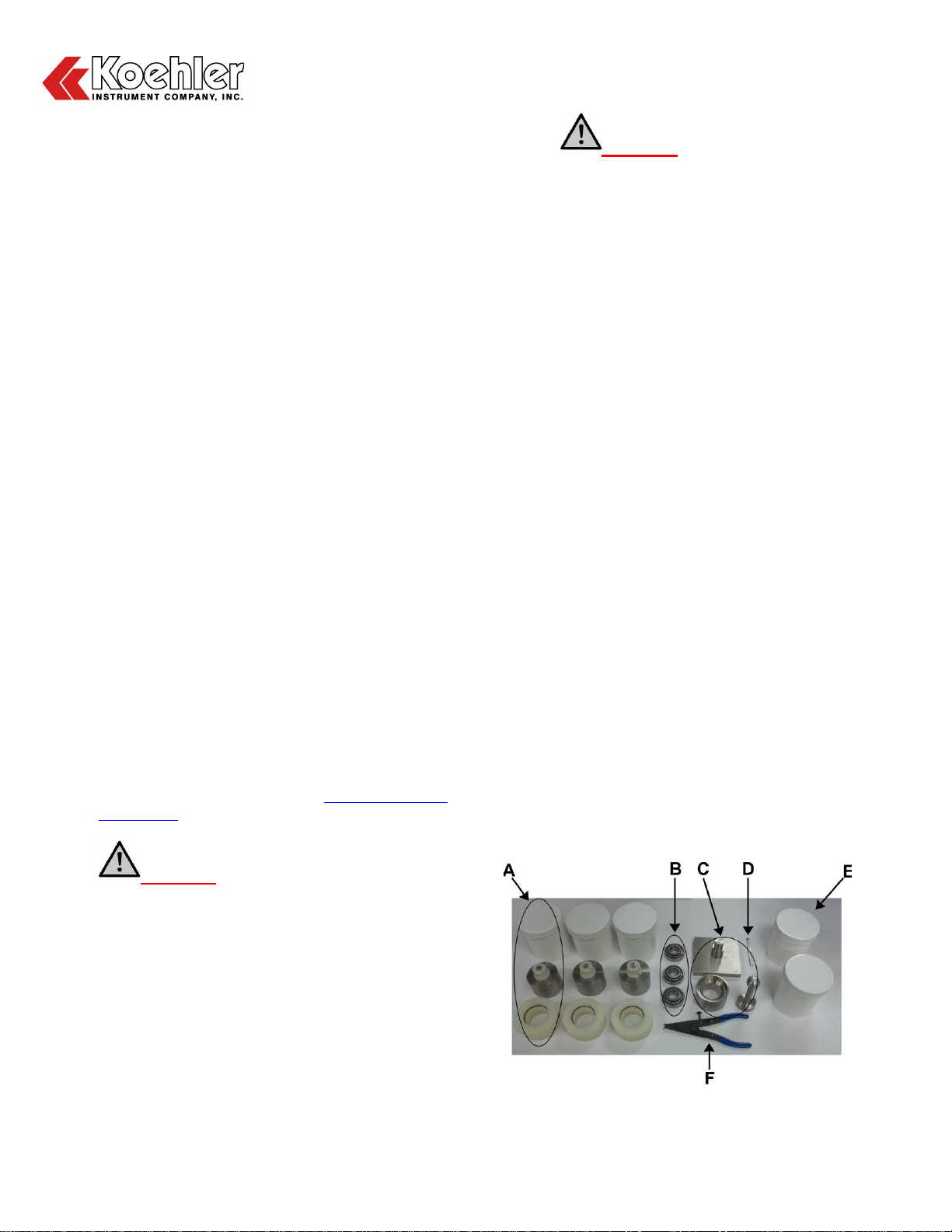

Refer to Figure 1 for an illustration of the included
accessories below:
K17981 Bearing Holder Assembly (Qty 3) (A)
Consisting of:
- K17981-0-1 Weight, 1kg
- 22J-114-09S Metal Screw
- K17981-0-2 Upper Flange
- K17981-0-3 Lower Flange
- K17981-0-4 Bearing Holder
- K17984 Plastic Jar with Cover
289-004-002 Test Bearing Set, pk/3 (B)
K17982 Mechanical Grease Packer (C)
Consisting of:
- K185-0-44 Bearing Holder
- K185-0-45 Bearing Packer Plunger
- K185-0-47E Bearing Packer Base Assembly
K17980-0-8 Spacer, 3mm width (D)
K17984 Plastic Jar with Cover (Qty 2) (E)
K17983 Pliers (F)
Figure 1. Packing List

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -8-
3.2 Unpacking
1. Check Shock Watch Label on Cardboard Box
for indication of rough handling and possible
damage.
2. Check labeling for correct orientation of
instrument. (e.g. This Side Up)
3. Carefully open top of box with box cutter and
remove packing foam.
4. Make two additional vertical cuts, using box
cutter, along length of two sides of the box
and remove packing foam.
5. Extract instrument and place on suitable cart
for transportation to work area / lab bench.
WARNING: Be sure two or more individuals
are available for extracting and lifting instrument
from box to cart and from cart to bench.
Individuals must lift in accordance to proper
technique. See Figure below.
6. Lift instrument from cart and place on bench.
7. Ensure that all parts listed on the packing list
are present. Inspect the unit and all
accessories for damage. If any damage is
found, keep all packing materials and
immediately report the damage to the carrier.
We will assist you with your claim, if
requested. When submitting a claim for
shipping damage, request that the carrier
inspect the shipping container and equipment.
Do not return goods to Koehler without written
authorization.
3.3 Setup
Equipment Placement. Place the instrument on a
firm, level table in an area with adequate
ventilation or in a hood. This unit comes basically
fully assembled, except for the assembly of the
bearing holder assemblies and mechanical grease
packer.
Power. Connect the line cords to properly fused
and grounded receptacles with the correct voltage
as indicated in section 1.3 or on the back of the
unit.
WARNING: For safety, disconnect the
power when performing any maintenance and/or
cleaning.
Environmental Conditions: Instrument must be
set up and operated in the following environmental
conditions:
No/low dust
No direct sunlight
Not near heating or AC ventilation ducts
No vibrations
Clearance to other instruments
Environmental temperature range given in
IEC 61010: 5 degrees C to 40 degrees C
Elevation to 2000m
Relative humidity <80%
3.4 Pre-operational safety checks
1. Locate and ensure you are familiar with the
operation of the motor ON/OFF switch and
speed adjustment knob
2. Follow correct clamping procedures using the
height adjustment knob on the back of the
apparatus as well as the upper and lower level
adjustment nuts on the side to ensure the
apparatus is secure.
3. Faulty equipment must not be used. Ensure
the instrument is in proper working order
before use.

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -9-
4 Description
4.1 Instrument Descriptions
Figure 2. Instrument Descriptions_Front
1. Power Switch. This switch controls the power
to the motor. When the power switch is in the
ON position, the drive motor is powered on
rotates the Spindle/Thrust Loading Device (4)
at the desired set speed.
2. Motor Speed Knob. This knob controls the
speed at which the motor rotates the
Spindle/Thrust Loading Device. The knob is
labeled with number designations which are
arbitrary and only indicate the percentage of
power that is applied to the motor. The proper
test speed in accordance to ASTM D1743 is
1750 ± 50 RPM.
3. Lever. To lower the apparatus onto the
bearing holder assembly. Maximum and
minimum height can be adjusted by the Upper
and Lower Adjustment Nuts located on the
back of the apparatus. See Figure 3.
4. Spacer, 3mm. Used to standardize the thrust
loading device. The spacer is 3mm in width
and is used in conjunction with the adjustment
nuts located on the left-hand side of the
apparatus. Refer to Section 5.2 for additional
details on the use of this item.
5. Spindle/Thrust Loading Device. Spring
loaded device to apply a precise load to the
test bearing while capable of spinning in
conjunction with the drive motor (5). Equipped
with an indexing pin for alignment with the
hole located on the 1kg weight.
6. Drive Motor. Rotates the Spindle/Thrust
Loading Device at a speed of 1750 RPM in
accordance to ASTM D1743.
Figure 3. Instrument Descriptions_Back
7. Adjustment Knob. Loosen to raise and lower
apparatus to proper height that allows the
Spindle / Thrust Loading Device to engage the
bearing holder assembly.
NOTE: It is important to support the top
assembly while loosening the knob as the
weight of the apparatus will drop to the bottom
plate easily.
8. Lower Adjustment Nut. Determines the
lower limit of the apparatus when using the
lever mechanism. Refer to section 5.2 for
further details on the positioning for
standardization of the spindle / thrust loading
device.
9. Upper Adjustment Nut. Determines the
upper limit of the apparatus when using the
lever mechanism. Refer to section 5.2 for
further details on the positioning for
standardization of the spindle / thrust loading
device.

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -10-
5 Operation
5.1 Preparation of Bearings
1. Only bearings that have outer races and
rollers entirely free of corrosion should be
tested. Bearings should not be handled
without the use of tongs or rubber or
plastic gloves.
2. Wash the selected bearing thoroughly in
hot (52 to 66°C) mineral spirits reagent
grade to remove rust preventative
WARNING: Mineral spirits is highly
combustible and vapors are hazardous. The
washing temperatures are considerably above
the flashpoint. All washing should be carried
out in a well ventilated hood with no flames or
ignition source present.
3. Moisten a tissue in hot solvent and wipe
the bearing cup and cone to remove
remaining residue.
4. Rinse bearing again in hot mineral spirits,
reagent grade.
5. Transfer bearing to the solvent rinse
solution to remove the mineral spirits.
WARNING: Poison. Fatal if swallowed,
harmful if inhaled. Causes burns. Vapor
extremely irritating.
6. Rinse the bearing and slowly rotate in 66
± 5°C solvent rinse solution.
7. Remove the bearing from the solvent rinse
solution and place on filter paper to drain.
Dry the bearing in an oven at 70 ± 5°C for
15 to 30 minutes.
8. Permit the bearing to cool to room
temperature and re-examine surfaces to
assure that all corrosion-free and free-
turning specimens have been selected.
9. Wash and dry the bearing packer using
the same technique as preparation of the
bearings.
5.2 Standardization of Thrust Loading
Device
1. To standardize the thrust loading device a
packed bearing must be prepared and
installed into a bearing holder assembly.
Refer to section 5.3 and 5.4 for a detailed
procedure of this preparation.
2. Place the prepared bearing holder
assembly onto the base of the motor drive
spindle and center it under the indexing
pin of the drive. See Figure 4 below:
Figure 4. Bearing Holder Assembly Placement
3. Lower the drive until the O-ring just
contacts the 1-kg weight. See Figure 5
below:
Figure 5. Spindle / Thrust Loading Device Placement
4. Run the lower adjustment nut (Figure 3,
item 8) of the depth gage located on the
back of the instrument to the metal guide.
NOTE: The metal guide runs along the
depth gauge and acts as two point of
contact for the upper and lower
adjustment nuts to limit the movement of
the apparatus when using the lever.

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -11-
5. Place the 3mm spacer (Figure 2, item 4)
on top of this nut and bring the upper
adjustment nut (Figure 3, item 9) down to
the spacer.
6. Hold the upper adjustment nut in position,
then remove the spacer and run the lower
adjustment nut up and tighten it against
the upper adjustment nut.
7. When the O-ring located at the underside
of the Spindle / Thrust Loading Device is
compressed against the 1-kg weight to the
point where the lower adjustment nut hits
the metal stop guide, a 29 Newton (N)
load will be added to the bearing
assembly. This will give a total load on 39
N on the bearing.
8. Examine the O-ring periodically and
replace it if it shows any cracks or other
signs of deterioration.
9. The thrust loading device should be
standardized before use, once per day if
used daily. Standardization should be
performed again if there is any reason to
believe that the standardization might
have changed.
5.3 Grease Packing Procedure
1. The K17982 Mechanical Grease Packer
must be utilized to properly pack the test
grease into the bearing. Please refer to
Figure 6 and 7 below for the following
steps:
Figure 6. Mechanical Grease Packer
A. Bearing Packer Base
B. Grease Reservoir Cylinder
C. Grease Packer Plunger
Figure 7. Test Bearing
D. Bearing Cup
E. Bearing Cone
2. Place the bearing cone (E) with small
diameter facing up onto the bar of the
grease packer base (A). Place the bearing
cup (D) over the bearing cone. See Figure
8 below:
NOTE: Gloves must be worn at all times
when handling bearings
Figure 8. Mechanical Grease Packing Procedure
3. Place the grease reservoir cylinder (B)
over the bearing cup.
4. Fill the cylinder with grease and use the
grease packing plunger to force grease
through the bearing. See Figure 9 below:
Figure 9. Mechanical Grease Packing Procedure

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -12-
5. Remove the cylinder and plunger from the
bearing cup. Wearing gloves, remove the
bearing cup and cone together as a unit
from the grease packer stand.
6. Use a spatula to remove grease that is
beyond the end of the bearing rollers so
approximately the same amount of grease
is used each time.
5.4 Bearing Holder Assembly Procedure
1. Please refer to Figure 10 below to identify
the components required while following
the bearing holder assembly procedure.
NOTE: The bearing cup and cone, items
D and E from Figure 7 respectively, are
shown in the below figure as well.
Figure 10. Bearing Holder Assembly Components
D. Bearing Cup
E. Bearing Cone
F. Upper Flange
G. Lower Flange
H. 1 kg Weight
I. Plastic Jar
J. Metal Screw
K. Bearing Holder
2. Wearing gloves, hold the packed bearing
with the large inside diameter of the cup
facing down and insert the small diameter
plastic flange or lower flange (G) on top of
the bore and the larger upper flange (F)
into the bottom of the bore.
3. Slide the bearing assembly onto the 1-kg
weight (H). The large diameter upper
flange (F) should fit into the recess on the
top of the weight.
4. Insert the metal screw (J) through the
assembly and tighten into the weight with
a screw driver.
5. Lower the plastic bearing holder (K) over
the bearing. Press the holder down so
that the bearing cup (D) fits squarely in the
holder. See Figure 11 below:
Figure 11. Bearing Holder Assembly
6. Invert the plastic jar (I) over the bearing
assembly. See Figure 12 below. Slide the
two components over the edge of the
bench. Press the weight against the inner
bottom of the jar and invert the entire
assembly. See Figure 12 below:
Figure 12. Bearing Holder Assembly

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -13-
5.5 Test Procedure
WARNING: Always use a safe working
posture (beware of hair catching). Stand erect, do
not lean forward or place face near the rotating
shaft. Keep hands away from rotating parts during
operation.
1. Place the Bearing Holder Assembly onto
the base of the apparatus and center to
the indexing pin of the Spindle / Thrust
Loading Device. See Figure 13 below:
Figure 13. Bearing Holder Assembly Placement
2. Start the motor and slowly increase and
decrease the motor speed RPM. Listen for
any unusual movement and discontinue
operation if anything unusual occurs.
WARNING: Never leave the apparatus
while it is running.
3. Adjust the motor speed 1750 RPM and
bring the Spindle / Thrust Loading Device
down into the center of the 1-kg weight
and load until the nut hits the depth start.
See Figure 14 below:
Figure 14. Spindle / Thrust Loading Device Placement
WARNING: Apply pressure downwards
slowly and smoothly. Do not apply pressure
rapidly or in a jerky manner.
4. Run for 60 seconds then raise the drive
and allow the bearings to coast to a stop.
NOTE: Do not break the contact between
the races and rollers of the bearing at this
point and in the following steps. At no
time during or after the 60 second run
should grease be redistributed or forced
back into the bearing.
5. Fill a syringe with 100 ± 5mL of distilled
water. The distilled water should be
freshly boiled for 10 ± 5 minutes and then
cooled to 25 ±°C.
6. With the run-in bearing in the jar start a
timer and at the same time, begin adding
water into the hole in the bearing holder
(K). See Figure 13. Add the 100mL of
water within 20 ± 3 seconds.
Figure 13. Water Treatment
7. When the timer shows 50 ± 3 seconds,
start withdrawing the water.
8. When the timer shows 60 +/- 3 seconds
complete the withdrawal of 70 ± 5 mL of
water, leaving 30 ± 5 mL of water in the
jar.
NOTE: A larger needle may be required to
withdrawal the water in 10 seconds.
WARNING: Make sure that water does not
touch the bearing after the 70 ± 5 mL is withdrawn

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -14-
9. Screw the cap on the jar and transfer to a
dark oven essentially free of vibration for
48 hours at 52 ± 1°C.
10. Prepare three bearings with each grease
to be tested. Each group of three bearings
is one test.
WARNING: Wait until the motor is fully spun
down and the unit is powered off before attempting
to set-up for a test or to disassemble the
apparatus after a test.
5.6 Rating Procedure
1. Remove the bearing from the test jar and
place the bearing cup in a 50 / 50 mixture
of isopropyl alcohol and mineral spirits.
NOTE: The solvent solution can be
heated to aid in the removal of grease
2. Agitate vigorously to remove the grease.
Repeat the rinsing using fresh solvent
mixture of gently wipe the bearing with a
clean cloth or tissue to ensure that traces
of grease are removed.
3. Transfer the bearing cup from the solvent
and allow drying on clean filter paper.
4. Examine the cup raceway for evidence of
corrosion without the use of magnification.
5. Rate the raceway for pass or fail. Any
corrosion spot 1.0mm or larger will be
considered a fail. Ignore the number of
spots.
6 Maintenance
WARNING: Disconnect power to the unit
before servicing to avoid exposure to high
voltages and/or temperatures which may result in
personal injury or death. If you have any questions
about maintaining your equipment, then please do
not hesitate to contact the Koehler technical
service department.
6.1 Routine Maintenance
The K1798X Corrosion Preventative Properties
Apparatus requires little routine maintenance to
provide many years of continuous service.
However, over the course of time, some
instrument parts may need to be replaced. When
ordering replacement part(s), please provide the
model number, serial number, and product
shipment date of your equipment so that we can
ensure you will receive the proper replacement
part(s).
6.2 Replacement Parts
Part Number
Description
K1798X Corrosion Preventative Properties
Apparatus
K17980-0-1
Spindle Thrust Loading Device
K17980-0-8
3mm Spacer
360-115-015
Motor Speed Control,
115V/230V 50/60Hz
289-004-002
Bearing Assembly
(Cup and Cone), pk/3
288-115-053
Motor, ¼ HP
K17983
Pliers
K17981 Bearing Holder Assembly
K17981-0-1
Weight, 1 kg
K17981-0-2
Upper Flange
K17981-0-3
Lower Flange
K17981-0-4
Bearing Holder
AS568-329
Large O-ring
AS568-224
Small O-ring
22J-114-09S
Metal Screw
K17984
Plastic Jar with Cover
K17982 Mechanical Grease Packer
K185-0-44
Grease Reservoir Cylinder
K185-0-45
Grease Packing Plunger
K185-0-47E
Bearing Packer Base

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -15-
7 Wiring Diagrams
7.1 115V Unit Wiring (K17980)

K1798X Corrosion Preventative Properties Apparatus
Operation and Instruction Manual
K1798X-Manual -16-
7.2 220-240V Unit Wiring (K17989)
