Kohler K-792 User manual

Installation Guide
Bath Whirlpool with Custom Pump Option
K-792, K-809, K-852,
K-856, K-865
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
1019436-2-E

Important Information
WARNING: When using electrical products, basic precautions should always be followed, including
the following:
DANGER: Risk of electric shock. Connect only to circuits protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Install to permit access for servicing.
A pressure wire connector marked ″Earth/Ground″is provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the exterior of the junction box or control within this unit to permit
connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to
comply with local requirements.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Product Information
Electrical Requirements
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit-Breaker (ELCB). The GFCI or ELCB protect against line-to-ground shock hazard. Use a 208 - 240 V, 20
A, 50/60 Hz dedicated service for the whirlpool.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the
whirlpool. This whirlpool has an optional custom pump location feature. If this option was ordered,
the pump fittings are in place when you receive your whirlpool. The pump should only be moved to
this location. Do not make other modifications to the whirlpool system, as this could adversely affect
the performance and safe operation of the whirlpool. Kohler Co. shall not be liable, under its warranty
or otherwise, for personal injury or damage caused by any such unauthorized modification.
Features
Components include a pump, heater, control and illuminated switch (user keypad).
Connections and Service Access
Before installation, ensure proper access to the final connections.
1019436-2-E 2 Kohler Co.

Product Information (cont.)
NOTICE: Provide generous, unrestricted service access to the pump. You must provide access for
servicing the pump and controls. The access must be located immediately next to the pump. Study the
roughing-in information packed with the whirlpool.
Table of Contents
Important Information .............................................................. 2
Product Information ............................................................... 2
Electrical Requirements .......................................................... 2
Product Notices ................................................................ 2
Features ..................................................................... 2
Connections and Service Access ................................................... 2
Thank You For Choosing Kohler Company .............................................. 4
Tools and Materials ............................................................... 4
Before You Begin ................................................................. 4
Prepare the Site ................................................................. 5
Prepare the Site ................................................................. 6
Prepare the Whirlpool ............................................................. 6
Disconnect the Pump .............................................................. 7
Relocate the Pump - Option A ....................................................... 7
Relocate the Pump - Option B ....................................................... 7
Install the Whirlpool ............................................................... 8
Mount the Pump in Custom Location .................................................. 9
Install the Plumbing ............................................................... 9
Make Electrical Connections ........................................................ 11
Install the Whirlpool Trim Kit ........................................................ 12
Test Run the Whirlpool ............................................................ 12
Complete the Finished Wall/Deck .................................................... 13
Complete the Concrete Installation ................................................... 13
Clean-Up After Installation ......................................................... 13
Confirm Proper Operation .......................................................... 14
Operating Sequence ............................................................. 14
Troubleshooting Procedures ........................................................ 14
Kohler Co. 3 1019436-2-E

Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before
you start installation. If you encounter any installation or performance problems, please don’t hesitate to
contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler
Company.

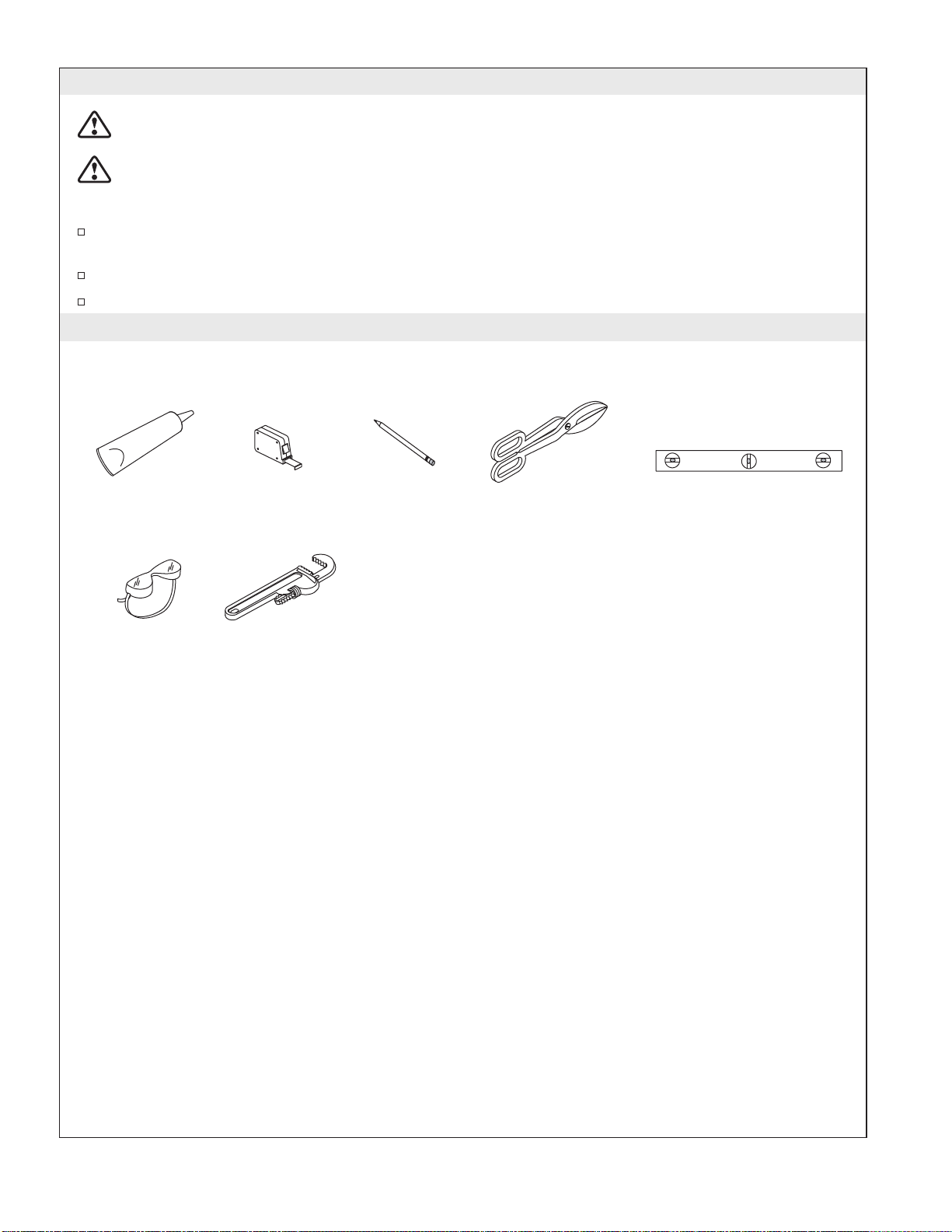

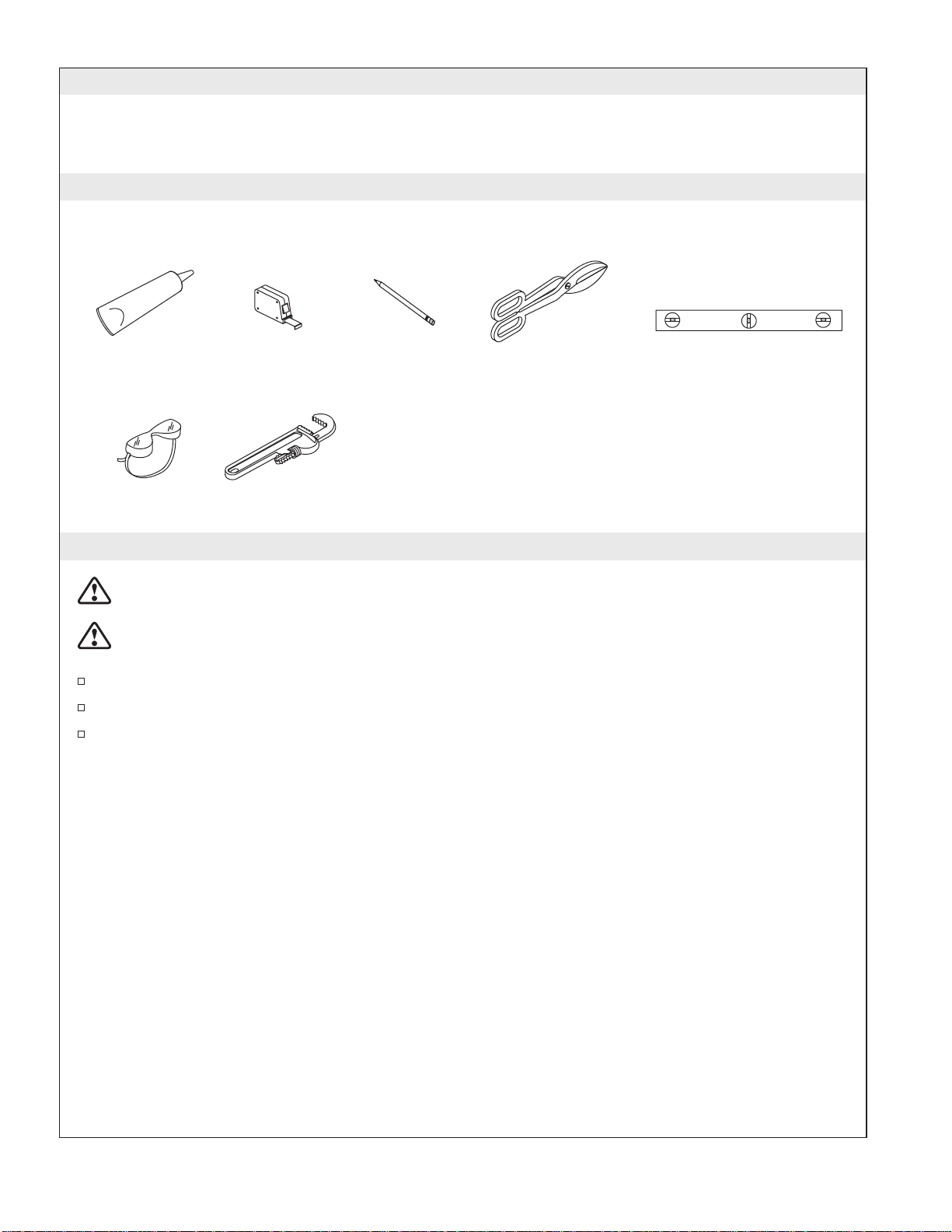

Tools and Materials
Before You Begin
WARNING: Risk of personal injury. Your cast iron whirlpool is extremely heavy. Obtain sufficient
help to carefully lift and move it.
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
We recommend this whirlpool for drop-in, corner, or alcove installation.
Inspect the whirlpool for damage before you begin installation.
You must install this whirlpool to an adequately supported, level subfloor.
Plus:
• Conventional woodworking or concrete
installation tools and materials
• Drop cloth
• Metal shims
• 2x4's
Silicone Sealant Measuring Tape Pencil Tin Snips Level
Safety Glasses Pipe Wrench
1019436-2-E 4 Kohler Co.

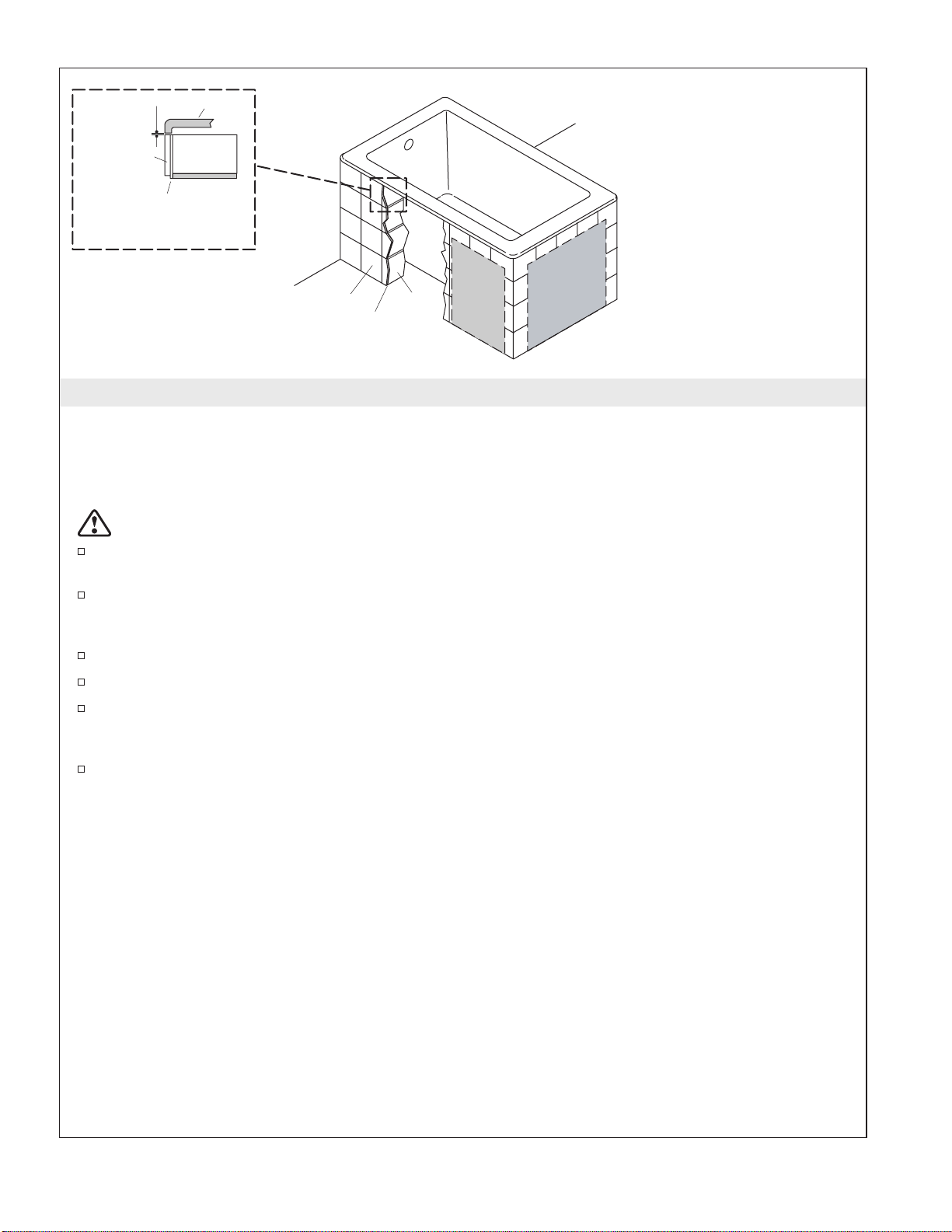

1. Prepare the Site
Concrete Construction
NOTICE: Adequate floor support must be provided. Consult the roughing-in sheet packed with your
whirlpool for specific floor loading requirements.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
This whirlpool may be installed next to the wall or in an island installation. An island installation
requires a four side surround. In both instances, make sure the deck is supported by brick or
concrete.
Install an access panel to allow the pump to be serviced.
Construct brick or concrete supports.
Provide a 1/16″(2 mm) gap between the whirlpool rim and the concrete or brick framing. Frame
the floor, or construct a frame for a raised installation, in accordance with the roughing-in
information packed with the whirlpool.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
Brick
Bath
1/16"
(2 mm)
Tile
Approved
Tile Backing
Typical
access
panel
Tile
Approved
Tile Backing
Brick
Whirlpool may be installed
next to the wall or as an
island installation.
Install an access panel to allow
the pump to be serviced.
Custom
Pump
Kohler Co. 5 1019436-2-E

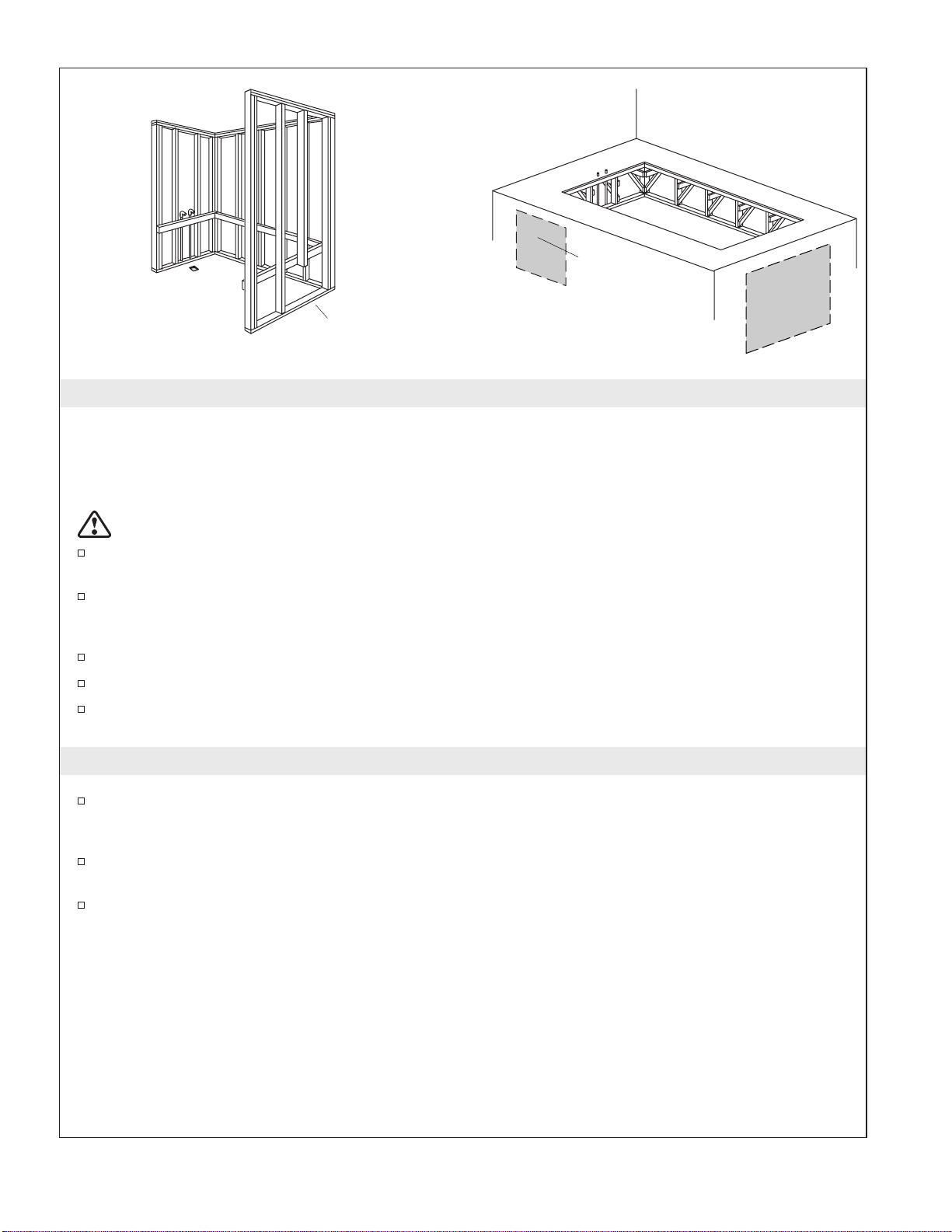

2. Prepare the Site
Wood Construction
NOTICE: Adequate floor support must be provided. Consult the roughing-in sheet packed with your
whirlpool for specific floor loading requirements.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
The whirlpool may be used in a drop-in, corner, or alcove installation. Construct 2x4 stud framing
designed for your particular installation. Frame the floor, or construct a frame for a raised
installation in accordance with the roughing-in information packed with the whirlpool.
Use the roughing-in cut-out information to carefully lay out and cut the rough deck material.
Install an access panel to allow the pump to be serviced.
Position the plumbing according to the roughing-in information. Cap the supplies, and check for
leaks.
3. Prepare the Whirlpool
We recommend a tiling-in bead for straight-rimmed whirlpools, if one or more sides of the
whirlpool contact a wall. This bead prevents water from seeping between the whirlpool rim and the
wall. Follow the instructions packed with the tiling-in bead to install the bead now.
Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect
the trap at this time.
Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to
scratch the surface of the whirlpool.
Construct 2x4
stud framing
according to
the roughing-in
information.
Position
the rough
plumbing.
Verify that the subfloor
offers adequate support,
and is flat and level.
Typical access panel
Frame the floor according to
the roughing-in information.
Position the
rough plumbing.
Verify that the subfloor offers adequate
support, and is flat and level.
Custom pump
access panel Typical
access
panel
1019436-2-E 6 Kohler Co.

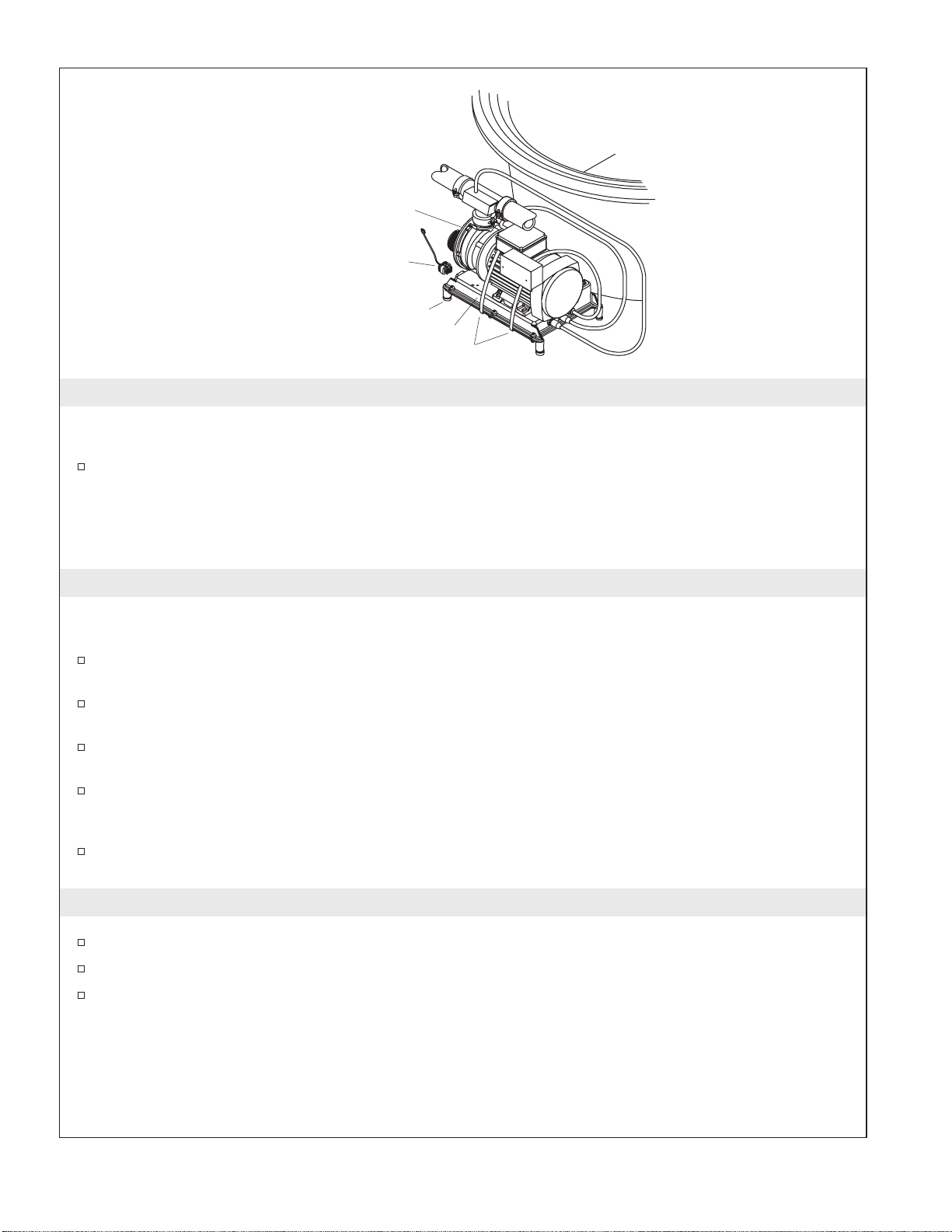

4. Disconnect the Pump
IMPORTANT! No cutting of the whirlpool harness (pipes) is required for this installation. Any cutting
of the whirlpool harness will void the warranty.
Disconnect the pump from the whirlpool by cutting the two banding straps with a tin snips.
NOTE: The heater may be attached to the pump or already in the custom pump location, as models vary.
IMPORTANT! Two methods of pump relocation are described below. Choose the method which is best
suited for your particular whirlpool installation.

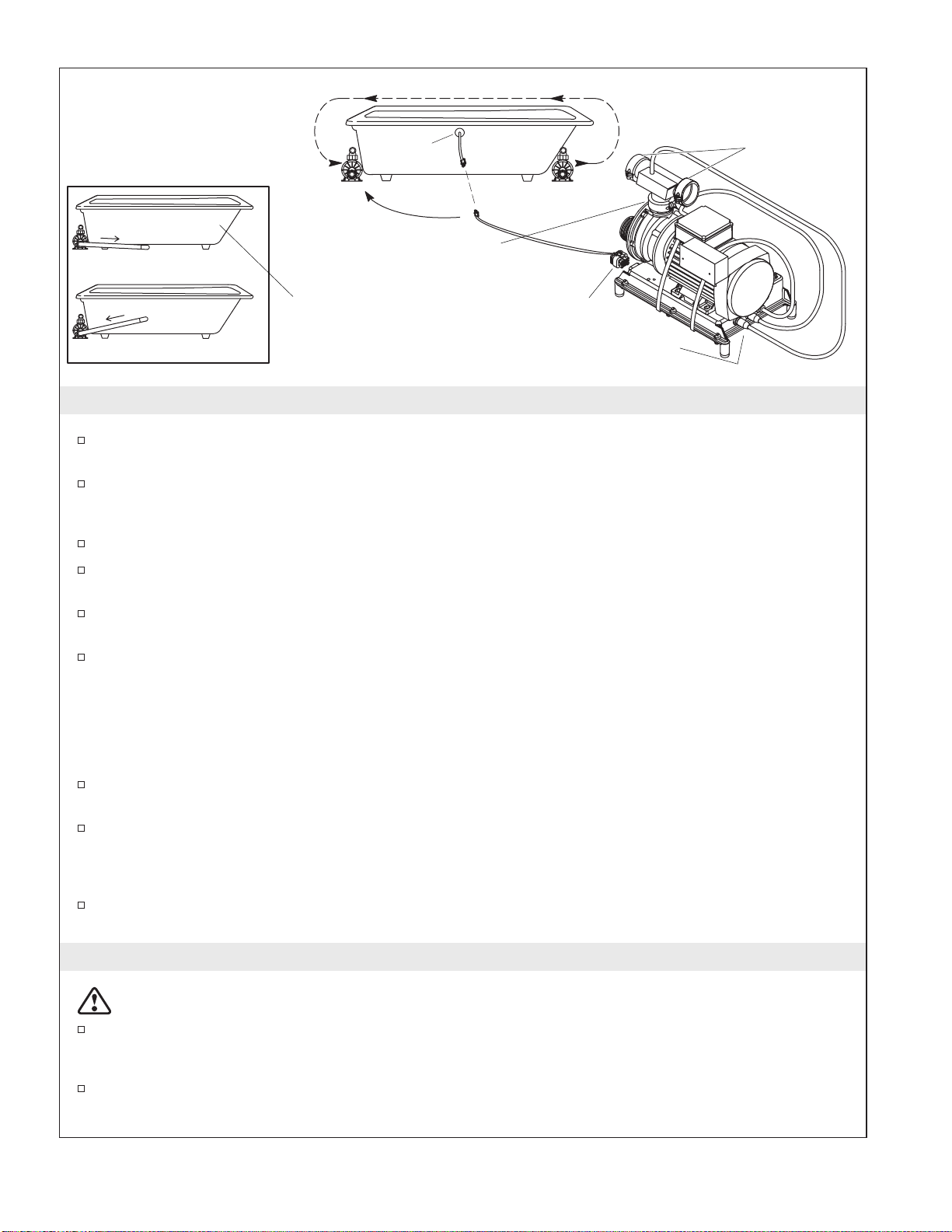

5. Relocate the Pump - Option A
Drop-in Installations
Relocate the heater and/or pump next to the customized inlet/outlet connections of the whirlpool
harness. The pump may protrude beyond the rim of the whirlpool. Refer to the roughing-in details.
Feed the supplied cable ties through the holes in the bracket attached to the backside of the
whirlpool, and located above the new pump.
Temporarily secure the pump to the whirlpool by wrapping the cable ties around the pump and
control.
Follow all procedures in the ″Install the Whirlpool″section. While moving the whirlpool into
position, the pump will be temporarily suspended. Be careful not to damage the pump and control
while guiding the whirlpool into position.
Remove the cable ties and connect the pump to the harness by following all procedures in the
″Mount the Pump in Custom Location″section.
6. Relocate the Pump - Option B
Set the pump aside.
Follow all the procedures in the ″Install the Whirlpool″section.
Through the access panel, move the pump to the new location. Connect the pump to the harness by
following all the procedures in the ″Mount the Pump in Custom Location″section.
Pump
Wiring
Harness
Rubber Isolation Feet
Control
Cut the pump banding straps.
Kohler Co. 7 1019436-2-E

7. Install the Whirlpool
WARNING: Risk of personal injury. This cast iron whirlpool is extremely heavy. Obtain sufficient help
to carefully lift and move it.
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Carefully move the whirlpool into position. Insert the drain tailpiece into the trap.
Level the whirlpool by fitting metal shims under the whirlpool feet as needed. Check for level along
the top of the whirlpool, and across the drain side. If the feet are not accessible from the back or
side, move the whirlpool in and out of position to shim it properly. Make sure the whirlpool is
resting on all four feet.
Level by fitting metal shims
under the whirlpool feet.
1019436-2-E 8 Kohler Co.

8. Mount the Pump in Custom Location
Remove all protective packaging from around the whirlpool harness. Cut only those cable ties
supporting the harness attachment nuts.
Remove the plugs from the pump inlet and outlet openings. Install the supplied gasket in the
connection where the heater and pump join. Install the supplied O-rings/gaskets into the grooves
on the inlet and outlet connector fittings.
Position the pump and control into place. Be sure the rubber isolation feet remain in place.
Thread the plastic inlet and outlet attachment nuts onto the heater and/or pump until the
O-rings/gaskets make initial contact.
Tighten each nut no more than another quarter of a turn. Do not use a wrench or overtighten these
nuts, as damage or leaks may result.
Make sure the whirlpool harness piping is pitched correctly (down and away) to promote the
drainage of water from the pump through the suction fitting. The pump should rest on the same
subfloor, at the same level as the whirlpool feet. Shim the pump if necessary on the subfloor, but
only high enough to allow water to drain out of the suction line when the whirlpool is drained.
NOTE: Do not shim the pump more than 1/4″(6 mm). Raising the pump too high will prevent the pump
from priming properly.
If your heater was already installed in the custom location, simply plug the heater cord into the
heater connection on the control by aligning the pins and pressing it into place.
Locate the solid copper 8-gauge bonding wire, which has been secured to the bracket upon which
the pump has shipped. Feed this bonding wire back to the pump and control, in the custom
location, and connect to one of the open bonding lugs on the control box. This is necessary to bond
any metal back to the grounding source.
Make sure the wiring from the bath-mounted user keypad is connected to the wiring harness on the
control.
9. Install the Plumbing
CAUTION: Risk of property damage. Ensure a watertight seal on the whirlpool drain.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTICE: An access panel will simplify future maintenance.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Relocate
Pump
Install O-rings
and/or gaskets
(supplied) into the
grooves of the
connector fittings.
Install gasket where
heater and pump join.
Make sure the water intake
pipe is pitched down and
away from the pump.
Wiring harness
Heater connection
User Keypad
Correct
Incorrect
When installing the pump, be sure to
remove the plugs from the inlet and
outlet piping.
Provide access to the
installed pump for servicing.
Kohler Co. 9 1019436-2-E

Install the Plumbing (cont.)
Run water into the whirlpool, and check the drain connections for leakage.
If your whirlpool requires grip rails, install them now according to the installation instructions
packed with the grip rails.
1019436-2-E 10 Kohler Co.

10. Make Electrical Connections
NOTE: The product model number is printed on a label on the pump side of the whirlpool bath. This
label also identifies the electrical rating of the product. All whirlpools come equipped with a wiring
junction box and are designed to operate between 208 VAC and 240 VAC at either 50 HZ or 60 Hz.
WARNING: Risk of electrical shock. Make sure the power has been disconnected before performing
the following procedures. Refer to the “Important Information” section.
WARNING: Risk of electrical shock. To reduce the risk of electrical shock, connect the pump to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
This will provide additional protection against line-to-ground shock hazard. A 208-240 V, 20 A, 50/60
Hz dedicated circuit is required.
IMPORTANT! The load neutral is not used. There should be no connection to the load neutral terminal
on the Ground-Fault Circuit-Interrupter (GFCI) breaker. The green wire with the yellow stripe is the
equipment ground and needs to be connected to the neutral bus in the main circuit breaker box.
The whirlpool bath control and system have been pre-wired at the factory. A licensed electrician
should make a routine service connection to the junction box.
Connect service to the junction box. The junction box contains blue, brown, and green with a yellow
stripe colored wires.
Follow local electrical codes. Bond in accordance with national and local codes.
A wiring harness has been pre-wired at the factory, allowing communication between the keypad,
all features, and the control. No additional wiring is required, but ensure that all wires are securely
fastened.
NOTE: Your wiring harness included an antenna for the optional remote control. Do not alter or damage
this antenna during installation.
Heater (models may vary) T-style (shown)
or In-line (not shown) Heater Electrical Cord
Wiring Harness
Junction Box
Control
Pump Electrical Cord
From
Control
Brown (L2)
* Connections to be Made
at the Circuit Breaker
S/N
* Equipment Ground Wire Connectors
Neutral Bus
(In Breaker Box)
120/240 VAC
Source
Typical Two-Pole
Circuit Breaker
with GFCI
* Line Neutral
(White Curly
Wire)

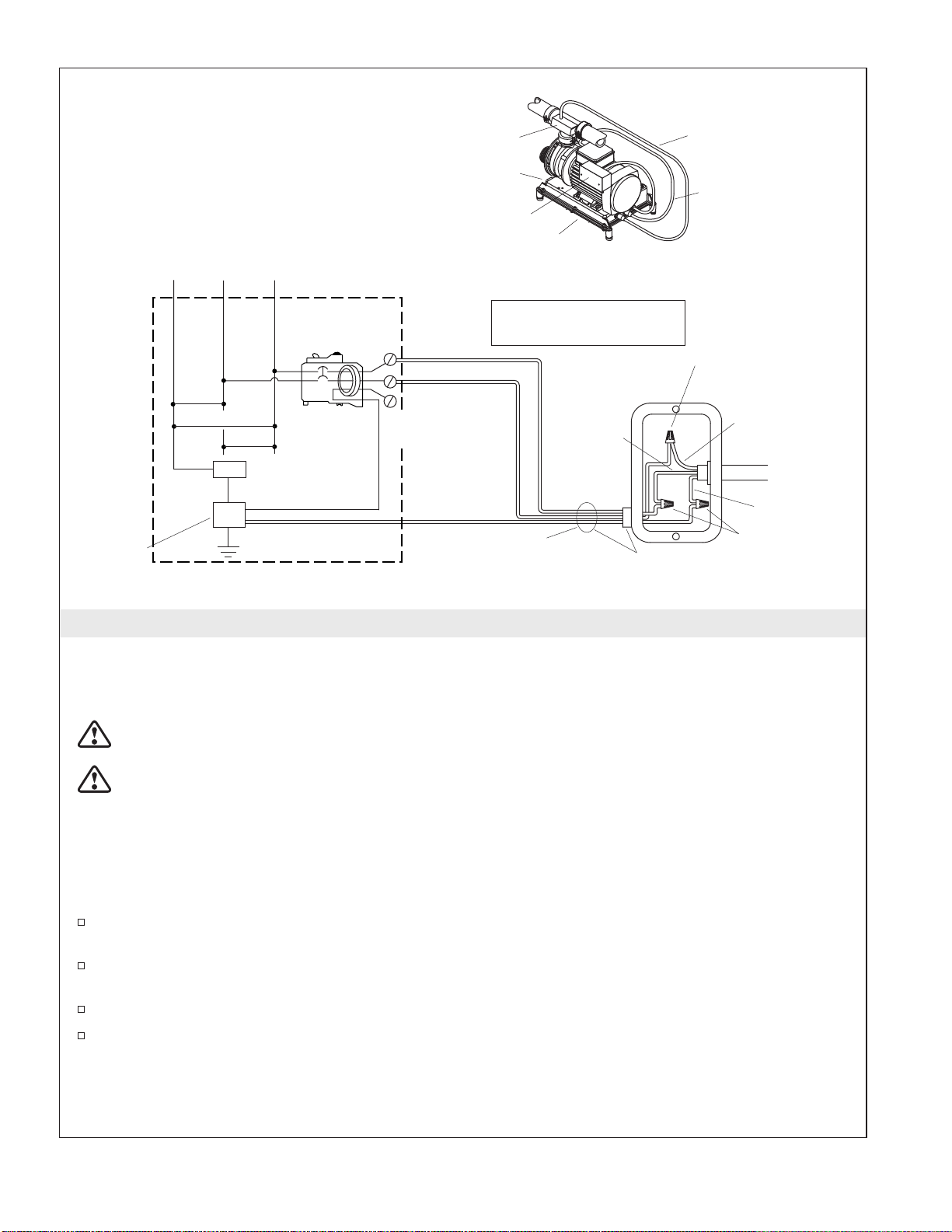

Typical Wiring Connection for North America
Ground
(Green with
Yellow Stripes)
*L1
No Connection
(Load Neutral)
Field Wiring
(From Junction Box
to GFCI Breaker)
Electrician to provide suitable
strain relief cable.
Wire
Connector
Blue (L1)
*L2
240 V
120 V
240 V
120 V
Breaker Box
L1 L2N
Bond in accordance with national and local codes.
Open bonding lugs are located at the top of the
junction box.
Kohler Co. 11 1019436-2-E

11. Install the Whirlpool Trim Kit
Install the whirlpool trim kit according to the instructions packed with the trim kit. Pay particular
attention to the jet installation steps below - they are very important and are included here to help
you obtain smooth, trouble-free jet operation.
NOTE: The jet O-ring must be correctly positioned, must be lubricated, and must be in good condition to
permit easy rotation and proper operation of the jet.
Install the O-ring onto the first shoulder of the jet. Lubricate the O-ring with silicone lubricant to
prevent noisy operation of the jet.
Carefully insert the jet into the housing, and lightly push and rotate the jet until it snaps into
position. Do not force the jet.
NOTE: When installed correctly, the jet should turn smoothly both clockwise and counterclockwise.
12. Test Run the Whirlpool
Check all electrical connections, and make sure the electrical power to the whirlpool is turned on.
Make sure all union connections to the pump and heater are securely hand tightened.
Verify that the pump banding straps have been cut, and that the pump control is resting directly on
the subfloor. Ensure that the rubber isolation feet are in place.
Fill the whirlpool to a level at least 2″(5.1 cm) above the top of the highest jet.
Operate the whirlpool for 5 minutes (refer to the ″Operating Sequence″section) and check all
whirlpool piping connections, on the back side, for leaks.
For additional information on whirlpool operation, see ″Confirm Proper Operation″section.
Slide the O-Ring
onto the first
shoulder of the jet.
Inspect and
lubricate the
O-Ring.
Insert the jet into the housing,
and lightly push and rotate
until it snaps in position.
Housing
1019436-2-E 12 Kohler Co.

13. Complete the Finished Wall/Deck
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Cover the framing with water-resistant wall/deck material. Seal the joints between the whirlpool
rim edge and the water-resistant wall/deck material with silicone sealant.
Tape and mud the water-resistant wall/deck material. Install the finished wall/deck to the
water-resistant wall/deck material. Seal the joints between the whirlpool rim and the finished
wall/deck material with silicone sealant.
Install the faucet trim according to the instructions packed with the trim.
14. Complete the Concrete Installation
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Apply mortar and tile to the wall, deck and surround material as needed.
Apply a bead of sealant where the tile meets the whirlpool surface.
Install the faucet trim according to the instructions packed with the trim.
15. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
whirlpool surface. If necessary, use warm water and a liquid detergent to clean the surface of the
whirlpool, user keypad and remote control.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods
of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.
Whirlpool
Finished Wall
Material
Water-Resistant
Wall Material
Tiling-in Bead
Framing
Apply silicone sealant to
the edges of the water-
resistant wall material
and the finished wall.
Finished Deck
Material
Whirlpool
Framing Material
Water-
Resistant
Deck Material
Wall Material
Tile
Whirlpool
Brick
Approved
Tile
Backing
Apply silicone
sealant to the
edges of the water-
resistant deck
material and the
finished deck. Apply
sealant
Alcove Installation Drop-In Installation Concrete Installation
Tile
Kohler Co. 13 1019436-2-E

16. Confirm Proper Operation
Fill the Whirlpool
NOTE: Please read these steps carefully before you operate your whirlpool.
Position the jet nozzles so they face down toward the basin. Turn the jet trim rings fully
counterclockwise.
Fill the whirlpool to a water level at least 2″(5.1 cm) above the top of the highest jet.
NOTE: The water temperature in the whirlpool should not exceed 104° F (40° C). The heater will
automatically turn off as the water temperature approaches 104° F (40° C) and will remain off until the
water cools.
17. Operating Sequence
NOTE: A built-in heater automatically helps to maintain the water temperature when the whirlpool is
running, as long as the water temperature does not exceed 104° F (40° C). The heater will disengage at
higher temperatures.
IMPORTANT! Please refer to your Homeowners Guide for detailed instructions on the user keypad and
optional remote control.
Press the Power On/Off button to turn on the whirlpool. The whirlpool will start at medium flow.
Increase or decrease the water flow by pressing either the up or down arrow buttons on the keypad.
An indicator bar in the center of the keypad shows the water flow volume.
Adjust each jet for optimum air/water mixture. Turn the jet trim clockwise to reduce the air flow,
and counterclockwise to increase the air flow.
Press the heater button to turn the heater off and back on. When illuminated, the indicator light
shows that the water temperature will be maintained up to 104° F (40° C).
Press the Power On/Off button a second time to turn the whirlpool off.
NOTE: A built-in timer automatically stops the pump and motor after approximately 20 minutes of
operation.
18. Troubleshooting Procedures
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.

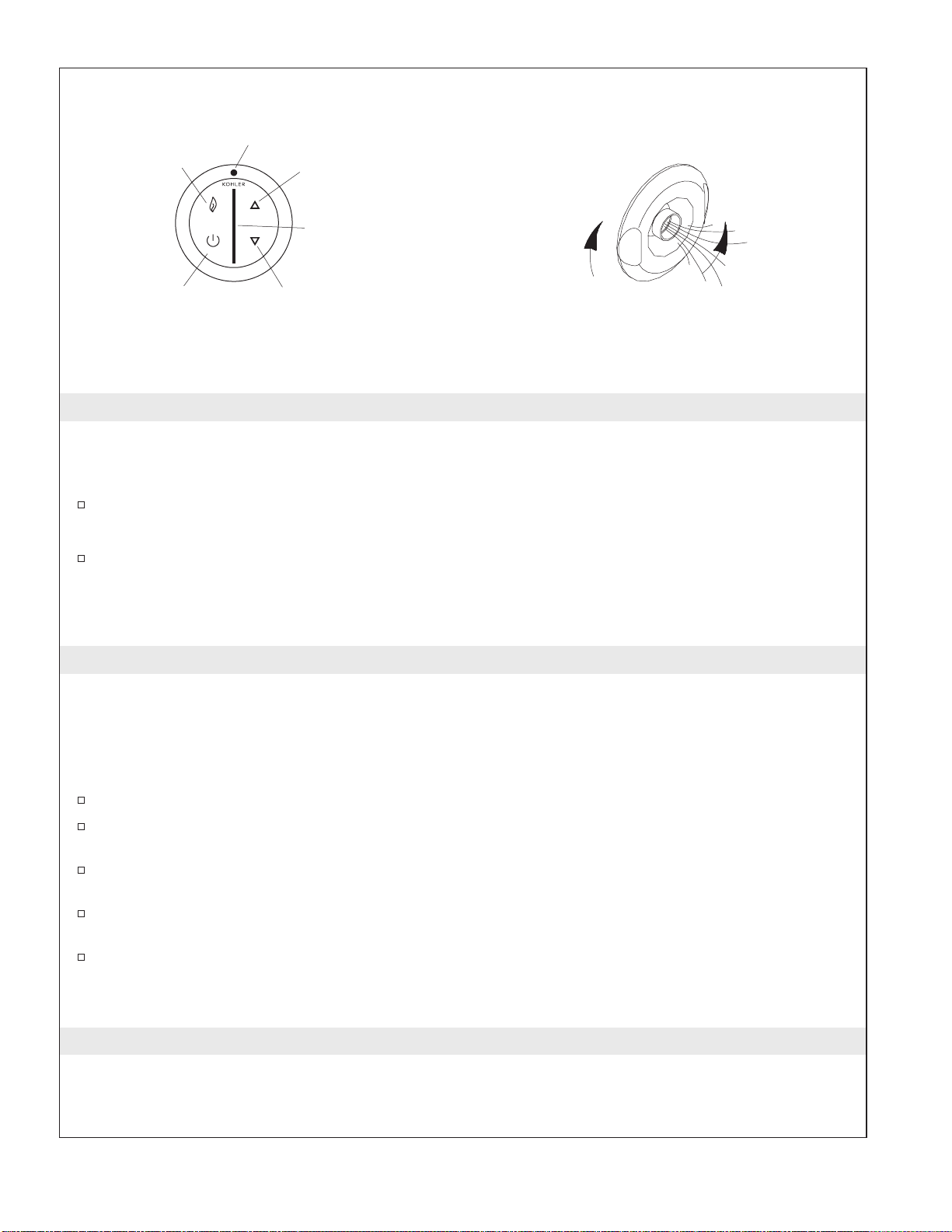

Indicator Bar -
Shows water
flow volume
Power On/Off
Heater On/Off Heater Indicator Light
Increases Flow
Decreases Flow
Lighted User Keypad
Turn the jet trim
clockwise to
decrease the flow.
Turn the jet trim
counterclockwise to
increase the flow.
1019436-2-E 14 Kohler Co.

Troubleshooting Procedures (cont.)
Troubleshooting the Whirlpool System
Symptoms Probable Causes Recommended Action
1. User keypad does not
illuminate when power button
is pressed or outer ring is
rotated.
A. No power to control. A. Check wiring and connect
power.
B. GFCI or ELCB tripped. B. Reset GFCI or ELCB.
C. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
C. Check wiring for proper
connections. Replace wiring
harness if necessary.
D. User keypad does not work. D. Replace user keypad.
E. Control does not work. E. Replace control.
2. Motor starts, but all jets are not
functioning. A. Jet is closed. A. Rotate jet trim counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. User keypad is illuminated, but
does not respond to buttons or
outer ring.
A. Control program is locked. A. Reset GFCI or ELCB.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
4. User keypad indicator bar
keeps scanning at power-up. A. Control program is locked. A. Reset GFCI or ELCB.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
5. User keypad is illuminated, but
pump won’t start. A. Power cord from pump to control is loose, disconnected
or damaged.
A. Check wiring for proper
connections.
B. Pump does not work. B. Replace pump.
C. Control does not work. C. Replace control.
6. Motor runs but pump won’t
prime (cavitates). A. Pump is shimmed too high. A. Lower pump/control to subfloor level.
B. Small air leak at pump inlet. B. Securely tighten nut(s) on
intake side of pump.
C. Motor/pump does not work. C. Replace motor/pump.
D. Control does not work. D. Replace control.
7. Pump stops before 18 minutes. A. GFCI or ELCB tripped. A. Identify source of fault, and
correct. Reset GFCI or ELCB.
B. Suction is blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at suction and/or jets. Remove blockage
and allow motor to cool.
8. Pump does not automatically
stop after 22 minutes. A. 20-minute timer inadvertently disabled. A. See service manual.
9. Pump won’t turn off when the
power button on user keypad
is pressed.
A. User keypad does not work. A. Replace user keypad.
Kohler Co. 15 1019436-2-E

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
B. Control does not work. B. Replace control.
10. Pump operates but variable
speed feature does not work. A. Motor/pump does not work. A. Replace motor/pump.
B. Control does not work. B. Replace control.
11. Bath water cools while pump
is operating. A. Water temperature above 104° F (40° C). A. Allow bath water to cool.
B. Heater is turned off on user
keypad. B. Turn heater on.
C. Wiring from heater to control is
loose, disconnected or
damaged.
C. Check wiring for proper
connections.
D. Heater does not work. D. Replace heater.
E. Control does not work. E. Replace control.
12. Noisy operation. A. Pump banding straps have not
been cut. A. Cut pump banding straps with tin snips.
B. Dry or dislodged jet O-ring
(squeal). B. Remove jet, replace and lubricate O-ring, and reinstall
jet.
13. Remote control (if equipped)
does not work. A. Batteries improperly installed or dead. A. Replace batteries.
B. Antenna on wiring harness is
damaged. B. Replace wiring harness.
C. Remote control not
programmed correctly. C. See homeowners guide or service manual.
D. Remote control does not work. D. Replace remote control.
E. Control does not work. E. Replace control.
1019436-2-E 16 Kohler Co.

Guide d’installation
Baignoire à hydromassage avec option pompe personnalisée
Renseignements importants
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base devraient
toujours être observées, incluant ce qui suit:
DANGER : Risque d’électrocution. Raccorder uniquement à des circuits protégés par un Disjoncteur
de Fuite de Terre (GFCI) ou à un Disjoncteur de Mise à la Terre (ELCB).
Les matériaux de construction et le câblage devraient être acheminés loin du corps de la pompe et des autres
composants qui dégagent de la chaleur de l’unité.
Installer de façon à permettre l’accès pour l’entretien.
Un connecteur à pression pour câbles marqué ″Terre/Masse″est fourni dans le compartiment de câblage.
Afin de réduire les risques de choc électrique, raccorder le connecteur à une borne de terre du panneau de
service électrique avec un câble en cuivre ayant la même dimension que le fil conducteur qui alimente cet
équipement.
Un connecteur à pression par câble est prévu à l’extérieur de la boîte de jonction de la pompe ou de la
commande de cet appareil afin de permettre la connexion entre l’appareil et toutes autres surfaces de métal
avoisinantes, tel que requis par les normes locales.
Une mise à la terre est requise. L’appareil doit être installé et mis à la terre par un représentant qualifié.
AVERTISSEMENT : Risque d’électrocution. Tous les raccords électriques devraient être réalisés par un
électricien agréé.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à l’entretien.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez s’il vous plaît
lire avec attention toutes les instructions avant de commencer l’installation, y compris les conditions
suivantes:
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Information sur le produit
Branchements électriques requis
Cette installation électrique doit avoir deux Disjoncteurs-Interrupteur de Fuite de Terre (GFCI) ou deux
Disjoncteurs mis à la Terre (ELCB). Les disjoncteurs GFCI ou le ELCB protègent contre un risque
d’électrocution. Raccorder la baignoire à hydromassage à une alimentation indépendante de 208/240 V, 20
A, 50/60 Hz.
Notices du produit
AVERTISSEMENT : Des modifications non approuvées pourraient provoquer un fonctionnement
dangereux ou un mauvais fonctionnement de la baignoire à hydromassage. Cette baignoire à
hydromassage a une caractéristique de logement sur mesure pour la pompe. Si cette option a été
choisie, les raccords de la pompe seront déjà en place lors de la réception de la baignoire à
hydromassage. La pompe devrait uniquement être déplacée à cet emplacement. N’effectuer aucune
modification au système car il pourrait en résulter une dégradation du rendement de la baignoire à
hydromassage, ce qui pourrait affecter son fonctionnement sécuritaire. Kohler Co. décline toute
Kohler Co. Français-1 1019436-2-E

Information sur le produit (cont.)
responsabilité, sous ses garanties ou autres, quant à toutes blessures ou dommages causés par de telles
modifications non autorisées.
Caractéristiques
Les composants comprennent une pompe, un chauffeau, un contrôle et un voyant lumineux (clavier de
l’utilisateur).
Connexions et accès pour l’entretien
S’assurer d’avoir suffisamment d’accès pour les connexions finales avant l’installation.
AVIS : Fournir un large accès non restraint de service à la pompe. Il faut prévoir un accès pour
l’entretien de la pompe et des contrôles. L’accès doit être situé tout près de la pompe. Étudier le plan de
raccordement qui accompagne la baignoire à hydromassage.
Sommaire
Renseignements importants ......................................................... 1
Information sur le produit ........................................................... 1
Branchements électriques requis ................................................... 1
Notices du produit .............................................................. 1
Caractéristiques ................................................................ 2
Connexions et accès pour l’entretien ................................................ 2
Merci d’avoir choisi la compagnie Kohler ............................................... 2
Avant de commencer .............................................................. 3
Outils et matériels ................................................................ 3
Préparer le site .................................................................. 4
Préparer le site .................................................................. 5
Préparer la baignoire à hydromassage ................................................. 5
Débrancher la pompe .............................................................. 6
Relocaliser la pompe - Option A ...................................................... 6
Relocaliser la pompe - Option B ...................................................... 6
Installer la baignoire à hydromassage .................................................. 7
Monter la pompe dans un emplacement sur mesure ....................................... 8
Installer la plomberie .............................................................. 8
Faire les connexions électriques ..................................................... 10
Installer le kit de garniture de la baignoire à hydromassage ................................. 12
Tester la baignoire à hydromassage .................................................. 12
Compléter le mur/comptoir fini ...................................................... 13
Compléter l’installation en béton ..................................................... 13
Nettoyage après installation ........................................................ 13
Confirmer le bon fonctionnement .................................................... 14
Séquence d’opération ............................................................ 14
Procédures de dépannage ......................................................... 15
Merci d’avoir choisi la compagnie Kohler
Nous apprécions votre engagement envers la qualité Kohler. Veuillez prendre s’il vous plaît quelques
minutes pour lire ce manuel avant de commencer l’installation. Ne pas hésiter à nous contacter en cas de
problème d’installation ou de performance. Nos numéros de téléphone et notre adresse du site internet sont
au verso. Merci encore d’avoir choisi la compagnie Kohler.
1019436-2-E Français-2 Kohler Co.

Avant de commencer
AVERTISSEMENT : Risque de blessures corporelles. Cette baignoire en fonte est très lourde. Obtenir
suffisament d’aide pour la soulever et la déplacer.
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par la tuyauterie ou par la pompe ou utiliser la tuyauterie ou la pompe pour supporter la baignoire à
hydromassage.
Nous recommandons cette baignoire à hydromassage pour une installation, encastrée, dans un coin
ou dans une alcôve.
Avant l’installation, inspecter la baignoire à hydromassage pour en déceler tout dommage.
Cette baignoire à hydromassage doit être installée sur un sol nivelé adéquat.
Outils et matériels
Silicone
d'étanchéité Mètre ruban Crayon à papier Cisaille de ferblantier Niveau à bulle
Lunettes de
protection Clé à griffes
• Outils conventionnels de menuiserie ou outils et
matériaux pour installation
• Bâche de protection
• Cales en métal
• 2 x 4
Plus :
Kohler Co. Français-3 1019436-2-E

1. Préparer le site
Construction en béton
AVIS : Un support adéquat doit être fourni. Consulter le guide du raccordement emballé avec la baignoire
à hydromassage pour les spécifications de préparation du sol.
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par le rebord.
S’assurer que le sol constitue un support adéquat pour la baignoire à hydromassage et que le
plancher soit plat et nivelé.
Cette baignoire à hydromassage peut être installée contre le mur ou sur un podium. L’installation
sur podium nécessite un encadrement sur les quatre côtés. Dans les deux cas, s’assurer que le
comptoir soit supporté par des briques ou par une structure en béton.
Installer un panneau d’accès pour un entretien futur de la pompe.
Construire des supports en brique ou béton.
Fournir un dégagement de 1/16″(2 mm) entre le rebord de la baignoire à hydromassage et le cadre
en brique ou ciment. Cadrer le sol ou construire un cadre pour une installation surélevée, en
concordance avec le plan de raccordement fourni avec la baignoire à hydromassage.
Déterminer l’emplacement de la plomberie selon le plan de raccordement fourni. Boucher les
alimentations et vérifier s’il y a des fuites.
Brique
Baignoire
1/16"
(2 mm)
Carreau
Support carrelé
approuvé
Panneau
d'accès
typique
Support carrelé
approuvé
Pompe
sur
mesure
Brique
Carreau
La baignoire à
hydromassage peut être
installée contre le mur ou
sur un podium.
Installer un panneau d'accès
pour un entretien futur de la
pompe.
1019436-2-E Français-4 Kohler Co.
