Kohler Sterling 7613 Series User manual

Installation Guide
Whirlpool Bath
Français, page “Français-1”
Español, página “Español-1”
7613 series
1072813-2-A

Important Information
WARNING: When using electrical products, always follow basic precautions, including the
following:
DANGER: Risk of electric shock. To reduce the risk of electrical shock, connect the pump only to
properly installed Ground-Fault Circuit-Interrupters (GFCI). Do not remove the plug grounding
pins. Do not use grounding adapters.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning the installation, including the following requirements.
WARNING: Risk of electric shock. A qualified electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
NOTE: Follow all local plumbing, building, and electrical codes.
Product Information
Electrical Requirements
NOTE: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a hazard.
The installation must include a Class A Ground-Fault Circuit-Interrupter (GFCI). The GFCI protects
against line-to-ground shock hazard. Use a 120 V, 15 A, 60 Hz dedicated service for the whirlpool.
Product Notices
WARNING: Unauthorized modification of the pump may cause unsafe operation and poor
performance of the whirlpool. Do not relocate the whirlpool pump or make other modifications to
the whirlpool system, as this could adversely affect the performance and safe operation of the
whirlpool. Sterling Plumbing shall not be liable under its warranty or otherwise for personal injury
or damage caused by any such unauthorized modification.
Factory-Assembled Features
Factory installed components include: pump with power supply cord, air switch transmitter, and
whirlpool jets with suction fitting.
Connections and Service Access
Before installation, verify proper access to the final connections.
1072813-2-A 2 Sterling

Table of Contents
Important Information .............................................................. 2
Thank You For Choosing Sterling ..................................................... 4
Tools and Materials ............................................................... 4
Before You Begin ................................................................. 4
Roughing-In ..................................................................... 6
New Framing Construction .......................................................... 6
Prepare the Site ................................................................. 7
Install the Rough Plumbing .......................................................... 8
Remove the Apron Panel ........................................................... 9
Position the Whirlpool ............................................................ 10

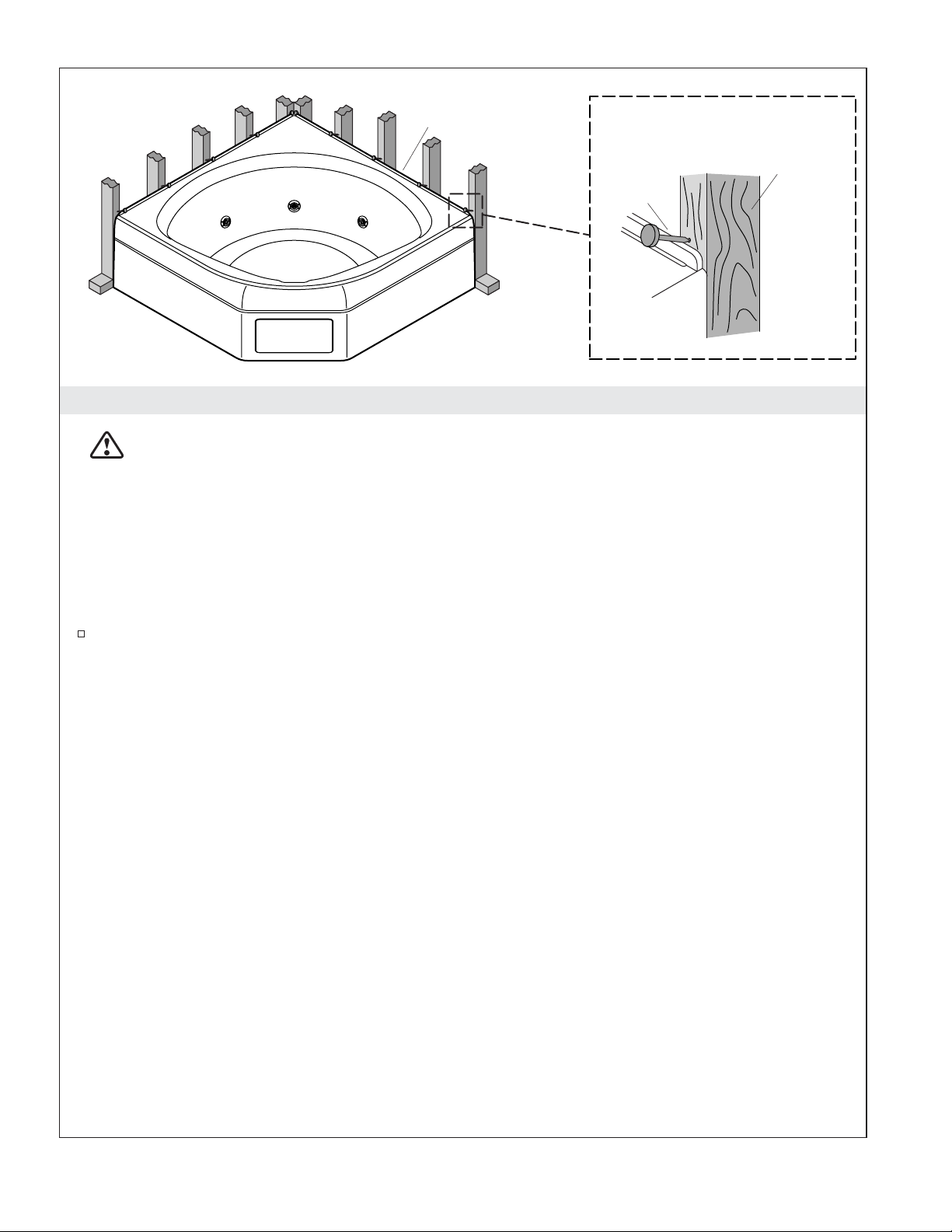

Secure the Whirlpool to the Stud Framing .............................................. 12
Install the Electrical Outlet ......................................................... 13
Cut the Pump Banding Straps ...................................................... 14
Install the Drain and Test the Piping .................................................. 14

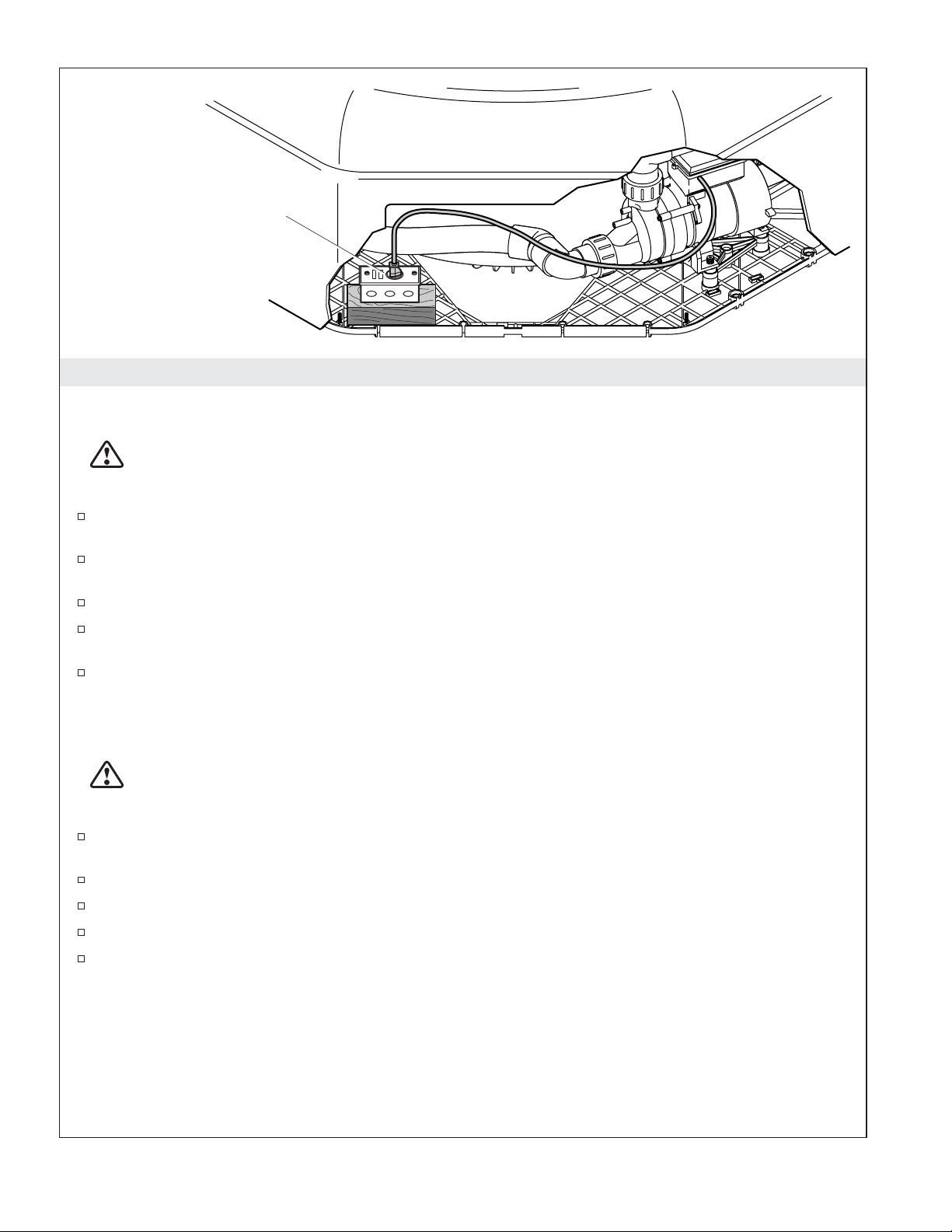

Make Electrical Connections ........................................................ 15

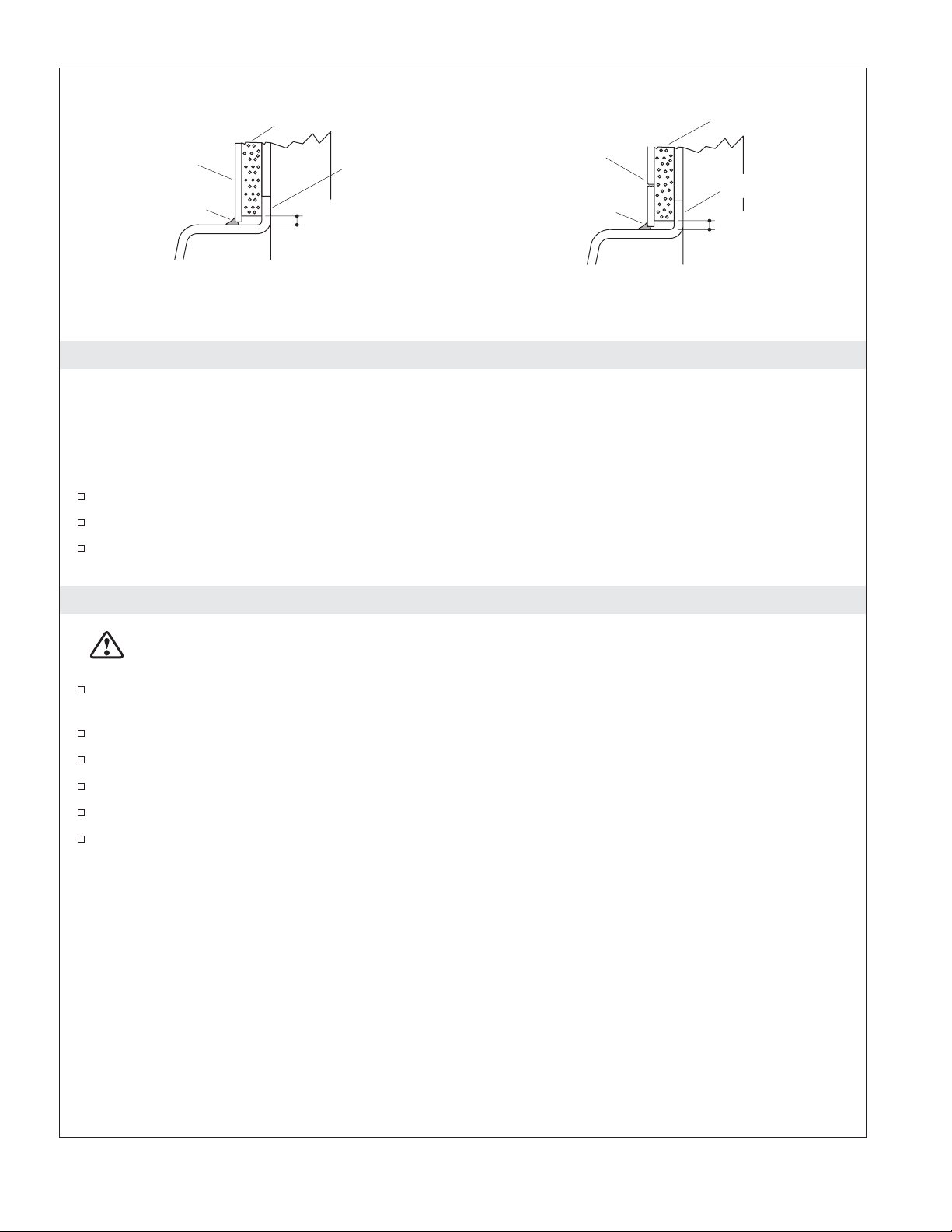

Complete the Finished Wall ........................................................ 16
Finish the Installation ............................................................. 16
Confirm Proper Operation .......................................................... 17

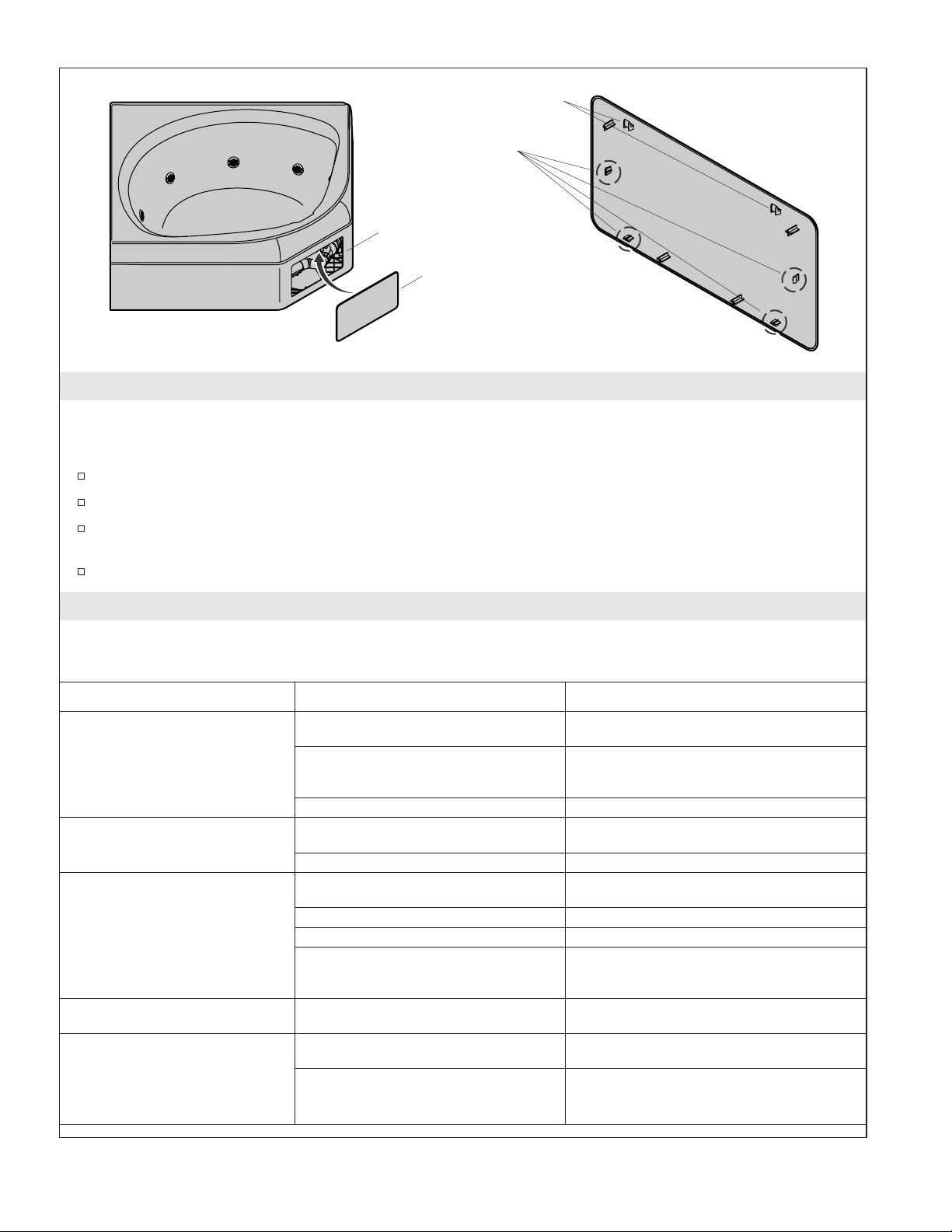

Install the Apron Access Panel ...................................................... 18
Troubleshooting Table ............................................................ 18
Sterling 3 1072813-2-A

Thank You For Choosing Sterling
We appreciate your commitment to Sterling value. Please take a few minutes to review this manual before
you start installation. If you encounter any installation or performance problems, please don’t hesitate to
contact us. Our phone numbers are listed within this manual. Thanks again for choosing Sterling.
Tools and Materials
Before You Begin
CAUTION: Risk of product damage. Install the whirlpool on an adequately supported, level
subfloor. The basin area requires no additional support when the subfloor is level and square with
the stud framing. Use shims for additional support if the subfloor is uneven. Do not install the
whirlpool over open floor joists.
CAUTION: Risk of property damage. Only apply 100% silicone sealant to the areas where
instructed to do so. Do not add silicone sealant to any other areas. The inappropriate use of silicone
sealant may trap moisture and could result in mold, leakage, or mildew. For whirlpool-only
installations, 100% silicone sealant is required at the seams of the walls and the whirlpool. We
recommend using colored 100% silicone sealant to match the color of the product. Use of latex
based or other caulks is not recommended. If a shower door will be added, you will be instructed
to apply silicone sealant where the front edges of the end wall surrounds will meet the whirlpool.
This will prevent water from passing through the shower door extrusion to the back side of the
wall. Follow the shower door and silicone sealant manufacturer’s instructions.
CAUTION: Risk of product damage. Do not lift the whirlpool using the apron brace. Lift the
whirlpool by the rim at multiple points. Whirlpool units in a single carton are shipped with apron
braces in the closed position. Whirlpool units in multi-pack cartons are shipped with one or more
sets of apron braces disconnected at the apron. Connect the apron braces to the apron before
removing the unit from the carton(s).
IMPORTANT! If your whirlpool is shipped with a liner, keep the liner in place until construction is
complete to prevent surface damage to the unit. If a liner is not available, place a clean drop cloth or
similar material in the bottom of the whirlpool.
IMPORTANT! Risk of product damage. Do not install the whirlpool over open floor joists. The basin area
requires no additional support when the subfloor is level and square with the stud framing. Install the
whirlpool on an adequately supported, level subfloor. Use shims for additional support if the subfloor is
uneven.
Read all instructions before you begin.
Observe all applicable plumbing, electrical, and building codes.
Clear 100%
Silicone Sealant
• Conventional woodworking tools
and materials
• Drop cloth
• Mortar cement (optional)
• 2x2s and 2x4s or 2x6s
• Hole saw or jigsaw with fine tooth
blade (32 teeth per inch)
• Galvanized or plated roofing nails
or galvanized non-tapered
flathead screws
Pencil
Square Claw Hammer Level
Pliers
Drill
2" (5.1 cm)
Masking Tape
Plus:
Tape
Measure
Safety
Glasses
Tin Snips Pipe Wrench
Adjustable
Wrench
1072813-2-A 4 Sterling

Before You Begin (cont.)
This whirlpool is designed for corner installations.
Upon receipt, check for shortages or damage. Report any shortages or damage immediately.
Do not remove the old fixture before you unpack and inspect the new unit.
Store the whirlpool in a safe place until you begin installation to avoid damage.
If remodeling, measure the existing framework before removing the old whirlpool to make sure that
the new whirlpool will fit. Make sure that the drain is in the correct location.
Confirm adequate mounting and connection space for the water supply and drain installation.
If you encounter any installation or performance problems, please do not hesitate to contact Sterling
between the hours of 7:00 am and 6:00 pm CST at: 1-888-STERLING in the USA or 001-877-680-1310
in Mexico.
If your whirlpool is shipped with a liner, keep the liner in place until construction is complete. If a
liner is not available, position a clean drop cloth or similar material in the bottom of the whirlpool.
Sterling reserves the right to make revisions in the design of products without notice, as specified in
the Price Book.
Sterling 5 1072813-2-A

Roughing-In
IMPORTANT! All dimensions are nominal. The stud opening tolerance is +1/8″(3 mm)/-0. Carefully
measure your fixture before determining enclosure size. Some shimming between the stud frame and the
fixture may be required. If a firewall is required, roughing-in dimensions will have to increase according to
the thickness of the firewall material. Stud opening dimensions must be measured toward the exposed
side of the wall material. Dimensions given in the roughing-in information are crucial for proper
installation. Construct the framing and plumbing accurately.

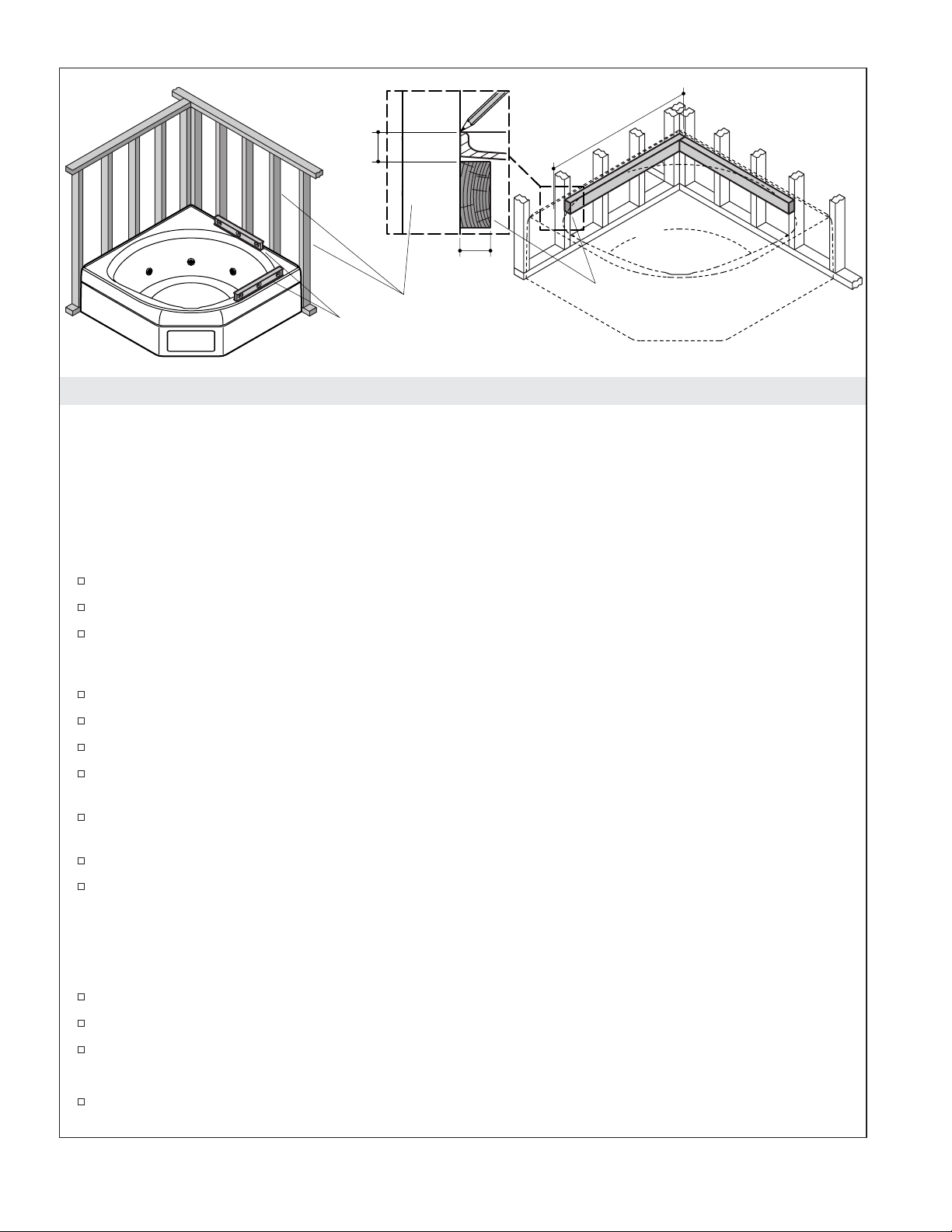

1. New Framing Construction
NOTE: Refer to the ″Roughing-In″section for dimensions.
WARNING: Risk of product and property damage. The whirlpool must be supported by the
subfloor.
Framing Provisions
A subfloor must be installed. The whirlpool must be positioned to allow clearance for drainage
through the floor joists or slab and to allow convenient plumbing installation.
IMPORTANT! Accessories that require backing or support are not recommended for this installation.
Installing these accessories could void the warranty.
If installing this unit with a shower door, refer to the shower door manufacturer’s instructions for
any special framing considerations. It may be appropriate to add studs for pivot shower door
support.
IMPORTANT! Construct the floor of plywood. If whirlpool is installed over material other than plywood,
friction may cause squeaking over time.
10-1/4"
(26 cm) 24-7/8"
(63.2 cm)
17-1/2" (44.5 cm)
from the Floor to
the Overflow
4-1/4"
(10.8 cm)
44"
(111.8 cm)
20"
(50.8 cm)
20-1/2"
(52.1 cm)
60"
(152.4 cm)
1/2"
(1.3 cm)
Tile Flange
Detail
Recommended faucet area
60" (152.4 cm)
72" (182.9 cm) 44" (111.8 cm)
1" (2.5 cm) from the
Floor to the Drain
42-7/16" (107.8 cm)
42-7/16"
(107.8 cm)
1072813-2-A 6 Sterling

2. Prepare the Site
IMPORTANT! The whirlpool supports must rest directly on a level subfloor.
IMPORTANT! Squeaking may develop if the whirlpool is installed over a subfloor other than plywood. In
order to prevent squeaking, place the included pad between the whirlpool and the subfloor and positioned
under the whirlpool supports. Do not use roofing felt.
IMPORTANT! The drain line must be installed in accordance with the drain manufacturer’s instructions.
Locate the drain line and trap using the dimensions given in the ″Roughing-In″section.
For through-the-floor drain installations, cut the hole in the floor for the drain assembly. The drain
connection should be made directly under the overflow drain. Leave room to connect the piping.
Verify the subfloor is level. If the subfloor is not level, proceed to the ″Level the Subfloor″subsection
below.
If a firewall is required, roughing-in dimensions will have to increase according to the thickness of the
firewall material. Stud opening dimensions must be measured toward the exposed side of the wall material.
Carefully measure your fixture before determining enclosure size. Some shimming between the stud frame
and the fixture may be required. Dimensions given in the Roughing-In section are crucial for proper
installation. Construct the framing and plumbing accurately.
Level the Subfloor (Optional)
IMPORTANT! The whirlpool may also be leveled using shims.
IMPORTANT! Mortar cement is required to level an uneven subfloor. Do not use plaster, gypsum cement,
or drywall compound for this application, as these materials do not provide adequate structural support.
Spread a layer of mortar cement on the subfloor where the whirlpool supports will be located.
Route the electrical supply to the future outlet location.
Sterling 7 1072813-2-A

3. Install the Rough Plumbing
NOTE: Provide access to all plumbing connections to simplify future maintenance. Include access at the
back of the plumbing wall whenever possible.
Install the water supply pipes according to the faucet manufacturer’s instructions. Cap the supplies
and check for leaks.
Strap the supply lines to the stud framing.
Install the shower valving according to the manufacturer’s instructions. Do not install the trim at
this time.
44"
(111.8 cm)
44"
(111.8 cm)
Drain
Location
Drain
Cutout
Whirlpool Rim
Install the faucet to the rim and
plywood according to the faucet
manufacturer's instructions.
Faucet Location
1072813-2-A 8 Sterling

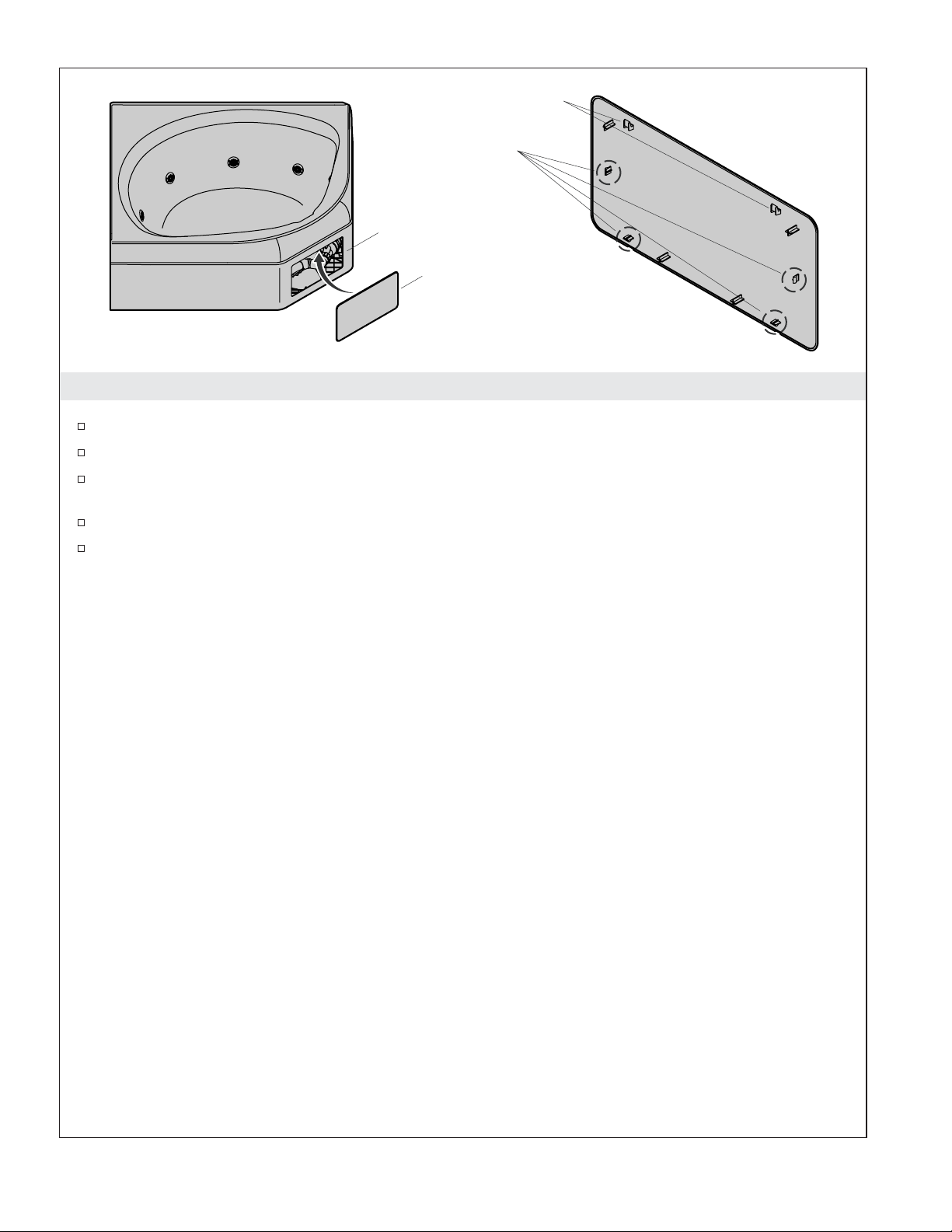

4. Remove the Apron Panel
Insert a flat-blade screwdriver or other prying tool into one of the two screwdriver slots.
Use the screwdriver to pry the bottom clip out and release the clip.
When all bottom clips are released, pull the bottom of the panel away from the apron to release the
remaining clips.
When the bottom of the panel is clear, lower the panel until the top of the panel is clear.
Store the panel in a safe place.
Clips
Apron Panel
Apron Frame
Tabs
Sterling 9 1072813-2-A

5. Position the Whirlpool
CAUTION: Risk of product damage. Do not lift or move the whirlpool by the apron or apron braces.
Verify that the apron braces are attached before installing the whirlpool, then lift the whirlpool by the rim
at multiple points.
NOTE: If the whirlpool cannot be directly bonded to the subfloor or if decreased movement is desired,
consider installing an optional mortar cement bed following the ″Install a Mortar Cement Bed″steps
below.
NOTE: Keep a liner or drop cloth in place in the bottom of the whirlpool until construction is complete.
Dry fit the whirlpool.
Check the whirlpool to make sure it is level.
If the bath is not level, level using mortar cement following the ″Install a Mortar Cement Bed″steps
below, or shim with metal, hardwood, or other durable material. Reposition and shim the bath until
it is aligned with the framing and level.
Mark the height of the whirlpool flange on each walled side.
Remove the whirlpool.
Measure down 11/16″(1.7 cm) from the first mark and make a second mark.
At the second mark, install a brace, a maximum of 54″(137.2 cm) long and 1-1/2″(3.8 cm) thick, for
rim support.
Dry fit the whirlpool and make sure the rim of the whirlpool does not support its weight. Lower
the brace slightly if the weight of the whirlpool rests on the brace.
Remove the whirlpool.
Install the drain and overflow assembly to the whirlpool according to the drain manufacturer’s
instructions.
IMPORTANT! Squeaking may develop if the whirlpool is installed over a subfloor other than plywood. In
order to prevent squeaking, place the included pad between the whirlpool and the subfloor and positioned
under the whirlpool supports. Do not use roofing felt.
Position the pad under the whirlpool supports.
Position and adjust the whirlpool until its outside edge is flush with the framing.
Verify that the whirlpool is level and well supported by the subfloor.
Install a Mortar Cement Bed (Optional)
Remove the whirlpool and pad from the alcove.
54" (137.2 cm)
Maximum
11/16"
(1.7 cm)
1-1/2"
(3.8 cm)
Stud Brace
Verify that the
whirlpool is level.
1072813-2-A 10 Sterling

Position the Whirlpool (cont.)
NOTE: Do not use plaster, gypsum cement, or drywall compound for this application, as they will not
provide adequate structural support.
NOTE: The whirlpool supports must rest directly on the subfloor.
Spread a 2″(5.1 cm) layer of mortar cement on the subfloor, spreading it so that each area of the
whirlpool that will contact the subfloor has mortar cement. Do not spread the mortar cement
around the drain area. Allow room for the mortar cement to expand from the weight of the
whirlpool.
Immediately move the whirlpool into position.
Verify that the whirlpool is level and resting on all supports.
Clean the whirlpool to reduce the risk of damaging the surface.
Place a clean drop cloth or other similar material into the bottom and over the outside edge of the
whirlpool. Be careful not to scratch the surface of the unit.
Sterling 11 1072813-2-A

6. Secure the Whirlpool to the Stud Framing
CAUTION: Risk of product and property damage. Do not nail or drill through the whirlpool
flange, as this may crack the flange and cause leaks.
IMPORTANT! Risk of product damage. To avoid rust marks on your product, ensure the roofing nails or
non-tapered flathead screws are galvanized or plated. If using galvanized or plated non-tapered flathead
screws, do not overtighten the screws. Excessive tightening can damage the whirlpool flange. Consult
local building codes to determine if the screws or nails must be galvanized or plated.
NOTE: This whirlpool is designed for installation into regularly spaced framing. If there is a gap between
the edge of the whirlpool and the stud, then shim the stud in order to bring the stud to within 1/8″(3
mm) of the whirlpool.
Secure the whirlpool using roofing nails (galvanized or plated) or non-tapered flathead screws
(galvanized or plate) over the top of the whirlpool flange. This will pin the flange to the studs.
Wall Stud
Whirlpool Flange
Roofing
Nail
1072813-2-A 12 Sterling

7. Install the Electrical Outlet
CAUTION: Risk of personal injury. Do not turn on the power until instructed to do so.
NOTE: The whirlpool is equipped with a cord and plug. All pump and control wiring has been completed
at the factory.
NOTE: Refer to the label near the pump. This label identifies the electrical rating and model number of the
whirlpool.
Install the GFCI-protected, 120 V, 15 A grounded outlet inside the access panel within 24″(61 cm) of
the pump’s future location. The electrical box must be located a minimum of 1-1/2″(3.8 cm) above
the subfloor.
Install a bonding (grounding) conductor at the future location of the pump in accordance with any
applicable local codes.
42-1/2"
(108 cm)
3-1/2"
(8.9 cm)
5" (12.7 cm)
Block Location
54-5/8"
(138.7 cm)
Install a GFCI-protected 120
V, 15 A grounded outlet.
Bond in accordance
with applicable codes.
1-1/2" (3.8 cm) minimum from the floor.
Sterling 13 1072813-2-A

8. Cut the Pump Banding Straps
IMPORTANT! This step is necessary to make your whirlpool operate more quietly.
IMPORTANT! Do not raise the pump higher than it was before you cut the pump banding straps. If the
pump is raised too high, it will not prime properly.
Cut the two pump banding straps from the whirlpool pump with a pair of tin snips. Discard the
banding straps.
Make sure that the pump is not in direct contact with the whirlpool harness.
9. Install the Drain and Test the Piping
CAUTION: Risk of property damage. Make sure that the whirlpool drain has a watertight seal, or
the whirlpool may leak.
Connect the drain to the trap according to the manufacturer’s instructions.
Temporarily install the faucet handles and spout according to the manufacturer’s instructions.
Turn on the hot and cold water supplies.
Check the supply connections for leakage. Repair any leaks.
Run the water to flush any debris from the lines.
Check the drain connections for leakage. Repair any leaks.
Close the faucet handles.
Remove the faucet handles and spout according to the manufacturer’s instructions.
Pump
Suction Line
Drainage
Cut the pump
banding straps.
Note: Pump model
illustrated may differ from
your actual product.
1072813-2-A 14 Sterling

10. Make Electrical Connections
Make Connections
DANGER: Risk of electric shock. To reduce the risk of electrical shock, connect the pump only to
properly installed Ground-Fault Circuit-Interrupters (GFCI). Do not remove the plug grounding
pins. Do not use grounding adapters.
Verify that the air actuator tubing is securely attached to the pump and to the air switch button in
the whirlpool. Use a small mirror and flashlight to assist you.
Make sure that the tubing is not kinked or damaged, and that the tubing slips into place on
adapters at the switch and at the pump. Make any required corrections to the air actuator tubing.
Visually inspect the whirlpool pump and piping harness for damage.
Verify that the bonding conductor is connected to the pump in accordance with the applicable
codes.
Plug the pump’s electrical cord into the GFCI outlet.
Test Run the Whirlpool
For additional information on whirlpool operation, see the ″Confirm Proper Operation″section of this guide.
CAUTION: Risk of property damage. Do not fill the whirlpool above the bottom of the overflow
drain. Doing so may cause the whirlpool piping to leak. The whirlpool is not designed to hold
water above the overflow.
Check all electrical connections and make sure that the electrical power to the whirlpool is turned
on.
Verify that the pump banding straps have been cut.
Fill the whirlpool with water to at least 2″(5.1 cm) above the top of the highest jet.
Operate the whirlpool for 5 minutes. Check all whirlpool piping connections for leaks.
Turn off the jets to the whirlpool, then drain the whirlpool. Replace the protective liner or drop
cloth.
Plug the pump into the outlet.
Sterling 15 1072813-2-A

11. Complete the Finished Wall
NOTE: Locate and size the holes for the valves, shower control, spout, and/or shower in the walls
according to the manufacturer’s requirements.
IMPORTANT! When applying the water-resistant wall material over the whirlpool flange, leave a 1/4″(6
mm) gap between the whirlpool rim edge and the wall material. This gap helps to reduce the possibility
of water seeping into the wall material.
Brush all dust and debris from the whirlpool flange.
Cover the framing with water-resistant wall material.
Seal the 1/4″(6 mm) gap between the whirlpool rim edge and the water-resistant wall material with
clear 100% silicone sealant.
12. Finish the Installation
CAUTION: Risk of property damage. Make sure that a watertight seal exists around the drain and
overflow.
Install the faucet trim, whirlpool spout, shower door, and any accessories according to each
manufacturer’s instructions.
Remove the protective covering from the whirlpool.
Open the water supply lines, then run the water to flush out any debris.
Close the valves.
Check all connections for leaks.
If applicable, install all other accessories according to the manufacturer’s instructions.
1/4" (6 mm)
Finished Wall
Whirlpool with Water-Resistant
Wall Material and Finished Wall
Whirlpool Flange
Tile or Other
Wall Finish
Whirlpool with Tile,
Marble, Etc.
Water-Resistant
Wall Material
Water-Resistant
Wall Material
1/4" (6 mm)
Whirlpool Flange
Clear 100%
Silicone Sealant Clear 100%
Silicone Sealant
1072813-2-A 16 Sterling

13. Confirm Proper Operation
Please read these steps carefully before you operate your whirlpool.
Verify all electrical connections.
Verify that the pump banding straps have been cut.
Close the circuit breaker for the whirlpool pump.
Fill the Whirlpool
Fill the whirlpool to at least 2″(5.1 cm) above the top of the highest jet.
Operating Sequence
NOTE: If you encounter problems with the operating sequence, refer to the ″Troubleshooting Table″
section in this manual and in the Homeowners Guide. The Homeowners Guide also includes warranty
information.
Press the air actuator to turn on the whirlpool jets.
Verify that the pump starts and operates without excessive noise or vibration.
Verify that water is circulating and flowing from each jet.
Adjust each large jet for optimum flow. Turn the trim ring clockwise to decrease the flow, and
counterclockwise to increase the flow.
After 5 minutes, check the piping connections for leaks. Repair any leaks.
Press the air actuator a second time to turn off the whirlpool.
Verify that the pump stops.
Drain the whirlpool.
Fill with water at least 2" (5.1 cm)
above the highest jet.
Turn the jet trim ring
clockwise to
decrease the flow. Position the jet
nozzles to direct
the water flow as
desired.
Turn the jet trim ring counterclockwise
to increase the flow.
Press the air switch to turn the
whirlpool on or off.
Sterling 17 1072813-2-A

14. Install the Apron Access Panel
IMPORTANT! Risk of product damage. Ensure that the tabs are aligned before pressing the apron panel
into place. Improper alignment can damage the clips.
Ensure that the apron area is free from obstructions.
Position the apron panel in the apron frame.
Slide the apron panel tabs up under the apron frame until the tabs engage and all clips align with
the apron frame opening.
Press the center of the apron panel until it snaps into place.
Troubleshooting Table
This troubleshooting guide is for general aid only. An Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Symptoms Probable Causes Recommended Action
1. Whirlpool does not
start/stop. A. No power to the pump motor. A. Set/Reset the GFCI breaker. Check the wiring.
B. Air actuator does not work. B. Replace air actuator. Check air tube
between air actuator and pump.
Replace if necessary.
C. Motor/pump does not work. C. Rebuild or replace motor/pump.
2. Motor starts, but all jets
are not functioning. A. Jet is closed. A. Rotate jet trim ring counterclockwise to open.
B. Jet is blocked. B. Remove the blockage.
3. Whirlpool stops
automatically. A. GFCI trips. A. Identify source of fault, and correct.
B. Suction blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at motor vents. Remove blockage and allow motor
to cool.
4. Noisy operation. A. Pump banding straps have not
been cut. A. Cut pump banding straps with a pair of tin snips.
5. Leakage is detected under
the whirlpool. A. Piping leaks. A. Repair any piping leaks.
B. Sealant or gasket failure at holes
through finished walls, shower
door, or wall surrounds.
B. Replace any defective gaskets or
seals. Apply clear 100% silicone
sealant as required.
Clips
Apron Panel
Apron Frame
Tabs
1072813-2-A 18 Sterling

Troubleshooting Table (cont.)
Symptoms Probable Causes Recommended Action
6. Mold or mildew detected
(for units with wall
surrounds).
A. Blocked channel drainage. A. Use a sharp wooden or plastic
object to scrape any buildup from
the seam. Increase the frequency of
cleaning.
7. Water damage at finished
walls. A. Seam at finished wall not sealed. A. Seal the seam with clear 100% silicone sealant, following the
manufacturer’s instructions.
Sterling 19 1072813-2-A

Guide d’installation
Baignoire à hydromassage
Renseignements importants
AVERTISSEMENT : Des précautions de base seront observées pour l’installation d’équipements
électriques, incluant :
DANGER : Risque d’électrocution. Afin de réduire les risques de choc électrique, raccorder
uniquement à une prise de terre, protégée par un disjoncteur différentiel (GFCI). Ne pas retirer les
broches de mise à la terre. Ne pas utiliser d’adaptateurs de mise à la terre.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez lire avec
attention les instructions avant de commencer l’installation, incluant les exigences suivantes:
AVERTISSEMENT : Risque d’électrocution. Un électricien qualifié devrait effectuer toutes les
connexions électriques.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à
l’entretien.
Les matériaux de construction et le câblage devraient être acheminés loin du corps de la pompe et des autres
composants qui dégagent de la chaleur de l’unité.
REMARQUE : Respecter tous les codes de plomberie, d’électricité et de bâtiment locaux.
Information sur le produit
Branchements électriques requis
REMARQUE : Si le câble d’alimentation est endommagé, il doit être remplacé par le fabricant, son
représentant ou autre personnel similaire qualifié pour éviter tout danger.
L’installation doit inclure un Disjoncteur de Fuite de Terre de Classe A (GFCI). Le disjoncteur GFCI
protège contre les risques de chocs. Utiliser une alimentation de 120 V, 15 A, 60 Hz dédiée à la
baignoire à hydromassage.
Notices du produit
AVERTISSEMENT : Des modifications non approuvées de la pompe pourraient provoquer un
fonctionnement dangereux ou une pauvre performance de la baignoire à hydromassage. Ne pas
déplacer la pompe de la baignoire à hydromassage ou effectuer d’autres modifications au système
d’hydromassage car celà pourrait affecter les performances et la sécurité de la baignoire à
hydromassage. Sterling Plumbing décline toute responsabilité quant aux blessures ou
endommagements causés par des modifications non autorisées.
Pièces assemblées en usine
Les composants installés en usine comportent: une pompe avec le câble d’alimentation, un
interrupteur d’air, et des jets d’hydromassage avec raccord d’aspiration.
Connexions et accès pour l’entretien
S’assurer d’avoir suffisamment d’accès pour les connexions finales avant l’installation.
Sterling Français-1 1072813-2-A
